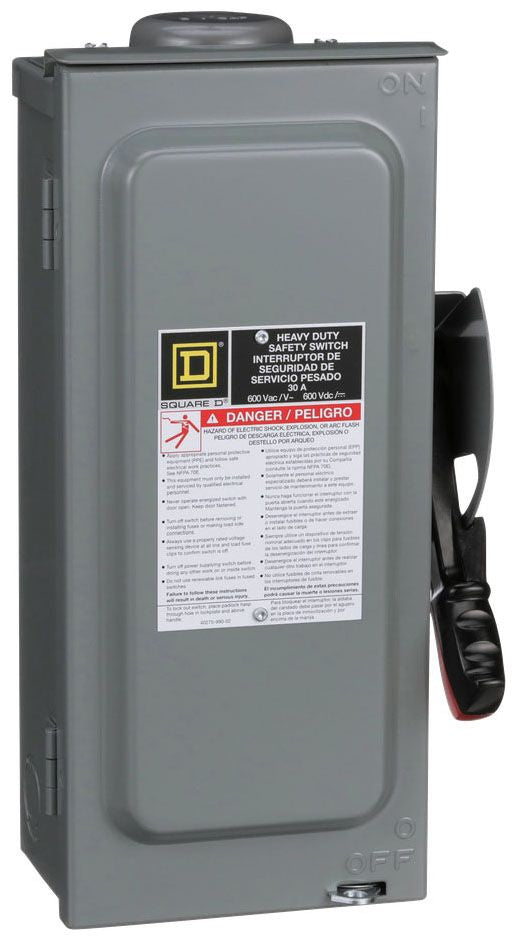

Square D HU361NRB - Non-Fusible Safety Switch, 30A 600V 3P

Square D
Price
Save $301.79
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
Square D HU361NRB is a heavy-duty safety switch designed for isolating and disconnecting power in industrial three-phase electrical systems. It provides reliable circuit protection with a 30A current rating and 600V voltage rating, housed in a robust NEMA 3R enclosure measuring 377.95 mm H x 191.77 mm W x 123.44 mm D and weighing 8.411 lb. This non-fusible switch is UL-certified and features a 200kA interrupting capacity at 600V, ensuring compliance with stringent safety standards. Its construction supports typical applications in manufacturing plants, commercial facilities, and other environments requiring a durable 3-pole disconnect for machinery and distribution panels.

Key Features & Specifications
  • Type: H-Type, Non-Fusible Safety Disconnect Switch, Series F Family
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 14.88 in (377.95 mm) H x 7.55 in (191.77 mm) W x 4.86 in (123.44 mm) D
  • Standards: UL Certified
  • Applications: Industrial power isolation, machinery disconnects, three-phase distribution panels
  • Switch Type: Non-Fusible
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 12 to AWG 6 Aluminum, AWG 14 to AWG 6 Copper
  • NEMA Rating: 3R
  • Weight: 8.411 lb


Product Identification
  • UPC: 078590107788
  • GTIN: 00785901077886
