Square D HU361A - Non-Fusible Disconnect Switch 30A 600V 3P

Square D
Price
Save $-541.95
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

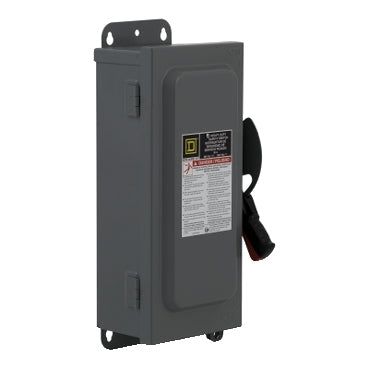

Square D HU361A is a heavy-duty, non-fusible safety disconnect switch designed for the safe isolation of three-phase electrical circuits in industrial applications. It provides a 30A current rating and a 600V voltage rating, with a high interrupting capacity of 200kA at 600V for reliable circuit protection. The switch is constructed with a robust, UL-certified design, featuring a compact footprint of 370.8 mm H x 191.77 mm W x 125.98 mm D and a weight of 9.89 lb for panel integration. It complies with NEMA 1 enclosure standards and is engineered for compatibility with NSX series frames. Typical applications include motor control centers, industrial machinery, and power distribution panels where a visible disconnect is required.

Key Features & Specifications
  • Type: H-Type, Non-Fusible Safety Disconnect Switch, Series F
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 14.6 in (370.8 mm) H x 7.55 in (191.77 mm) W x 4.96 in (125.98 mm) D
  • Weight: 9.89 lb
  • Standards: UL Certified, NEMA 1 Enclosure Rating
  • Applications: Motor Control Centers, Industrial Machinery, Power Distribution Panels
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • Wire Size: AWG 12 to AWG 6 Aluminum, AWG 14 to AWG 6 Copper
  • Compatible Frames: NSX
  • Fuse Class: Non-Fusible


Product Identification
  • UPC: 078590150573
  • GTIN: 00785901505730
