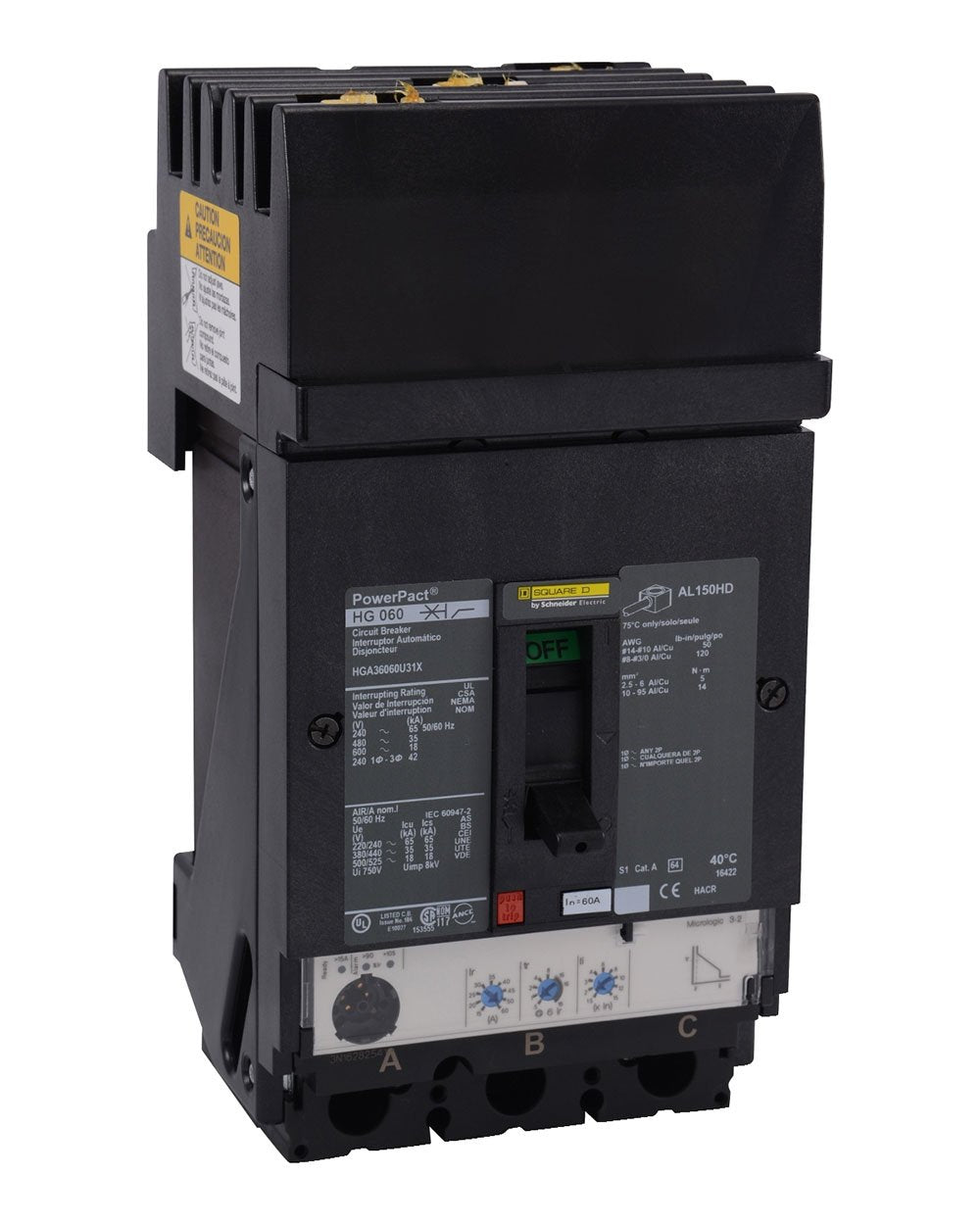

Square D HRA36060U31X is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact H-frame construction measuring 163 mm high by 104 mm wide by 86 mm deep and weighing 5.75 lb. This solid-state protection device complies with UL, CSA, NEMA, and IEC 60947-2 standards and is engineered for operation in ambient temperatures from -2 to 70 °C. Its I-Line style plug-in connection and compatibility with wire sizes from 14 AWG to 3/0 AWG make it suitable for integration into panelboards and switchboards requiring a 200kA interrupting capacity at 480V.

Key Features & Specifications
  • Type: HRA Molded Case Circuit Breaker with Solid State, Long-Time and Instantaneous (LI) Protection
  • Voltage Rating: 600V AC
  • Current Rating: 60A

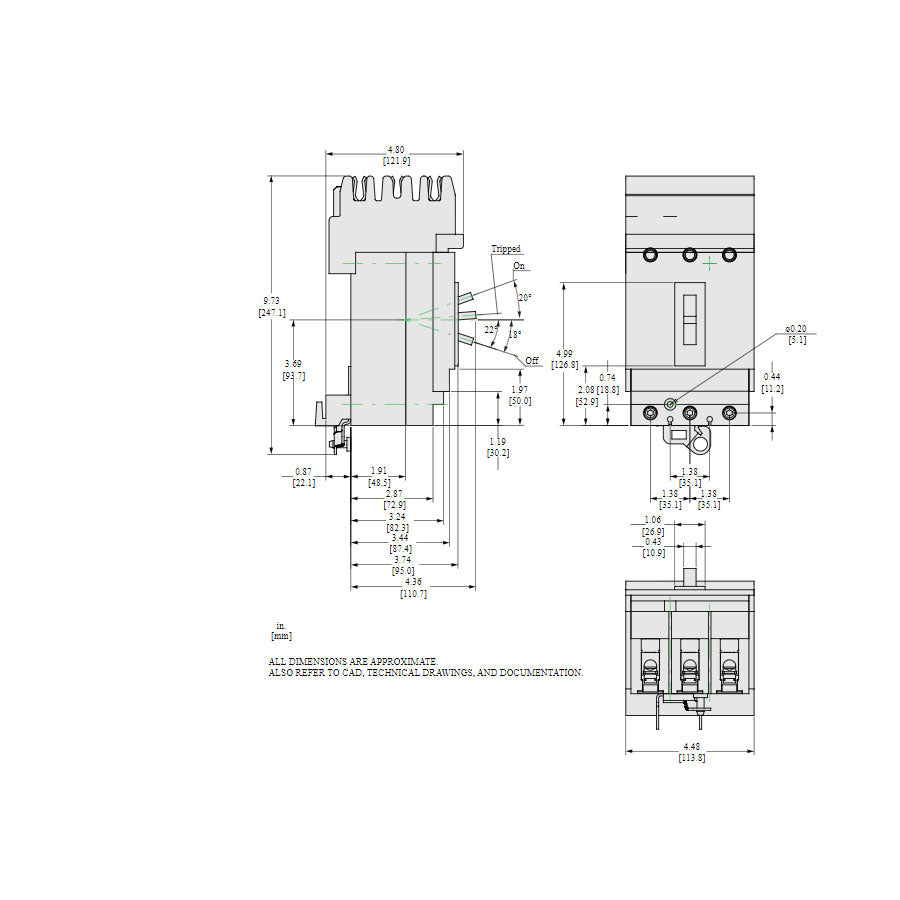

  • Dimensions: 6.4 in H x 4.09 in W x 3.4 in D (163 mm x 104 mm x 86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 3
  • AIC Rating: 200kA @ 480V
  • Connection: I-Line Style Plug-In
  • Poles: 3
  • Protection: Solid State
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: I-Line, Lug
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Weight: 5.75 lb


Product Identification
  • UPC: 785901943778
  • GTIN: 00785901943778
