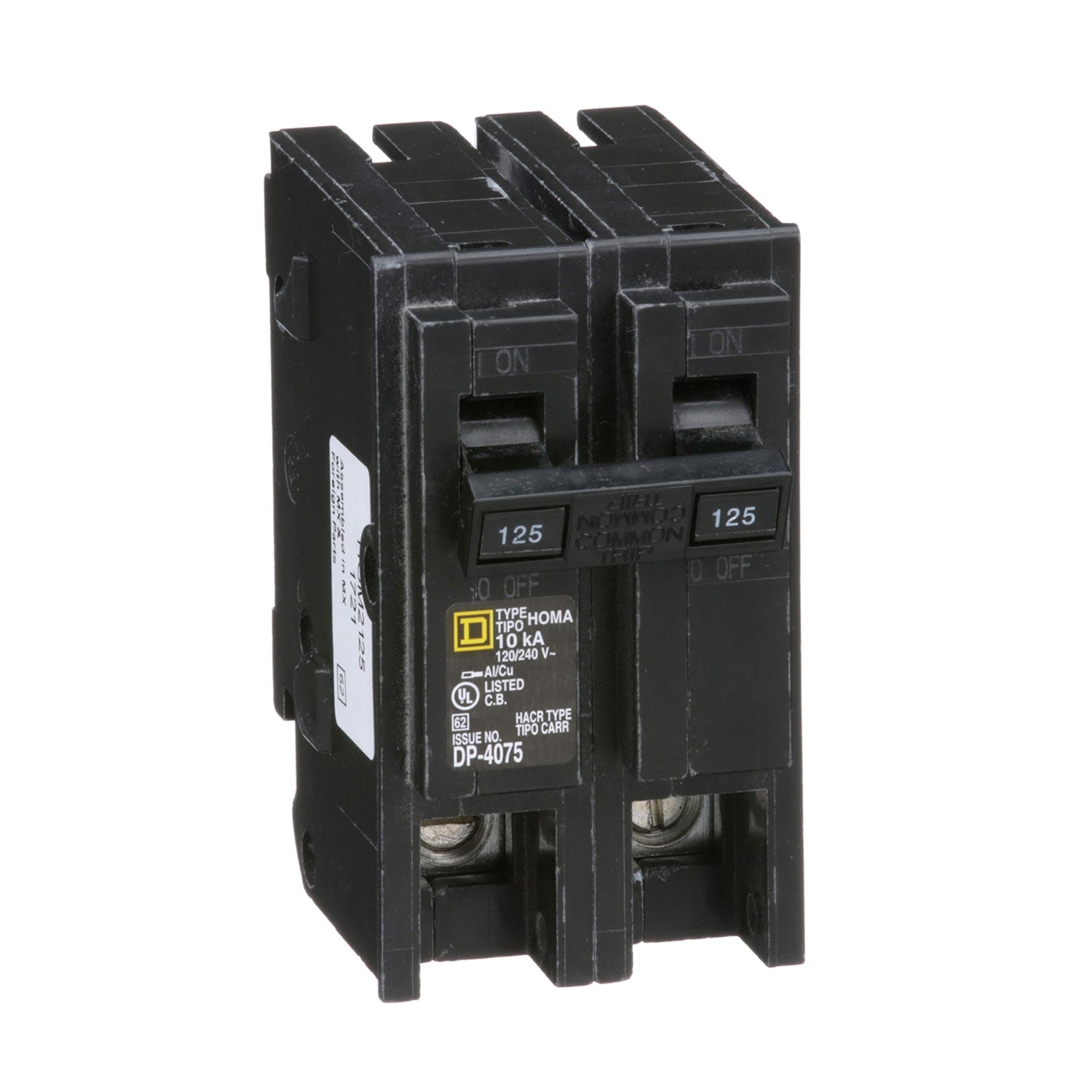

Square D HOM2125 - 125A 2-Pole Circuit Breaker (10kA AIC)
Square D HOM2125 - 125A 2-Pole Circuit Breaker (10kA AIC)

Square D HOM2125 - 125A 2-Pole Circuit Breaker (10kA AIC)

Square D
Price
Save $257.87
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HOM2125 is a molded case circuit breaker designed for providing reliable overcurrent protection in residential and light commercial electrical systems. It features a 125A current rating and a 120/240V AC voltage rating, housed within a compact plug-in unit measuring 79.5 mm H x 50.8 mm W x 75.69 mm D and weighing 0.86 lb. The breaker is constructed with a thermal-magnetic trip mechanism providing long-time and instantaneous (LI) protection and is certified to UL, CSA, and HACR standards for safety and interoperability. Its typical application is within Homeline load centers, where it safeguards circuits using copper or aluminum conductors from size 8 AWG to 2/0 AWG.

Key Features & Specifications
  • Type: Standard, Molded Case, Thermal-Magnetic Protection, Plug-In Connection
  • Voltage Rating: 120/240V AC
  • Current Rating: 125A
  • Frame Size: 100A/HOM
  • Poles: 2
  • Phase: 1
  • AIC Rating: 10kA @ 240V
  • Connection: Plug-In, Lug Terminal
  • Wire Size: 1x AWG 4 to AWG 2/0 (Aluminum/Copper), MCM: Min 8 AWG, Max 2 AWG
  • Dimensions: 3.13 in (79.50 mm) H x 2 in (50.8 mm) W x 2.98 in (75.69 mm) D
  • Weight: 0.86 lb
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Standards & Certification: UL Listed, CSA Certified, HACR
  • Panel Type: Homeline Load Center
  • Protection Functions: LI - Long-Time and Instantaneous Trip
  • Country of Origin: Mexico
  • Family: HOMELINE


Product Identification
  • UPC: 785901065791
  • GTIN: 00785901065791
