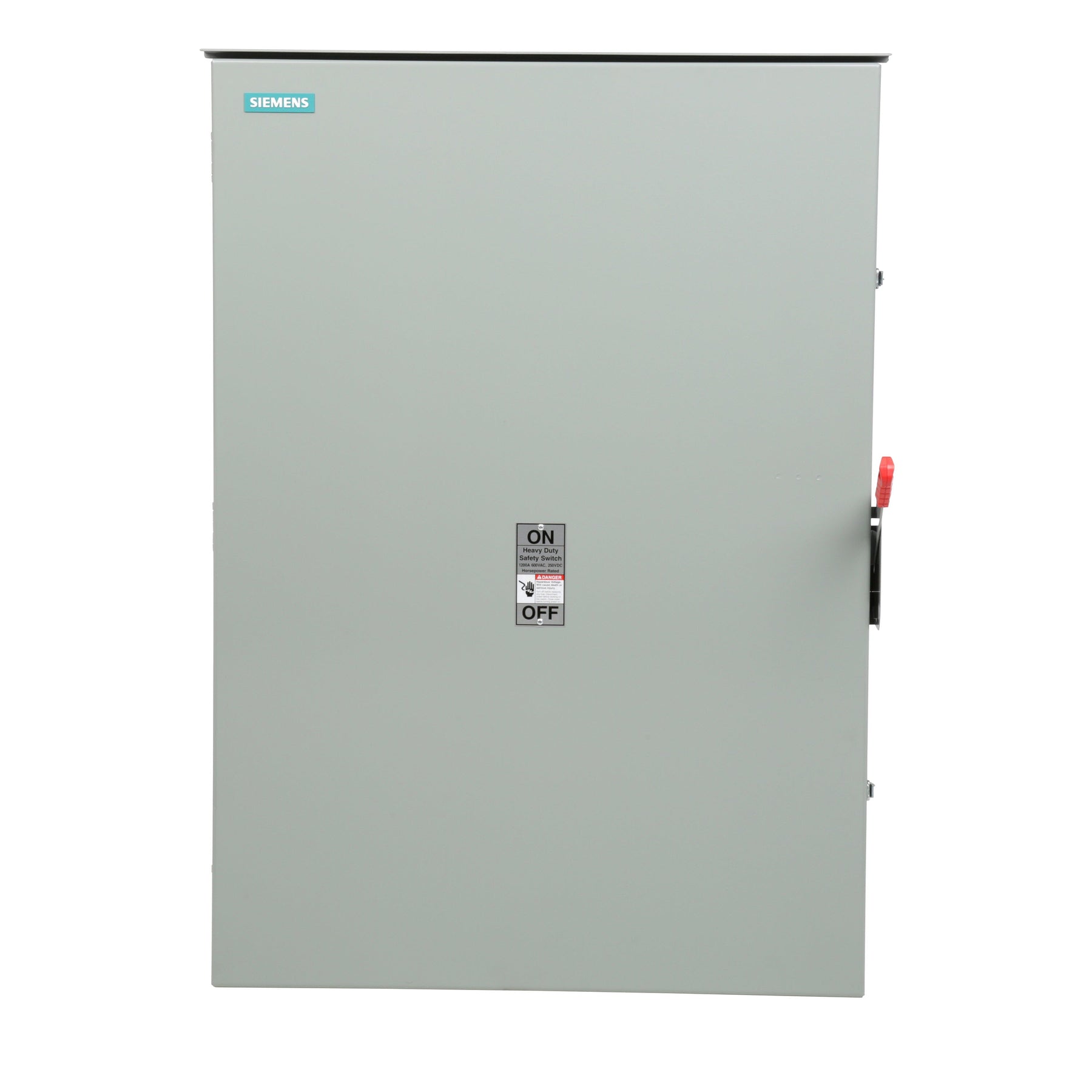

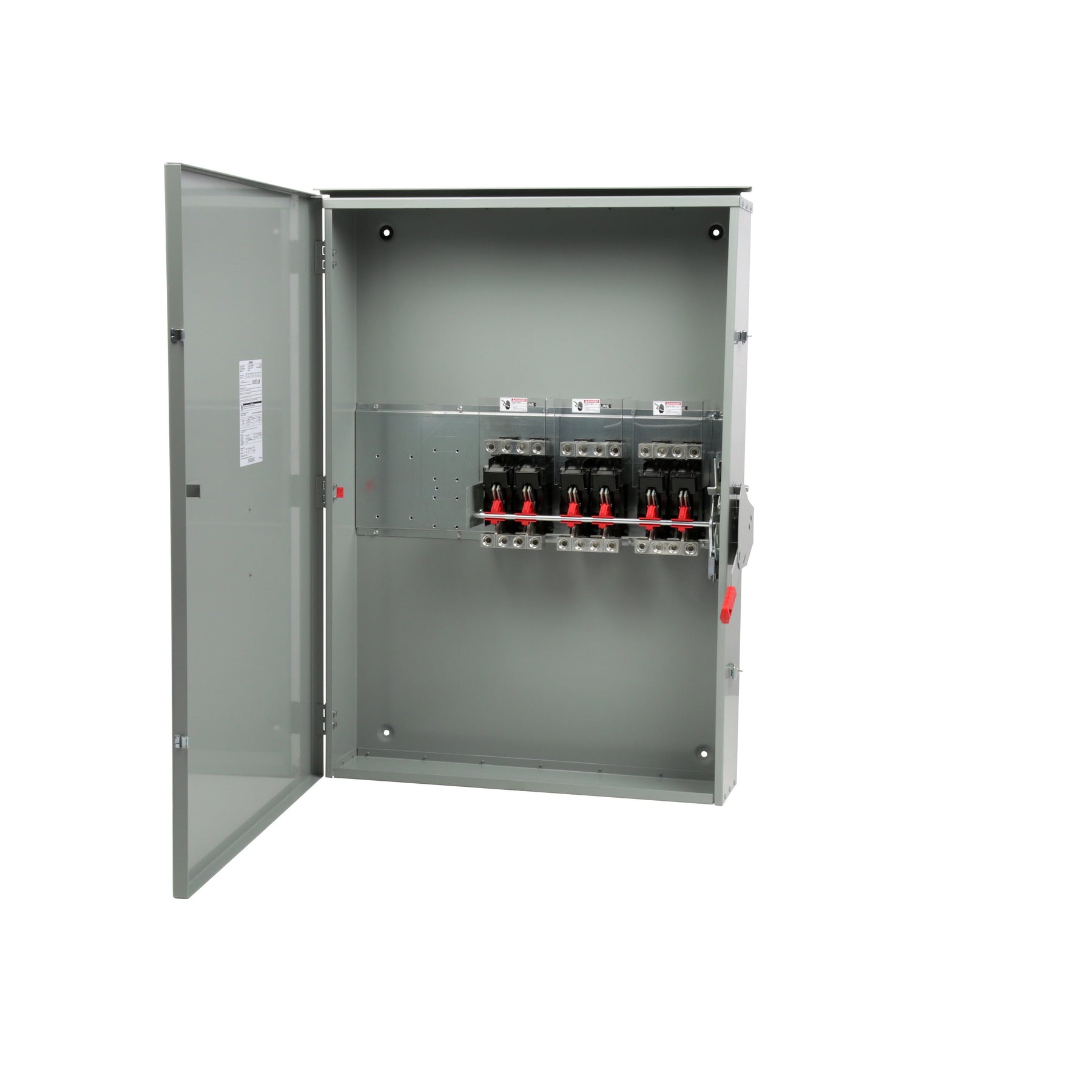

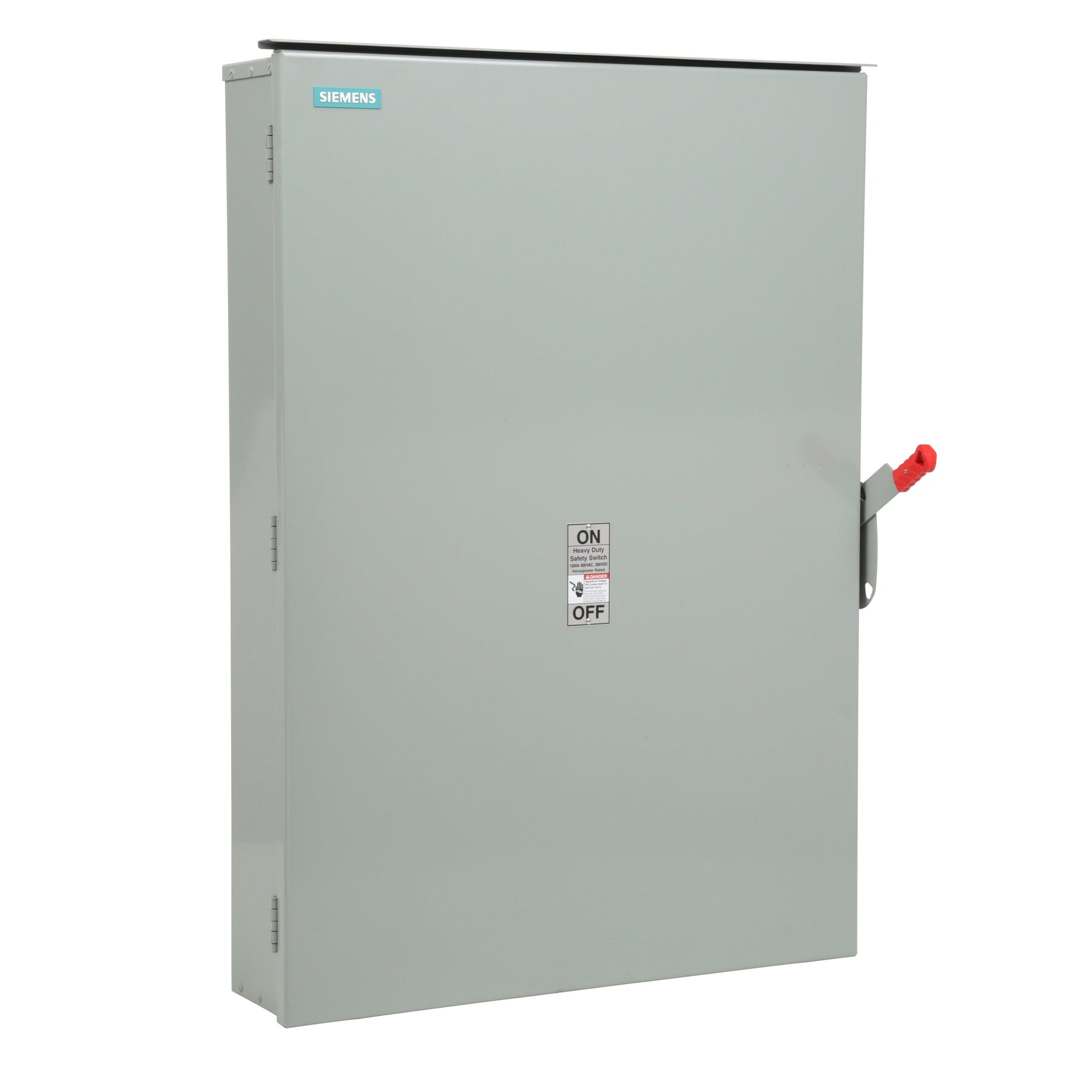

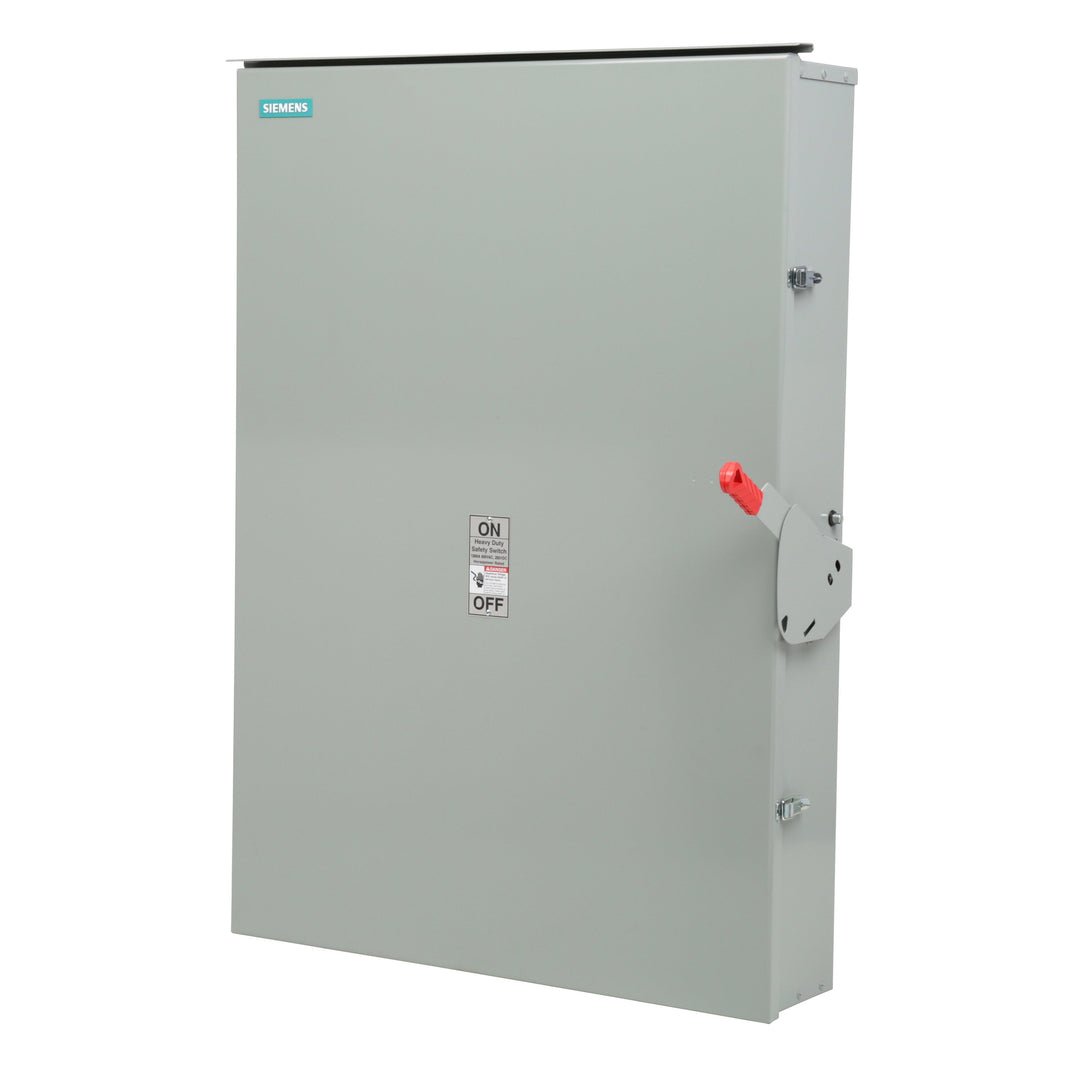

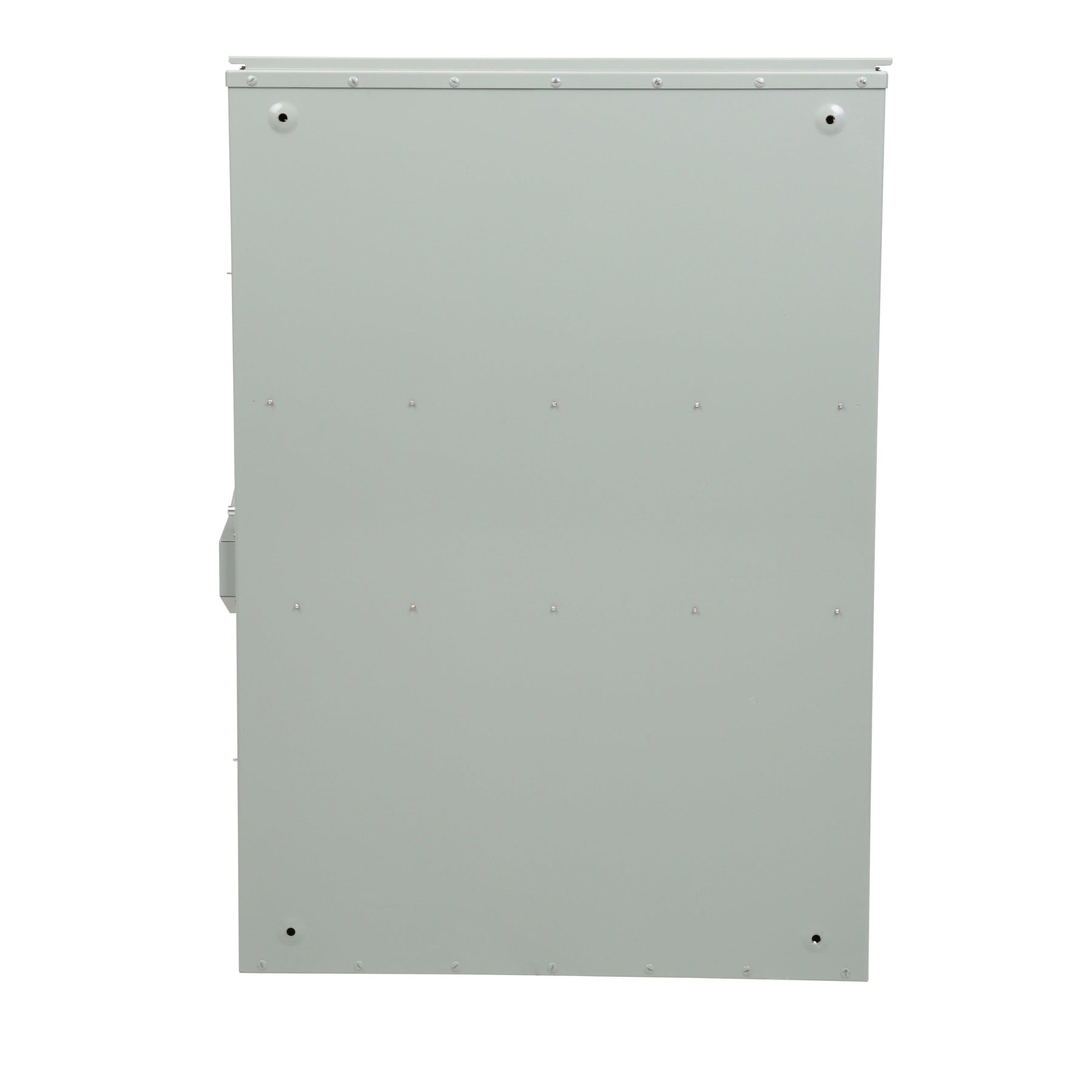

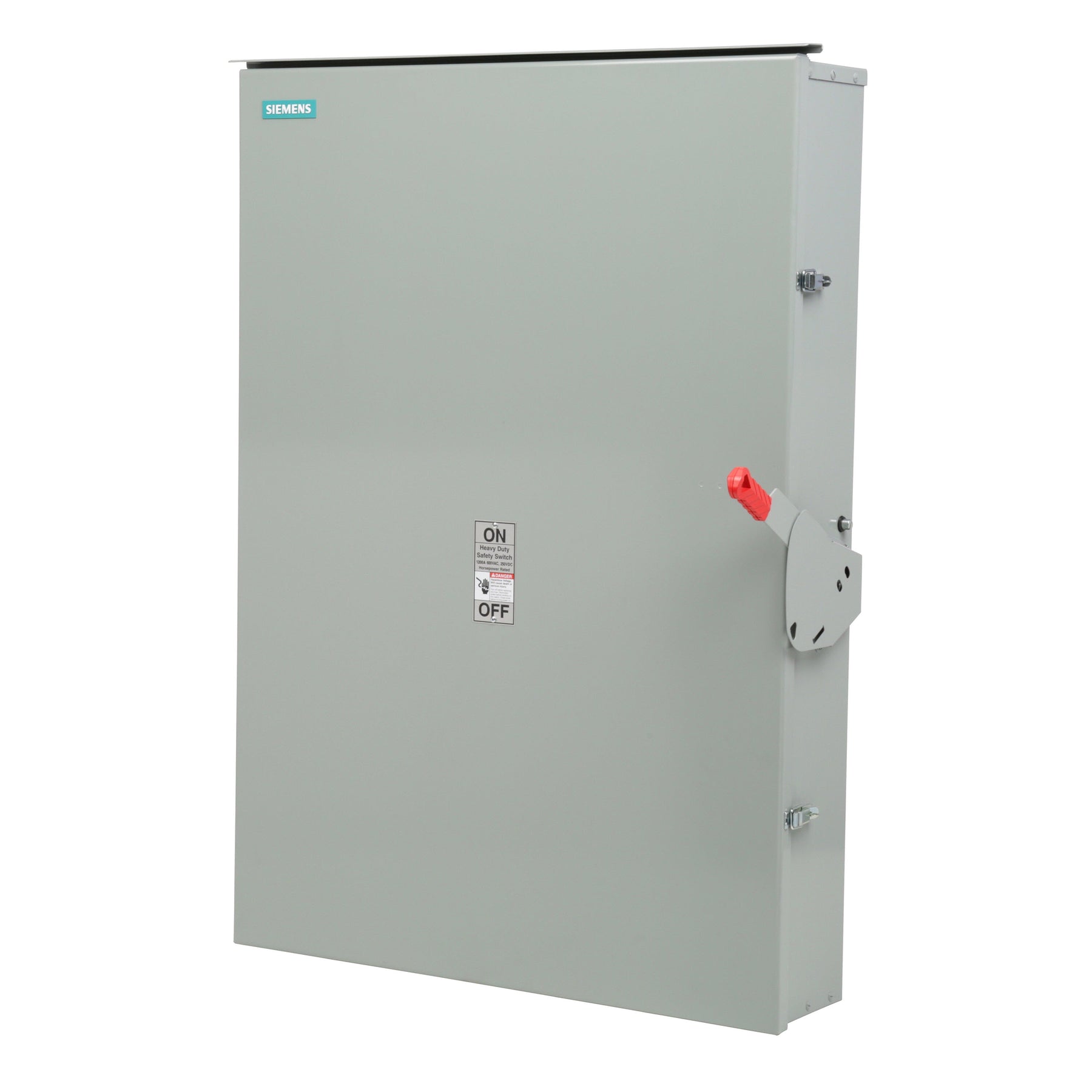

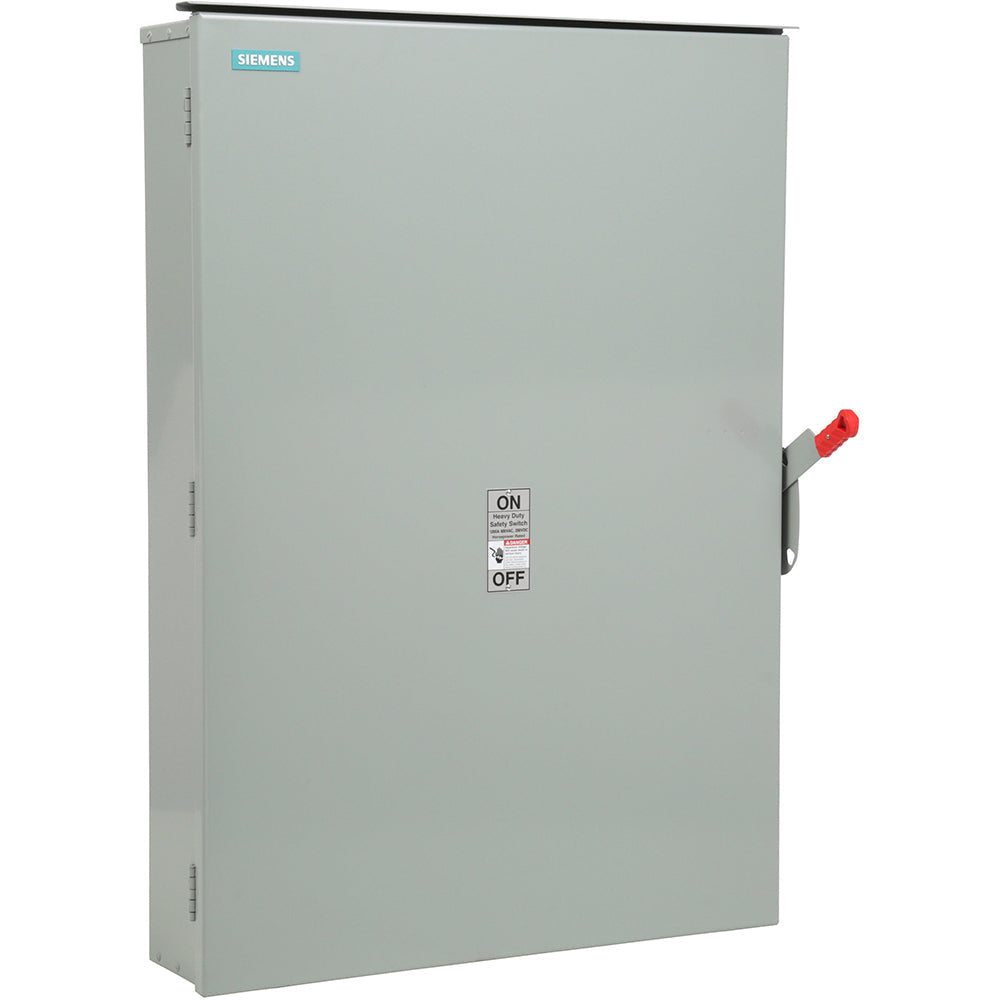

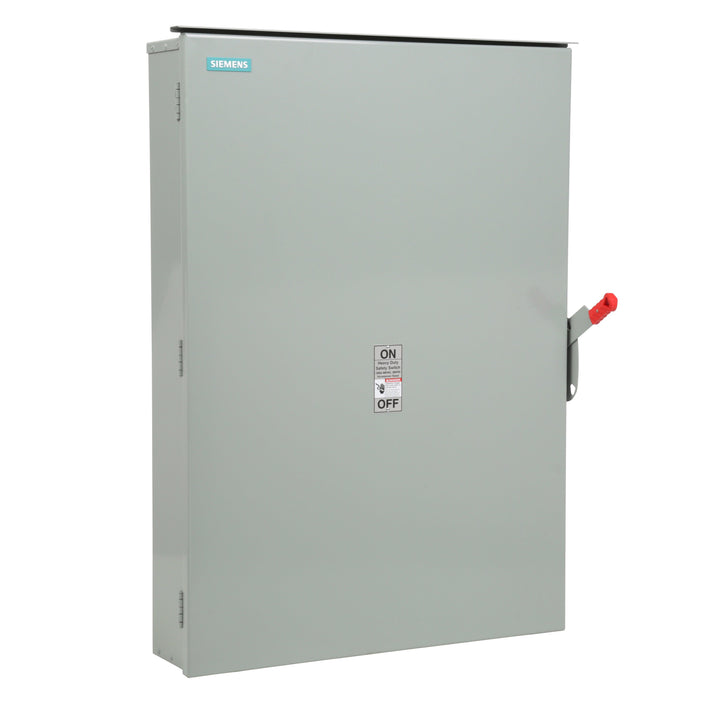

Siemens HNF368R - Non-Fusible Disconnect Switch 1200A 600V

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HNF368R is a non-fusible disconnect switch designed for providing a visible break and safe isolation in high-power three-phase industrial circuits. It is rated for 600V AC systems with a continuous current rating of 1200A and an interrupting capacity of 200kA at 600V. The robust, single-unit construction measures 72.835" x 42.913" x 11.811" (HxWxD) and weighs 270.573 lb, featuring a NEMA 3R enclosure for protection against falling rain and external ice formation. This UL-listed switch complies with industry standards and is engineered for compatibility with Siemens PGP frames. It is typically applied in industrial power distribution, motor control centers, and as a main service disconnect where fused protection is provided elsewhere in the system.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 1200A
  • Dimensions: 72.835 x 42.913 x 11.811 inches (H x W x D)
  • Standards: UL Listed, NEMA 3R Enclosure Rating
  • Applications: Main service disconnect, industrial power distribution, motor control centers
  • Switch Type: Non-Fusible
  • Configuration: Single Unit
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Poles: 3
  • Wire: 3-wire configuration
  • Compatible Frames: PGP
  • Weight: 270.573 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151802
  • GTIN: 0783643151802
