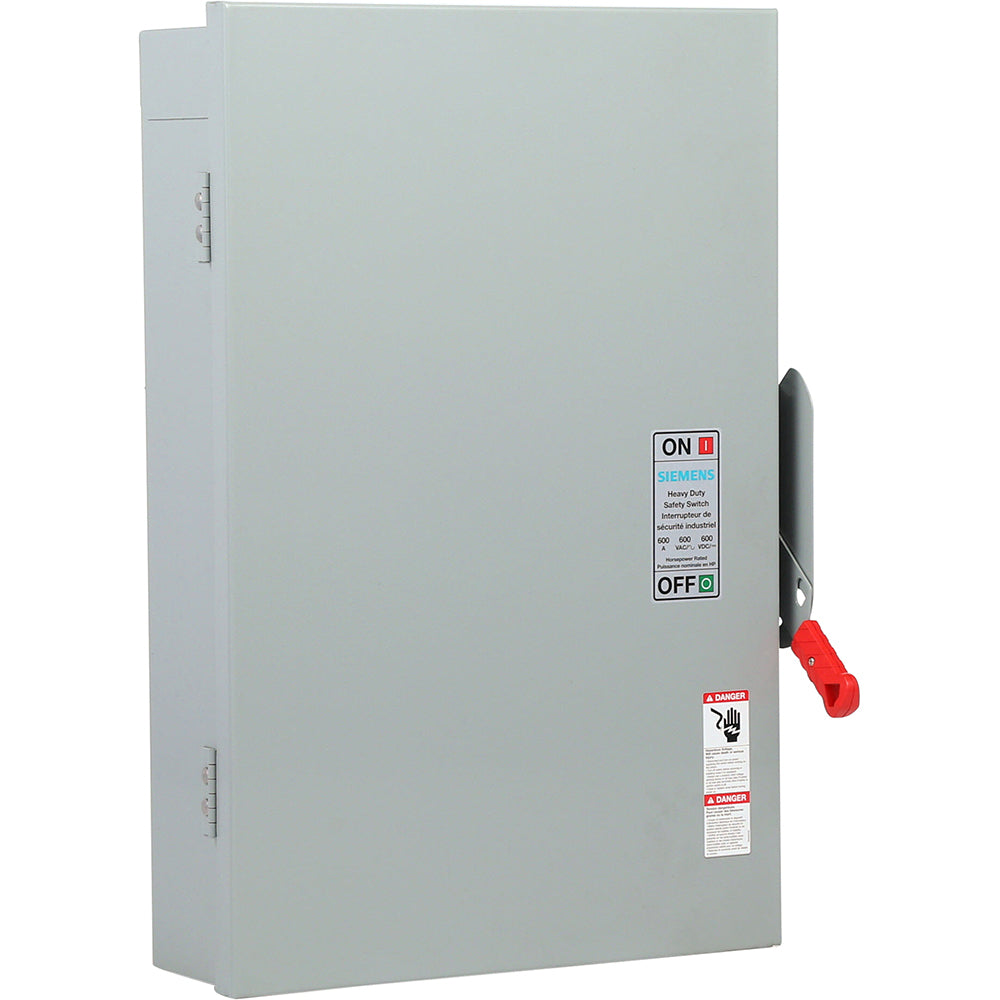

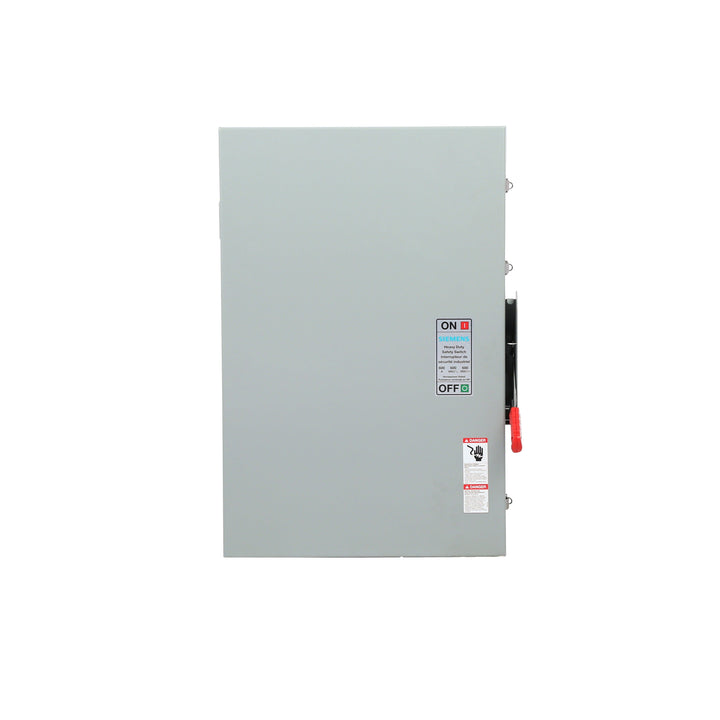

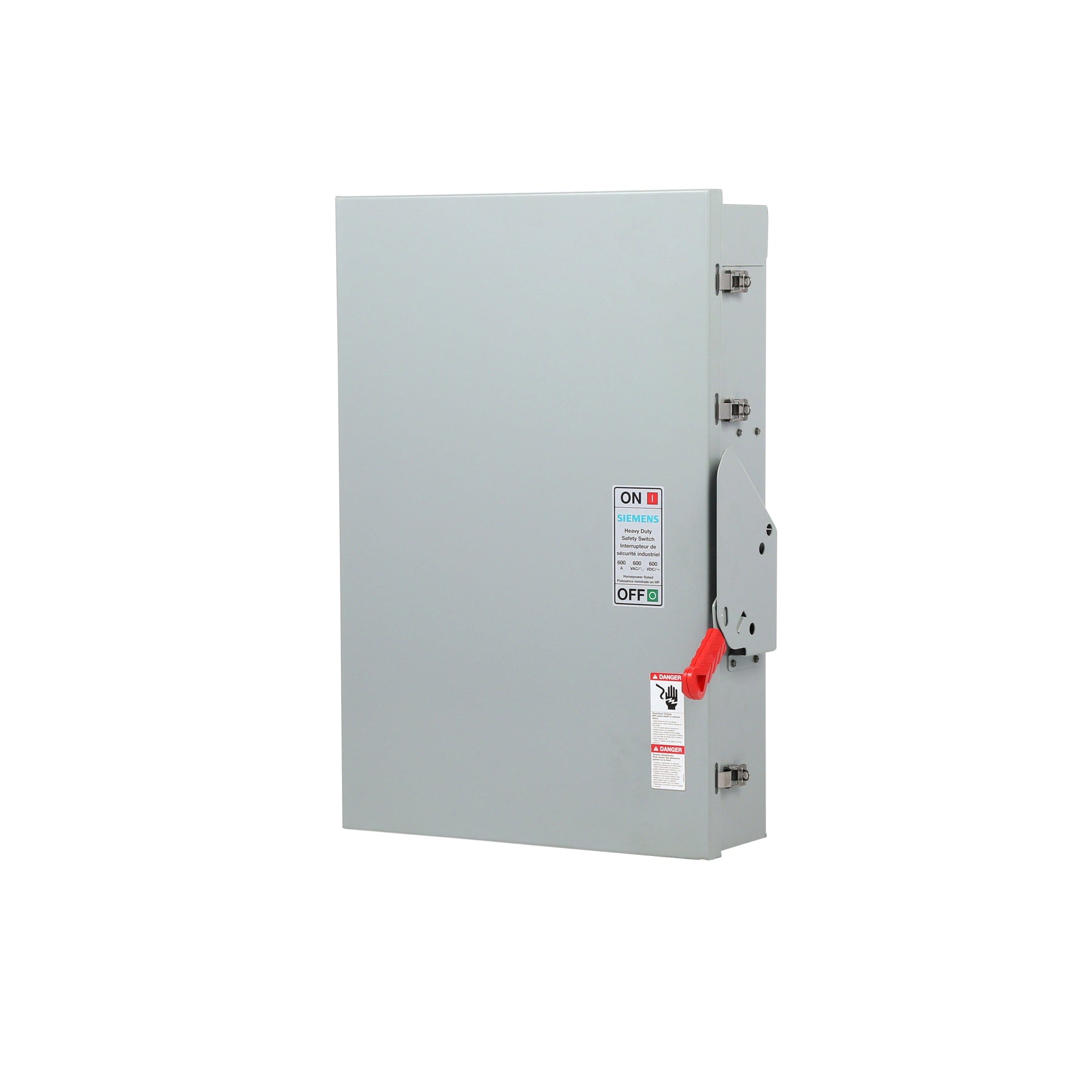

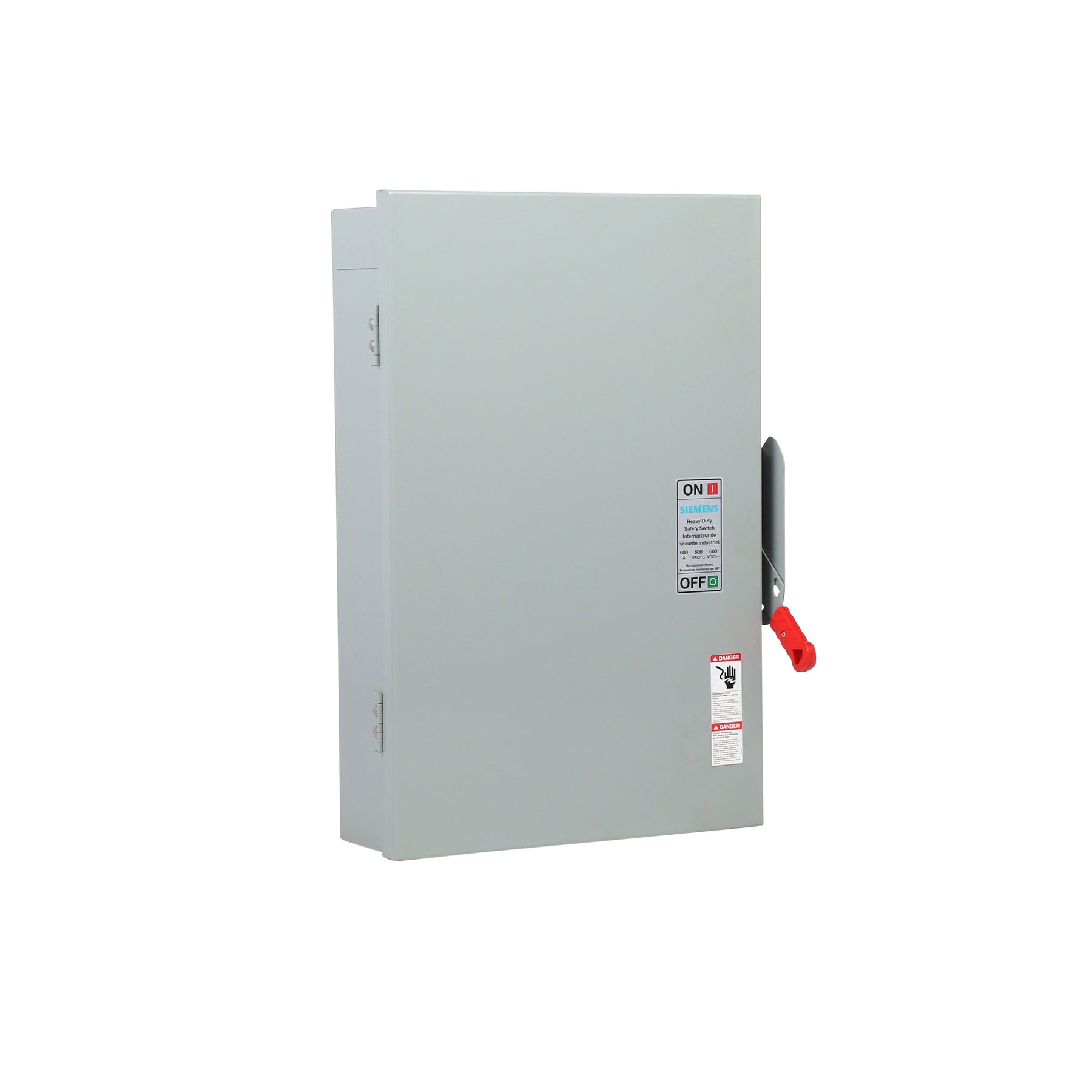

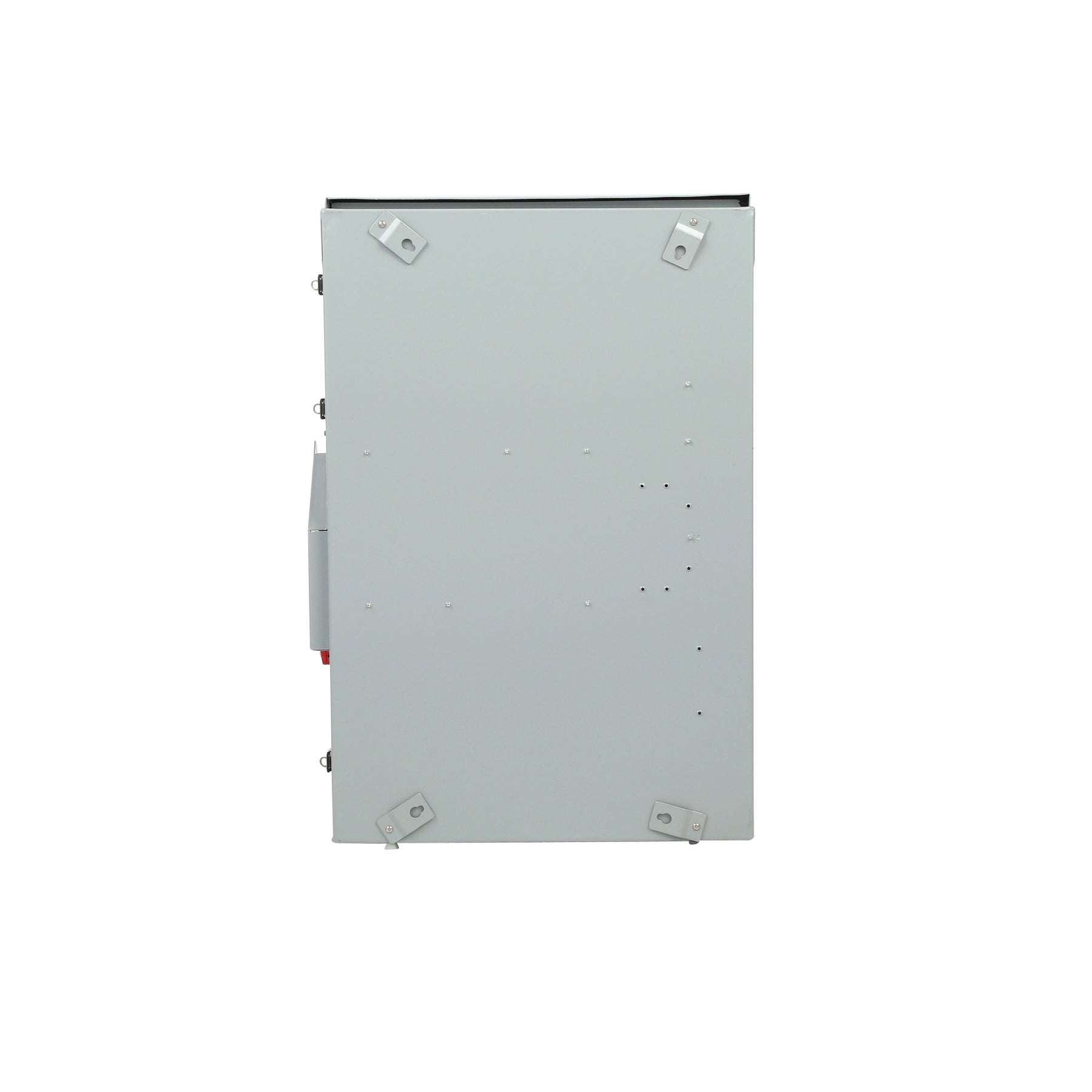

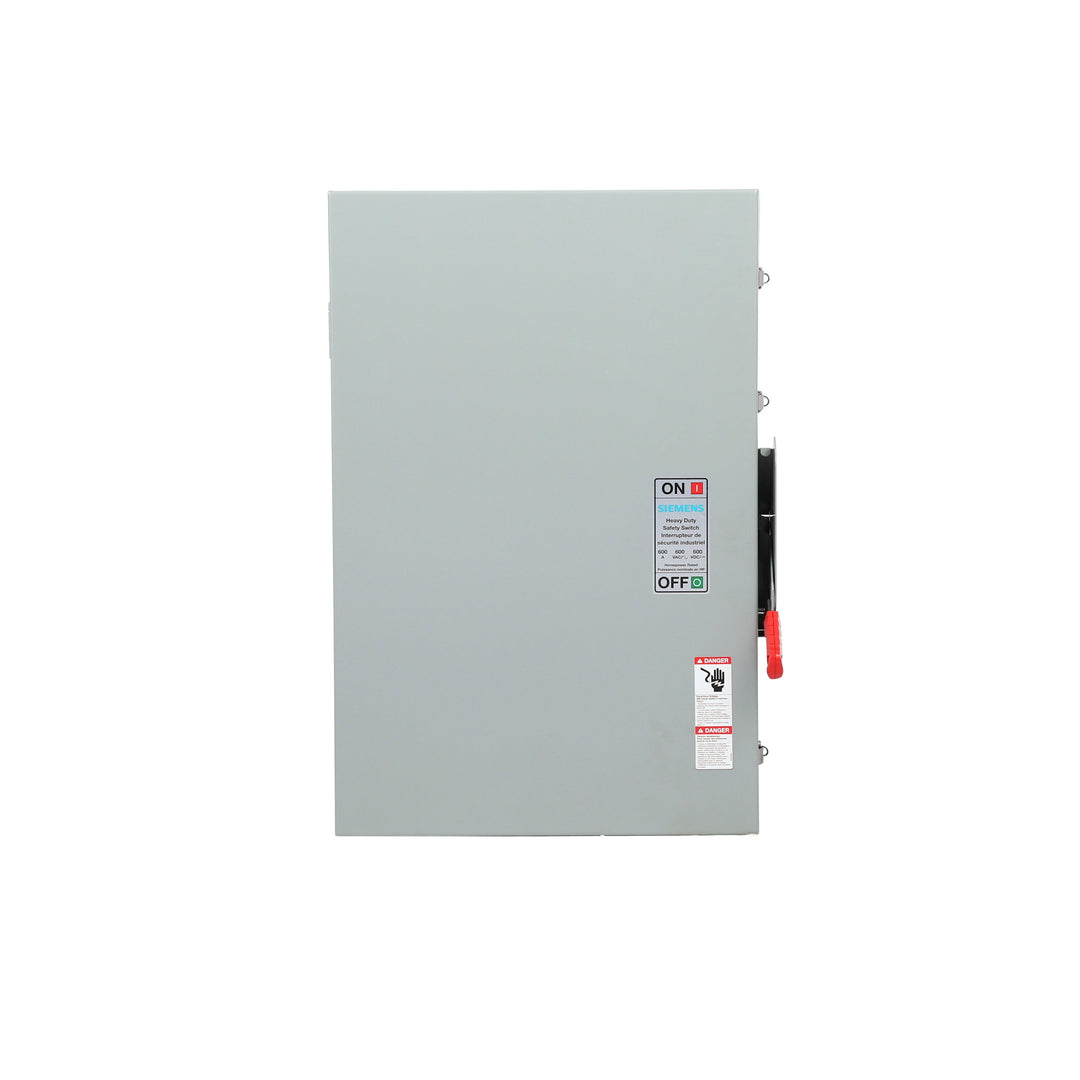

Siemens HNF366JA is a non-fusible disconnect switch designed for providing a visible means of isolation and safe maintenance in three-phase industrial power distribution systems. It is rated for 600A at 600V AC, featuring a robust construction with dimensions of 6.693" x 22.047" x 45.276" (170mm x 560mm x 1150mm) and a weight of 99.8 lb. The switch is UL listed and built to NEMA 12 standards for protection against dust and dripping water, with a high interrupting capacity of 200kA at 600V to ensure reliable performance in demanding applications such as motor control centers and main service entrances.
Key Features & Specifications
Type: Non-Fusible Disconnect Switch, HNF Type, VBII Series
Voltage Rating: 600V AC
Current Rating: 600A
Configuration: Single, 3-Pole
Phase: 3
AIC Rating: 200kA @ 600V
NEMA Rating: NEMA 12
Certification: UL Listed
Dimensions: 6.693" W x 22.047" H x 45.276" D (170mm x 560mm x 1150mm)
