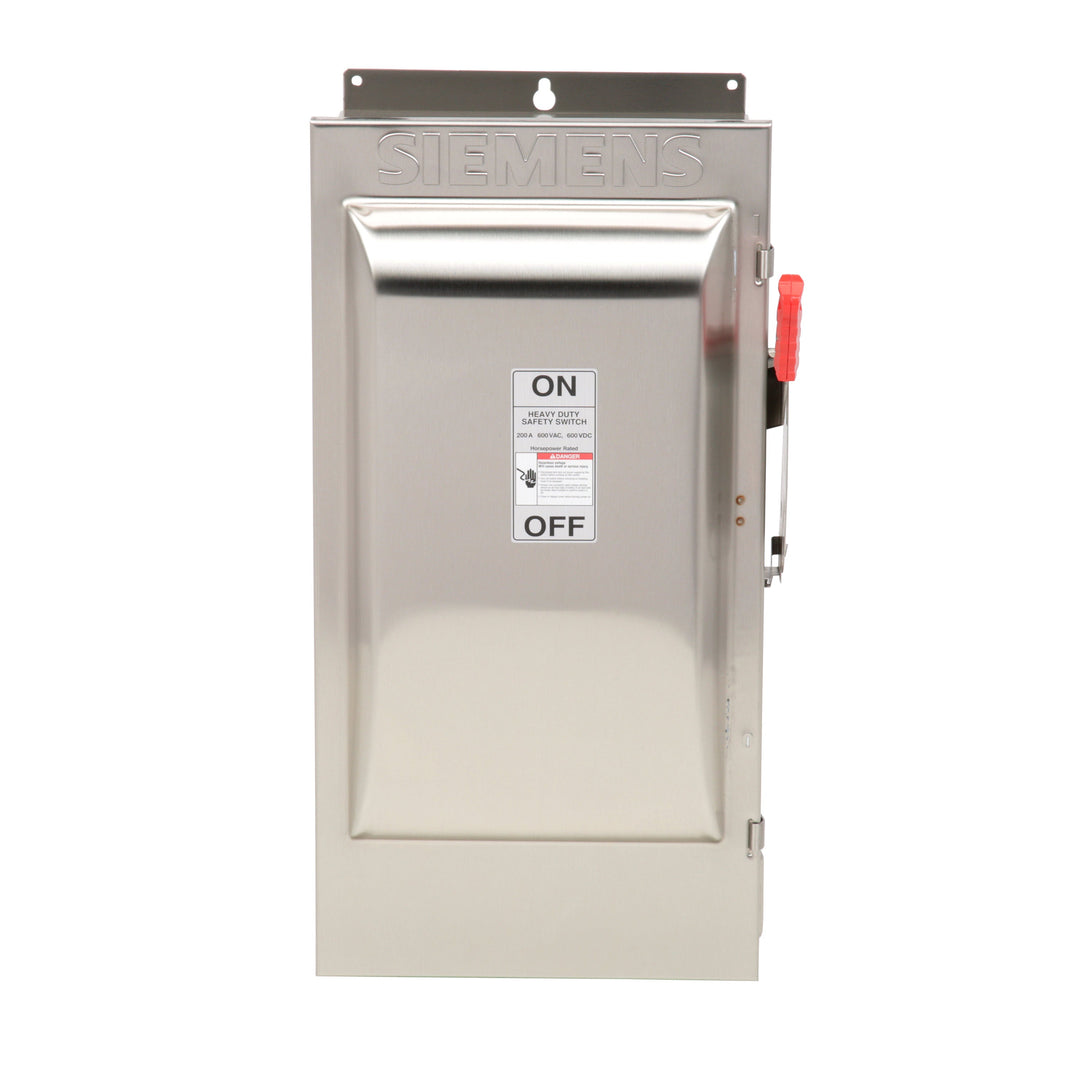

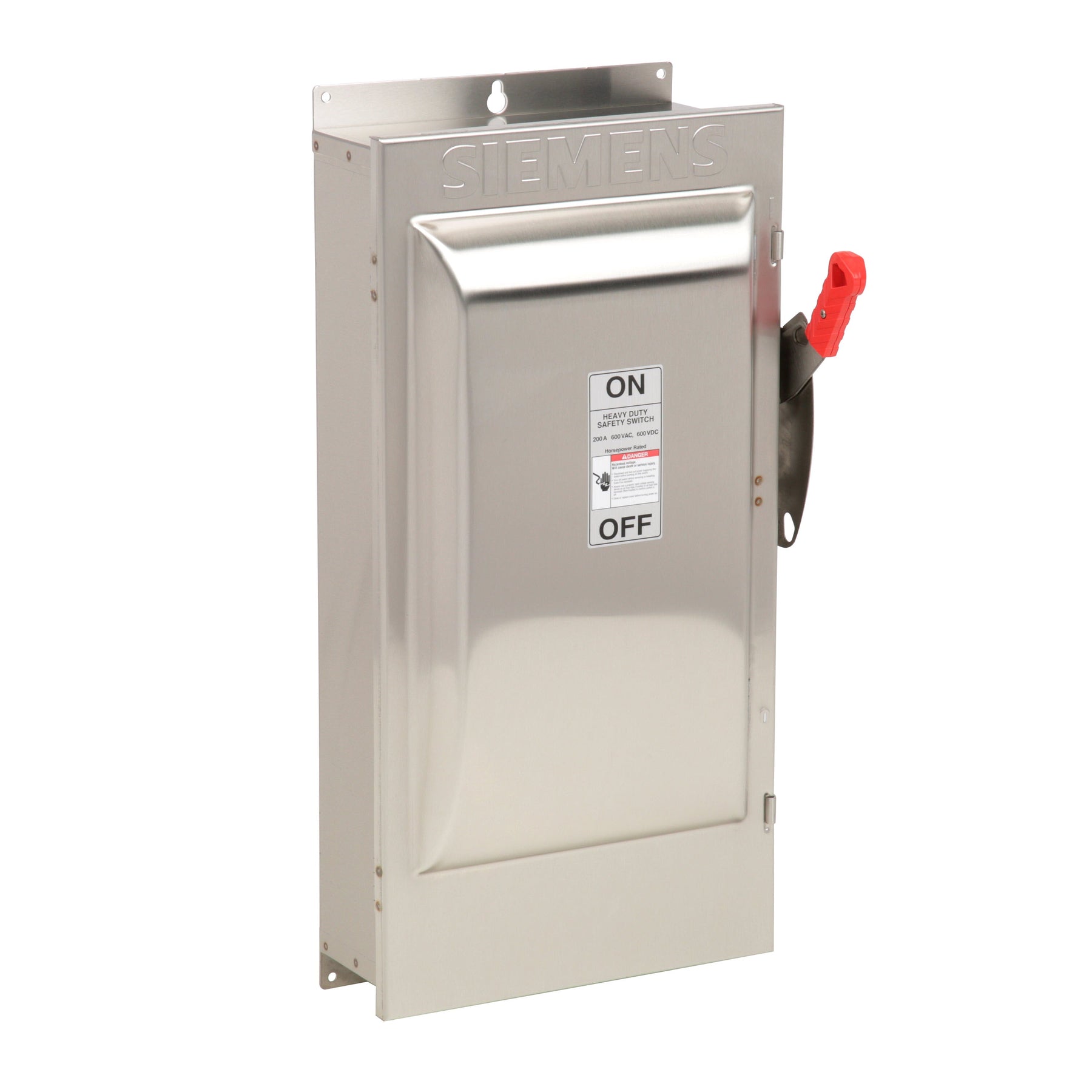

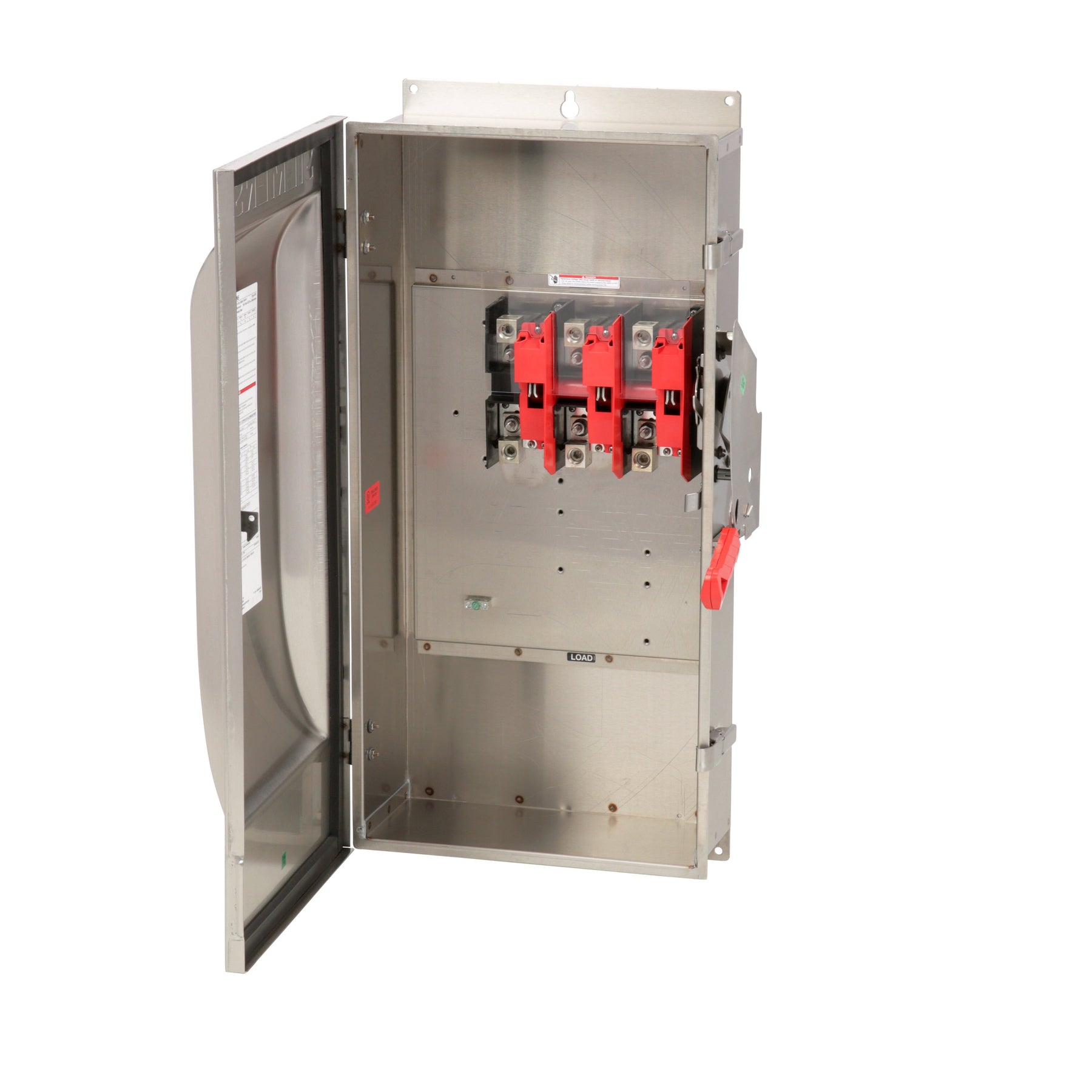

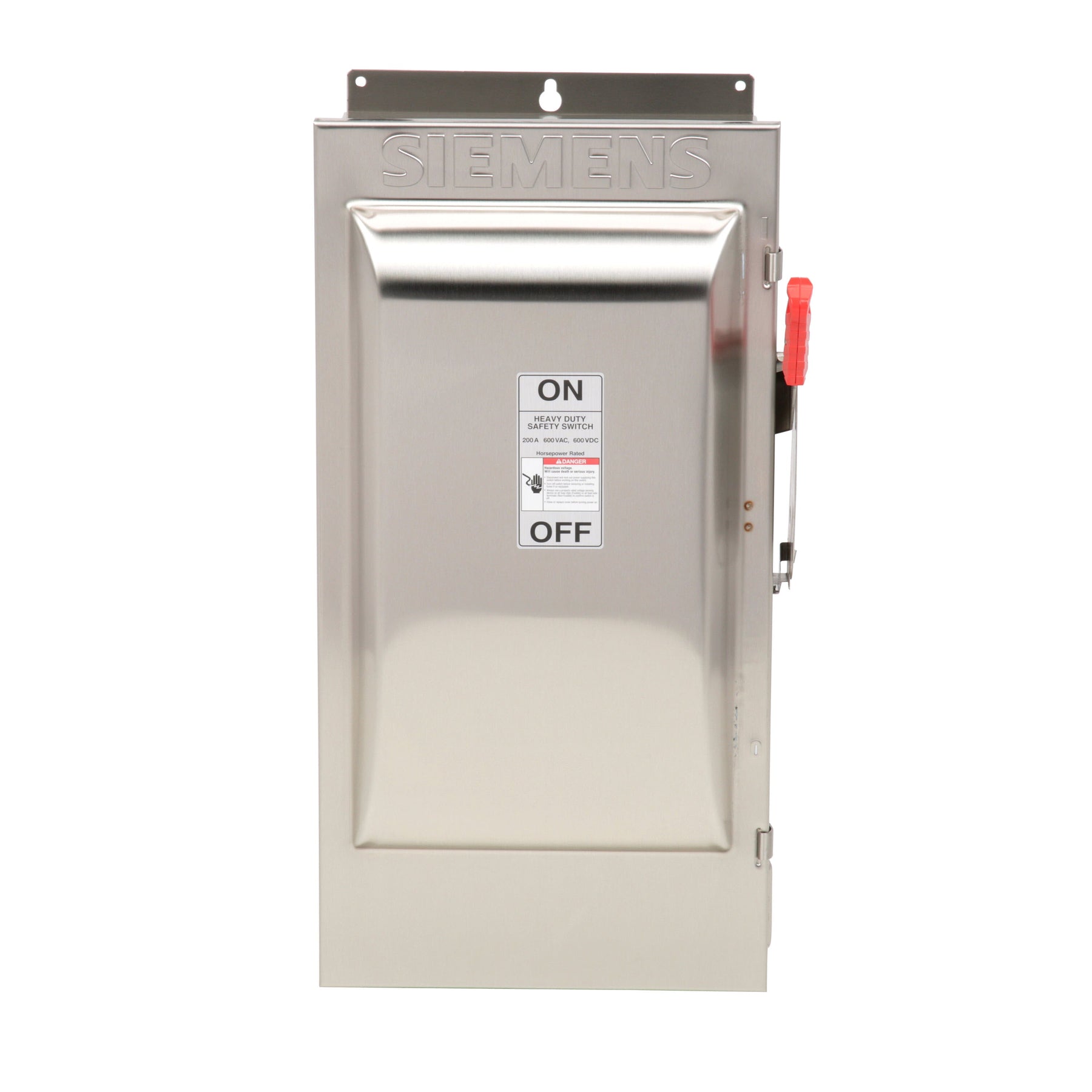

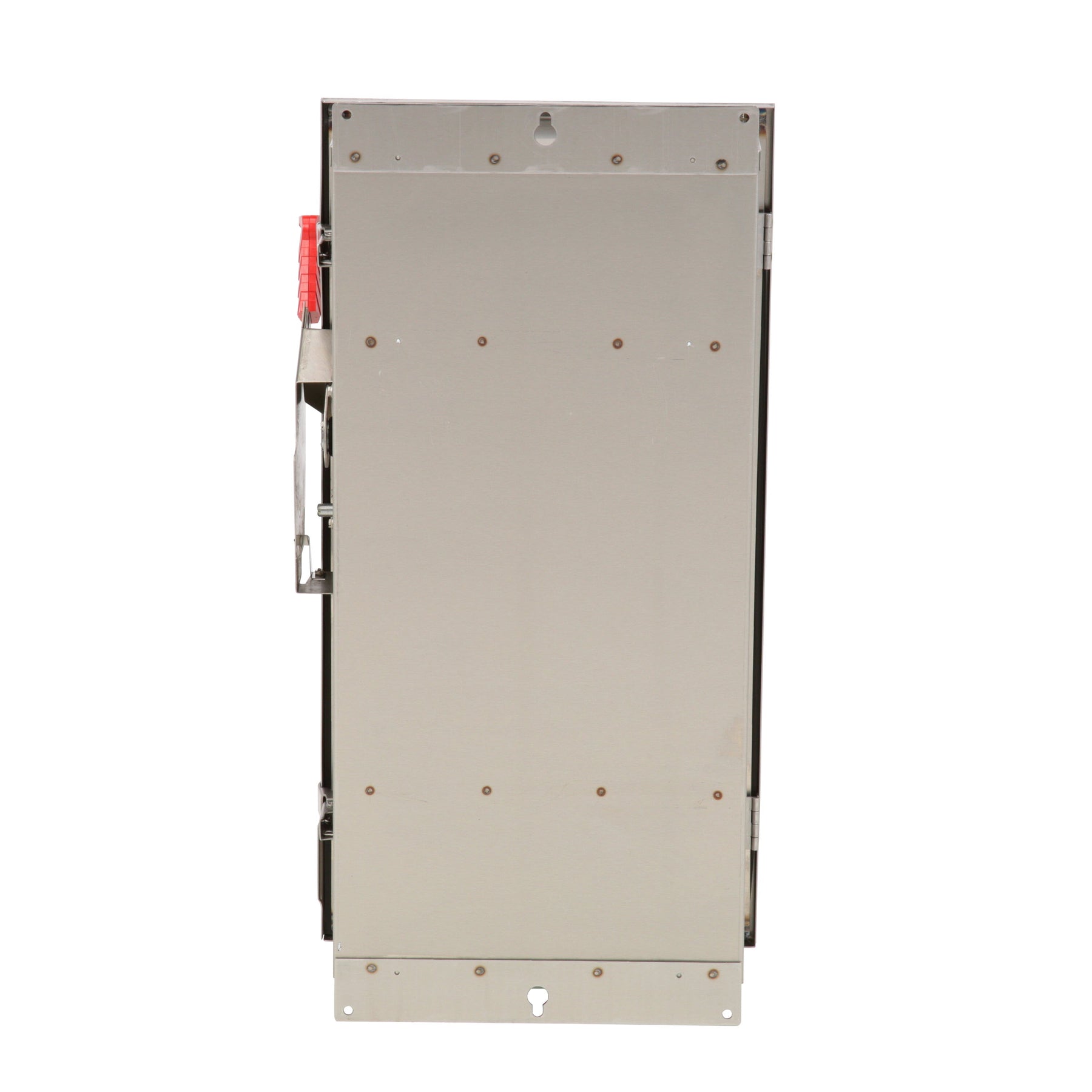

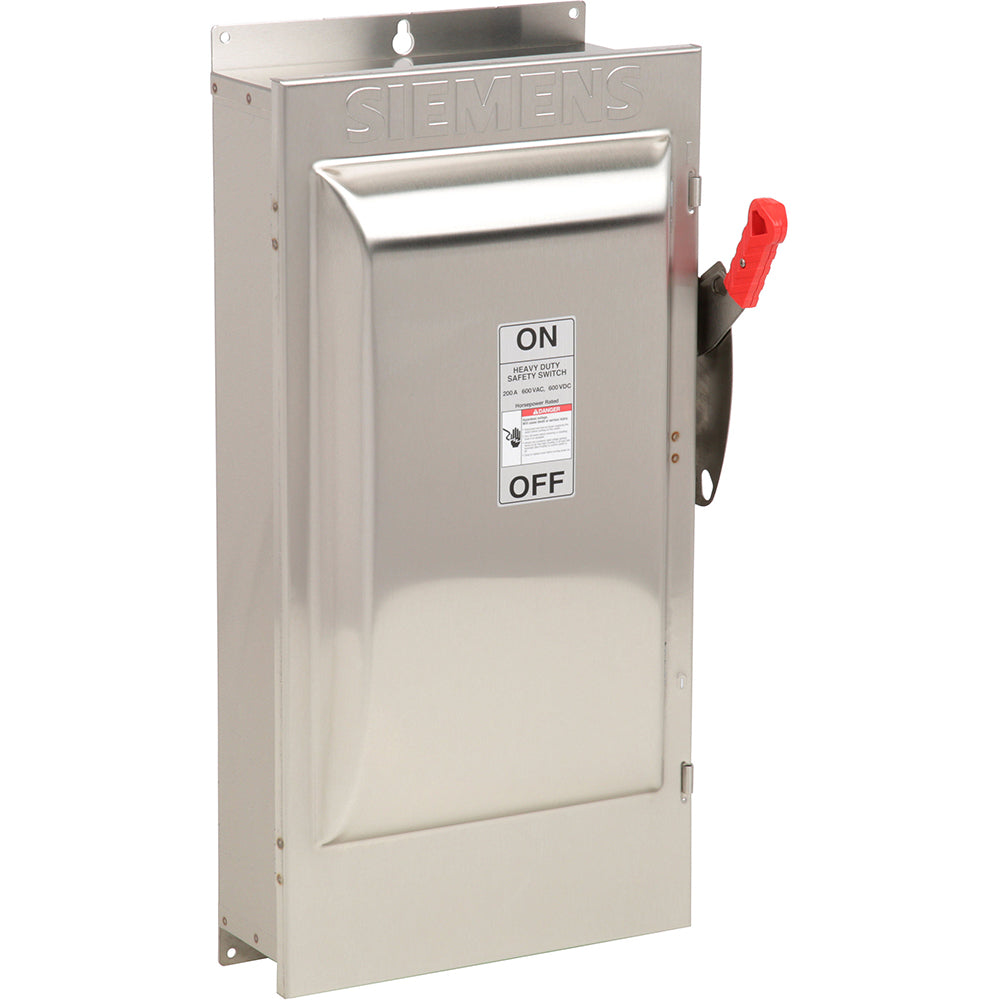

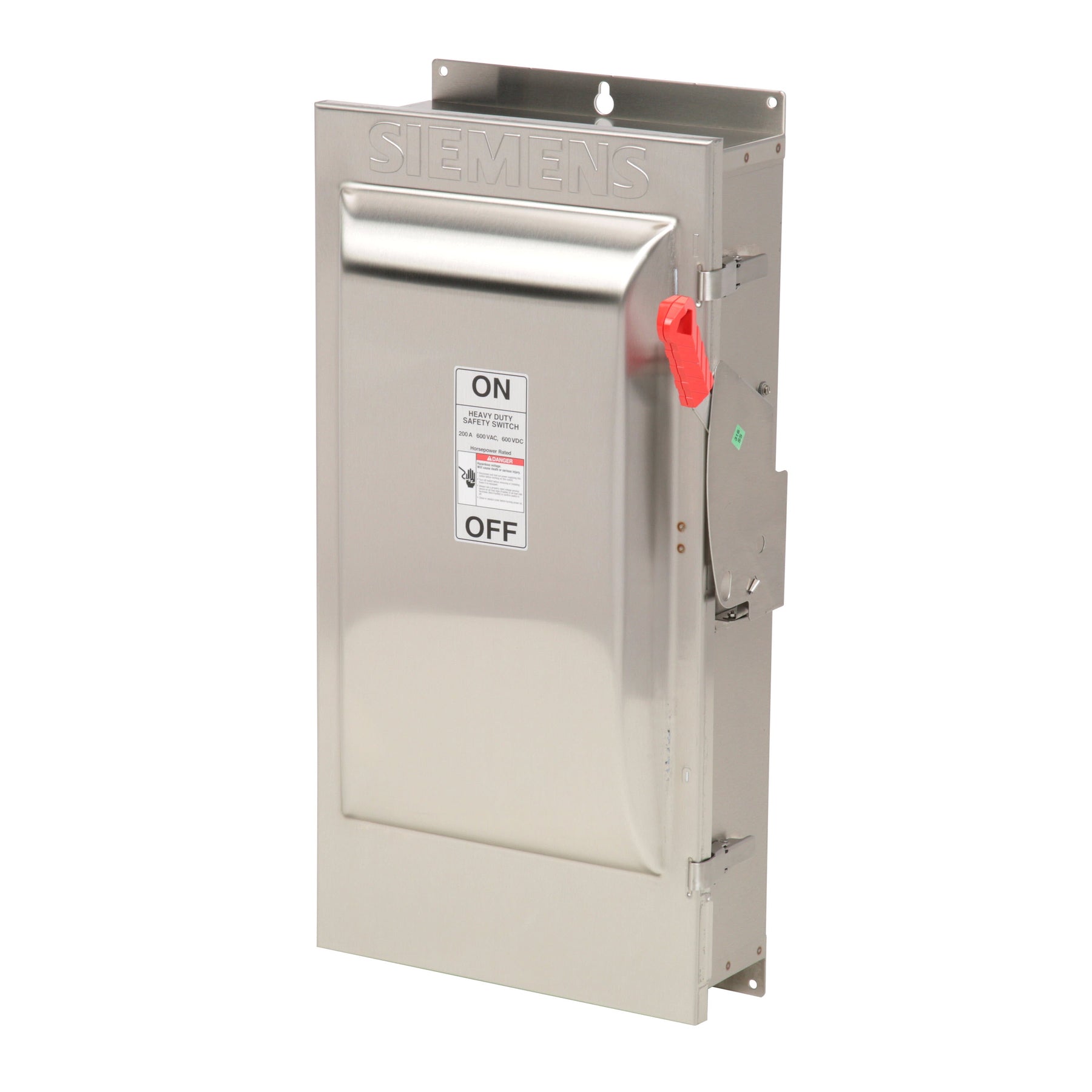

Siemens HNF364SS - Non-Fusible Disconnect Switch 200A 600V

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HNF364SS is a non-fusible disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits in industrial environments. It is rated for 600V AC and a continuous current of 200A, featuring a robust construction with dimensions of 22.047 x 14.173 x 7.874 inches (560 x 360 x 200 mm) and a weight of 23.656 lb. The switch is UL listed and carries a NEMA 4X rating for corrosion and weather resistance, with an operational temperature range of -25°C to 70°C (-13°F to 158°F). Its high interrupting capacity of 200kA at 600V makes it suitable for demanding applications such as motor control centers, industrial machinery, and power distribution panels where reliable circuit isolation is critical.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, VBII Series, single configuration
  • Voltage Rating: 600V AC
  • Current Rating: 200A
  • Dimensions: 22.047 x 14.173 x 7.874 in (560 x 360 x 200 mm)
  • Standards: UL listed, NEMA 4X enclosure rating
  • Applications: Industrial power isolation, motor control centers, machinery
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC rating: 200kA @ 600V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Weight: 23.656 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 040892169164
  • GTIN: 0040892169164
