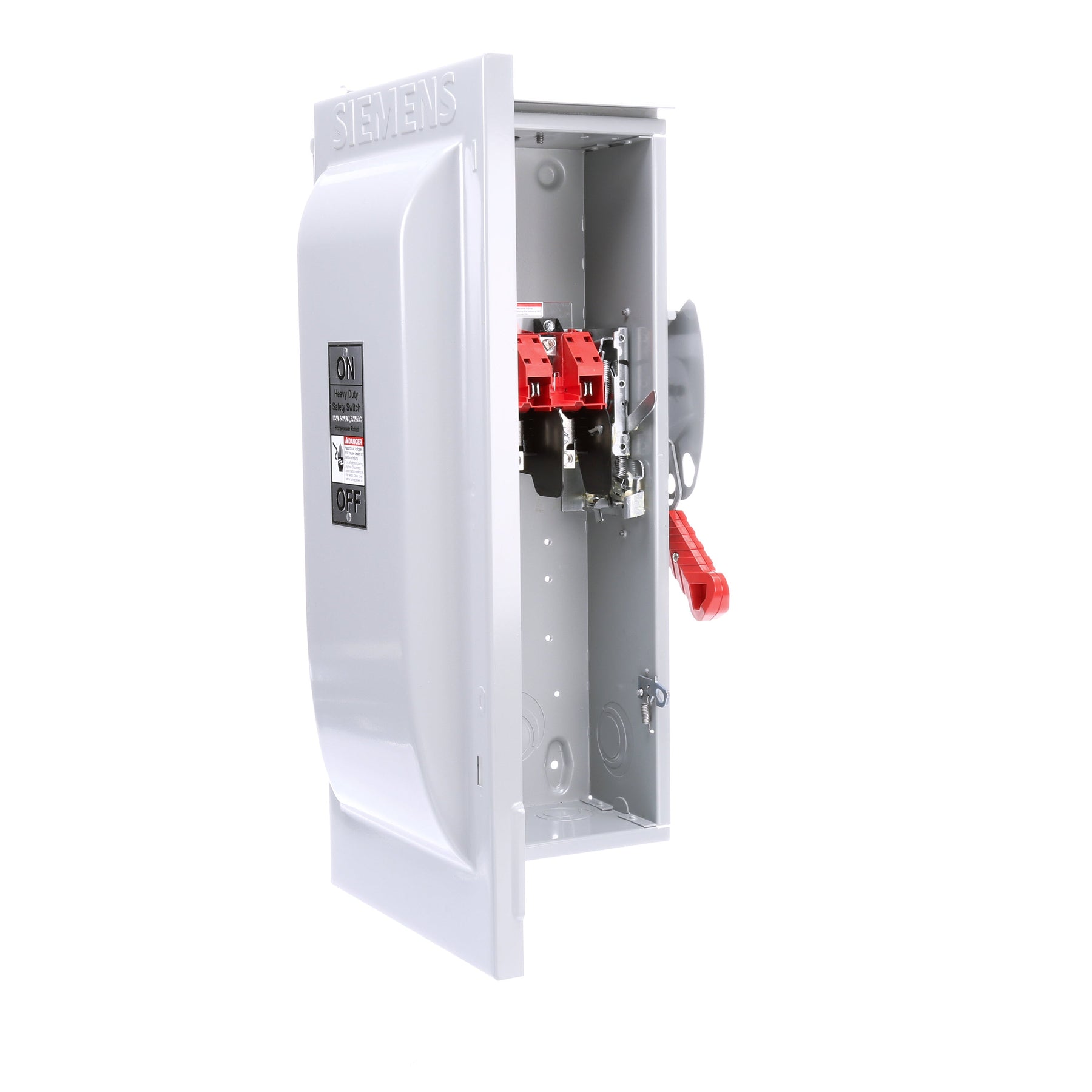

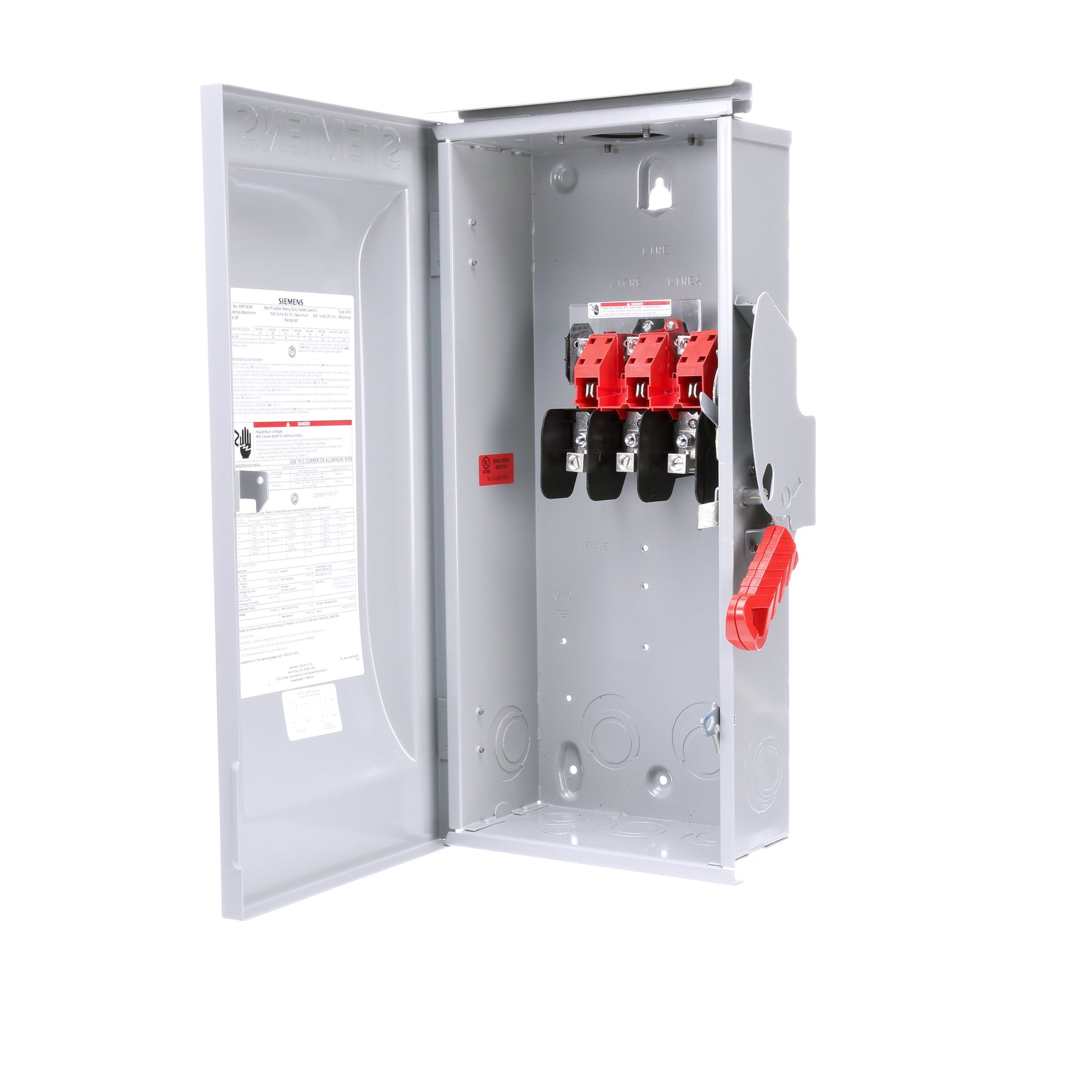

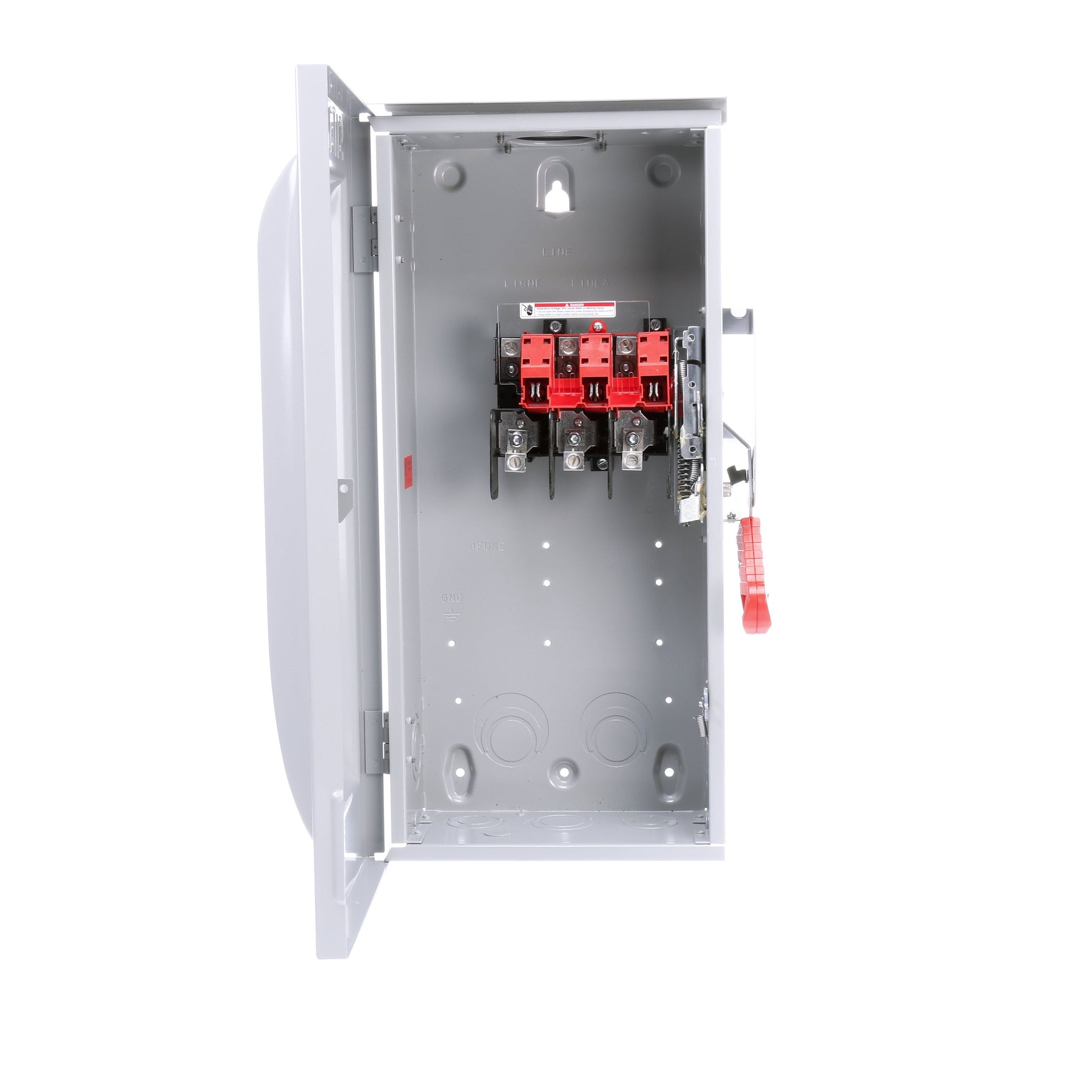

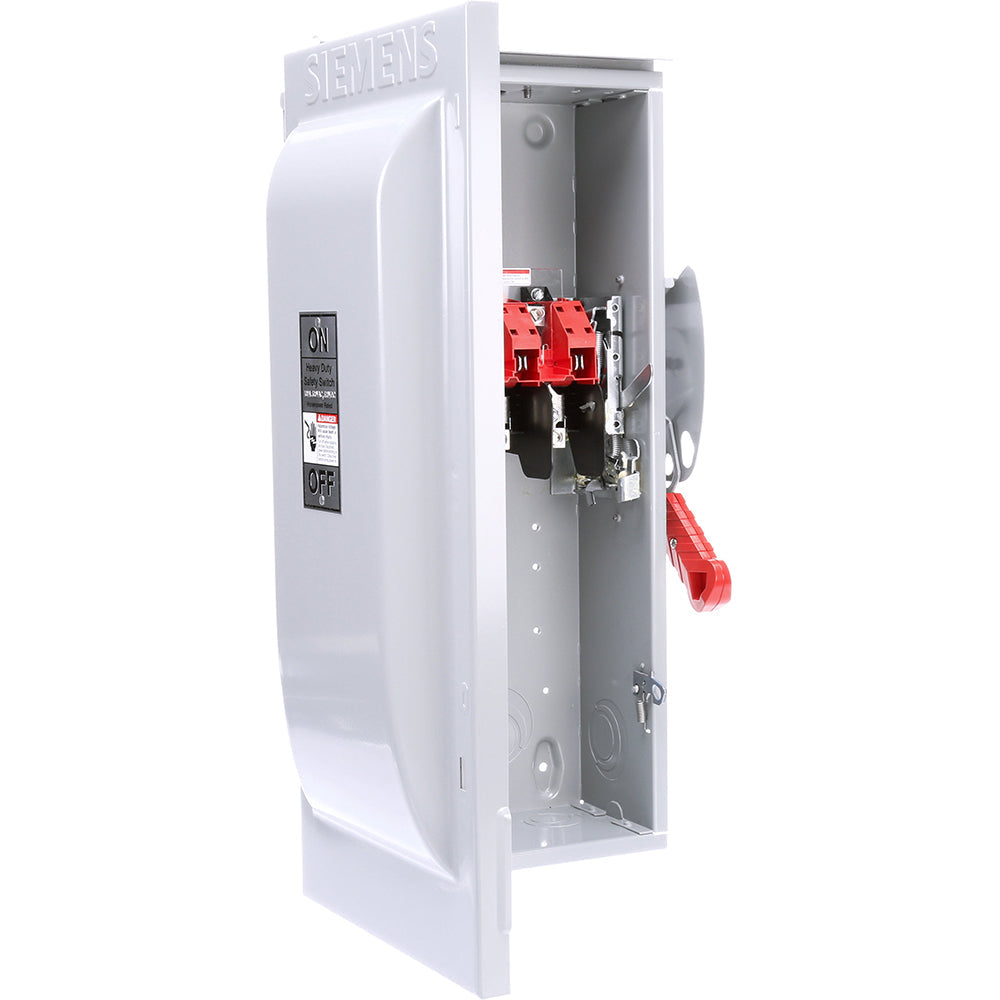

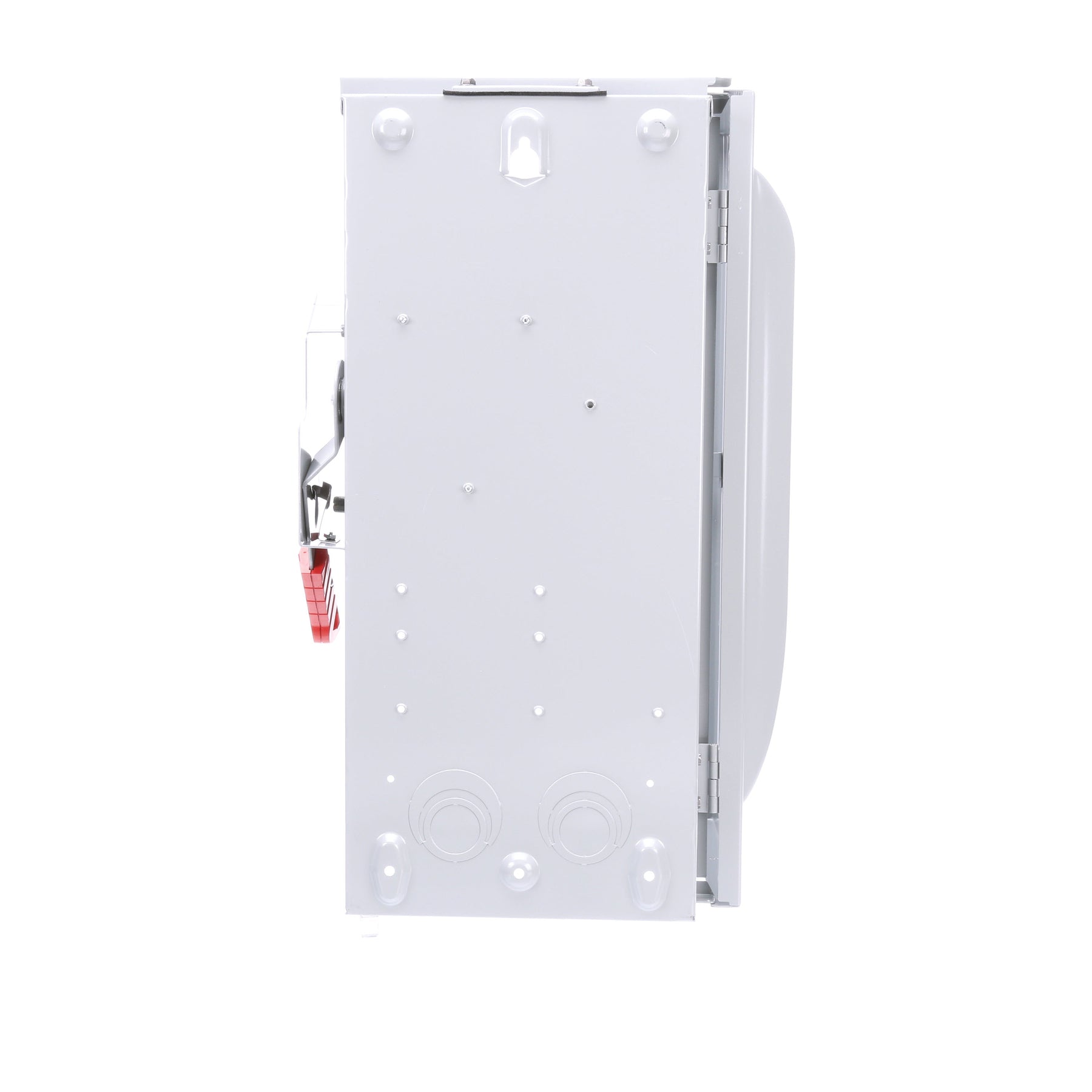

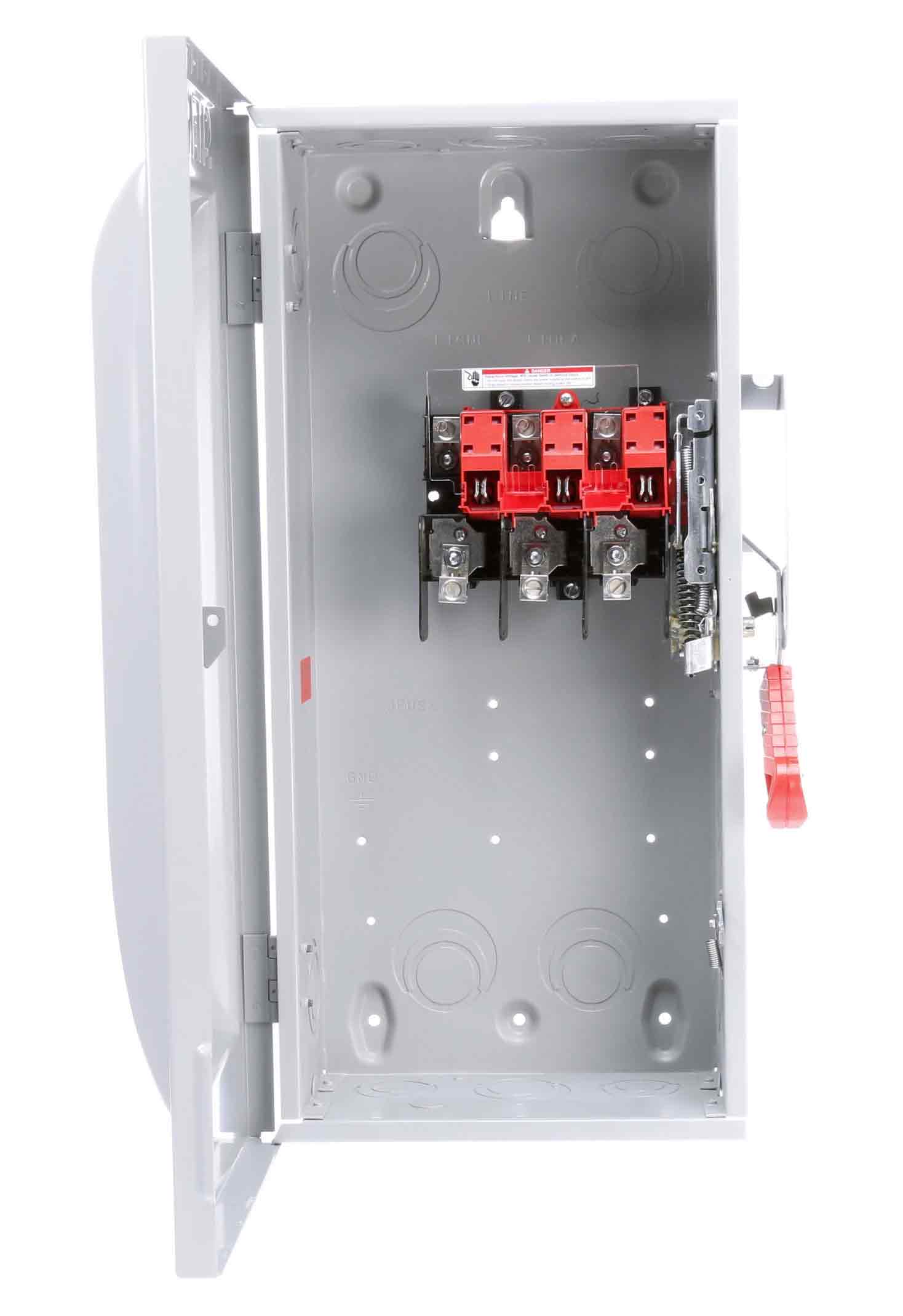

Siemens HNF363R is a non-fusible disconnect switch designed for providing a visible means of isolation and load-breaking in industrial power distribution systems. It is rated for 600V AC and 100A in a three-phase configuration, featuring a robust construction with dimensions of 25.591 x 13.78 x 7.874 inches and a weight of 16.797 lb. The switch is UL listed, carries a NEMA 3R enclosure rating for outdoor use, and offers a high interrupting capacity of 200kA at 600V. It is engineered for integration into compatible PGP frames, making it suitable for applications in motor control centers, panelboards, and industrial machinery where reliable disconnection is required.
Key Features & Specifications
Type: Non-Fusible Disconnect Switch, HNF type, VBII Series
Voltage Rating: 600V AC
Current Rating: 100A
Dimensions: 25.591 x 13.78 x 7.874 inch
Standards: UL Listed, NEMA 3R Enclosure Rating
Applications: Industrial power distribution, motor control centers, panelboards
