Siemens HNF363J - Non-Fusible Disconnect Switch 100A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

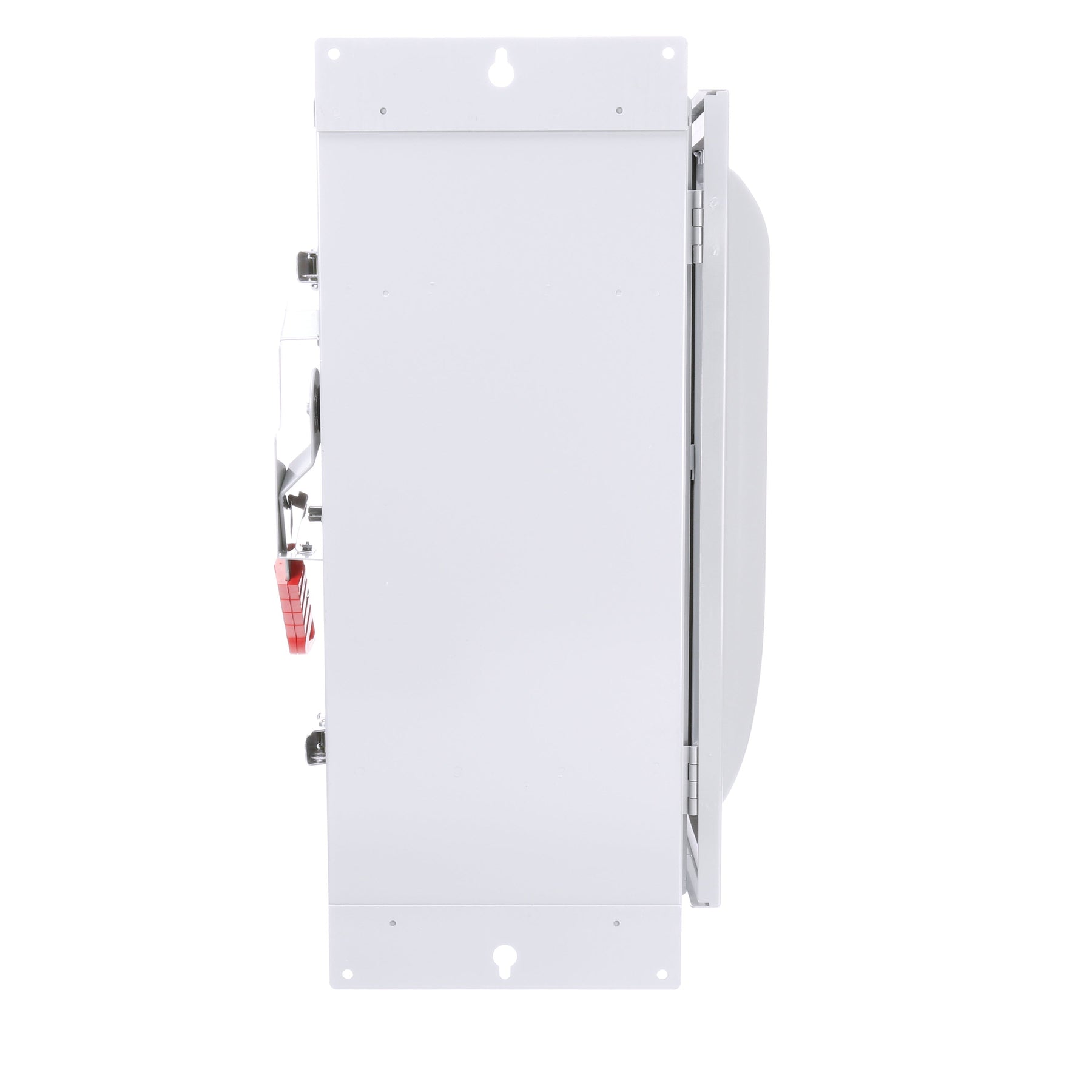

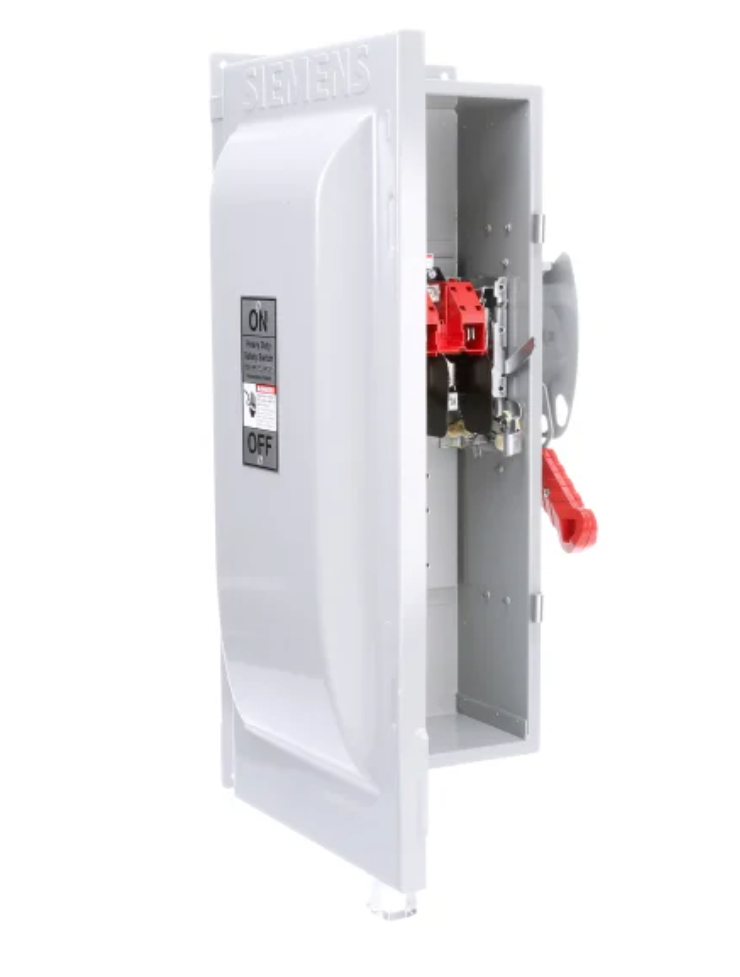

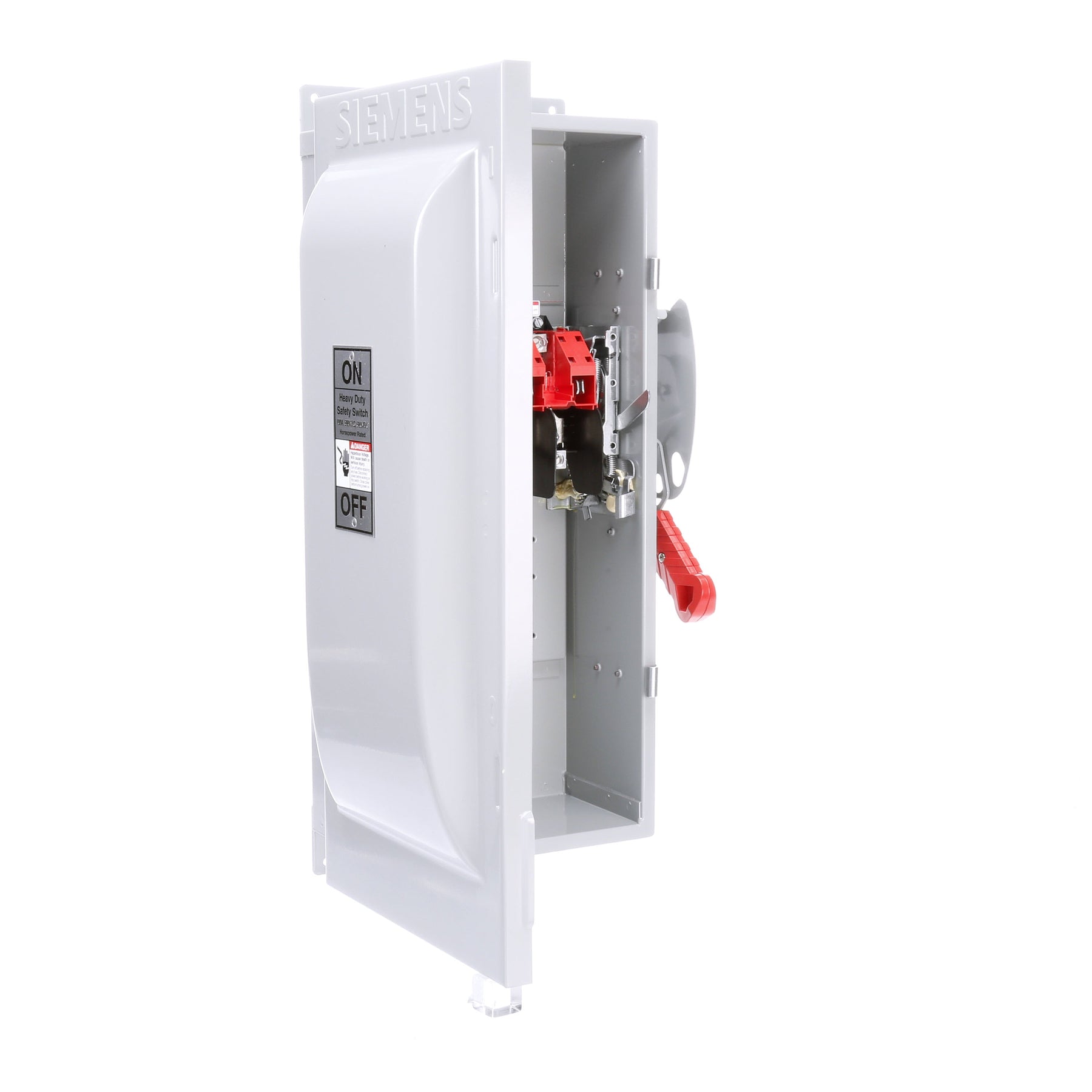

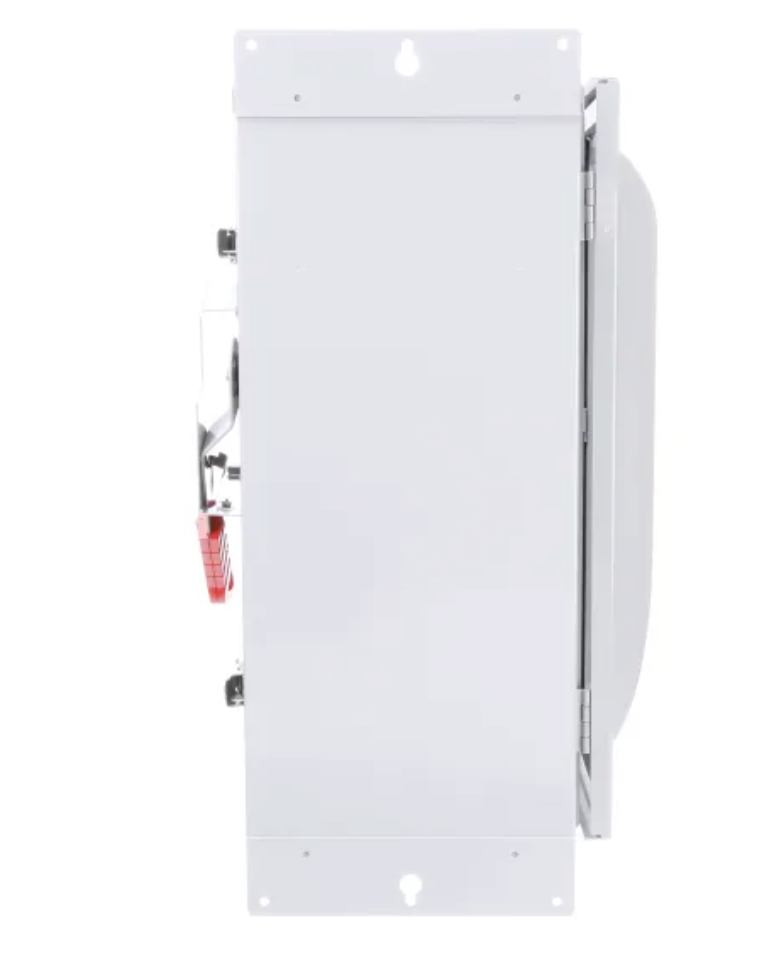

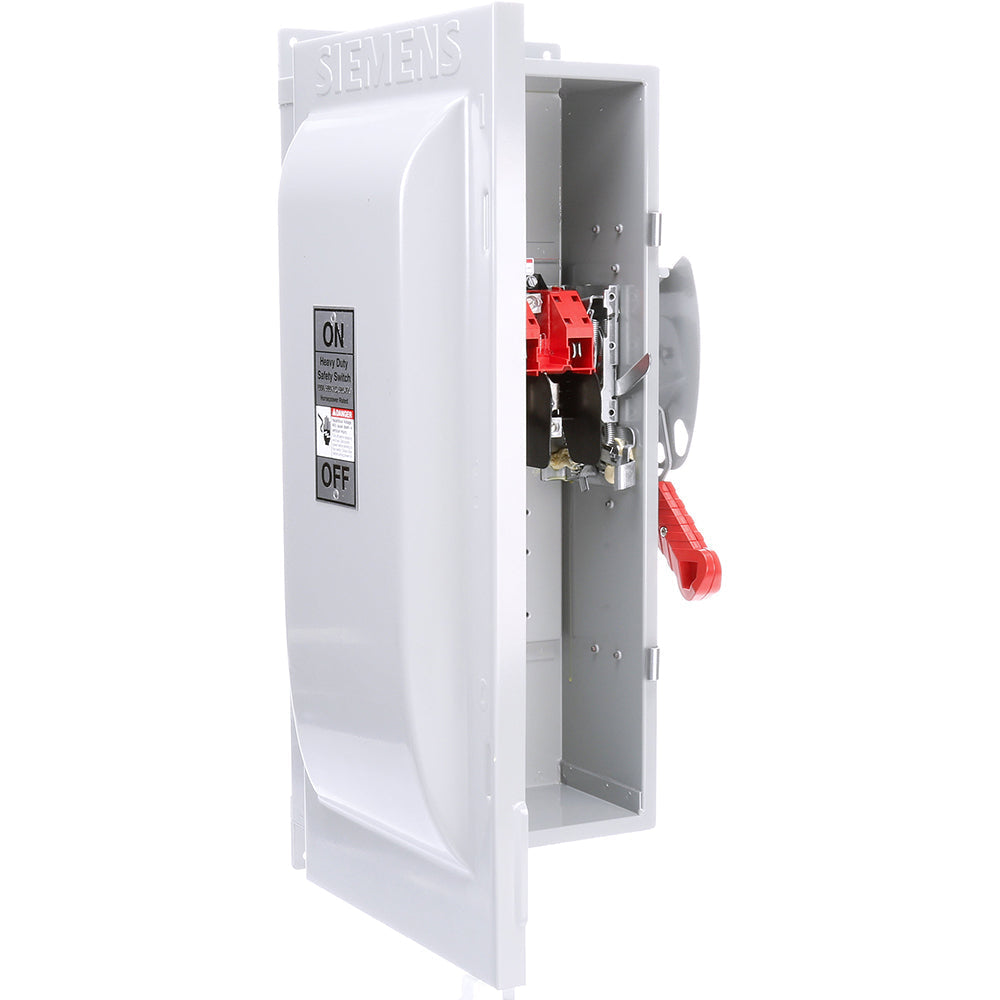

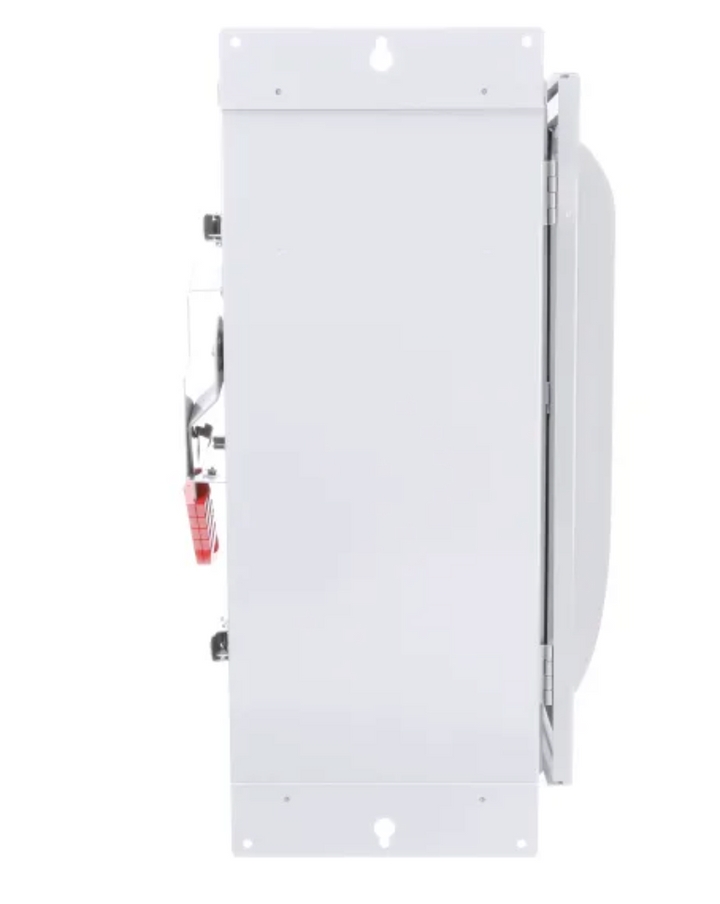

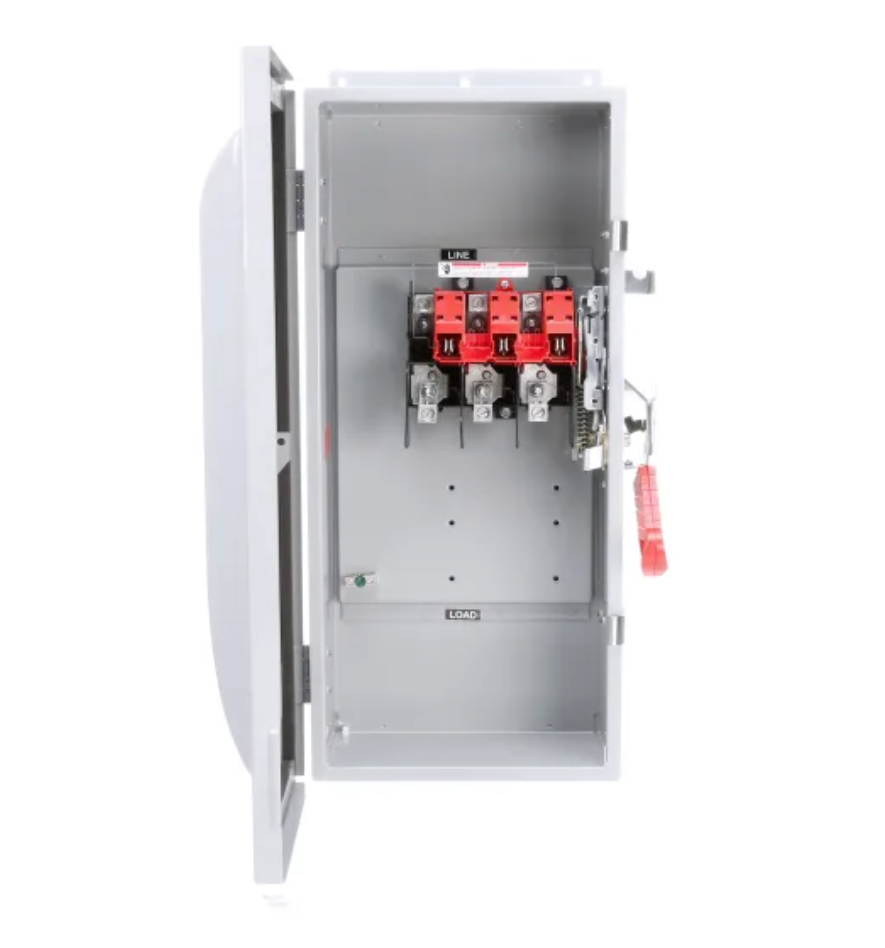

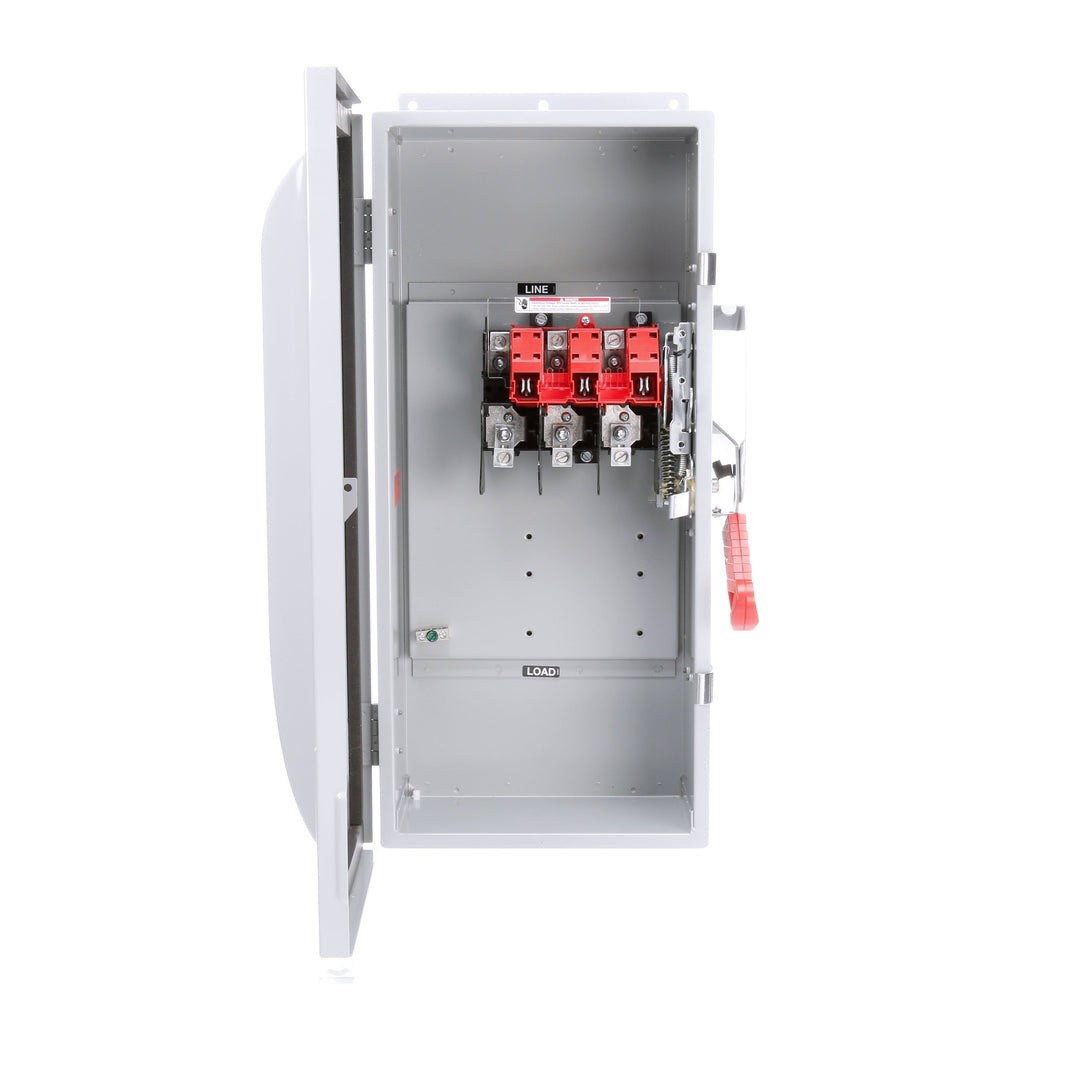

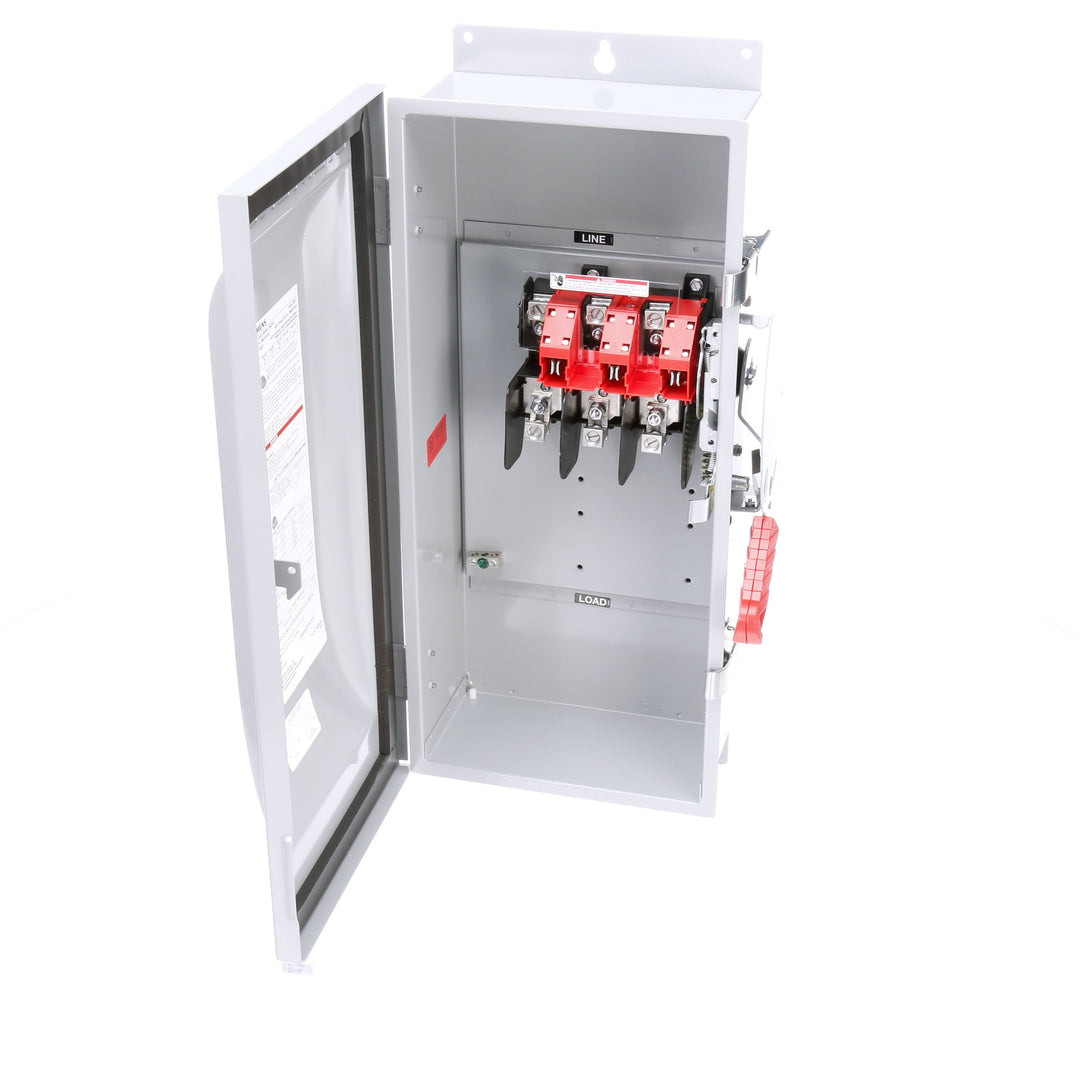

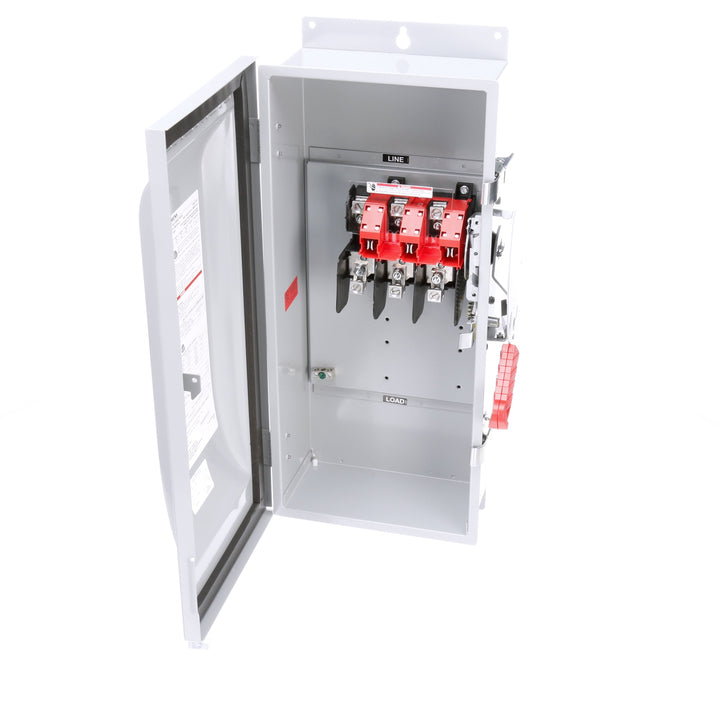

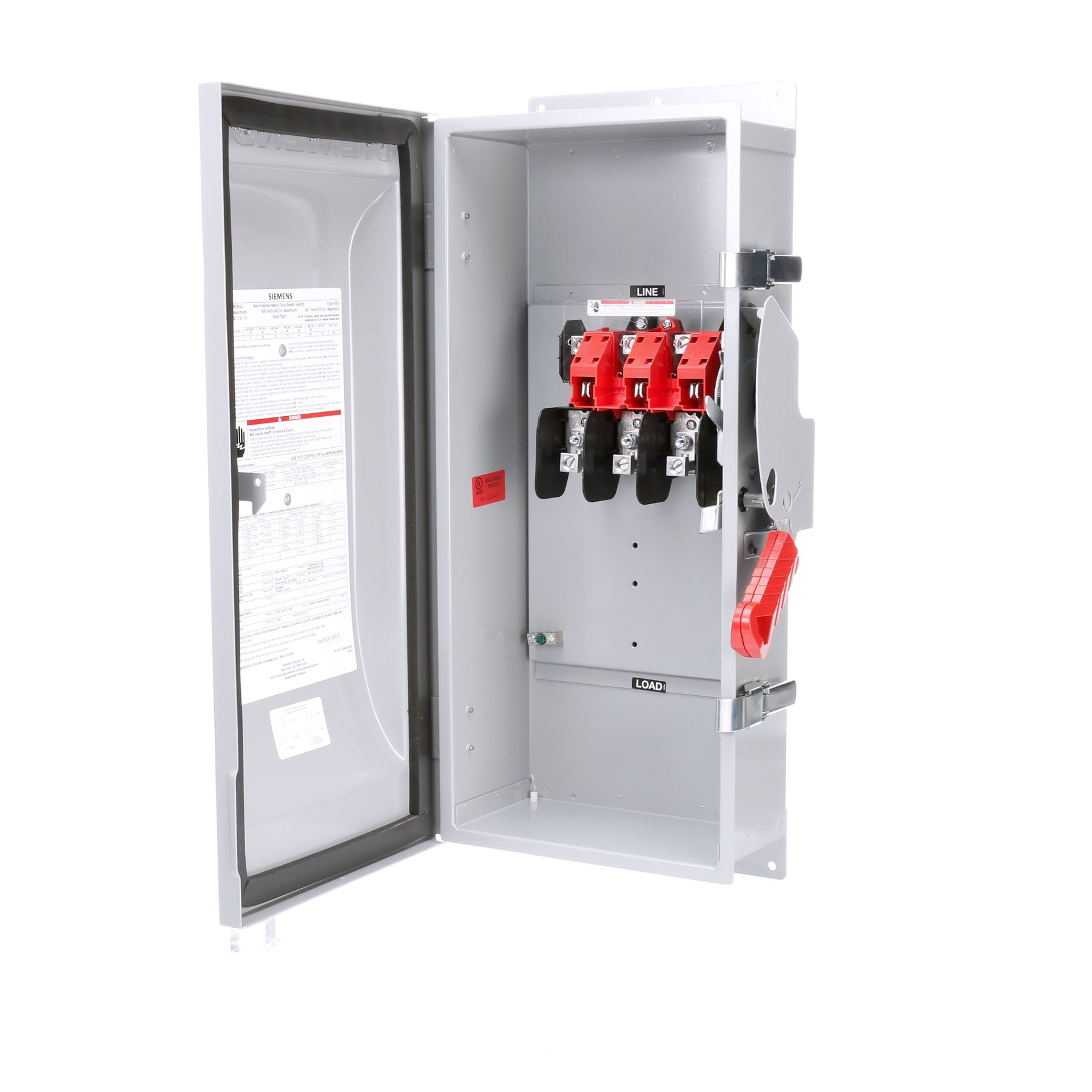

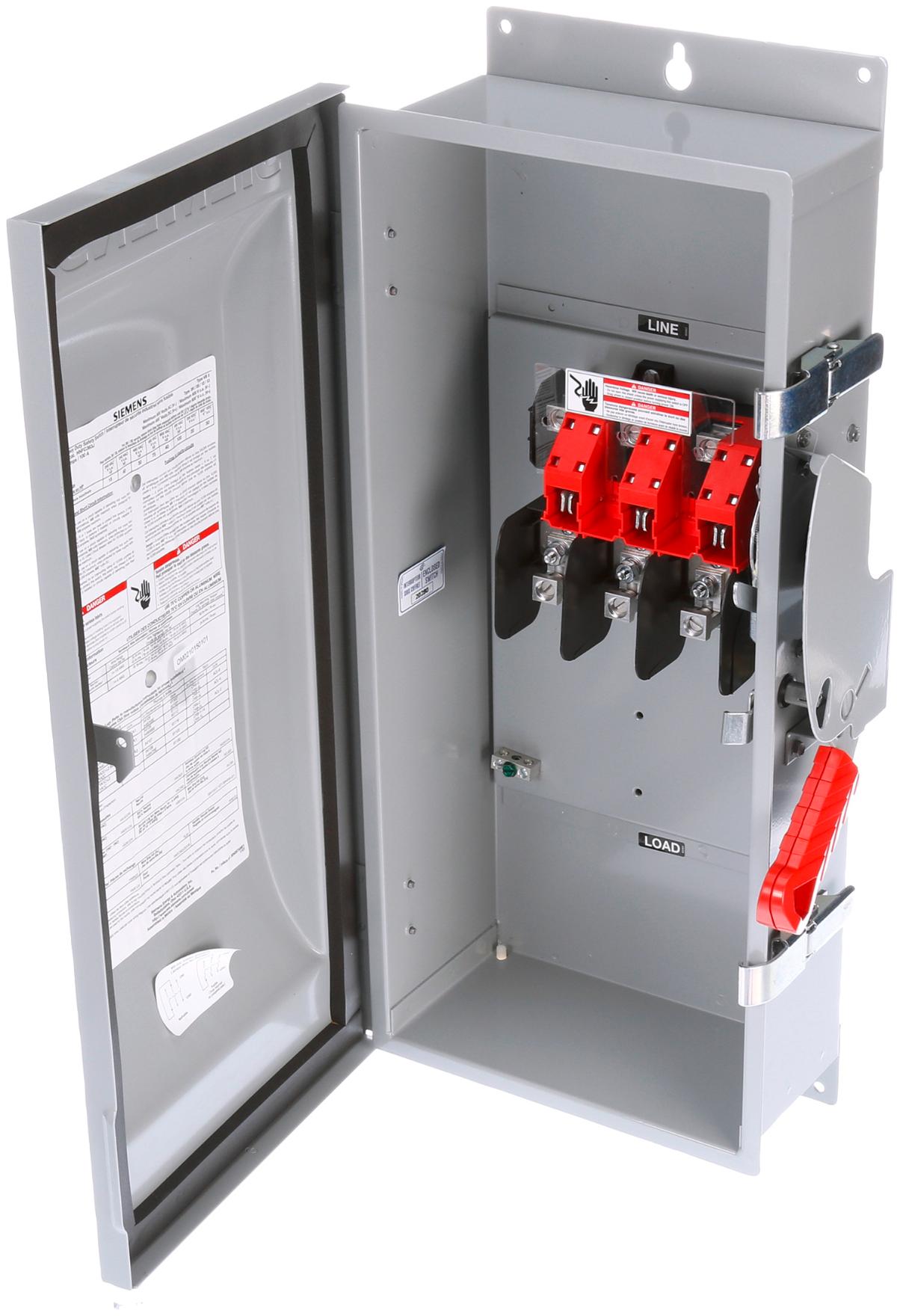

Siemens HNF363J is a non-fusible disconnect switch designed for providing a visible break and safe isolation in three-phase industrial power circuits. It is rated for 600V AC systems with a continuous current capacity of 100A and features a robust 3-pole, single-configuration design housed in a NEMA 12 enclosure for protection against dust and dripping liquids. The switch is constructed with a durable steel frame, measures 27.95" x 14.57" x 8.27" (HxWxD), and weighs 25.045 lb, ensuring reliable performance in demanding environments. It complies with UL standards and is part of the Siemens VBII series, compatible with PGP frames, and offers an interrupting rating of 200kA at 600V for enhanced system protection. Typical applications include motor control centers, industrial machinery, and power distribution panels where a visible disconnect is required for maintenance and safety.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, VBII Series, steel construction
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 27.95" H x 14.57" W x 8.27" D (710 x 370 x 210 mm)
  • Standards: UL Listed
  • Applications: Motor control centers, industrial machinery, power distribution isolation
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Poles: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 12
  • Phase: 3-Phase
  • Compatible Frames: PGP
  • Weight: 25.045 lb (11.36 kg)
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151925
  • GTIN: 0783643151925
