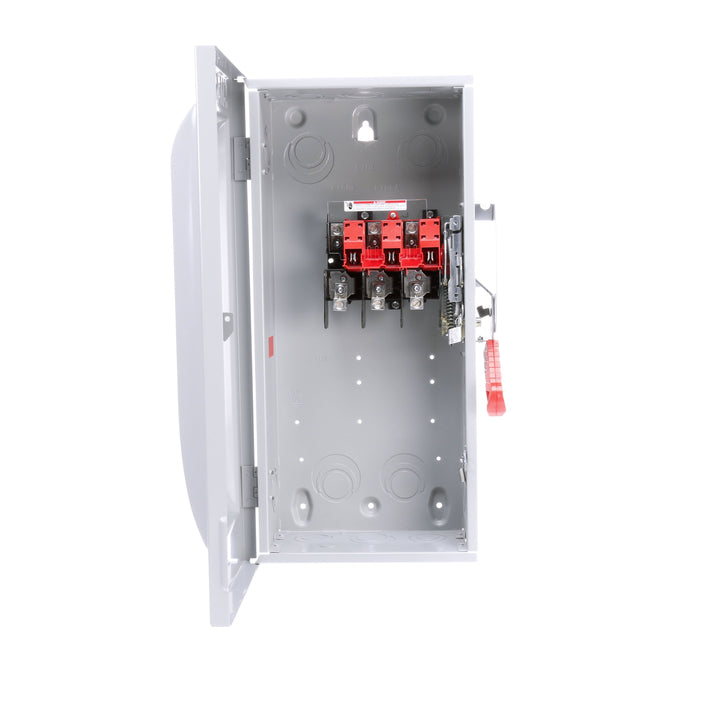

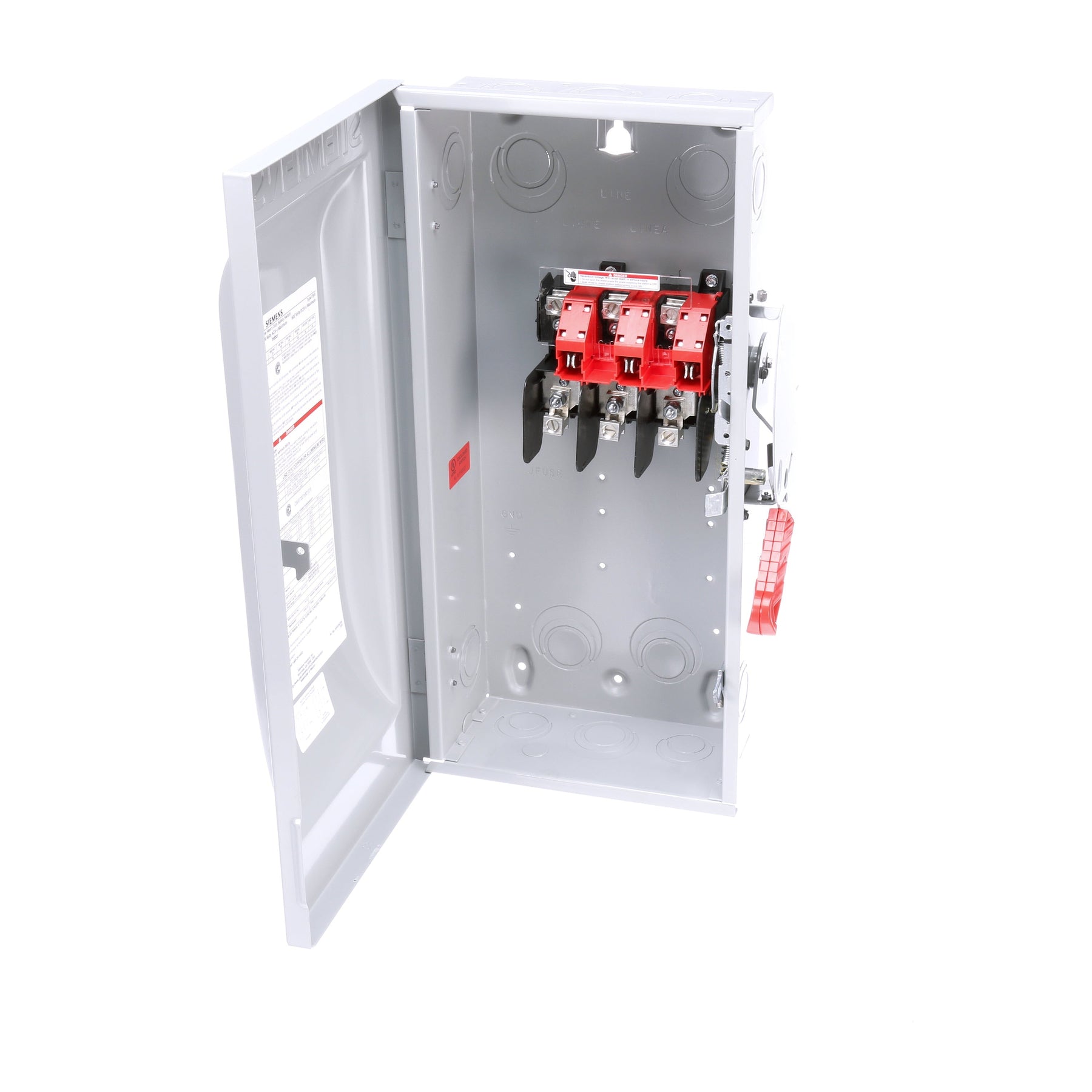

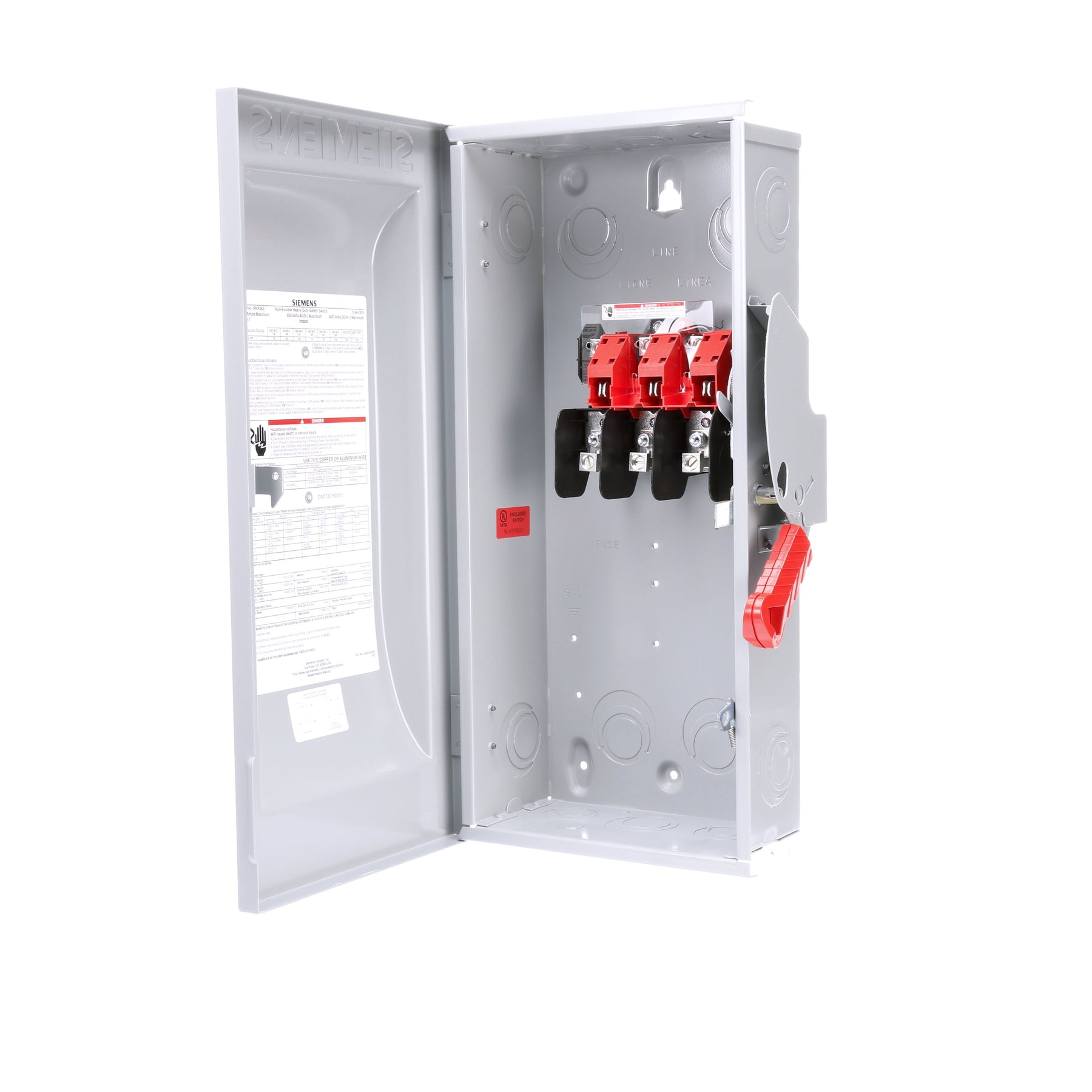

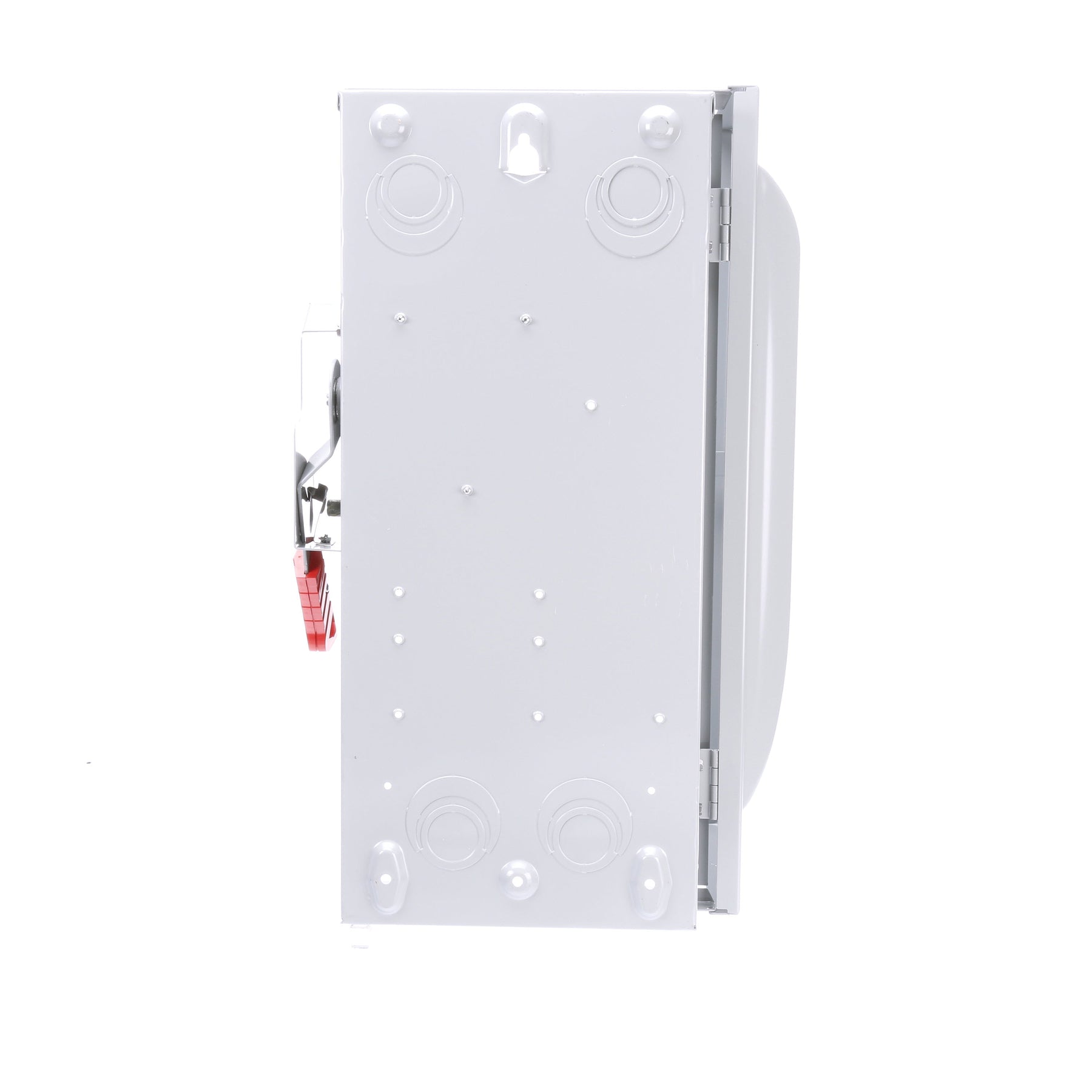

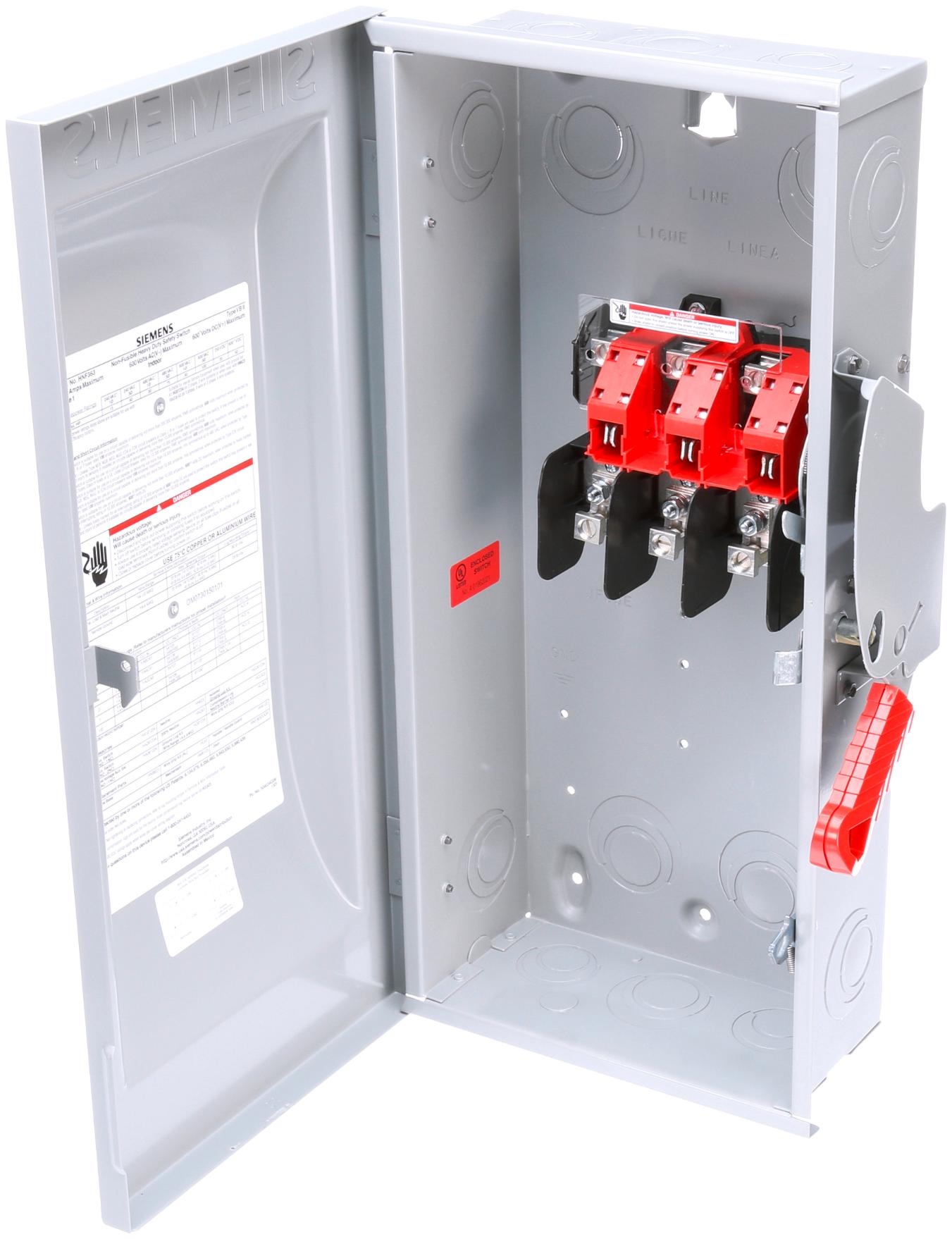

Siemens HNF363 - Non-Fusible Disconnect Switch 100A 600V 3-Pole

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HNF363 is a non-fusible disconnect switch designed for providing a visible break and safe isolation in three-phase industrial power circuits. It is rated for 600V AC systems with a continuous current rating of 100A and features a robust 3-pole, single-configuration design housed in a NEMA 1 enclosure for indoor use. The switch is constructed with durable materials, measures 25.591" x 13.78" x 7.48" (650mm x 350mm x 190mm) and weighs 16.3 lb, and is UL listed for safety compliance. It is engineered to withstand high fault currents with an interrupting rating of 200kA at 600V, making it suitable for integration into panelboards and switchgear compatible with Siemens PGP frames for motor control and main distribution applications.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, manual operation
  • Voltage Rating: 600V AC
  • Current Rating: 100A
  • Dimensions: 25.591 x 13.78 x 7.48 inch (650 x 350 x 190 mm)
  • Standards: UL Listed
  • Applications: Industrial power isolation, motor control centers, main distribution panels
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC rating: 200kA @ 600V
  • Nema Rating: NEMA 1
  • Compatible Frames: PGP
  • Family: VBII Series
  • Country of Origin: Mexico
  • Weight: 16.3 lb


Product Identification
  • UPC: 783643151185
  • GTIN: 0783643151185
