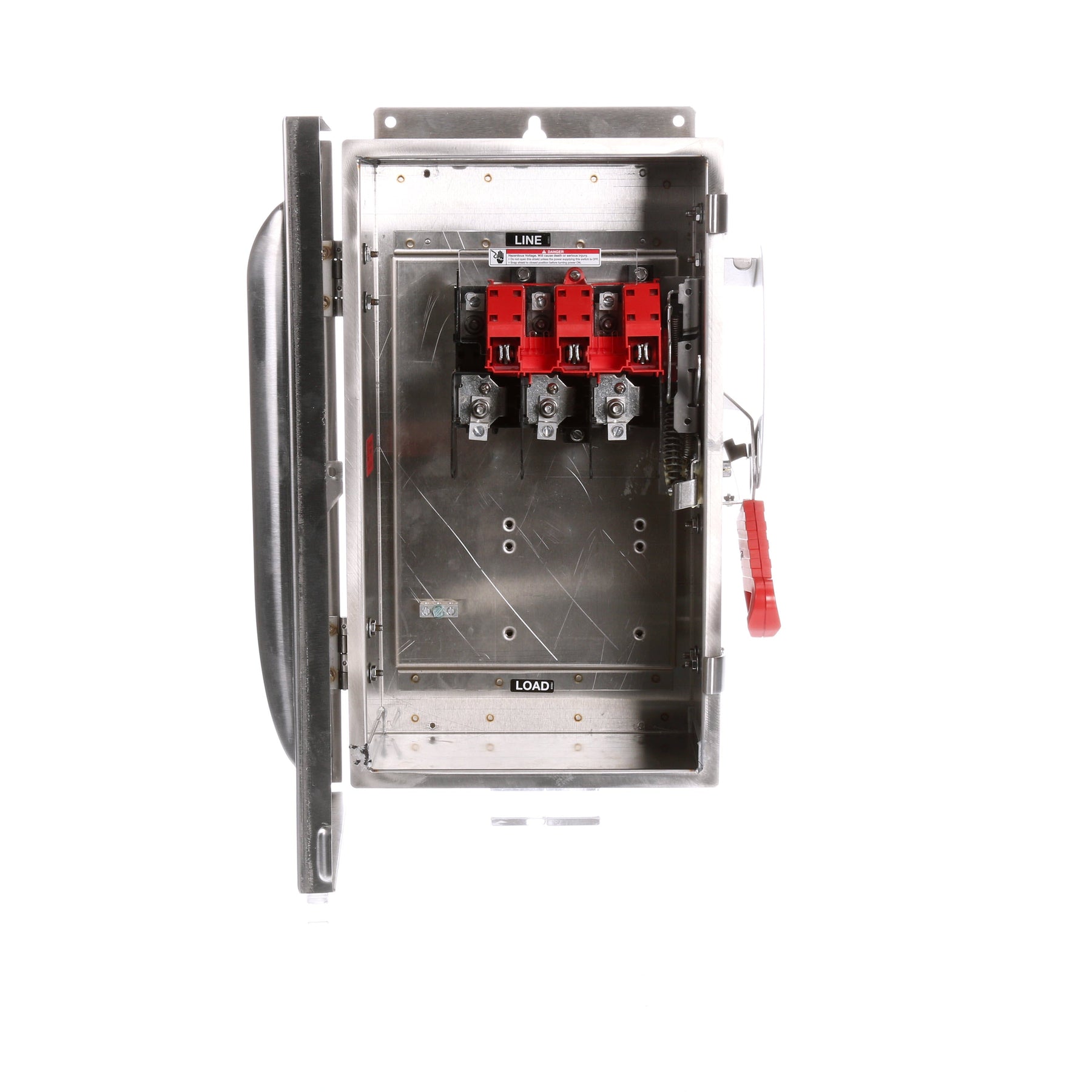

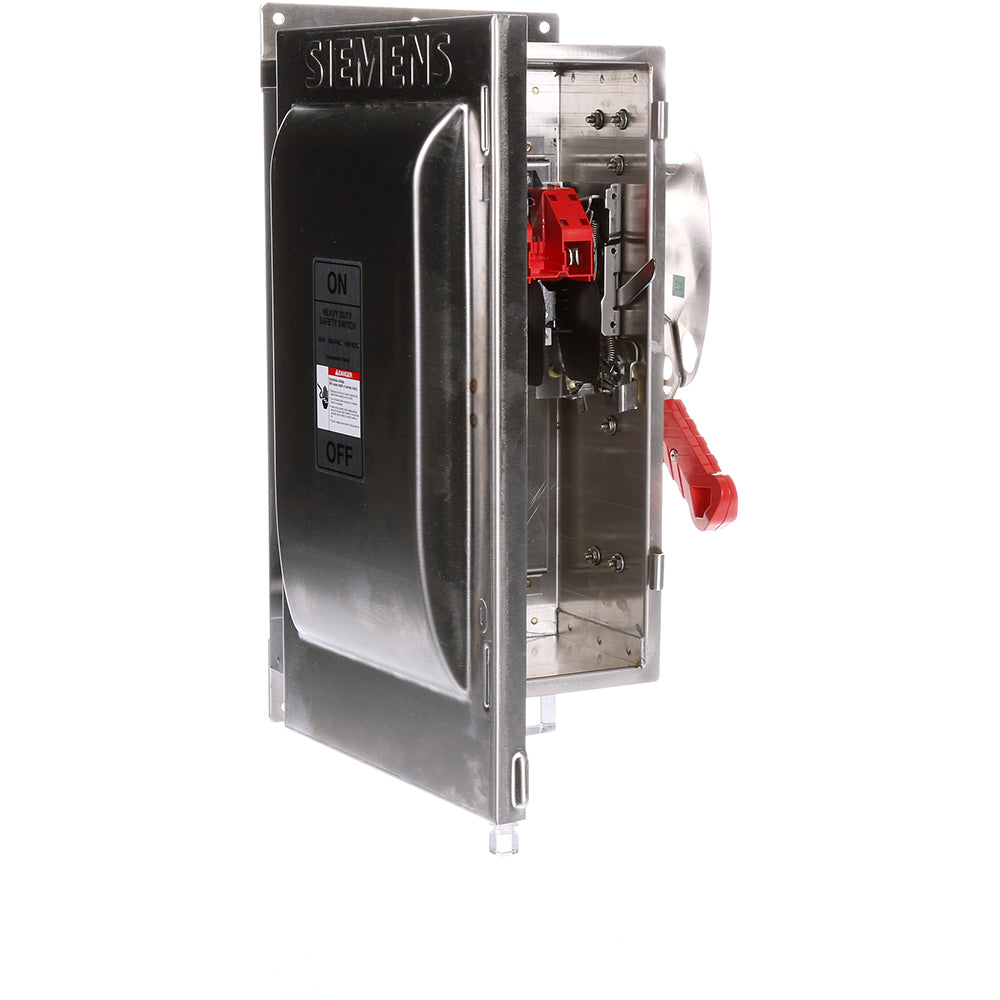

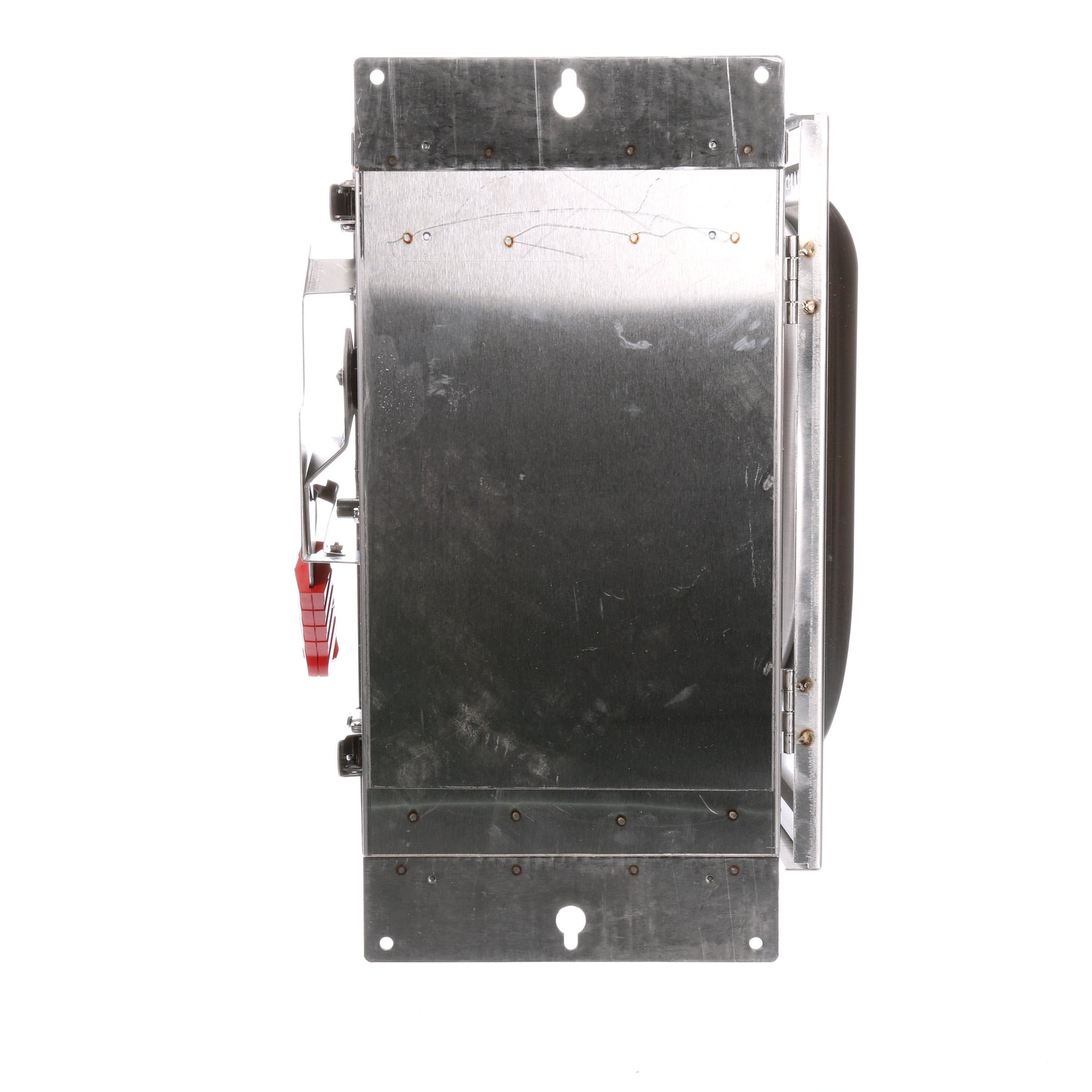

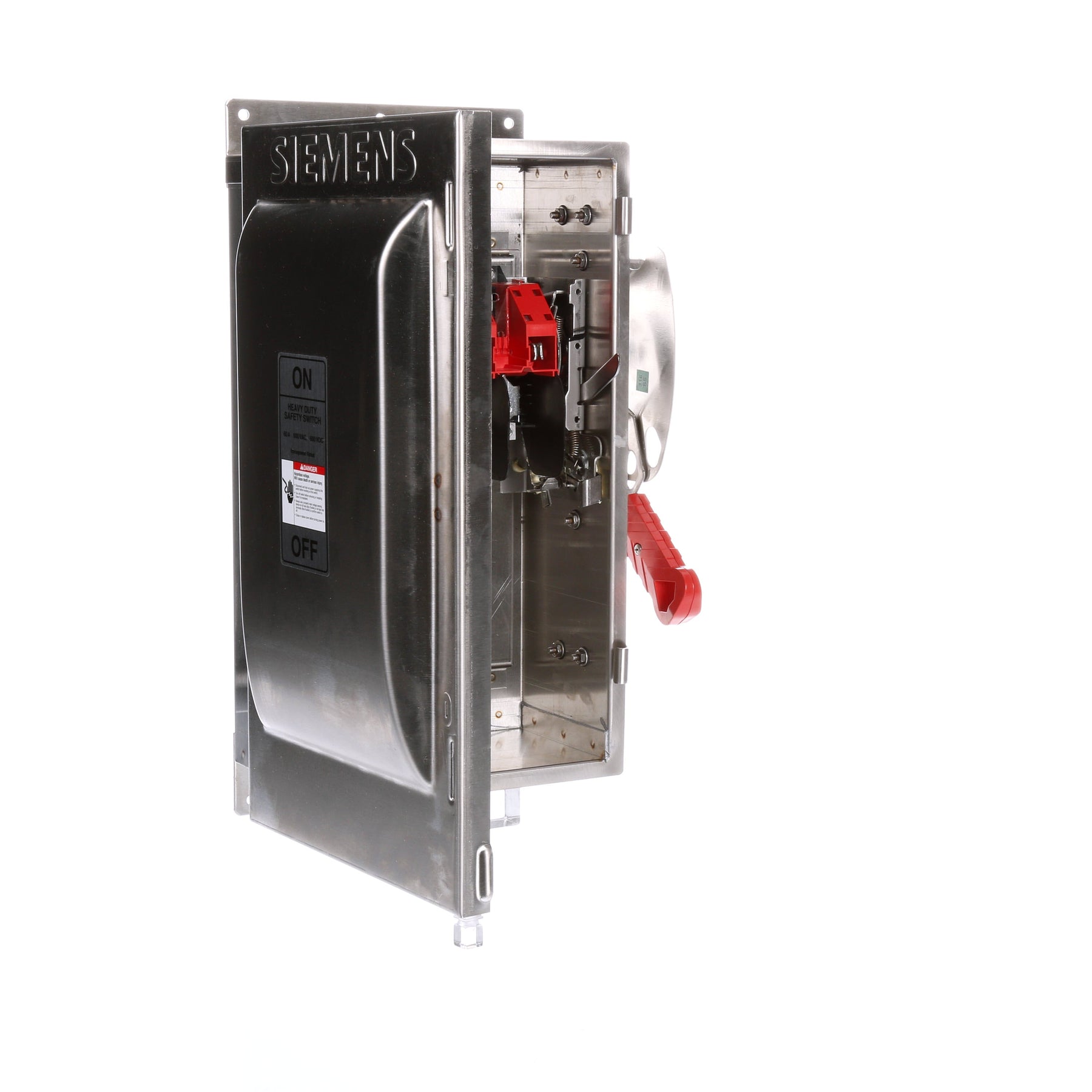

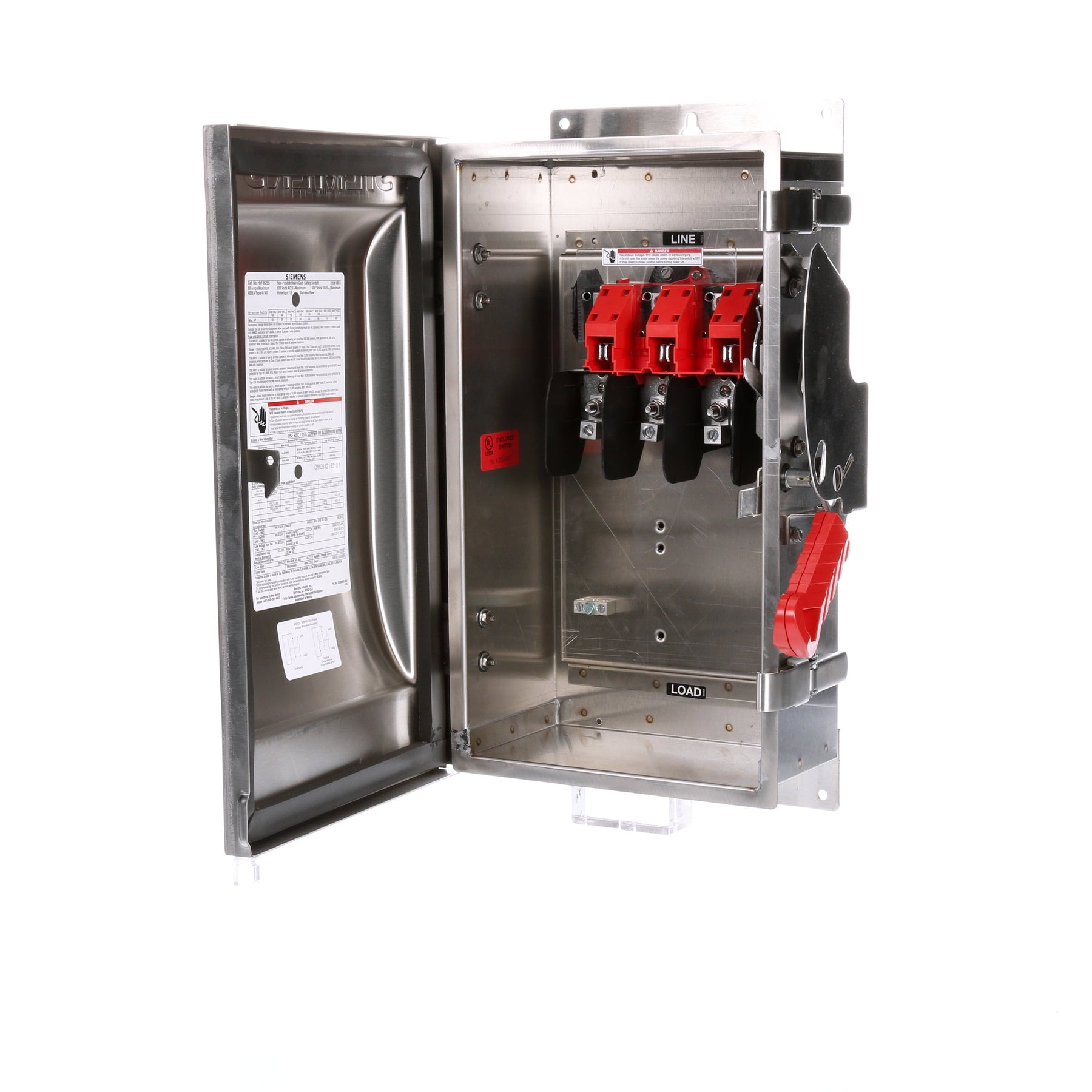

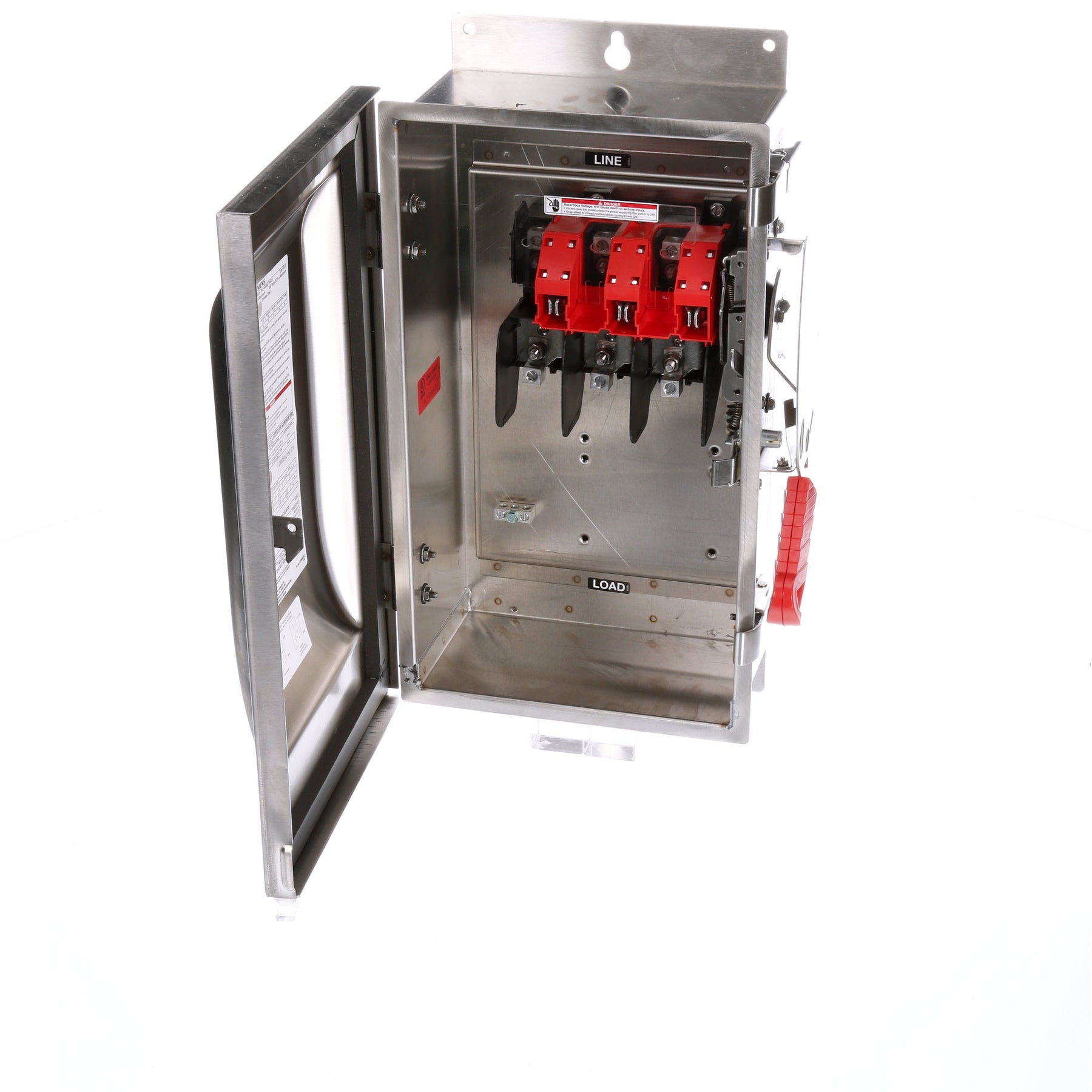

Siemens HNF362SS is a non-fusible disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits in industrial environments. It is rated for 600V AC systems with a continuous current rating of 60A and features a robust 200kA interrupting capacity at 600V for high-fault protection. The switch is constructed within a durable NEMA 4X enclosure measuring 22.047" x 14.173" x 7.874" (560mm x 360mm x 200mm) and weighing 23.656 lb, ensuring protection against corrosion and weather. It is UL listed and designed for compatibility with Siemens PGP panelboards, making it suitable for applications in manufacturing plants, machinery control, and power distribution where reliable circuit isolation is required.
Key Features & Specifications
Type: Non-Fusible Disconnect Switch, HNF Type, VBII Series
Voltage Rating: 600V AC
Current Rating: 60A
Configuration: Single, 3-Pole
Phase: 3
AIC Rating: 200kA @ 600V
NEMA Rating: NEMA 4X
Dimensions: 22.047 x 14.173 x 7.874 inch (560 x 360 x 200 mm)
