Siemens HNF362S - Non-Fusible Disconnect Switch, 60A 600V 3P

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

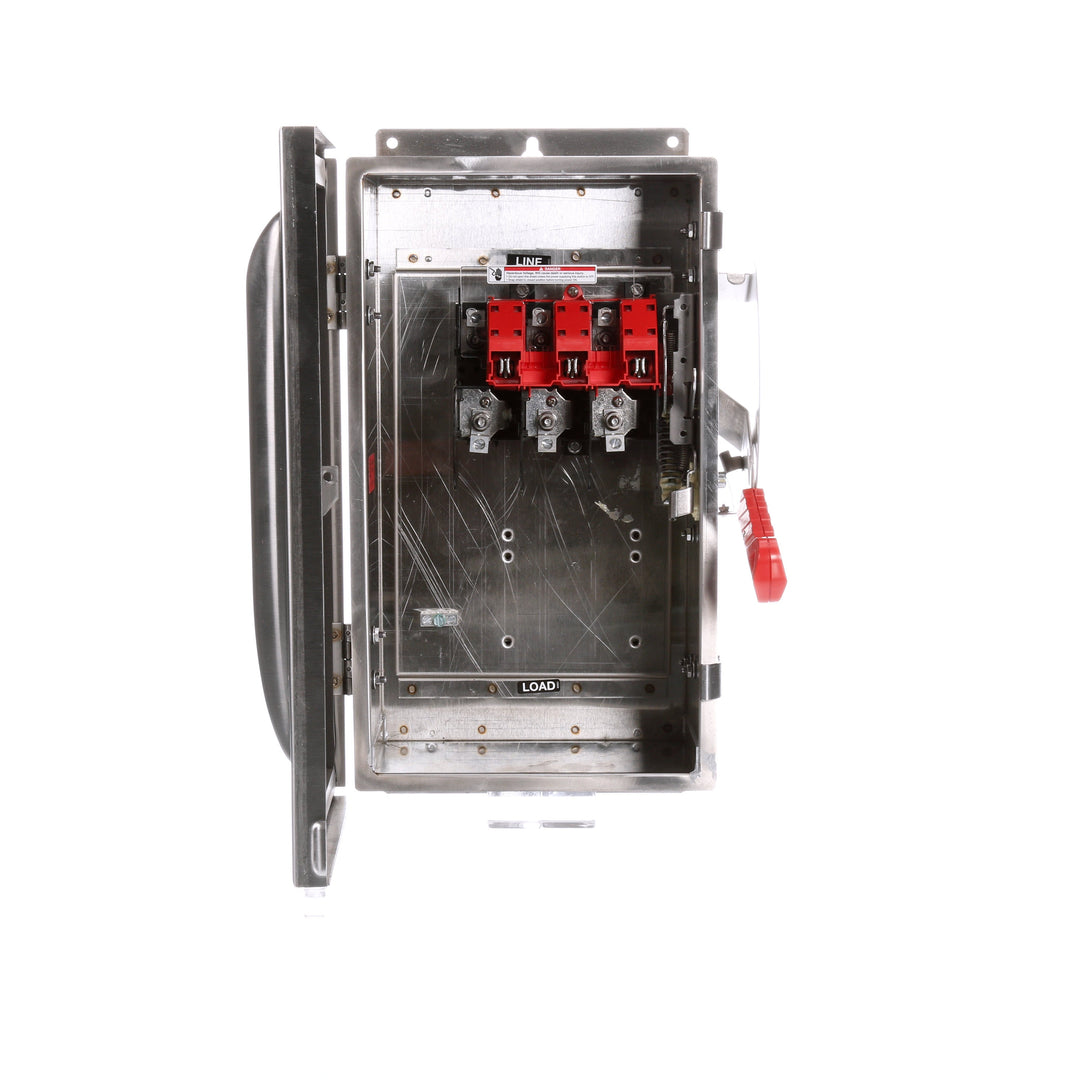

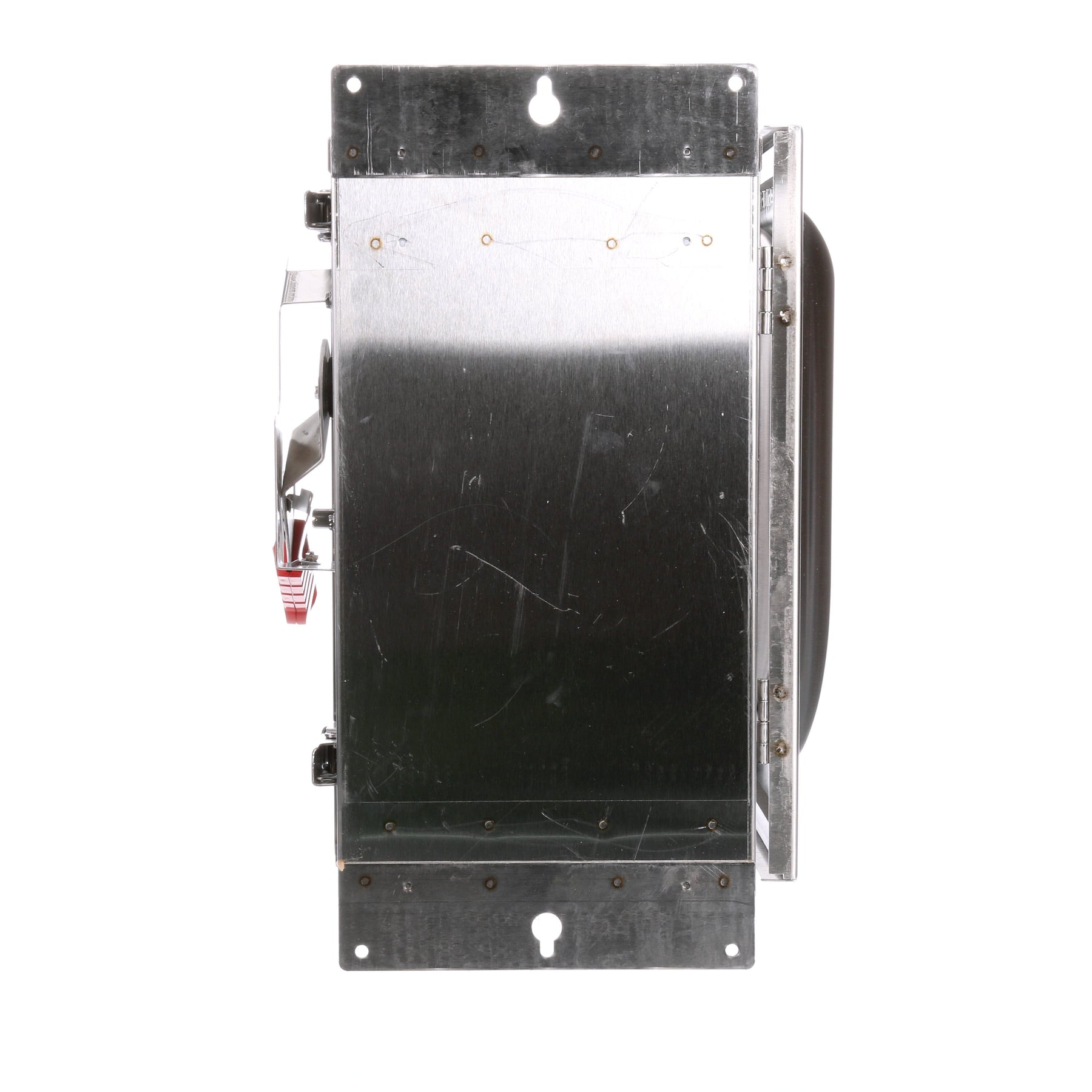

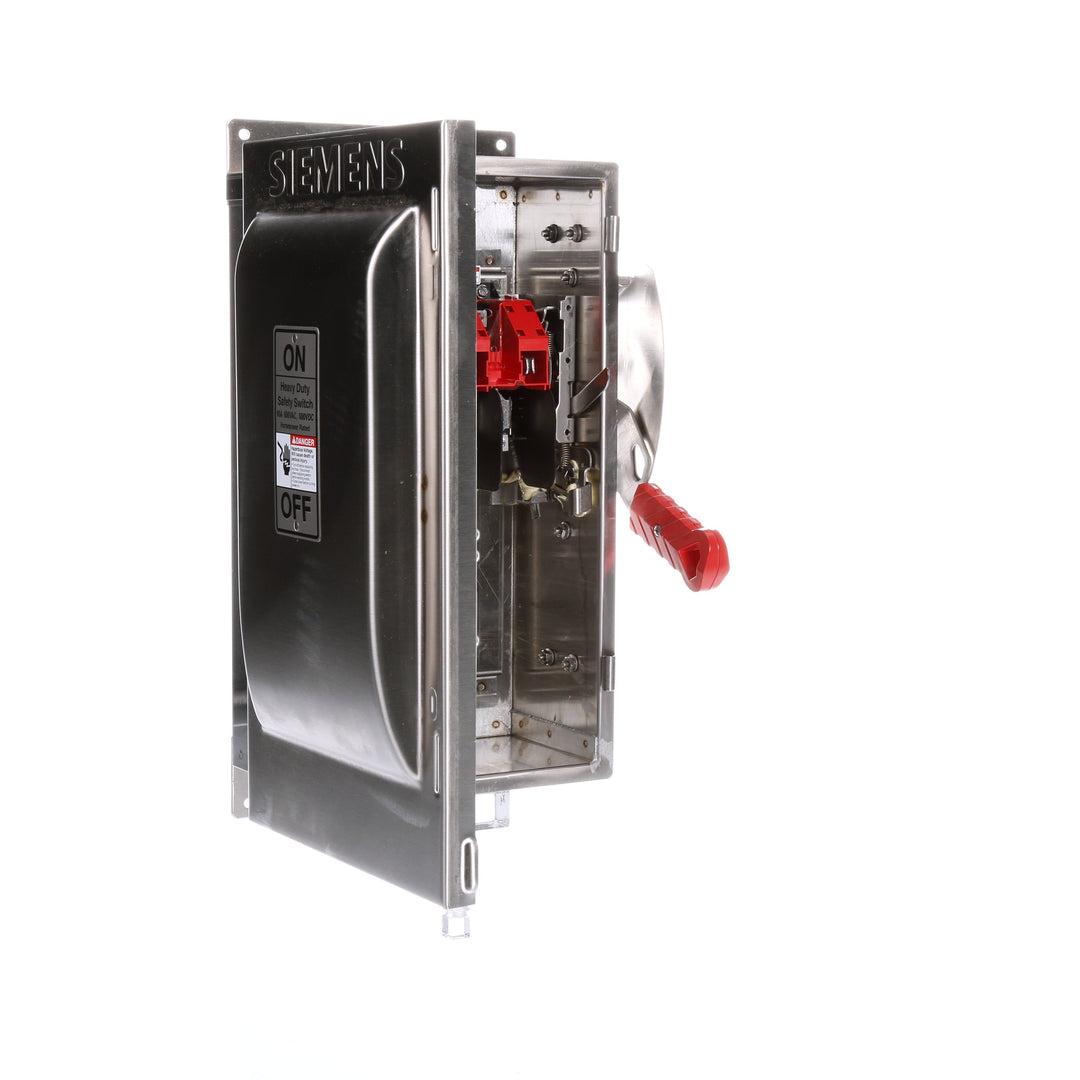

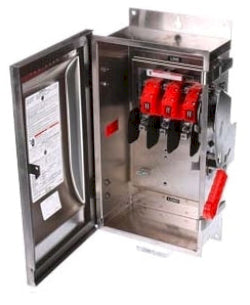

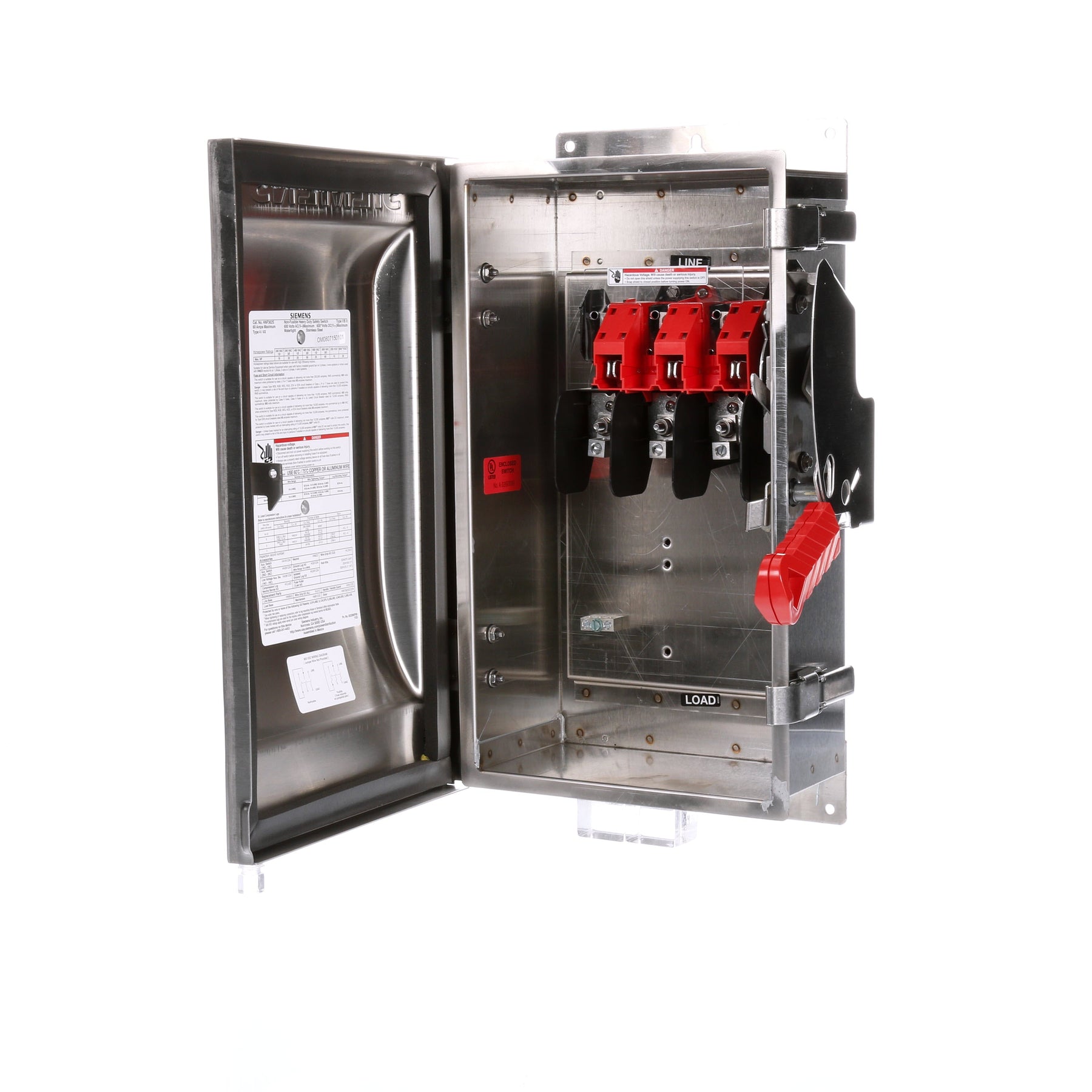

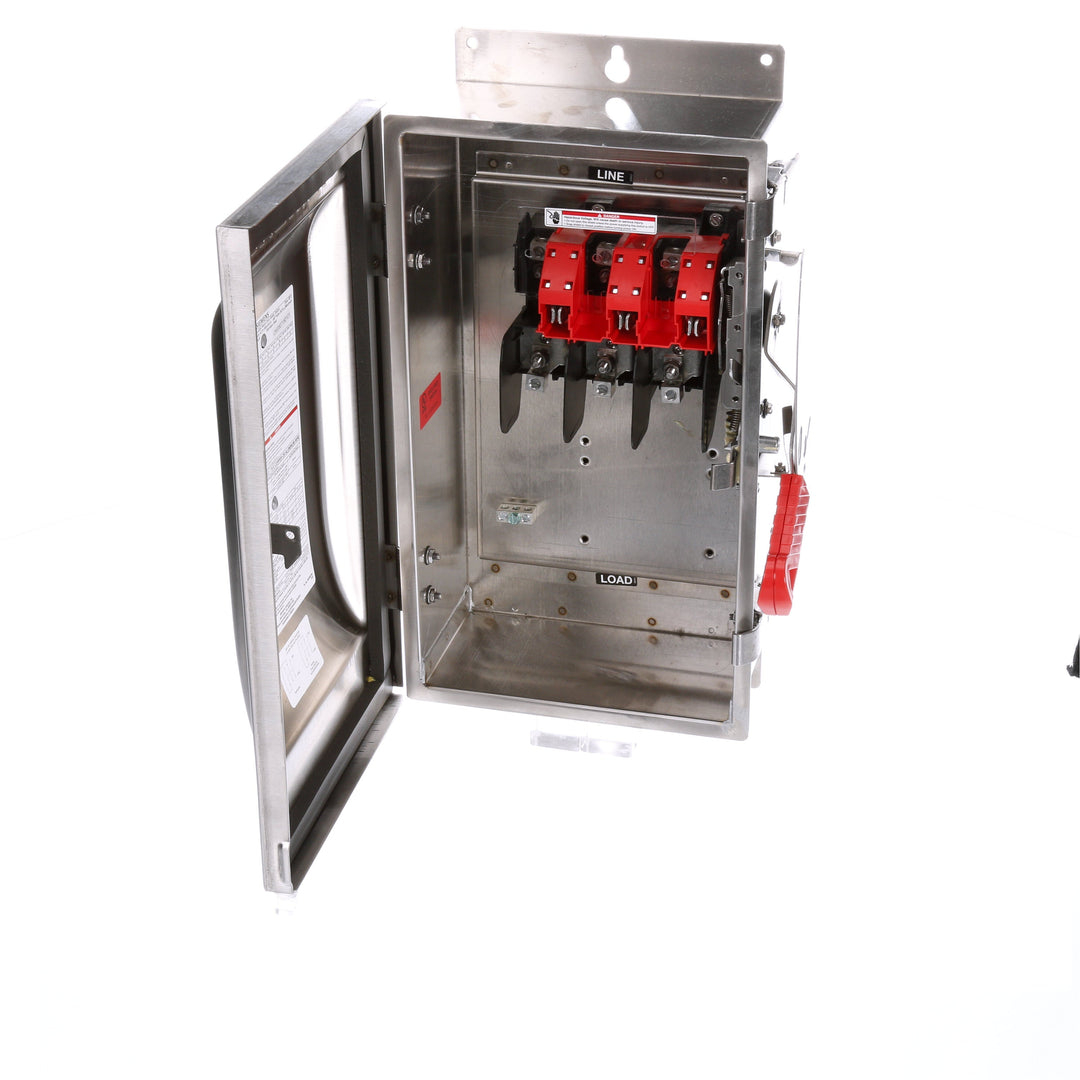

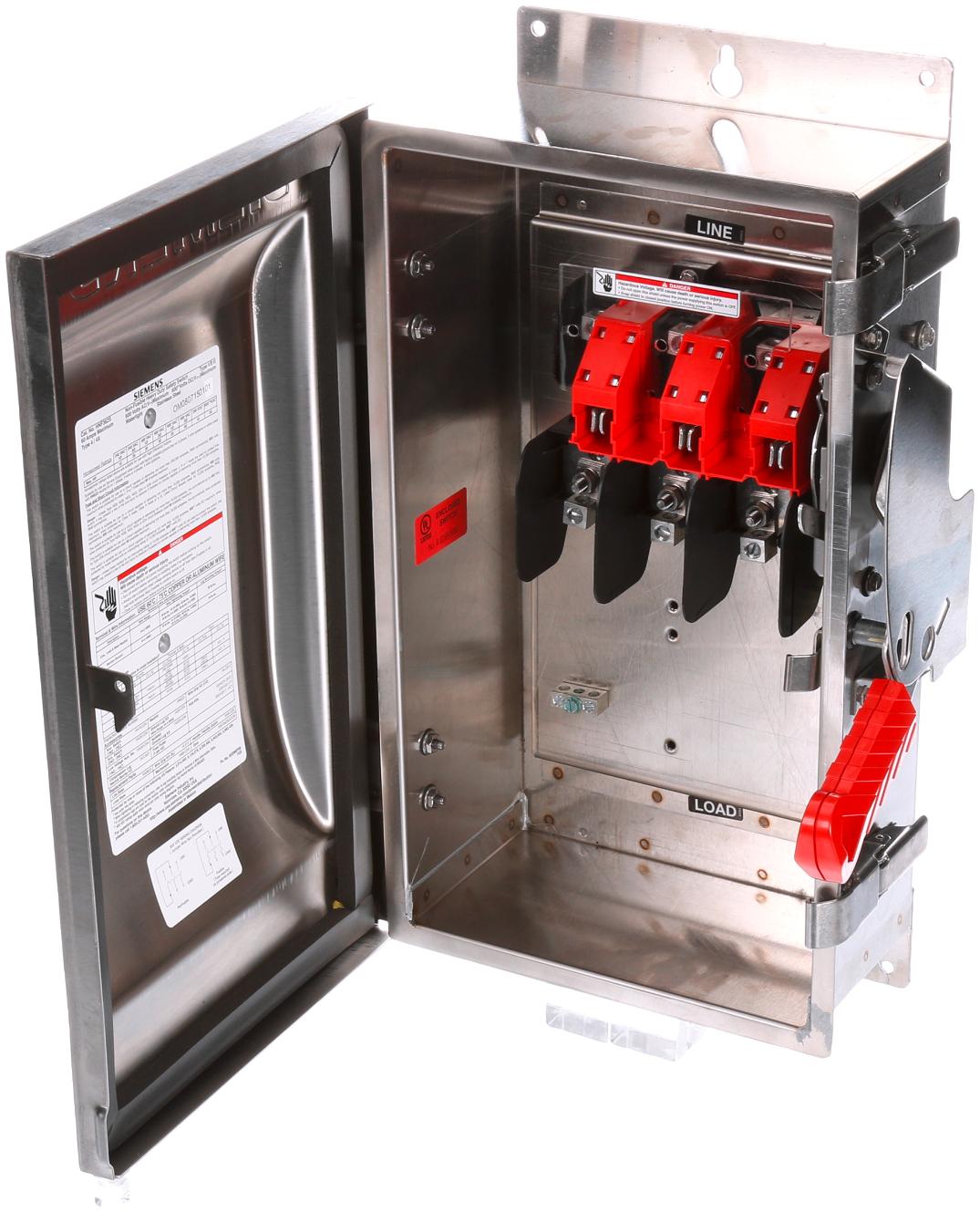

Siemens HNF362S is a non-fusible disconnect switch designed for providing a visible means of isolation and safe maintenance of three-phase industrial circuits. It is rated for 600V AC systems with a continuous current rating of 60A and features a robust, corrosion-resistant NEMA 4X enclosure suitable for harsh environments. The switch is UL listed and offers a high interrupting capacity of 200kA at 600V, ensuring reliable protection. Its compact design, with dimensions of 22.047" x 14.173" x 7.874" and a weight of 23.589 lb, makes it suitable for integration into compatible PGP frames for motor control and power distribution applications.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series, HNF type
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 4X
  • Dimensions: 22.047" H x 14.173" W x 7.874" D
  • Weight: 23.589 lb
  • Standards: UL Listed
  • Compatible Frames: PGP
  • Switch Style: Non-Fusible
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643152076
  • GTIN: 0783643152076
