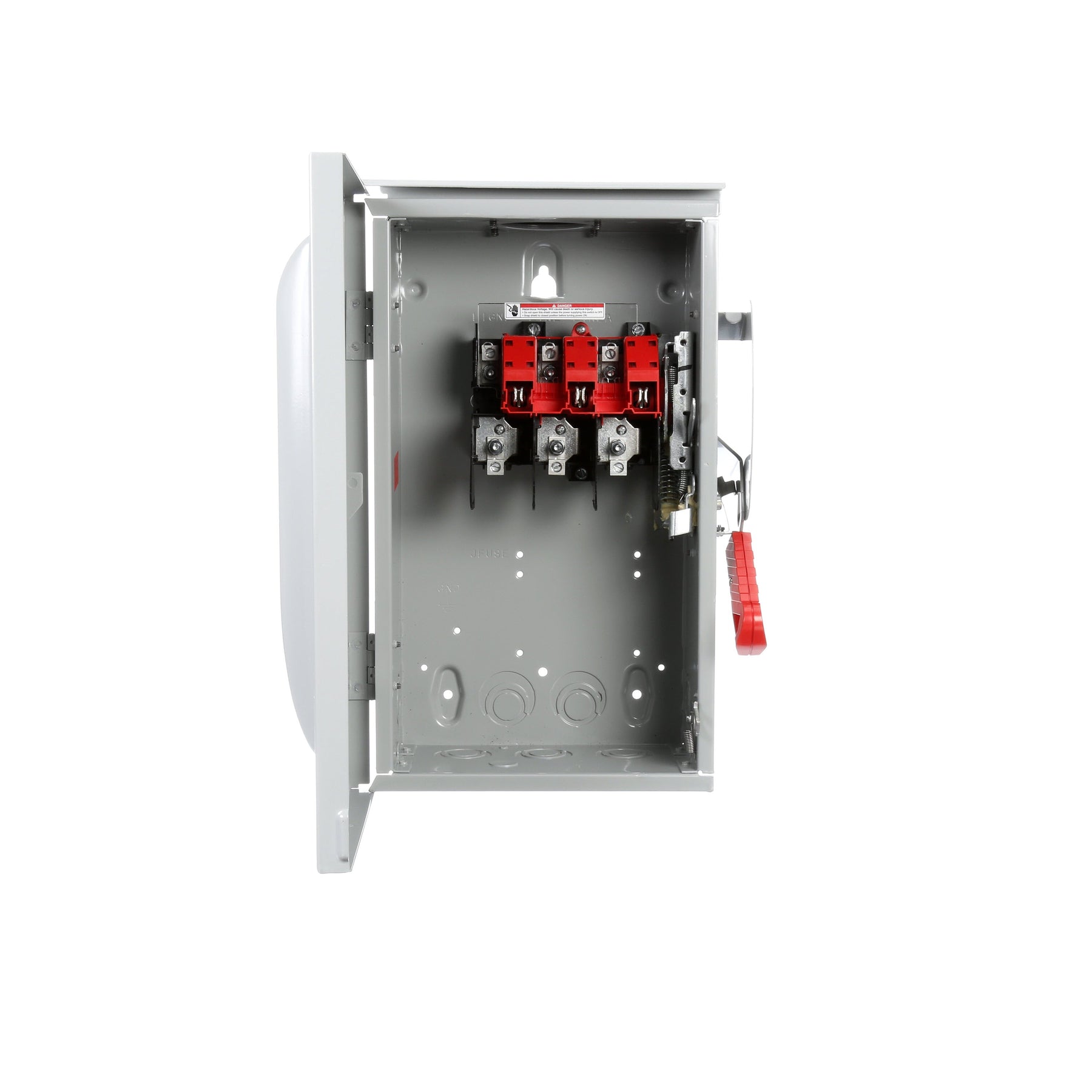

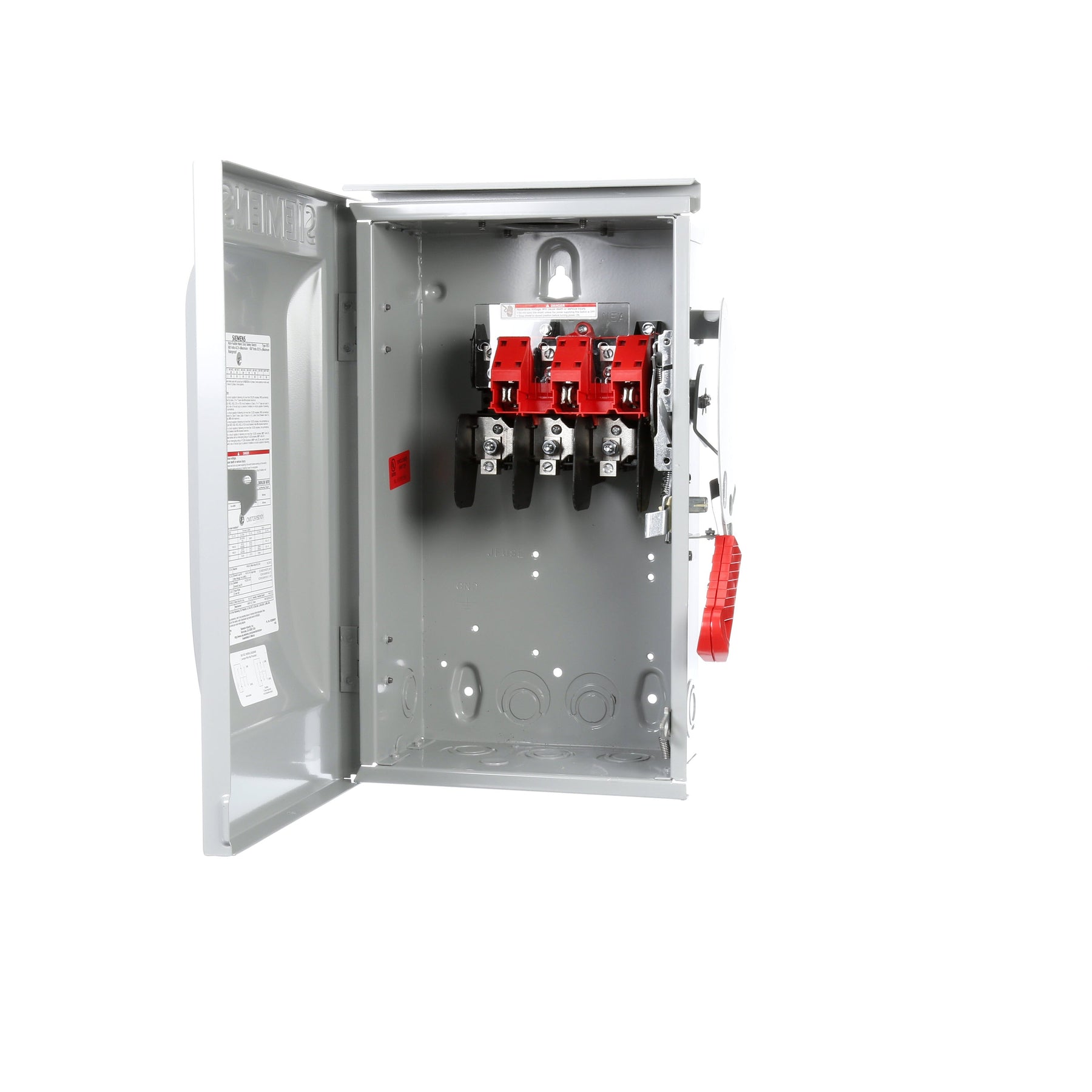

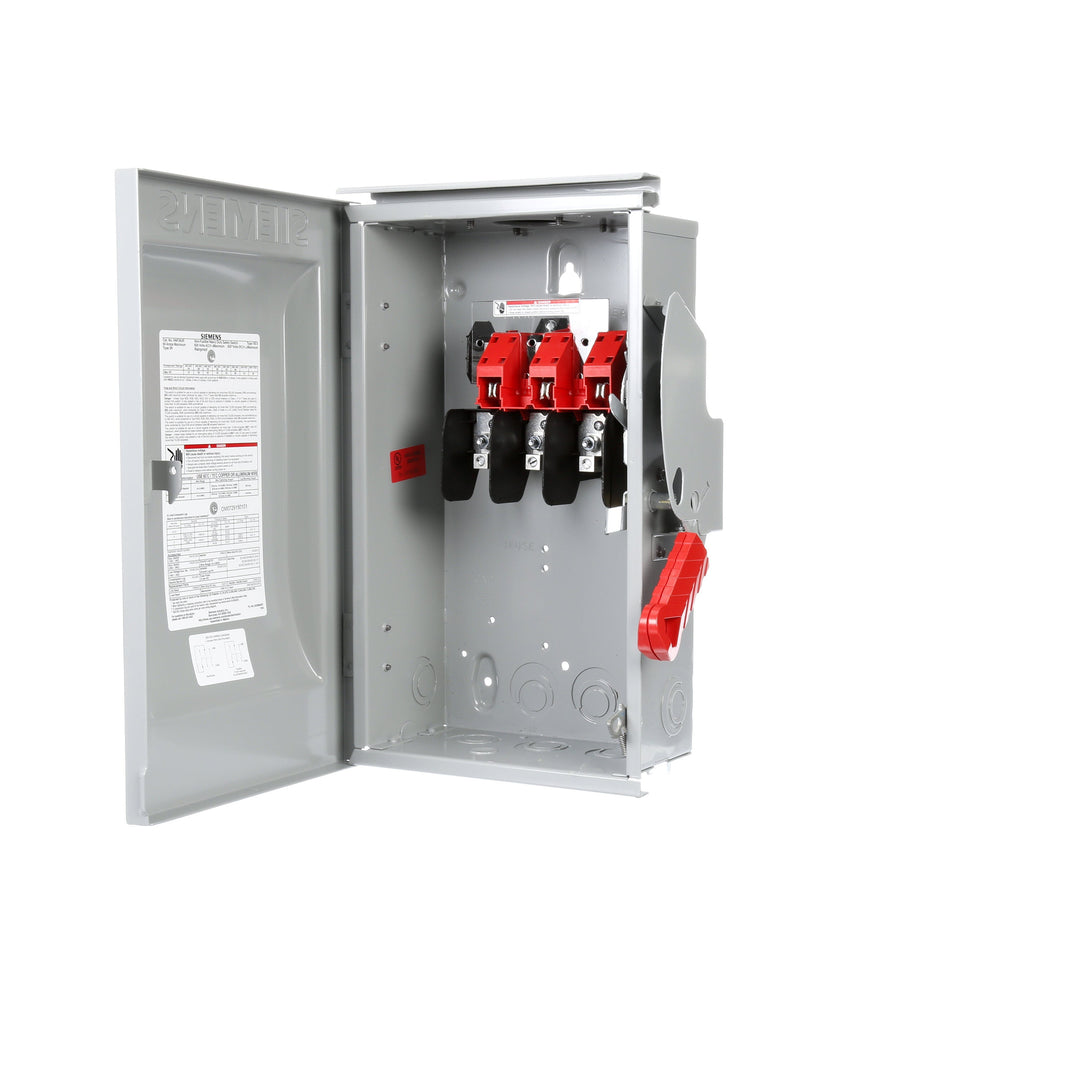

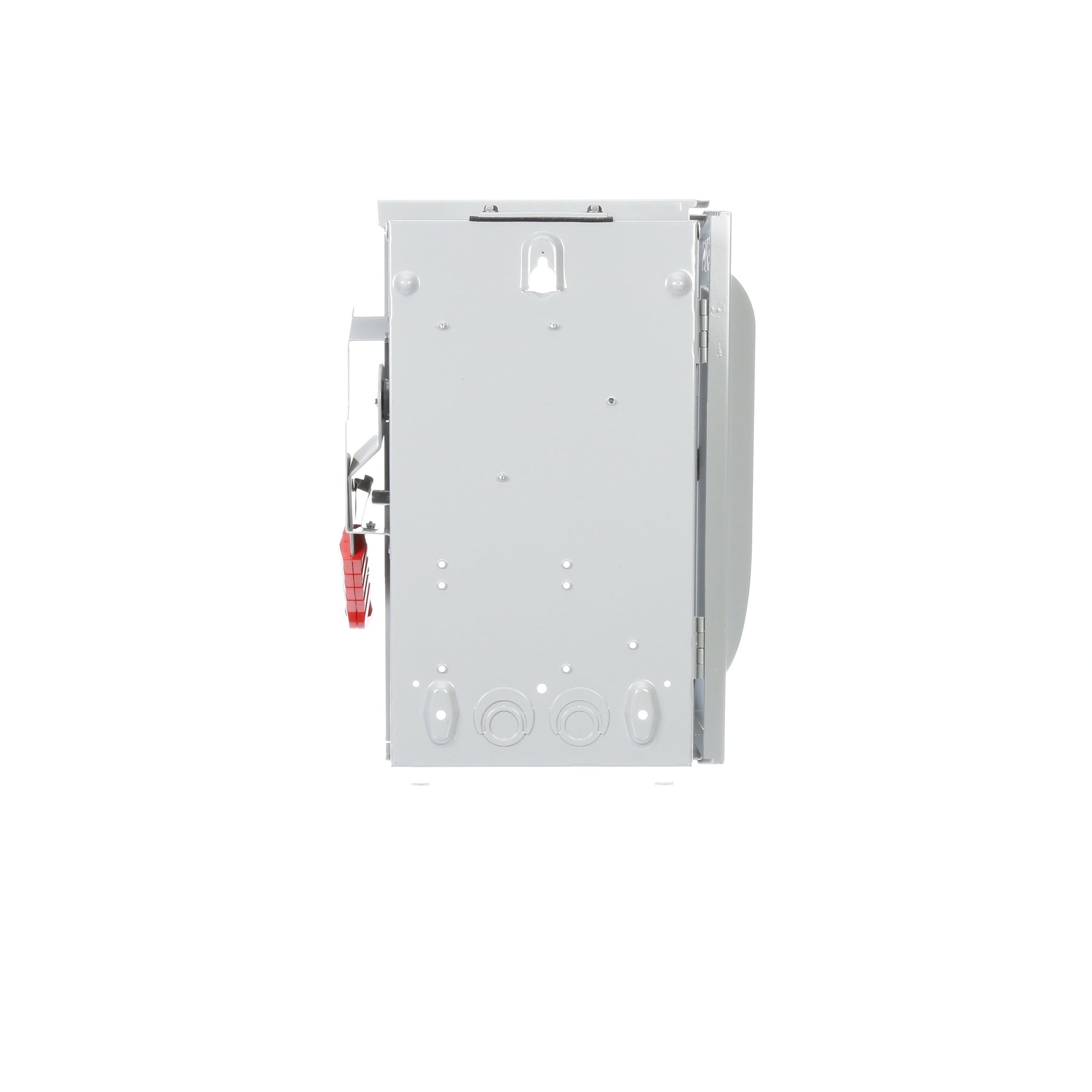

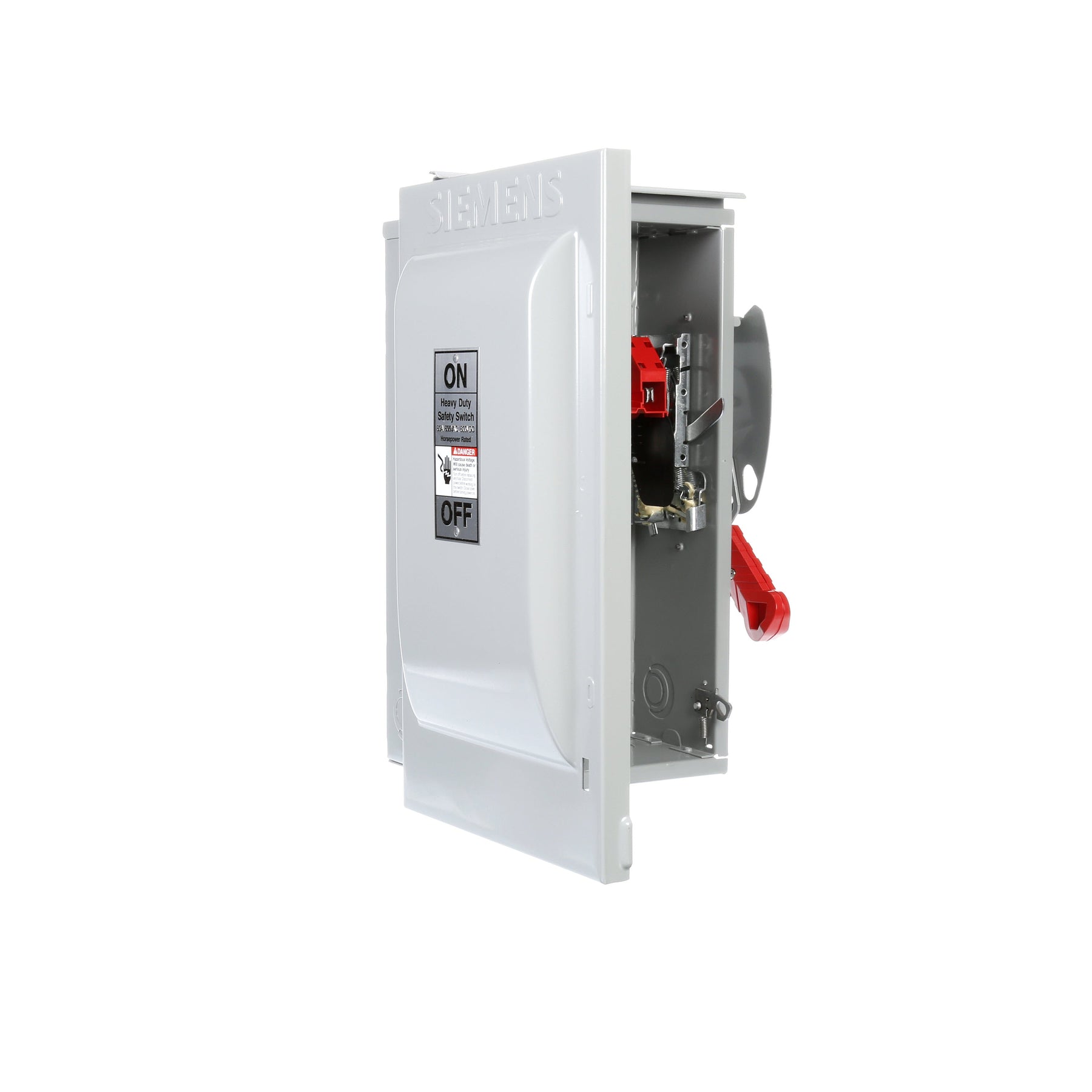

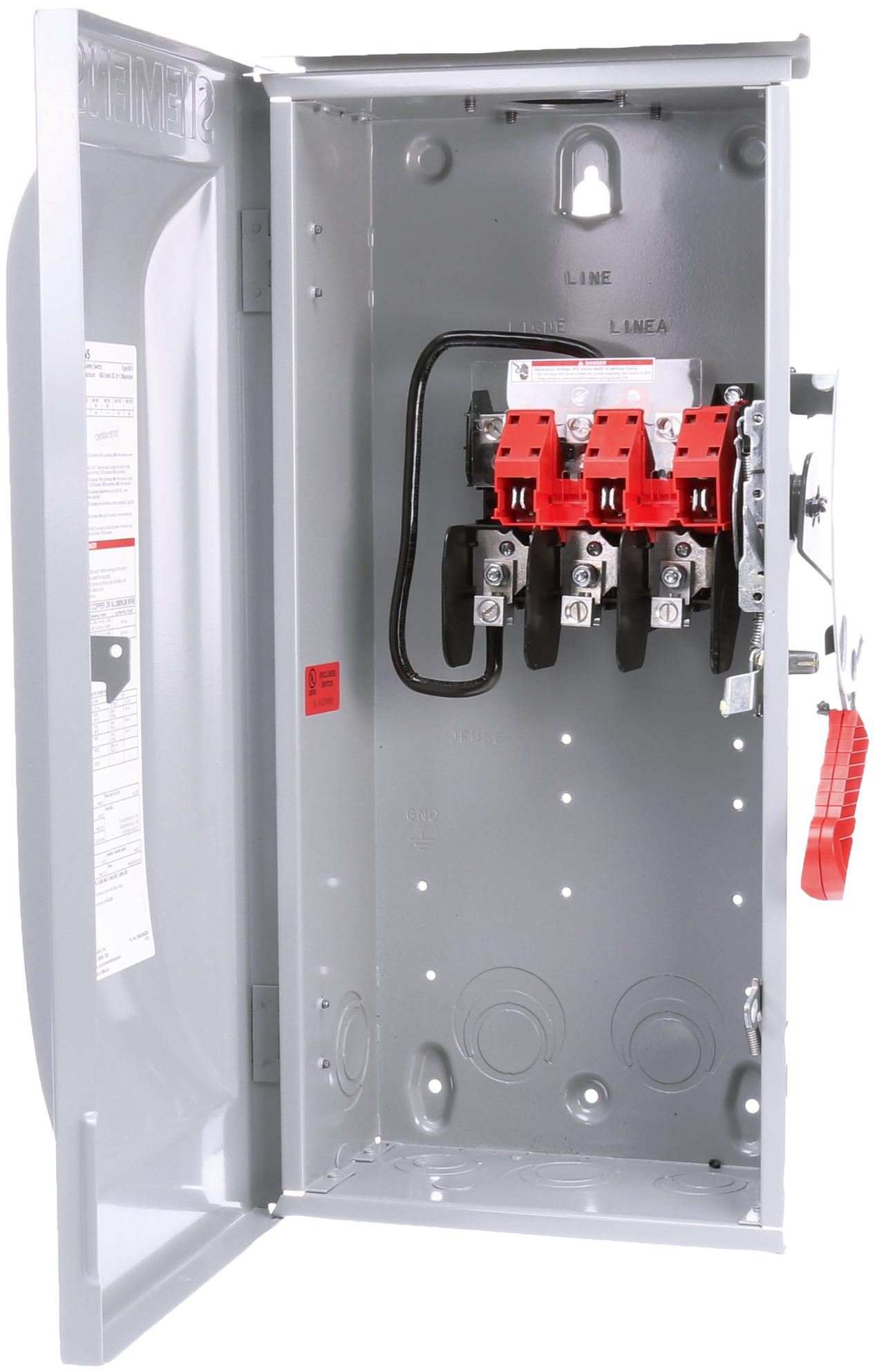

Siemens HNF362R - Non-Fusible Disconnect Switch 60A 600V (NEMA 3R, 200kA AIC)

Siemens HNF362R is a non-fusible safety disconnect switch designed for reliable circuit isolation and load-breaking operations in industrial power distribution systems. It features a 600V AC voltage rating and 60A current capacity for three-phase electrical systems, providing robust performance in demanding environments. The switch is constructed with durable materials measuring 11.5 x 17.5 inches and weighing 24 pounds, featuring a NEMA 3R rated enclosure for protection against falling rain and ice formation. This UL-listed device complies with industry safety standards and offers 200kA interrupting capacity at 600V for enhanced system protection. Typical applications include industrial control panels, motor control centers, and main power distribution systems where safe maintenance isolation is required.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, VBII Series
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 11.5 in x 17.5 in
• Standards: UL listed, NEMA 3R
• Applications: Industrial control panels, motor control centers, power distribution
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• AIC rating: 200kA@600V
• Nema Rating: NEMA 3R
• Phase: 3
• Certification: UL listed
• Compatible Frames: PGP
• Weight: 24 lb
• Country of Origin: Mexico

Product Identification

• UPC: 783643151741
• GTIN: 00783643151741
