Siemens HNF362J - Non-Fusible Disconnect Switch, 60A 600V 3-Pole
HNF362J Siemens VBII Series Disconnect 600V ACV 60A Non-Fusible Switch - Essential Electric Supply
HNF362J Siemens VBII Series Disconnect 600V ACV 60A Non-Fusible Switch - Essential Electric Supply
Siemens HNF362J - Non-Fusible Disconnect Switch, 60A 600V 3-Pole

Siemens HNF362J - Non-Fusible Disconnect Switch, 60A 600V 3-Pole

Siemens
Price
Save $1,999.44
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

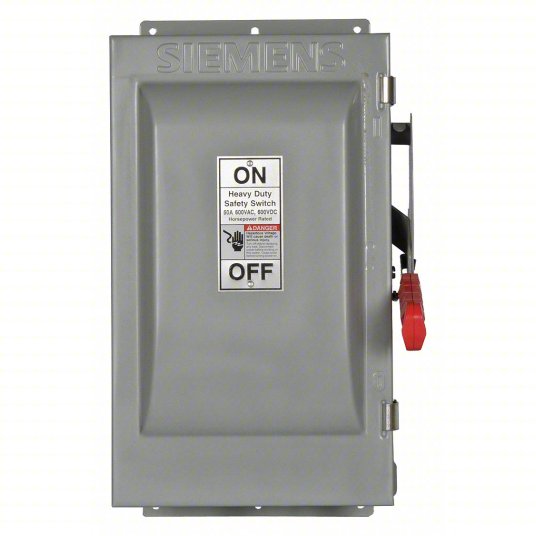

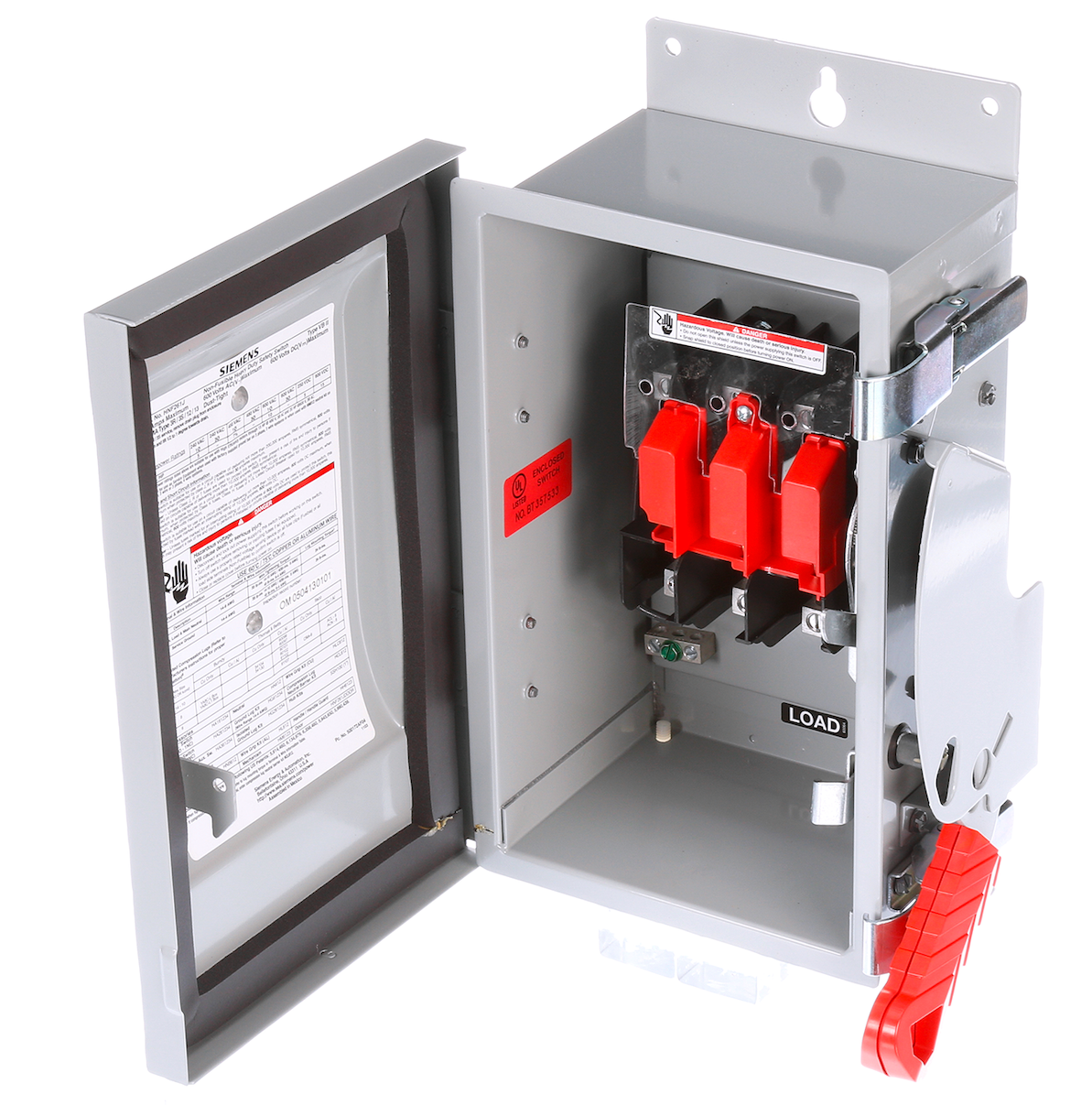

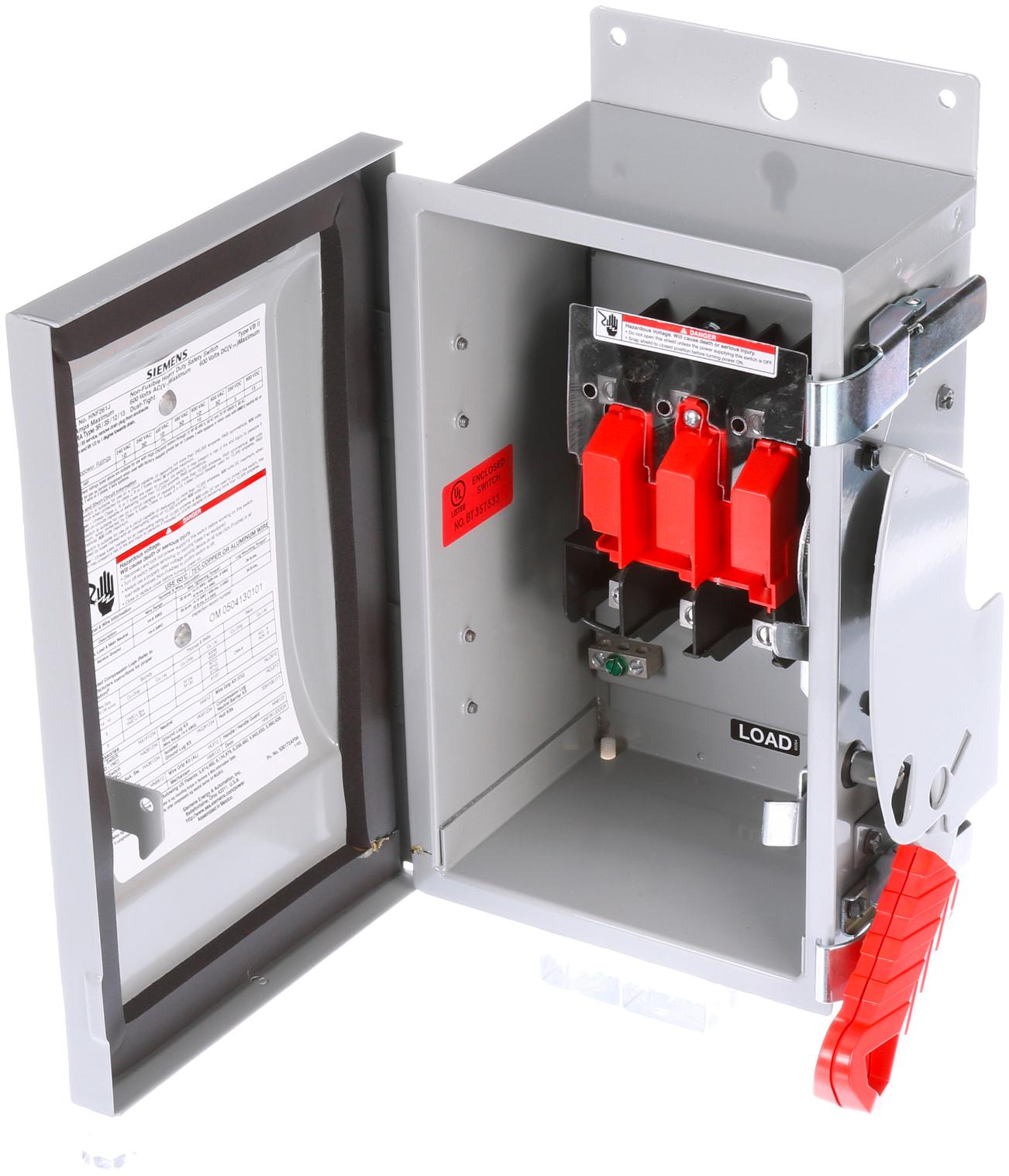

Siemens HNF362J is a non-fusible disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits in industrial applications. It is rated for 600V AC and a continuous current of 60A, featuring a robust construction with dimensions of 22.047 x 14.173 x 7.874 inches (560 x 360 x 200 mm) and a weight of 21.605 lb. The switch is UL listed, carries a NEMA 12 enclosure rating for protection against dust and dripping liquids, and offers a high interrupting capacity of 200kA at 600V. It is engineered for reliable operation in ambient temperatures from -25°C to 70°C (-13°F to 158°F) and is typically used in motor control centers, industrial machinery, and power distribution panels where a non-fusible isolating switch is required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, manual operation
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Dimensions: 22.047 x 14.173 x 7.874 in (560 x 360 x 200 mm)
  • Weight: 21.605 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • NEMA Rating: NEMA 12
  • Standards: UL Listed
  • Compatible Frames: PGP
  • Family: VBII Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151918
  • GTIN: 0783643151918
