Siemens HNF362 - Non-Fusible Disconnect Switch 60A 600V

Siemens HNF362 - Non-Fusible Disconnect Switch 60A 600V

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

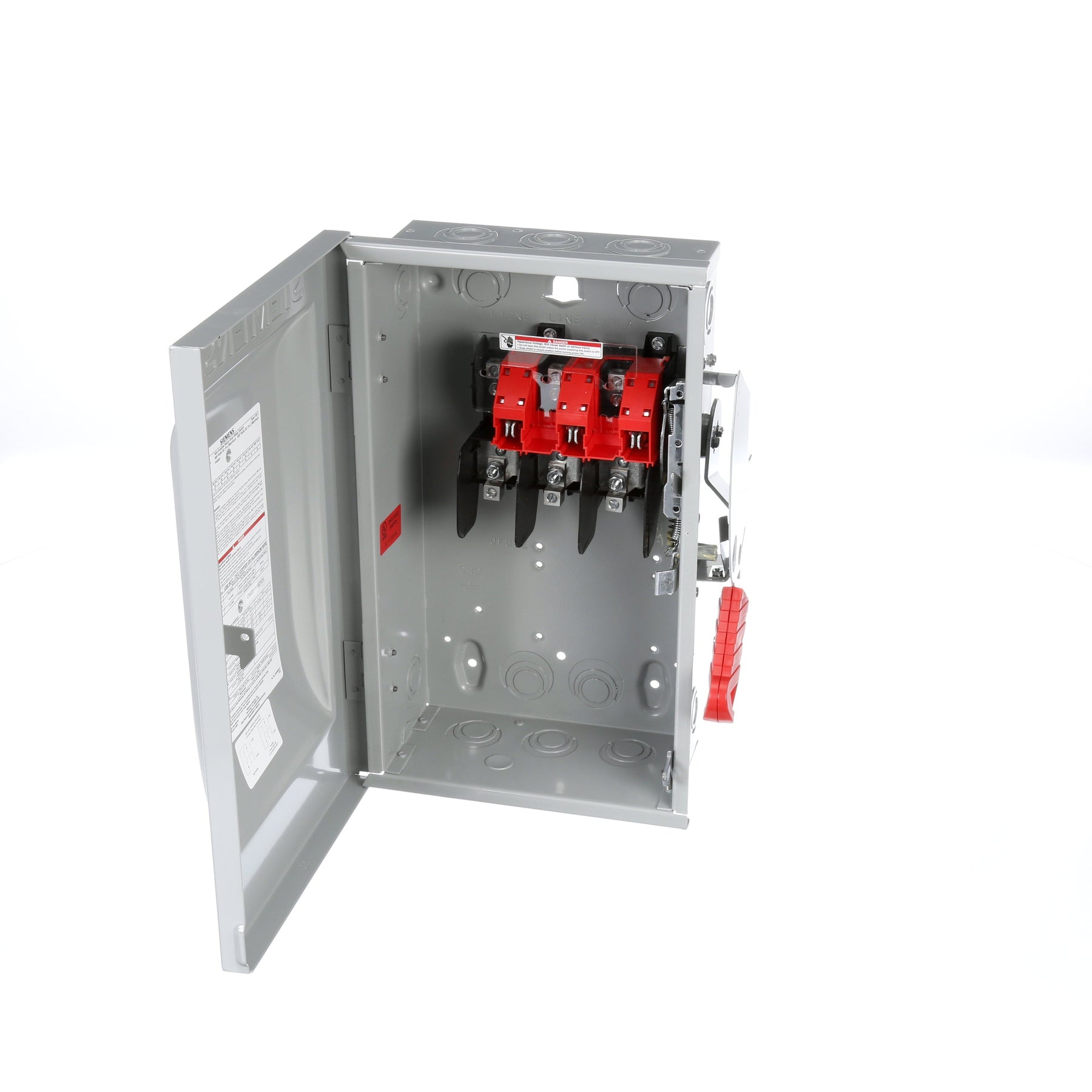

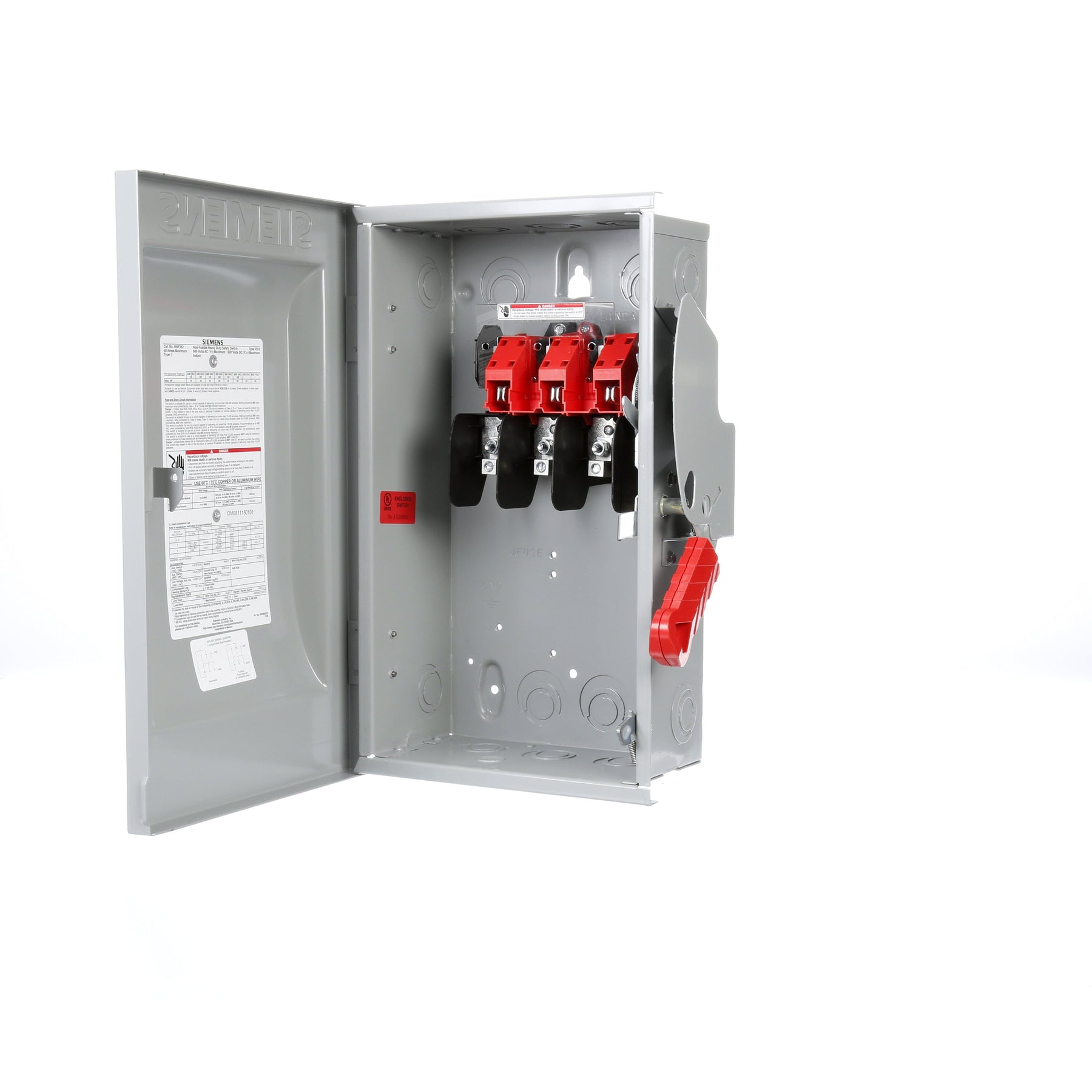

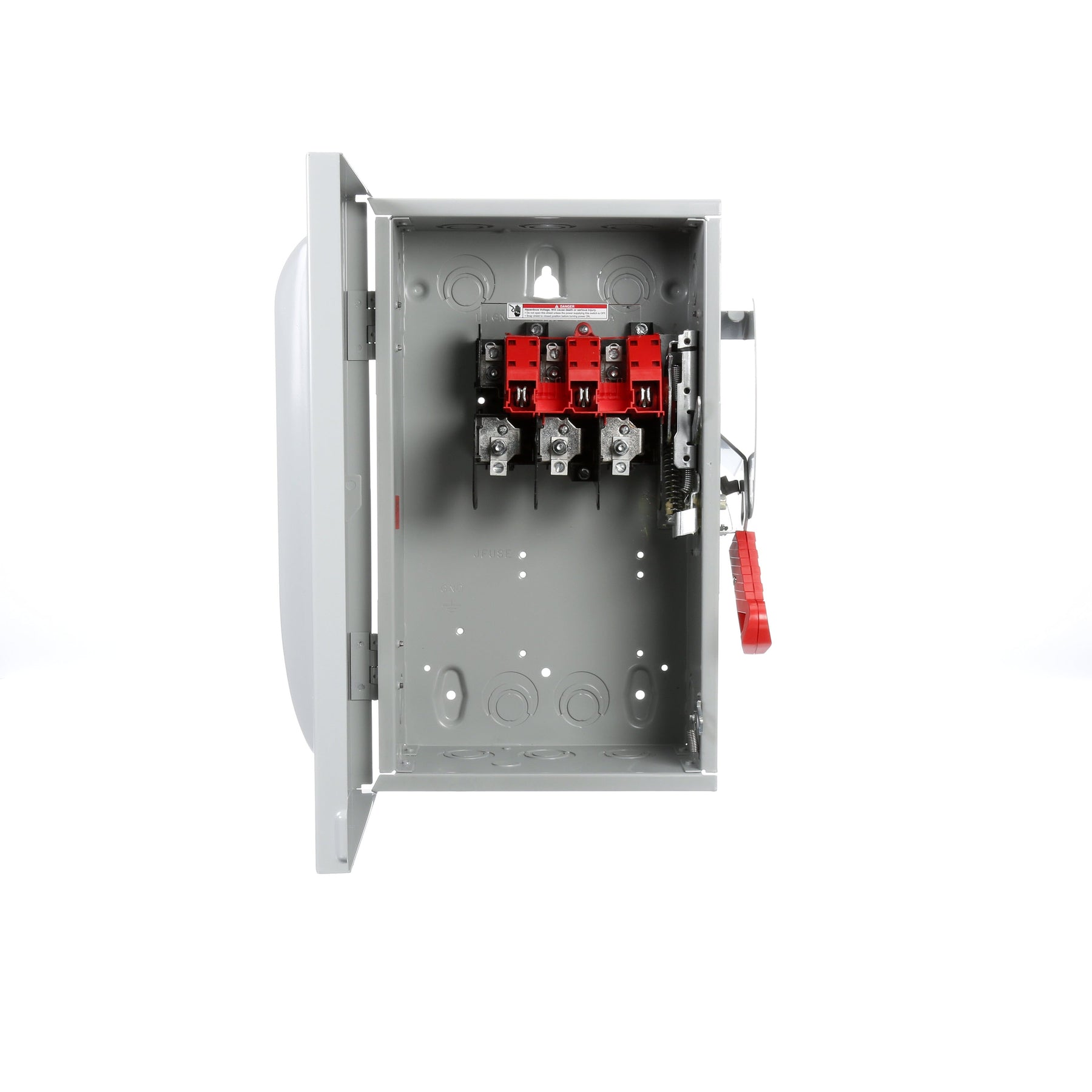

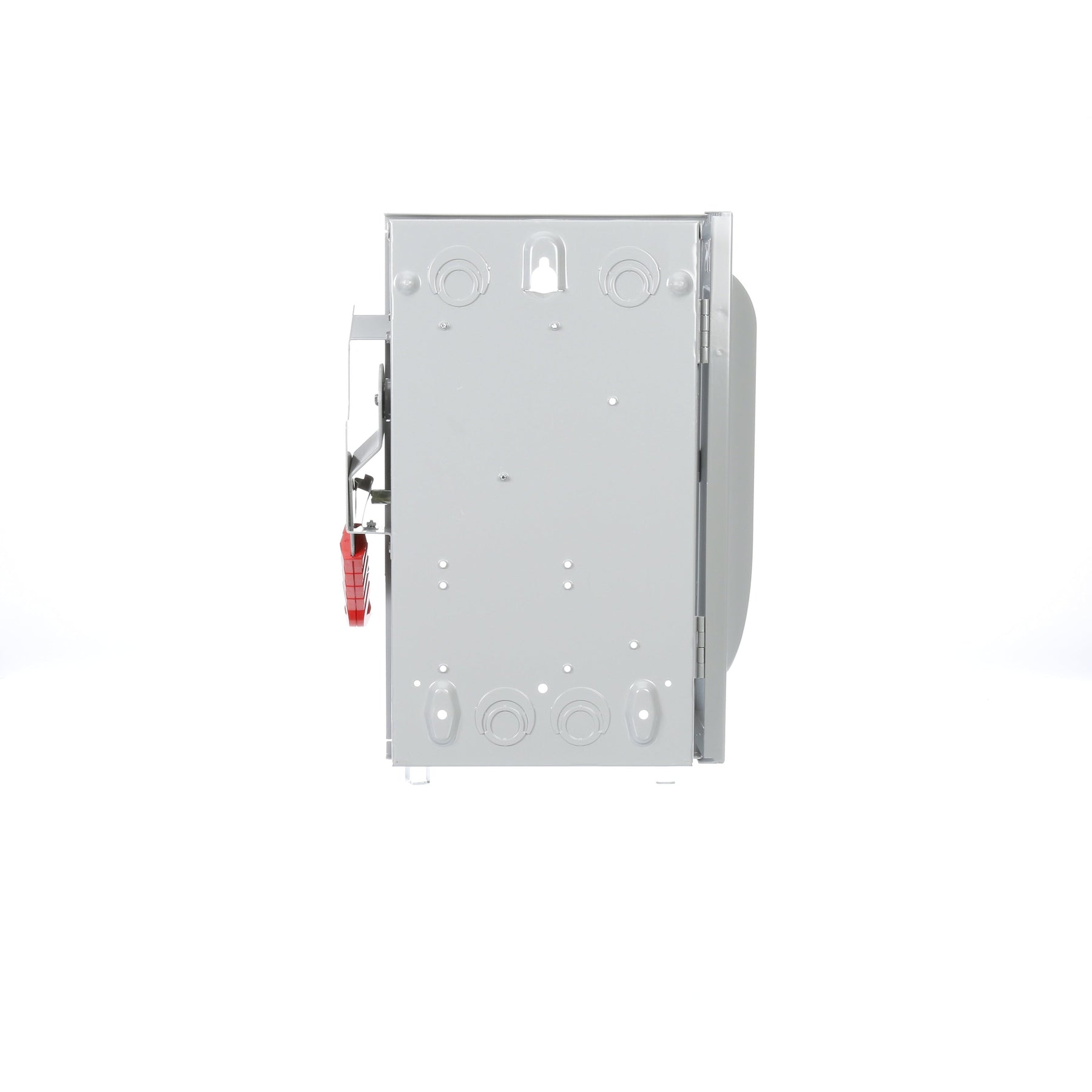

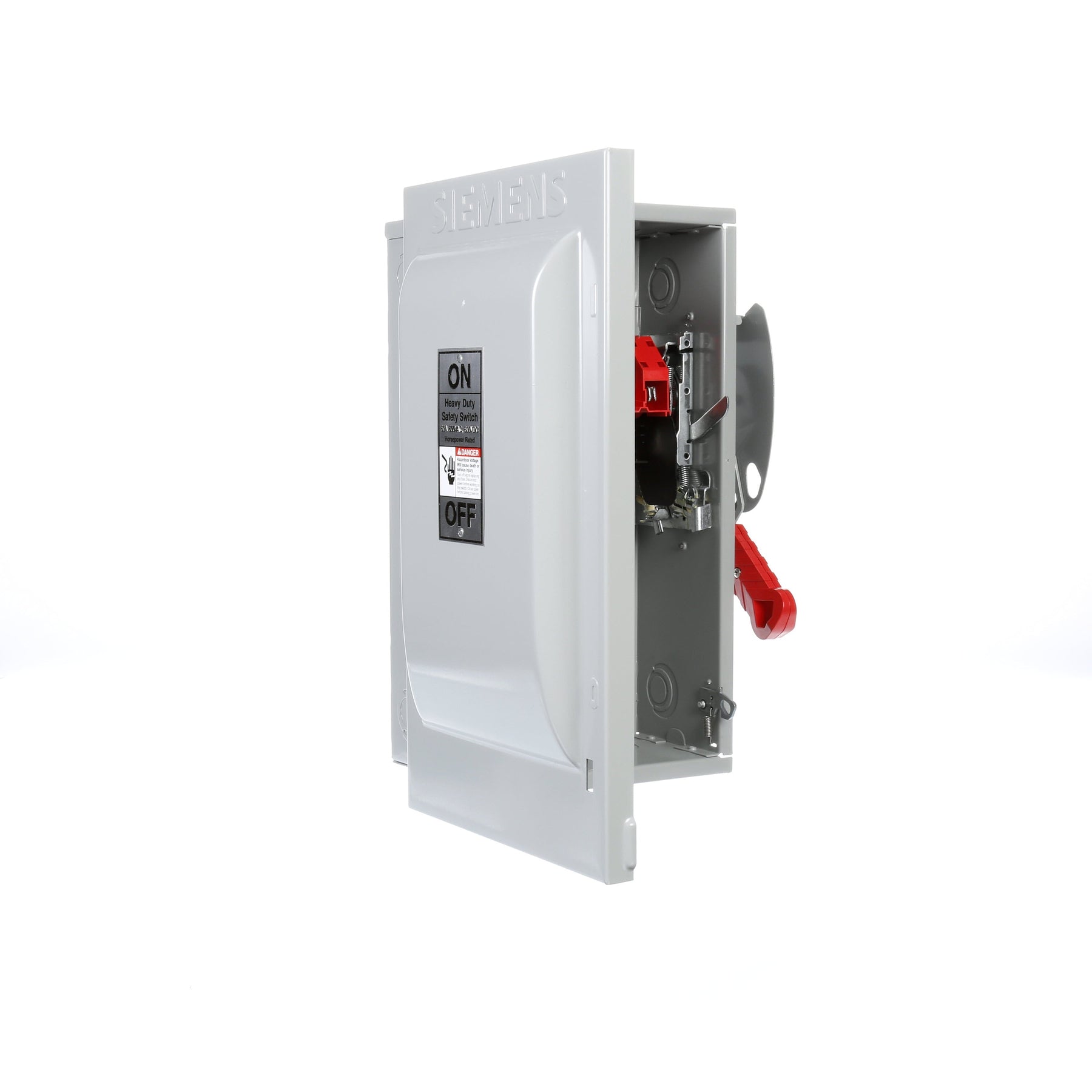

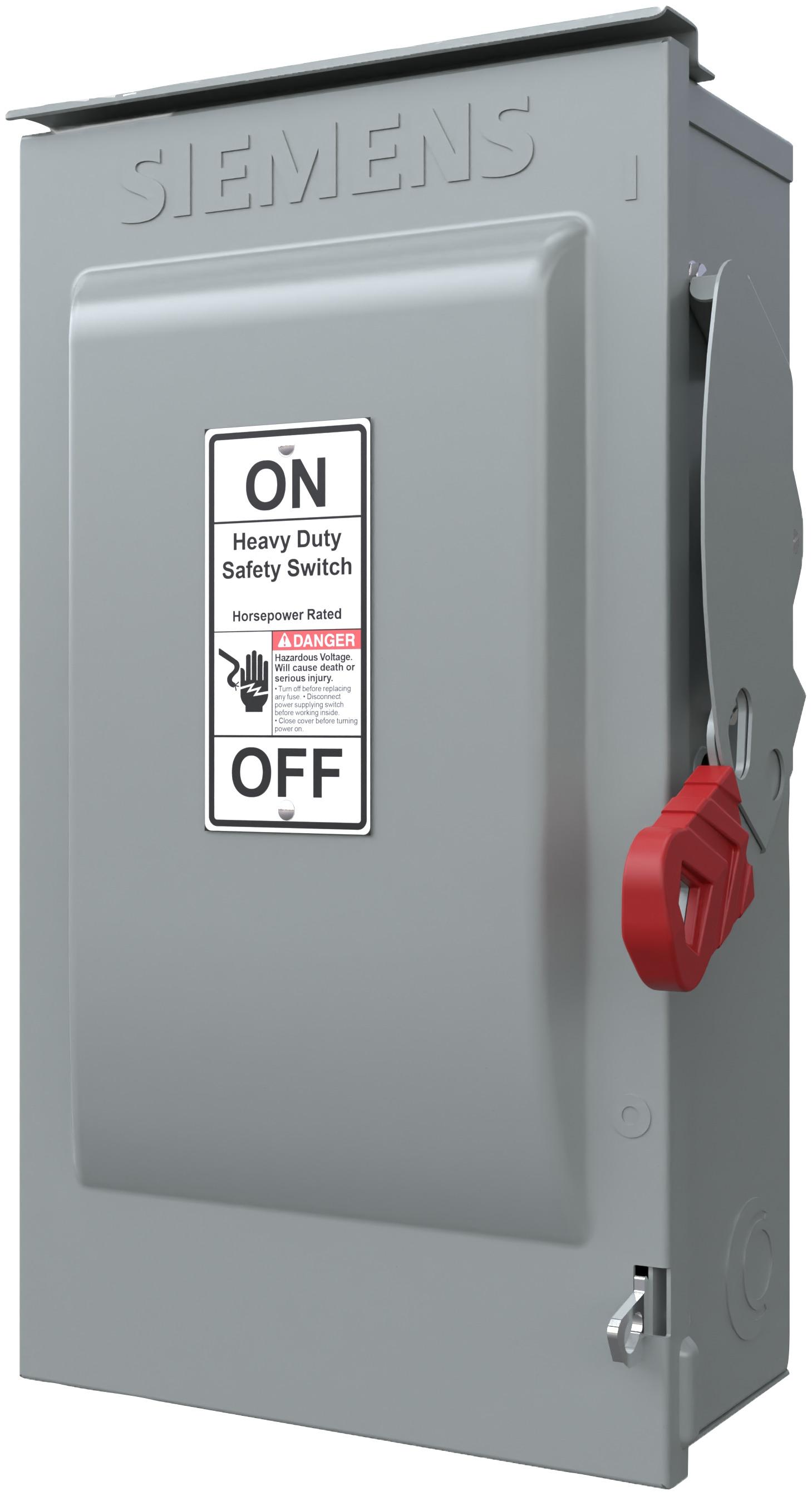

The Siemens HNF362 is a non-fusible disconnect switch designed for providing a visible safety break and isolation in three-phase industrial power circuits. It is rated for 600V AC systems with a continuous current rating of 60A and features a high interrupting capacity of 200kA at 600V. The switch is constructed as a single-unit, three-pole device housed in a NEMA 1 enclosure with overall dimensions of 16.62 x 10.26 x 9.04 inches and a weight of 17 lb. It is UL listed and is compatible with Siemens PGP panelboard frames for integrated system installation, making it suitable for motor control centers, industrial machinery, and main service disconnects where circuit protection is provided separately.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, VBII Series
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 16.62 x 10.26 x 9.04 inches
  • Standards: UL listed
  • Applications: Motor control centers, industrial machinery, main service disconnects
  • Switch Type: Non-Fusible
  • Configuration: Single
  • AIC rating: 200kA@600V
  • Poles: 3
  • Phase: 3
  • Nema Rating: NEMA 1
  • Compatible Frames: PGP
  • Country of Origin: Mexico
  • Weight: 17 lb


Product Identification
  • UPC: 783643151161
  • GTIN: 0783643151161
