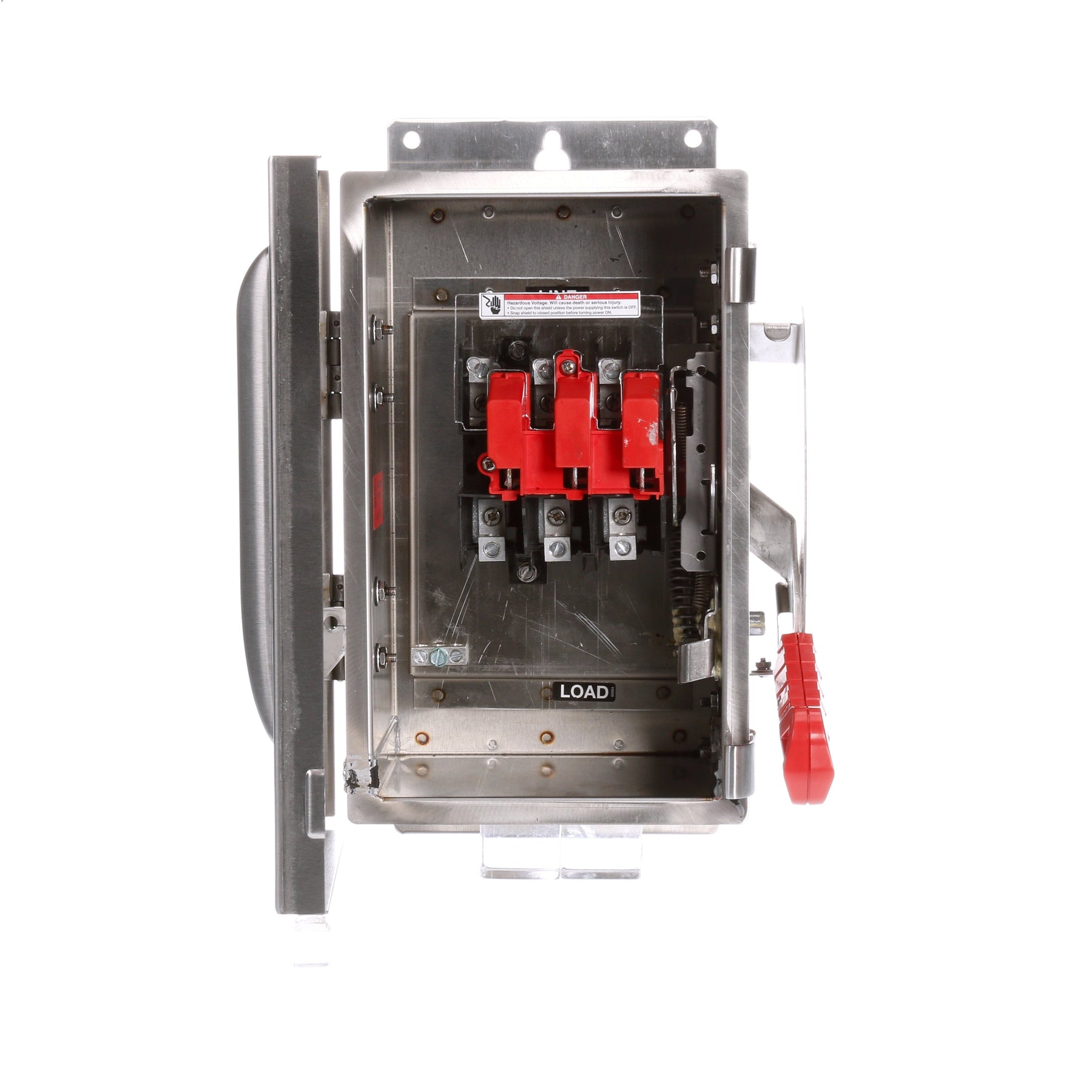

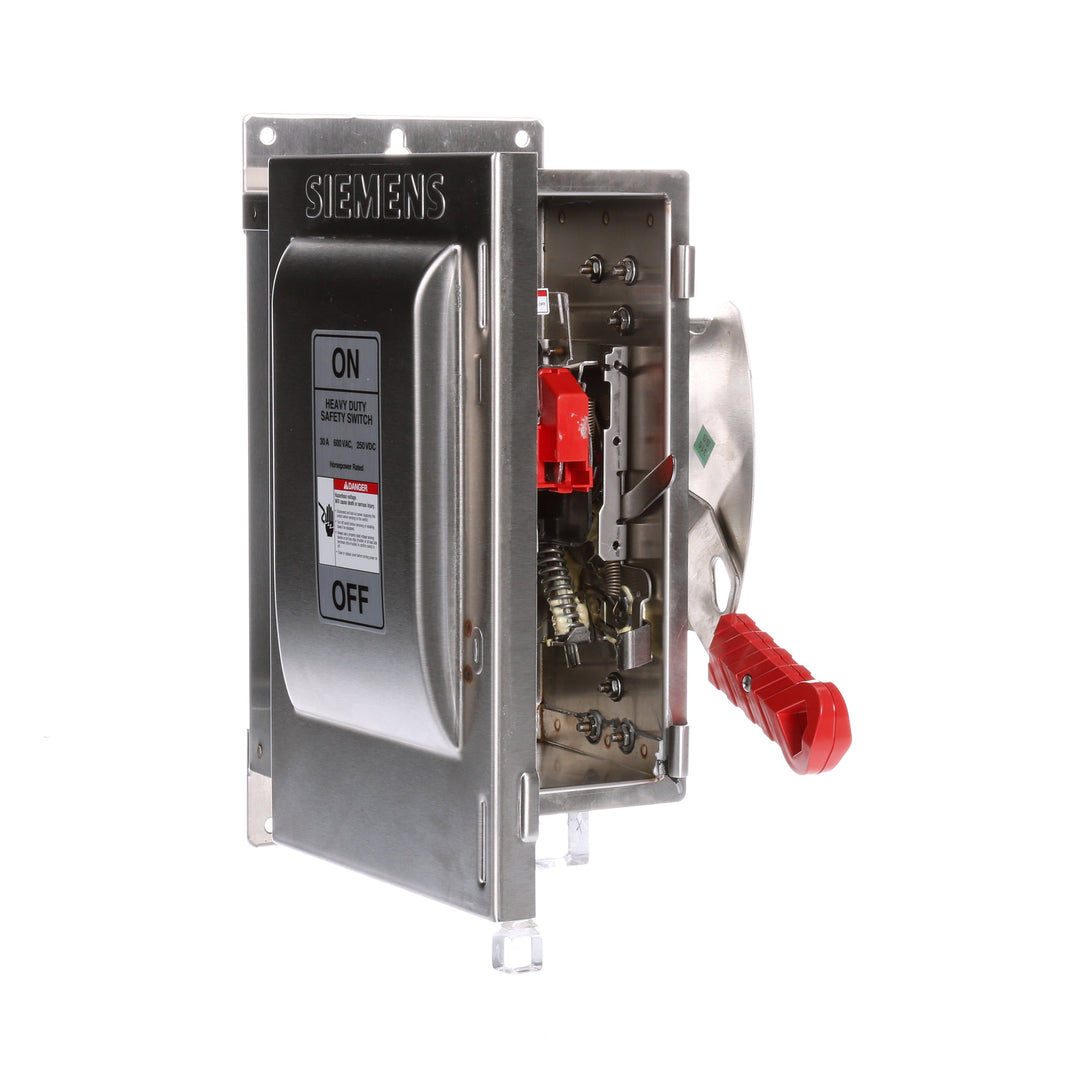

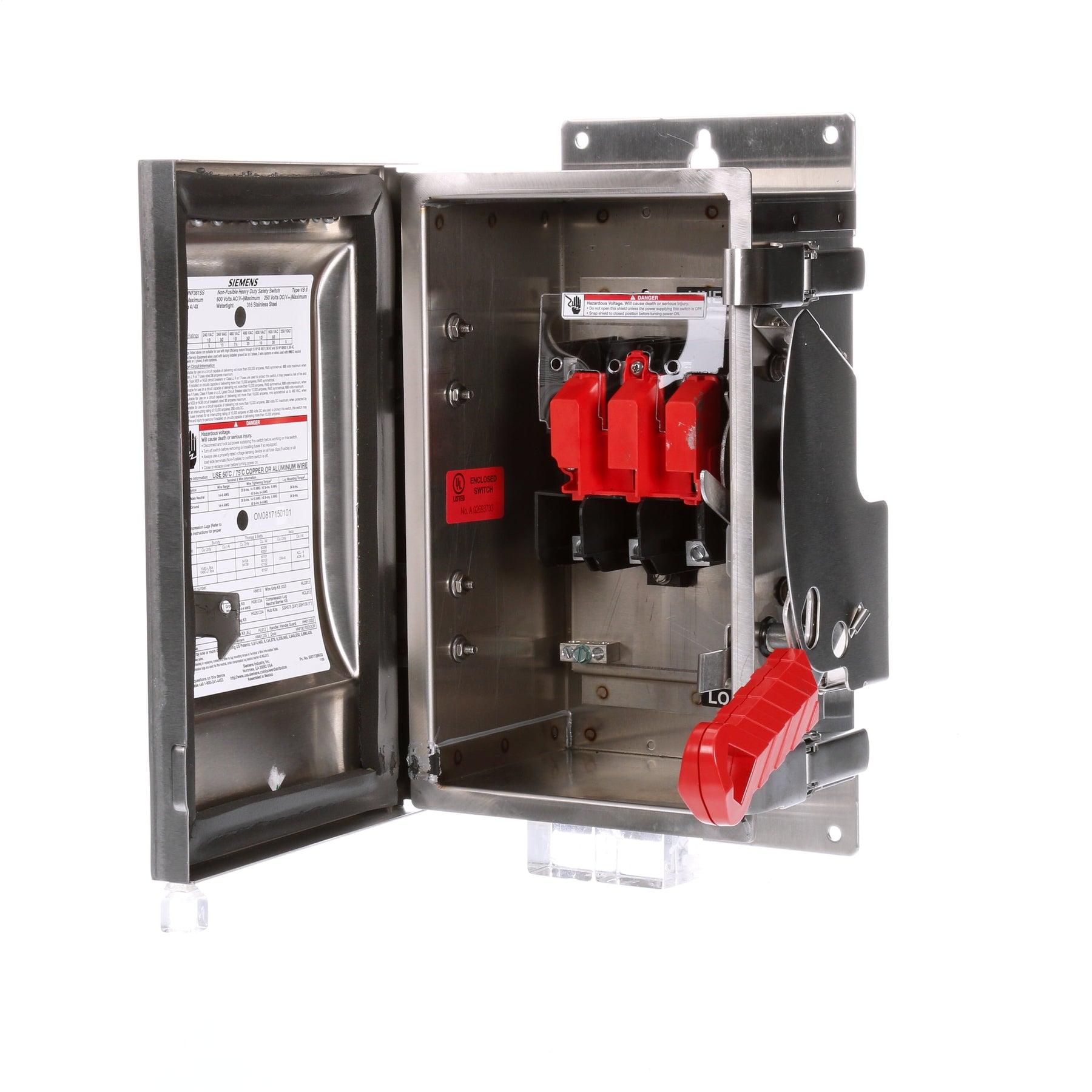

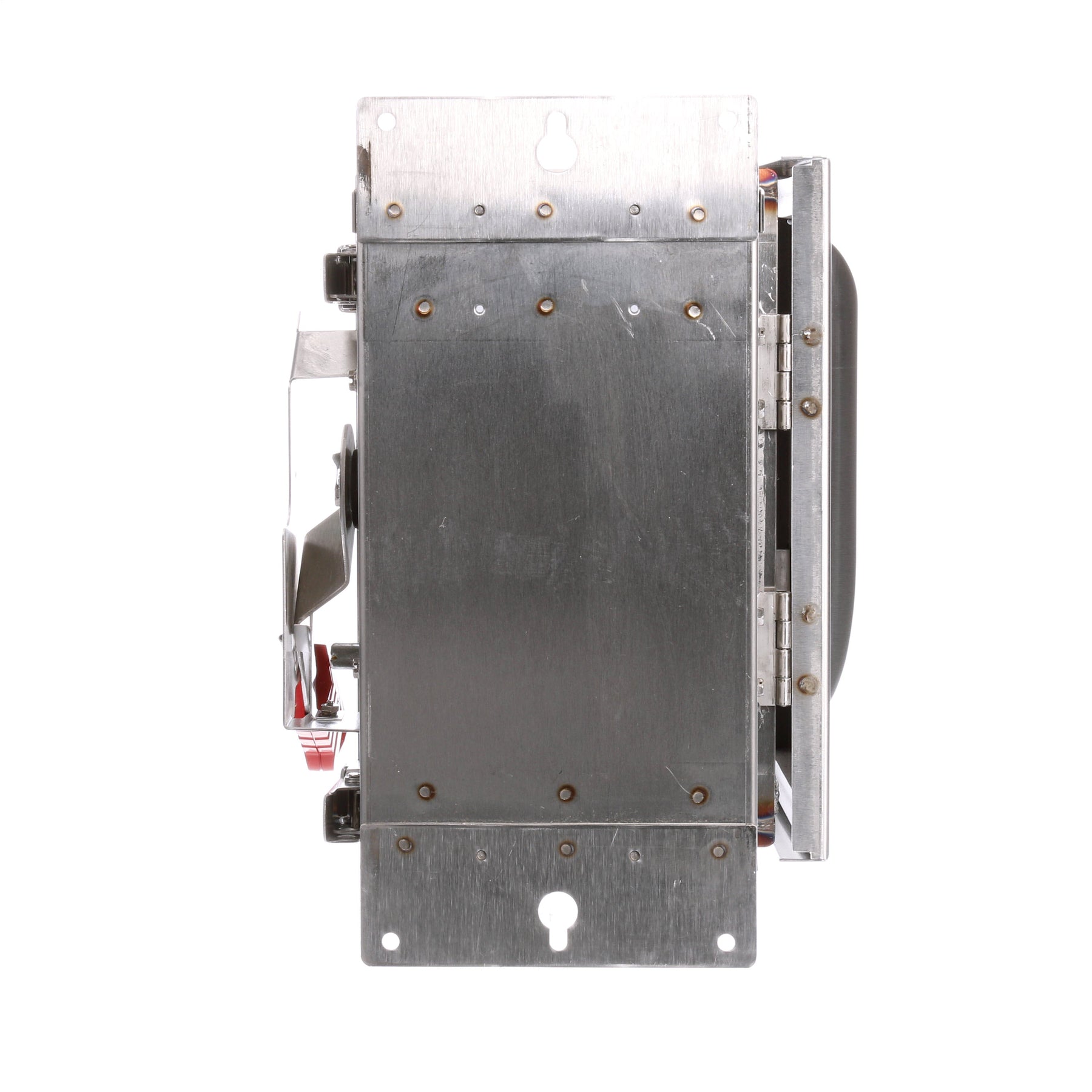

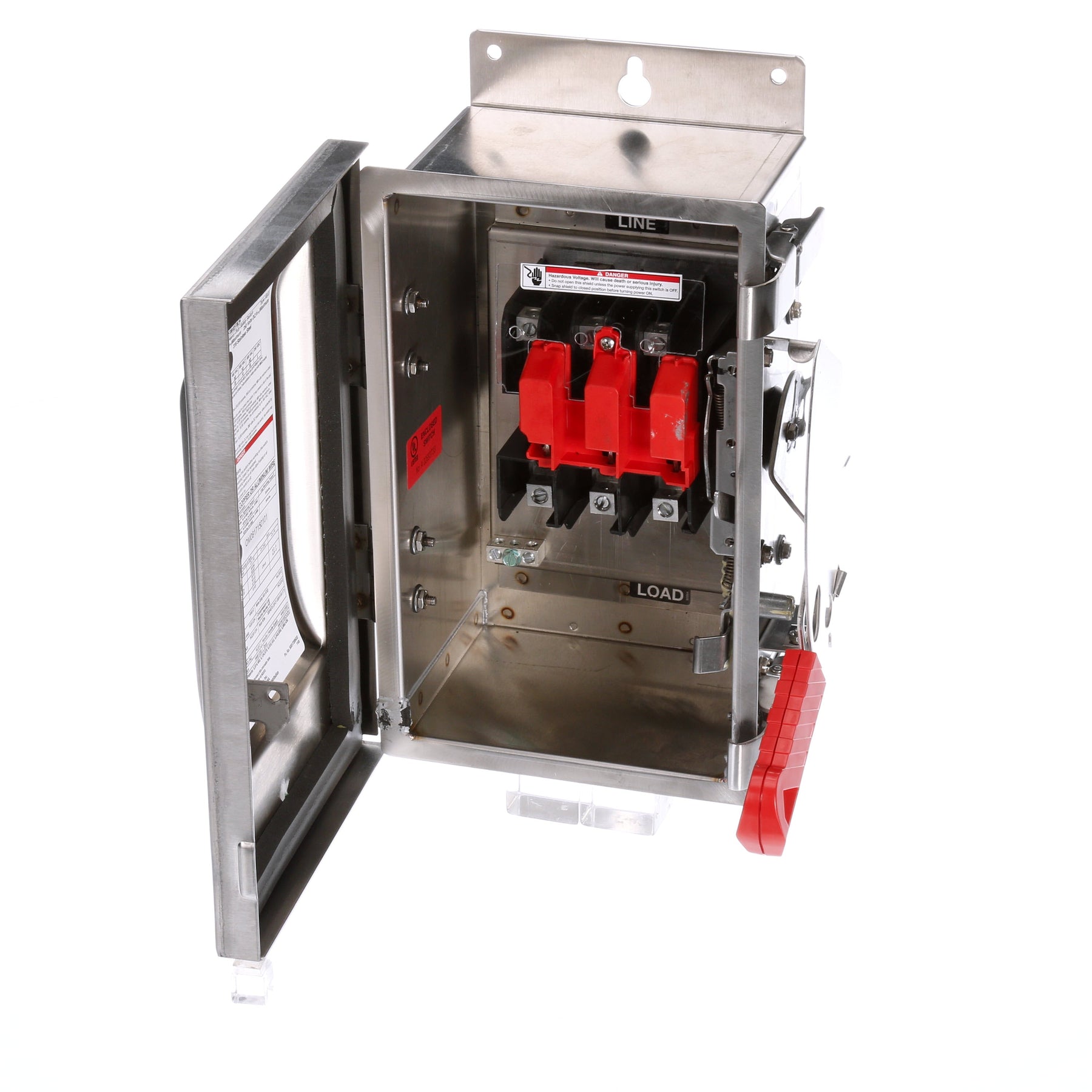

Siemens HNF361SS - Non-Fusible Disconnect Switch, 30A 600V 3-Pole

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Siemens HNF361SS is a non-fusible disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits up to 30A. It is rated for 600V AC systems and features a robust 200kA interrupting capacity at 600V, housed within a NEMA 4X corrosion-resistant enclosure suitable for demanding industrial environments. The switch is constructed for durability with a compact footprint of 22.047" x 14.173" x 7.874" (560mm x 360mm x 200mm) and a weight of 23.656 lb, and it operates reliably across a wide temperature range from -25°C to 70°C. As a UL-listed component of the Siemens VBII Series, it is engineered for compliance with industry safety standards and is compatible with PGP frames for integrated panel assembly. Typical applications include motor control centers, industrial machinery, and power distribution systems where reliable load breaking and isolation are required.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series, HNF type
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • NEMA Rating: NEMA 4X
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Dimensions: 22.047" x 14.173" x 7.874" (560mm x 360mm x 200mm)
  • Weight: 23.656 lb
  • Standards: UL Listed
  • Compatible Frames: PGP
  • Switch Style: Non-Fusible
  • Country of Origin: Mexico


Product Identification
  • UPC: 040892169133
  • GTIN: 0040892169133
