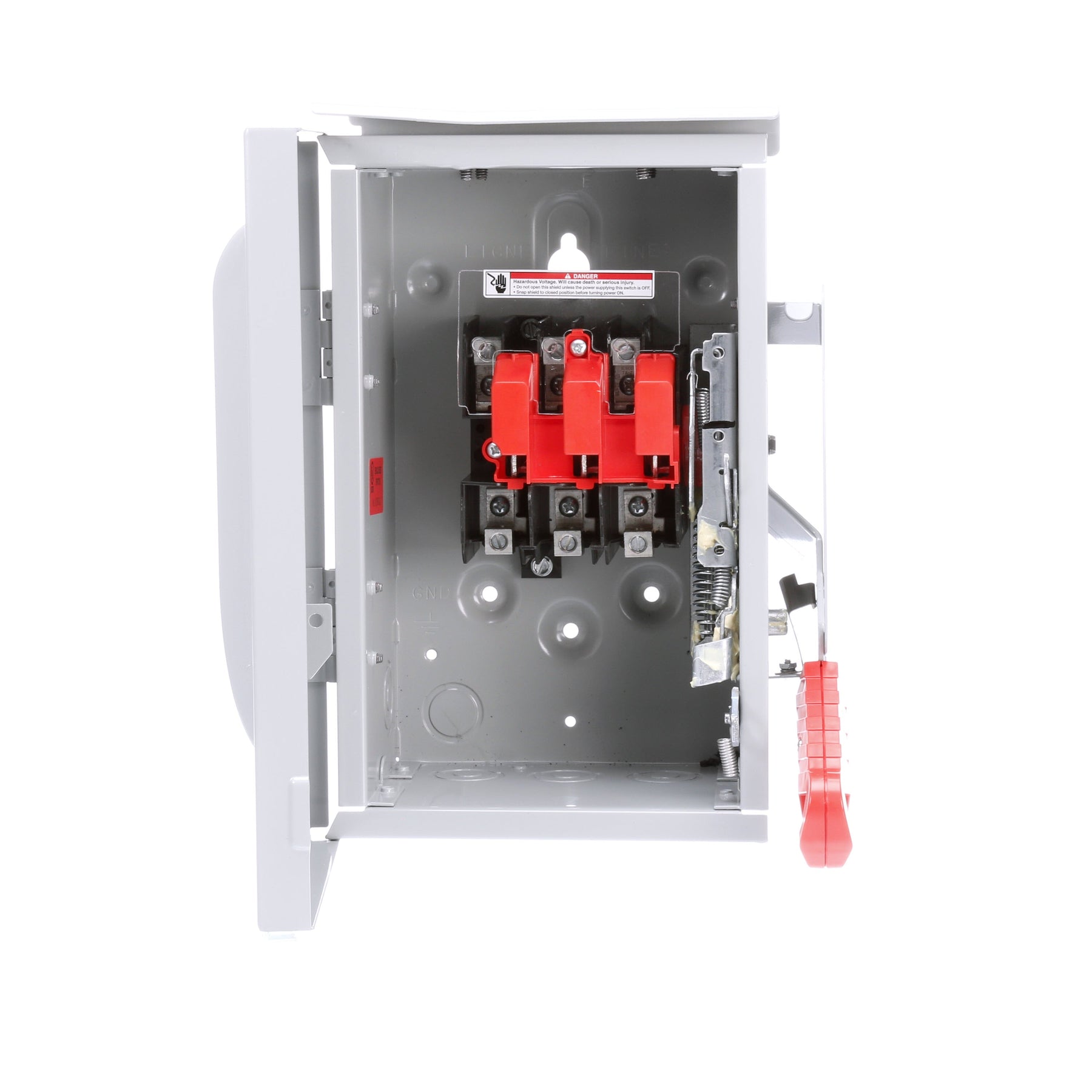

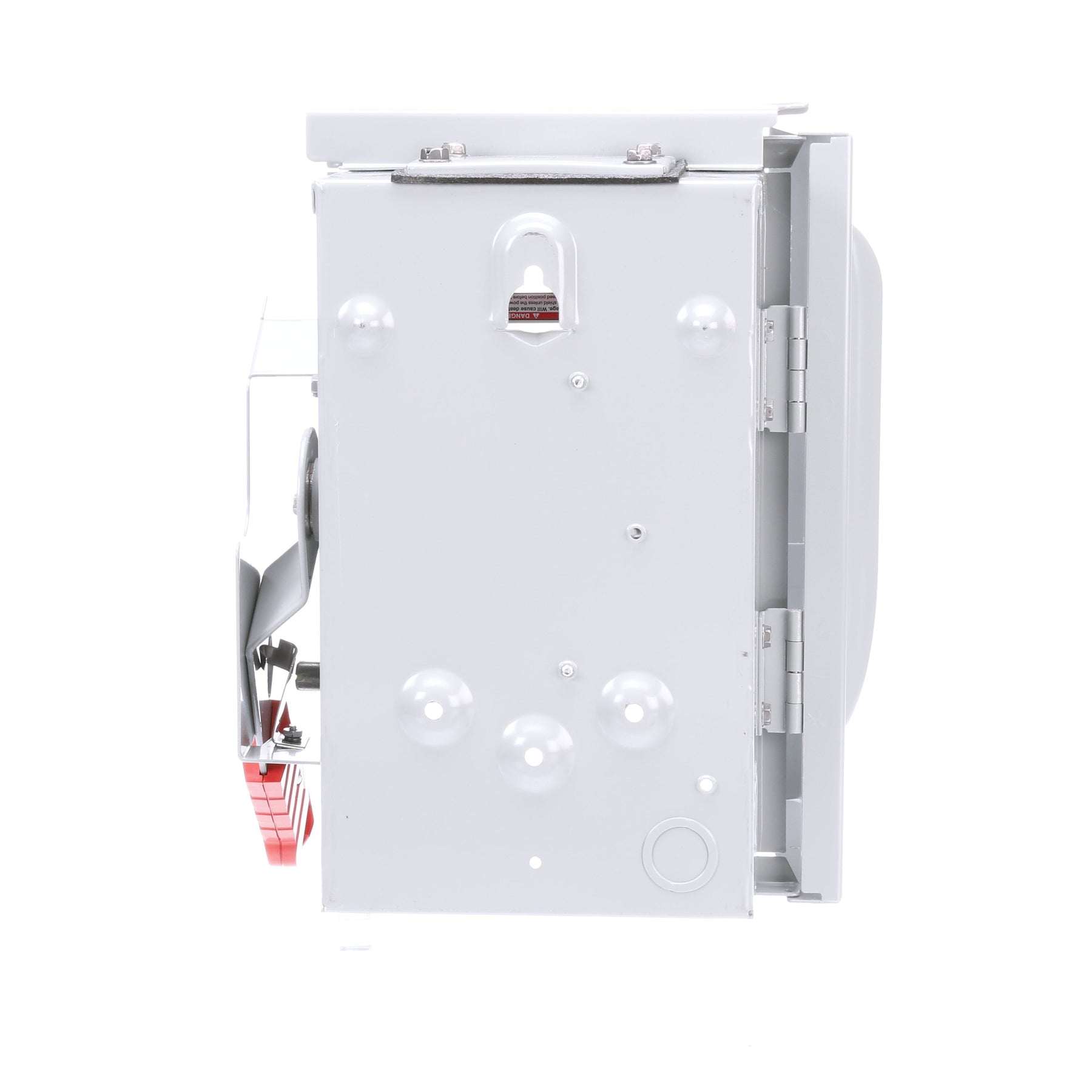

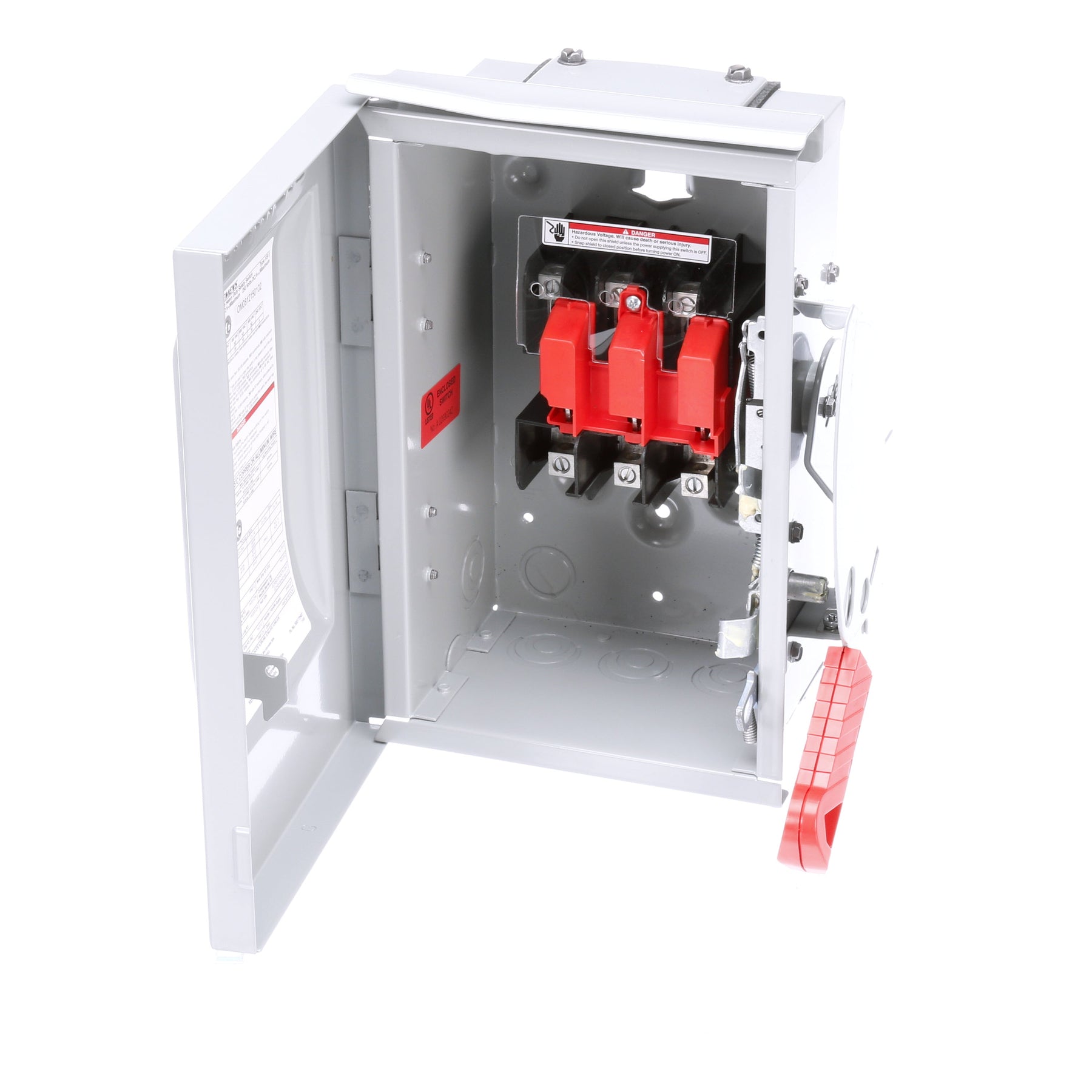

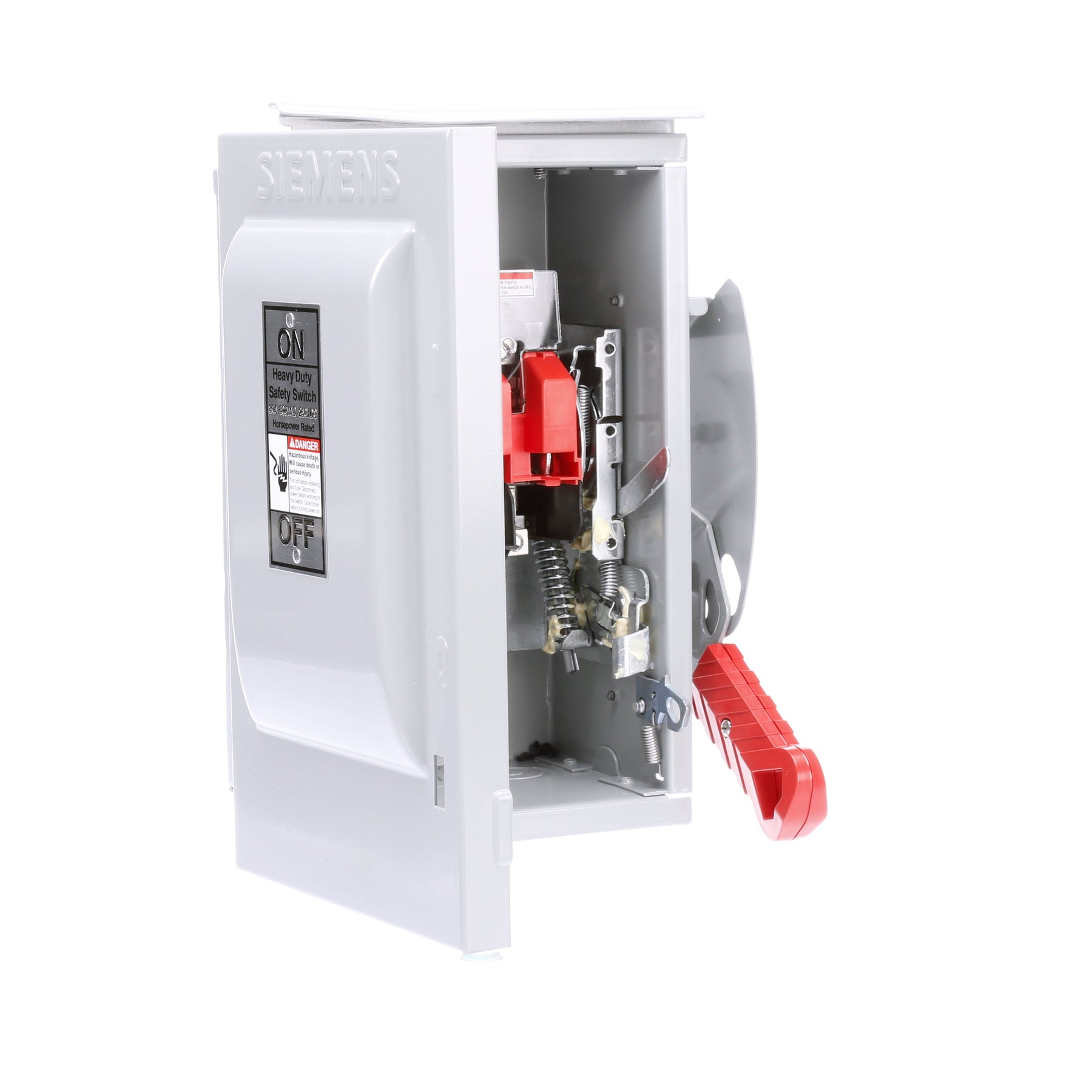

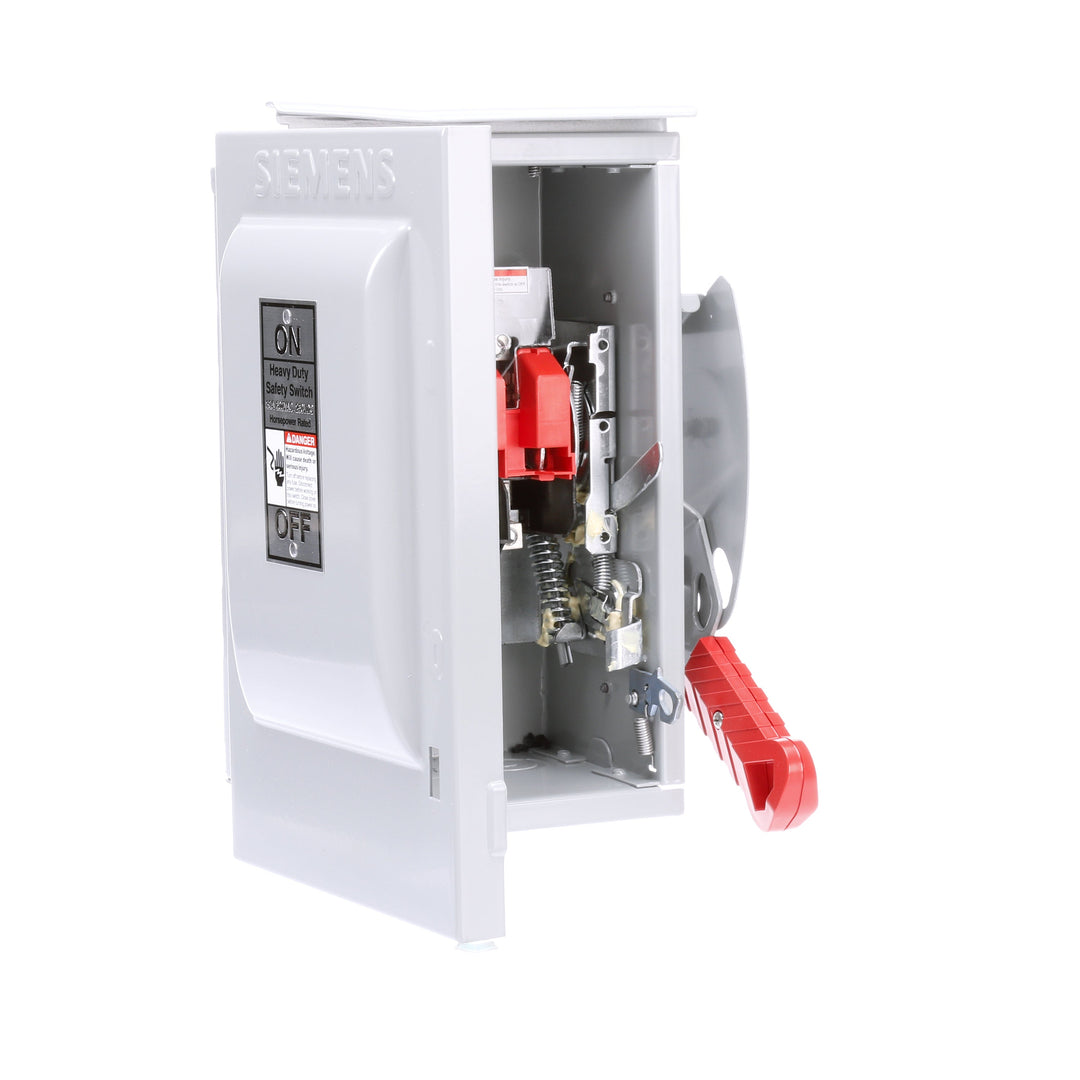

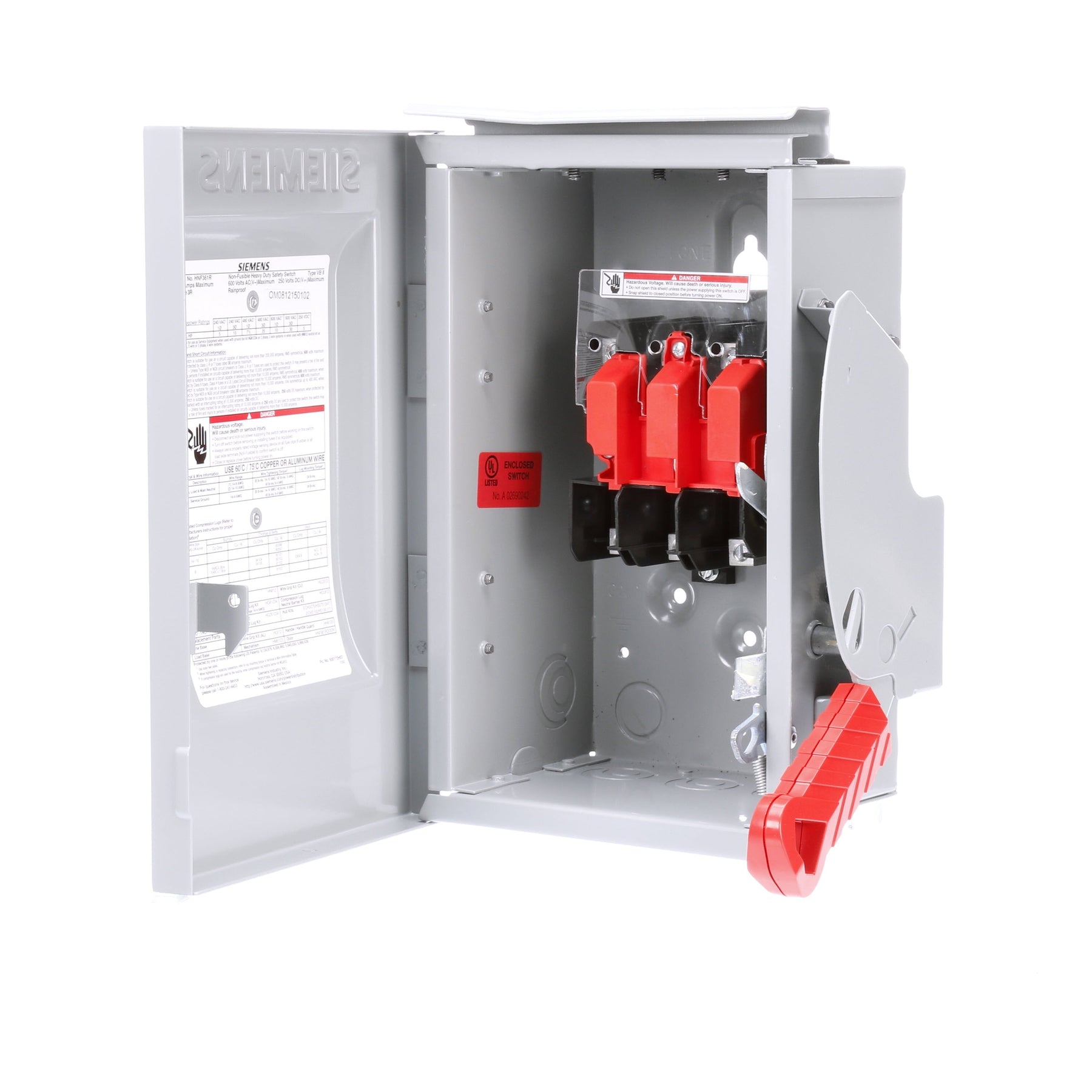

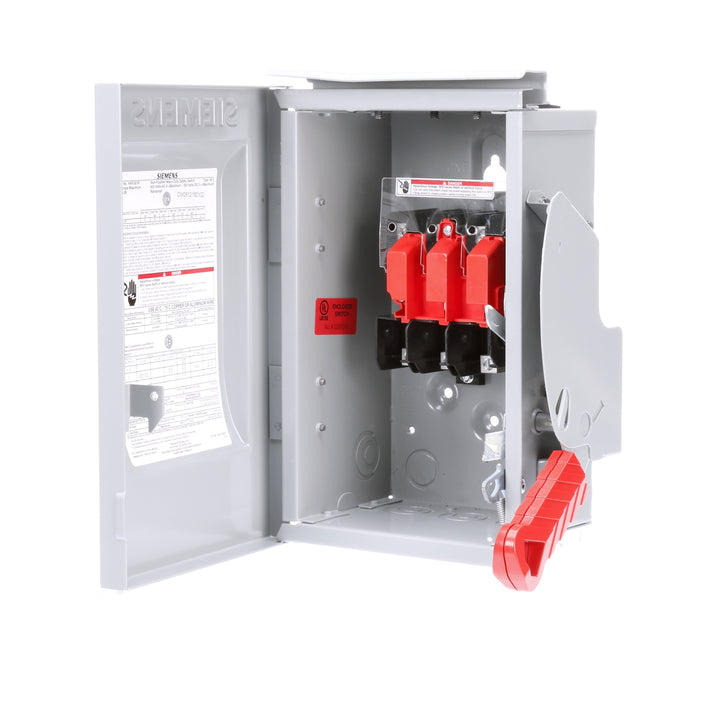

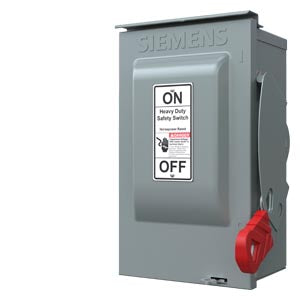

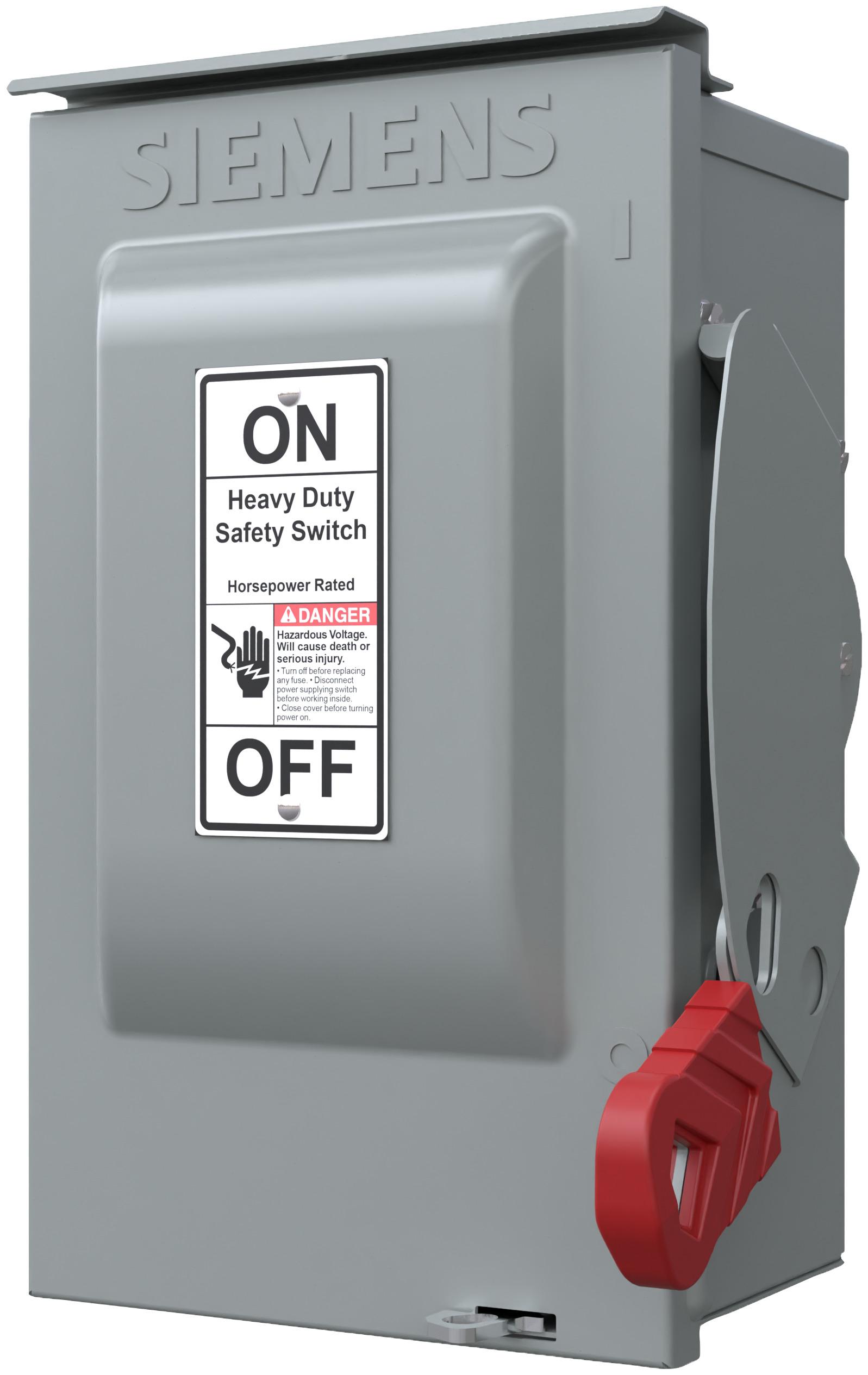

Siemens HNF361R - Non-Fusible Disconnect Switch 30A 600V (200kA AIC NEMA 3R)

Siemens HNF361R is a non-fusible safety disconnect switch designed for reliable circuit isolation and load-breaking operations in industrial power distribution systems. This 3-pole switch operates at 600V AC with a 30A current rating and features a robust construction measuring 9.0 x 12.3 inches with a weight of 17 pounds for durable performance. The switch carries UL listing certification and meets NEMA 3R standards for outdoor use, providing protection against rain, sleet, and ice formation. As part of the VBII Series, it delivers 200kA interrupting capacity at 600V and is compatible with PGP frames, making it suitable for industrial control panels, motor control centers, and main distribution equipment where safe maintenance isolation is required.

Key Features & Specifications

• Type: Non-fusible safety disconnect switch, VBII Series
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 9.0 in x 12.3 in
• Weight: 17 lb
• Standards: UL listed, NEMA 3R
• Applications: Industrial power distribution, motor control centers, main disconnects
• Switch Type: Non-Fusible
• Configuration: Single
• Poles: 3
• Phase: 3
• AIC rating: 200kA@600V
• Nema Rating: NEMA 3R
• Compatible Frames: PGP
• Country of Origin: Mexico

Product Identification

• UPC: 783643151734
• GTIN: 00783643151734
