Siemens HNF361JW - Non-Fusible Disconnect Switch (30A, 600V AC)

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon

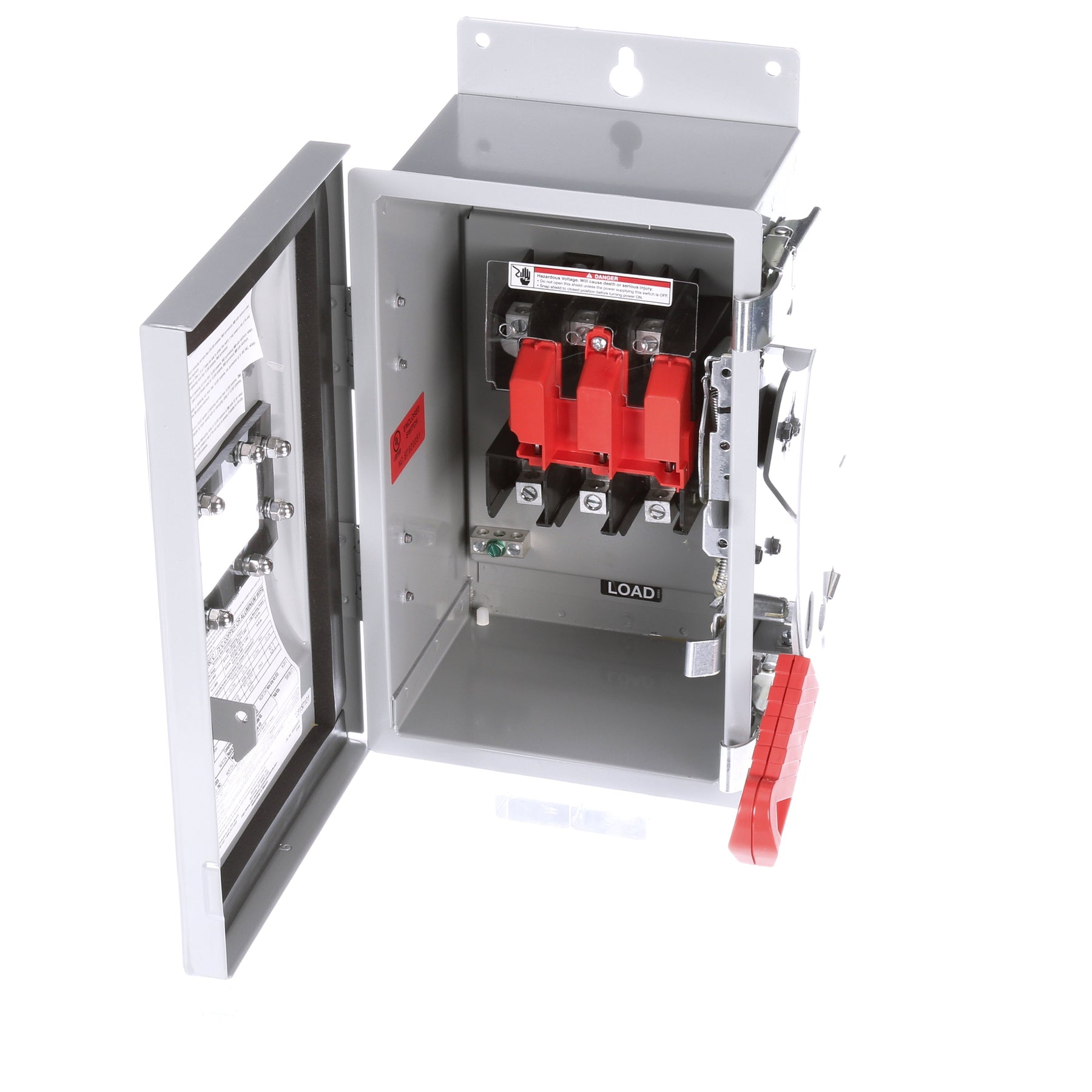

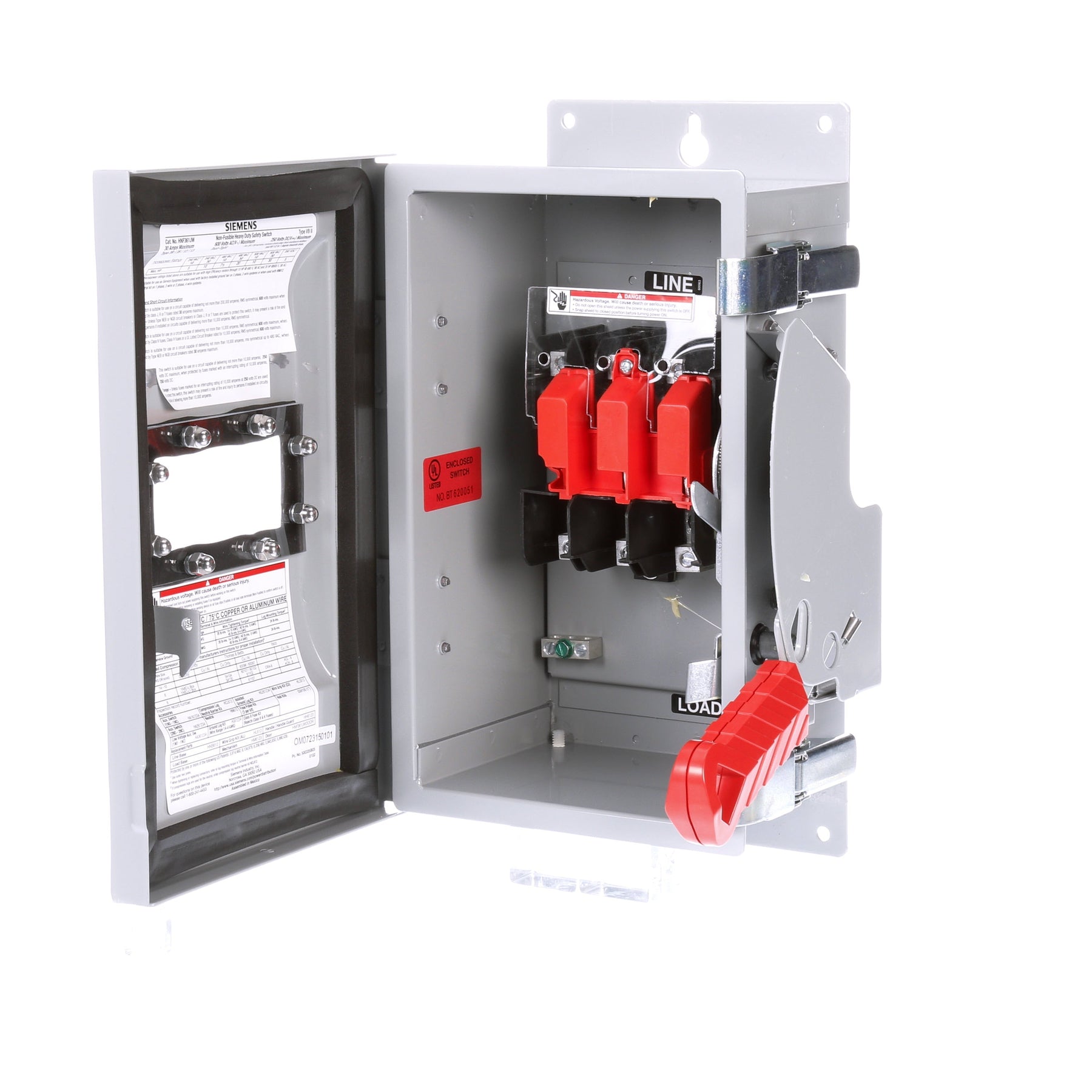

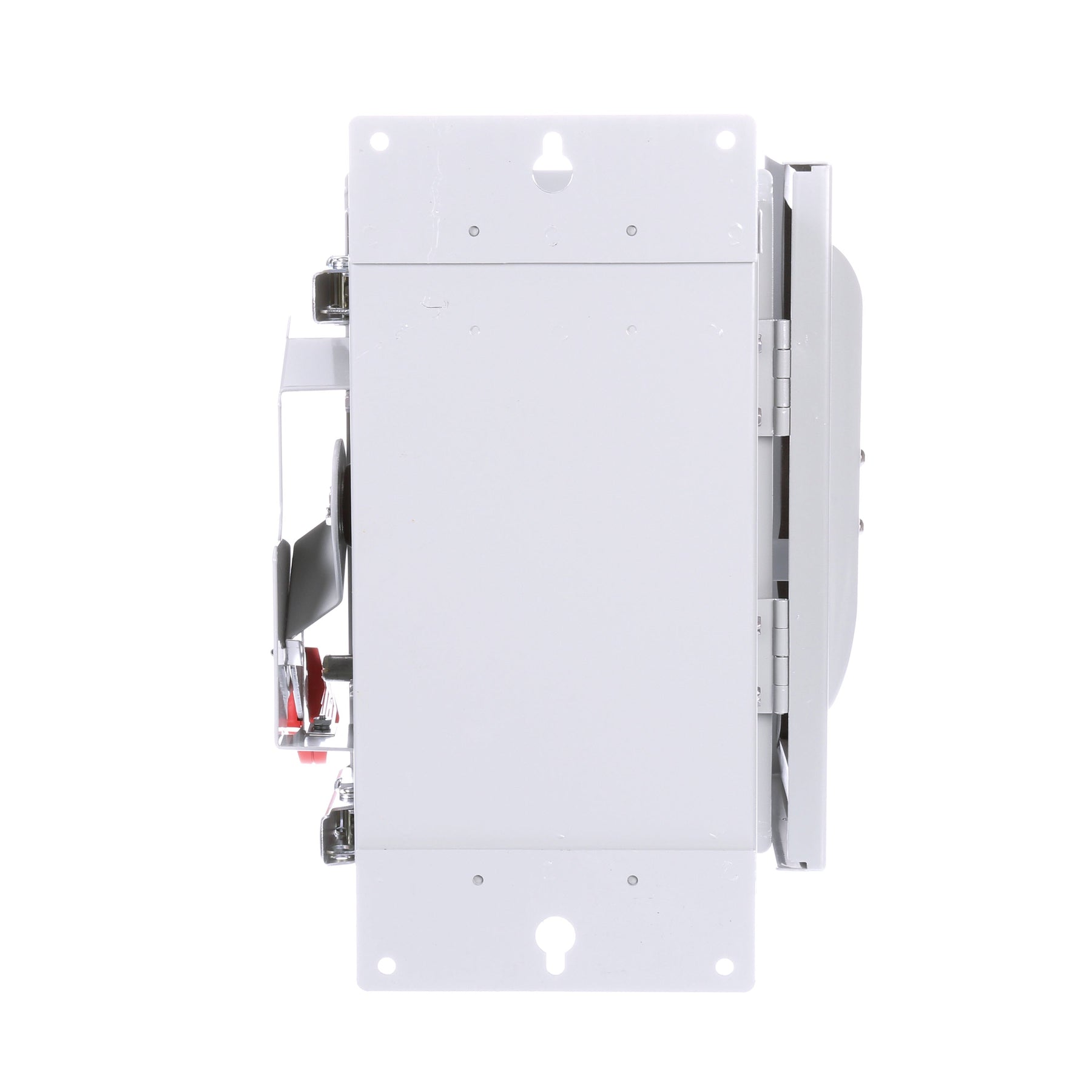

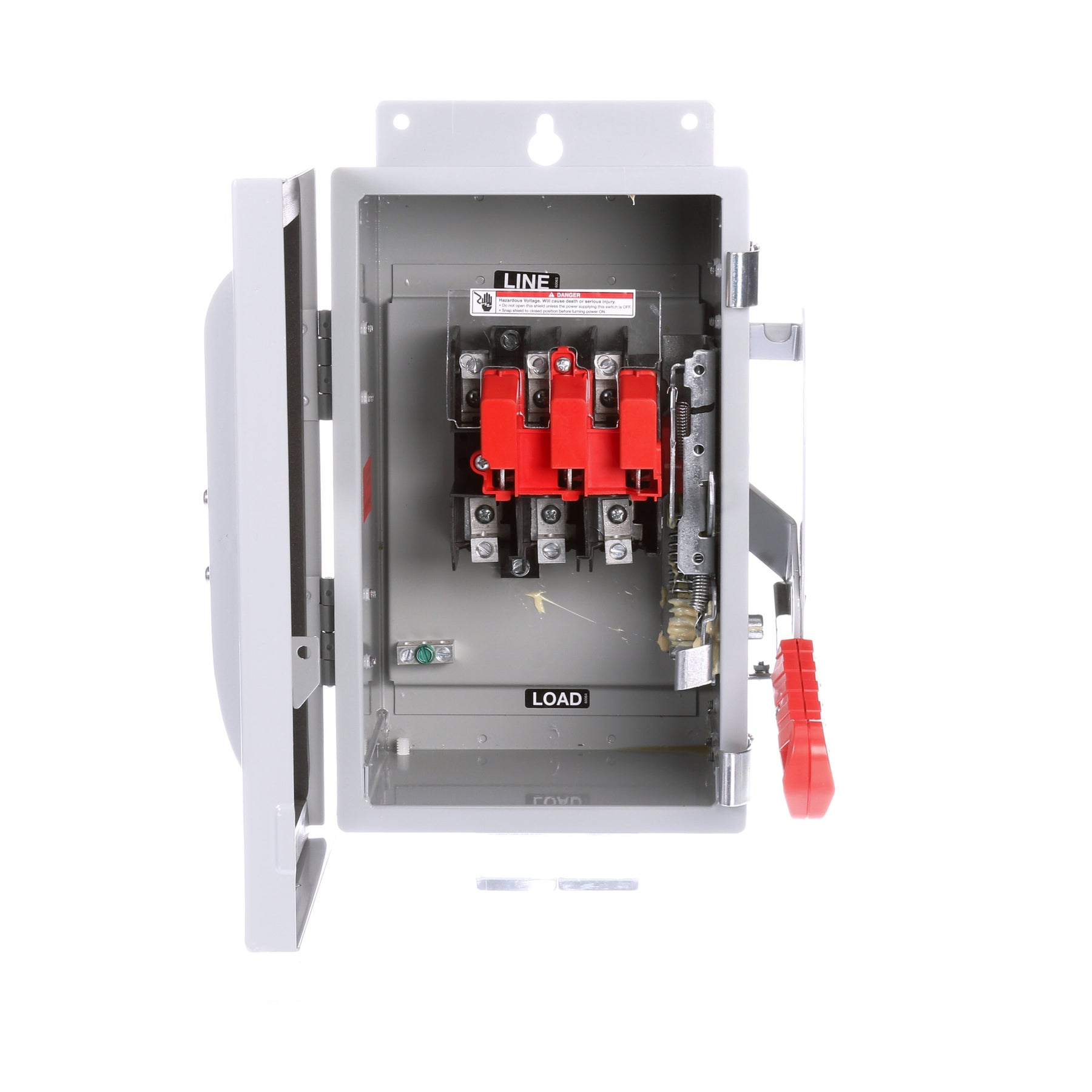

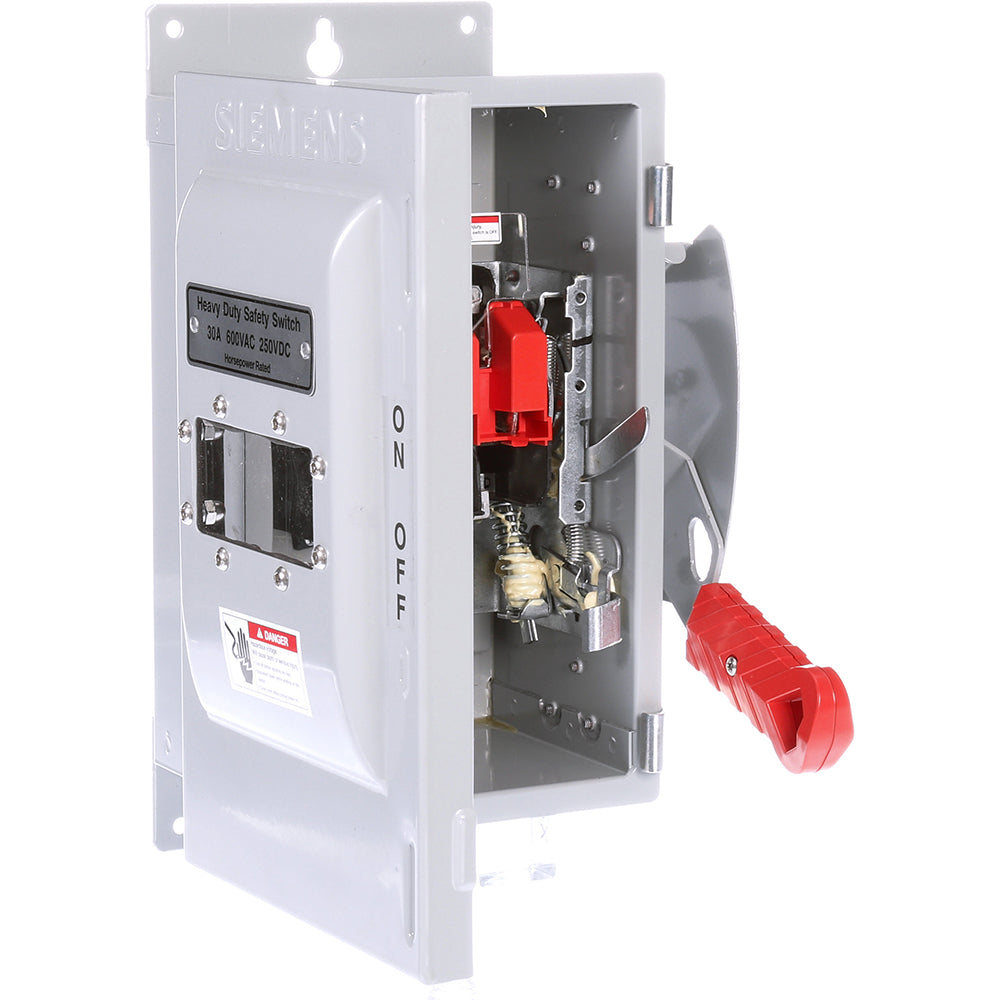

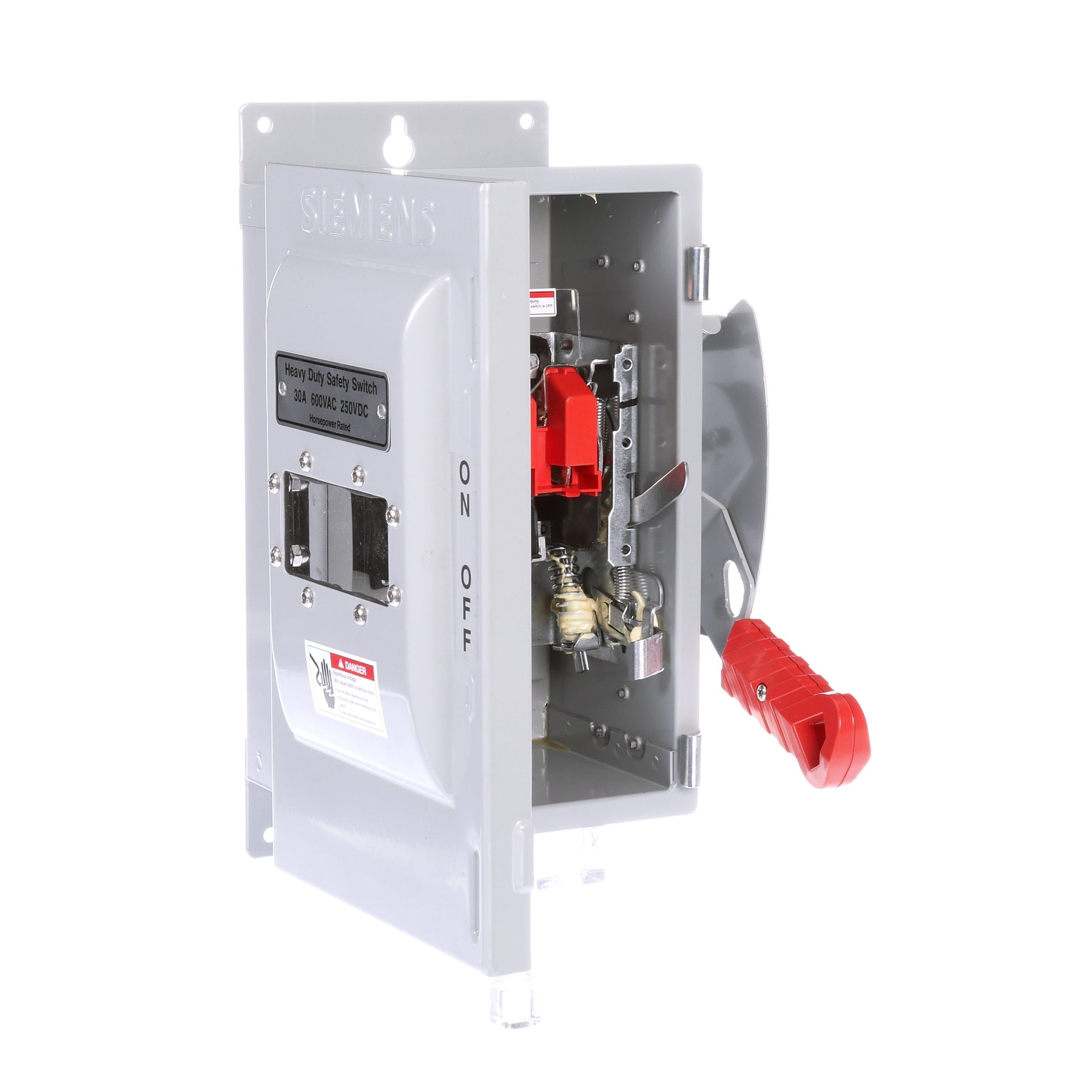

Siemens HNF361JW is a non-fusible disconnect switch designed for providing a visible break and safe isolation in three-phase industrial power circuits. It is rated for 600V AC and 30A, featuring a solid-state protection mechanism with long-time and instantaneous (LI) trip functions for reliable circuit interruption. The switch is constructed with a finger-safe connection system, is housed in a NEMA 12 enclosure measuring 16.929" x 11.417" x 7.48" (430mm x 290mm x 190mm), and weighs 14.22 lb for robust panel mounting. It complies with UL standards and is certified for use, offering an interrupting capacity of 200kA at 600V. This component is typically applied in industrial control panels, motor control centers, and other installations requiring a manual disconnect for maintenance and safety.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF Type, VBII Series, Solid State Protection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single, 3-Pole
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Connection: Finger-Safe
  • Functions: LI (Long-Time and Instantaneous)
  • Switch Style: Non-Fusible
  • NEMA Rating: NEMA 12
  • Class Rating: CF
  • Certification: UL Listed
  • Compatible Frames: PGP
  • Dimensions: 16.929" x 11.417" x 7.48" (430mm x 290mm x 190mm)
  • Weight: 14.22 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643221956
  • GTIN: 0783643221956
