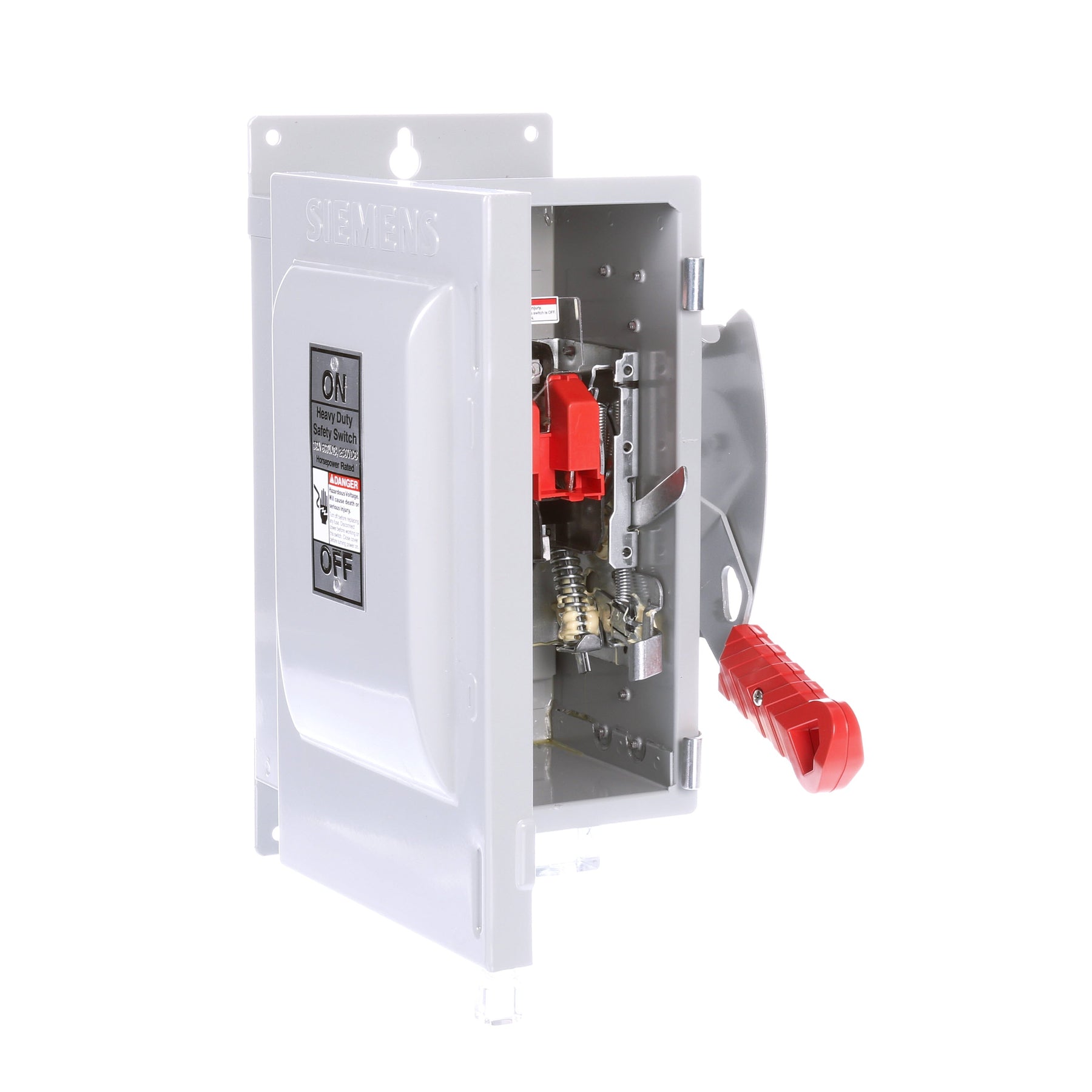

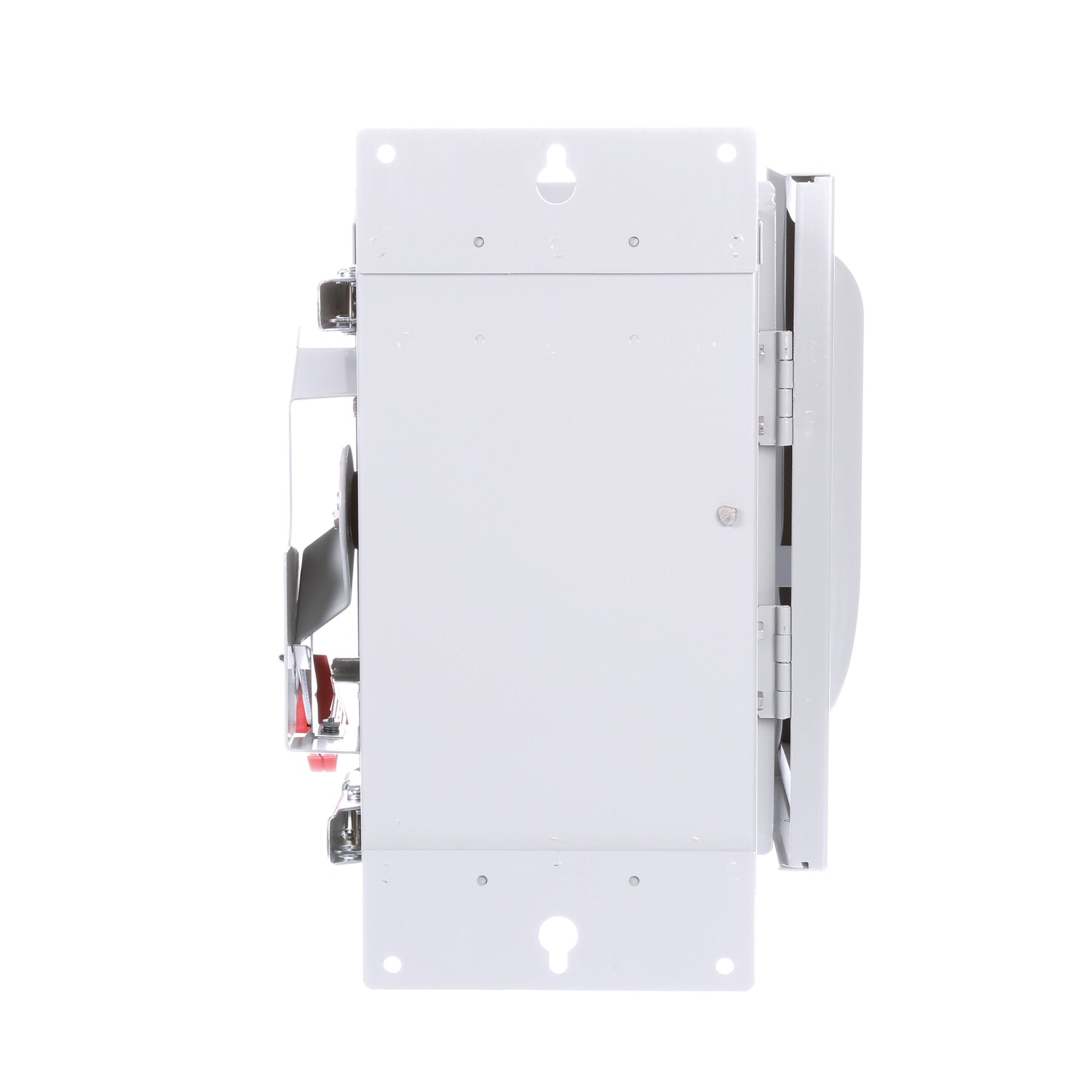

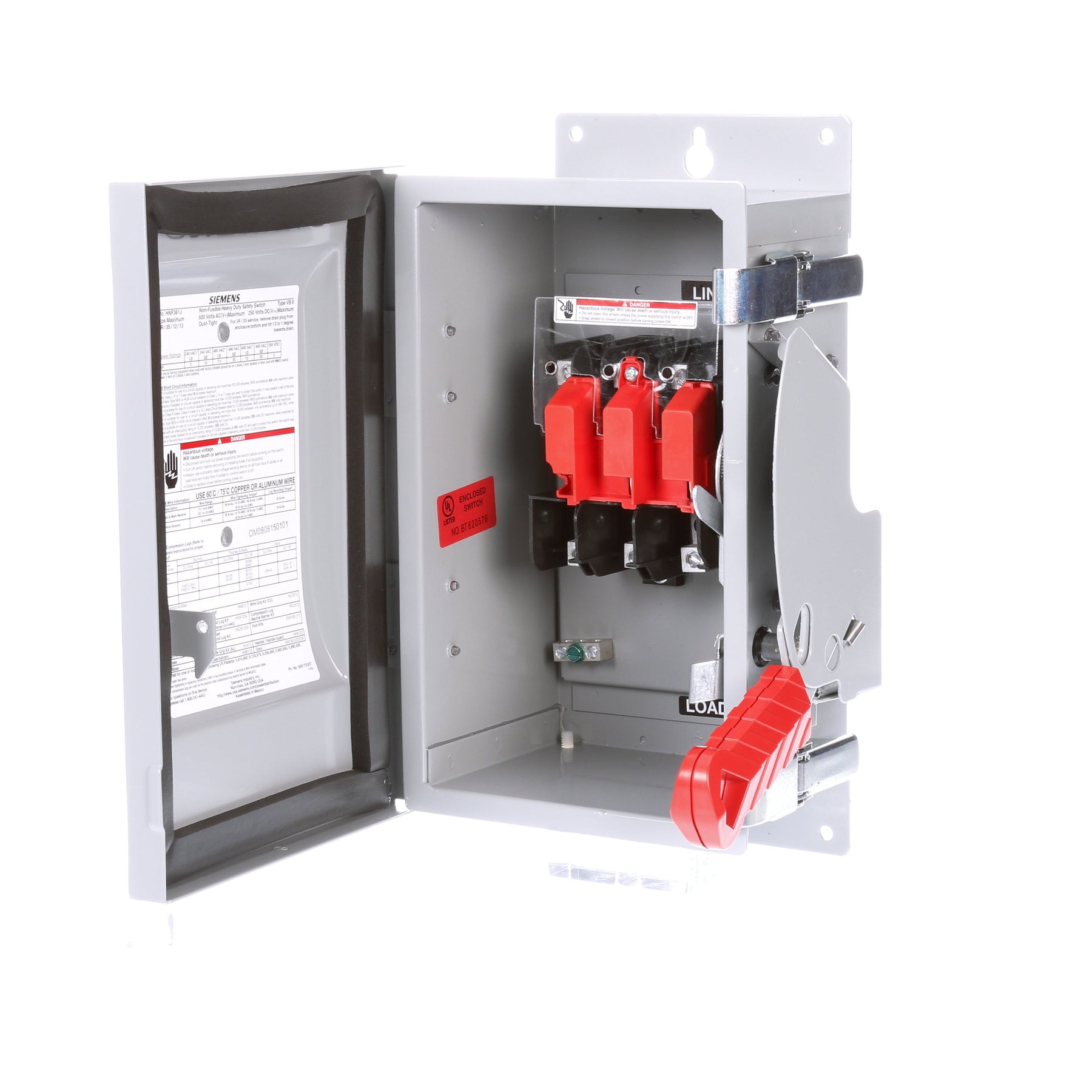

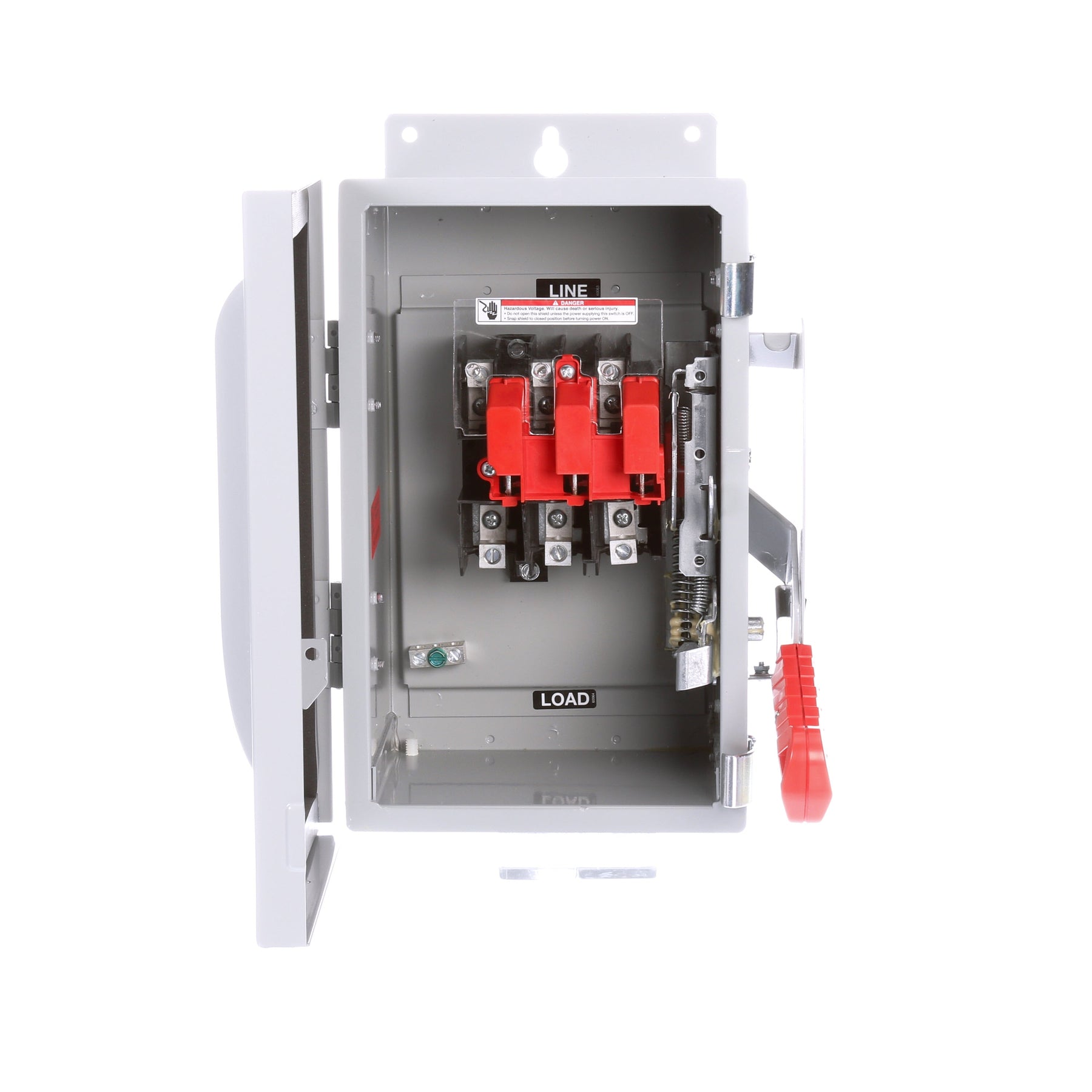

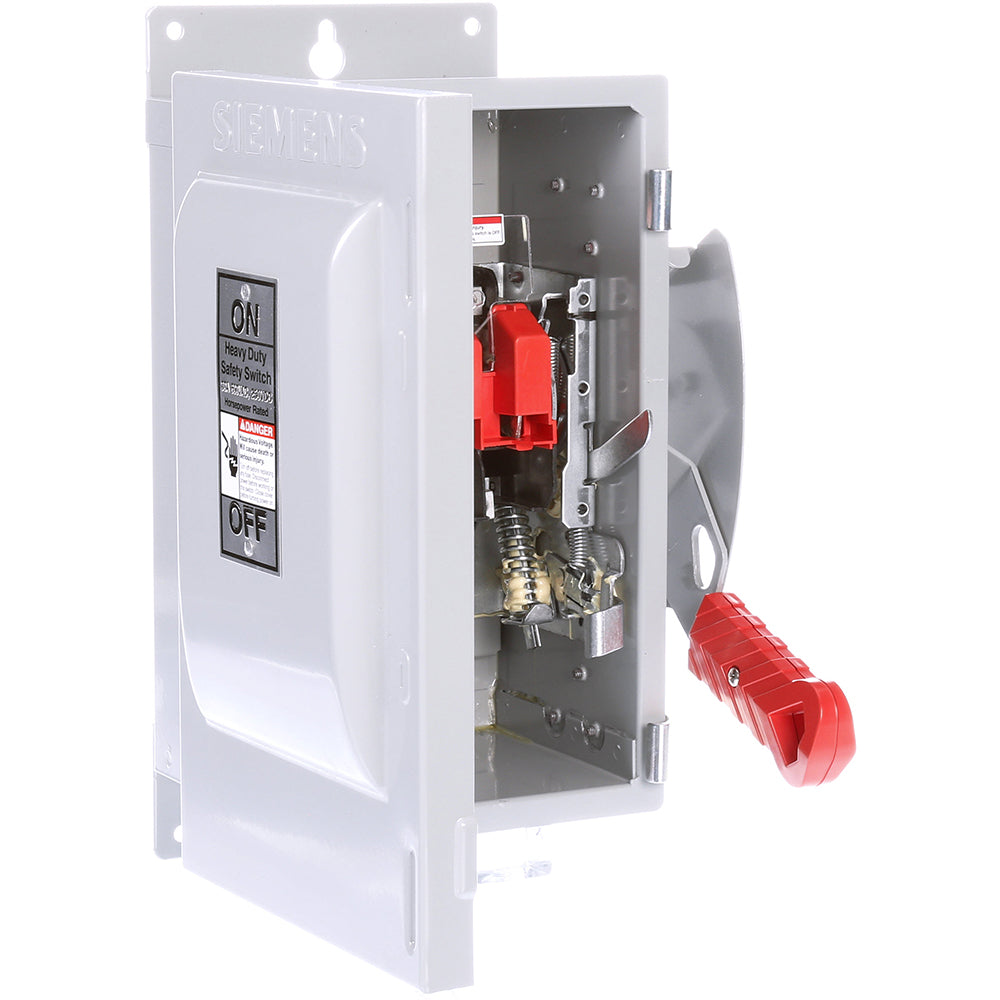

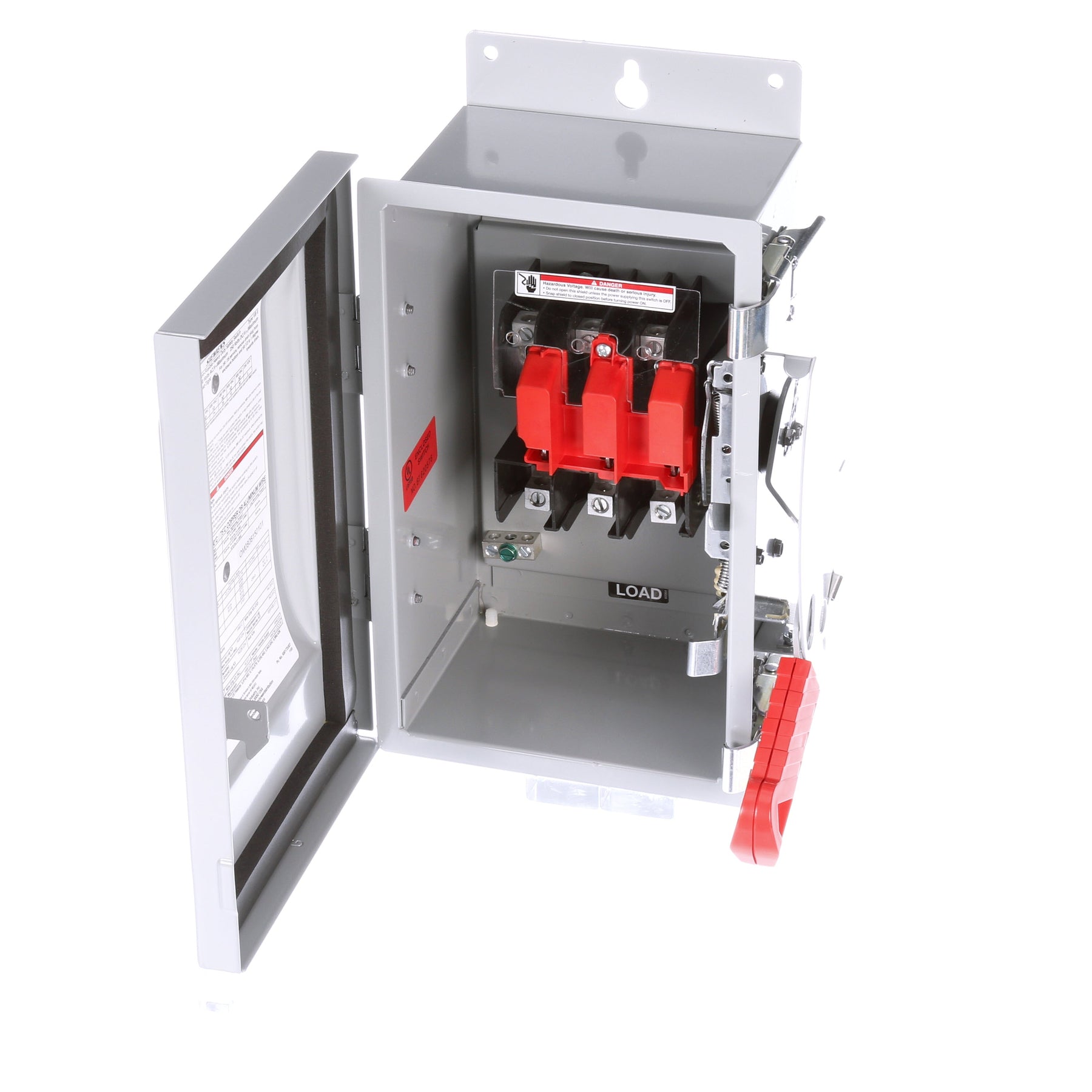

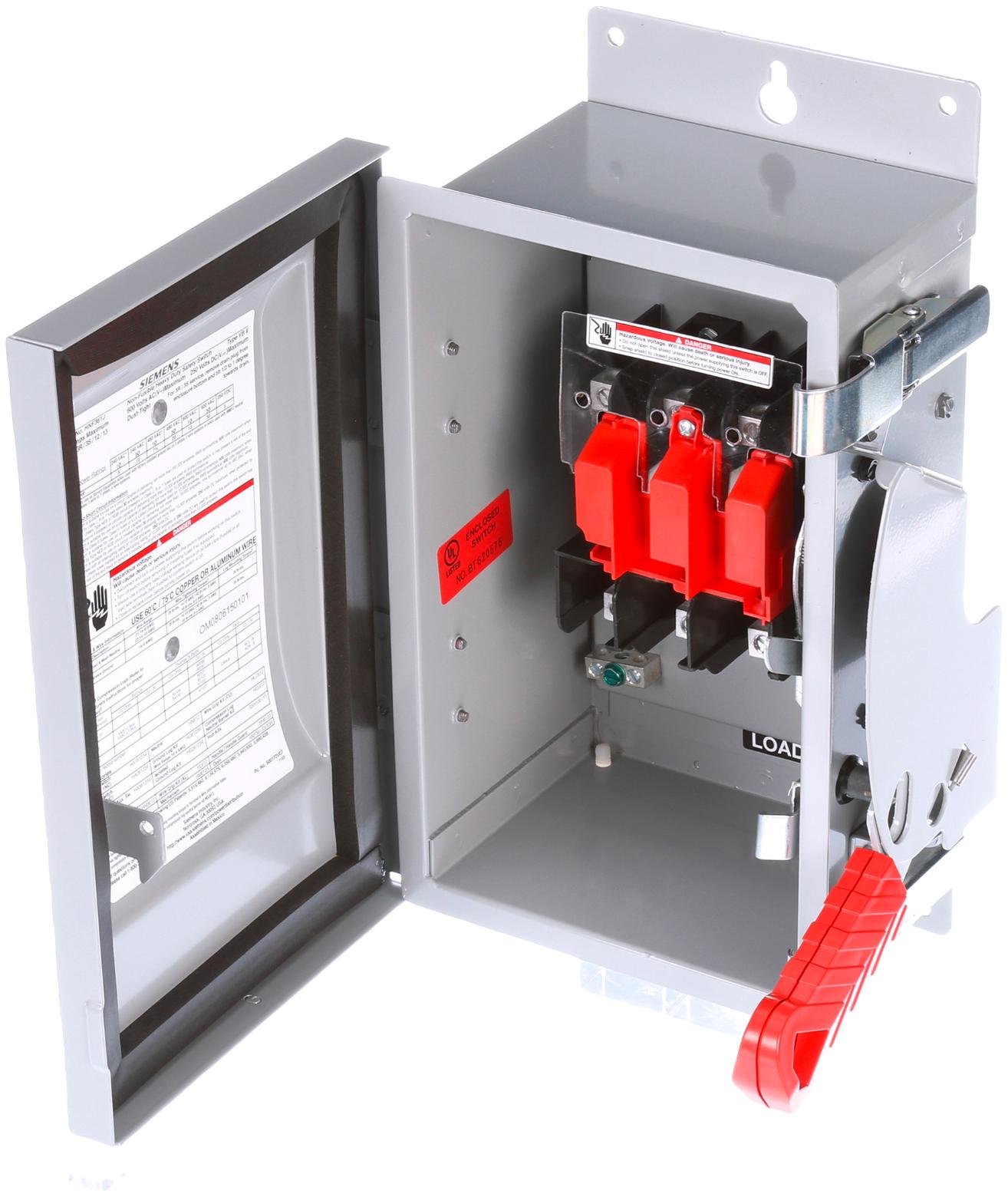

Siemens HNF361J - Non-Fusible Disconnect Switch 30A 600V

Price
Regular price $0.00
Regular price Sale price $0.00
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Siemens HNF361J is a non-fusible disconnect switch designed for providing a visible break and safe isolation of three-phase electrical circuits. It is rated for 600V AC and 30A, featuring a robust construction with dimensions of 430 x 290 x 200 mm (16.929" x 11.417" x 7.874") and a weight of 13.977 lb, built to withstand an operating temperature range of -25°C to 70°C (-13°F to 158°F). This UL-listed switch, part of the VBII Series, offers a high interrupting capacity of 200kA at 600V and is housed in a NEMA 12 enclosure for protection against dust and dripping liquids. It is engineered for integration into industrial control panels and motor control centers, specifically compatible with PGP frames, to ensure reliable power distribution and maintenance safety.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, VBII Series, Manual Operation
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Configuration: Single
  • Poles: 3
  • Phase: 3
  • AIC Rating: 200kA @ 600V
  • Dimensions: 430 x 290 x 200 mm (16.929" x 11.417" x 7.874")
  • Weight: 13.977 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • NEMA Rating: NEMA 12
  • Switch Style: Non-Fusible
  • Certification: UL Listed
  • Compatible Frames: PGP
  • Enclosure: NEMA 12
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151895
  • GTIN: 0783643151895
