Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

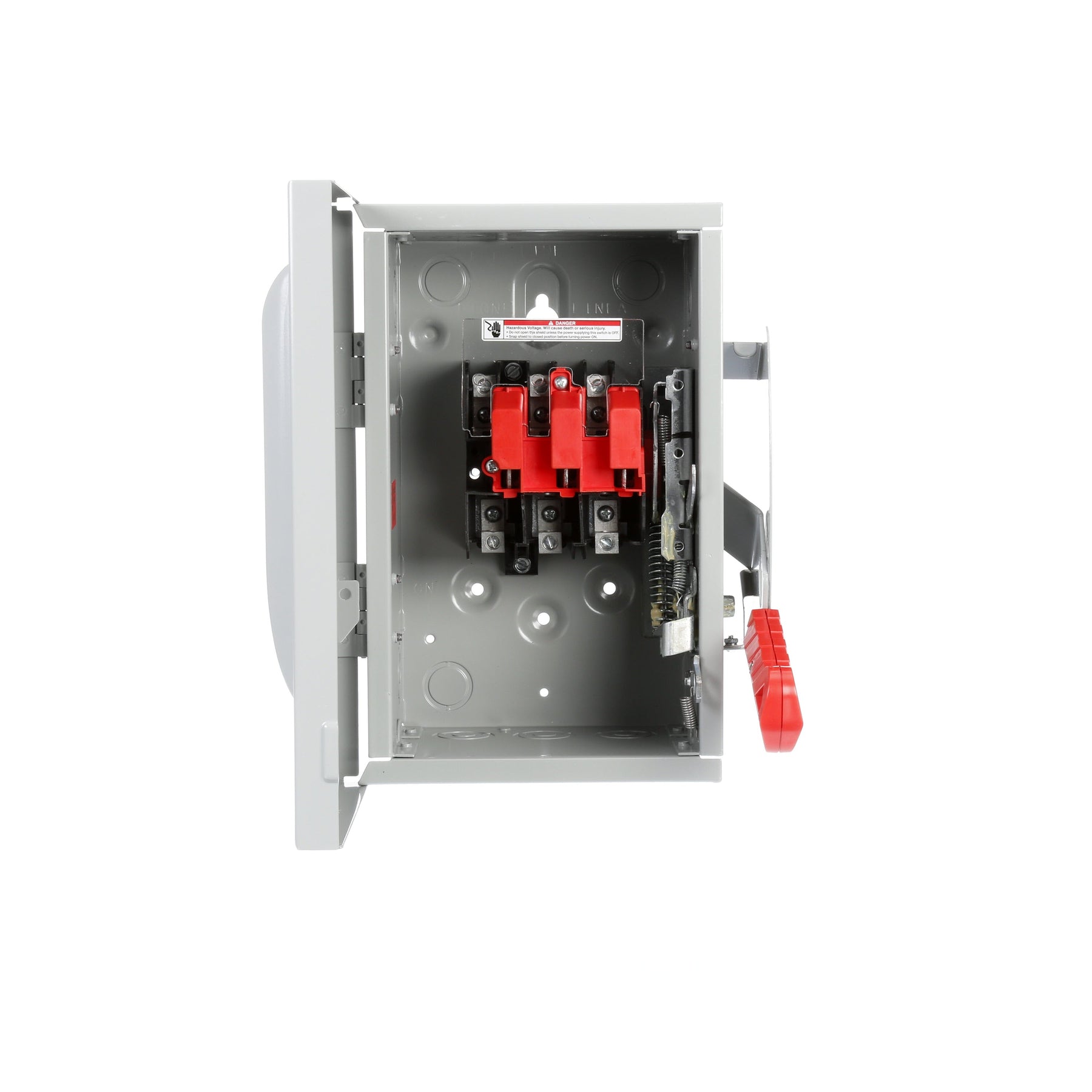

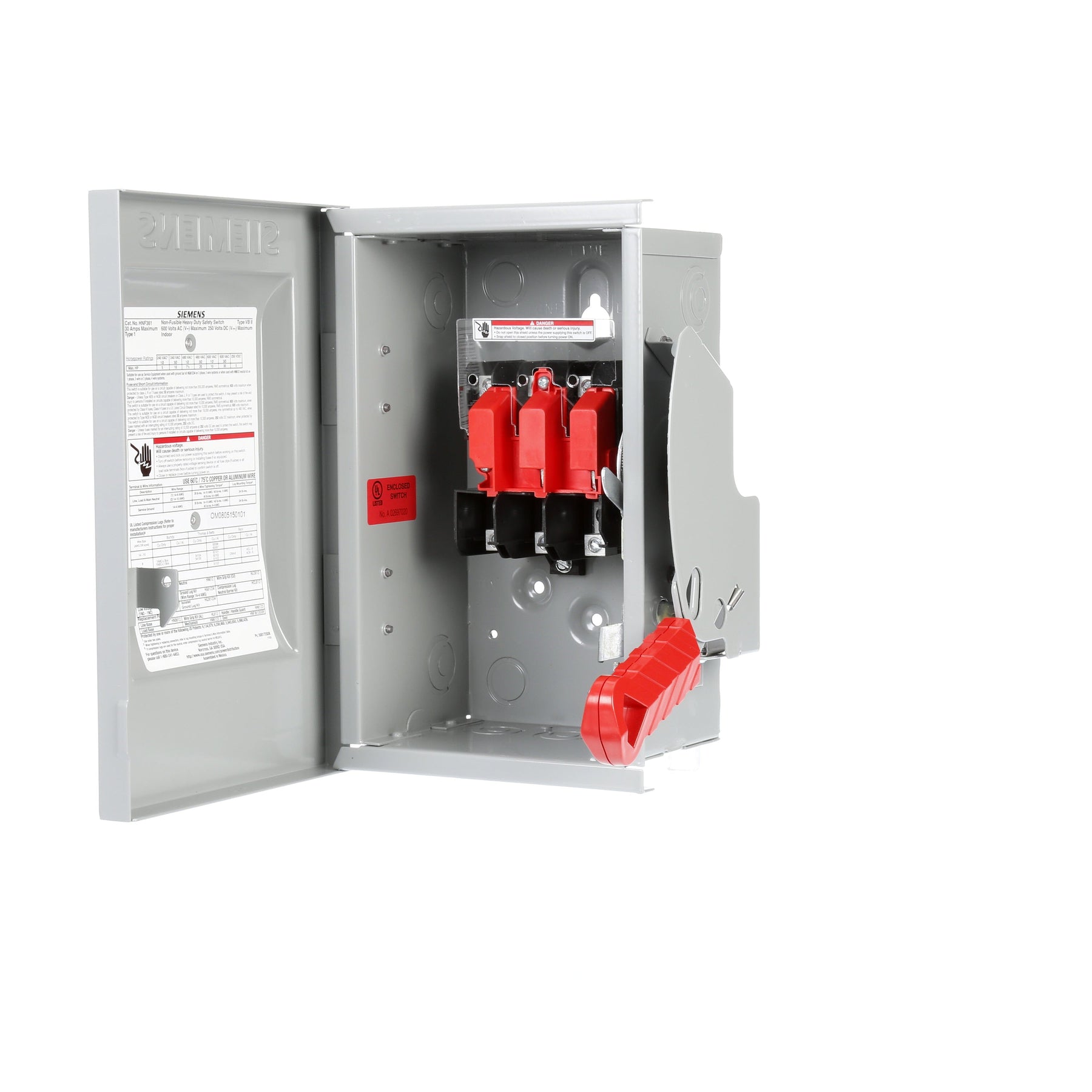

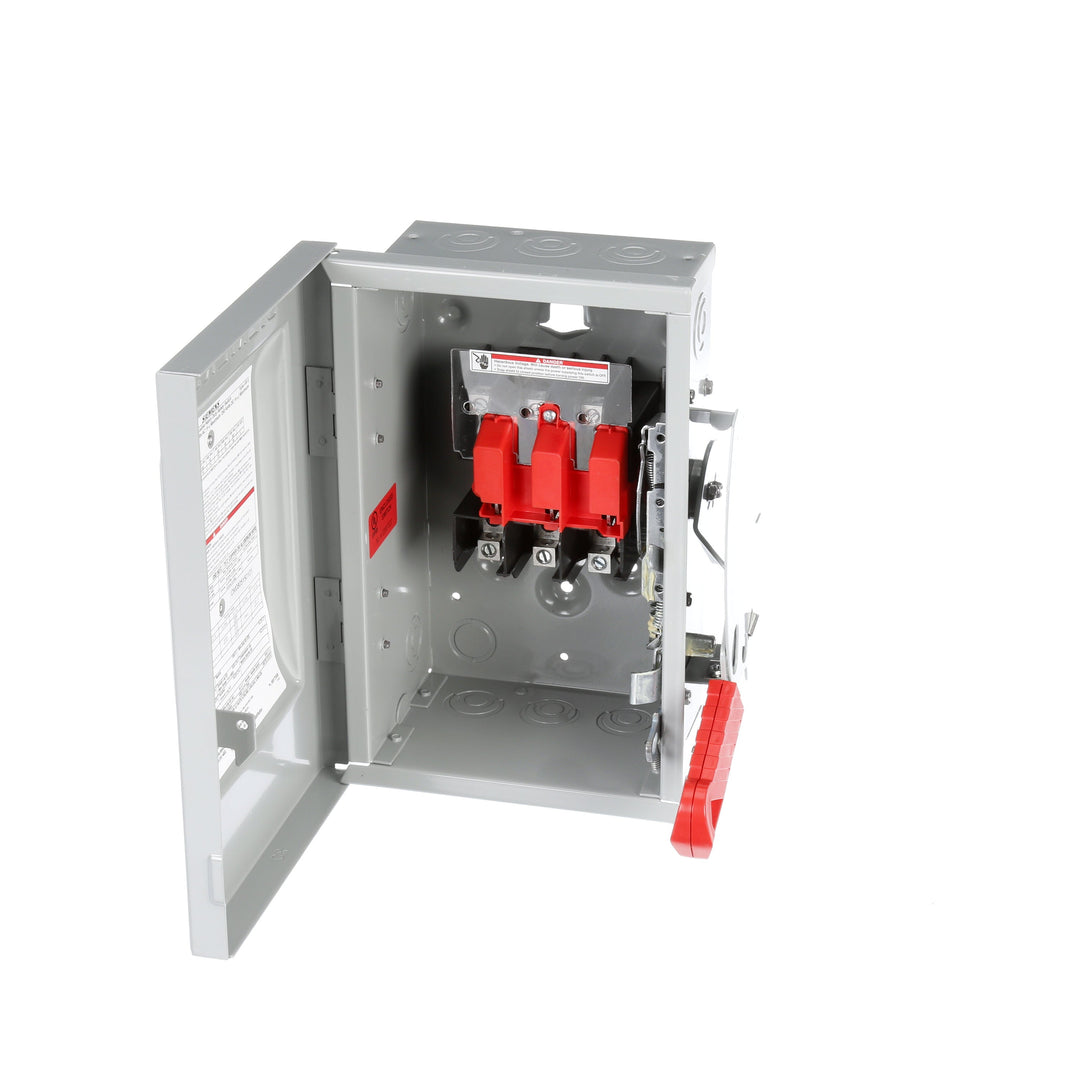

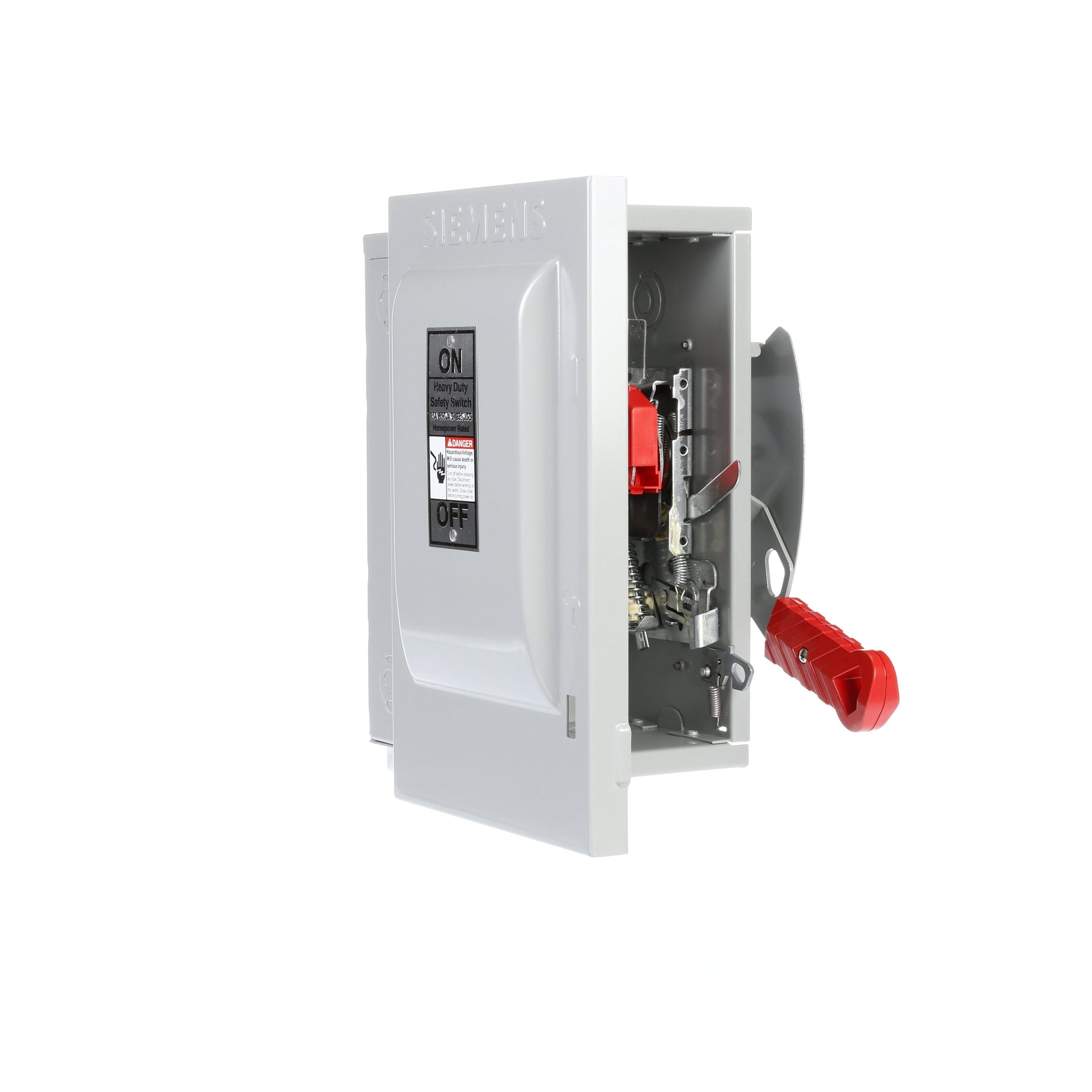

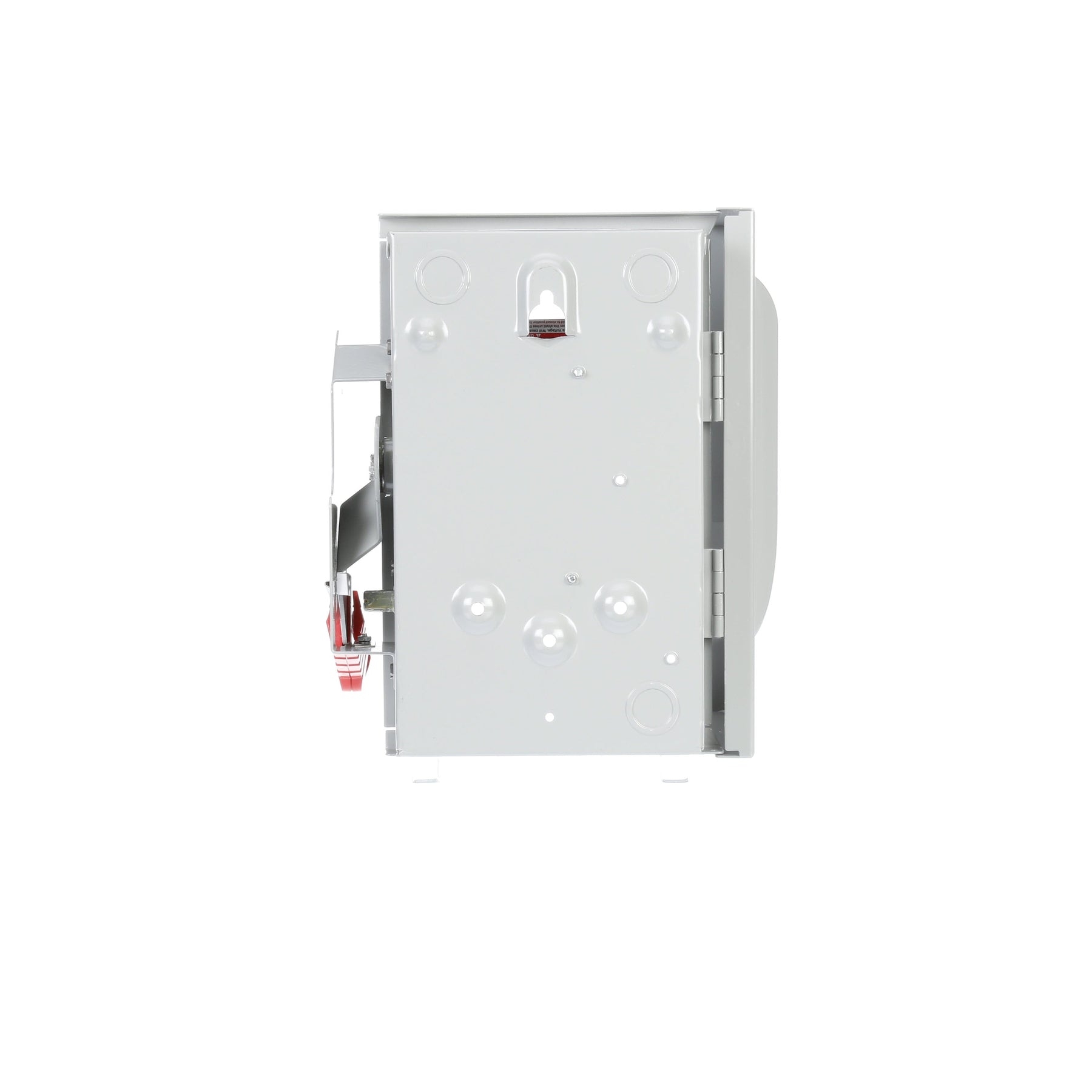

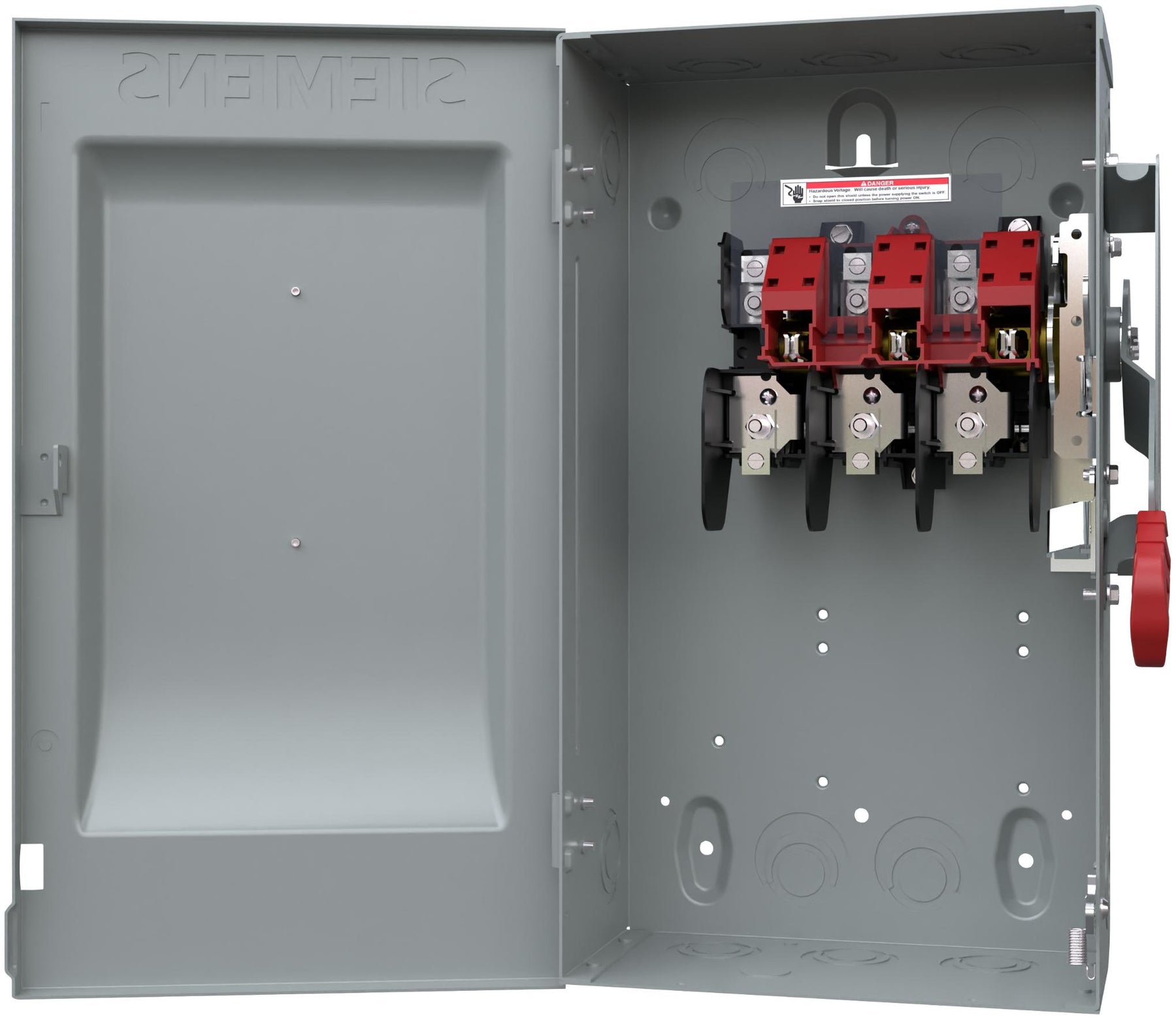

Siemens HNF361 is a non-fusible disconnect switch designed for providing a visible break and safe isolation in three-phase industrial power circuits. It is rated for 600V AC systems with a 30A current rating and features a robust 3-pole, single-configuration design within a NEMA 1 enclosure for basic indoor protection. The switch is constructed with durable materials, measures 11.45" x 7.72" x 9.15" (HxWxD), and weighs 11.001 lb, ensuring reliable mechanical operation. It complies with UL standards and is part of the Siemens VBII Series, compatible with PGP frames, and offers an interrupting rating of 200kA at 600V for enhanced system protection. Typical applications include motor control centers, industrial machinery, and panelboards where a visible disconnect is required for maintenance and safety.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, manual operation
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Dimensions: 11.45 x 7.72 x 9.15 inch (Height x Width x Depth)
  • Weight: 11.001 lb
  • Standards: UL listed
  • Applications: Industrial motor control, machinery isolation, panelboards
  • Switch Type: Non-Fusible Disconnect
  • Configuration: Single
  • Phase: 3
  • Poles: 3
  • AIC rating: 200kA @ 600V
  • Nema Rating: NEMA 1
  • Compatible Frames: PGP
  • Family: VBII Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643151154
  • GTIN: 0783643151154
