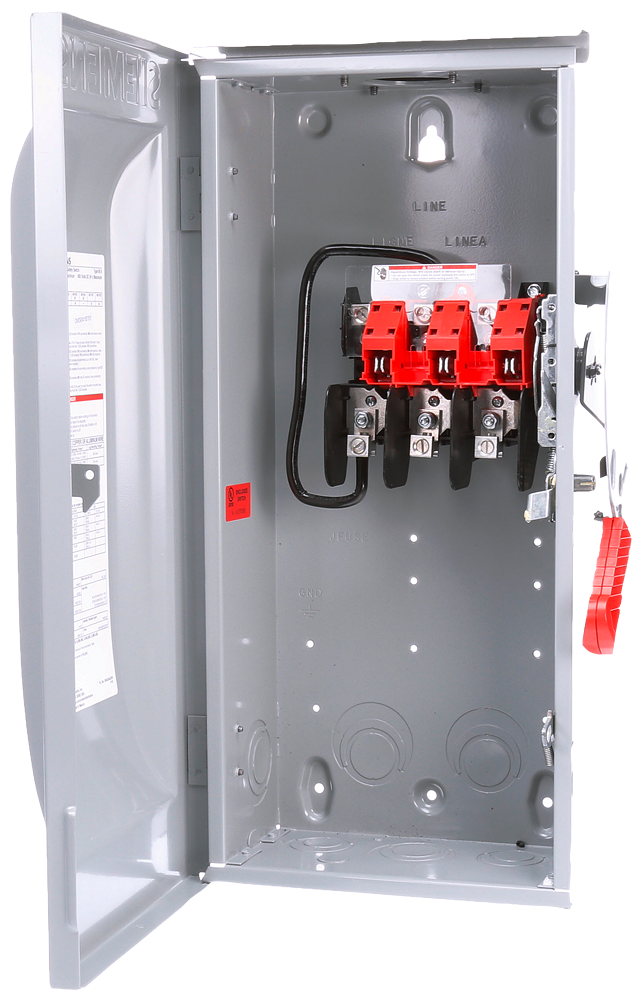

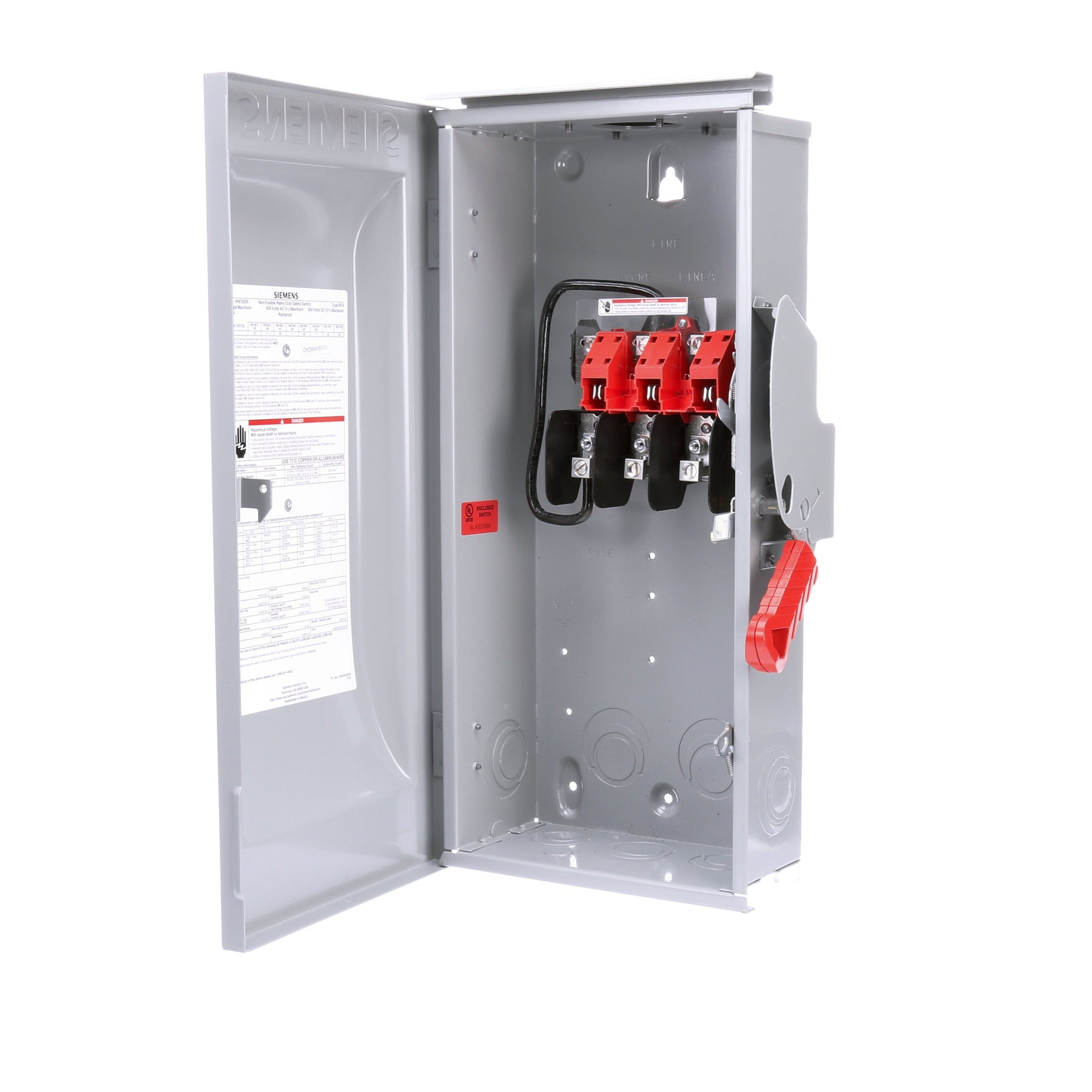

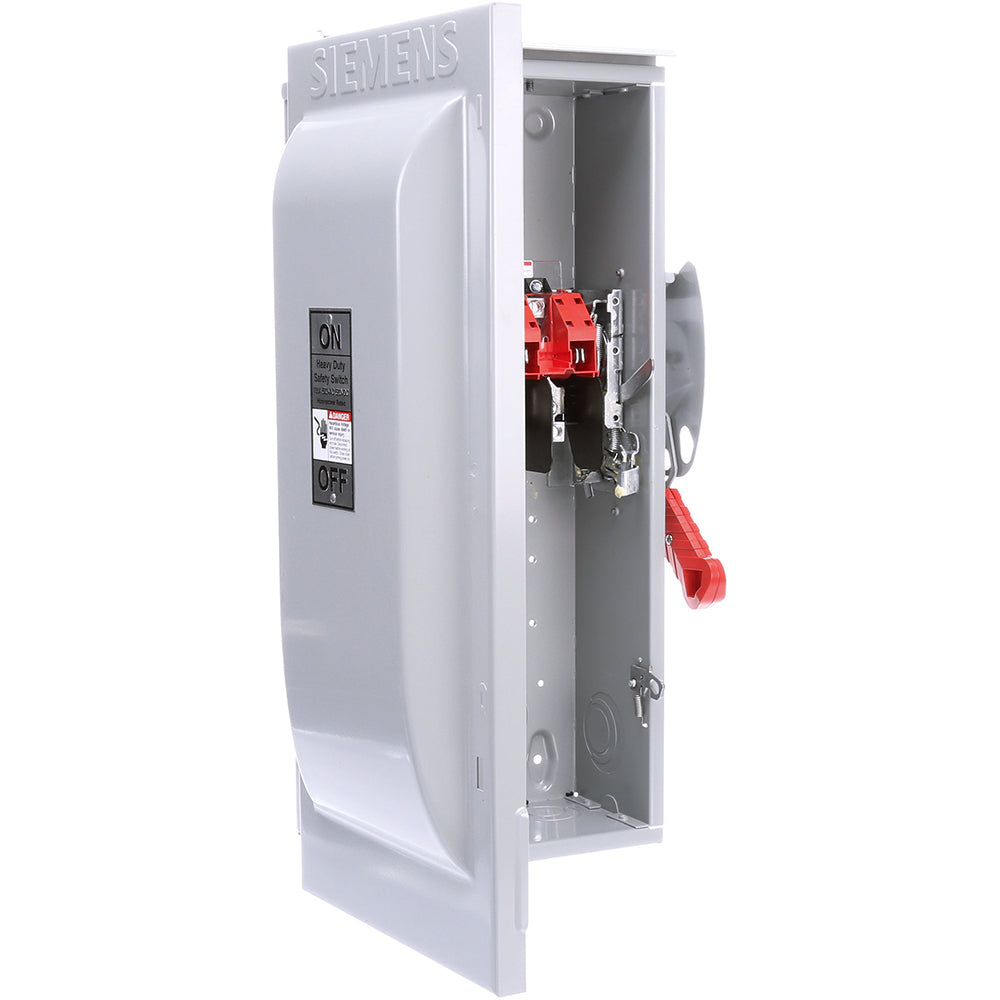

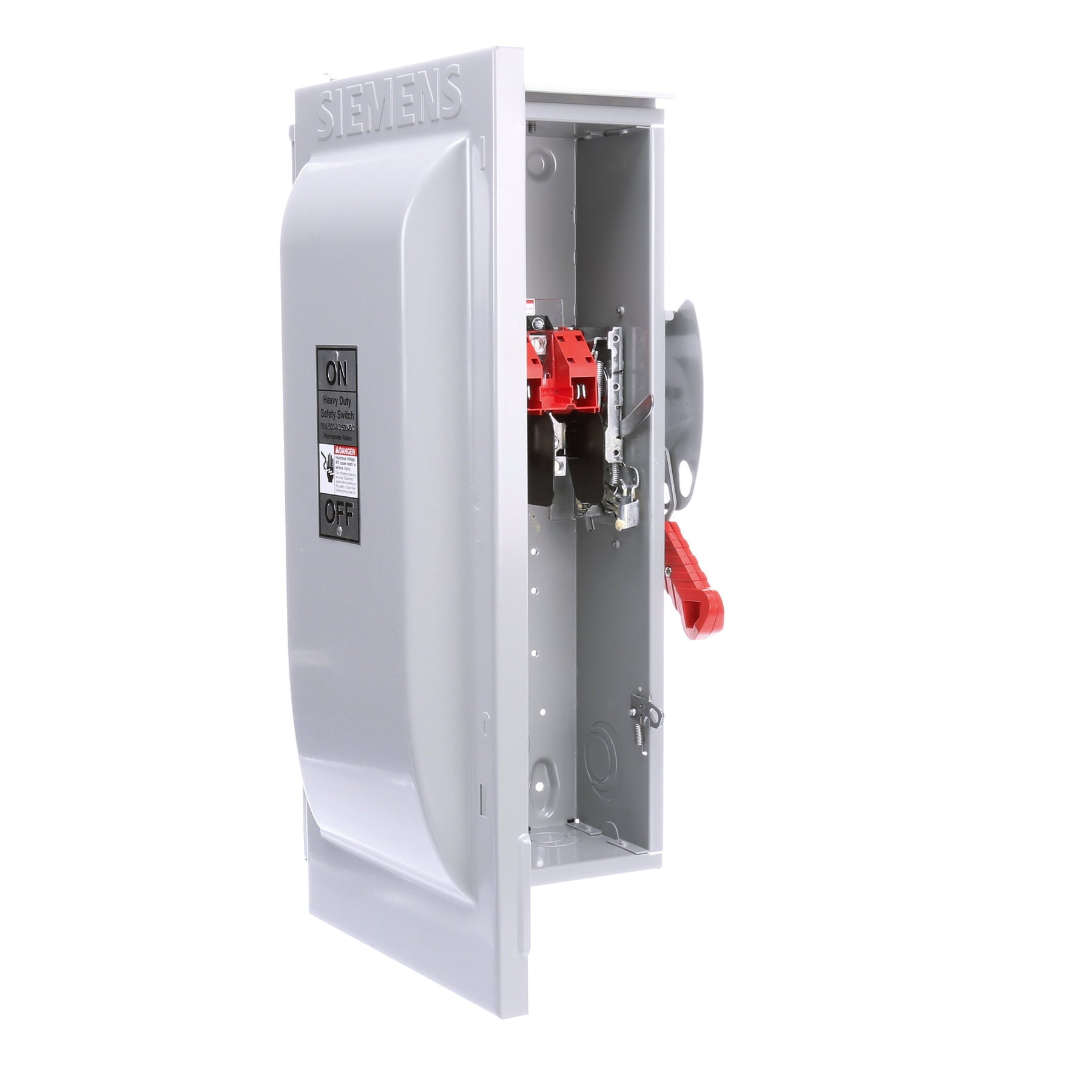

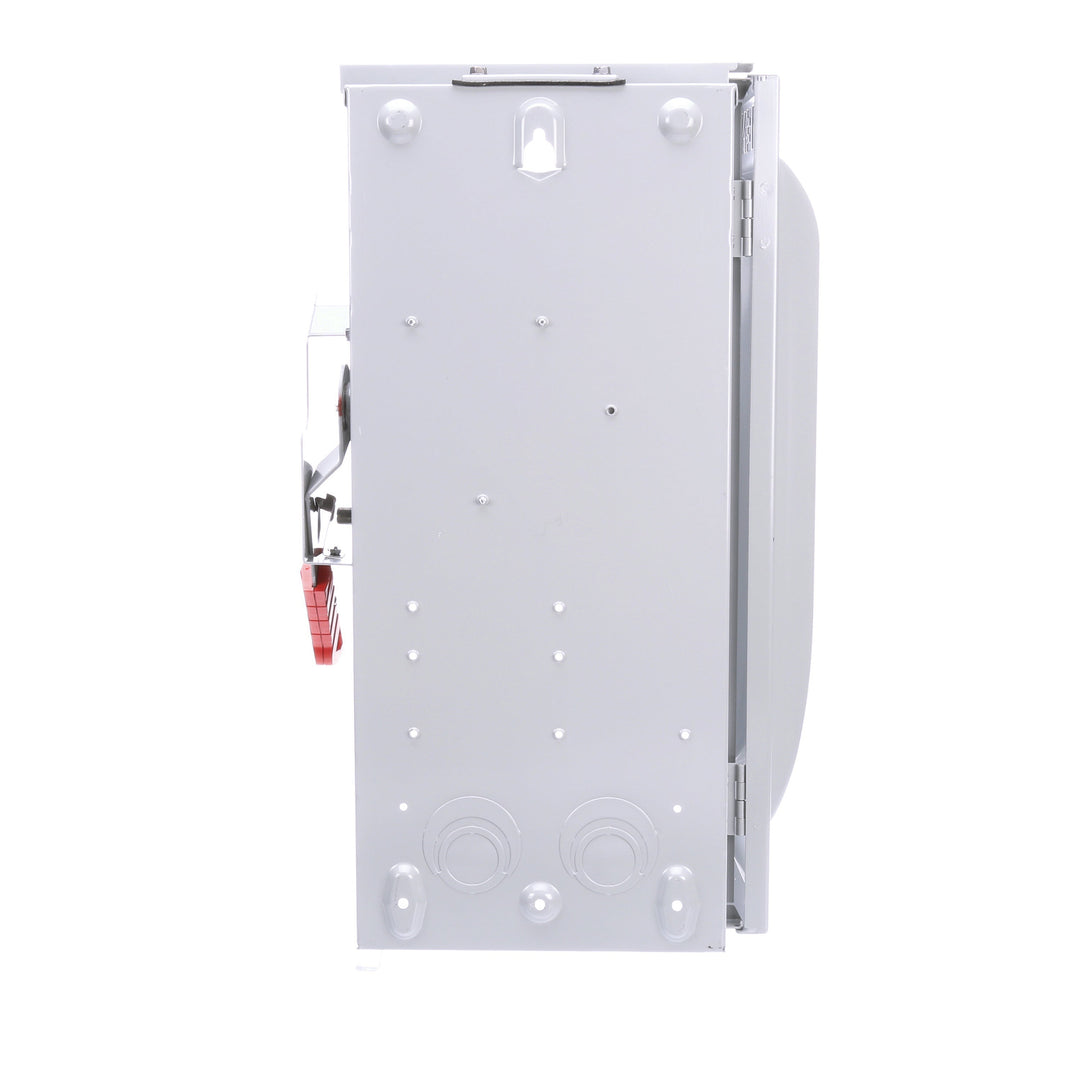

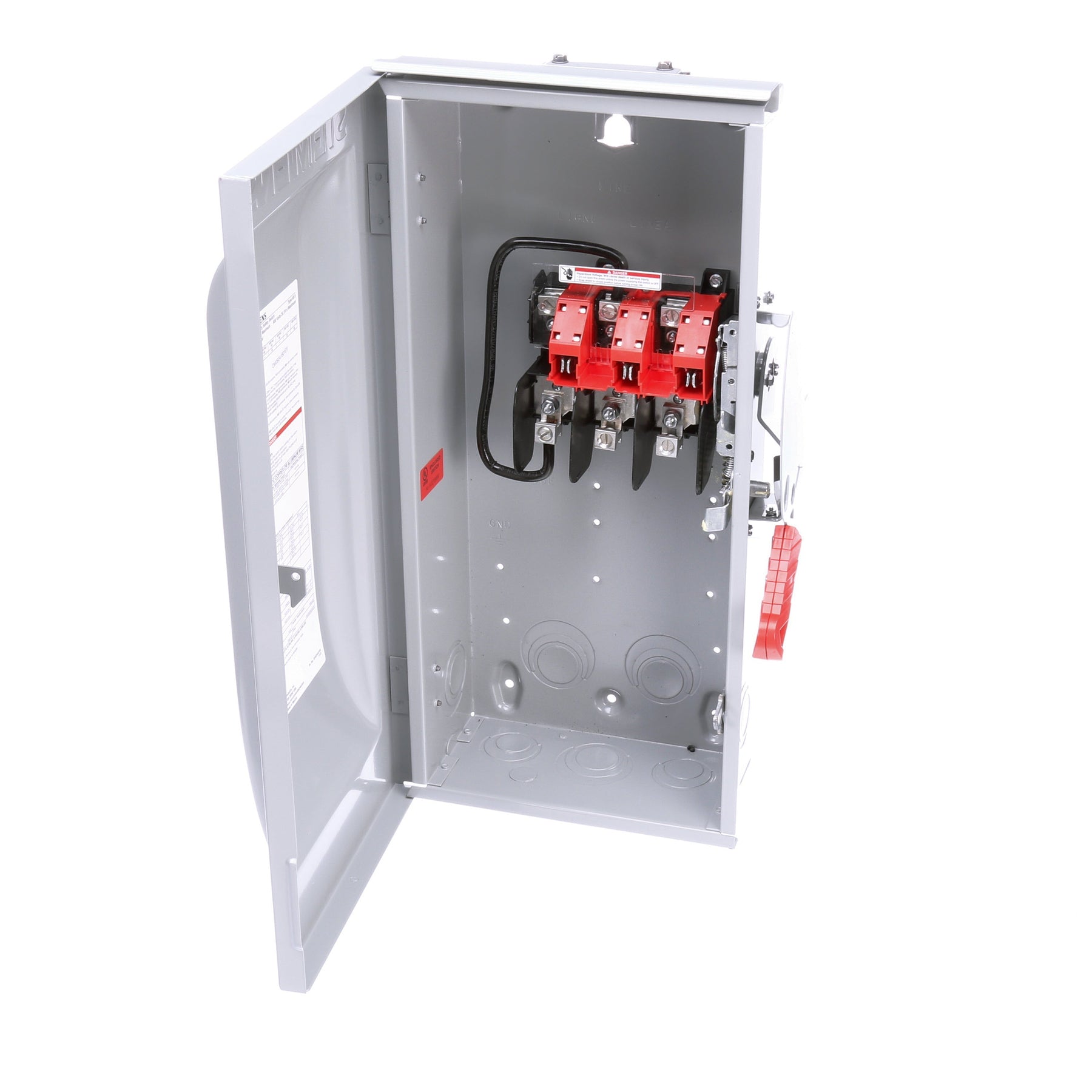

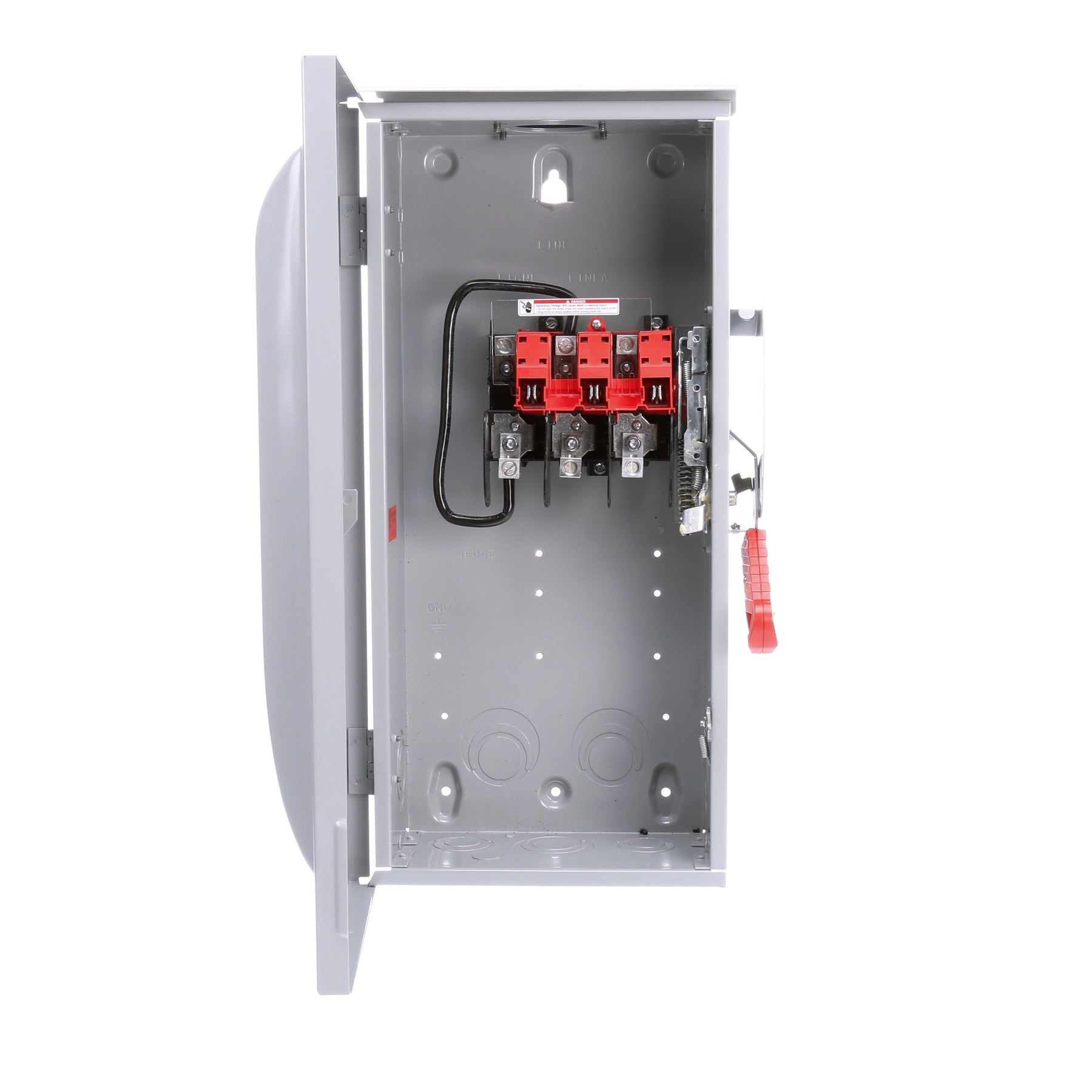

Siemens HNF263R - Heavy Duty Safety Disconnect Switch 100A 600V AC (NEMA 3R, 200kA AIC)

Siemens HNF263R is a heavy duty safety disconnect switch designed for reliable circuit isolation and load breaking in industrial applications. This single configuration device features a 600V AC voltage rating and 100A current handling capacity with robust construction measuring 12.0 x 23.1 inches and weighing 35 pounds. The switch carries UL listing certification and NEMA 3R enclosure rating for outdoor use, meeting industry standards for safety and durability. Typical applications include industrial control panels, motor disconnects, and main service entrance equipment where dependable circuit interruption is required.

Key Features & Specifications

• Type: Heavy Duty Safety Disconnect Switch, HNF type, VBII Series
• Voltage Rating: 600V AC
• Current Rating: 100A
• Dimensions: 12.0 in x 23.1 in
• Standards: UL listed, NEMA 3R rated
• Applications: Industrial control panels, motor disconnects, service entrance equipment
• Switch Type: Heavy Duty
• Configuration: Single
• AIC rating: 200kA@600V
• Poles: 2
• Phase: 1
• Weight: 35 lb
• Compatible Frames: PGP
• Shipping Dimensions: 13.78 x 25.984 x 6.693 inches
• Country of Origin: Mexico

Product Identification

• UPC: 783643174085
• GTIN: 00783643174085
