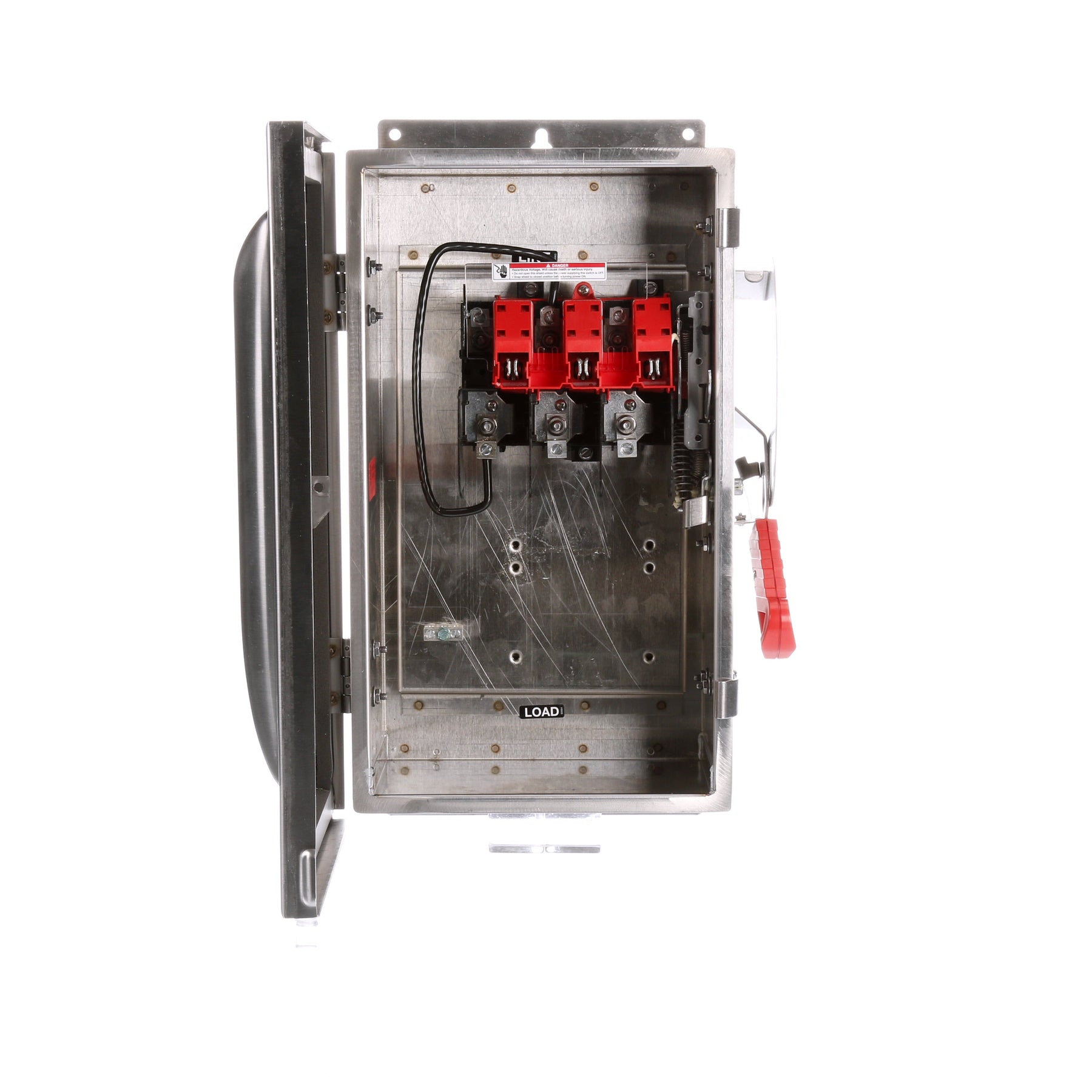

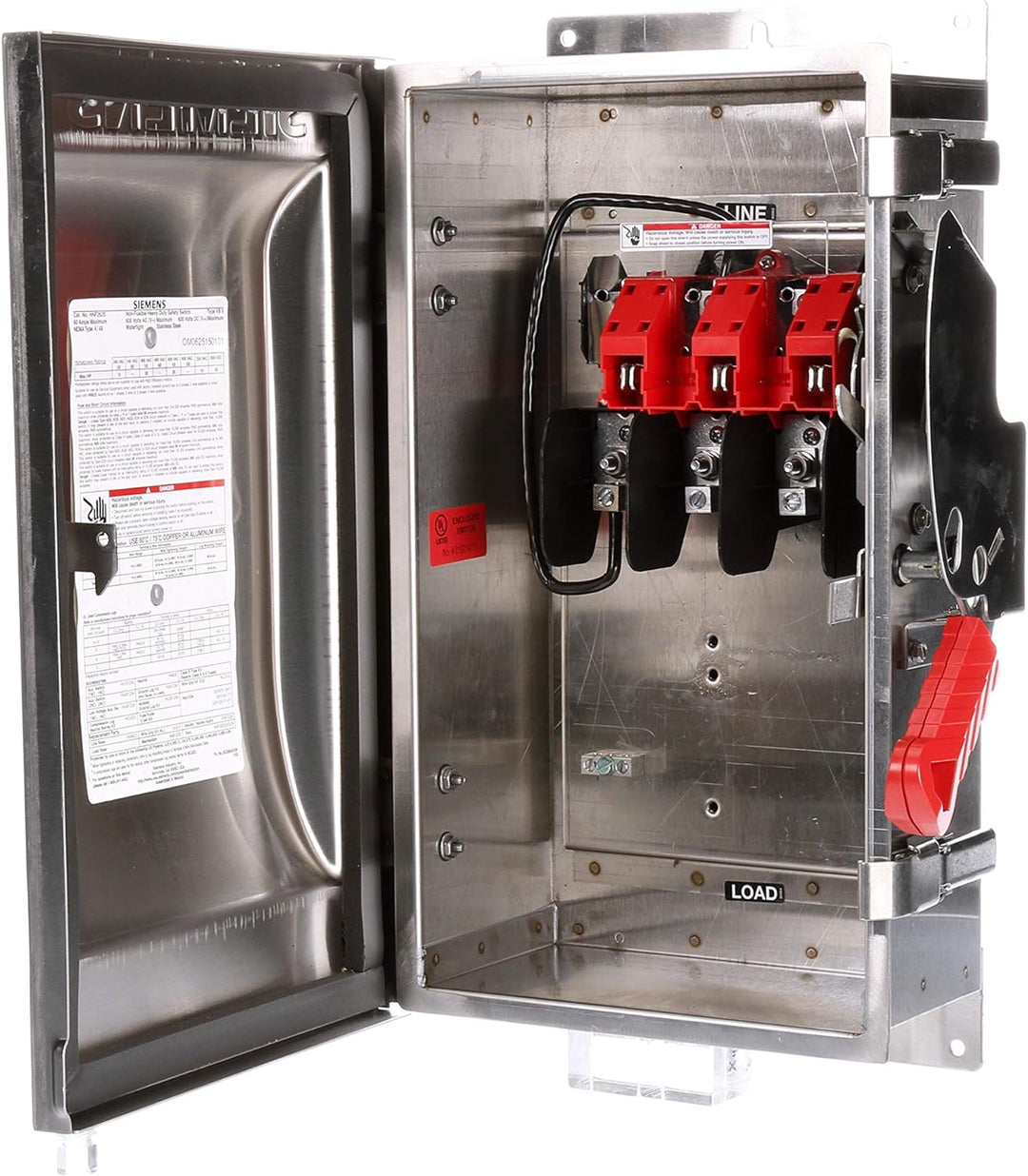

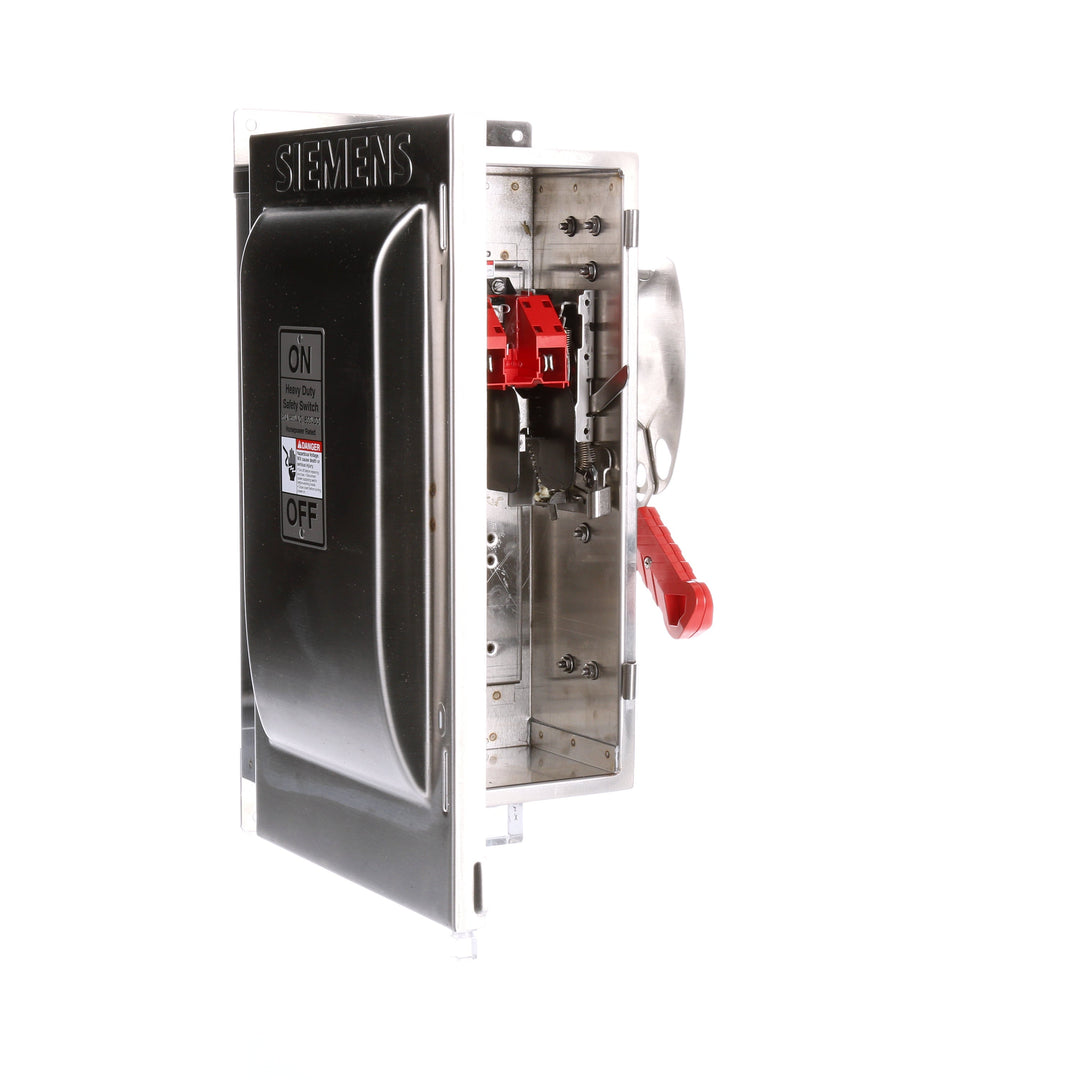

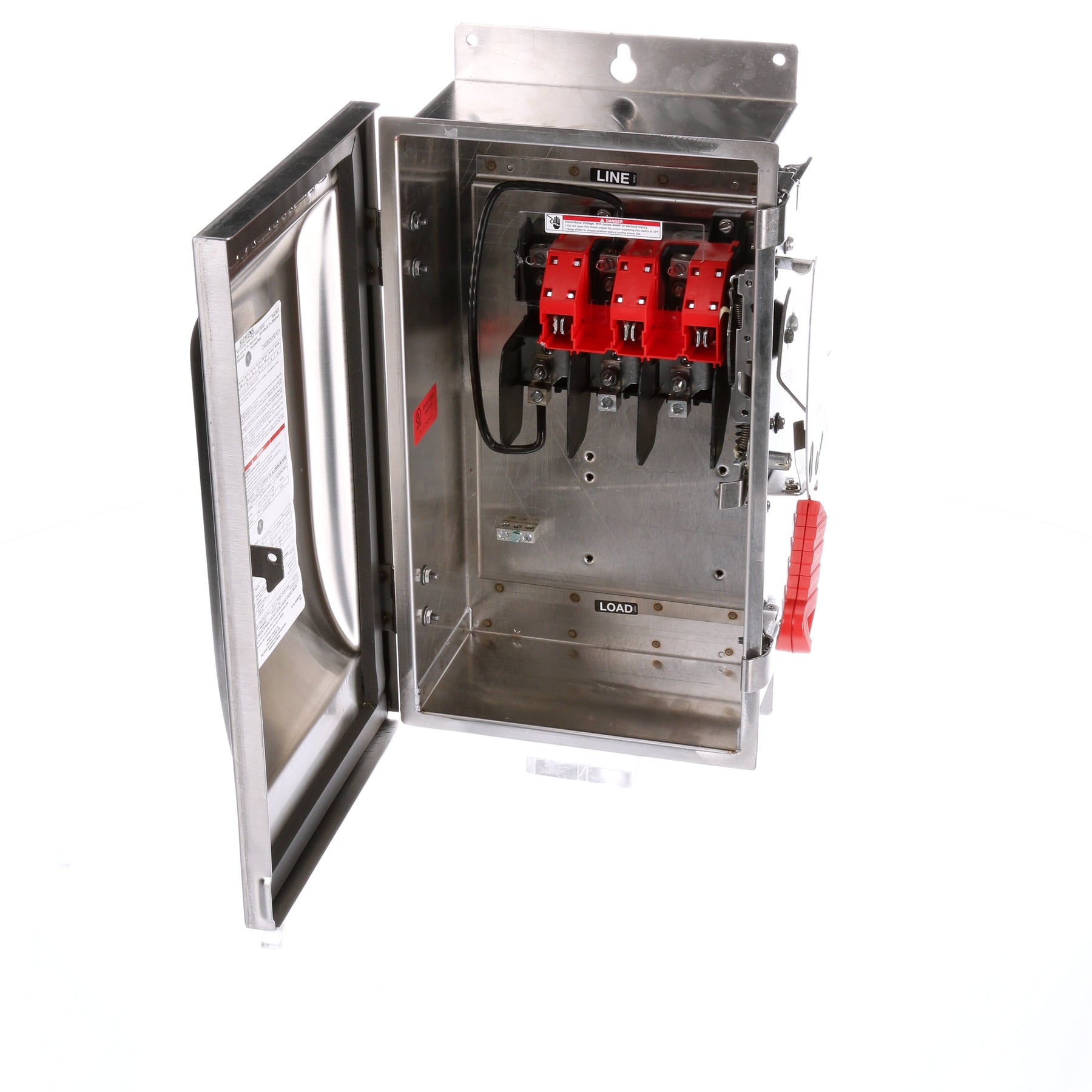

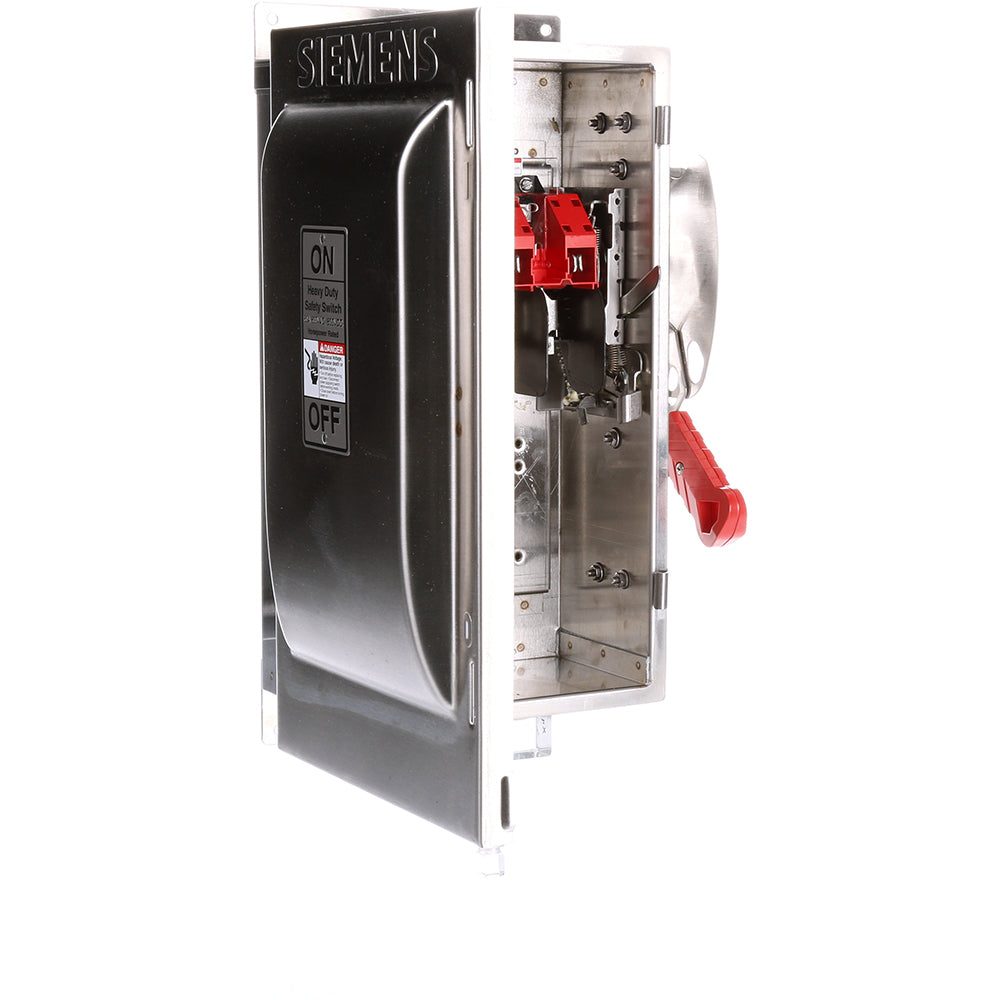

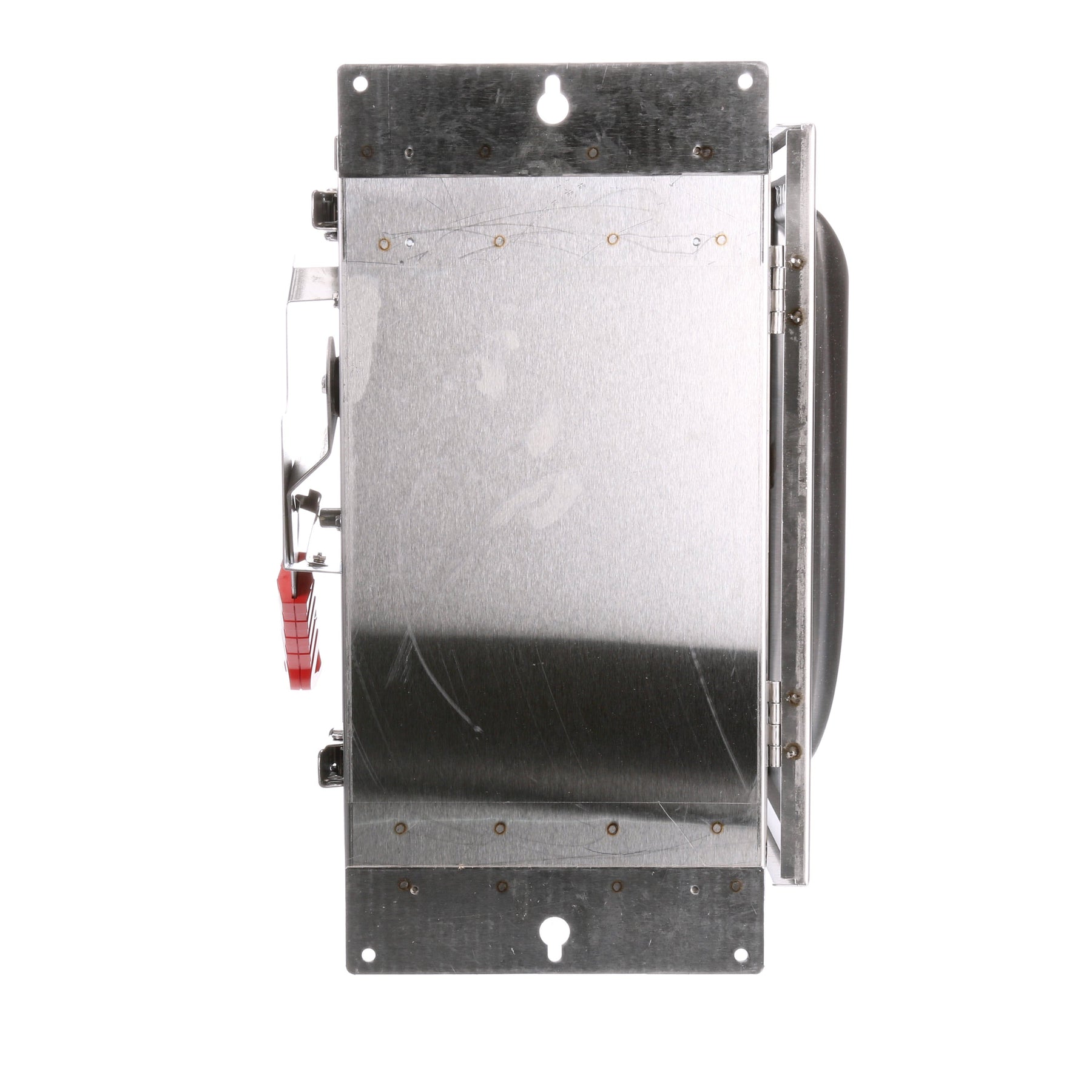

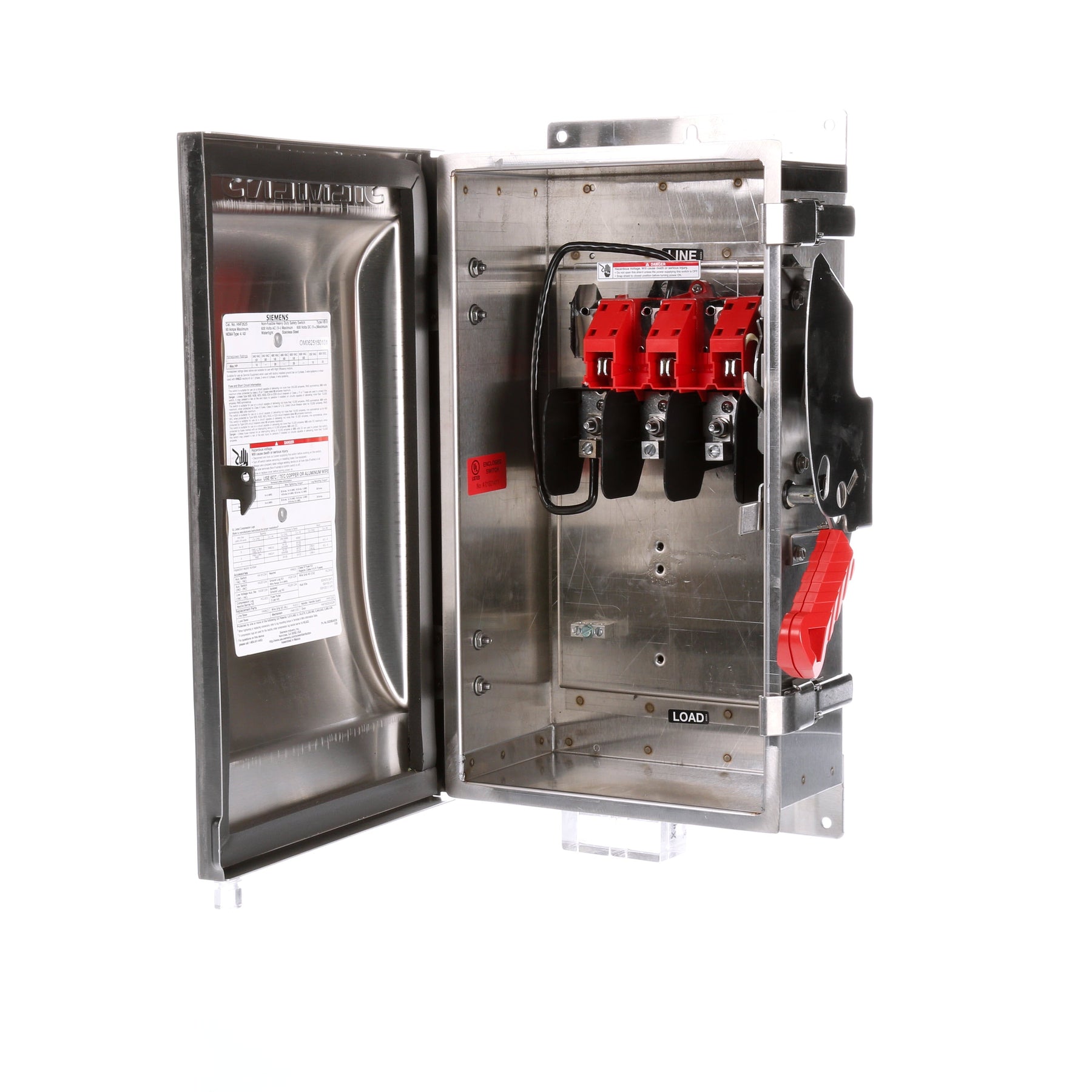

Siemens HNF262S is a non-fusible disconnect switch designed for providing a visible means of isolation and safe maintenance of electrical circuits in industrial environments. It is rated for 600V AC systems with a continuous current capacity of 60A and features a robust two-pole, single-phase configuration. The switch is constructed within a NEMA 4X rated enclosure measuring 13.78 x 7.874 x 21.654 inches and weighing 22.641 lb, offering protection against corrosion and ingress of water. It is UL listed and engineered for a high interrupting capacity of 200kA at 600V, ensuring reliable performance and safety compliance. This component is typically applied in motor control centers and industrial panels, specifically designed for compatibility with Siemens PGP frames.
Key Features & Specifications
Type: Non-Fusible Disconnect Switch, HNF Type, VBII Series
Voltage Rating: 600V AC
Current Rating: 60A
Configuration: Single
Poles: 2
Phase: 1
AIC Rating: 200kA @ 600V
NEMA Rating: NEMA 4X
Dimensions: 13.78 x 7.874 x 21.654 inch
Weight: 22.641 lb
Standards: UL Listed
Compatible Frames: PGP
Applications: Industrial motor control centers, panelboards, and disconnect applications
