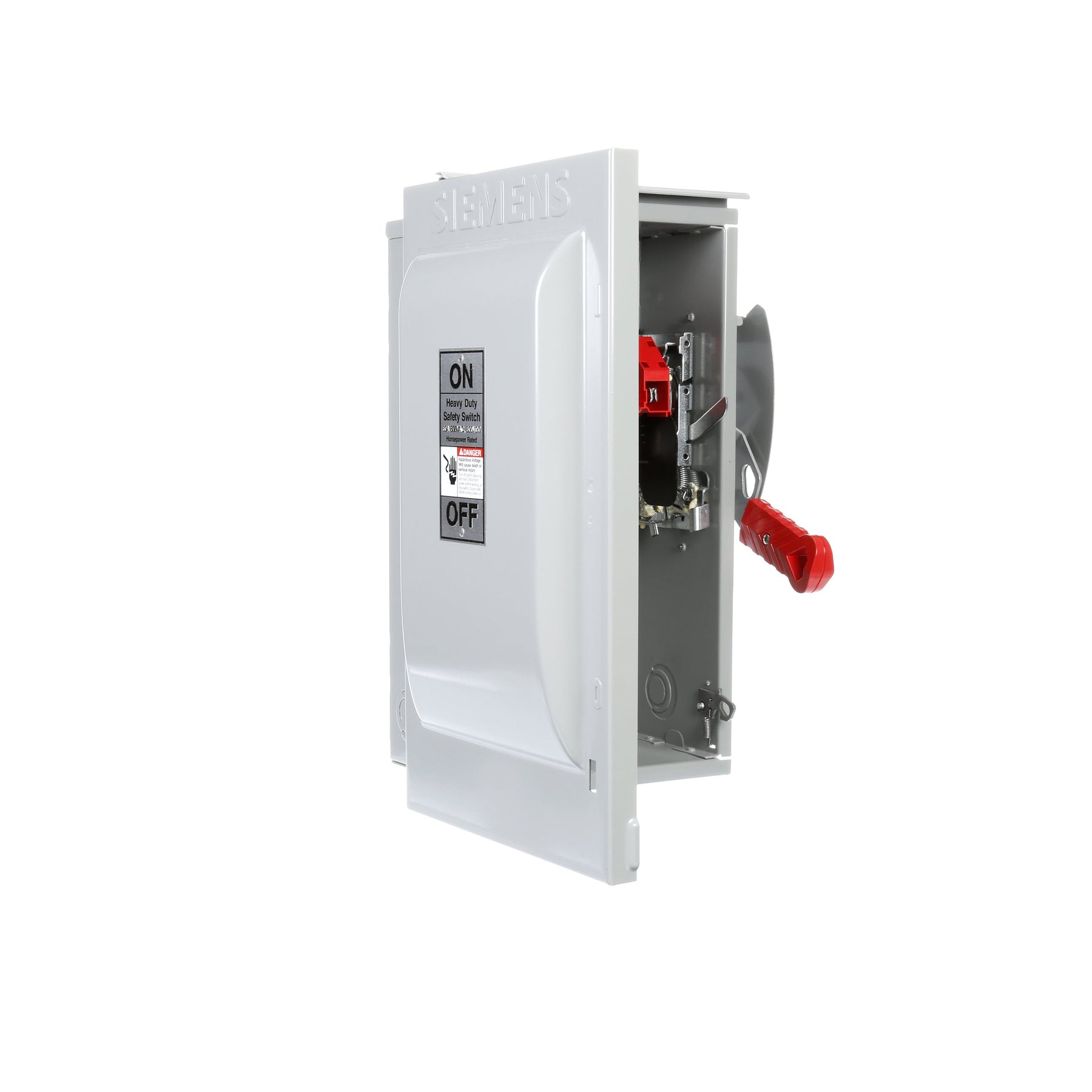

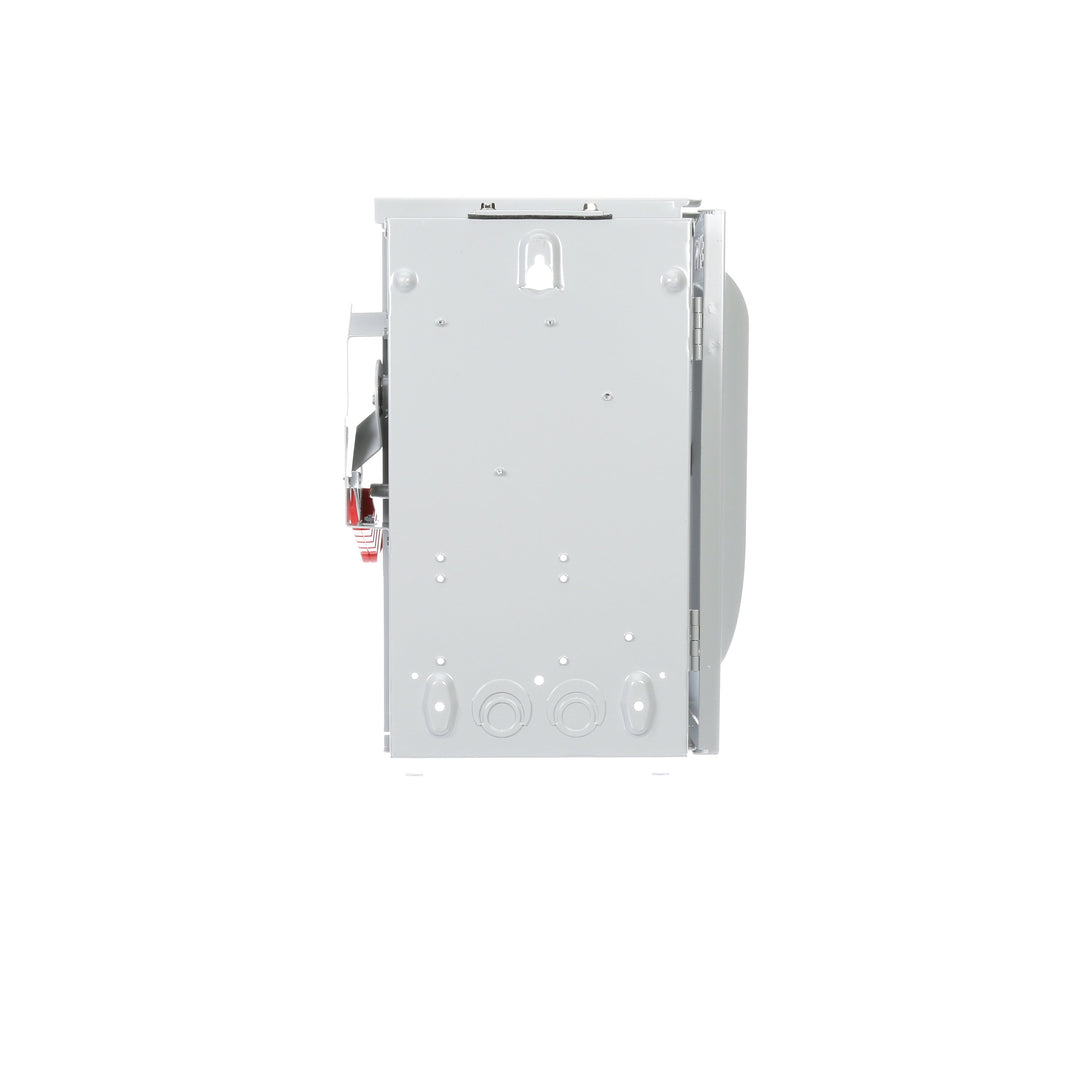

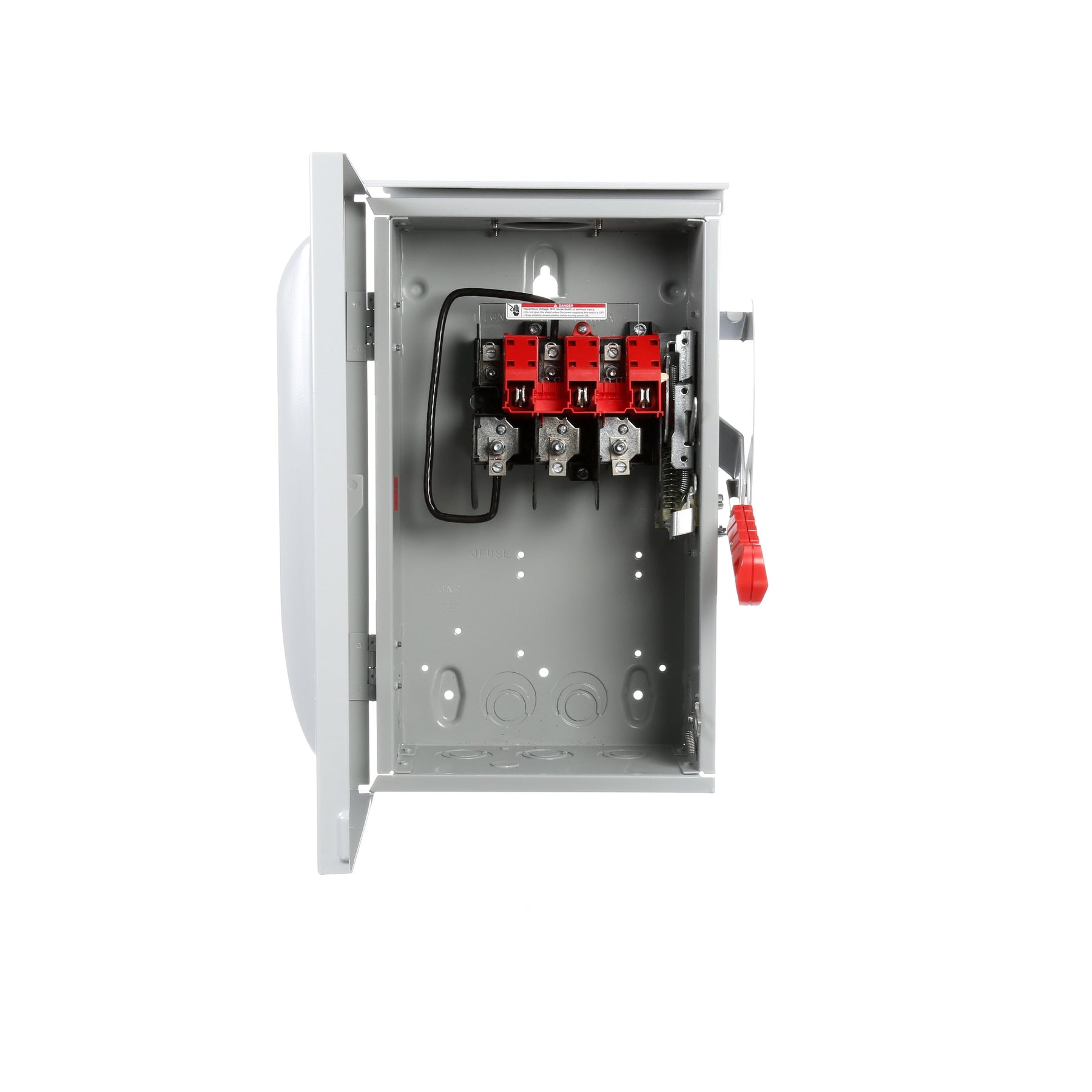

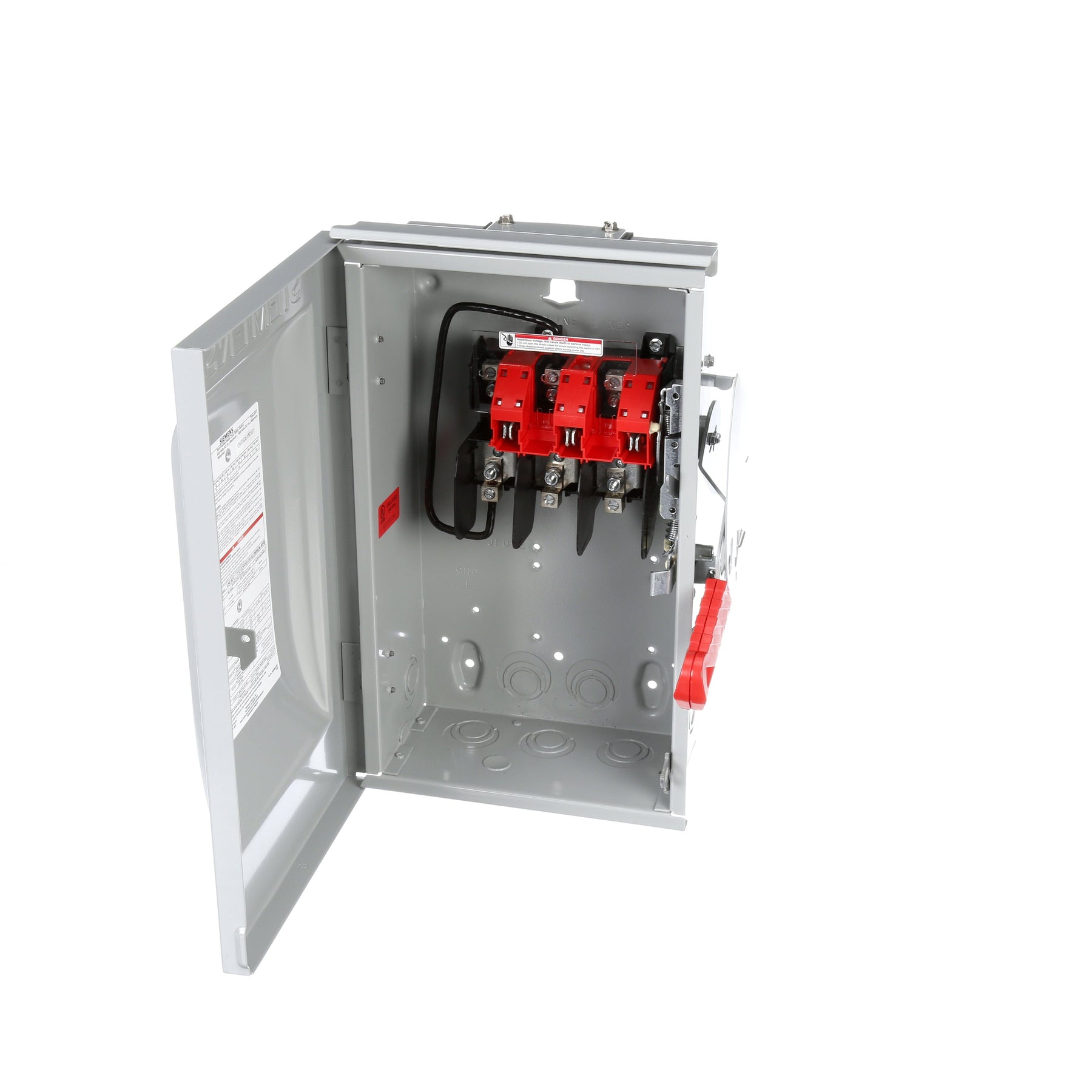

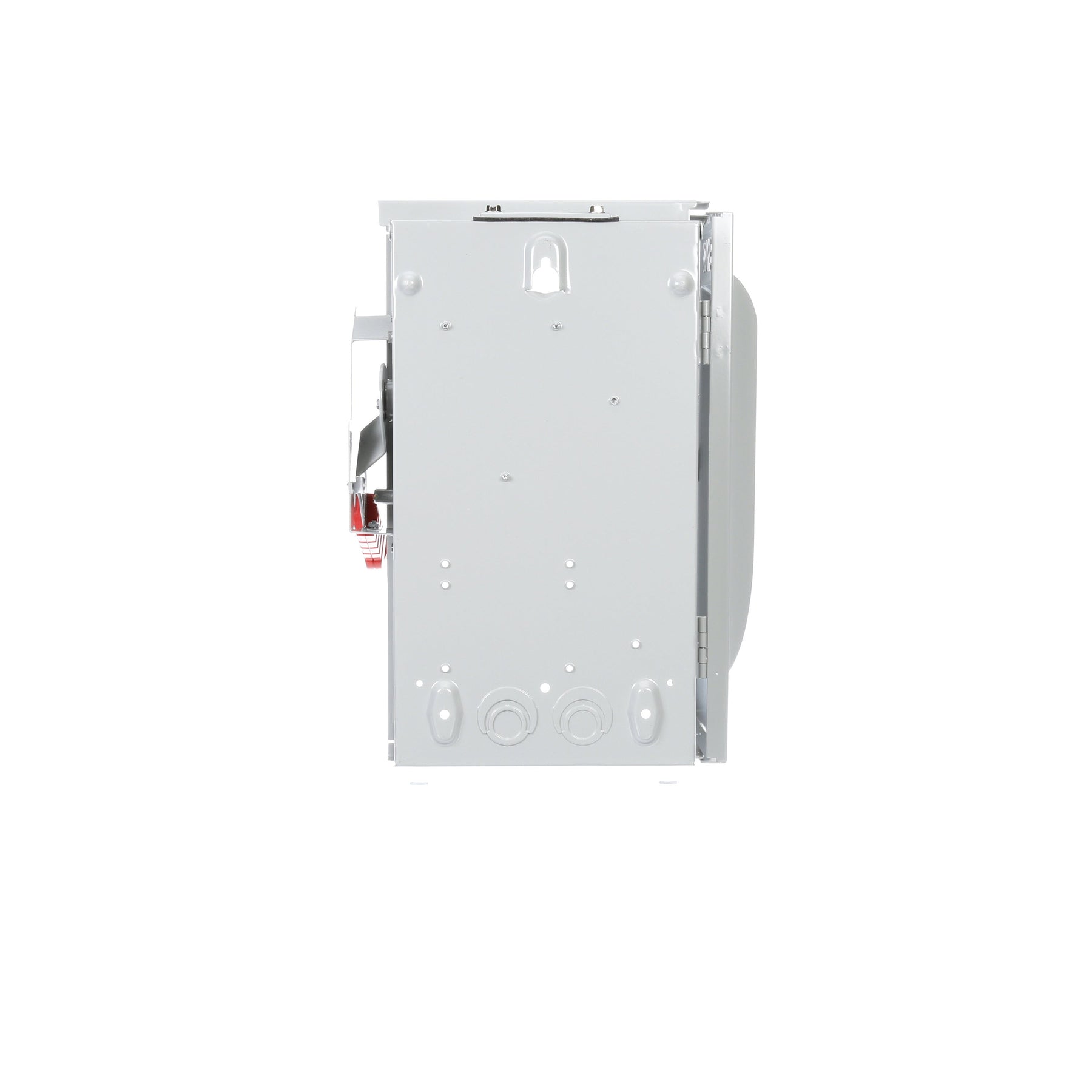

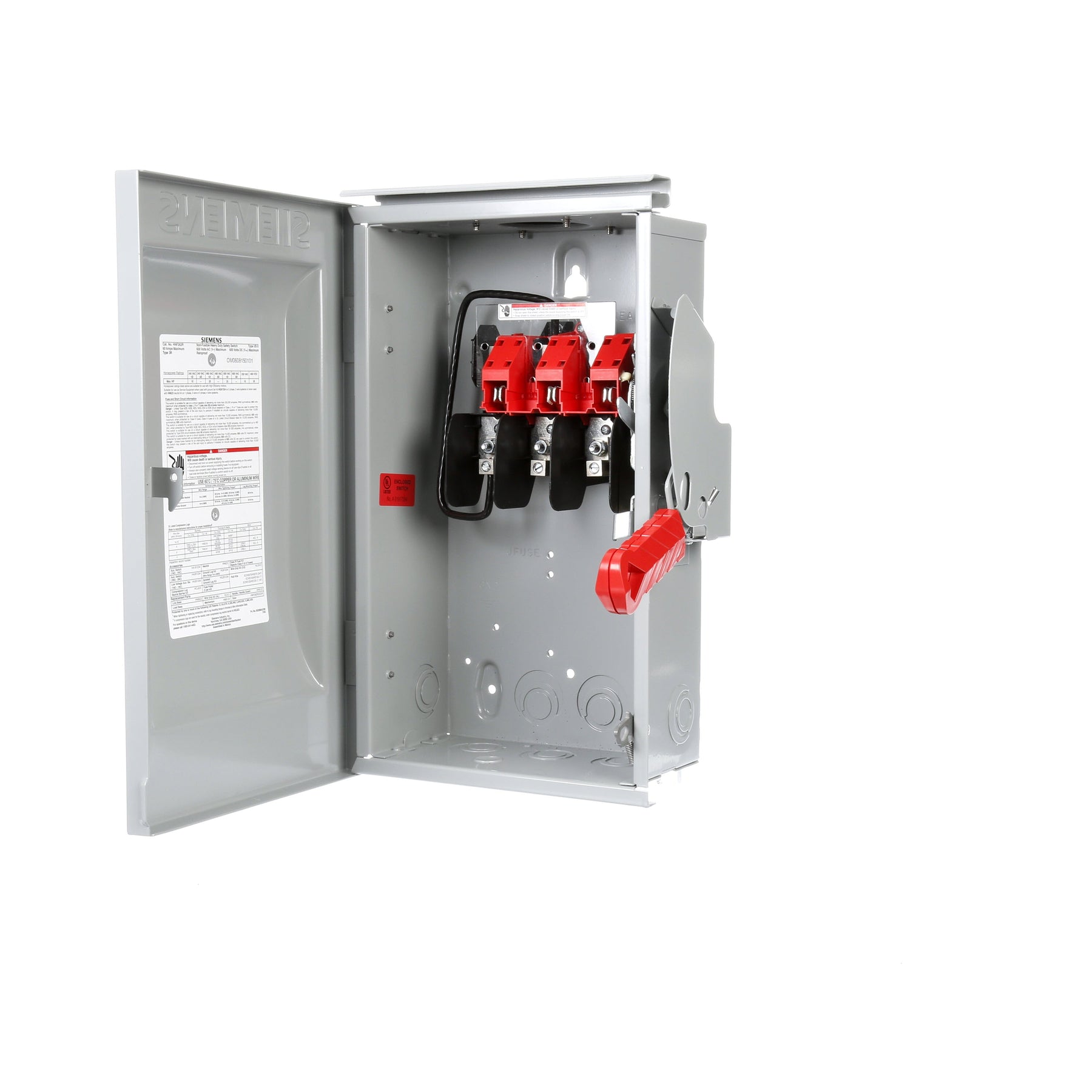

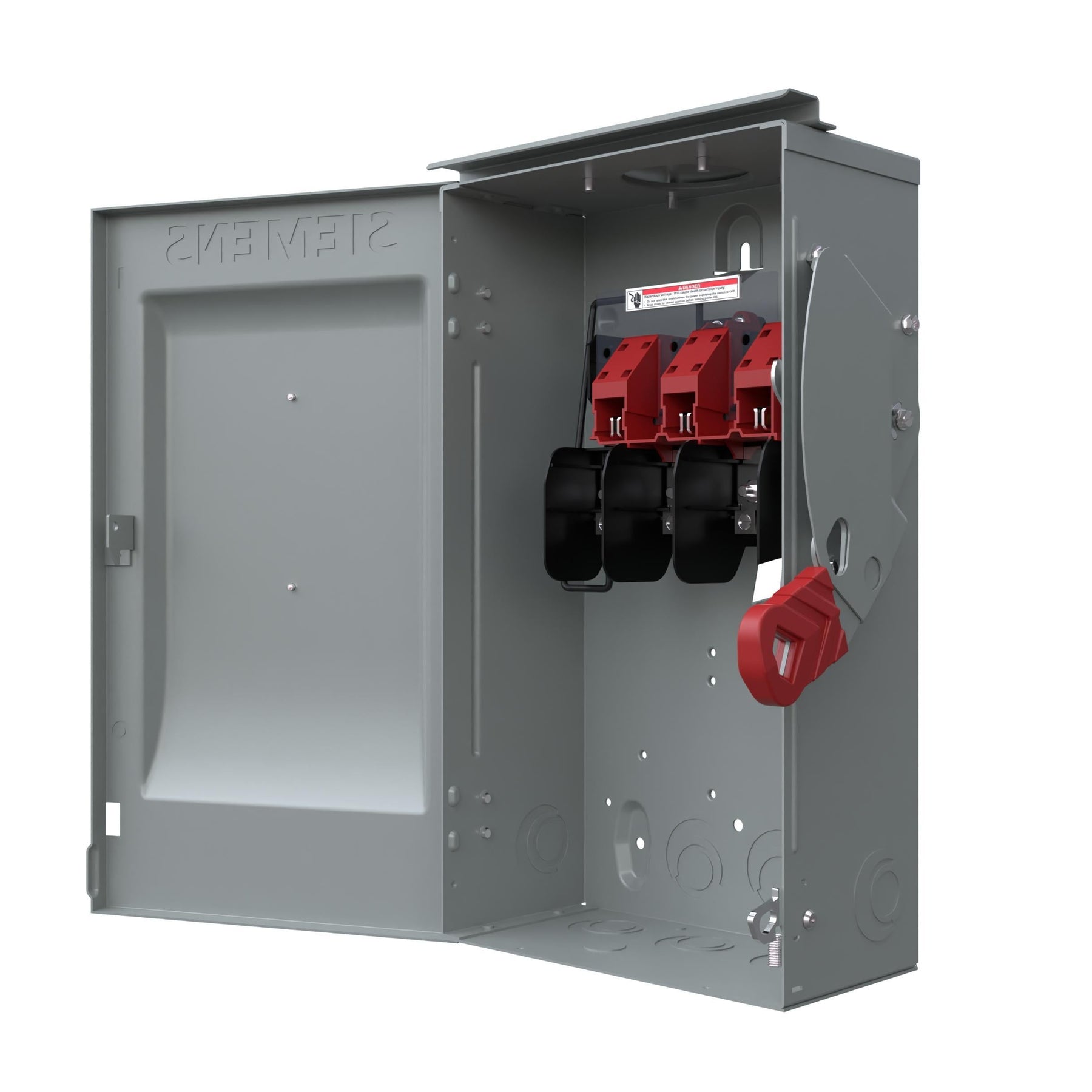

Siemens HNF262R is a non-fusible disconnect switch designed for providing a visible break and safe isolation in electrical circuits. It is rated for 600V AC and a continuous current of 60A in a single-phase, 2-pole configuration, featuring a robust construction with dimensions of 16.93" x 10.41" x 9.14" (430mm x 264mm x 232mm) and a weight of 18.001 lb. The switch is UL listed, carries a NEMA 3R enclosure rating for outdoor use, and offers a high interrupting capacity of 200kA at 600V. It is engineered for integration with PGP frames in industrial power distribution and motor control applications.
Key Features & Specifications
Type: Non-Fusible Disconnect Switch, HNF type, VBII Series
Voltage Rating: 600V AC
Current Rating: 60A
Configuration: Single, 2-Pole
Phase: 1
AIC Rating: 200kA @ 600V
Dimensions: 16.93 x 10.41 x 9.14 inch (430 x 264 x 232 mm)
