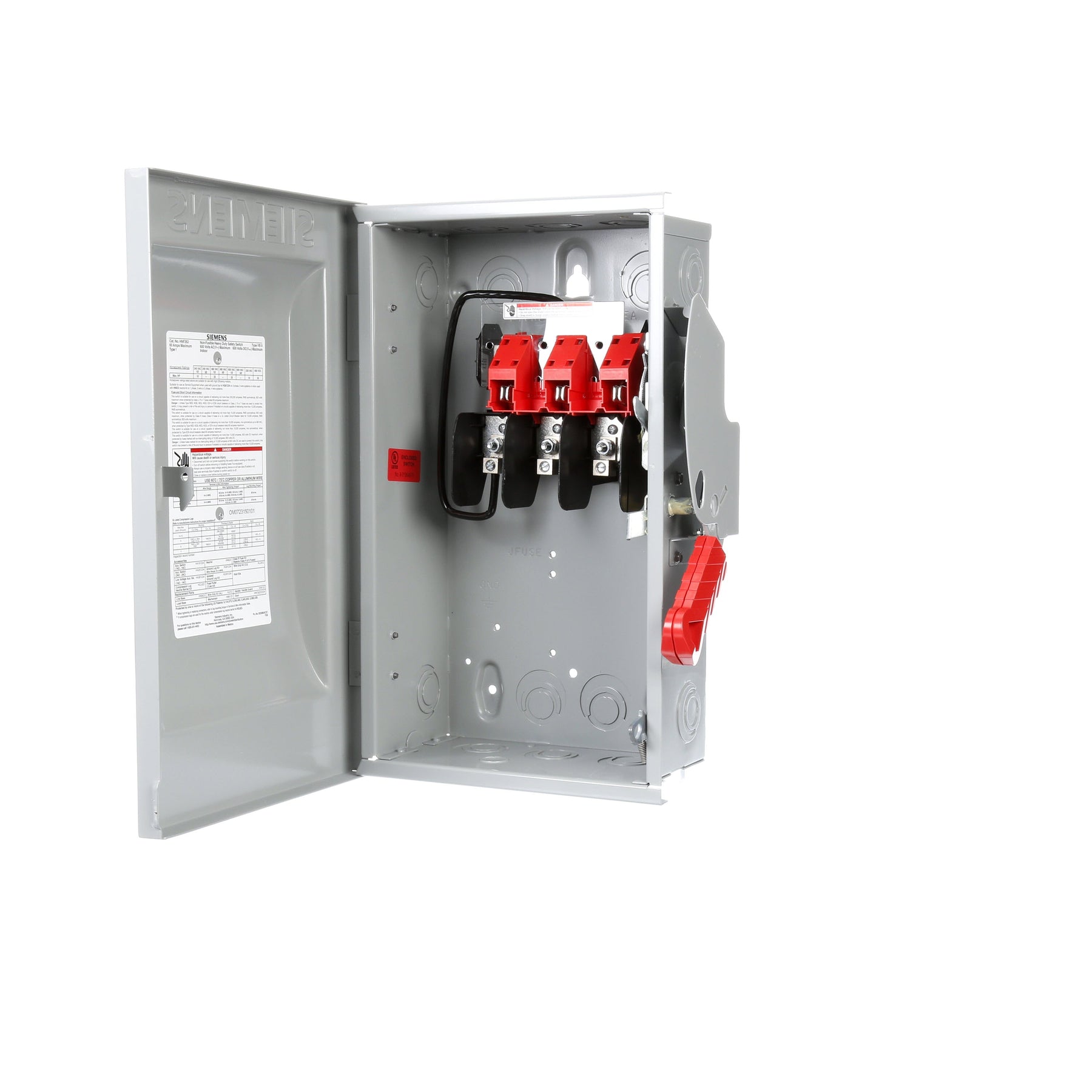

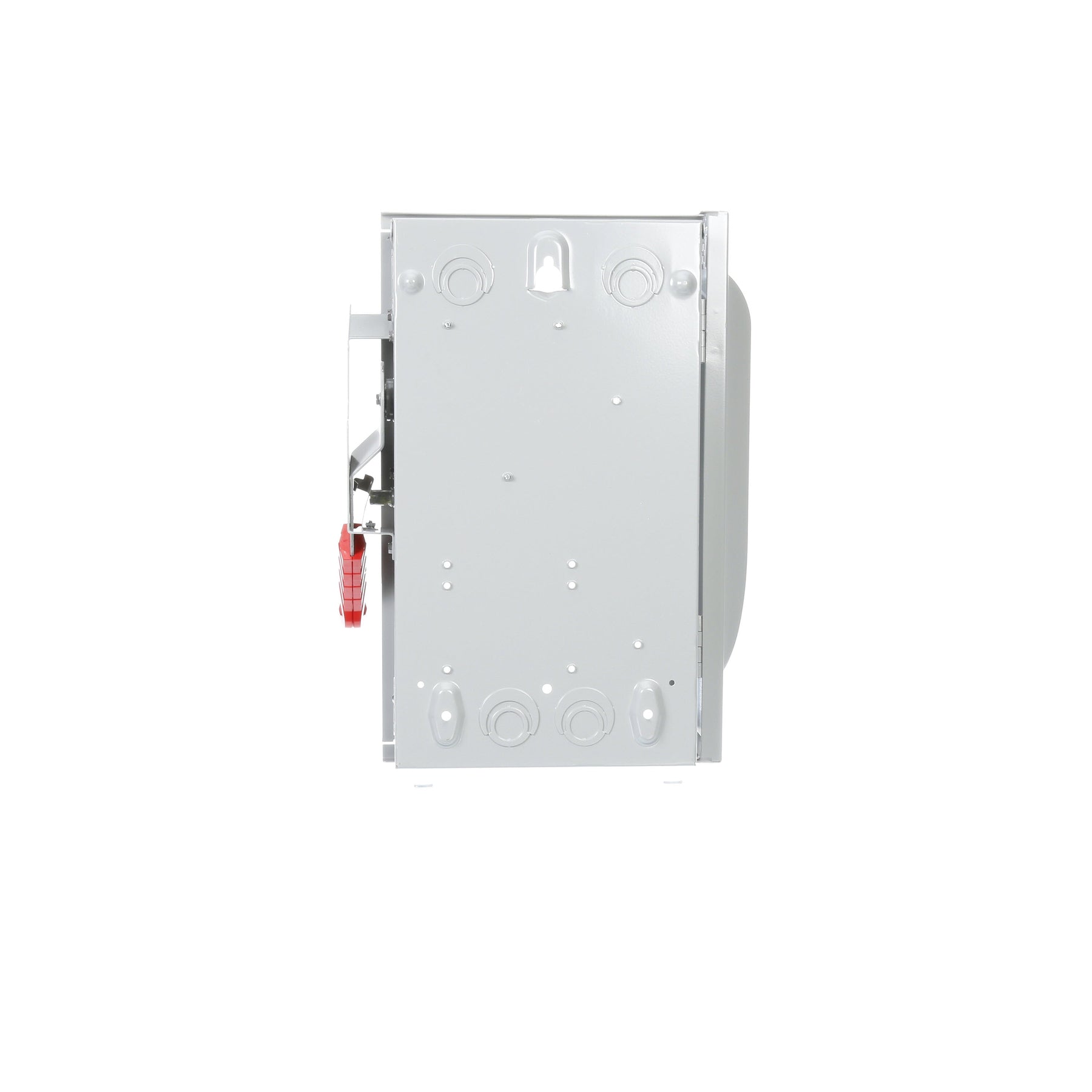

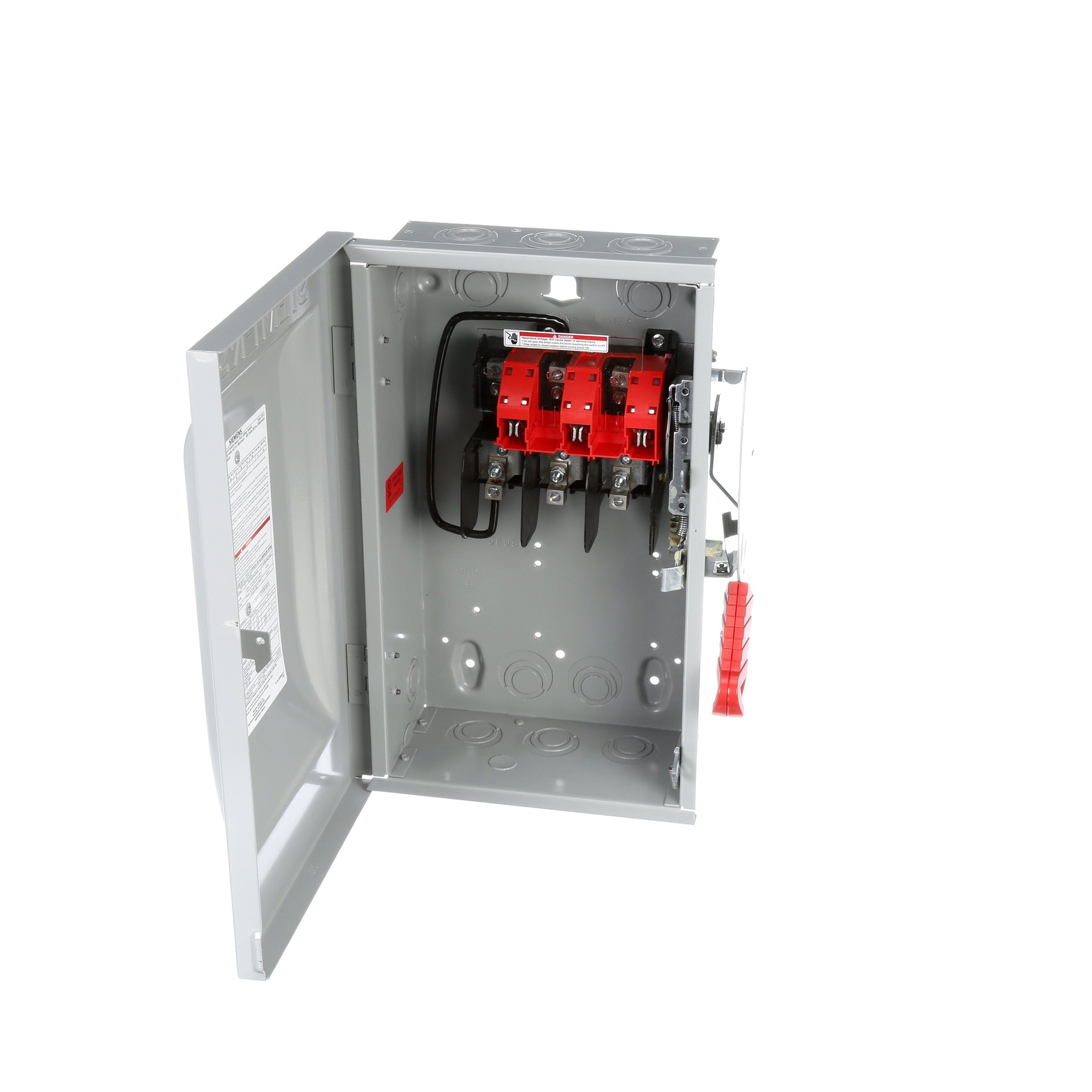

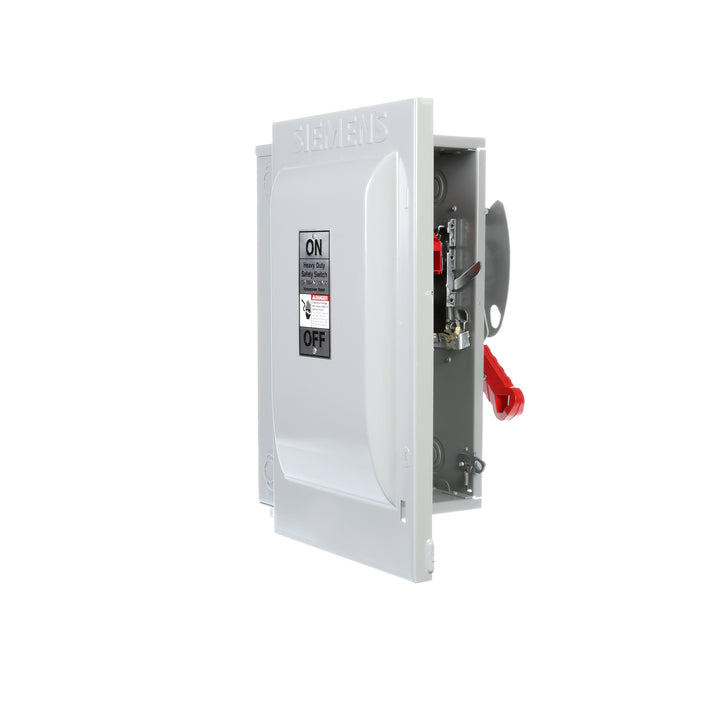

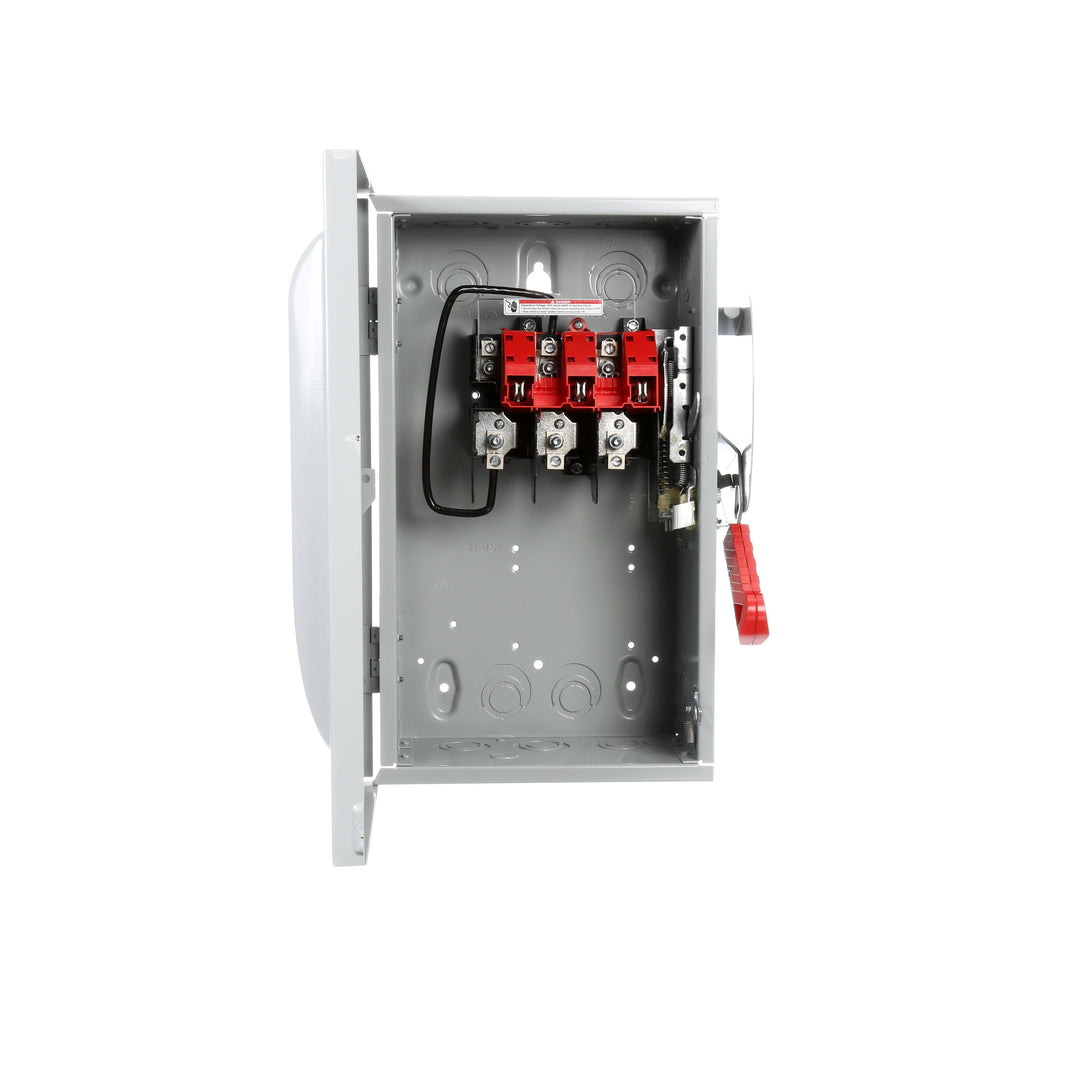

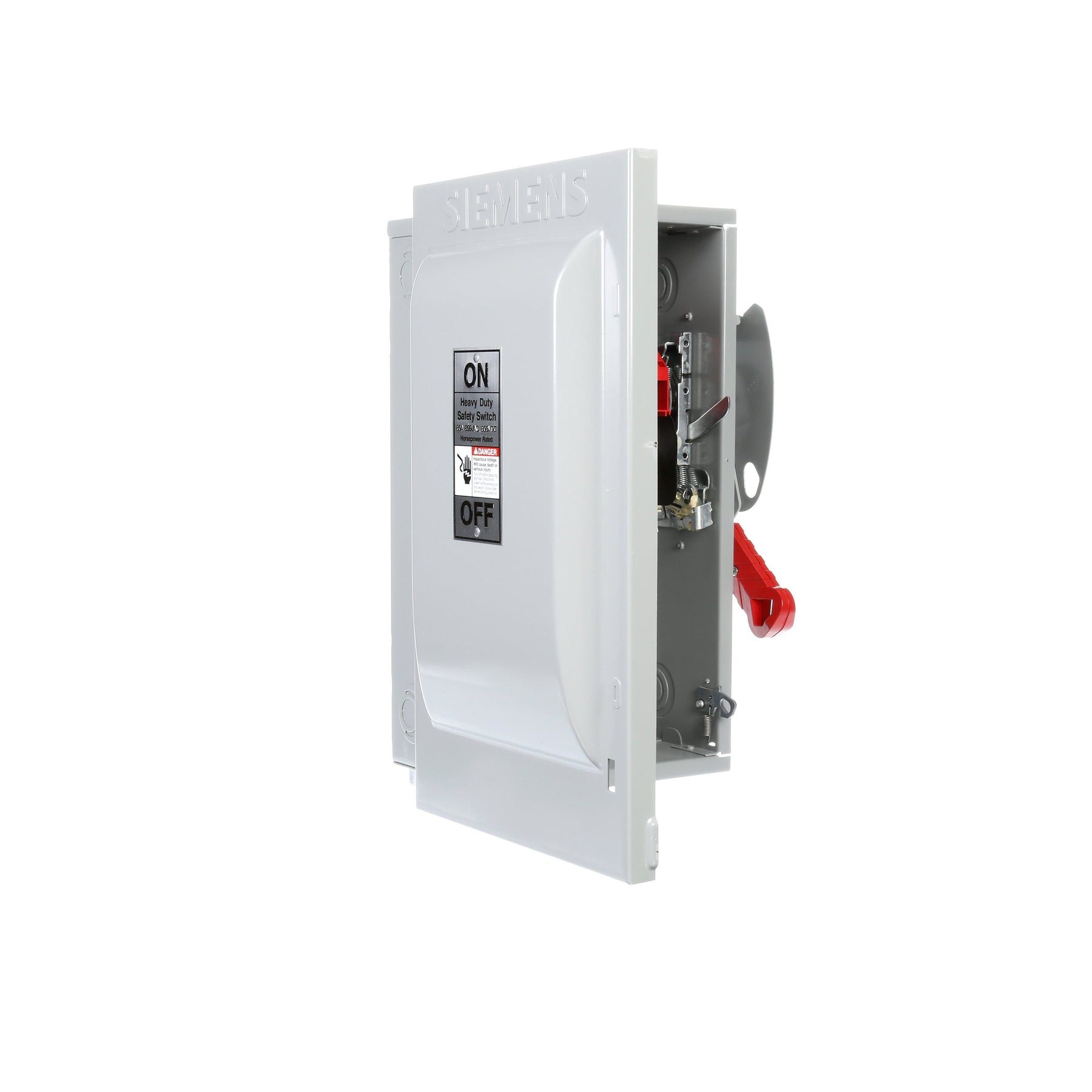

Siemens HNF262 - Non-Fusible Disconnect Switch 60A 600V

Siemens
Price
Save $0
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Siemens HNF262 is a non-fusible disconnect switch designed for providing a visible means of isolation and safety lockout in electrical circuits. It is rated for 600V AC systems with a continuous current rating of 60A and features a robust two-pole, single-phase configuration. The switch is housed in a NEMA 1 enclosure with dimensions of 16.62 x 10.26 x 9.04 inches and a weight of 17 lb, constructed for industrial durability. It is UL listed and offers a high interrupting capacity of 200kA at 600V, ensuring reliable protection. This component is typically applied in panelboards and industrial control equipment compatible with PGP frames for main circuit disconnection.

Key Features & Specifications
  • Type: Non-Fusible Disconnect Switch, HNF type, manual operation
  • Voltage Rating: 600V AC
  • Current Rating: 60A
  • Dimensions: 16.62 x 10.26 x 9.04 inch (422.1 x 260.6 x 229.6 mm)
  • Standards: UL listed
  • Applications: Main disconnection in panelboards and industrial control equipment
  • Switch Type: Non-Fusible
  • Configuration: Single
  • Phase: 1
  • Poles: 2
  • AIC rating: 200kA@600V
  • Nema Rating: NEMA 1
  • Compatible Frames: PGP
  • Family: VBII Series
  • Country of Origin: Mexico
  • Weight: 17 lb (7.7 kg)


Product Identification
  • UPC: 783643174047
  • GTIN: 00783643174047
