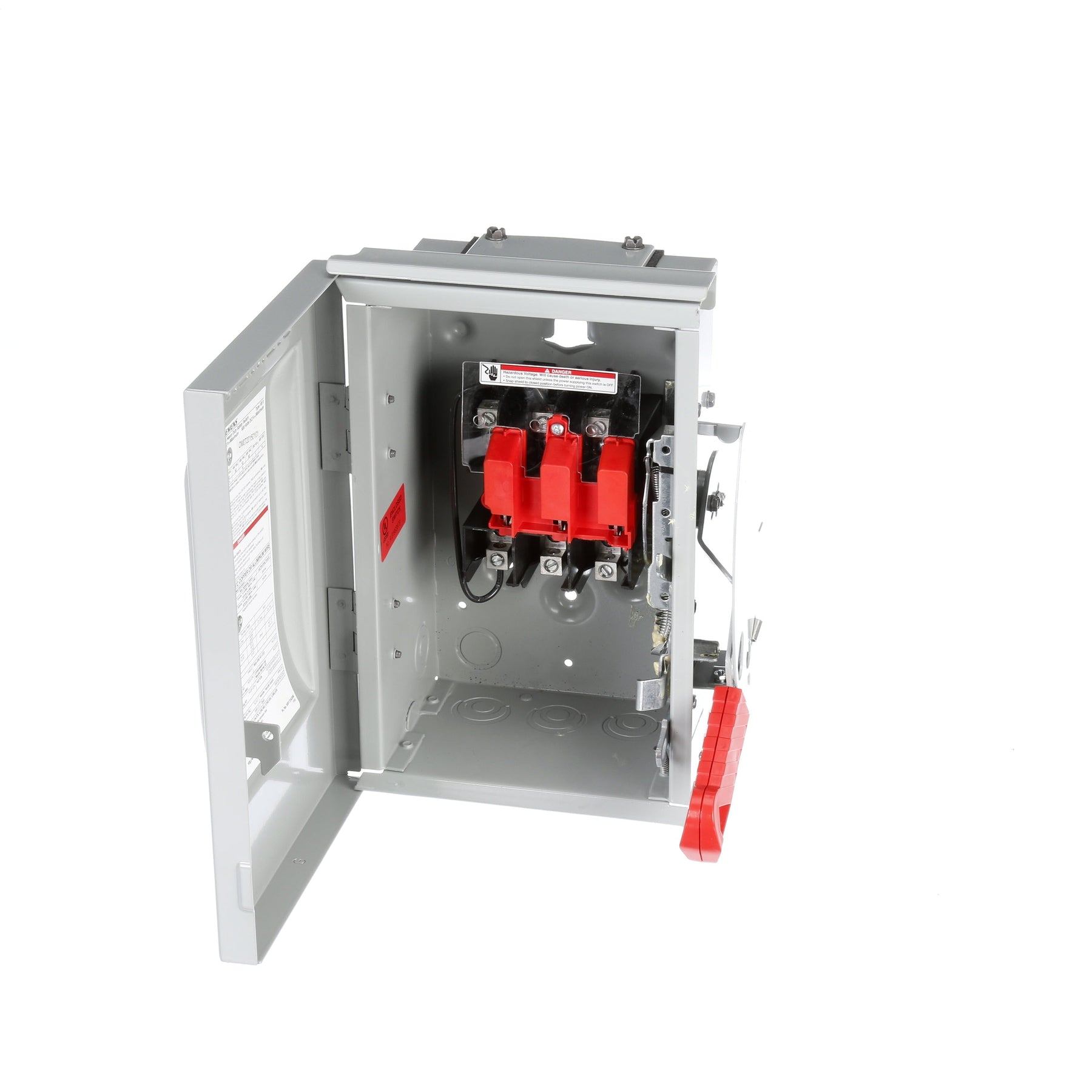

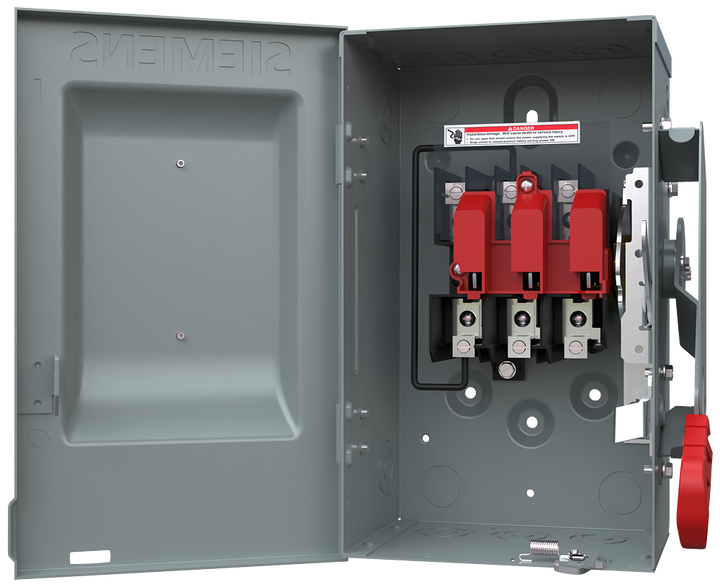

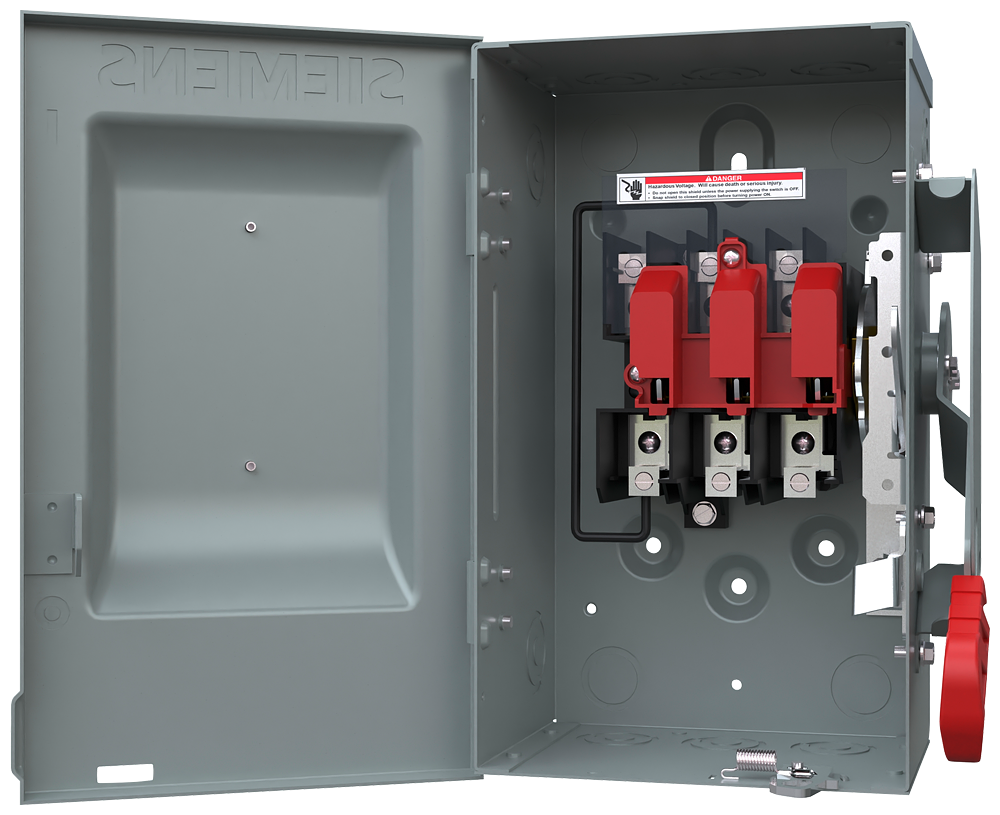

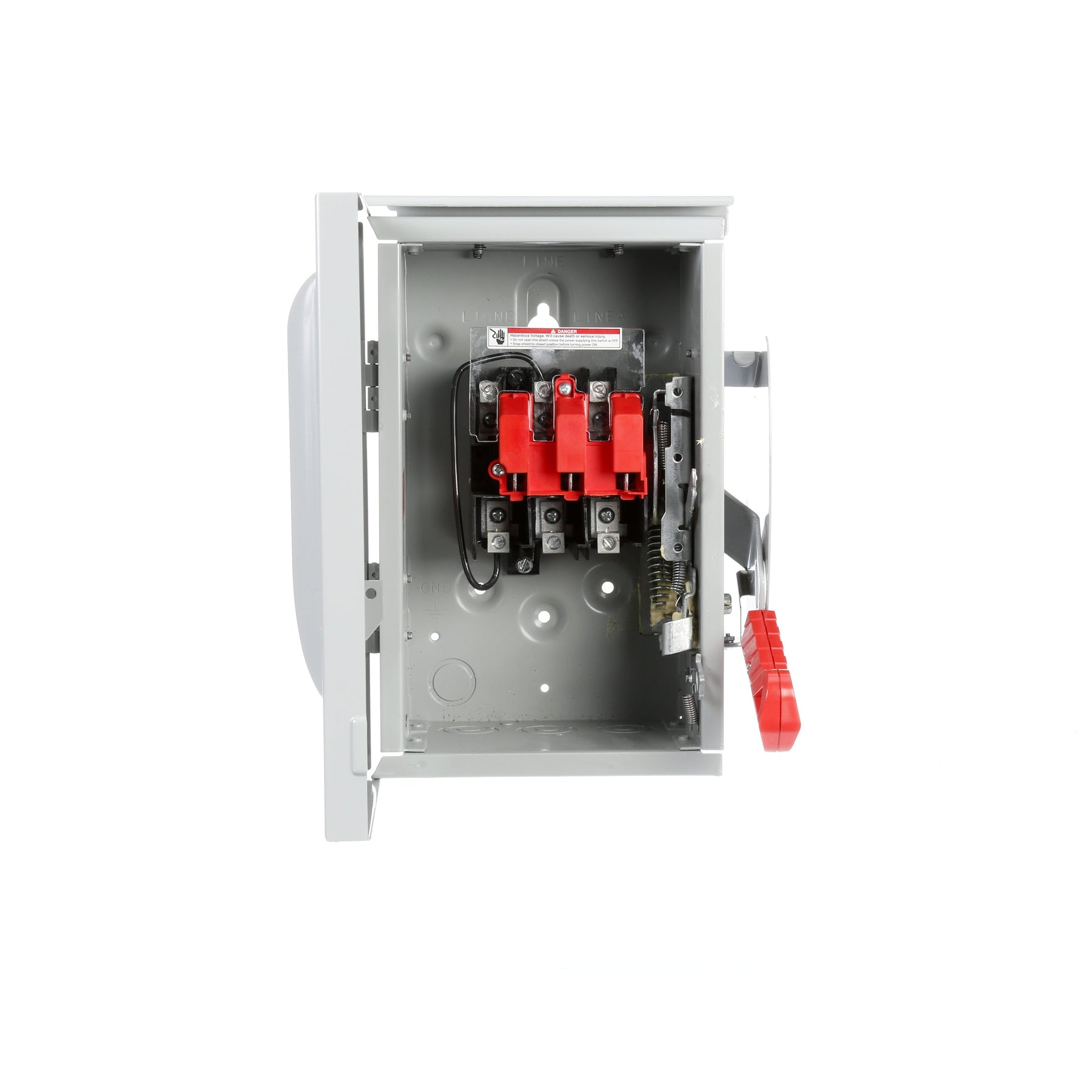

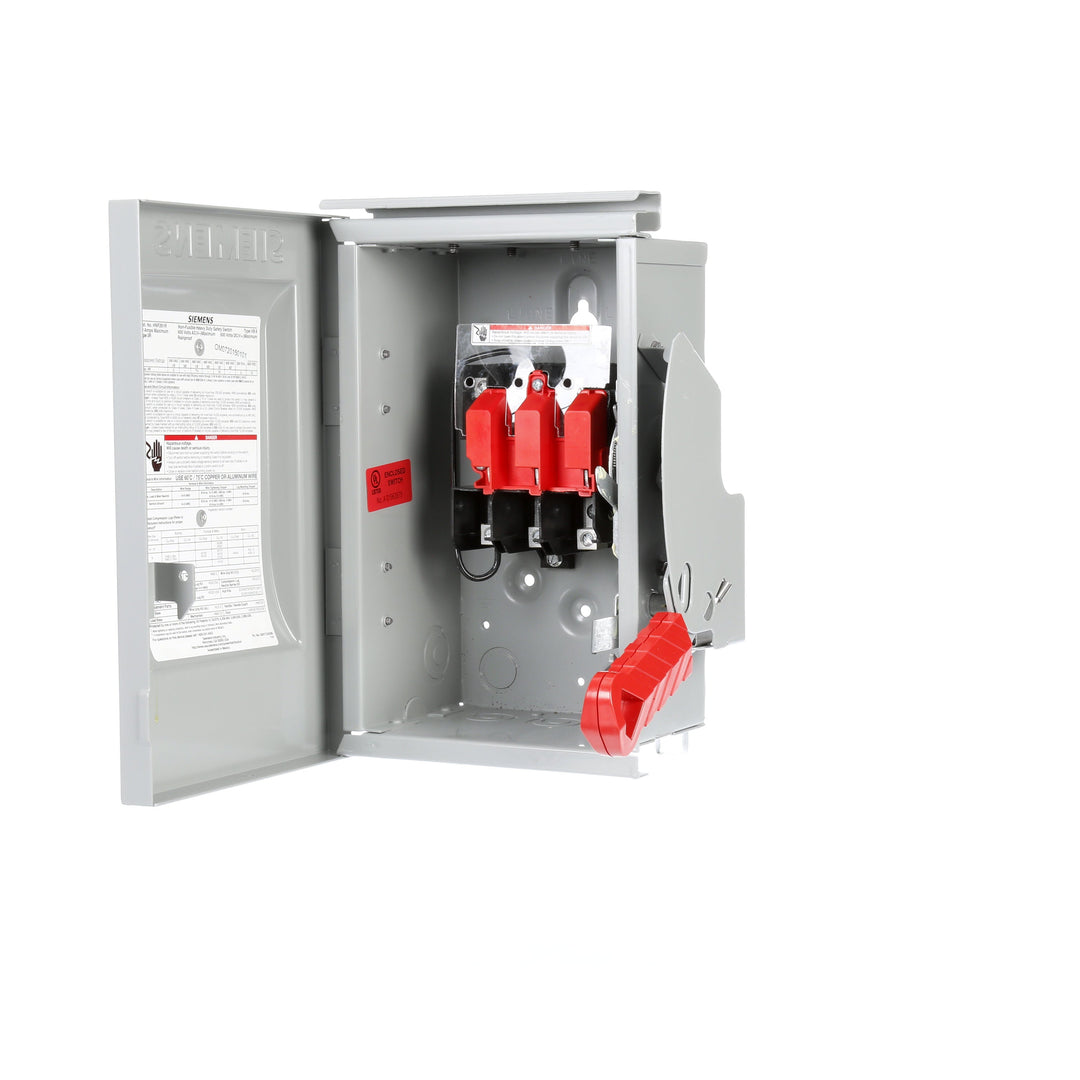

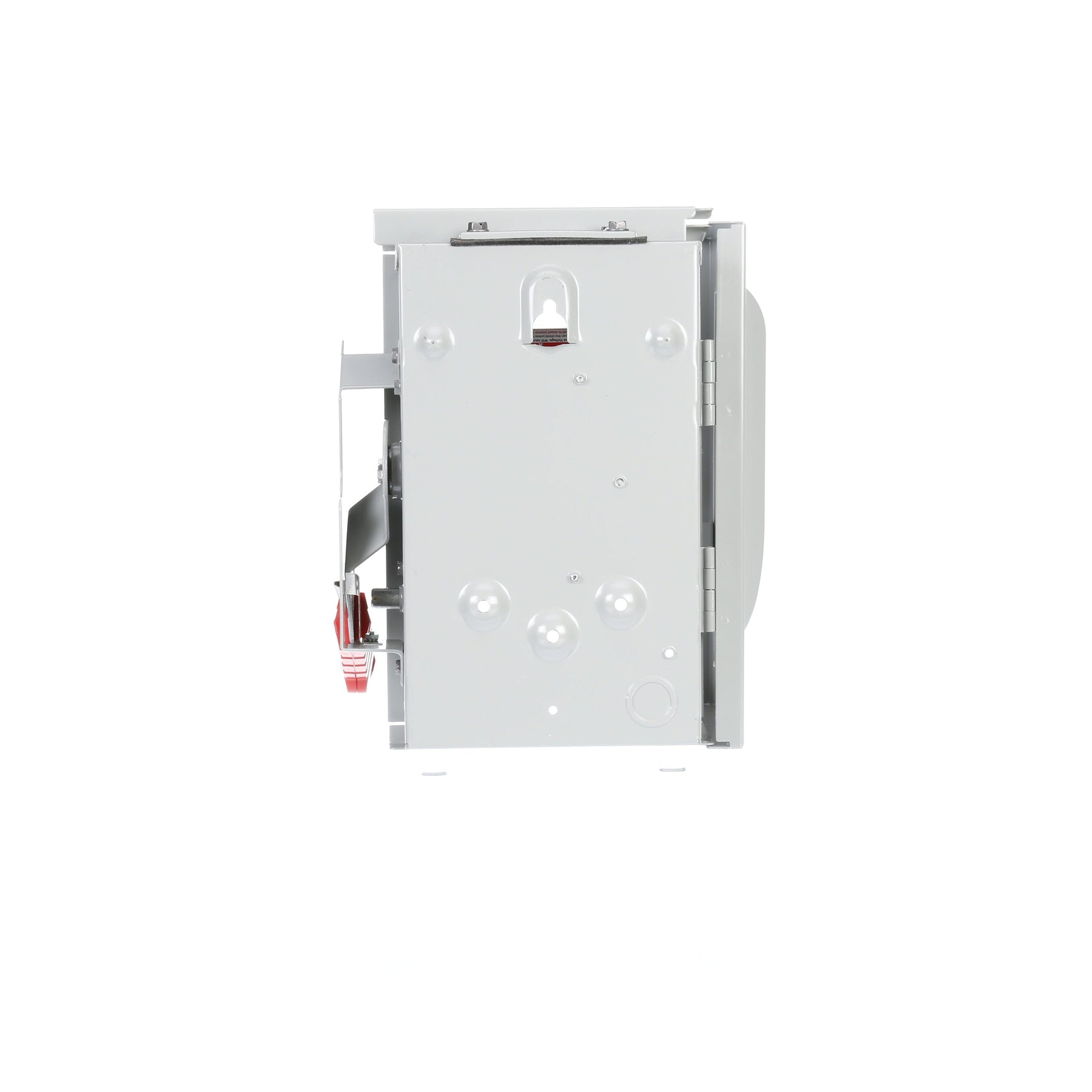

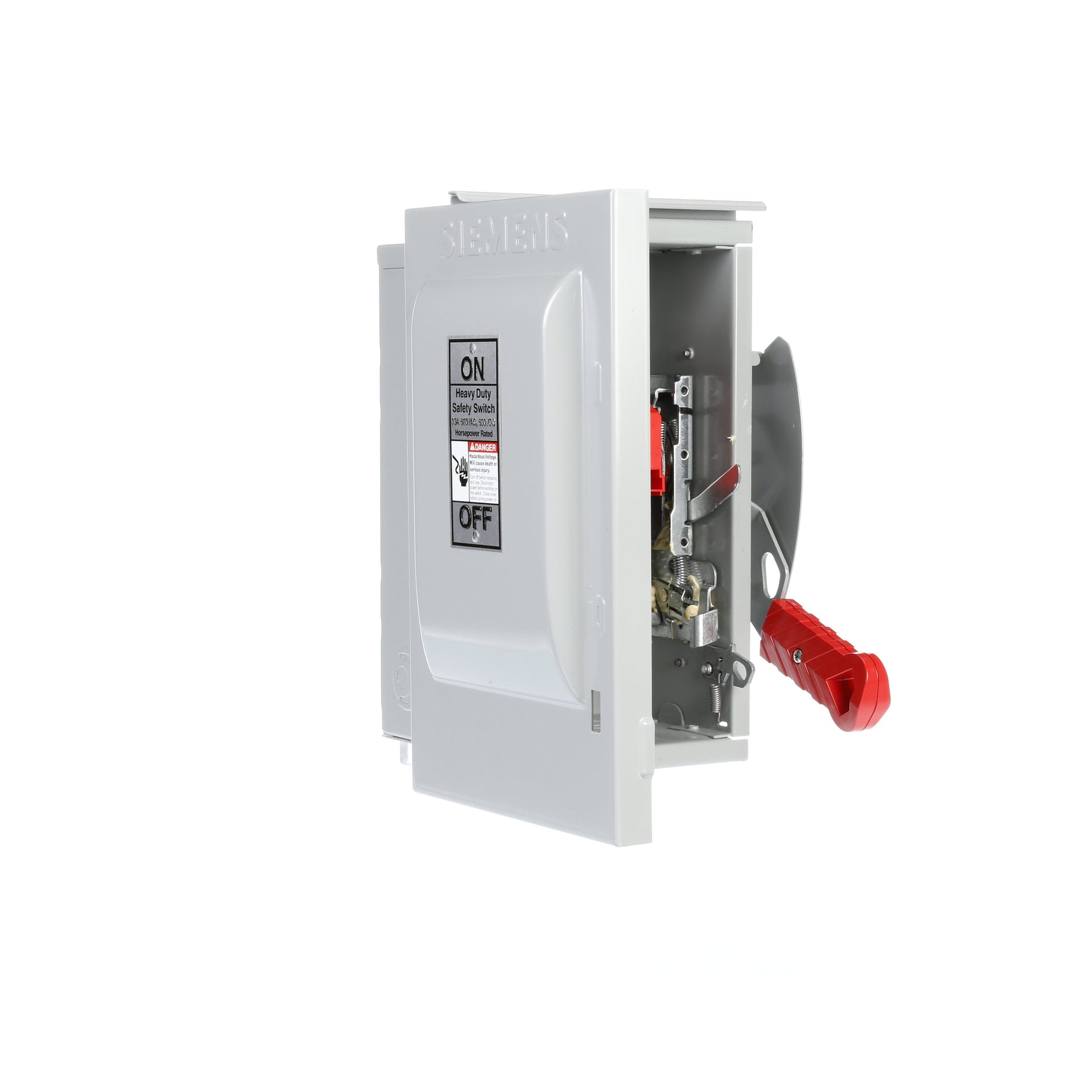

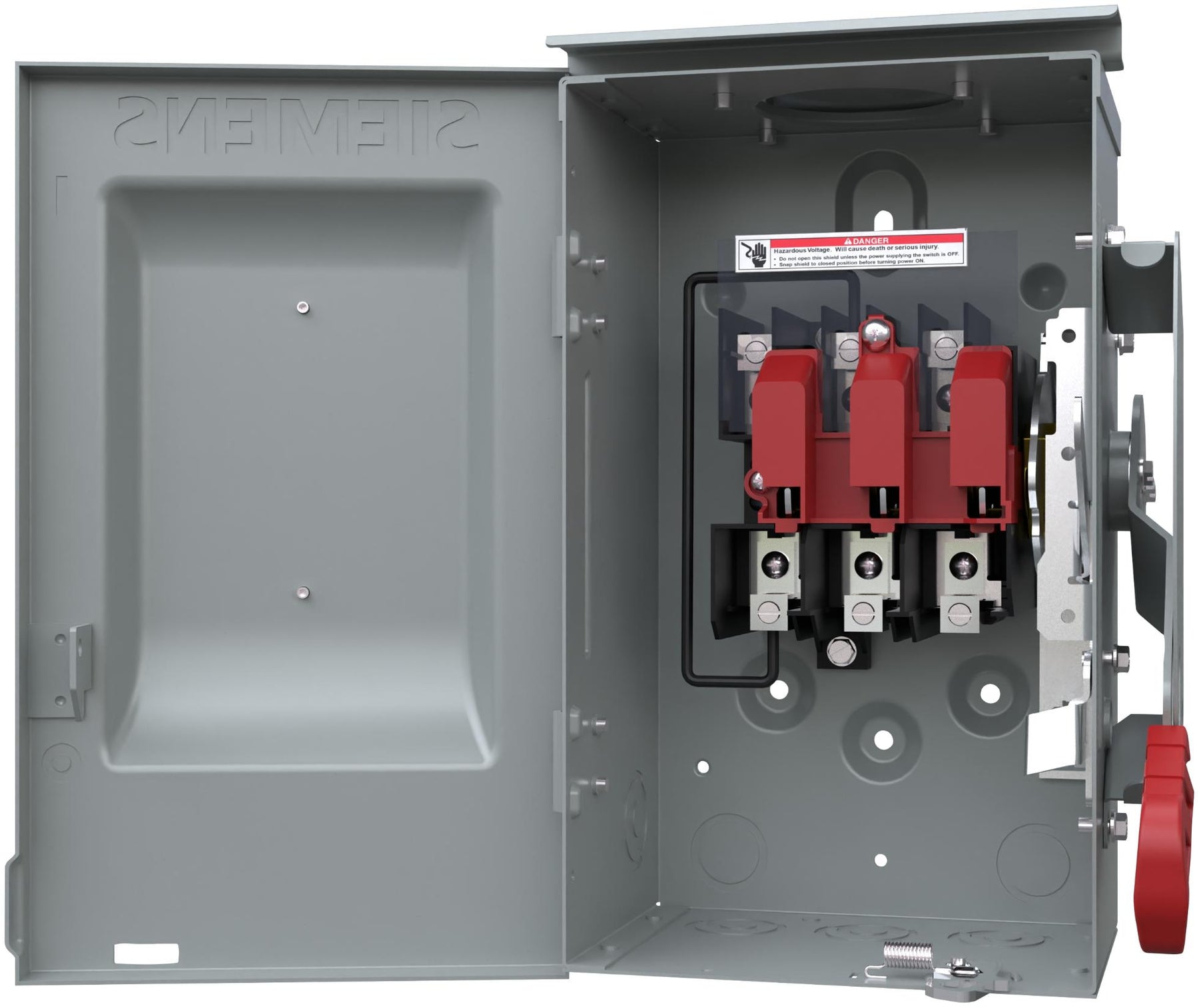

Siemens HNF261R is a non-fusible disconnect switch designed for providing a visible break and safe isolation in single-phase AC power circuits. It is rated for 600V AC and 30A, featuring a robust two-pole, single-configuration design with an interrupting capacity of 200kA at 600V. The switch is constructed within a durable NEMA 3R enclosure measuring 11.76 x 7.88 x 8.91 inches and weighing 12 lb, ensuring suitability for outdoor installations. It is UL listed and is compatible with Siemens PGP frames, adhering to industry safety and performance standards for reliable operation in industrial control panels, HVAC systems, and machinery disconnects.
Key Features & Specifications
Type: Non-Fusible Disconnect Switch, HNF type, VBII Series
Voltage Rating: 600V AC
Current Rating: 30A
Configuration: Single
Poles: 2
Phase: 1
AIC Rating: 200kA @ 600V
NEMA Rating: NEMA 3R
Dimensions: 11.76" x 7.88" x 8.91" (299mm x 200mm x 226mm)
Weight: 12 lb (5.44 kg)
Standards: UL Listed
Compatible Frames: PGP
Applications: Industrial control panels, machinery disconnects, HVAC systems
