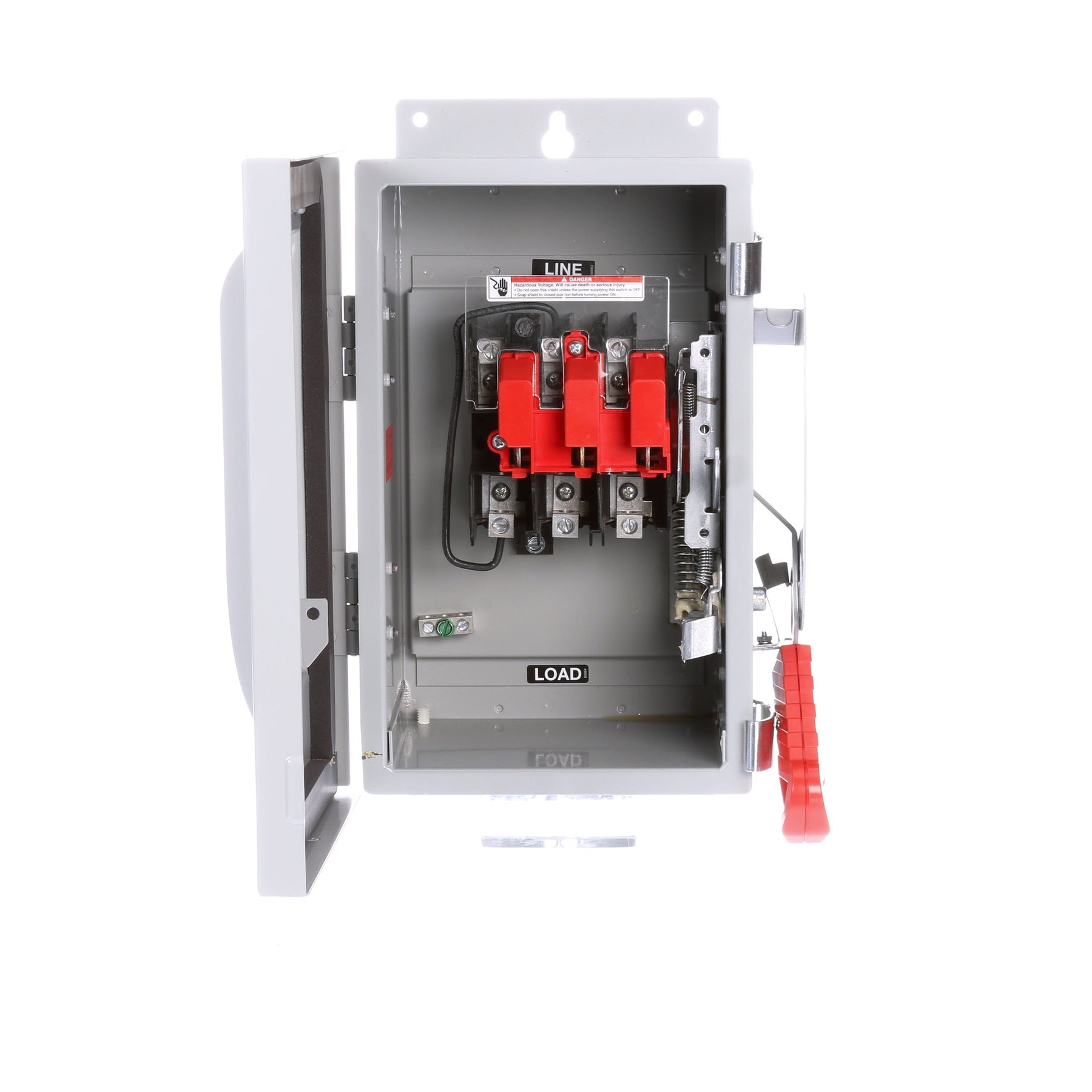

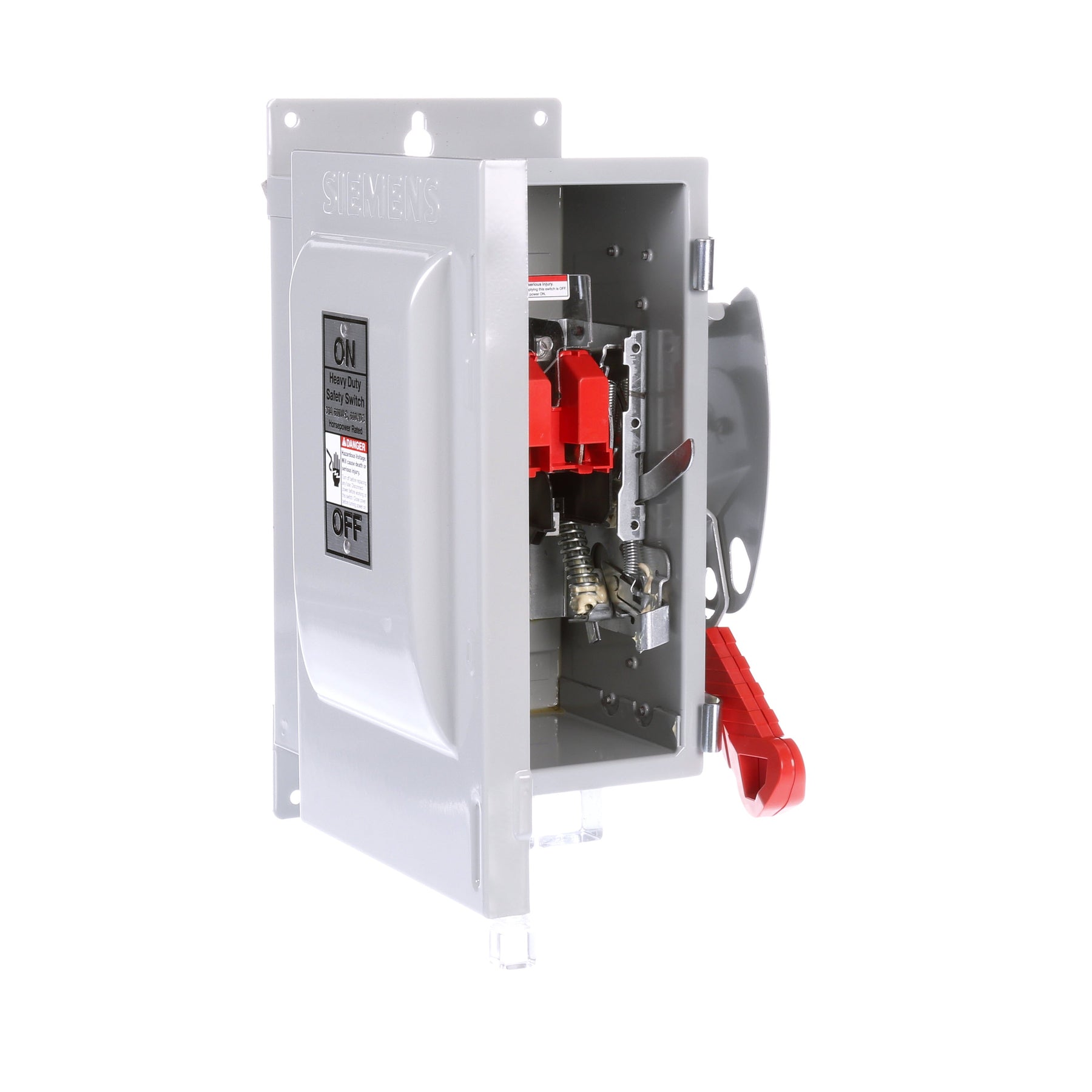

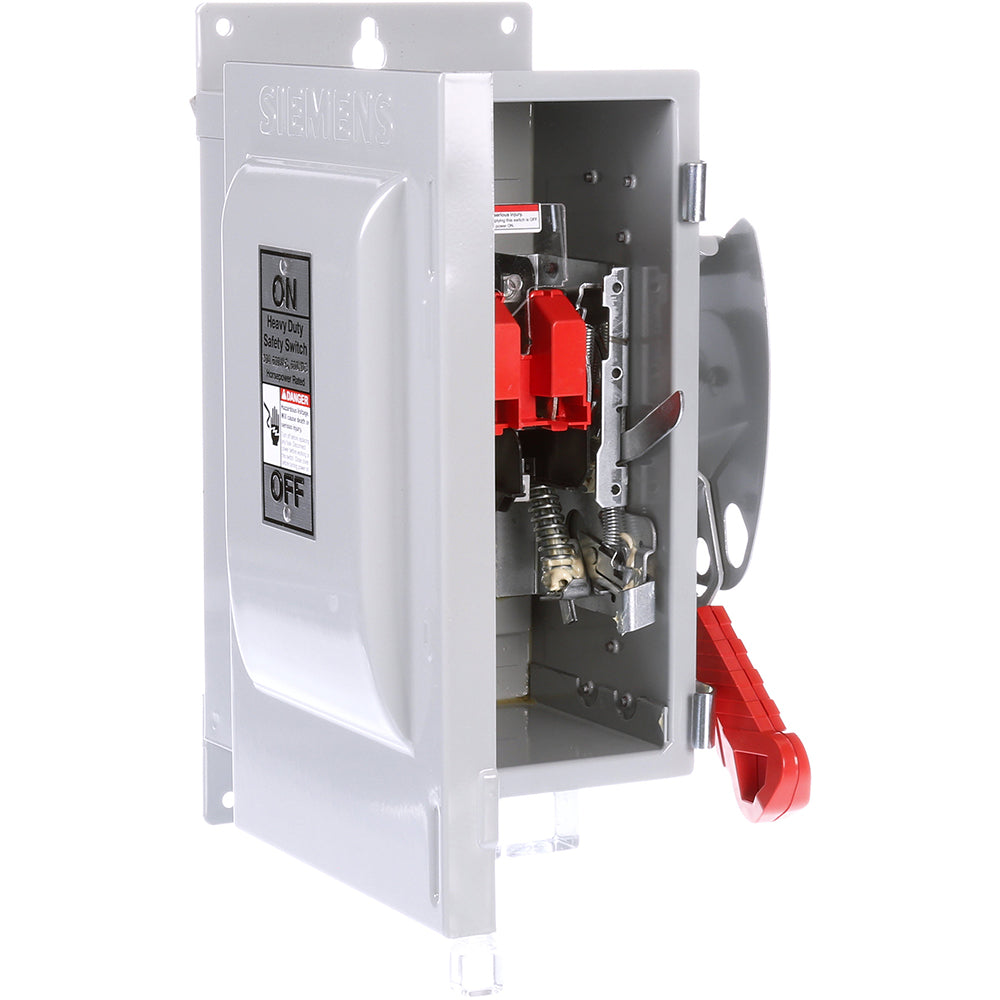

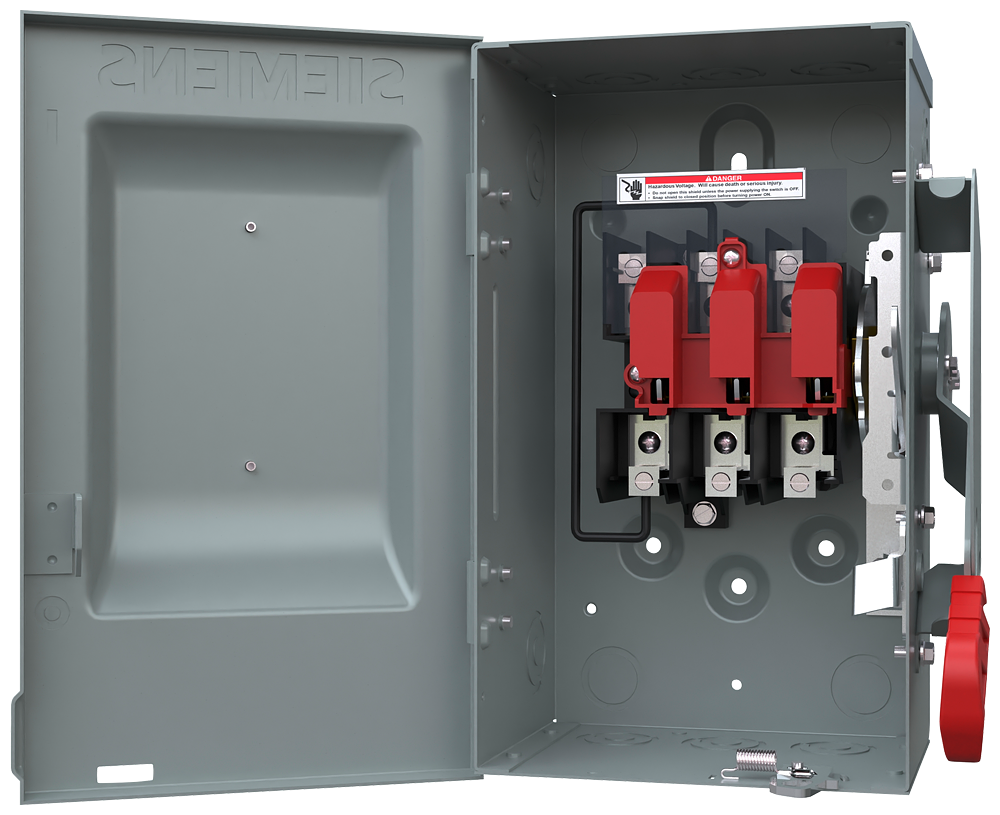

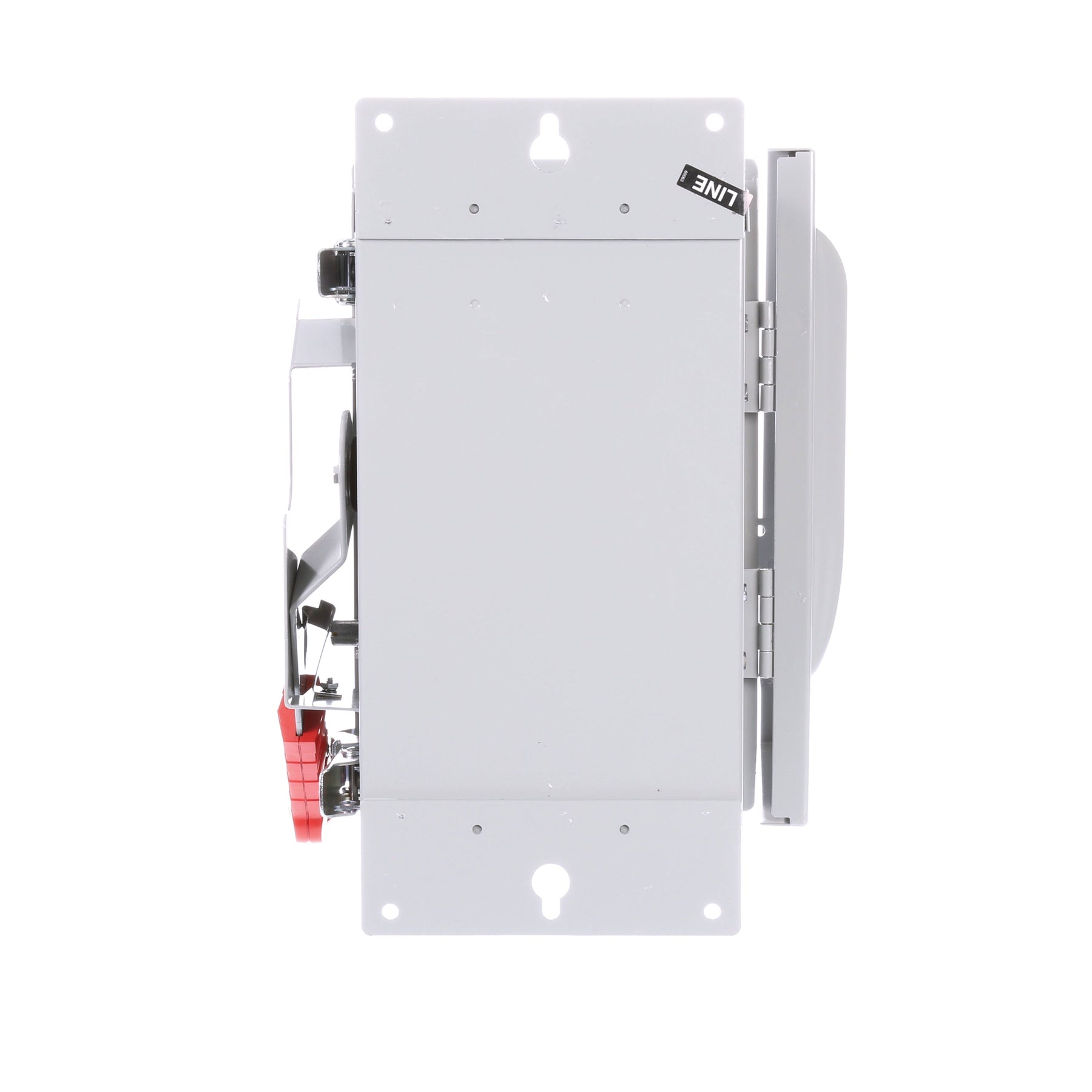

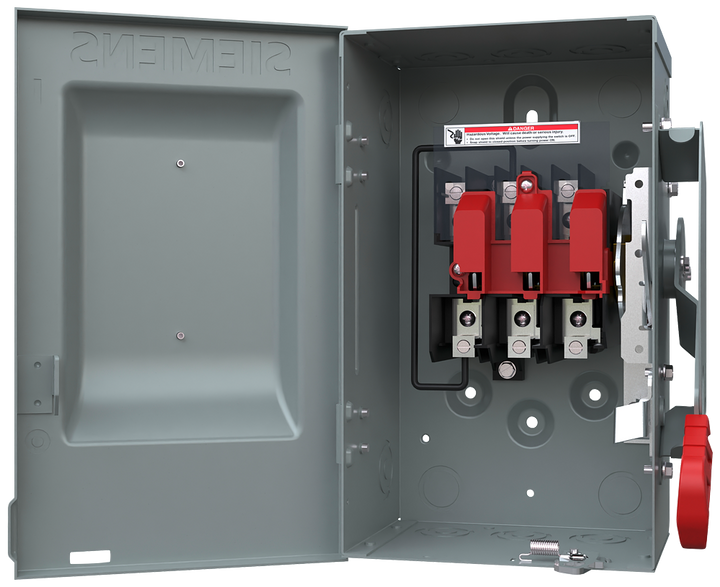

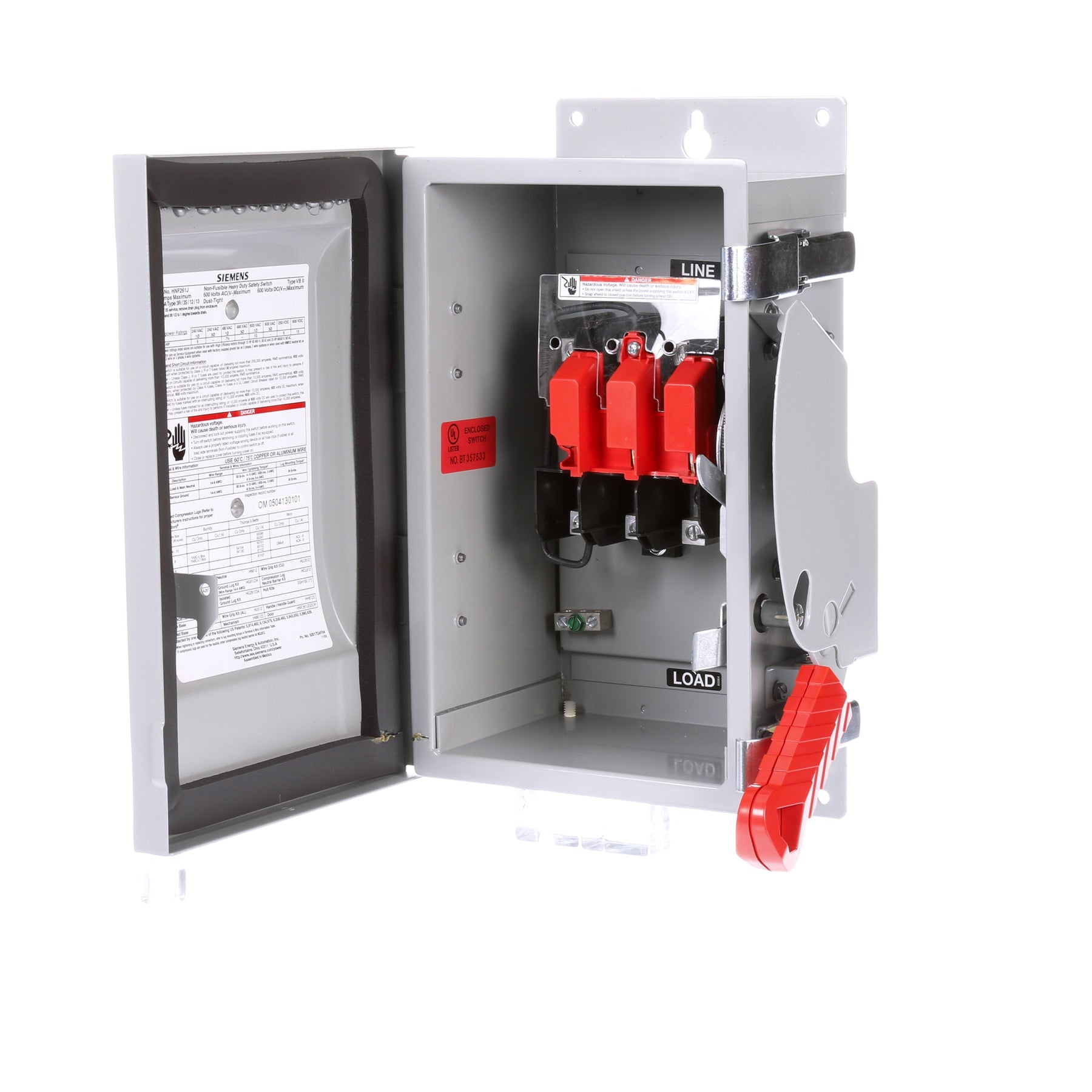

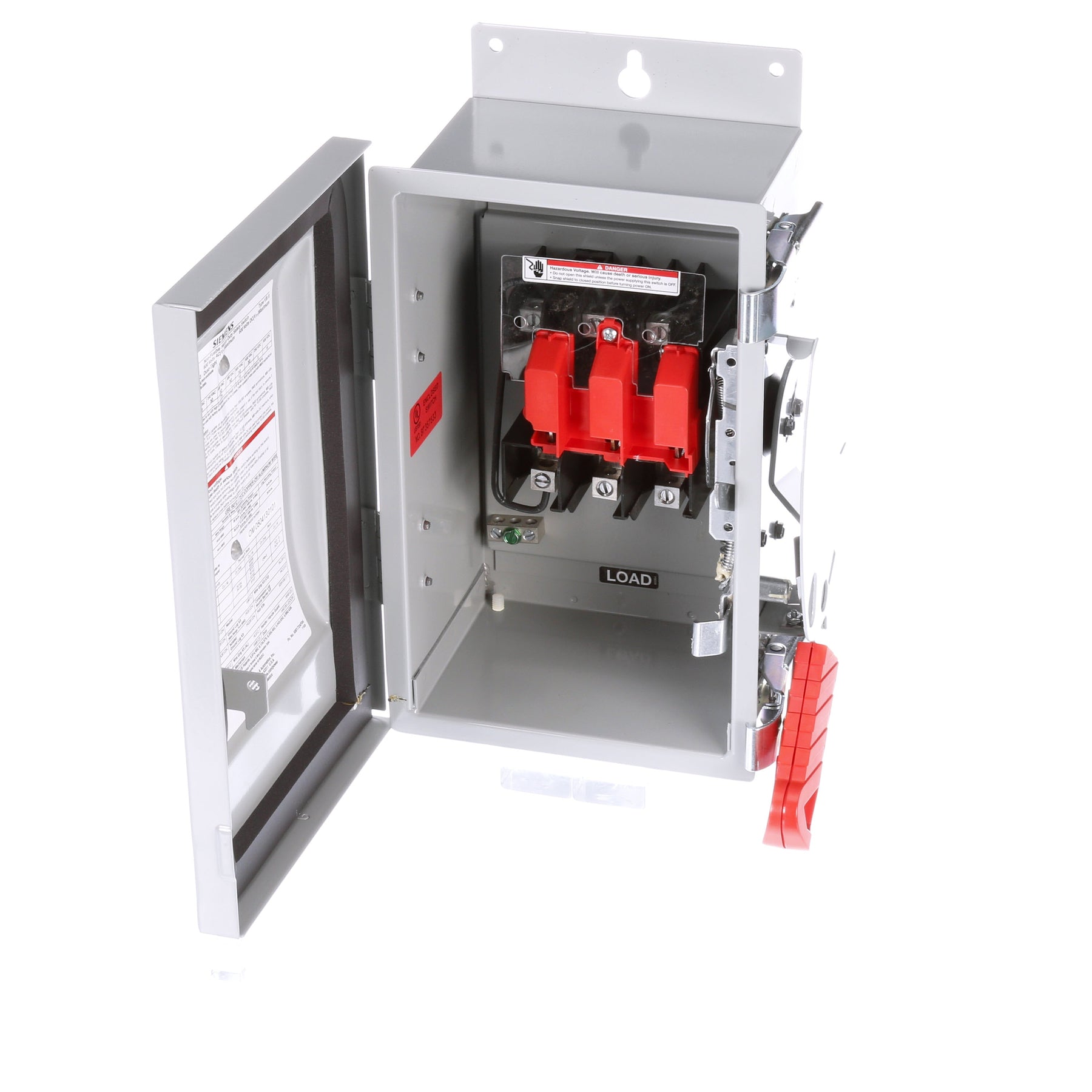

Siemens HNF261J - Non-Fusible Disconnect Switch 30A 600V AC (NEMA 12, 200kA AIC)

Siemens HNF261J is a non-fusible disconnect switch designed for safe electrical isolation in industrial applications, providing reliable circuit interruption without fuse protection. This single-phase switch operates at 600V AC with a 30A current rating and features a 200kA interrupting capacity at 600V for robust short-circuit protection. Constructed with a compact 9.0 x 12.3-inch footprint and weighing 18 lb, it features two poles in a single configuration and operates effectively across a wide temperature range of -25 to 70°C. UL listed and compliant with NEMA 12 standards for dust-tight and drip-tight enclosures, this VBII Series component is engineered for integration with PGP frames in industrial control panels and power distribution systems.

Key Features & Specifications

• Type: Non-fusible disconnect switch, VBII Series
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 9.0 in x 12.3 in
• Standards: UL listed, NEMA 12
• Applications: Industrial control panels, power distribution systems
• Switch Type: Non-Fusible
• Configuration: Single
• Temp Rating: -25°C to 70°C (-13°F to 158°F)
• Shipping Dimensions: 9.0 in x 12.3 in
• Phase: 1
• Voltage: 600V AC
• Amperage: 30A
• AIC rating: 200kA@600V
• Connection: Standard industrial
• Poles: 2
• Protection: Electrical isolation
• Functions: Circuit disconnection
• Nema Rating: NEMA 12
• Certification: UL listed
• Compatible Frames: PGP
• Weight: 18 lb

Product Identification

• UPC: 783643174122
• GTIN: 00783643174122
