Square D
Price
Save $4,370.08
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

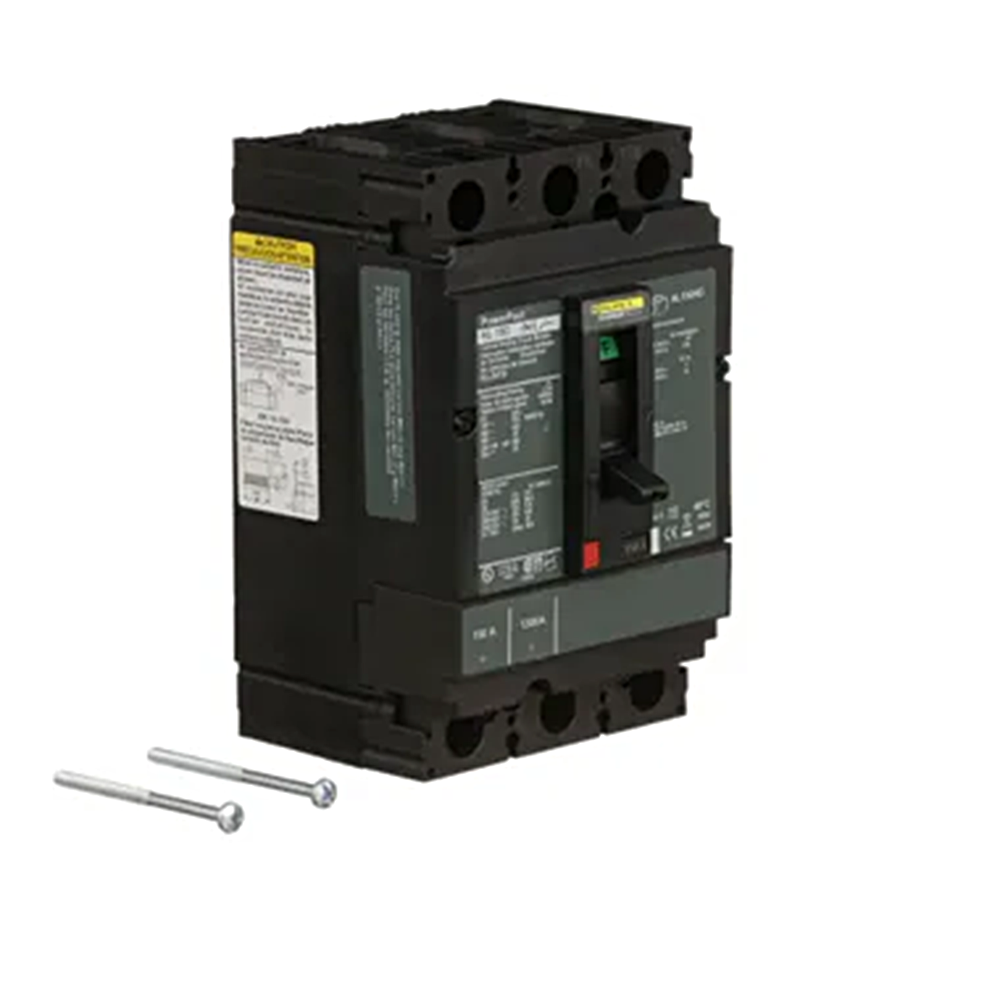

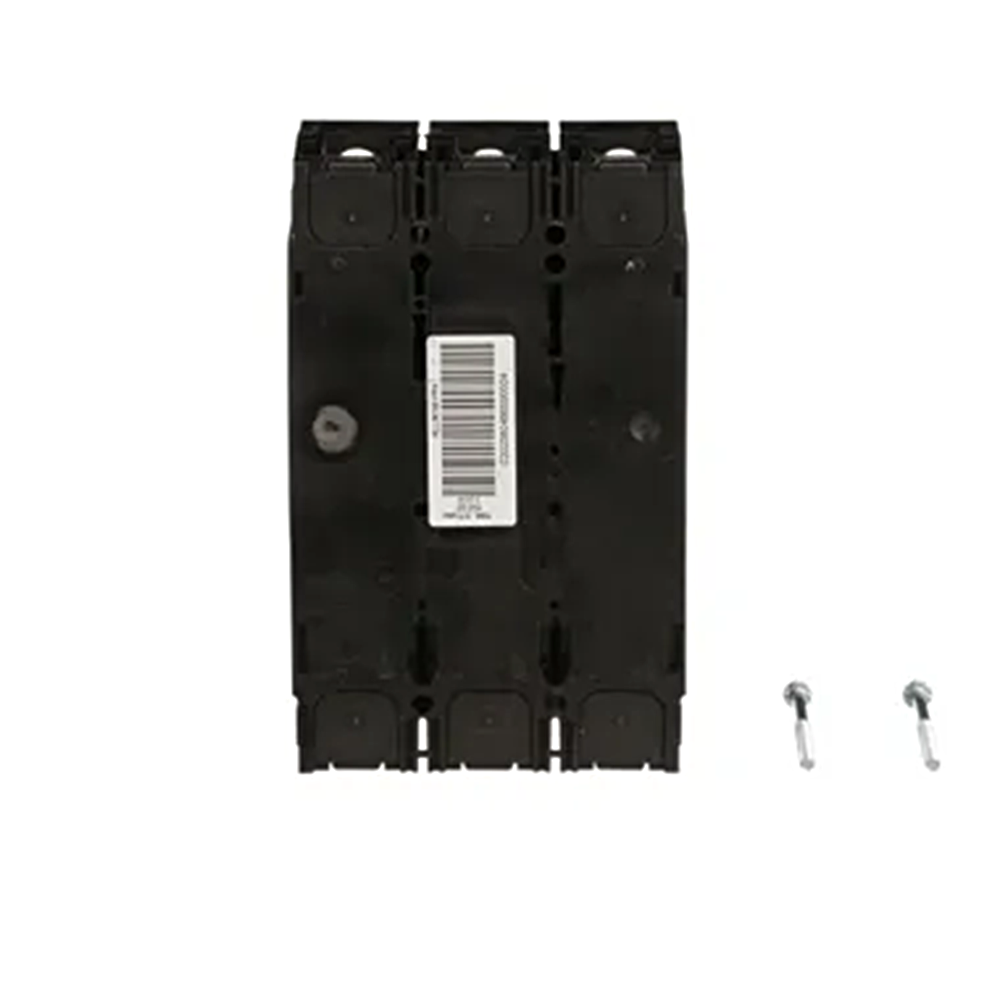

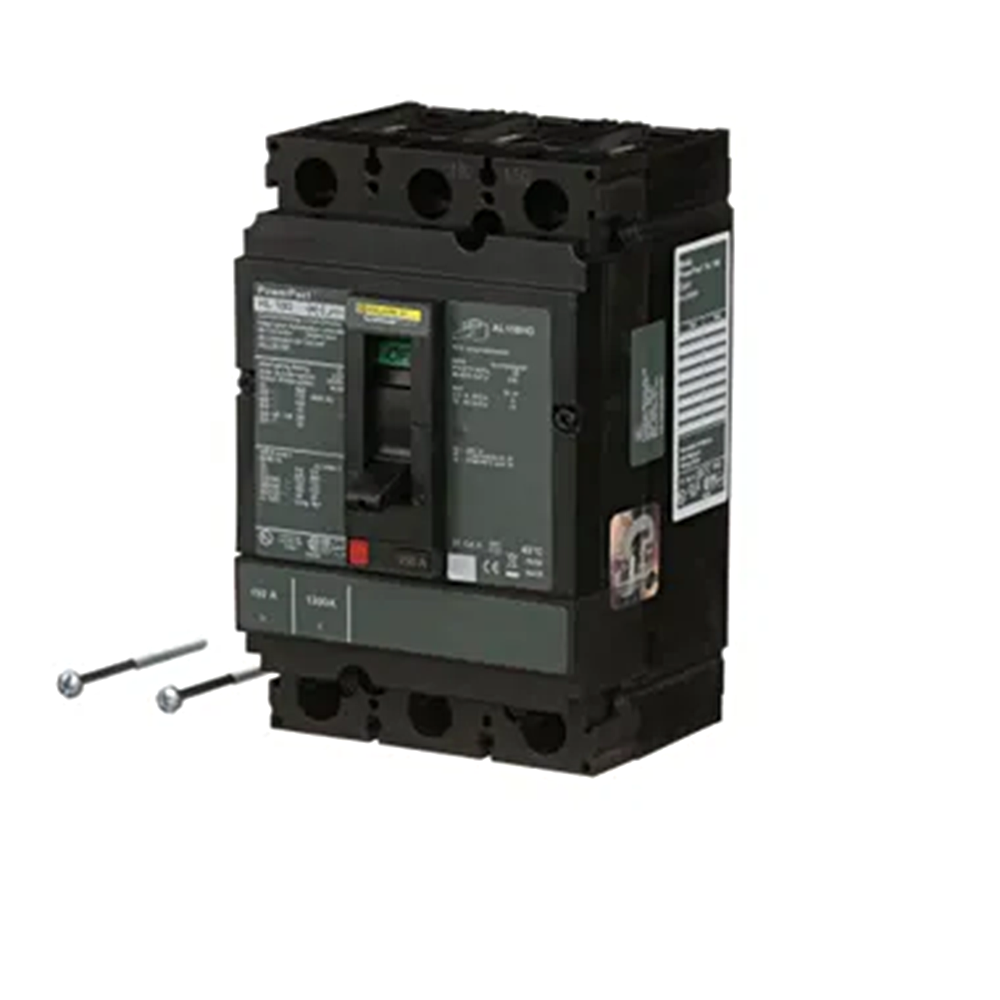

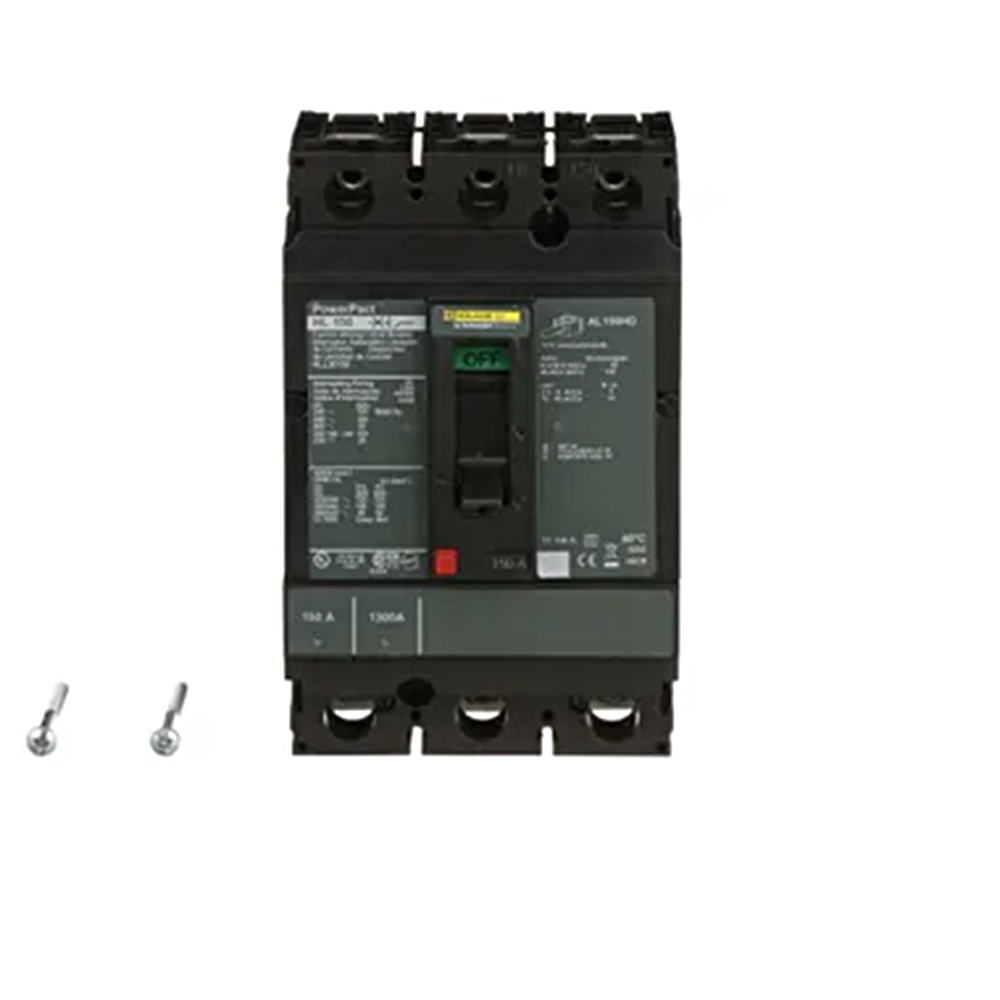

Square D HLL36150 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 150A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.101 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, utilizes a feed-thru lug connection for conductors from 14 AWG to 3/0 AWG, and operates within a temperature range of -25 to 70 °C. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of three-phase commercial and industrial applications, backed by a 100kA interrupting capacity at 480V AC.

Key Features & Specifications
  • Type: HLL Series Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 150A

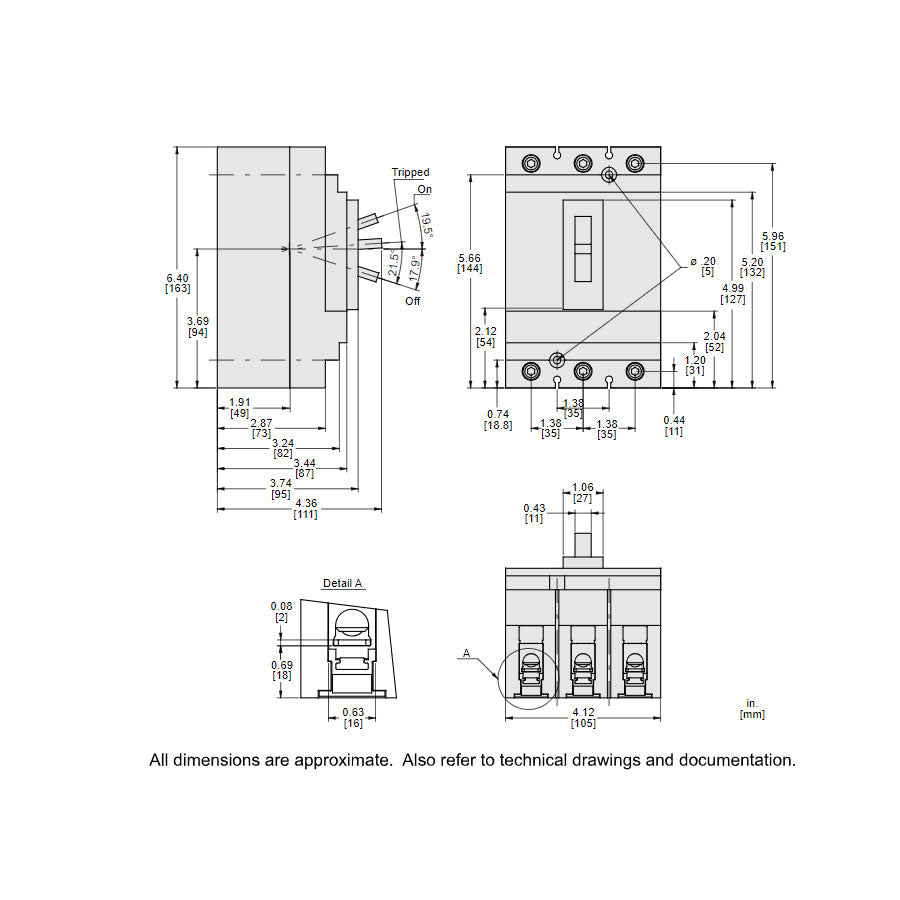

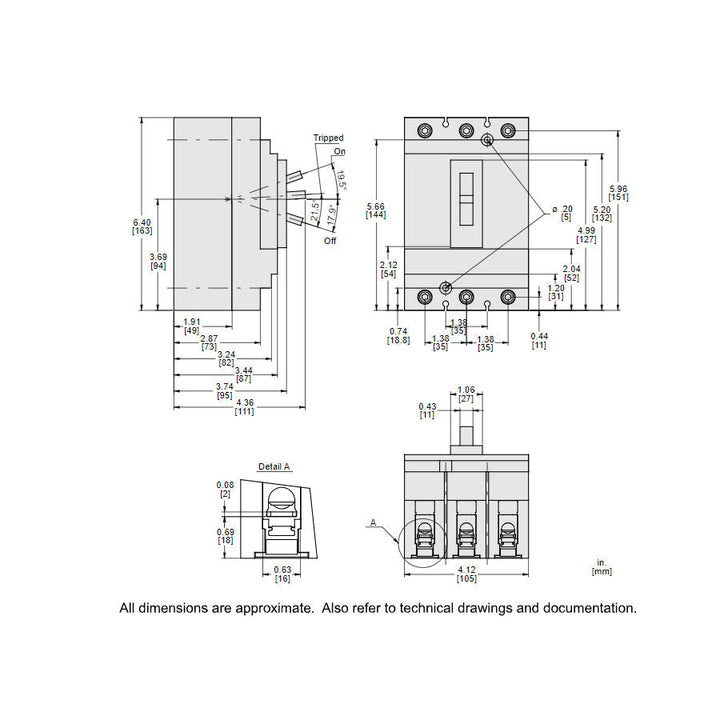

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 100kA @ 480V AC
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Terminal Connection: Lug
  • MCM Size: 14 AWG Min / 3/0 AWG Max
  • Mounting: Panel Mount
  • Family: Powerpact
  • Country of Origin: United States


Product Identification
  • UPC: 785901683230
  • GTIN: 00785901683230
