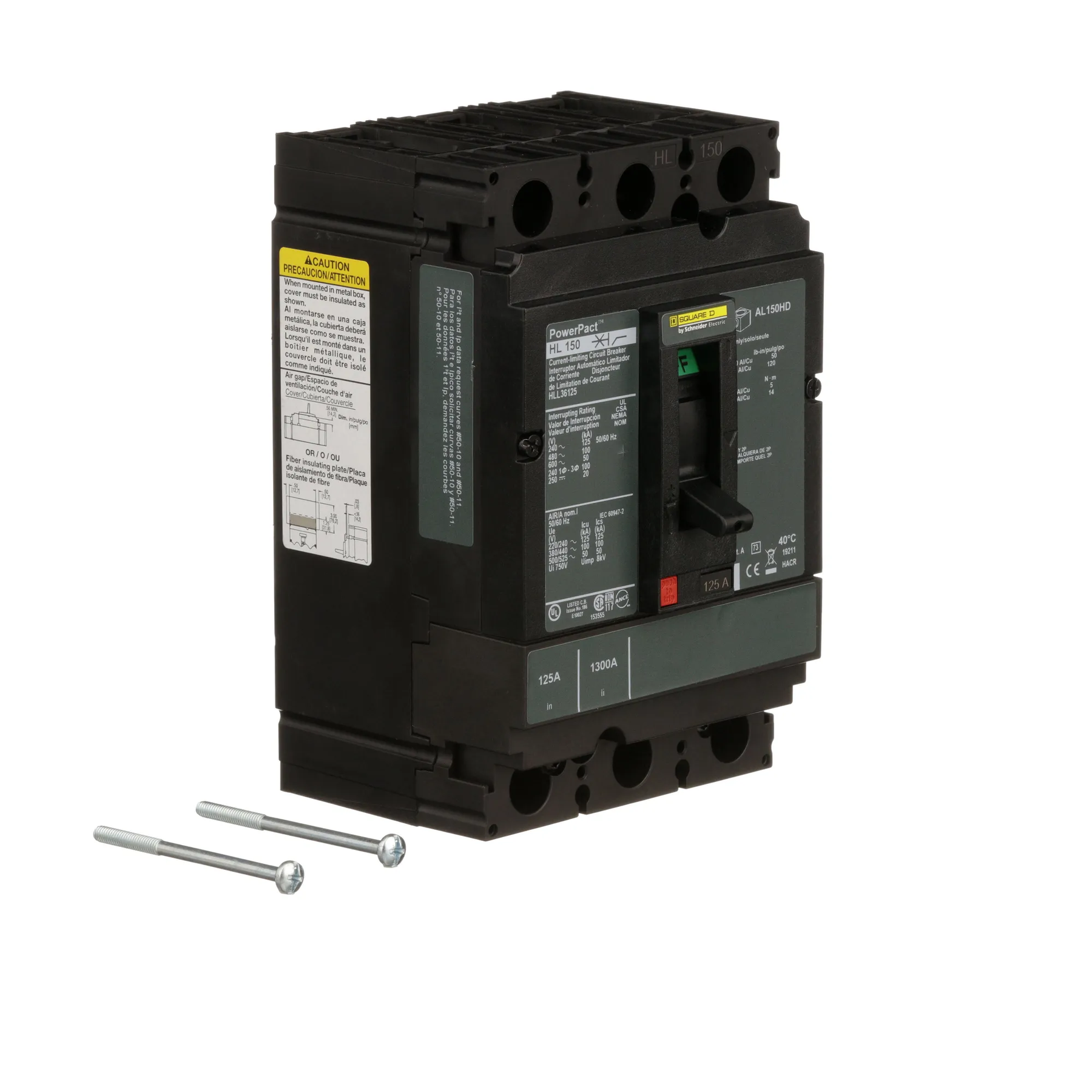

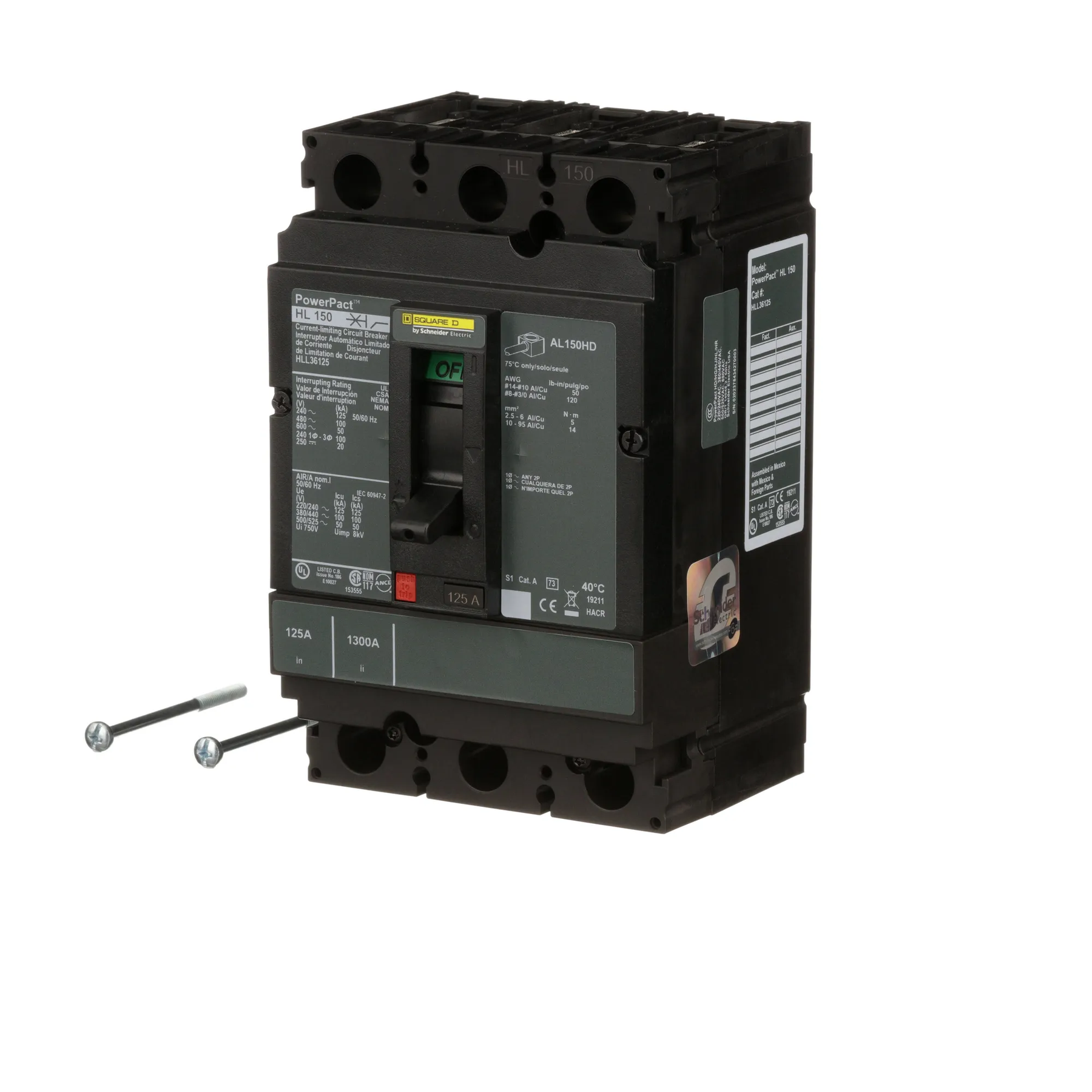

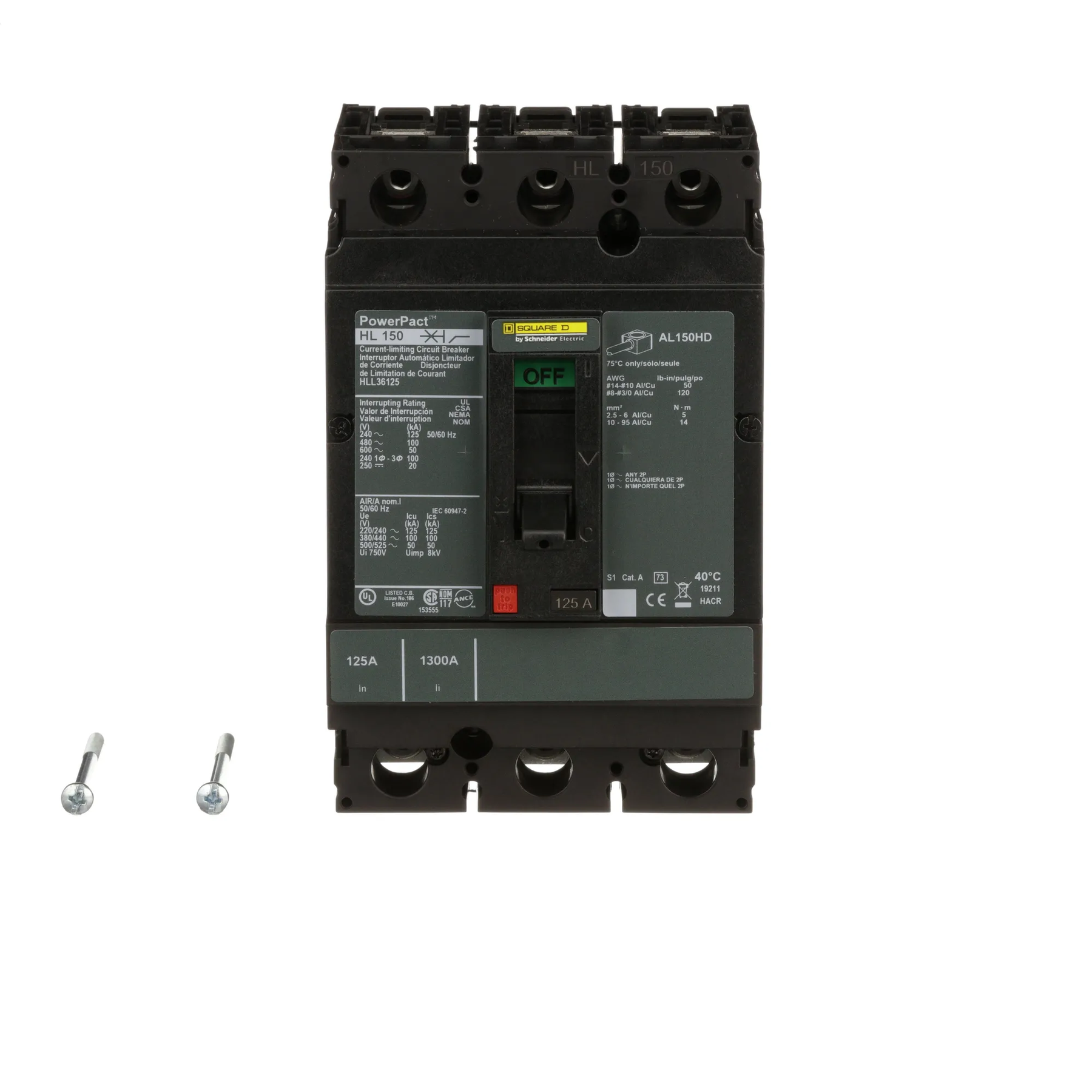

Square D HLL36125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 125A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.149 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, is constructed with lug terminals compatible with 14 AWG to 3/0 AWG copper or aluminum conductors, and complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its 100kA interrupting capacity at 480V and feed-thru connection make it suitable for panelboards, switchboards, and industrial control panels operating in ambient temperatures from -2°C to 70°C.

Key Features & Specifications
  • Type: HLL Series Molded Case Circuit Breaker, Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 125A

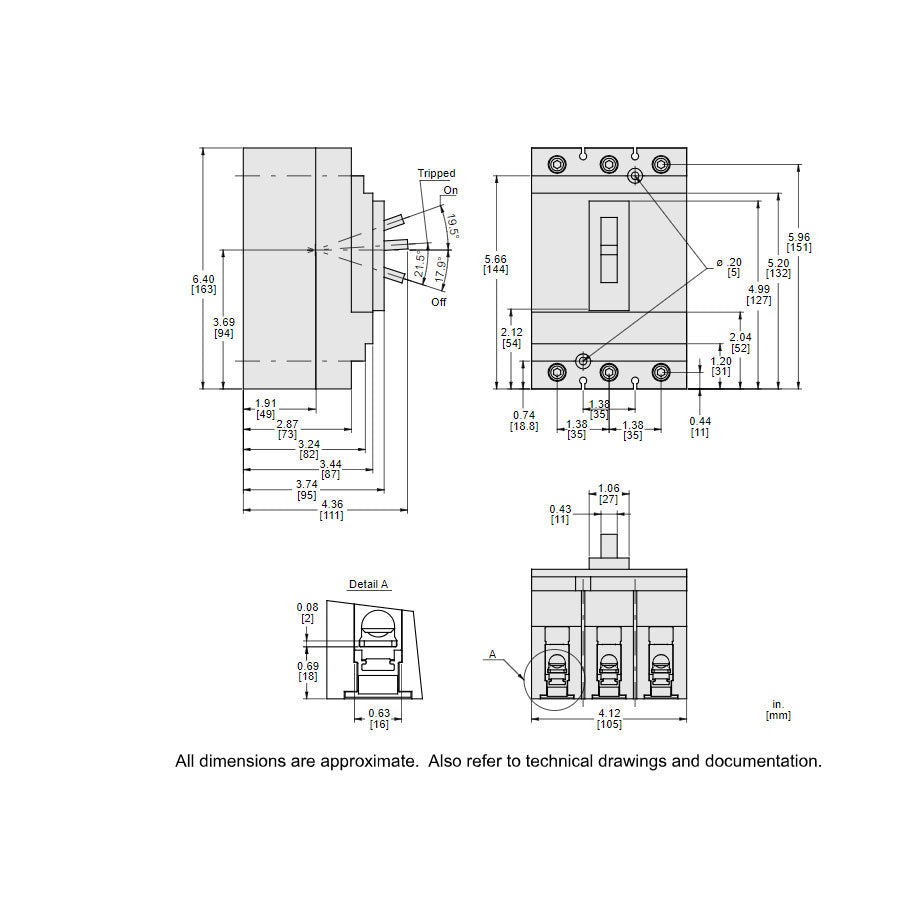

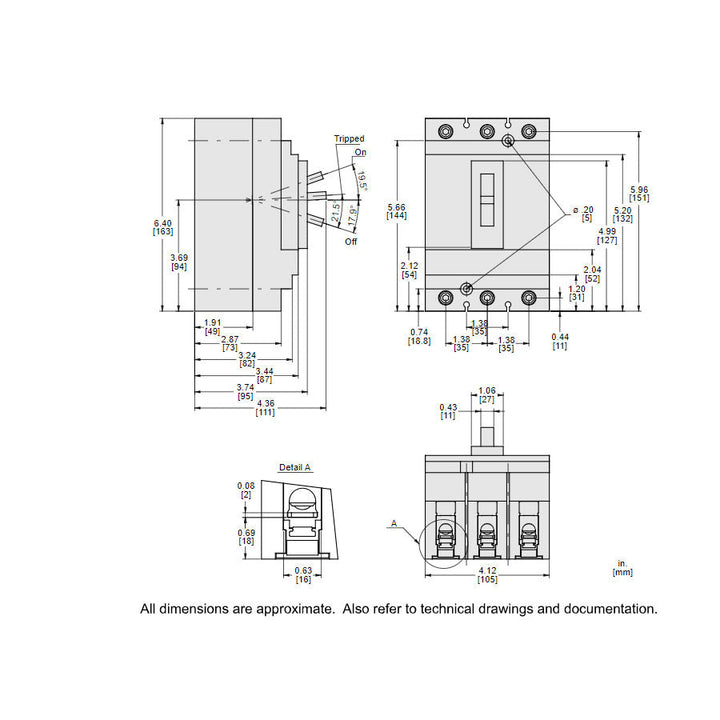

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • AIC Rating: 100kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H
  • Trip Type: Thermal-Magnetic
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Temp Rating: -2°C to 70°C (28°F to 158°F)
  • Weight: 4.149 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901953043
  • GTIN: 00785901953043
