Square D HLL36100 - Molded Case Circuit Breaker 100A 3-Pole

Square D
Price
Save $1,930.18
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

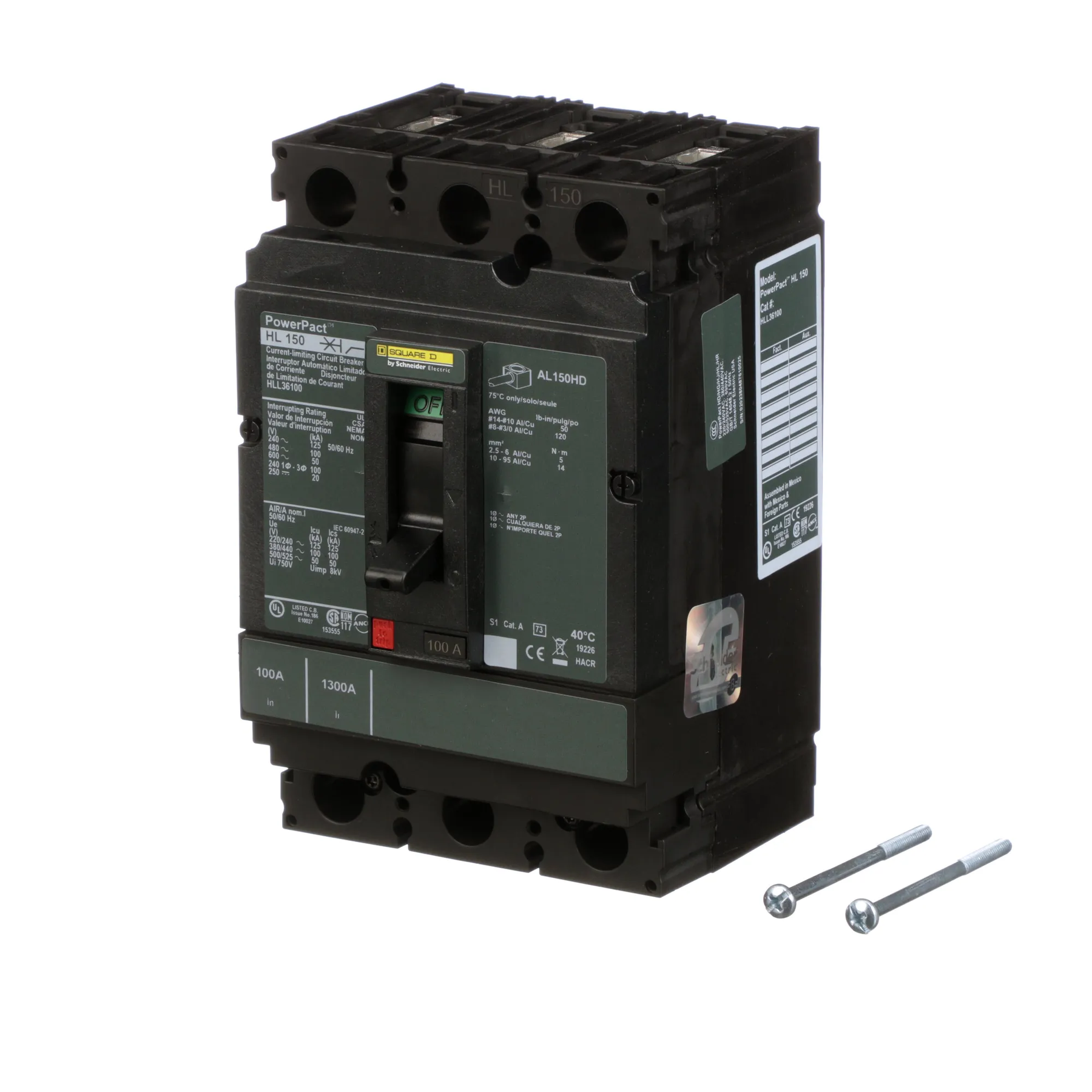

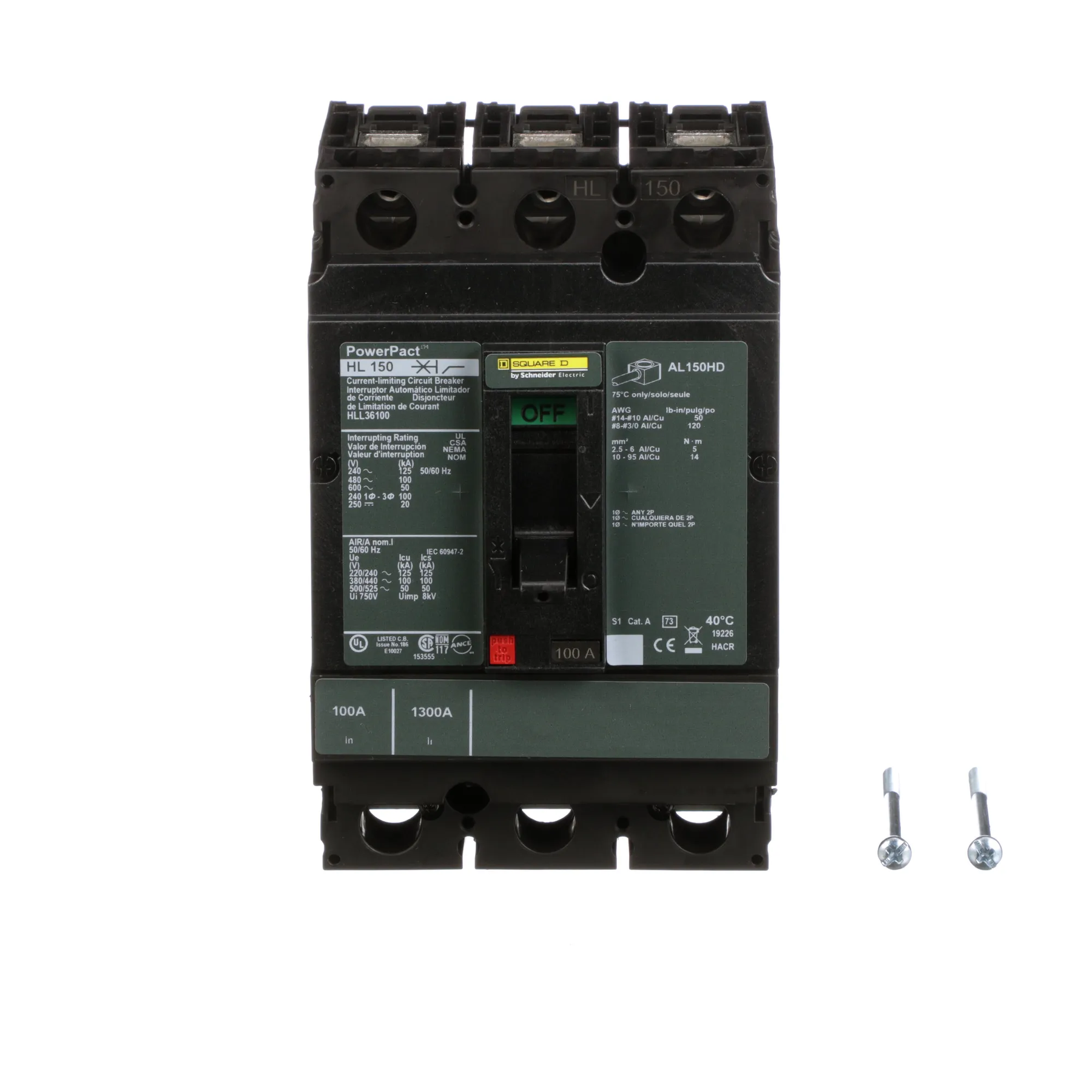

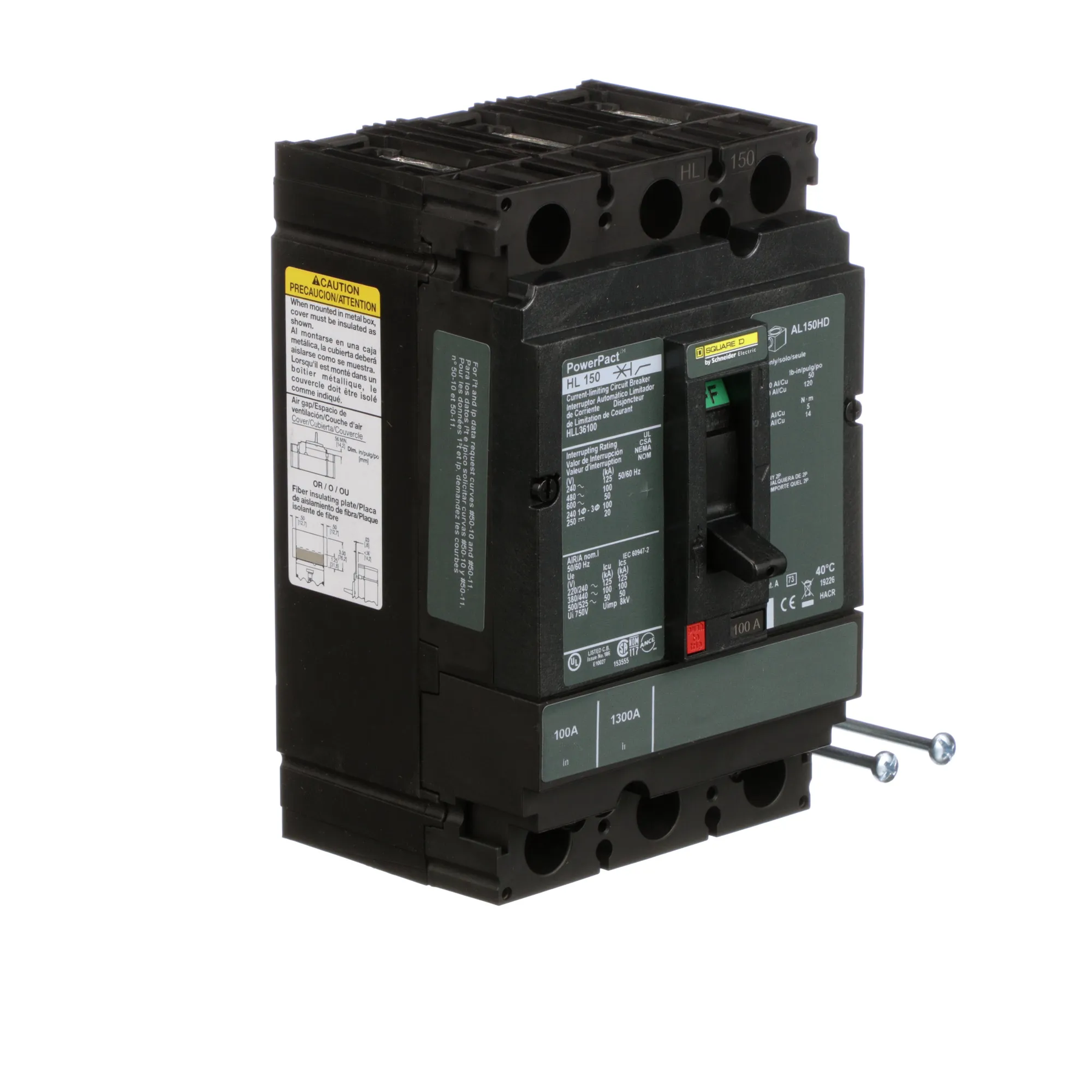

Square D HLL36100 is a 3-pole, 100A Powerpact H frame molded case circuit breaker designed for thermal magnetic protection of industrial and commercial electrical systems. It operates at 600V AC with a 100kA interrupting rating at 480V AC, utilizing a LI (Long-Time and Instantaneous Trip) function for precise overcurrent protection. The unit measures 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) and weighs 4.149 lb, featuring lug terminals that accept wire sizes from 14 AWG to 3/0 AWG (Cu/Al) in a feed-thru connection. It complies with UL, CSA, NEMA, NOM-003-SCFI-2000, and IEC 60947-2 standards, with certifications from UL, CSA, and NOM. This breaker is suited for 3-phase power distribution in panelboards and switchboards, operating within a temperature range of -13 to 158 °F (-25 to 70 °C).

Key Features & Specifications
  • Manufacturer: Schneider Electric
  • Family: Powerpact
  • Type: HLL
  • Item Subcategory: Molded Case
  • Poles: 3
  • Current Rating: 100A
  • Voltage Rating: 600V
  • Frame Size: H
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • AIC Rating: 100kA at 480V
  • Phase: 3
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Wire Size: AWG 14 to AWG 3/0 aluminium/copper terminal

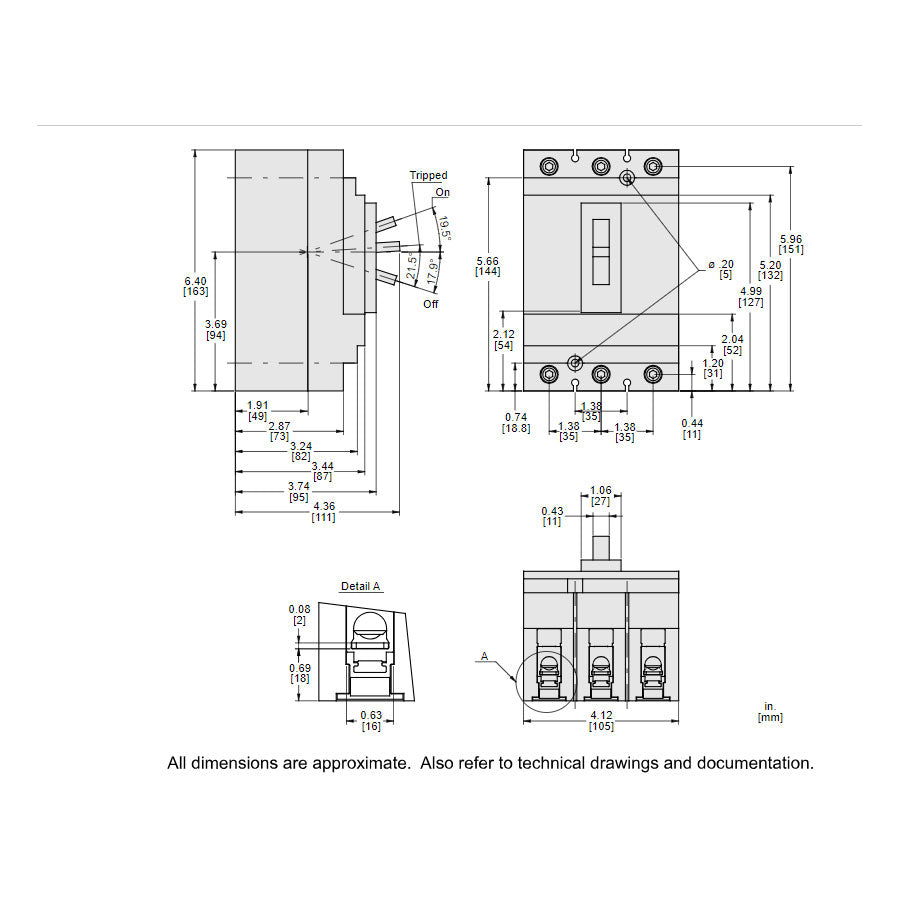

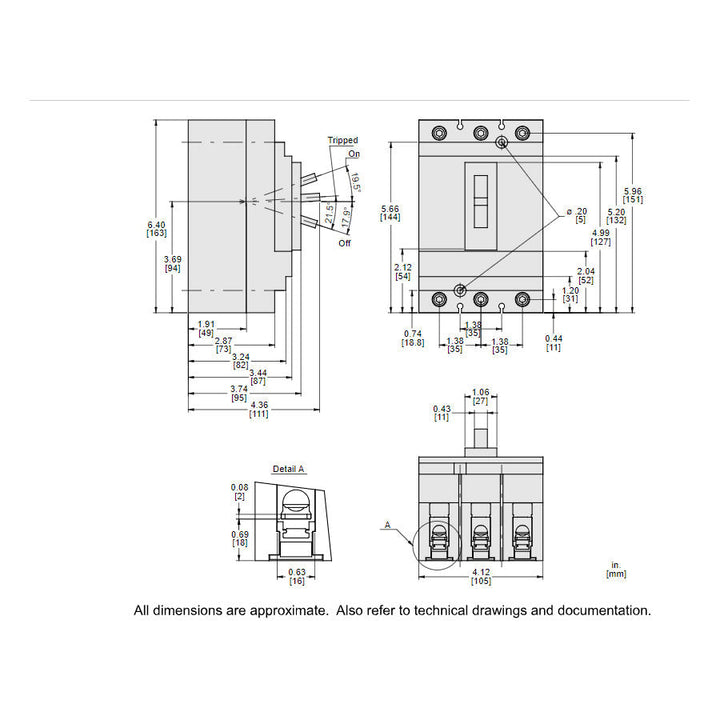

  • Dimensions: 6.4 in (163 mm) x 4.09 in (104 mm) x 3.4 in (86 mm) (Height x Width x Depth)
  • Weight: 4.149 lb
  • Temperature Rating: -13 to 158 °F (-25 to 70 °C)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901683209
  • GTIN: 00785901683209
