Square D HLL36090 - Molded Case Circuit Breaker 90A 600V 3P
Square D HLL36090 - Molded Case Circuit Breaker 90A 600V 3P
Square D HLL36090 - Molded Case Circuit Breaker 90A 600V 3P
Square D HLL36090 - Molded Case Circuit Breaker 90A 600V 3P

Square D HLL36090 - Molded Case Circuit Breaker 90A 600V 3P

Square D
Price
Save $1,537.17
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HLL36090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 90A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm high x 104 mm wide x 86 mm deep and weighing 4.149 lb. The breaker utilizes a thermal-magnetic trip mechanism for long-time and instantaneous (LI) protection and is constructed with lug terminals compatible with copper or aluminum conductors from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial applications requiring a 100kA interrupting capacity at 480V AC in feed-thru configurations.

Key Features & Specifications
  • Type: HLL Series Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 90A

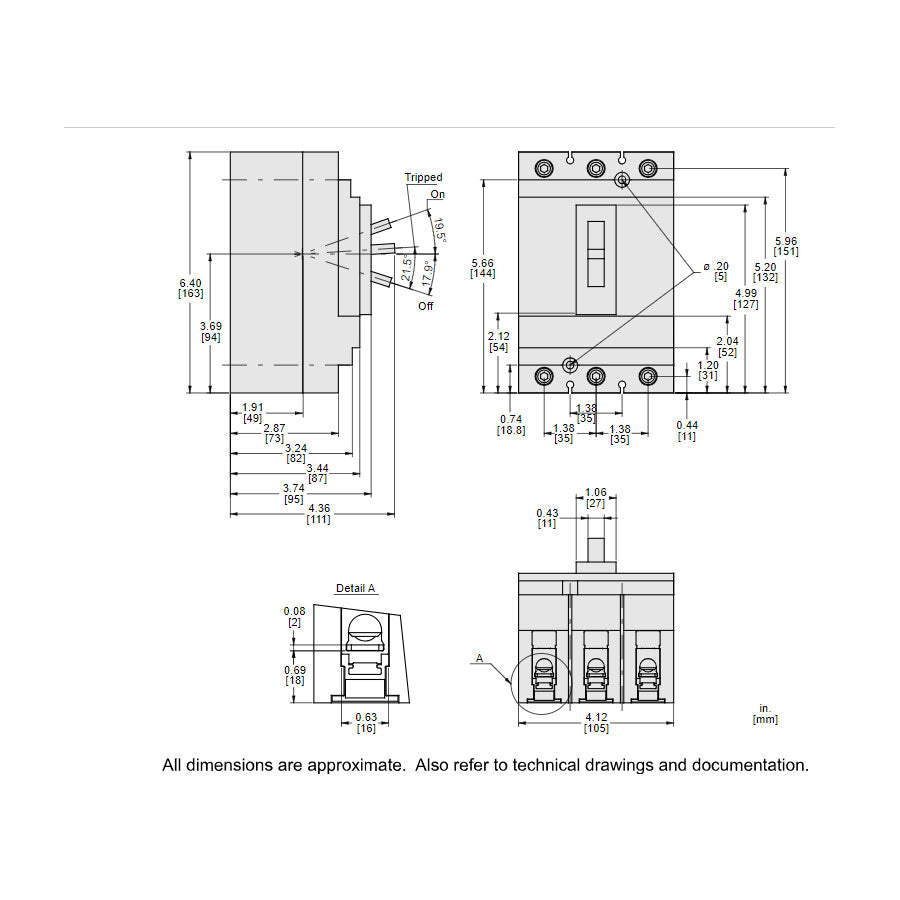

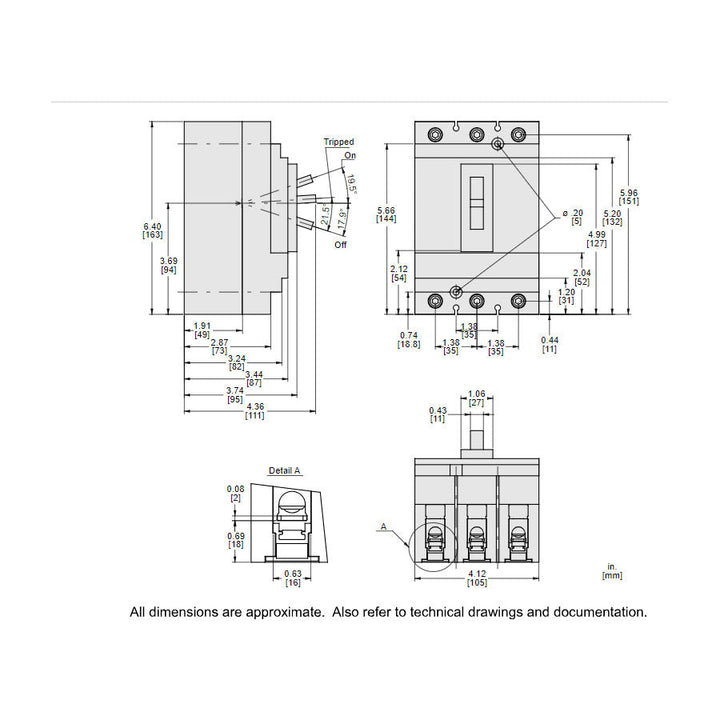

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution & Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Feed-Thru
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H
  • Trip Type: Thermal-Magnetic
  • AIC Rating: 100kA @ 480V AC
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Certification: UL, CSA, NOM
  • Weight: 4.149 lb


Product Identification
  • UPC: 785901683193
  • GTIN: 00785901683193
