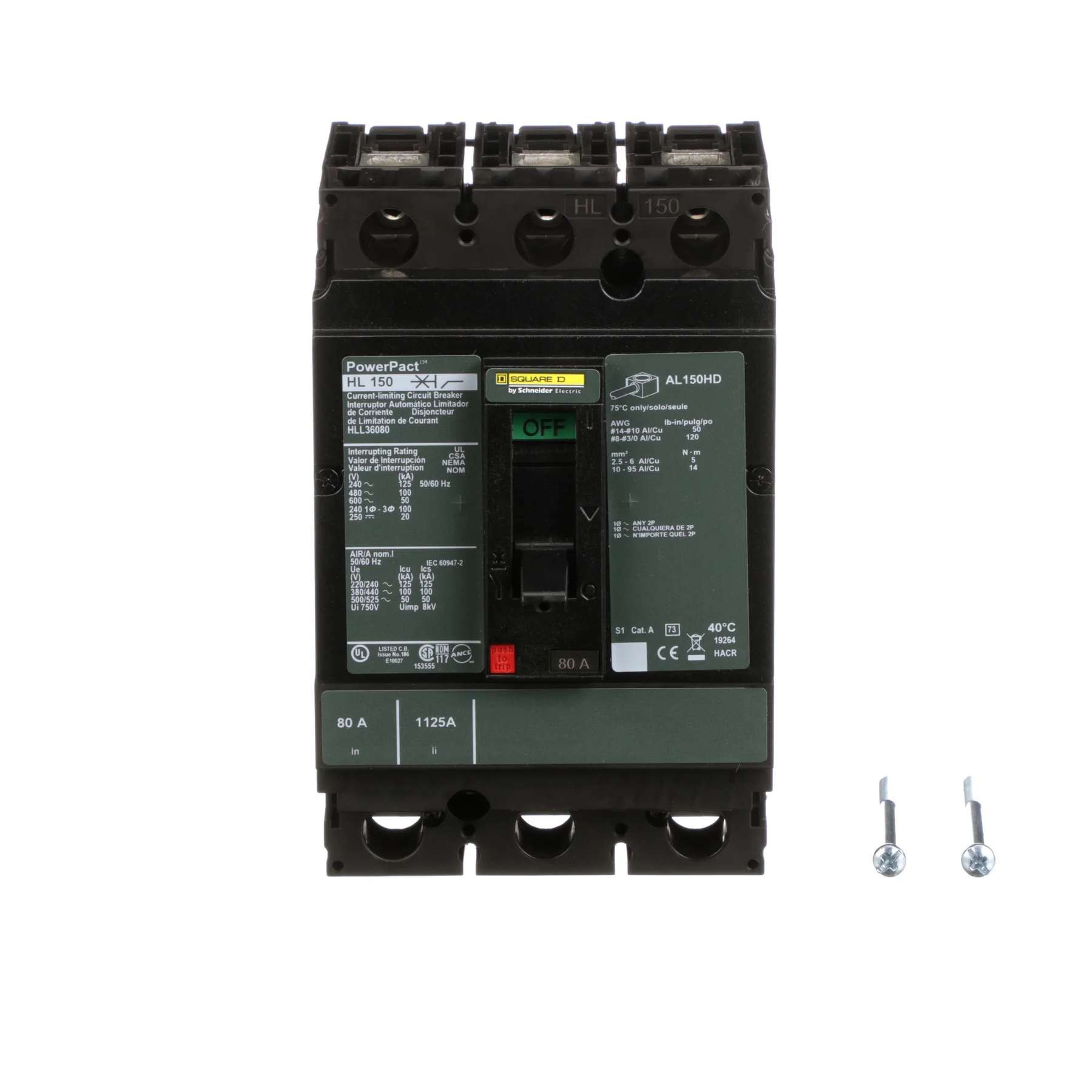

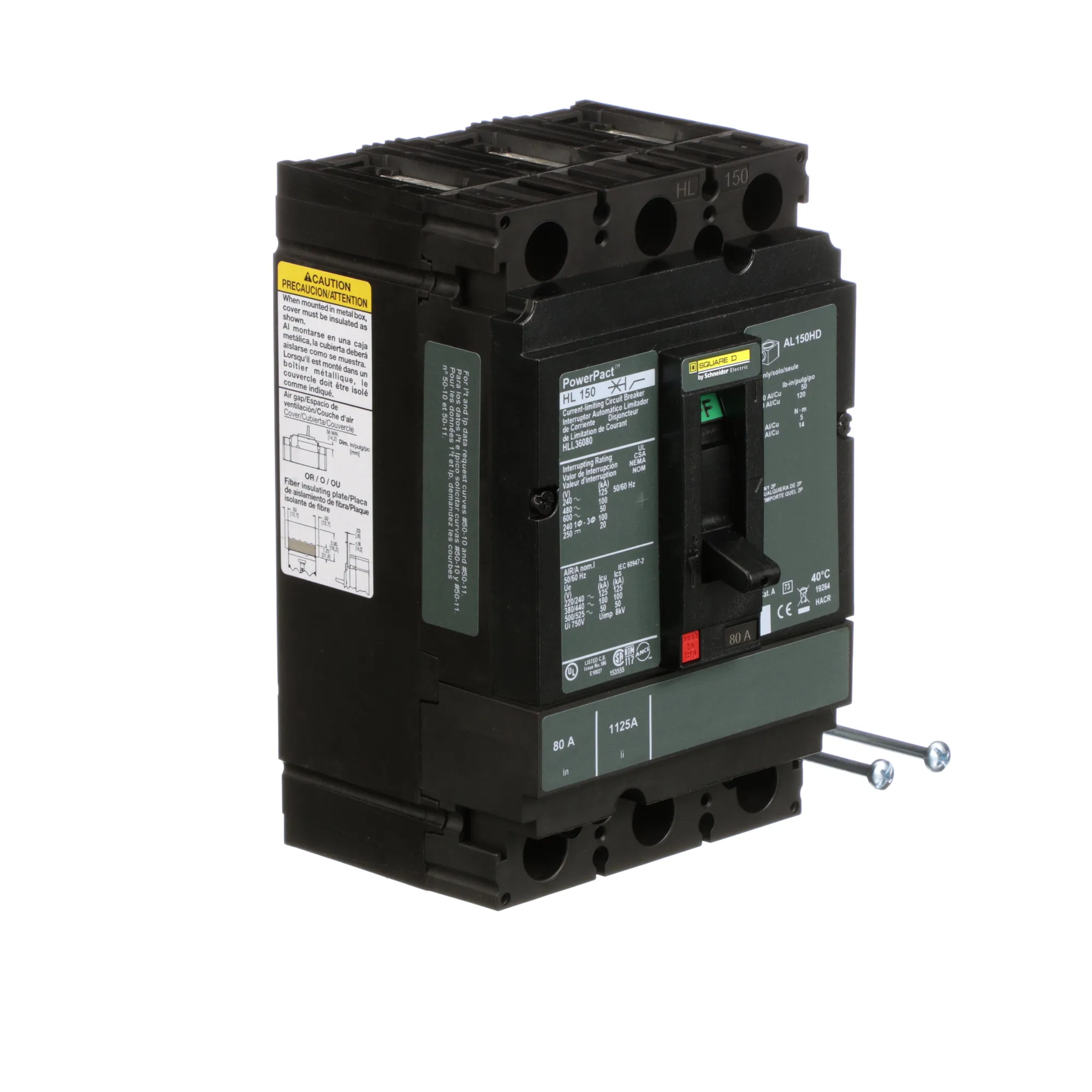

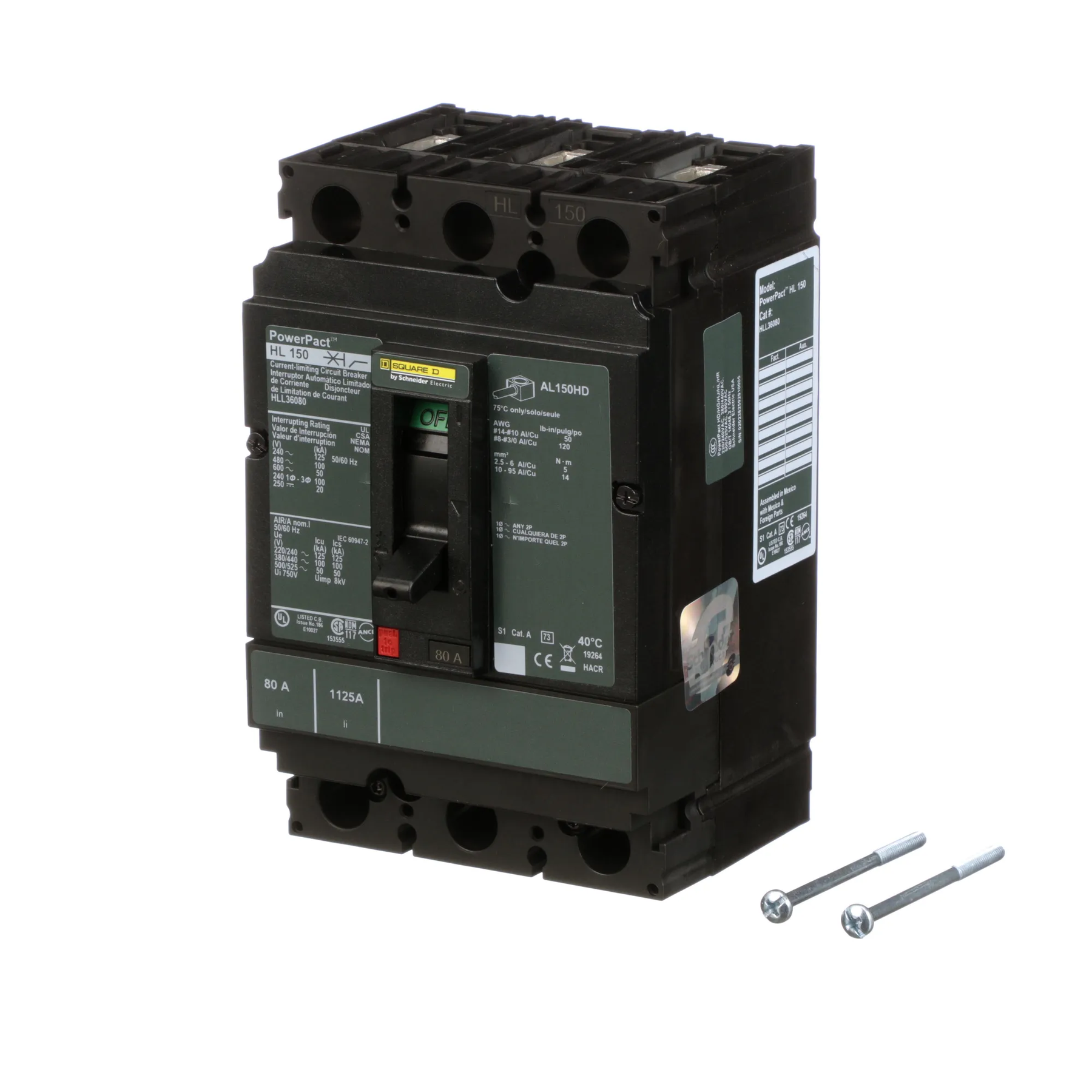

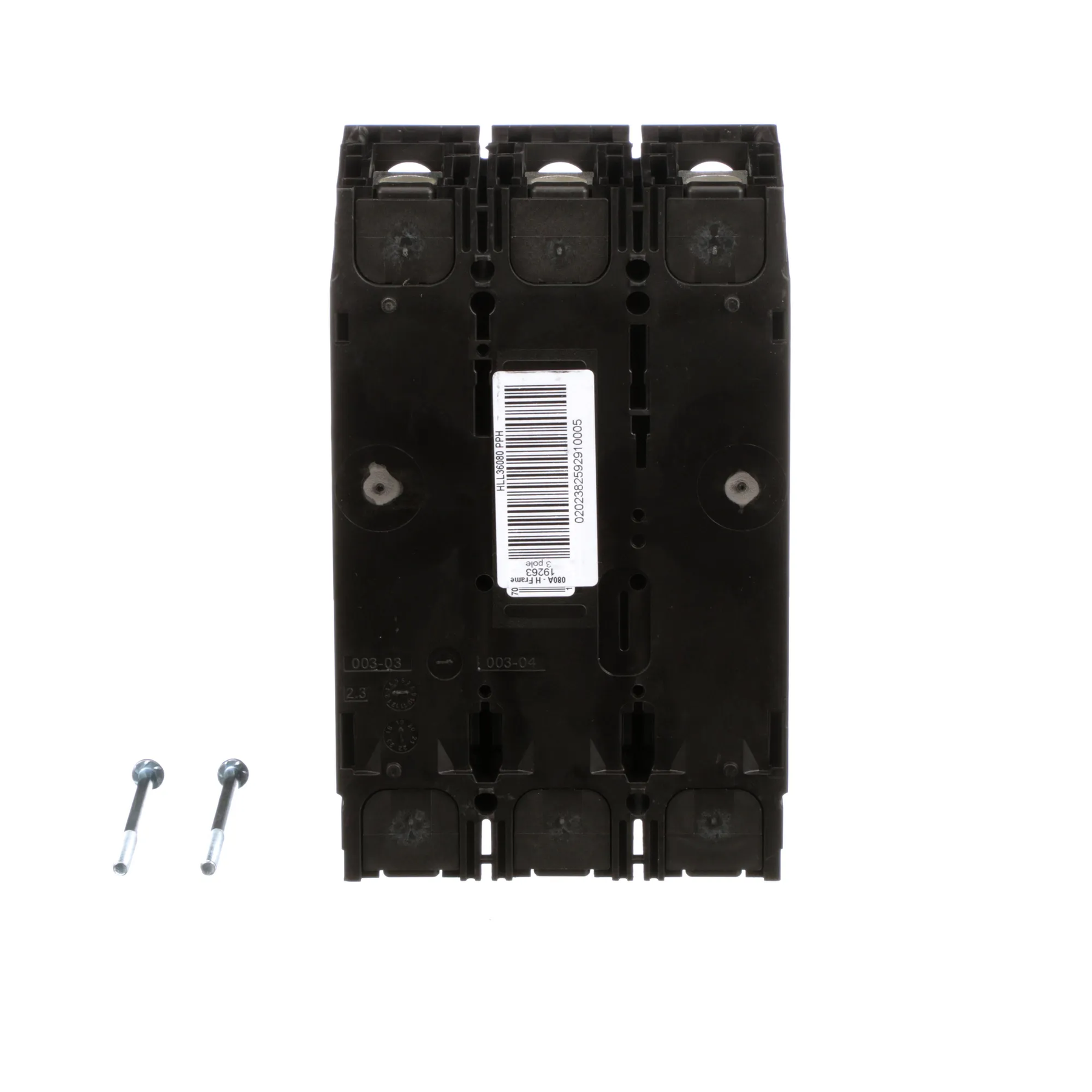

Square D HLL36080 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a thermal-magnetic trip unit with long-time and instantaneous (LI) protection functions, rated for 80A continuous current and 600V AC maximum voltage with an interrupting capacity of 100kA at 480V AC. The breaker is constructed with a compact H-frame in a feed-thru configuration, featuring lug terminals that accept copper or aluminum conductors from 14 AWG to 3/0 AWG, and it operates within a temperature range of -25 to 70 °C. It complies with major industry standards including UL, CSA, NEMA, and IEC 60947-2. This breaker is typically applied in panelboards, switchboards, and industrial control panels where robust branch circuit protection is required.

Key Features & Specifications
  • Type: HLL Series Molded Case Circuit Breaker, Thermal-Magnetic Trip Unit
  • Voltage Rating: 600V AC
  • Current Rating: 80A

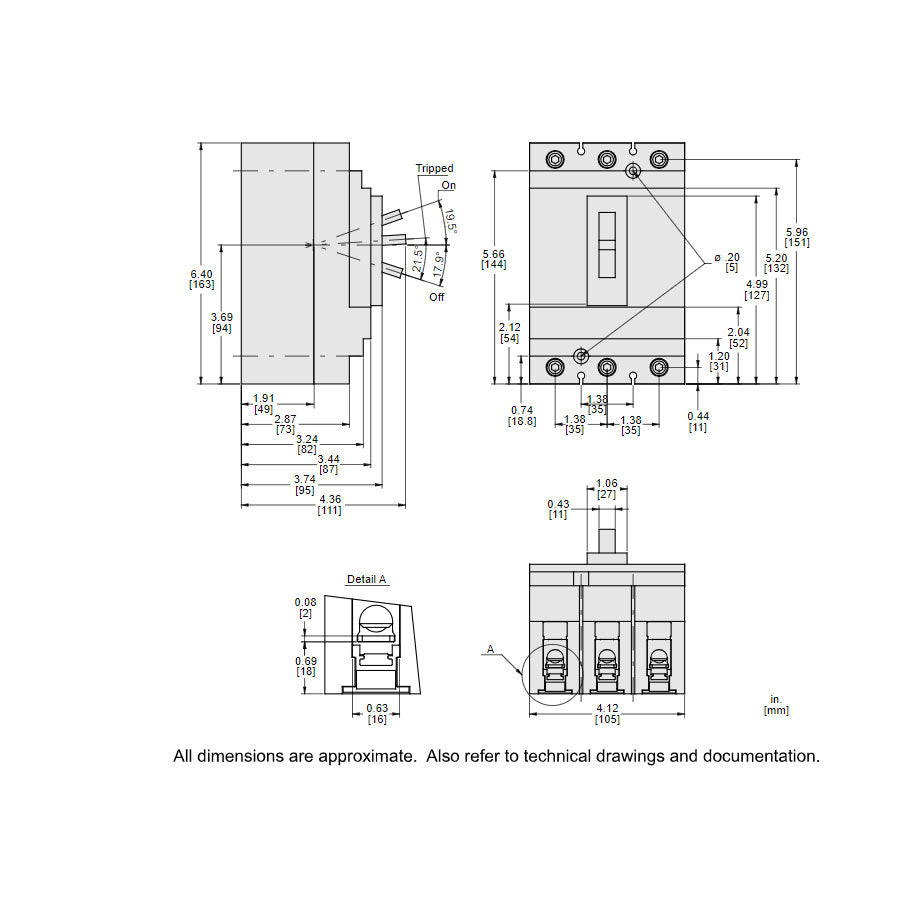

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.129 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 100kA @ 480V AC
  • Connection: Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Terminal Connection: Lug


Product Identification
  • UPC: 785901683179
  • GTIN: 00785901683179
