Square D HLL36070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 70A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (6.4 in x 4.09 in x 3.4 in) and weighing 4.101 lb. The breaker utilizes a thermal-magnetic trip unit for Long-Time and Instantaneous (LI) protection and is certified to UL, CSA, NOM, and IEC 60947-2 standards. Its feed-thru connection with lug terminals accommodates copper or aluminum conductors from 14 AWG to 3/0 AWG, making it suitable for a wide range of commercial and industrial panelboards and switchboards operating in temperatures from -25°C to 70°C (-13°F to 158°F).

Key Features & Specifications
  • Type: HLL Series Molded Case Circuit Breaker, Thermal Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 70A

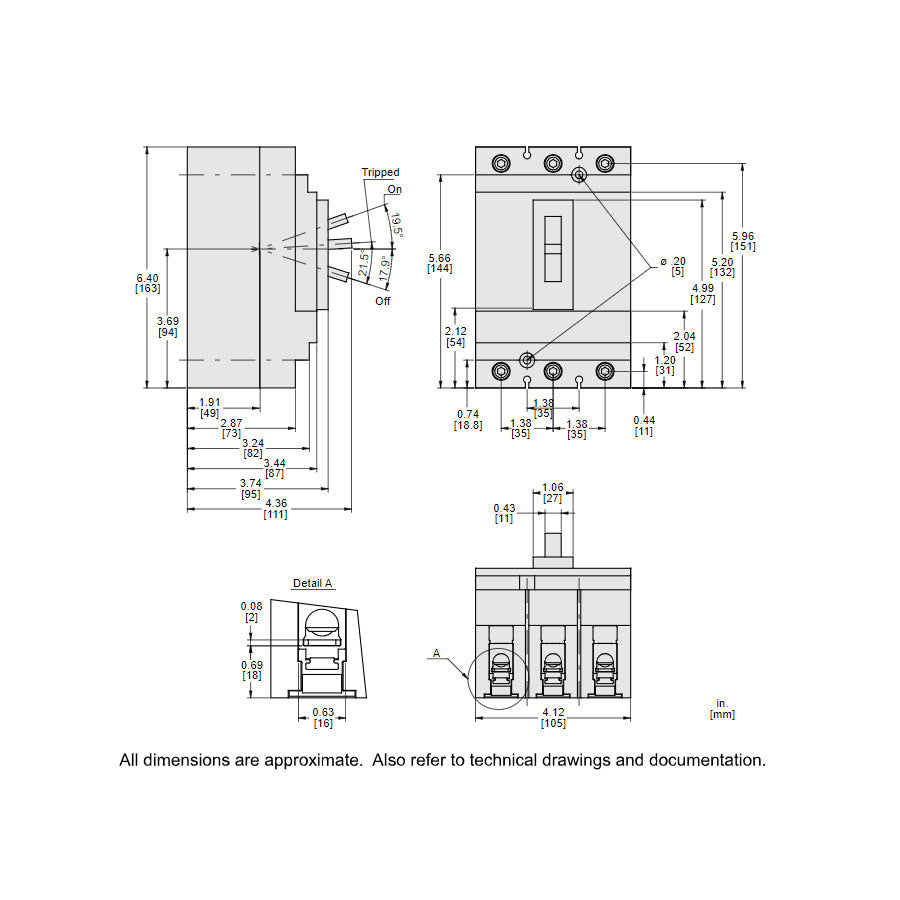

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Shipping Dimensions: As Product Dimensions
  • Phase: 3
  • Voltage: 600V
  • Amperage: 70A
  • AIC rating: 100kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous
  • Frame Size: H
  • Trip Type: Thermal Magnetic
  • Panel Type: Compatible with Square D Panelboards
  • Breaker Type: Molded Case
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Metal Type: Not Specified
  • Panel Style: Not Specified
  • Bus Type: Not Specified
  • Insulation Temperature: Rated for -25°C to 70°C
  • Mounting: Fixed
  • Hz: 50/60 Hz
  • Horse Power: Not Specified
  • Full Load Amps: 70A
  • Enclosure: Molded Case
  • Wire Size: AWG 14 to AWG 3/0 (aluminium/copper terminal)
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Compatible Frames: H-Frame
  • Installation Type: Fixed
  • Breaker Frame: H
  • Current Rating: 70A
  • Operating Temperature Maximum Celsius: 70°C


Product Identification
  • UPC: 785901883821
  • GTIN: 00785901883821
