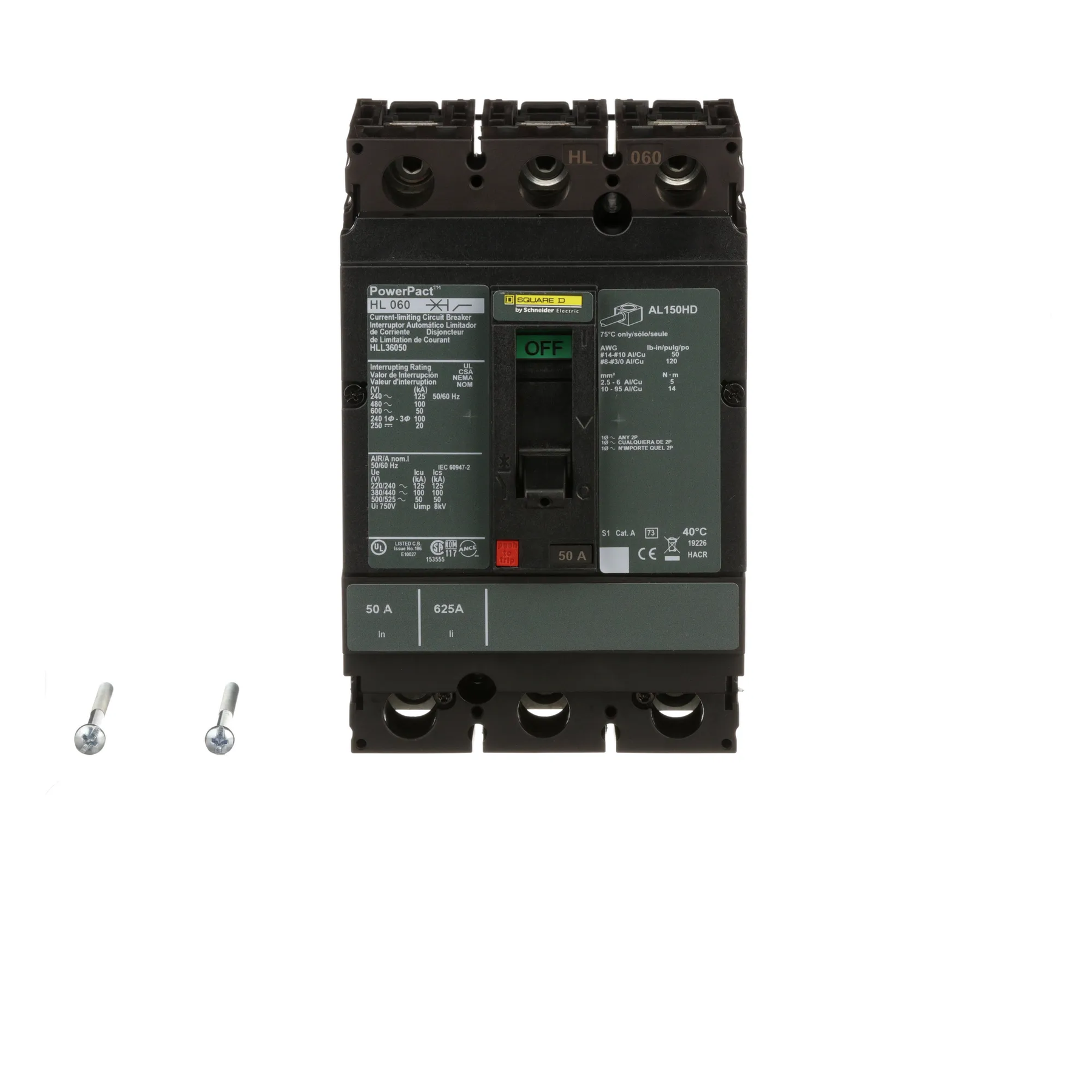

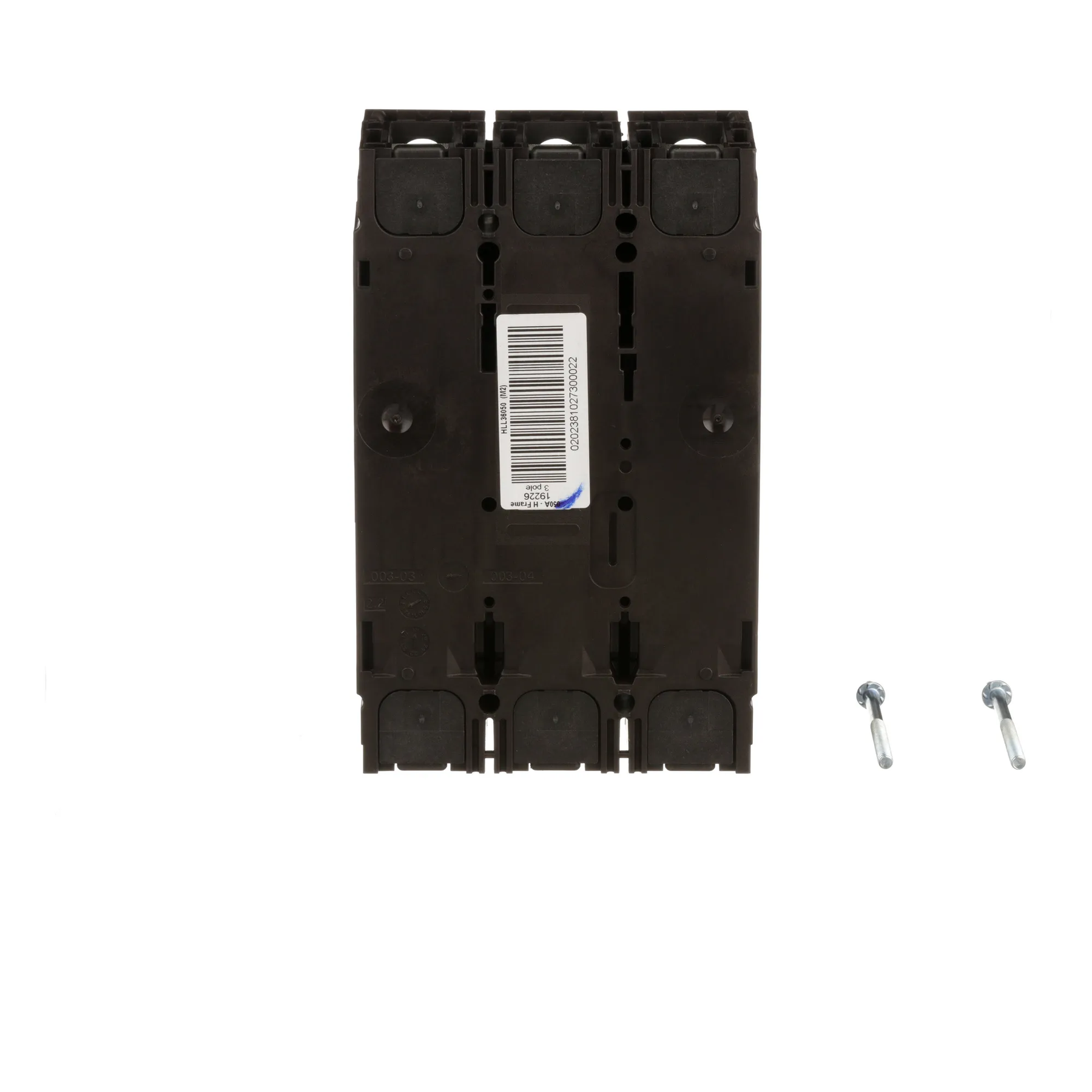

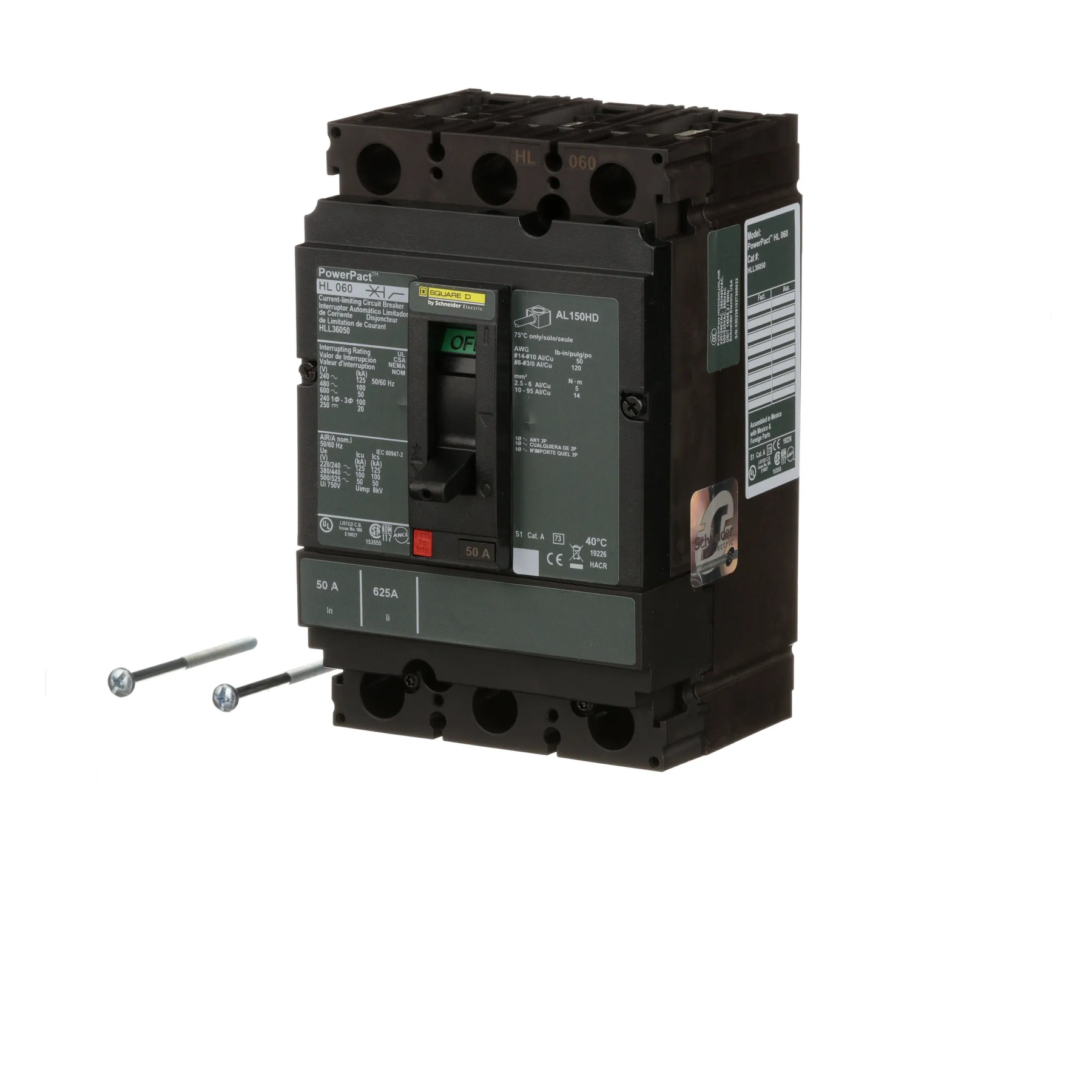

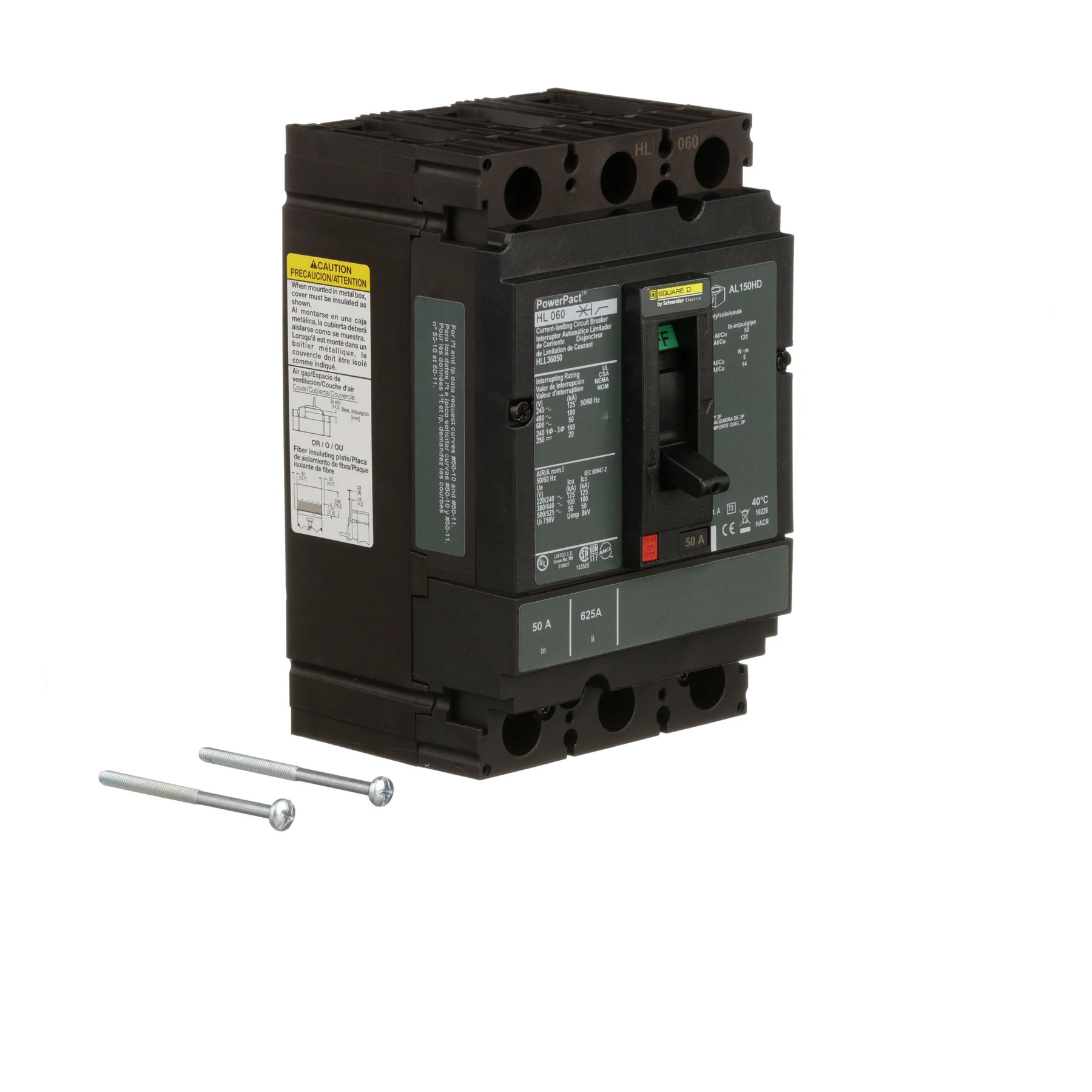

Square D HLL36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.125 lb. The breaker complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring robust performance and safety. Its thermal-magnetic protection with long-time and instantaneous trip functions makes it suitable for protecting feeders and branch circuits in commercial and industrial facilities.

Key Features & Specifications
  • Type: HLL Series, Molded Case, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 50A

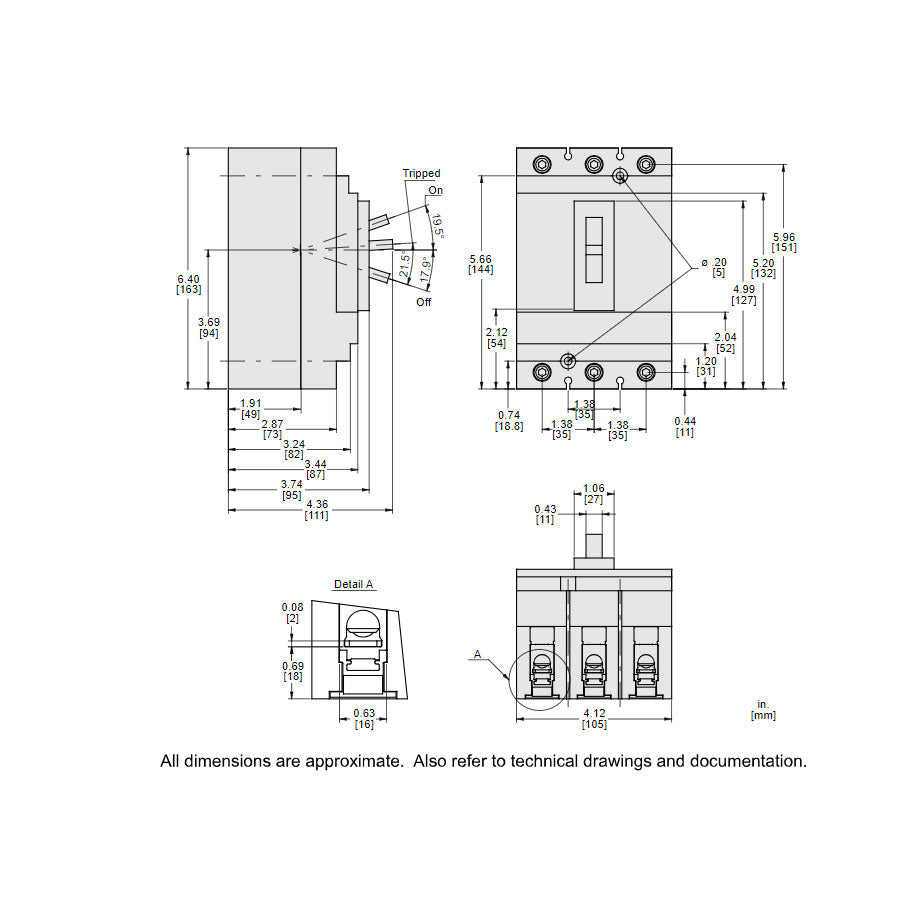

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Weight: 4.125 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, feeder and branch circuit protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 100kA at 480V
  • Connection: Feed-Thru, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL Listed, CSA Certified, NOM
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Terminal Connection: Lug
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901683155
  • GTIN: 00785901683155
