Square D
Price
Save $1,409.87
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

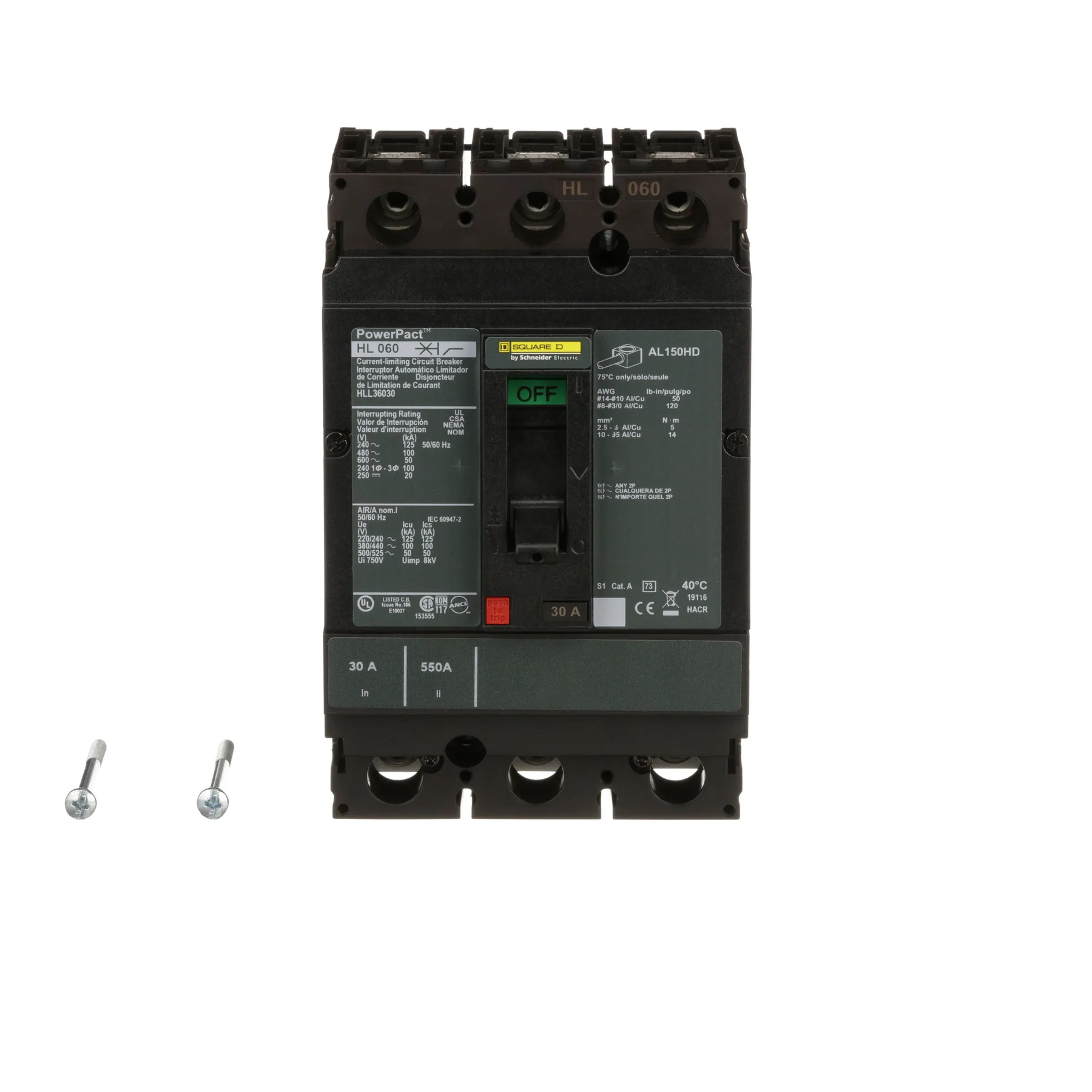

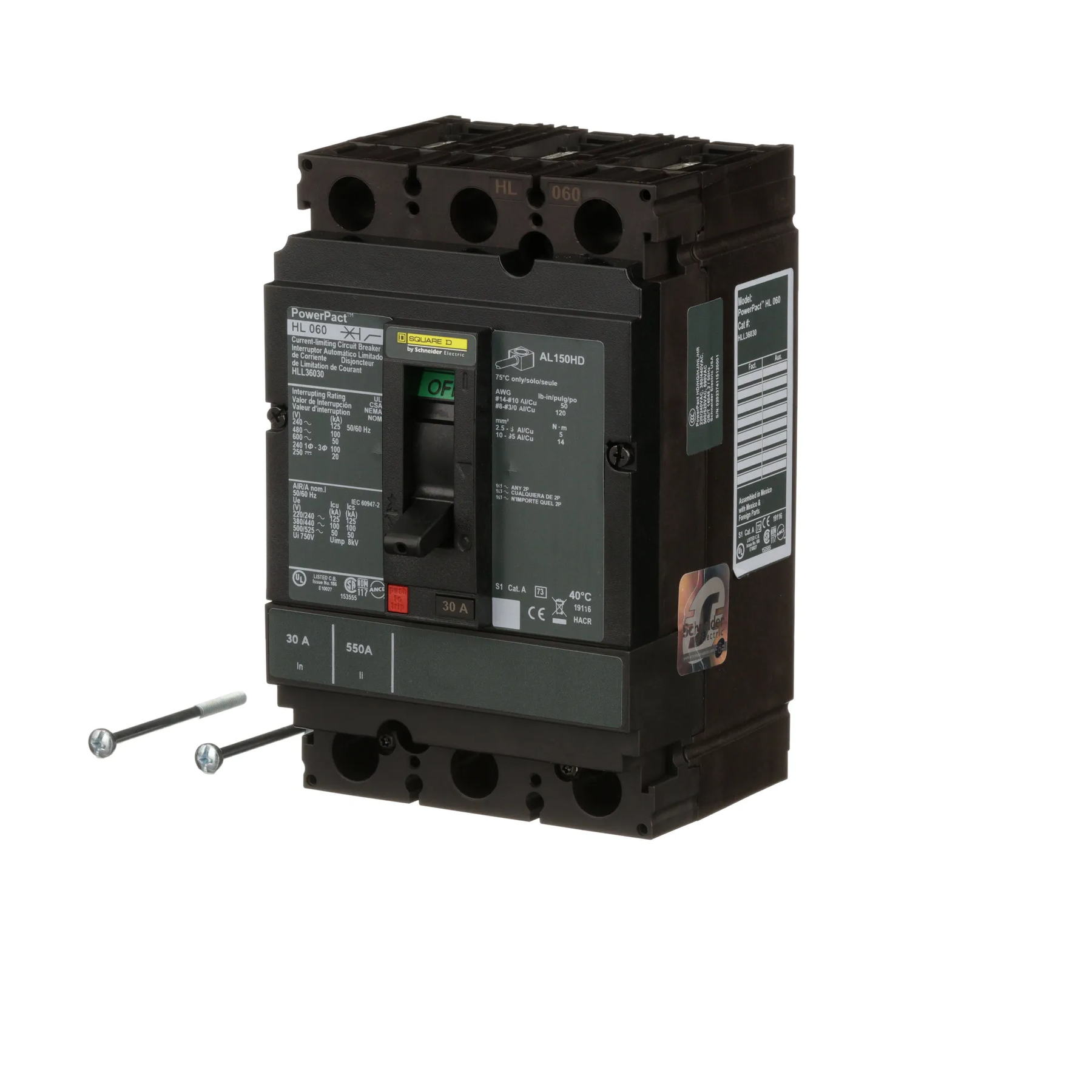

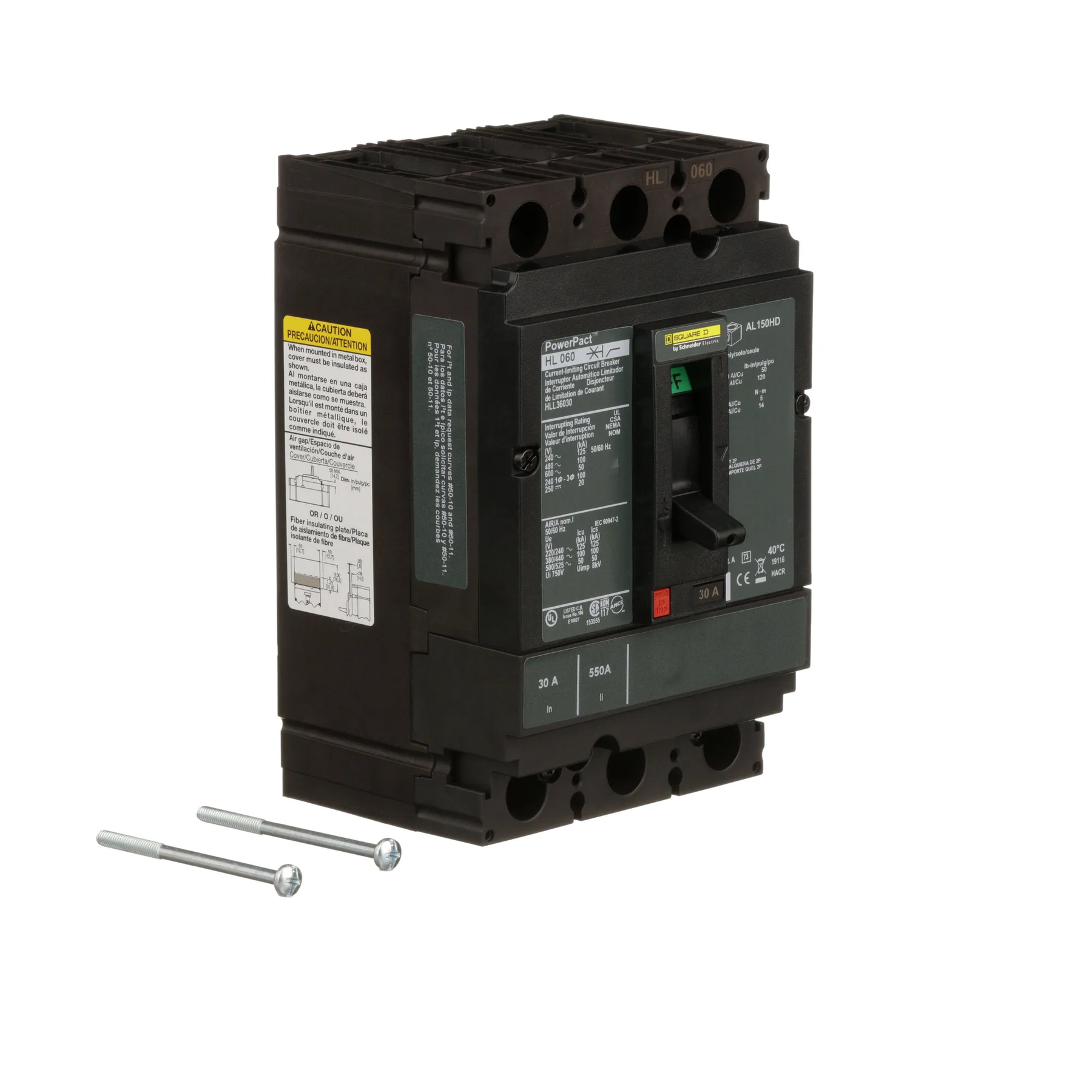

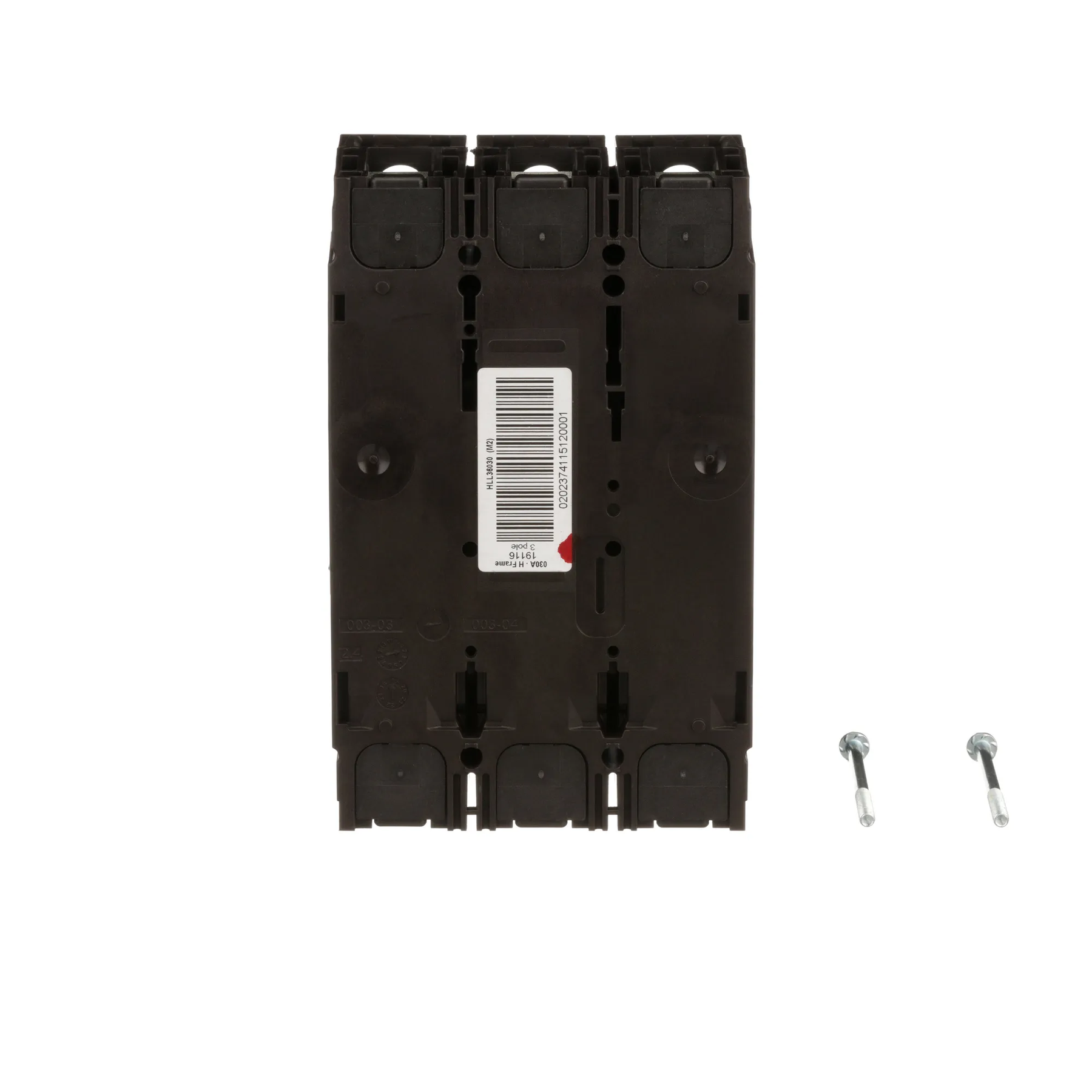

Square D HLL36030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.06 lb. The breaker utilizes a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) functions and is constructed with lug terminals compatible with copper or aluminum conductors from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial applications requiring a 100kA interrupting capacity at 480V AC in environments from -25 to 70 °C.

Key Features & Specifications
  • Type: HLL Series, Molded Case, Thermal Magnetic Protection, Feed-Thru Connection
  • Voltage Rating: 600V AC
  • Current Rating: 30A

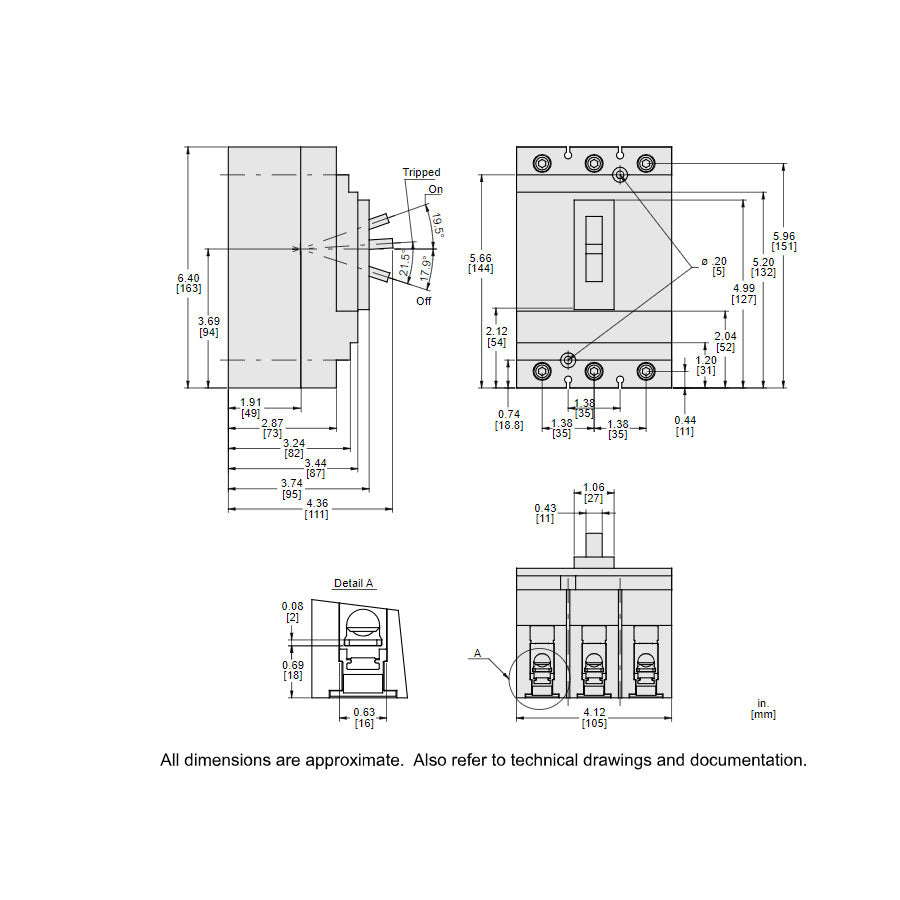

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial power distribution, panelboards, switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • AIC Rating: 100kA @ 480V AC
  • Connection: Lug Terminal
  • Protection: Thermal-Magnetic
  • Functions: LI (Long-Time & Instantaneous)
  • Frame Size: H
  • Trip Type: Thermal Magnetic
  • Breaker Type: Molded Case
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • MCM Size: 14 AWG to 3/0 AWG (Cu/Al)
  • Wire Size: AWG 14...AWG 3/0 aluminium/copper terminal
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 4.06 lb


Product Identification
  • UPC: 785901433866
  • GTIN: 00785901433866
