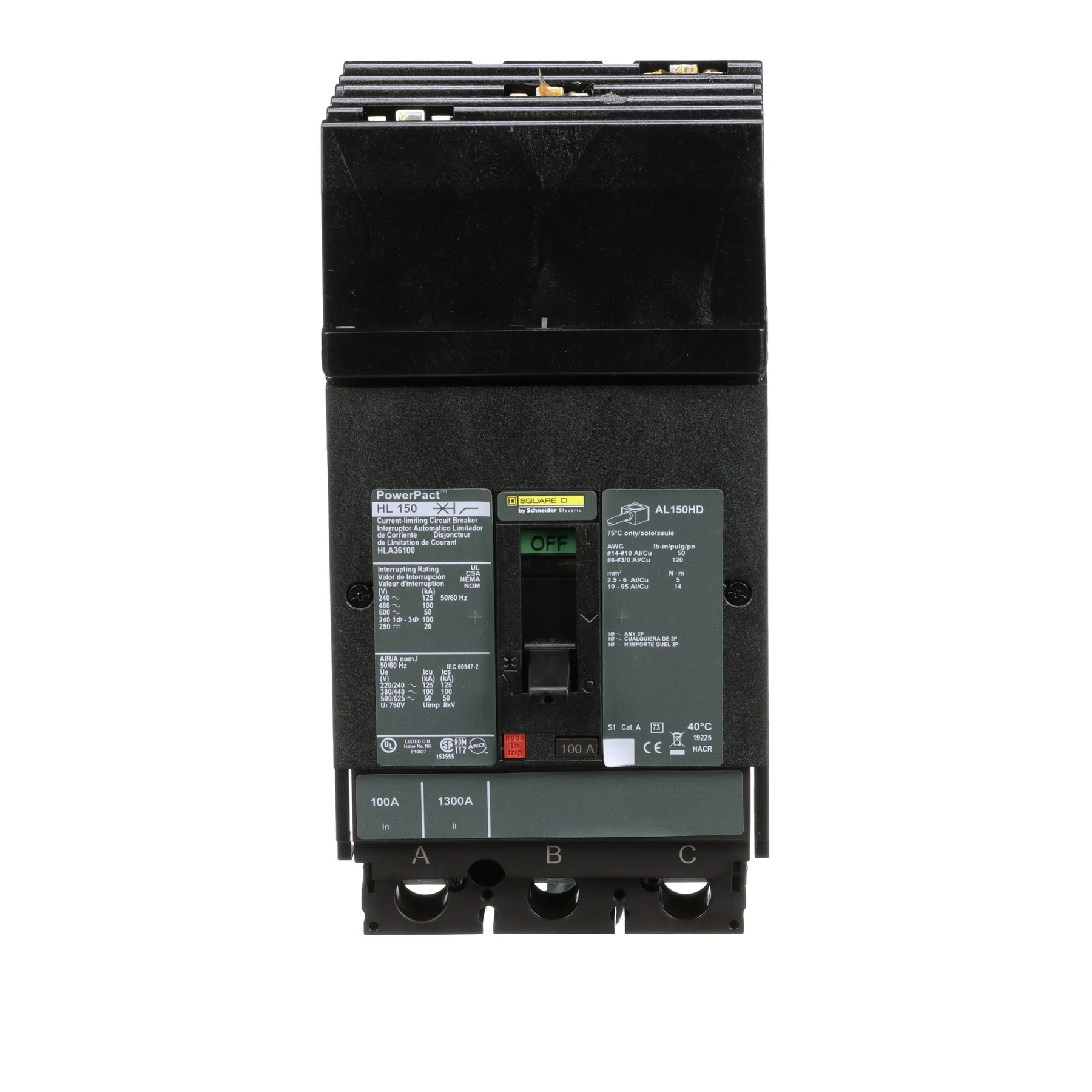

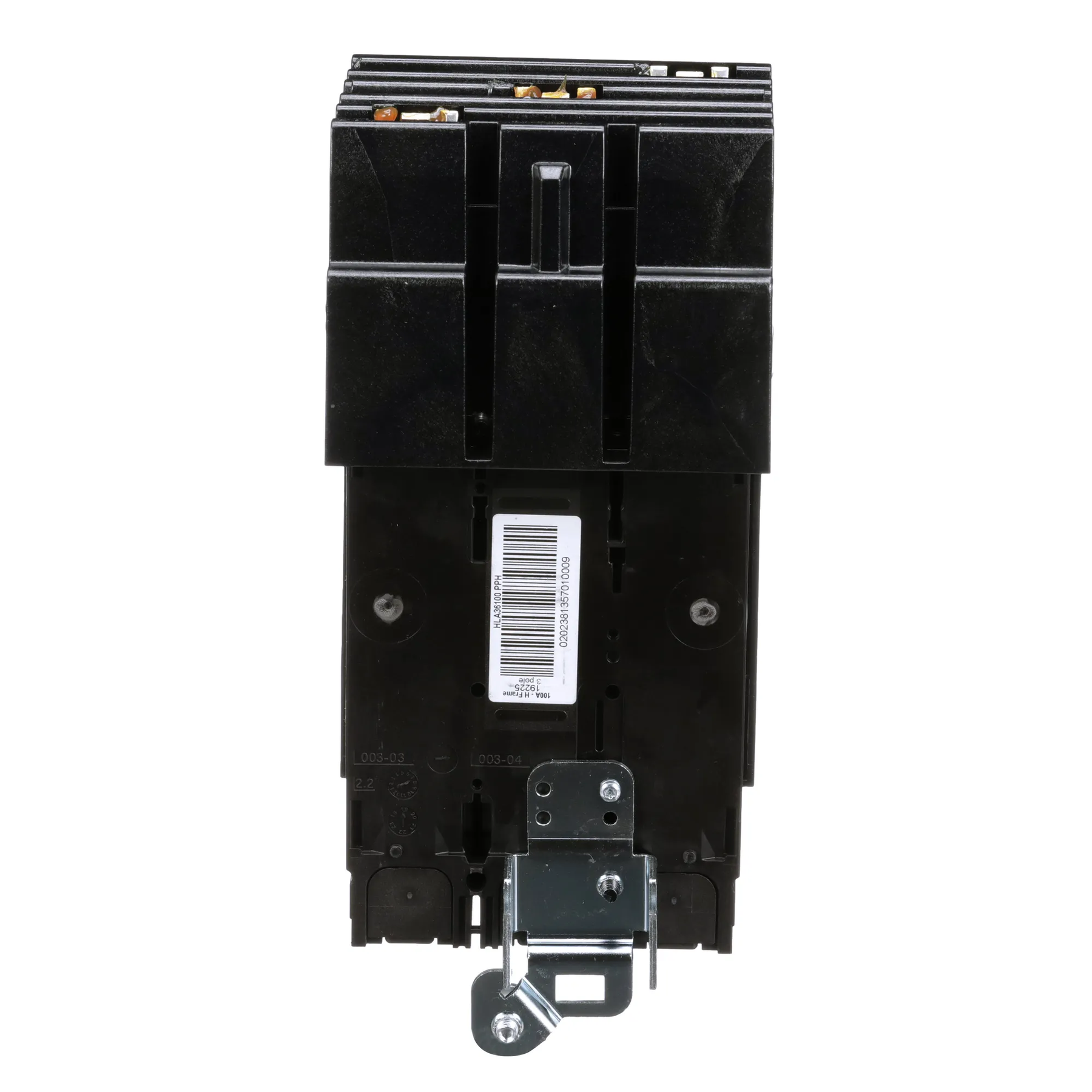

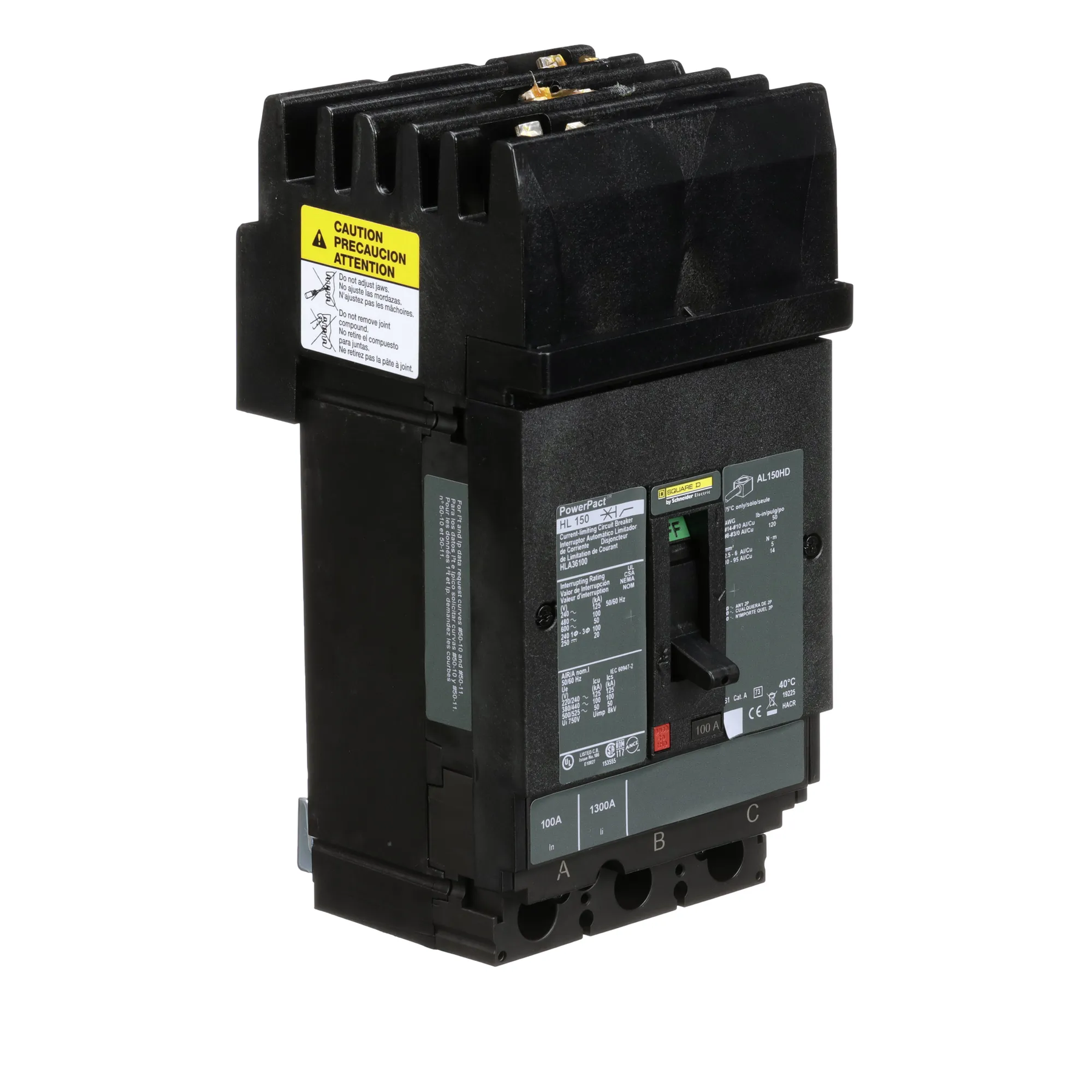

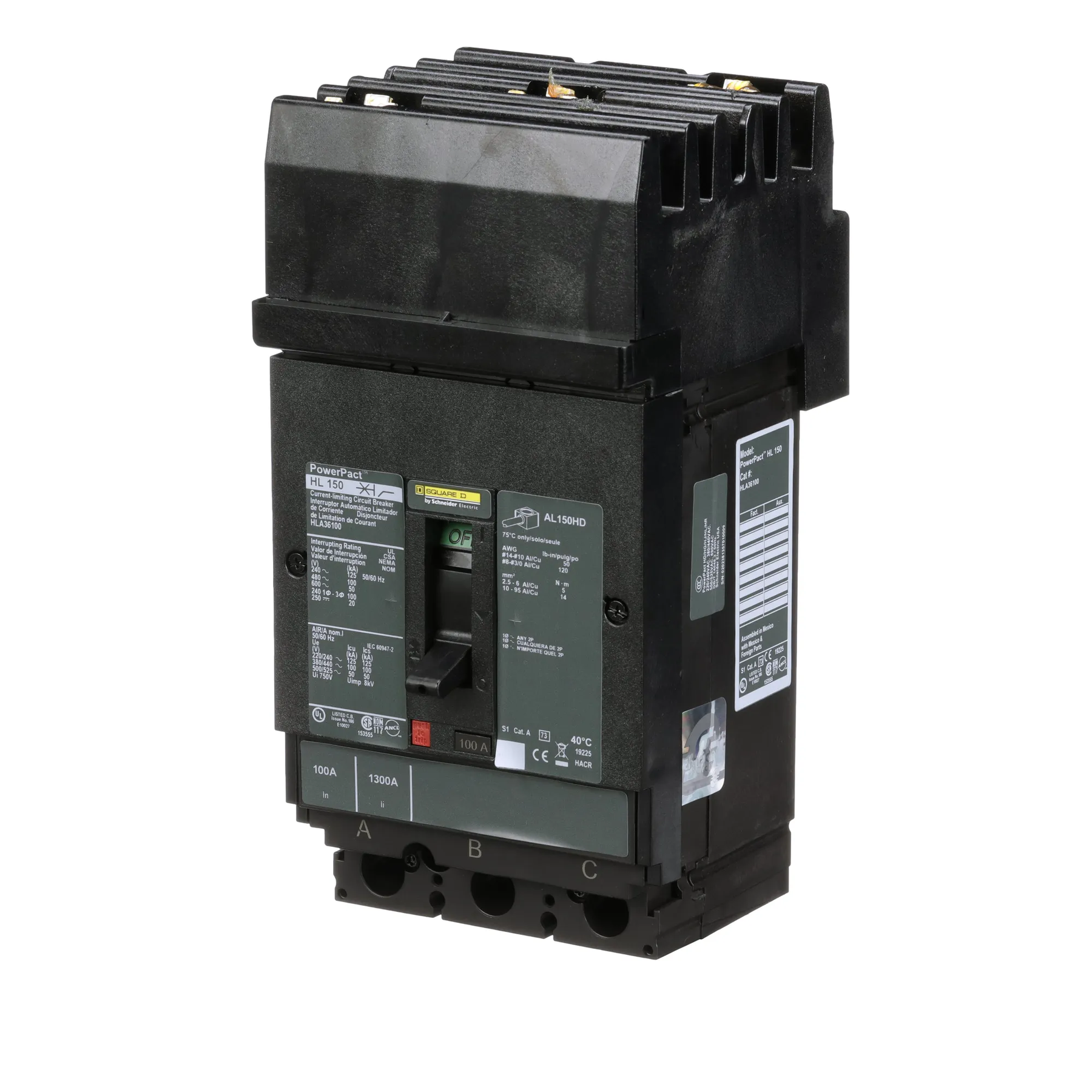

Square D HLA36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 100A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 5.351 lb. This thermal-magnetic breaker is constructed for I-Line style plug-in connection with lug terminals, compliant with UL, CSA, NEMA, and IEC 60947-2 standards for safety and interoperability. Its 100kA interrupting capacity at 480V and operational temperature range of -2 to 70 °C make it suitable for demanding three-phase applications in manufacturing, data centers, and commercial facilities.

Key Features & Specifications
  • Type: HLA Series, Molded Case, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 100A

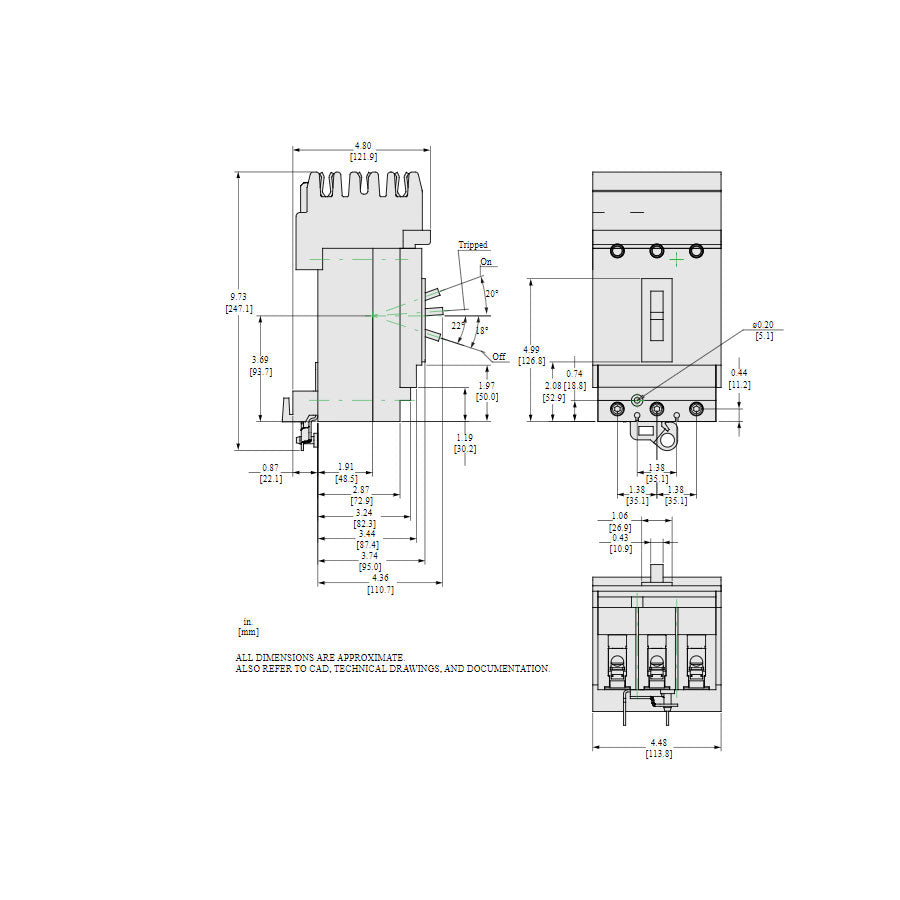

  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Phase: 3
  • AIC Rating: 100kA @ 480V
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • MCM Size: 14 AWG Min. / 3/0 AWG Max.
  • Terminal Connection: I-Line, Lug
  • Family: Powerpact
  • Country of Origin: Mexico
  • Item Subcategory: Molded Case


Product Identification
  • UPC: 785901700630
  • GTIN: 00785901700630
