Square D
Price
Save $1,113.07
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

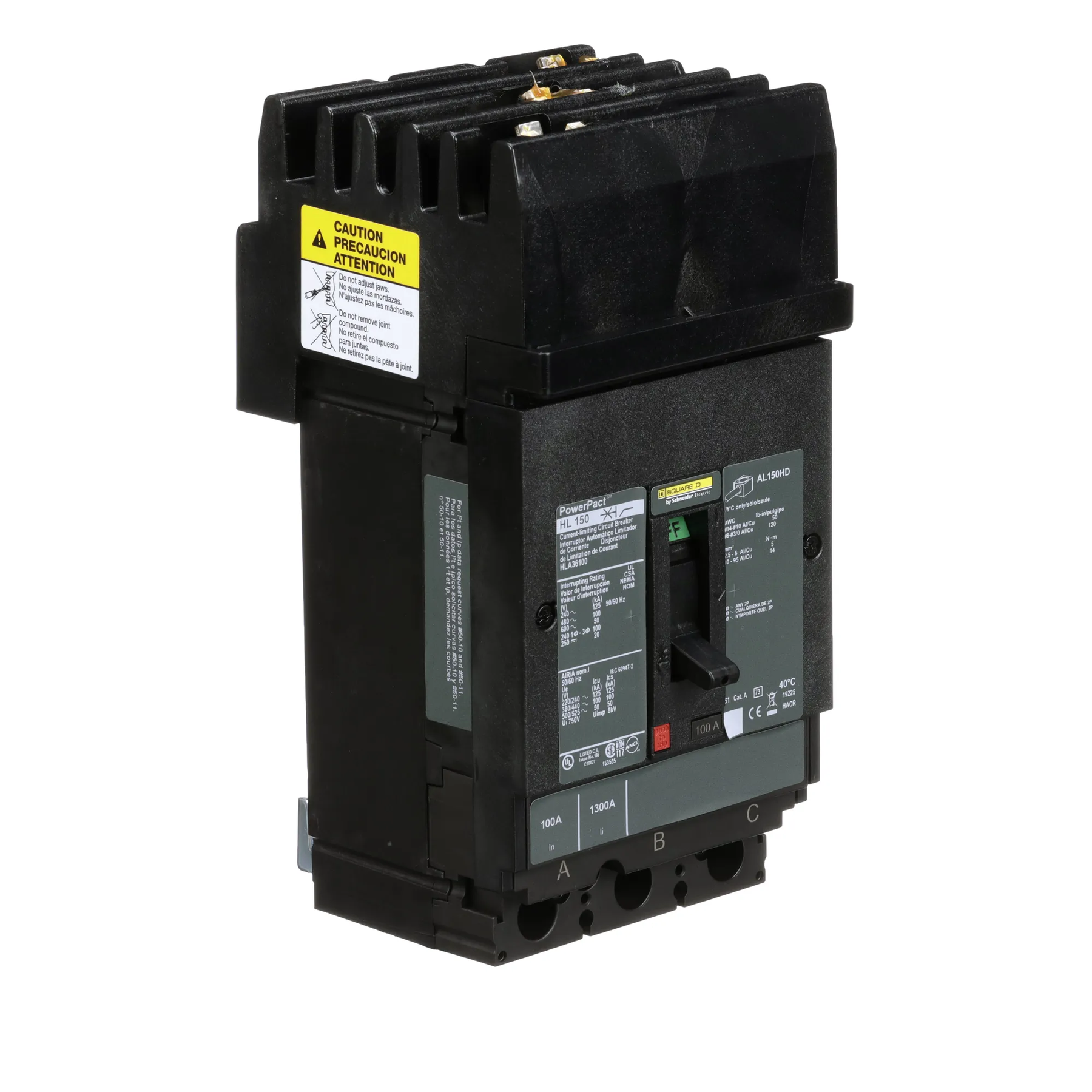

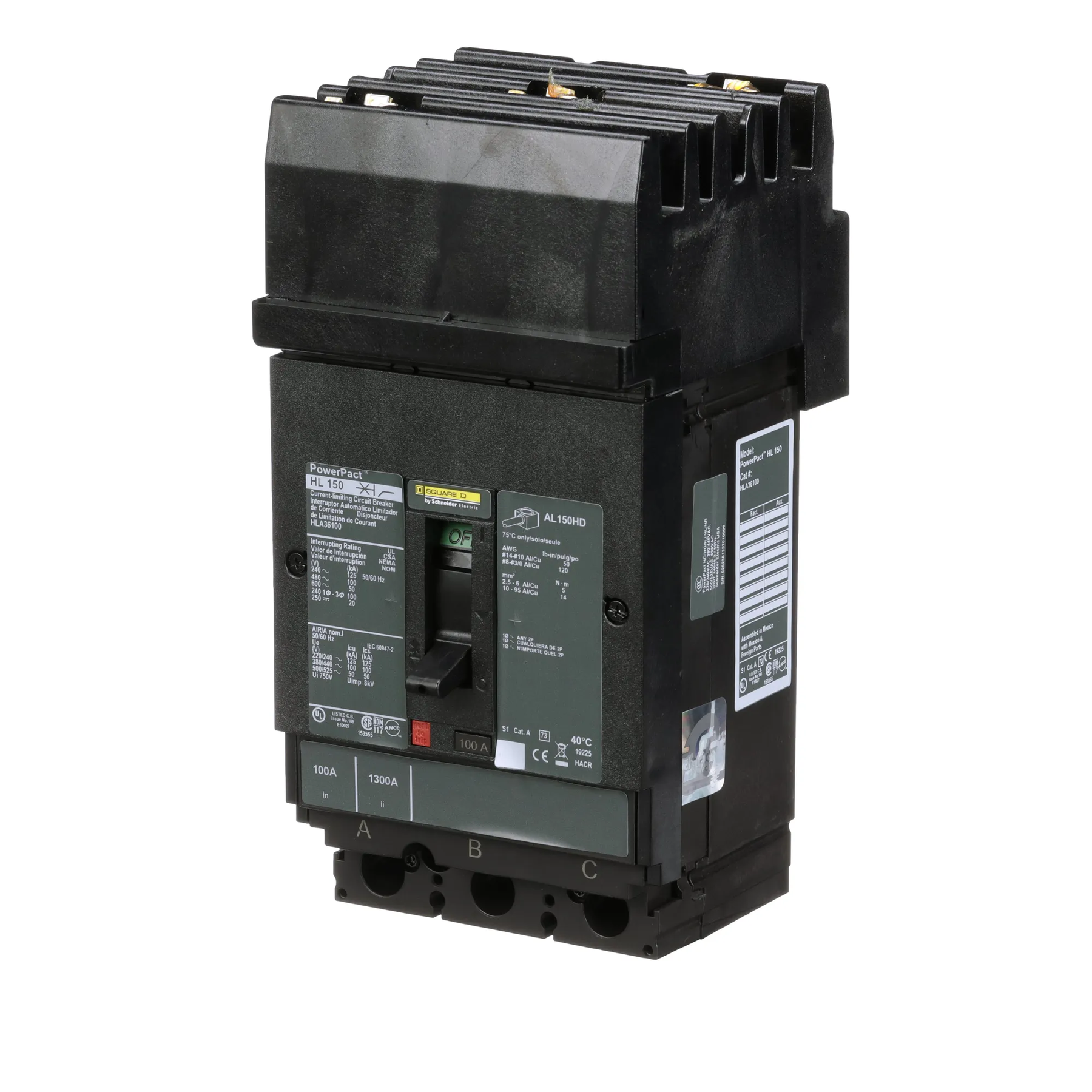

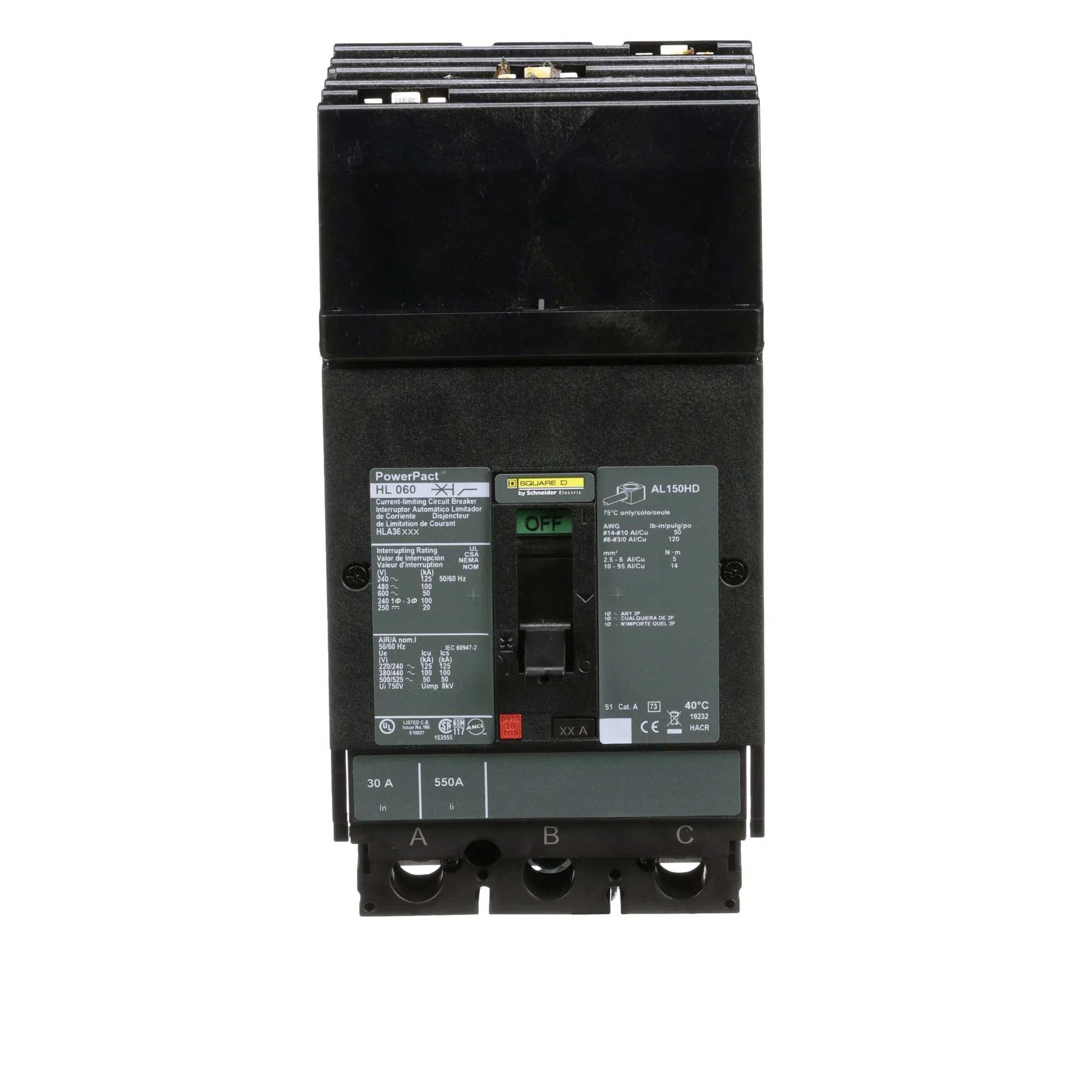

The Square D HLA36080 is a Powerpact H-frame molded case circuit breaker designed to provide reliable overcurrent and short-circuit protection for three-phase industrial power distribution systems. It features an 80A current rating and a 600V voltage rating, with a compact physical footprint of 163 mm H x 104 mm W x 86 mm D and a weight of 4 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, offers a 100kA interrupting capacity at 480V, and is designed for plug-in installation on I-Line panelboards with lug-style terminals that accept copper or aluminum conductors from 14 AWG to 3/0 AWG. It is engineered to operate in ambient temperatures from -2°C to 70°C and complies with major industry standards including UL, CSA, NEMA, and IEC 60947-2, making it suitable for a wide range of commercial and industrial applications.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Trip (LI)
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Frame Size: H
  • Poles: 3
  • AIC Rating: 100kA @ 480V AC

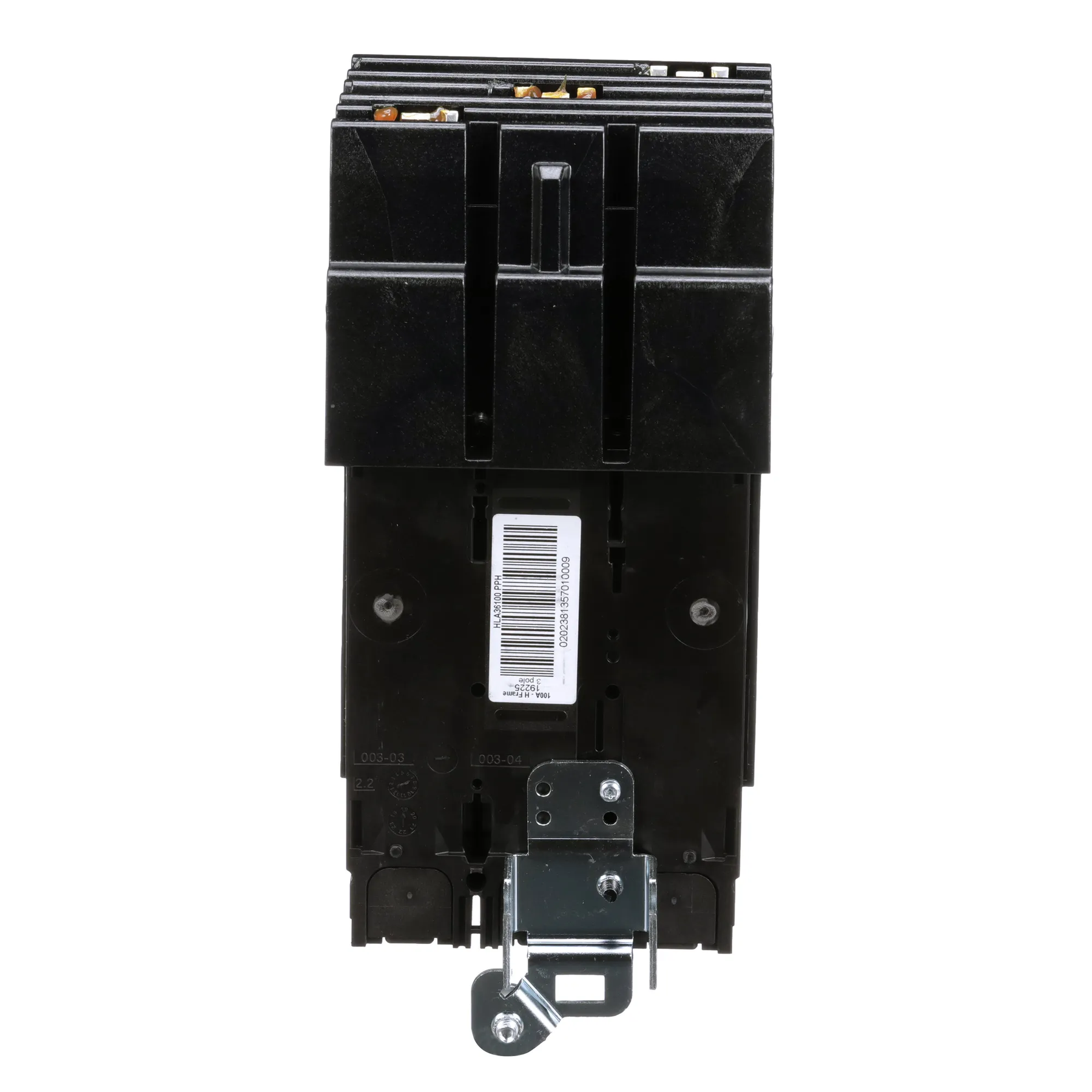

  • Connection: I-Line Style Plug-In, Lug Terminal
  • Wire Size Range: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Operating Temperature: -2°C to 70°C (28°F to 158°F)
  • Phase Connection: 3-Phase (ABC)
  • Protection Functions: Long-Time & Instantaneous Overcurrent
  • Standards & Certification: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2

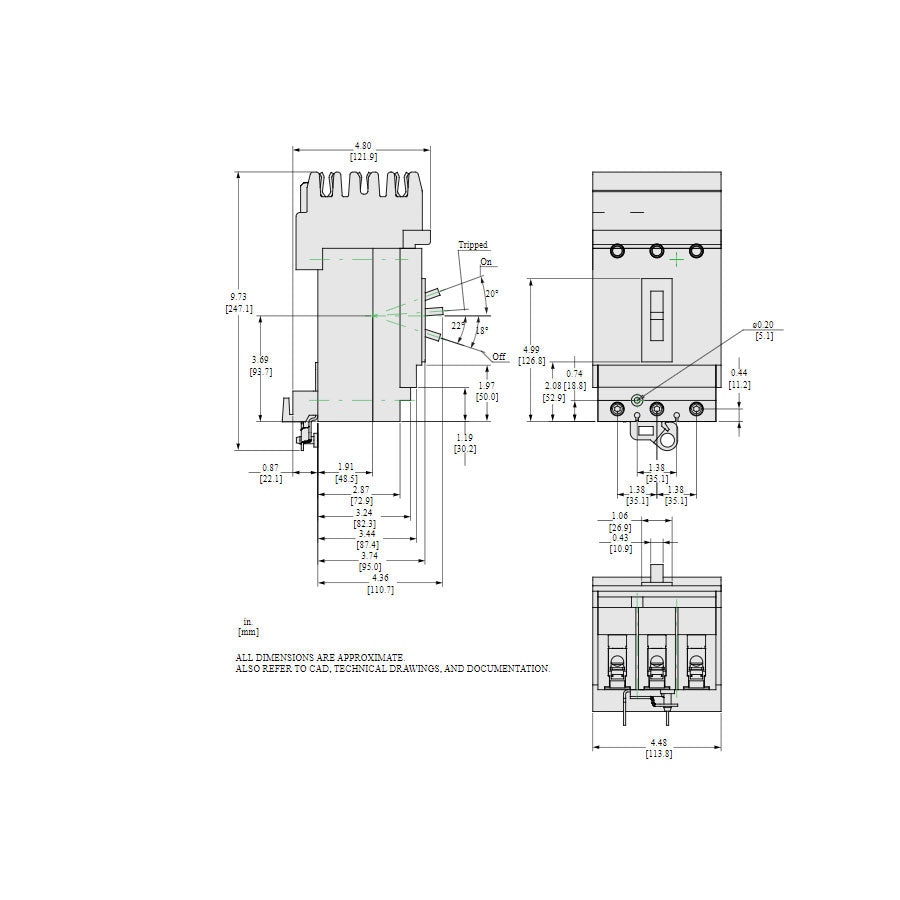

  • Dimensions (H x W x D): 163 mm x 104 mm x 86 mm (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4 lb (1.81 kg)


Product Identification
  • UPC: 785901700609
  • GTIN: 00785901700609
