Square D HLA36060 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 60A current rating and a 600V AC voltage rating, housed within a compact H-frame construction measuring 163 mm high by 104 mm wide by 86 mm deep and weighing 5.45 lb. The breaker complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is engineered for a wide operating temperature range of -25 to 70 °C. Its typical applications include protecting feeders and branch circuits in commercial and industrial panelboards and switchboards.

Key Features & Specifications
  • Type: HLA Series, Thermal Magnetic Protection, Molded Case, I-Line Style Plug-In Connection
  • Voltage Rating: 600V AC
  • Current Rating: 60A

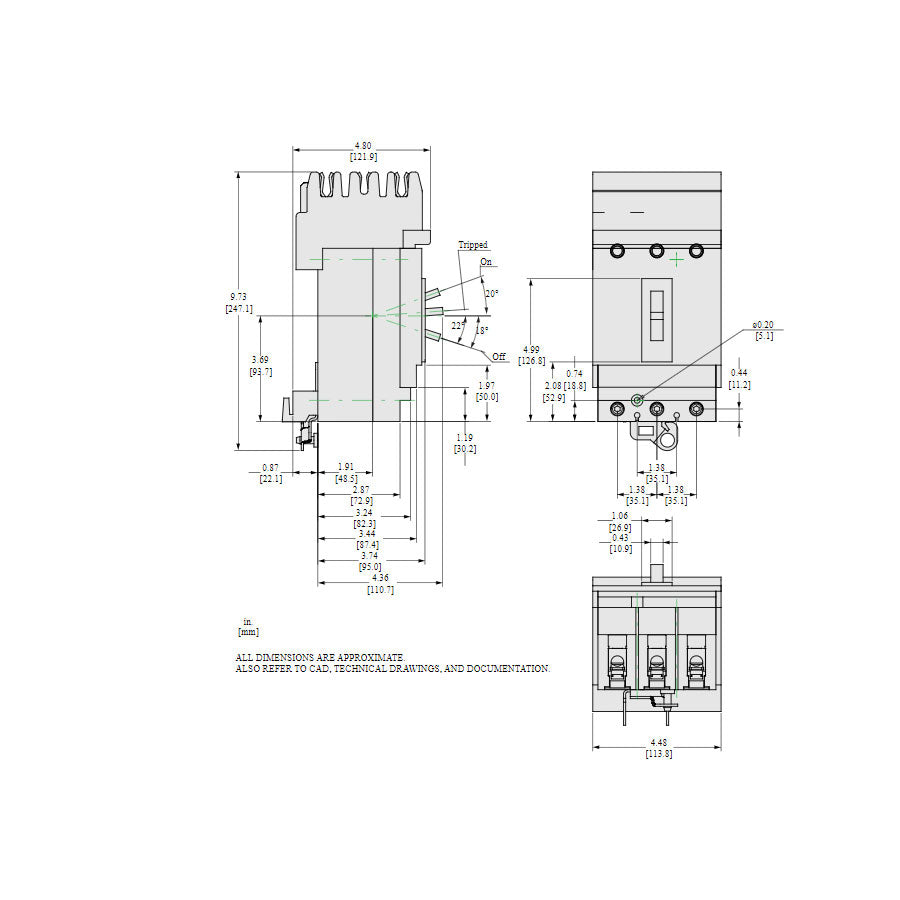

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Feeder and Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 100kA at 480V
  • Connection: I-Line, Lug
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous (LI) Trip
  • Frame Size: H
  • Breaker Type: Molded Case
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Copper/Aluminum)
  • Wire Size: AWG 14 to AWG 3/0
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • Terminal Connection: I-Line, Lug
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901700586
  • GTIN: 00785901700586
