Square D
Price
Save $1,122.12
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

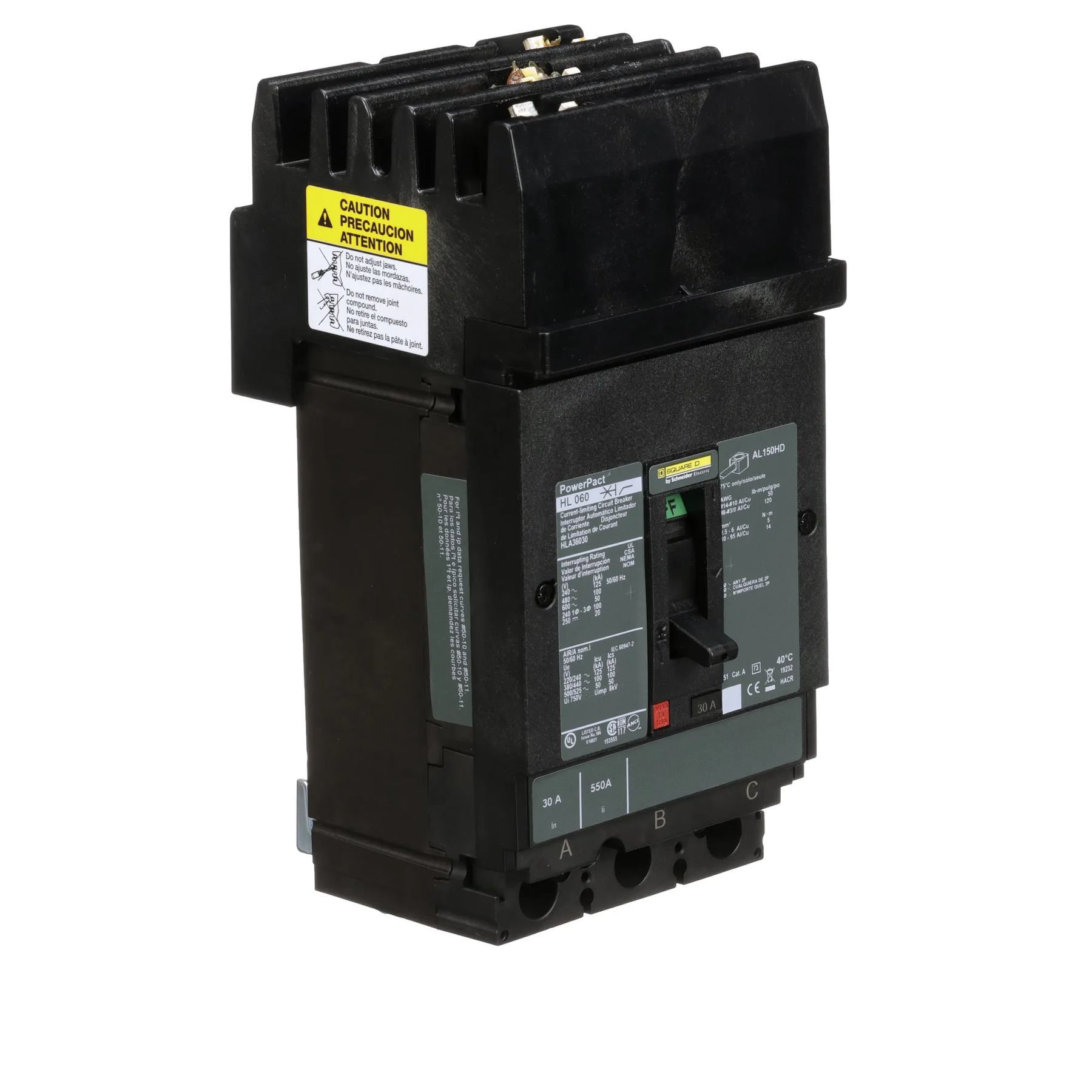

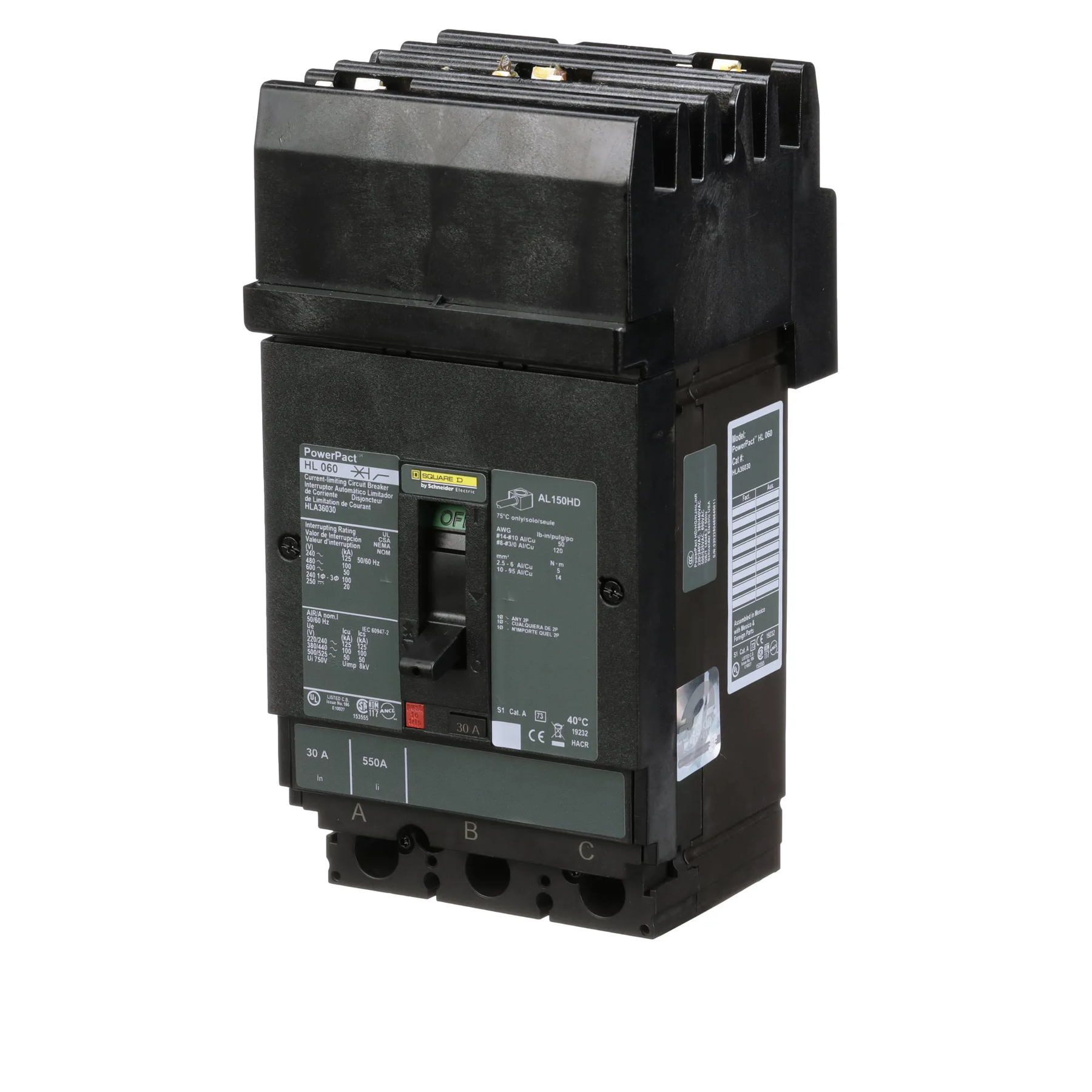

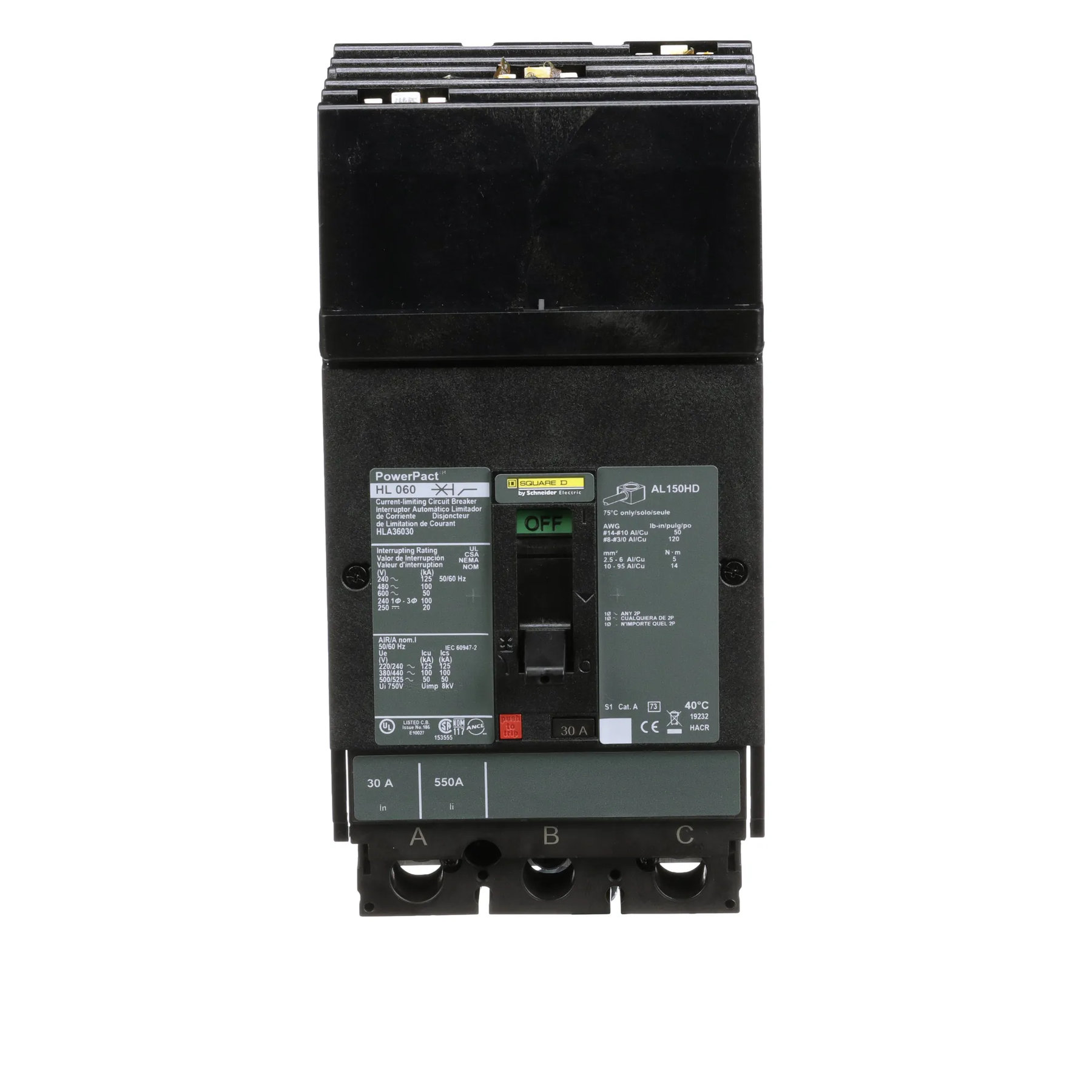

Square D HLA36030 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 30A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5.45 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, offers a 100kA interrupting capacity at 480V, and is certified to UL, CSA, NOM, and IEC 60947-2 standards. Its I-Line style plug-in connection and compatibility with AWG 14 to 3/0 conductors facilitate installation in a wide range of industrial and commercial applications, operating reliably in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: HLA Series Molded Case Circuit Breaker with Thermal-Magnetic Protection
  • Voltage Rating: 600V AC
  • Current Rating: 30A
  • Frame Size: H Frame
  • Poles: 3
  • Phase: 3
  • AIC Rating: 100kA @ 480V AC

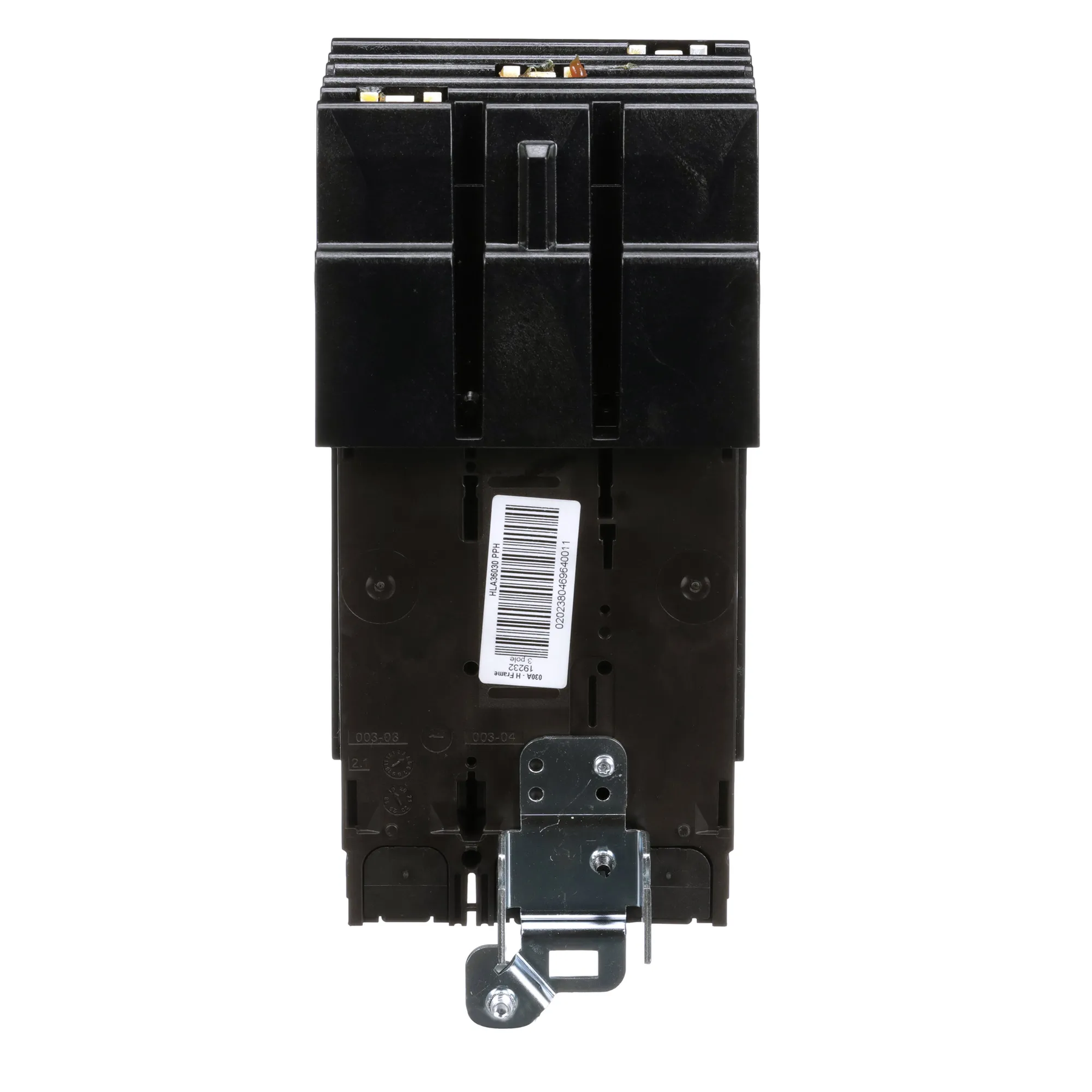

  • Connection: I-Line Style Plug-In
  • Protection Functions: Long-Time and Instantaneous Trip (LI)
  • Trip Type: Thermal Magnetic
  • Wire Size: AWG 14 to AWG 3/0 (Aluminium/Copper Terminal)
  • Standards & Certification: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)

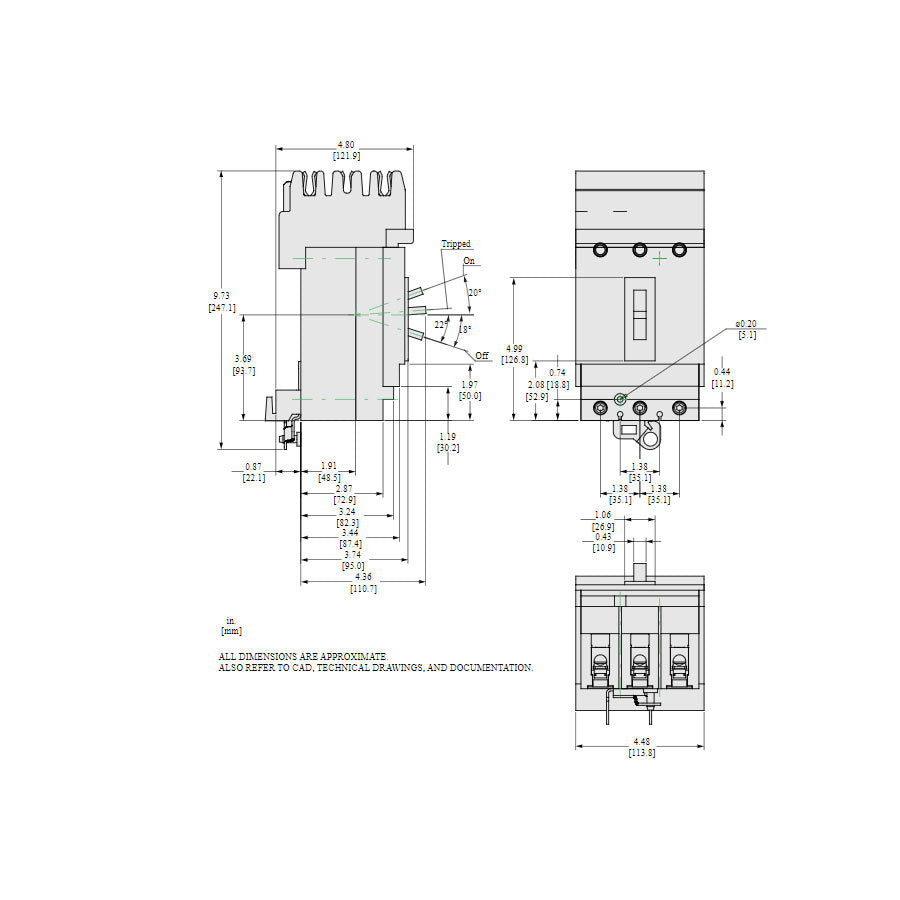

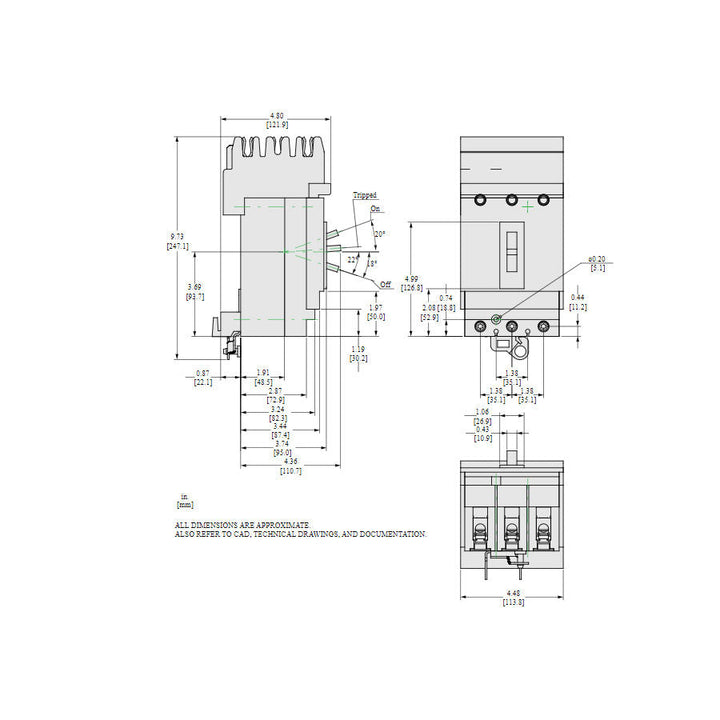

  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 5.45 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901507307
  • GTIN: 00785901507307
