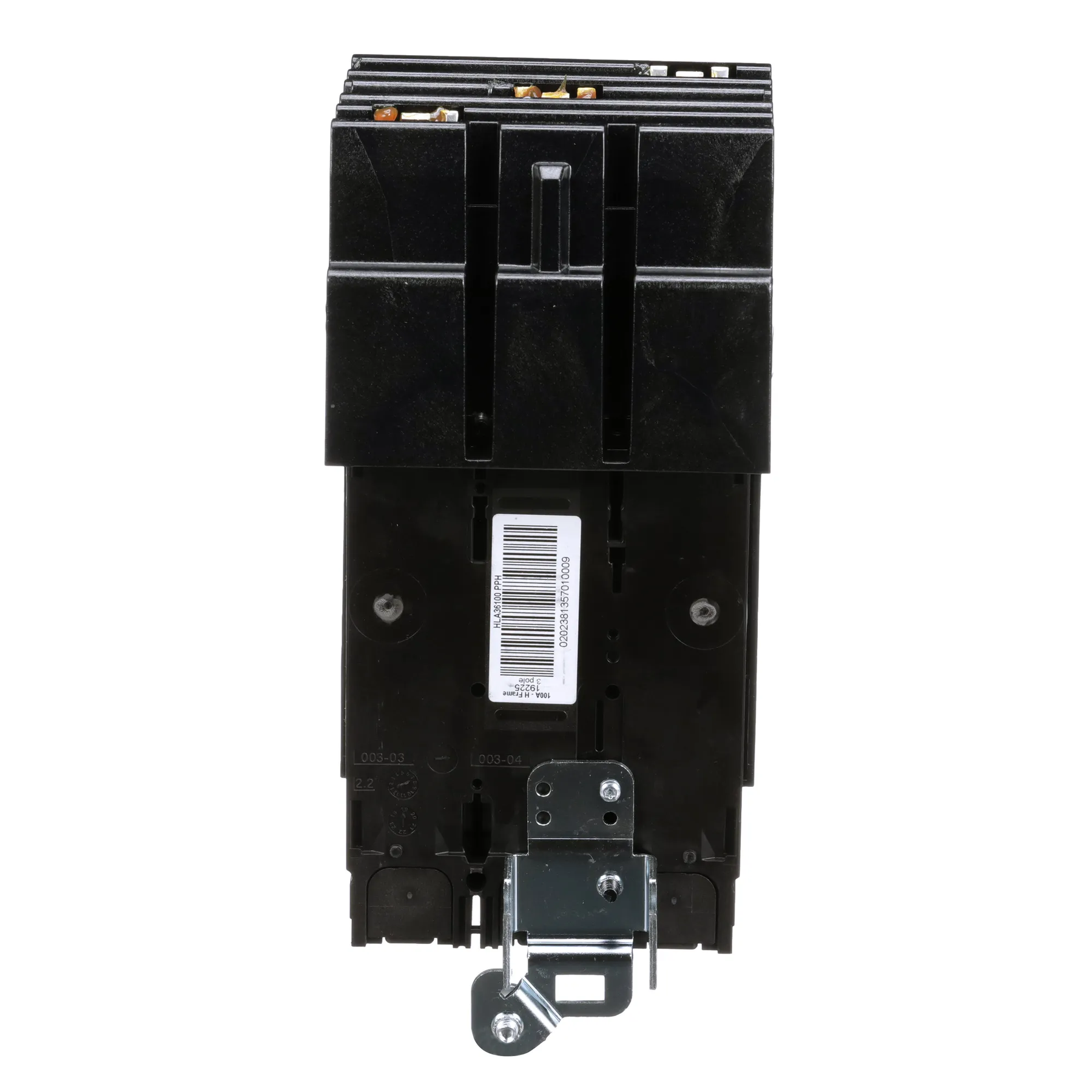

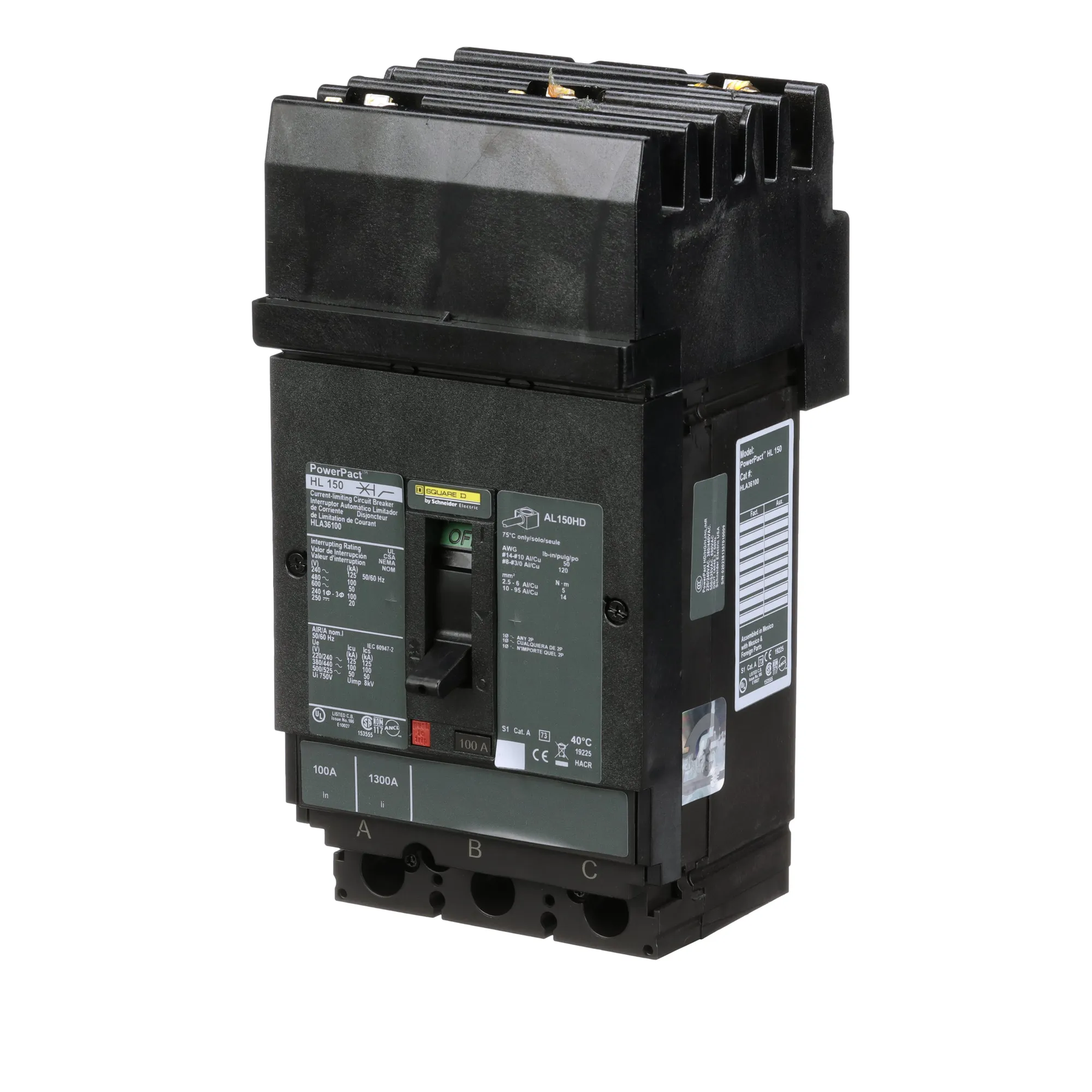

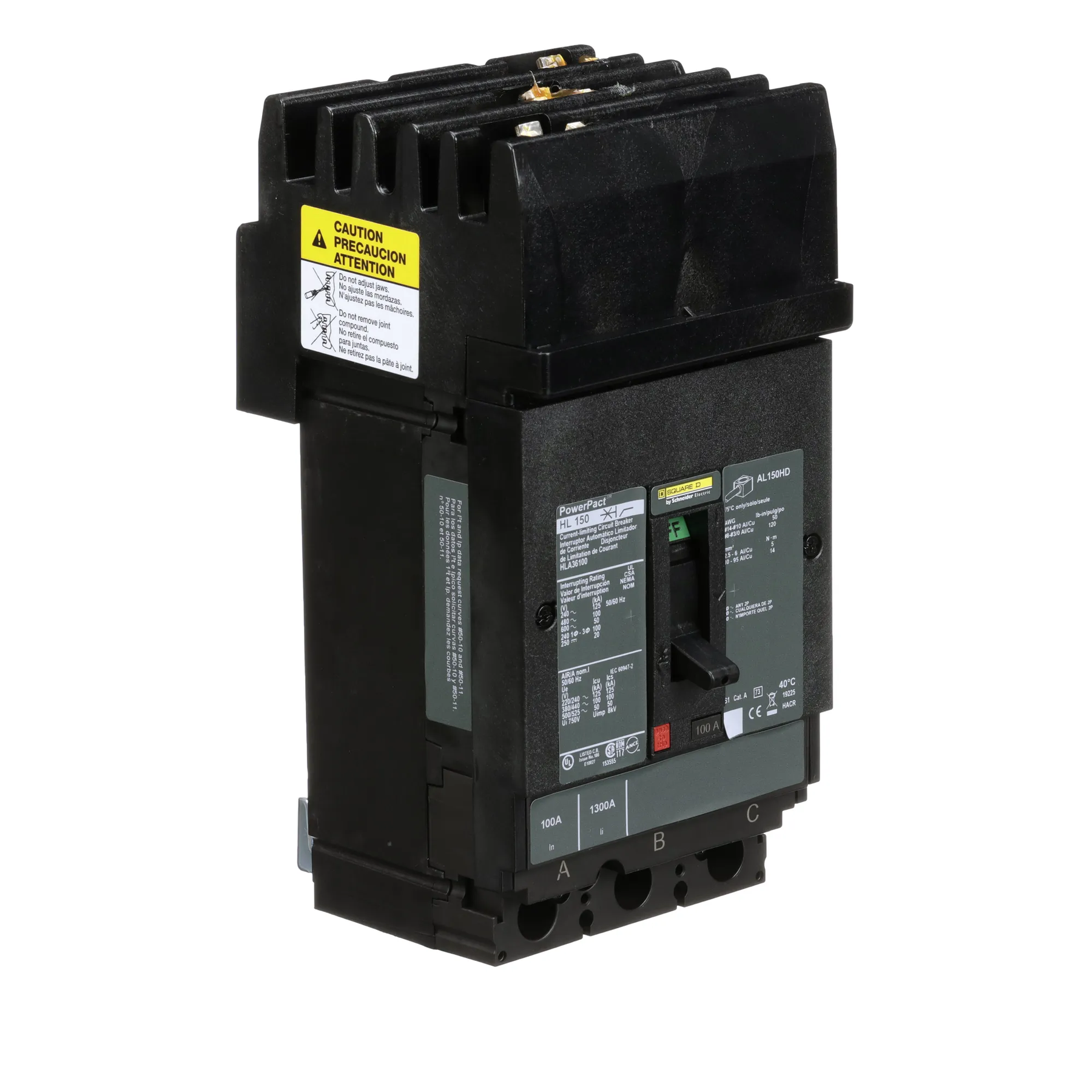

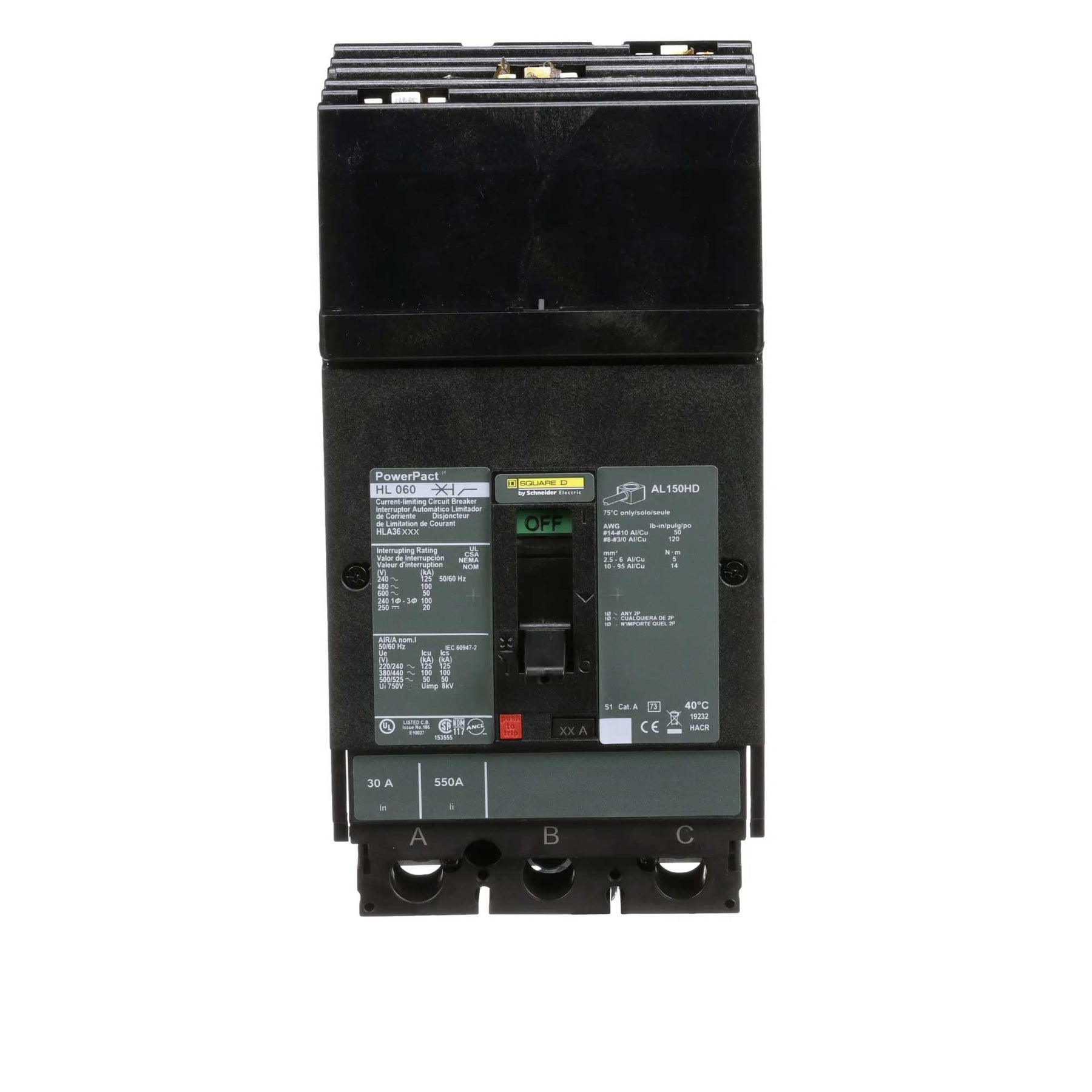

Square D HLA36015 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 15A current rating and a 600V voltage rating, with a compact physical footprint of 163 mm H x 104 mm W x 86 mm D and a weight of 5.351 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection and complies with UL, CSA, NEMA, and IEC 60947-2 standards. Its I-Line style plug-in connection and H-frame design make it suitable for integration into panelboards and switchboards for commercial and industrial applications.

Key Features & Specifications
  • Type: HLA Series, Molded Case, Thermal-Magnetic Protection, I-Line Plug-In
  • Voltage Rating: 600V AC
  • Current Rating: 15A

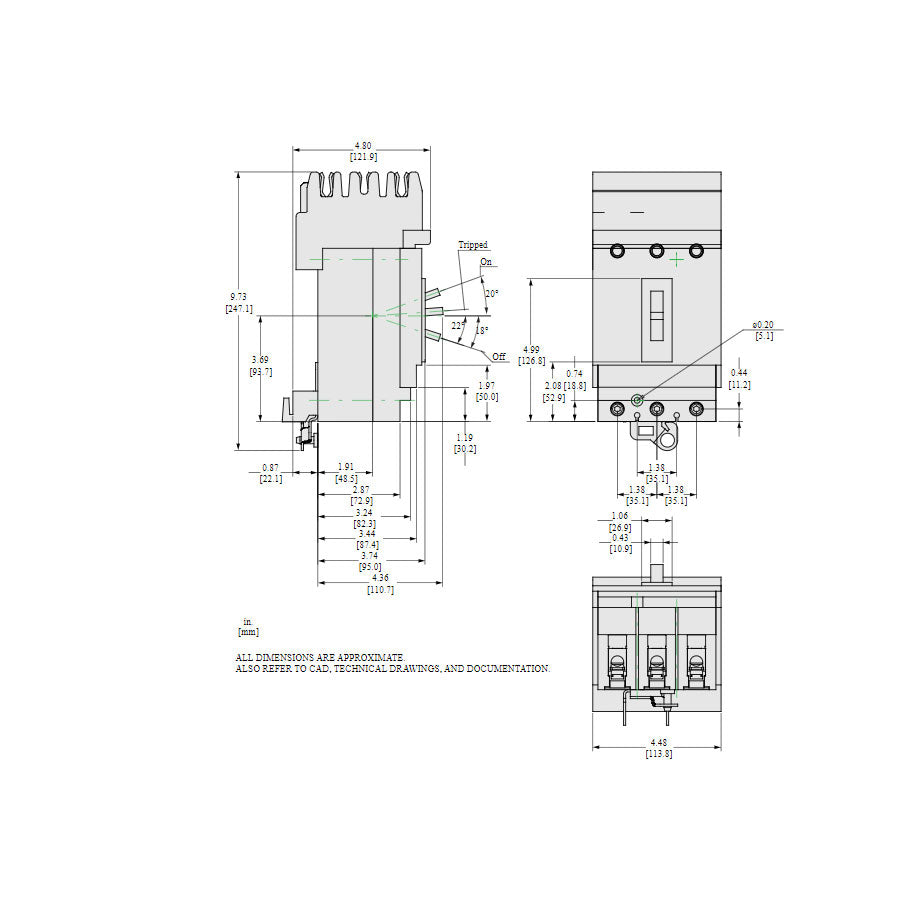

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 100kA @ 480V
  • Connection: I-Line Style Plug-In, Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Phase Connection: ABC
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Mounting: Plug-In
  • Manufacturer: Schneider Electric
  • Family: Powerpact
  • Country of Origin: Mexico
  • Weight: 5.351 lb


Product Identification
  • UPC: 785901700647
  • GTIN: 00785901700647
