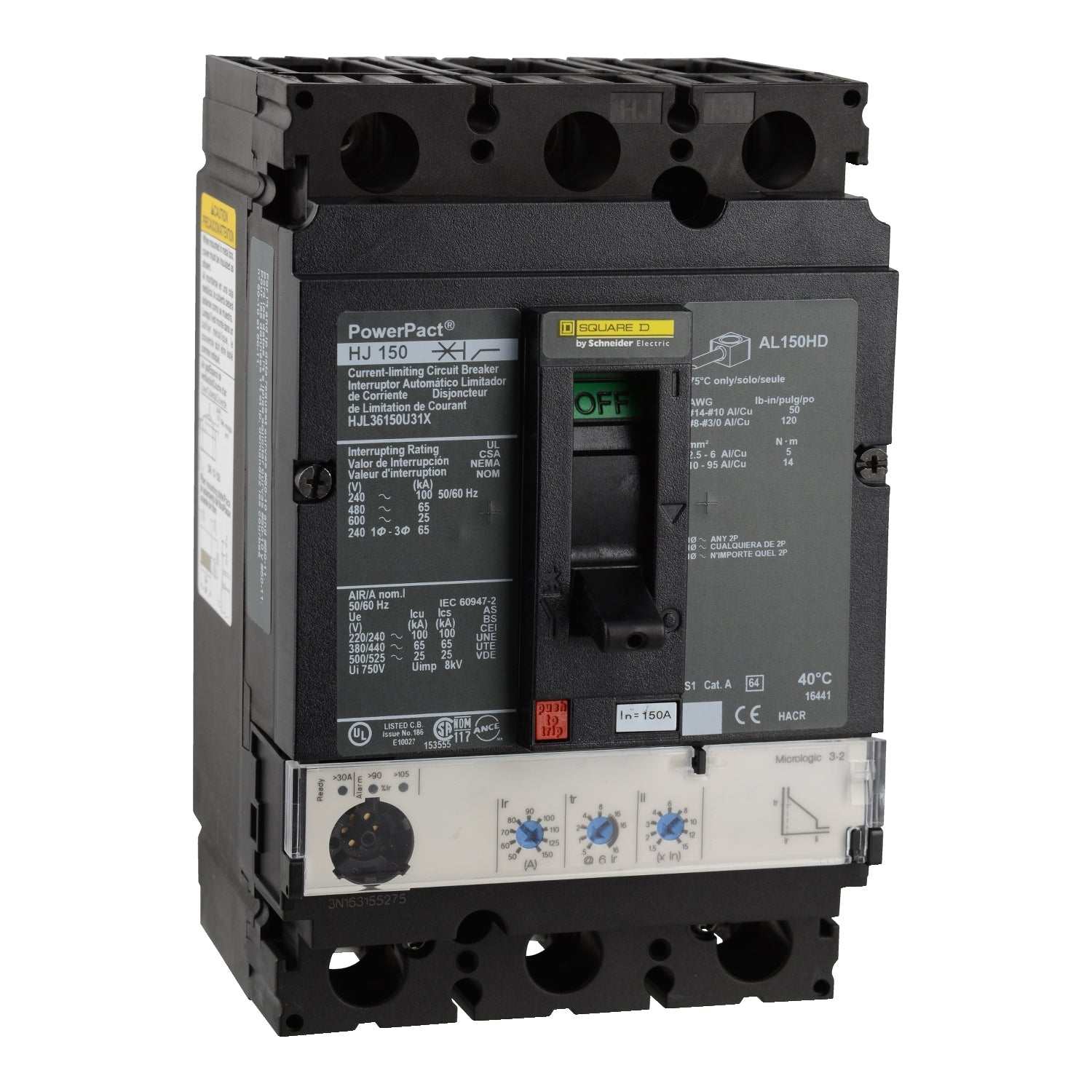

Schneider Electric HJL36150U31X is a molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features a 150A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 5.8 lb. This solid-state protection device offers long-time and instantaneous (LI) trip functions with a 65kA interrupting capacity at 480V, and it is constructed for feed-thru connection with lug terminals compatible with wire sizes from 14 AWG to 3/0 AWG. The breaker complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and operates reliably across a temperature range of -25°C to 70°C, making it suitable for panelboards, switchboards, and industrial control equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Solid State Protection, LI (Long-Time & Instantaneous) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 150A

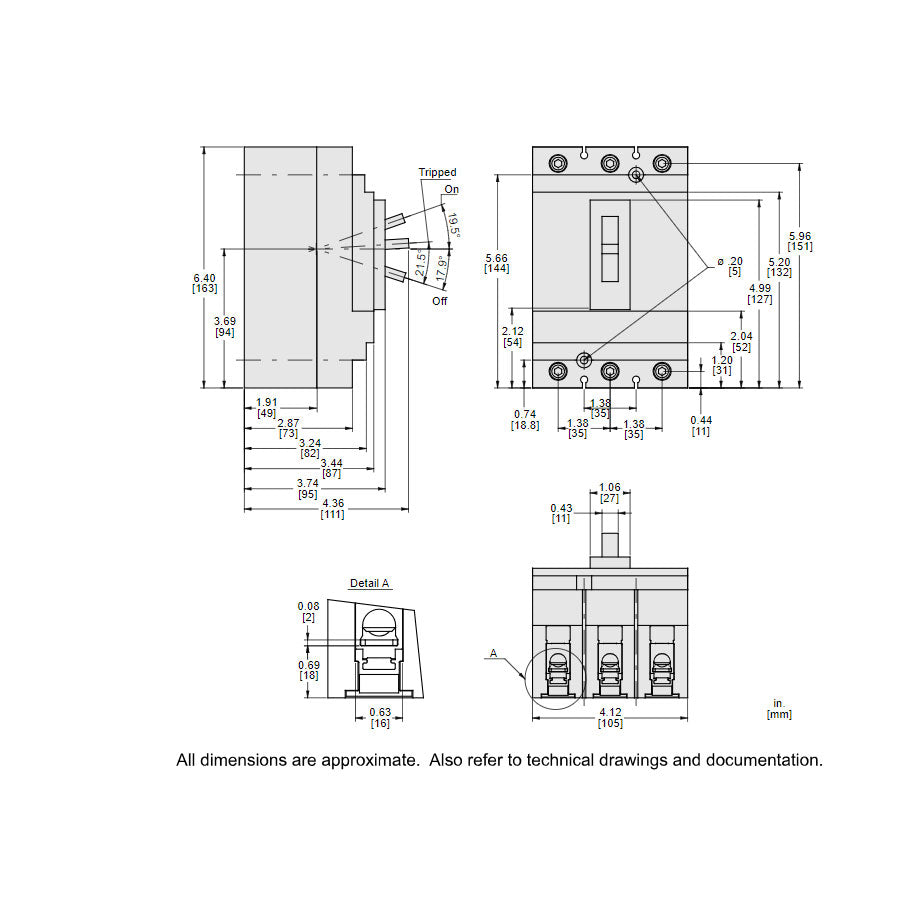

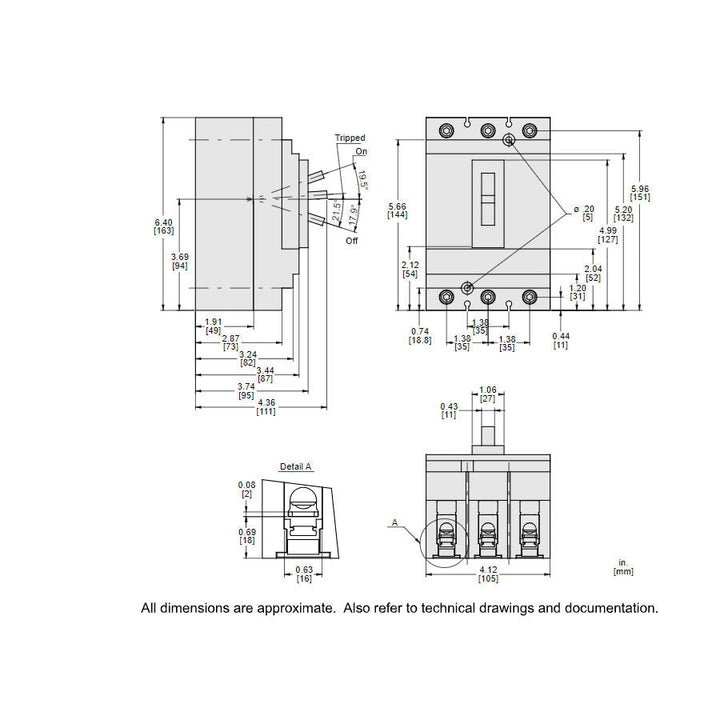

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Feed-Thru
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Connection: Lug Terminal
  • Poles: 3
  • Protection: Solid State
  • Functions: Long-Time, Instantaneous
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Aluminium/Copper)
  • Certification: UL, CSA, NOM
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG
  • Terminal Connection: Lug
  • Country of Origin: United States
  • Family: Powerpact
  • Item Subcategory: Molded Case


Product Identification
  • UPC: 785901276289
  • GTIN: 00785901276289
