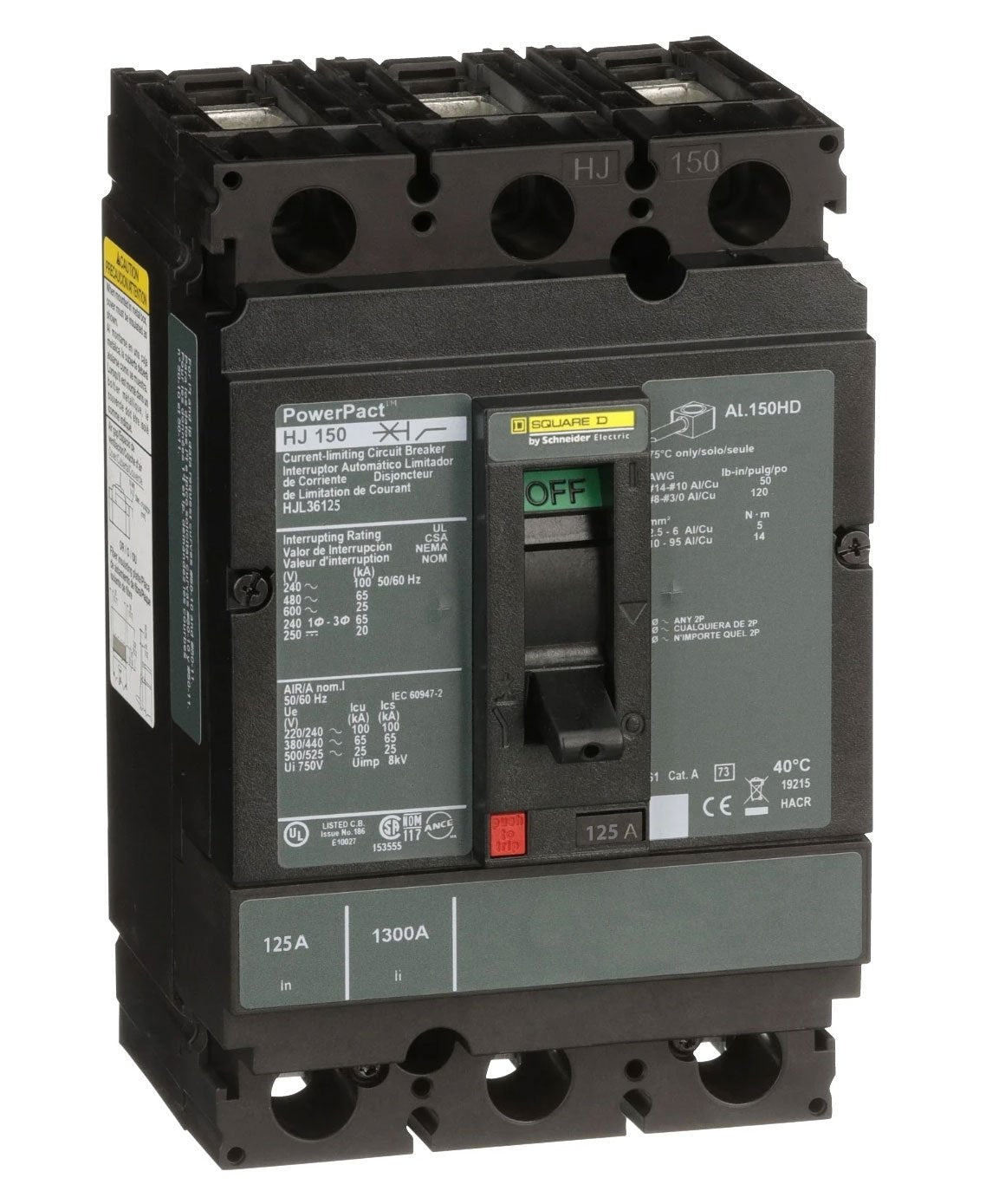

Square D HJL36125 - Molded Case Circuit Breaker, 125A 600V 3P
Square D HJL36125 - Molded Case Circuit Breaker, 125A 600V 3P

Square D HJL36125 - Molded Case Circuit Breaker, 125A 600V 3P

Square D
Price
Save $3,981.11
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HJL36125 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 125A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.081 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection and is constructed with lug terminals compatible with copper or aluminum conductors from 14 AWG to 3/0 AWG. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for an interrupting capacity of 65kA at 480V AC, making it suitable for use in industrial panels, switchgear, and motor control centers operating within a temperature range of -25 to 70 °C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Feed-Thru Connection
  • Voltage Rating: 600V AC
  • Current Rating: 125A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Weight: 4.081 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Motor Control Centers, Switchgear
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • AIC Rating: 65kA @ 480V AC
  • Connection: Lug Terminal
  • Poles: 3
  • Protection: Thermal-Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: H
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Terminal Connection: Lug
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901955795
  • GTIN: 00785901955795
