Square D
Price
Save $301.31
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

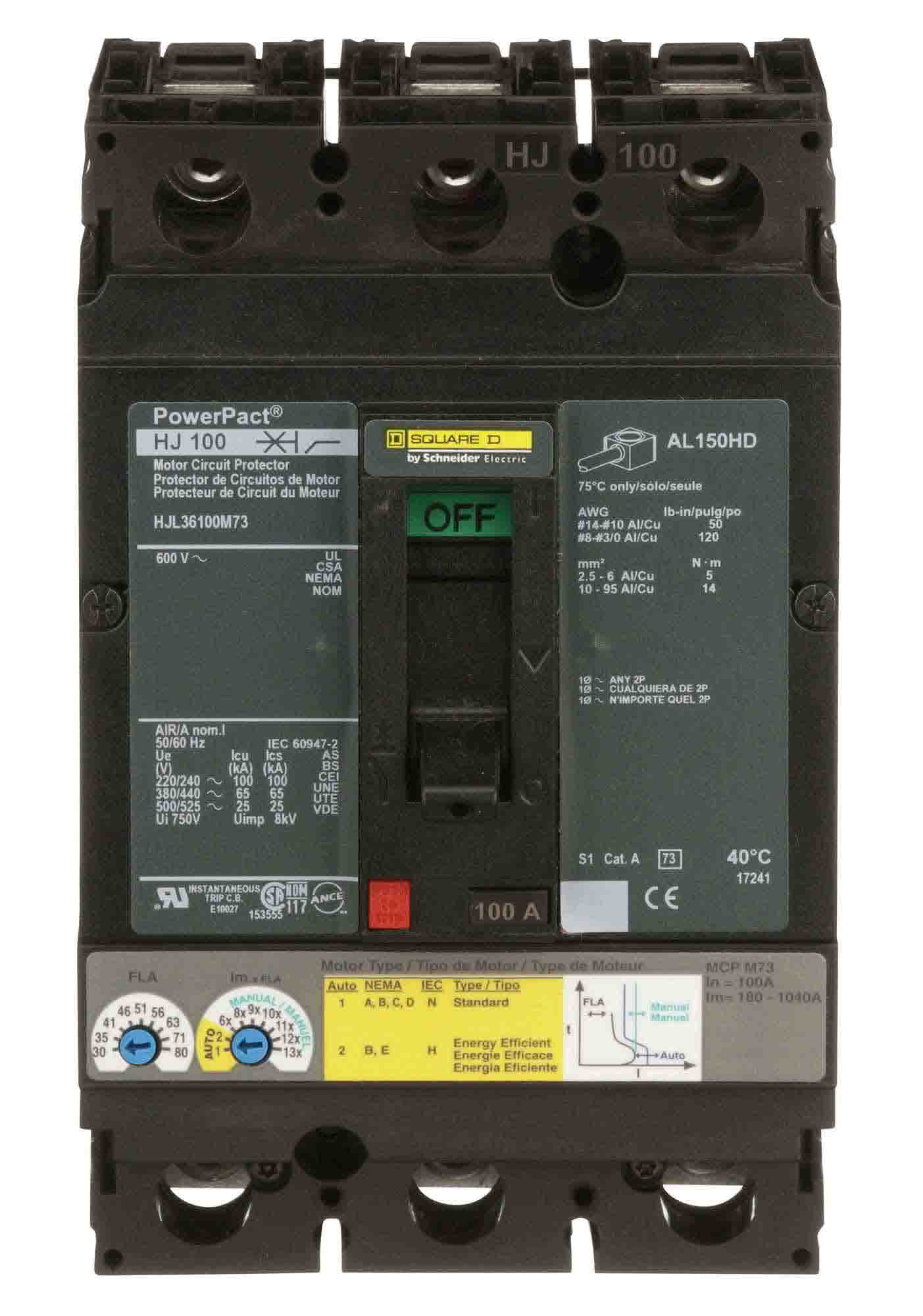

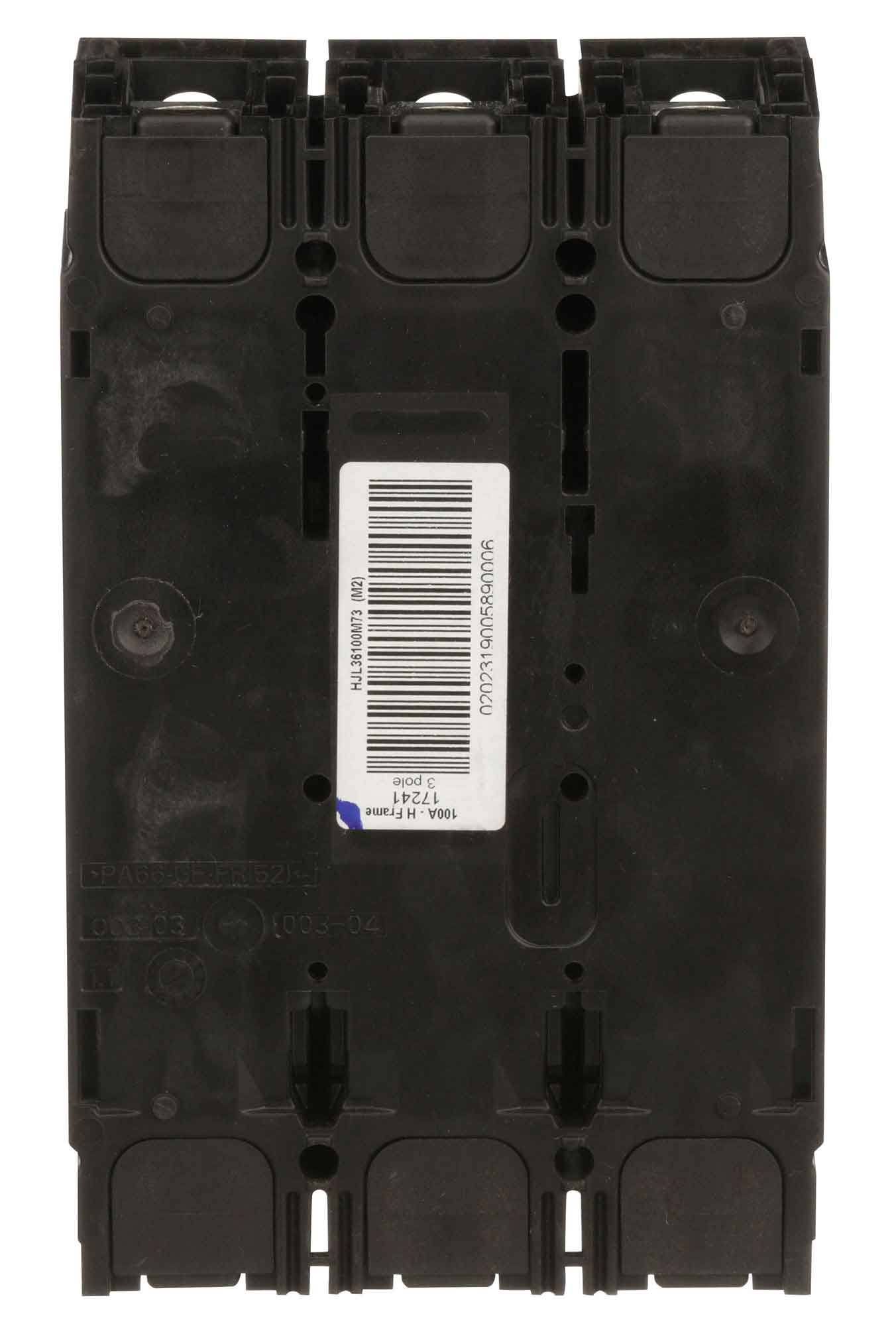

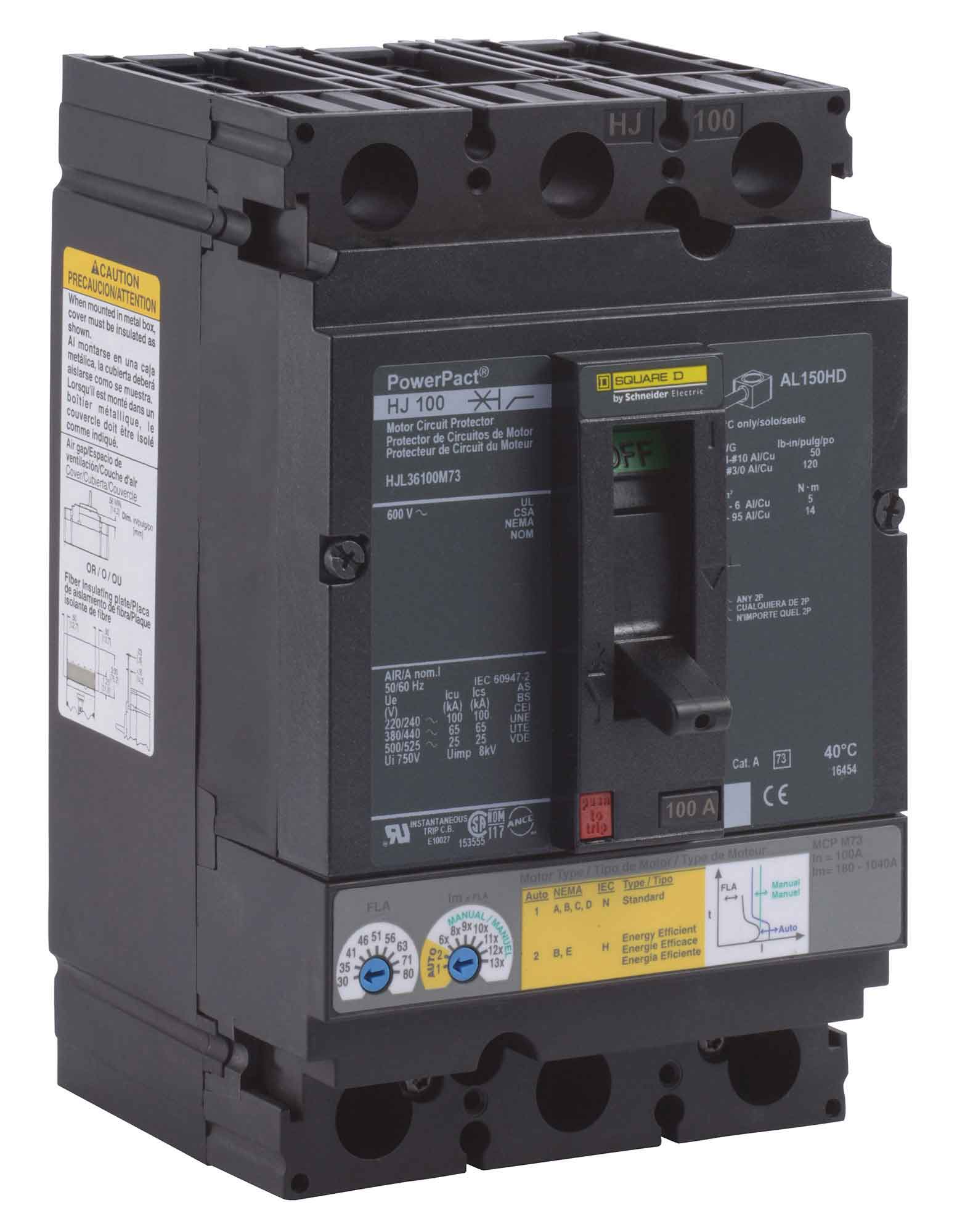

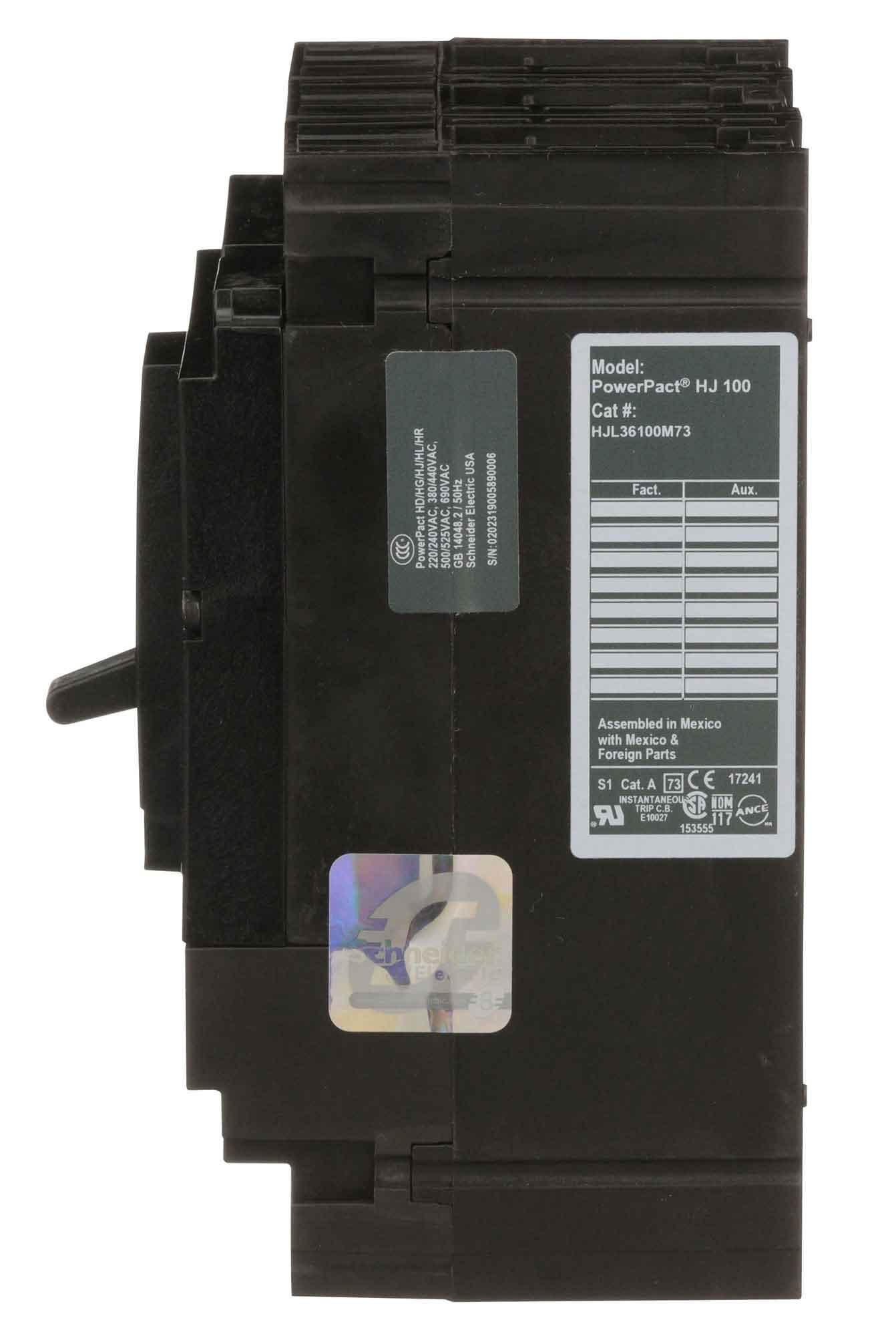

Square D HJL36100M73 is a molded case circuit breaker designed for providing magnetic-only instantaneous protection against short-circuit faults in three-phase industrial power distribution systems. It features a 100A current rating and a 690V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.32 lb. This feed-thru connection breaker is constructed for reliable operation in ambient temperatures from -2°C to 70°C and complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards. Its 65kA interrupting capacity at 480V and compatibility with AWG 14 to 3/0 conductors make it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Magnetic-Only (Instantaneous) Protection, H Frame
  • Voltage Rating: 690V AC
  • Current Rating: 100A
  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Feeder & Branch Circuit Protection
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Poles: 3
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Connection: Feed-Thru
  • Protection: Magnetic Only
  • Functions: I - Instantaneous
  • Frame Size: H Frame
  • Trip Type: Magnetic
  • Breaker Type: Molded Case
  • Temp Rating: 28-158 °F (-2-70 °C)
  • Wire Size: AWG 14...AWG 3/0 aluminium/copper terminal
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901647706
  • GTIN: 00785901647706
