Square D
Price
Save $775
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

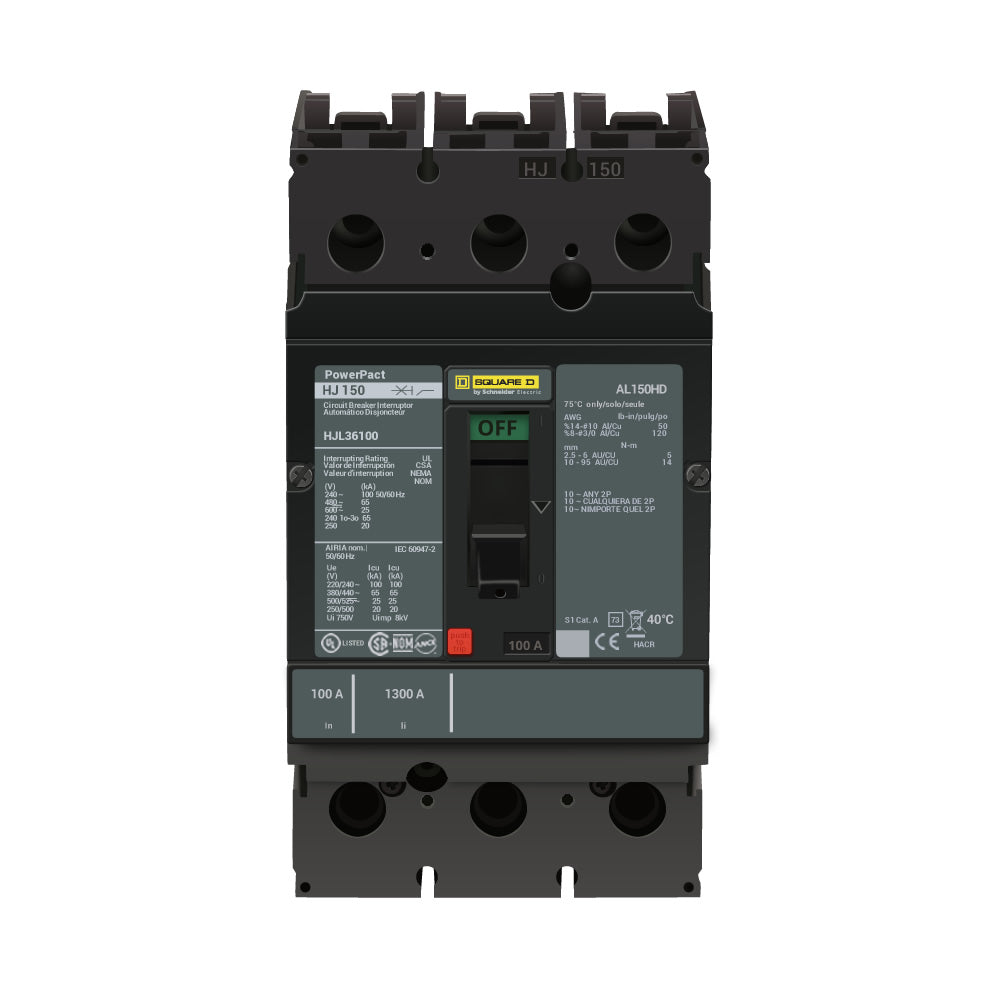

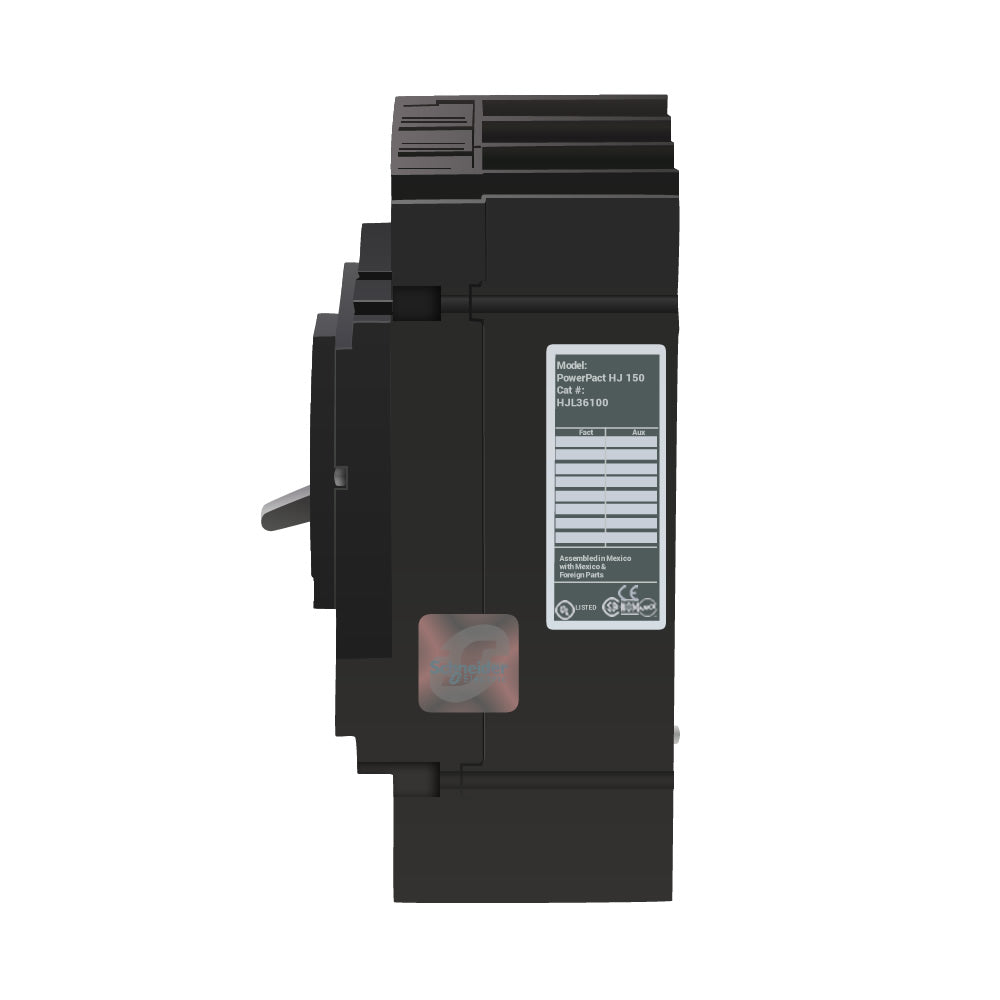

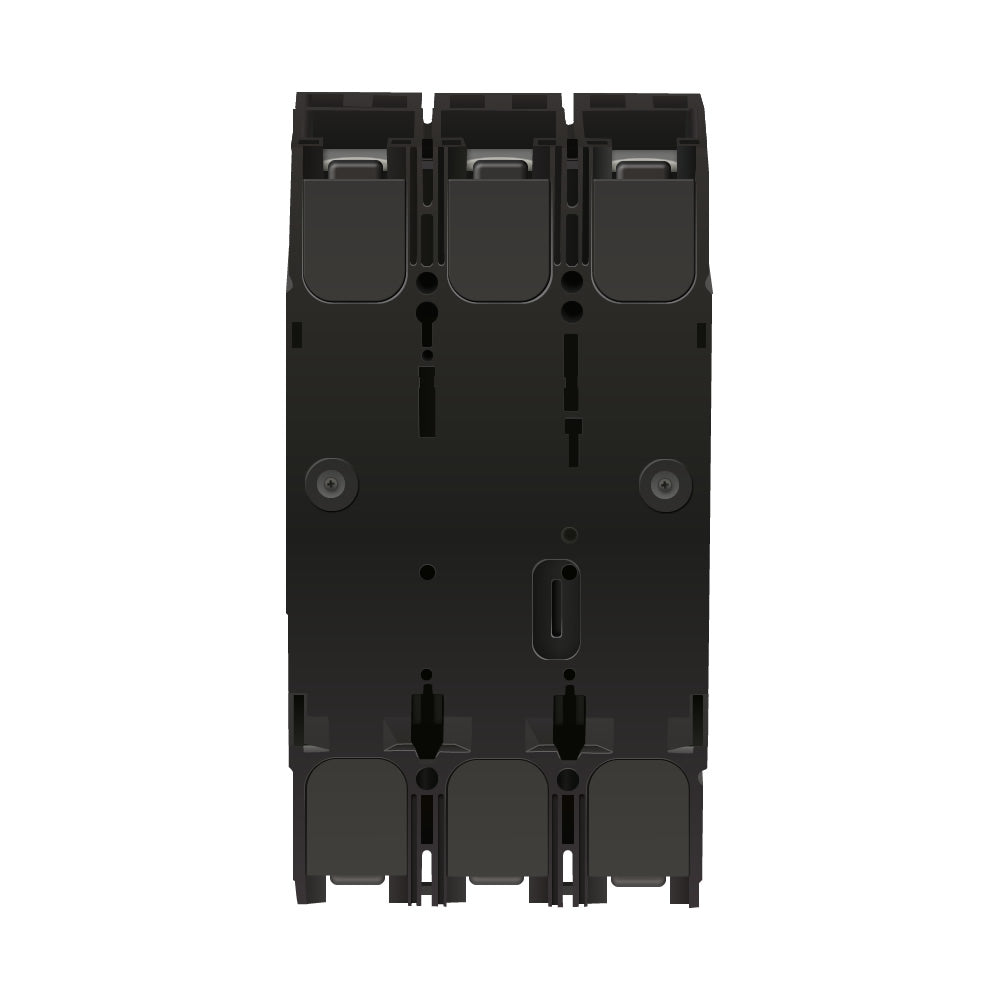

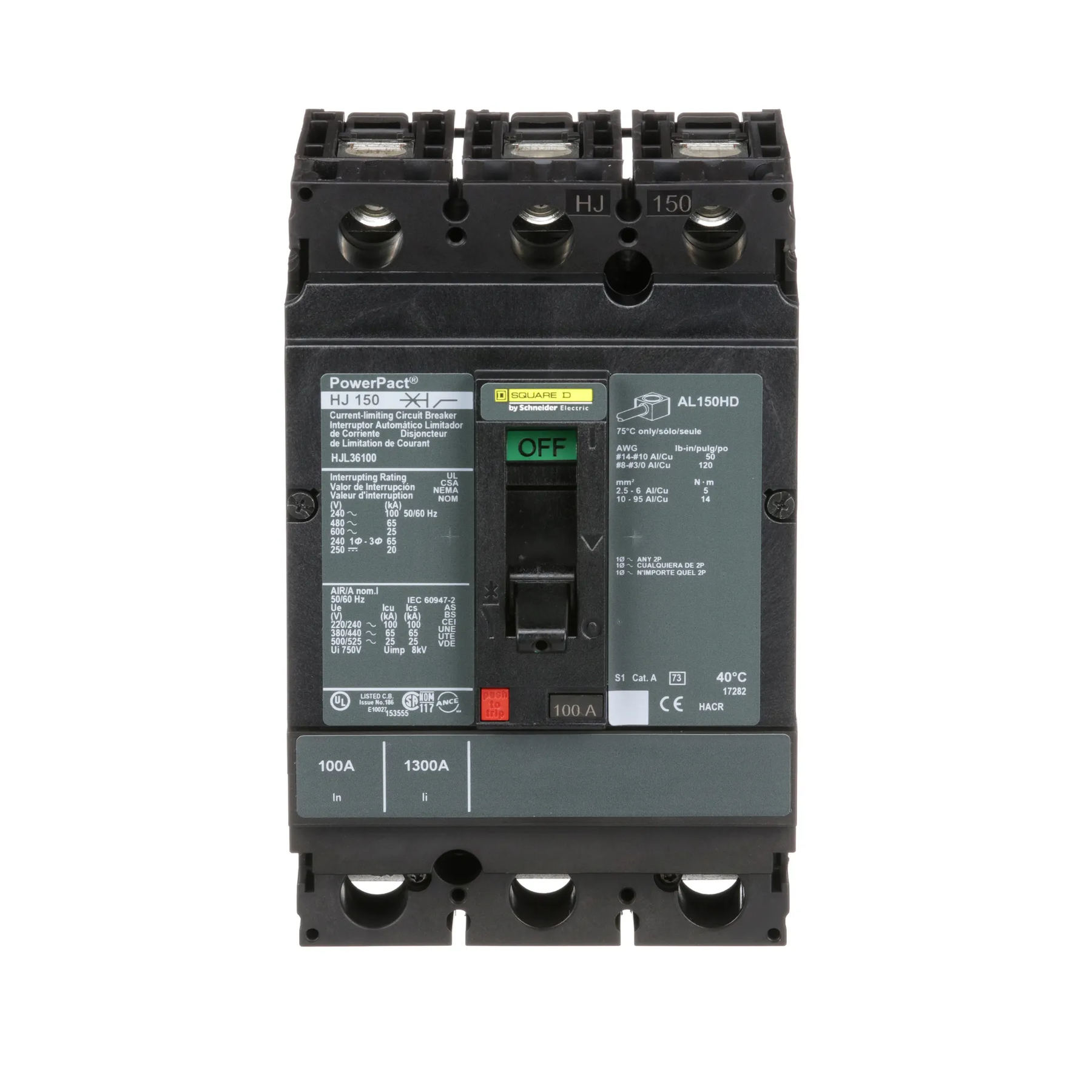

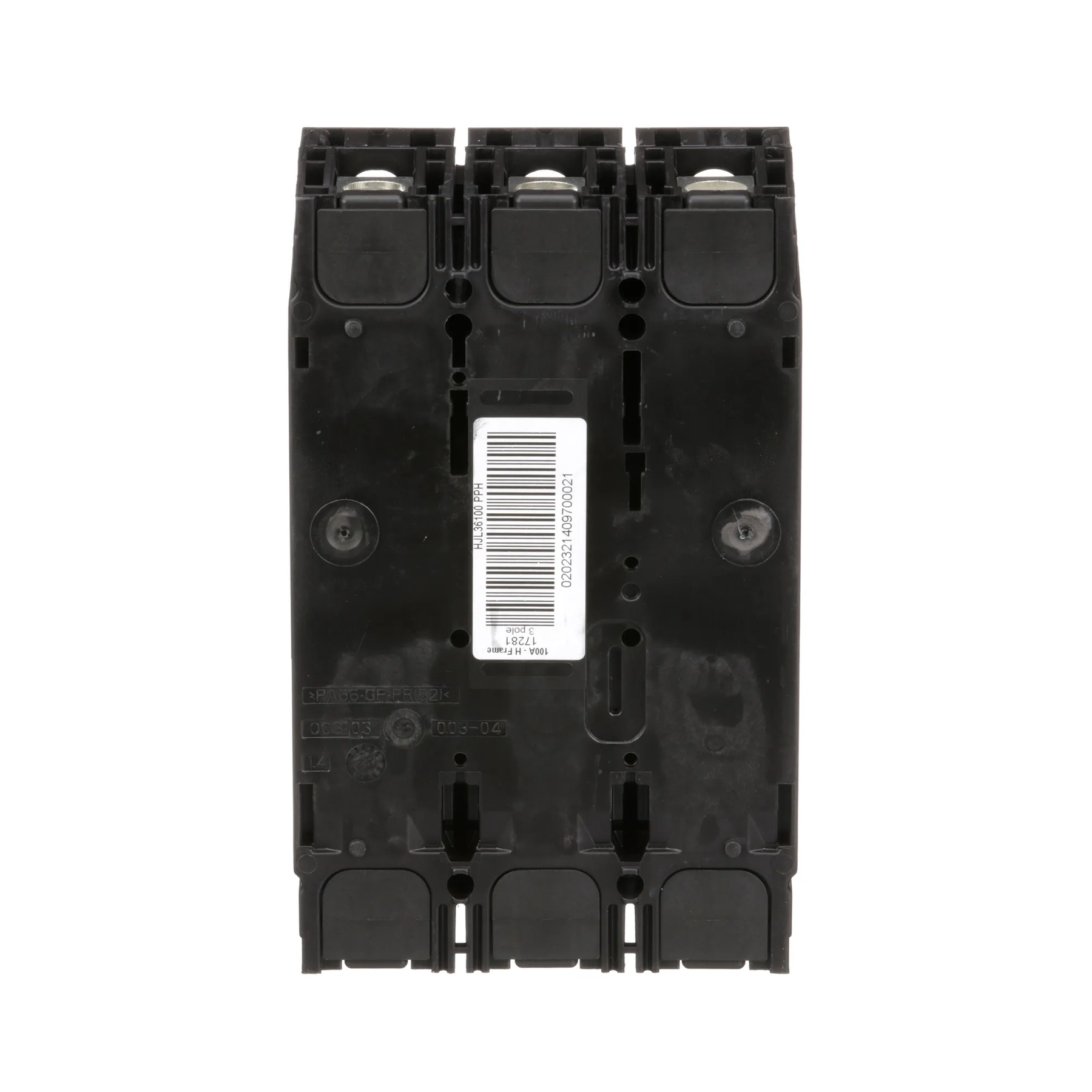

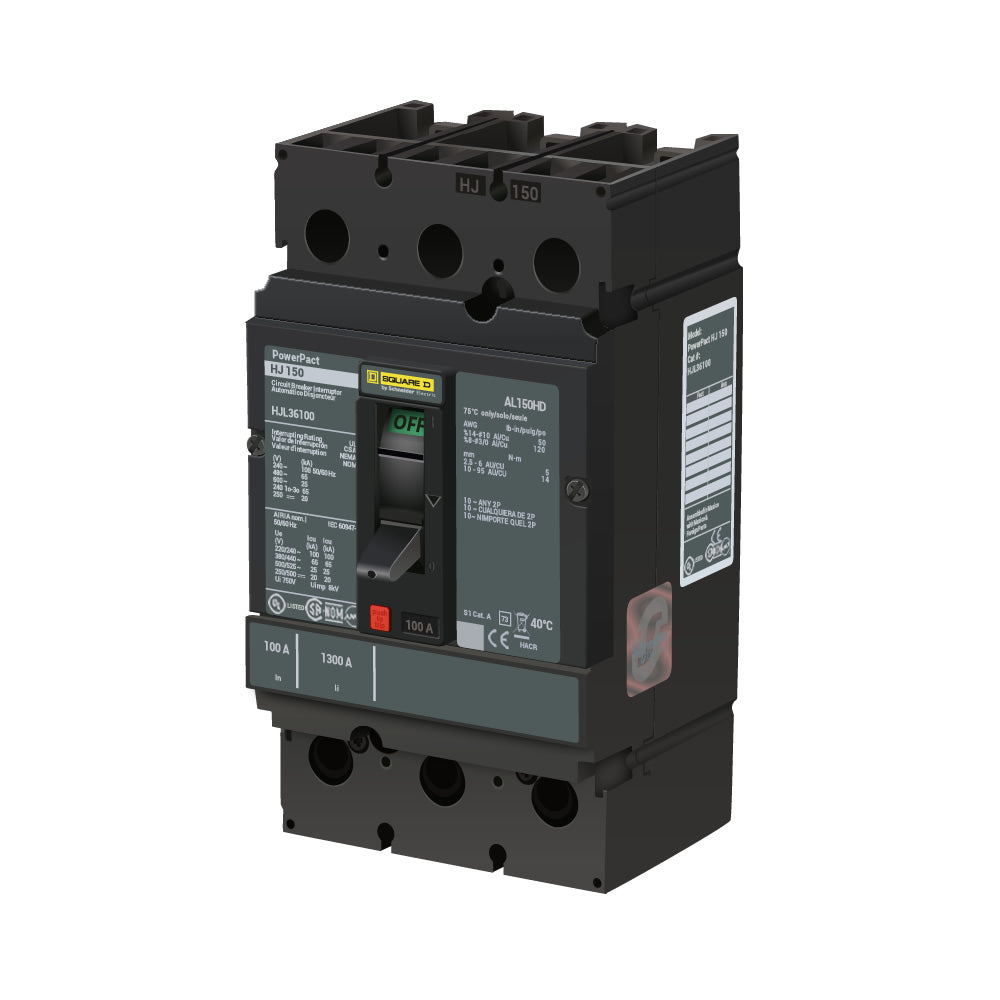

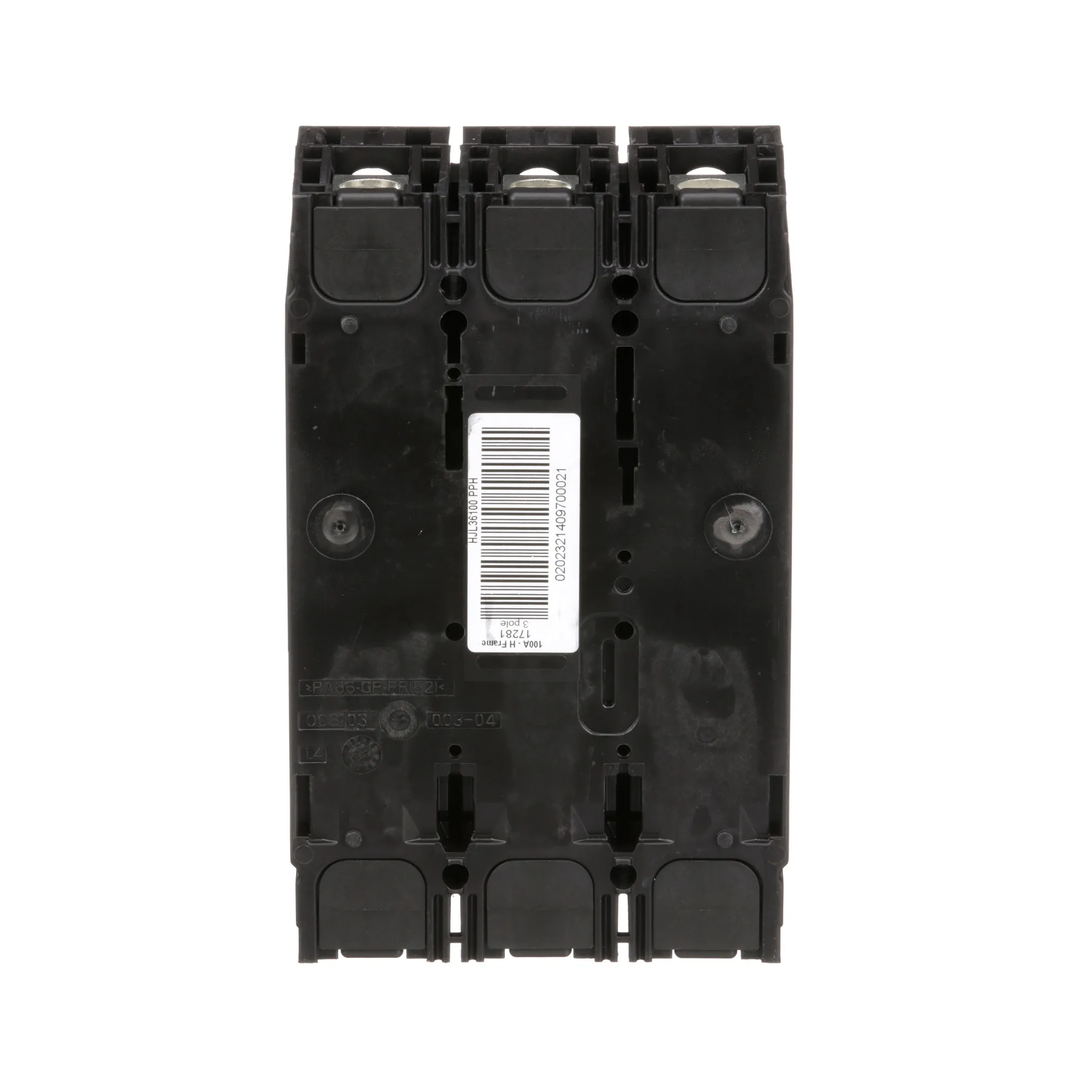

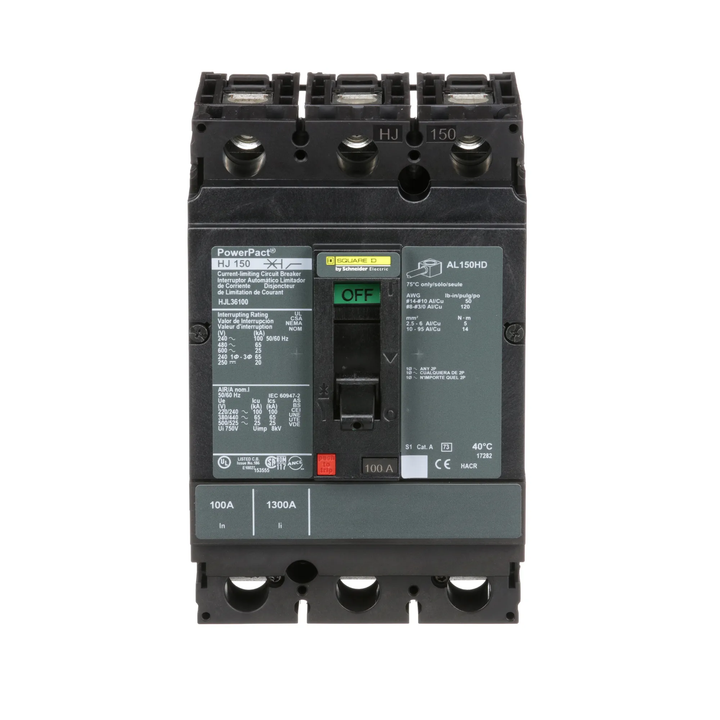

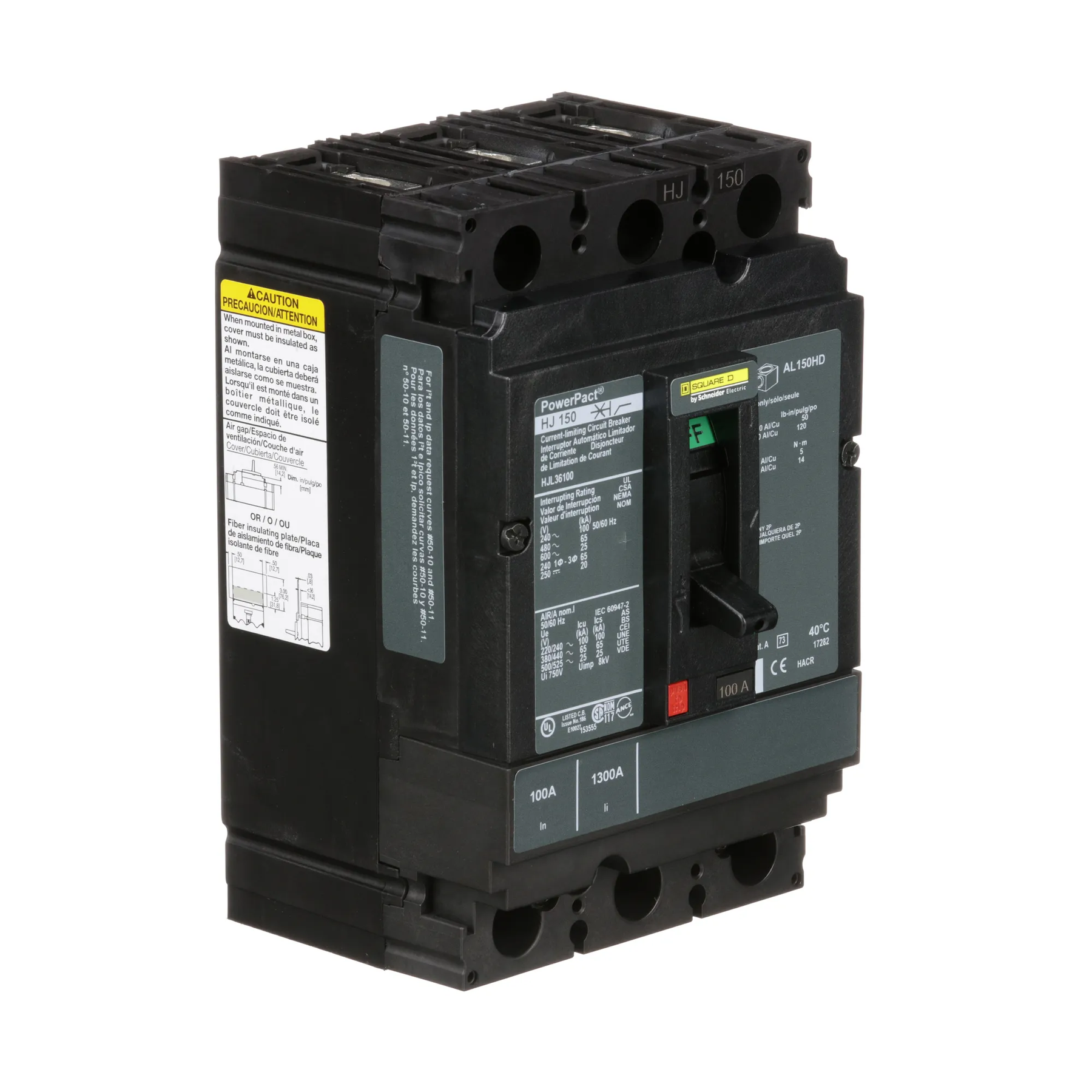

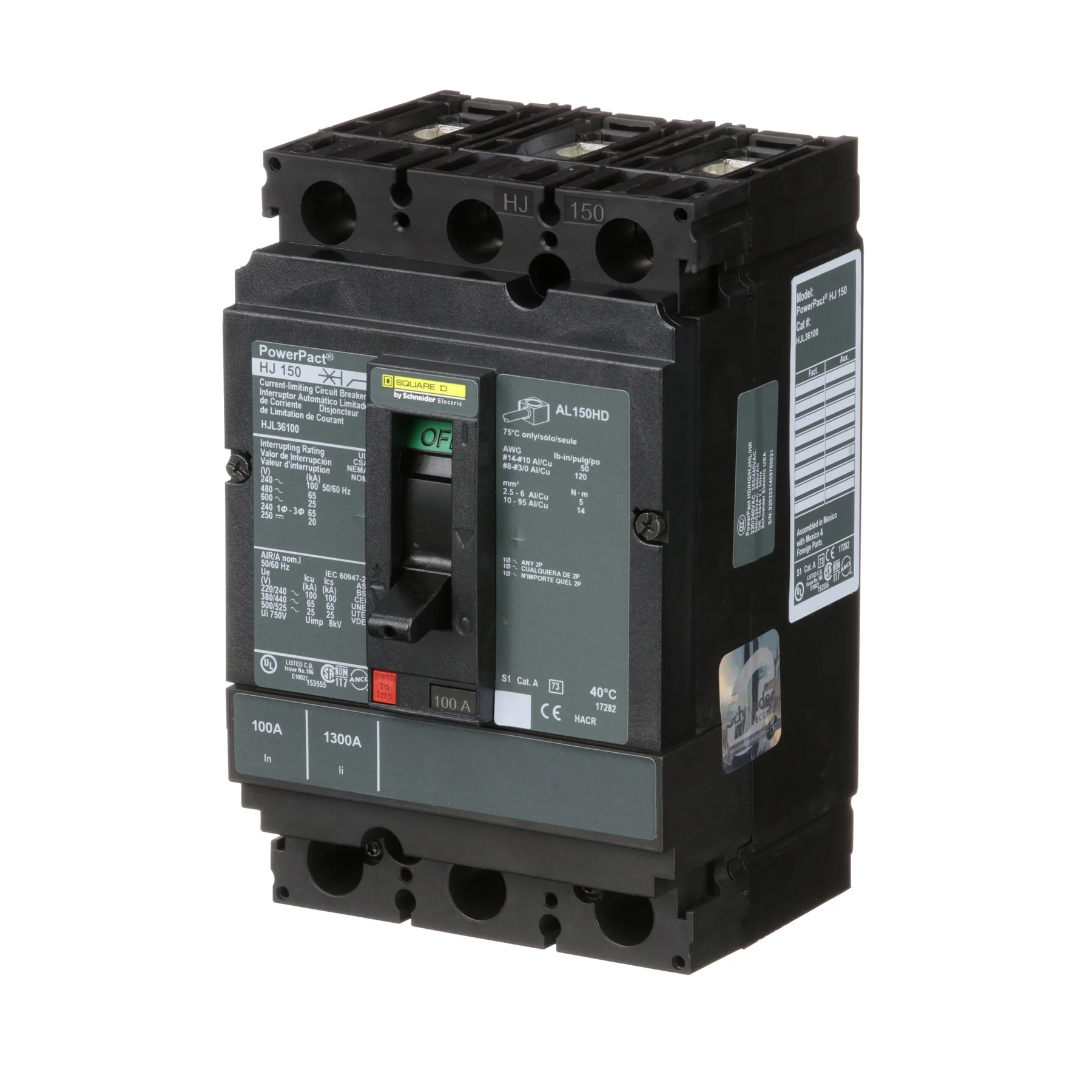

Square D HJL36100 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 100A current rating and a 600V AC voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.129 lb. This thermal-magnetic breaker with long-time and instantaneous (LI) trip functions is constructed for feed-thru connection with lug terminals, accepting wire sizes from 14 AWG to 3/0 AWG for both copper and aluminum conductors. It complies with UL, CSA, NEMA, and IEC 60947-2 standards, ensuring suitability for a wide range of commercial and industrial panelboard and switchboard applications where a 65kA interrupting capacity at 480V is required.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long-Time & Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 100A

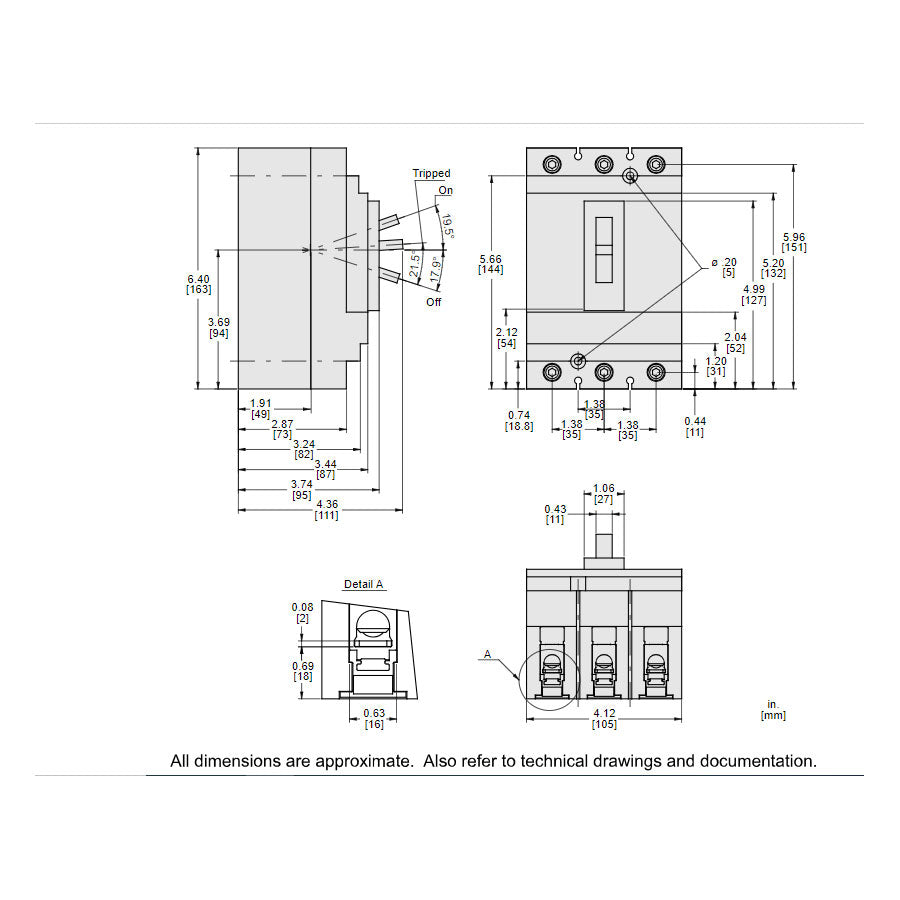

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Temp Rating: -25 to 70 °C (-13 to 158 °F)
  • Phase: 3
  • Amperage: 100A
  • AIC rating: 65kA @ 480V
  • Connection: Feed-Thru
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous Trip)
  • Frame Size: H
  • Breaker Type: Molded Case
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Mounting: Panel Mount
  • Hz: 50/60 Hz
  • Wire Size: 14 AWG to 3/0 AWG
  • Certification: UL, CSA, NOM
  • Circuit Breaker Mounting Style: Fixed
  • Terminal Connection: Lug
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-Phase
  • Compatible Frames: Powerpact H-Frame
  • Installation Type: Fixed
  • Breaker Frame: H
  • Operating Temperature Maximum Celsius: 70 °C


Product Identification
  • UPC: 785901955962
  • GTIN: 00785901955962
