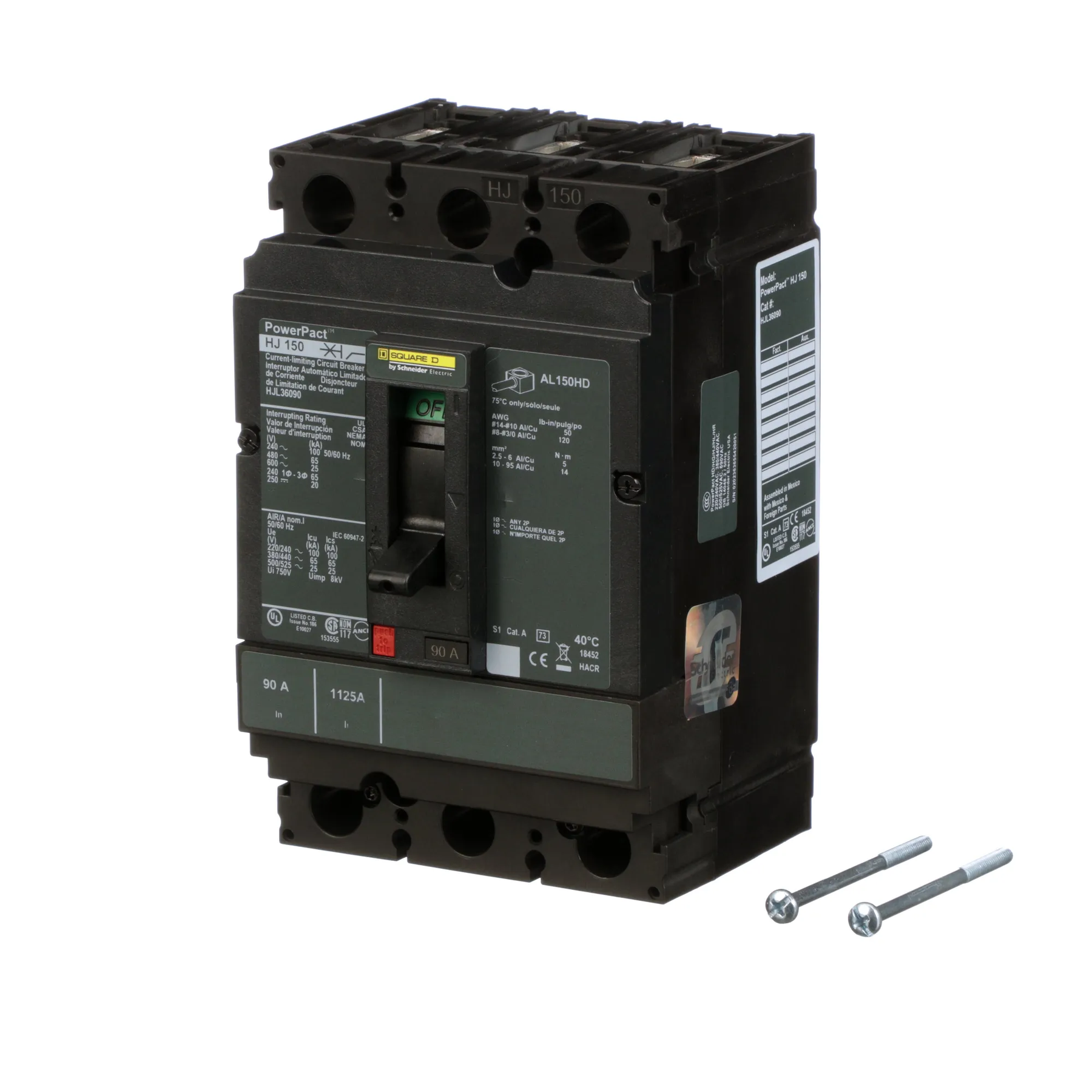

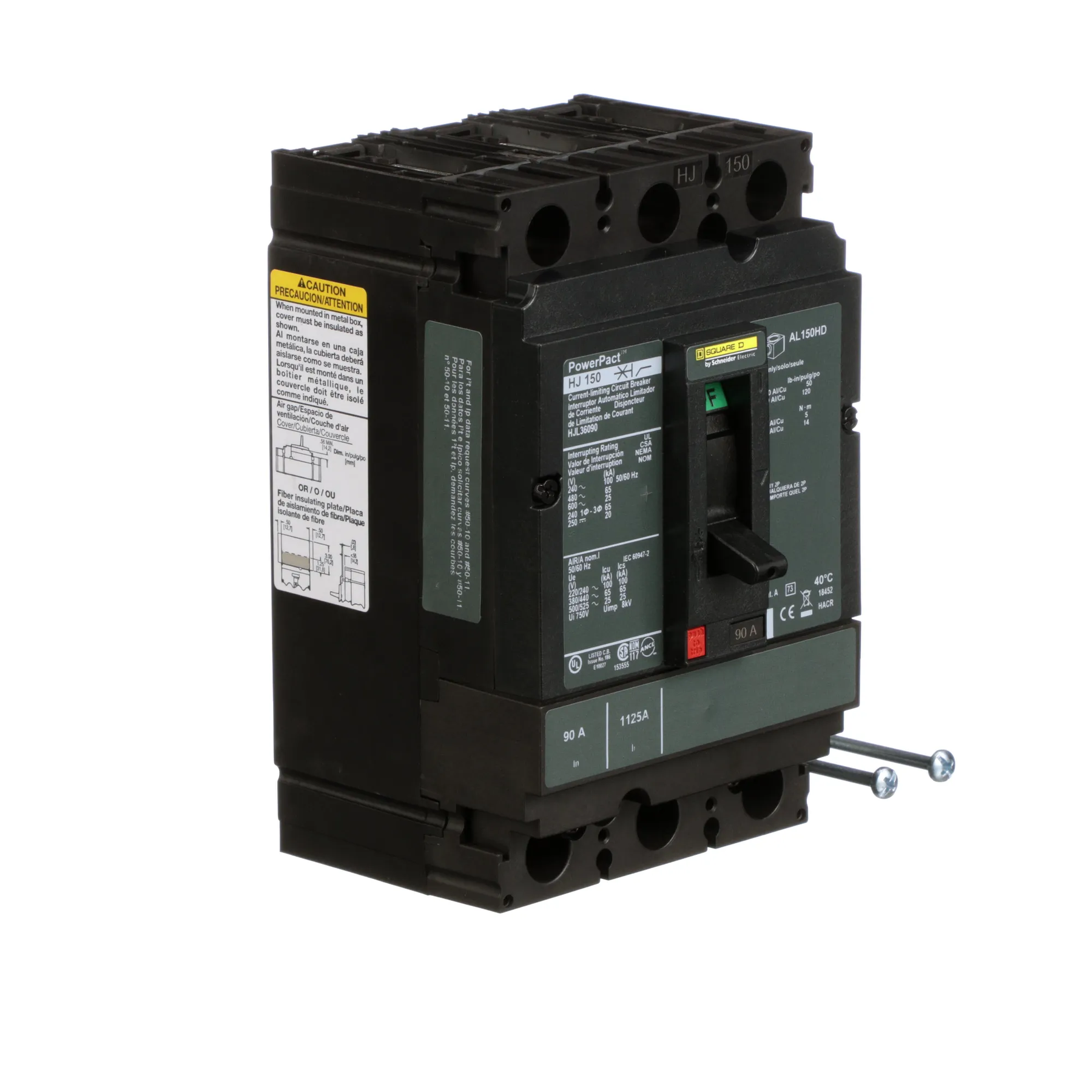

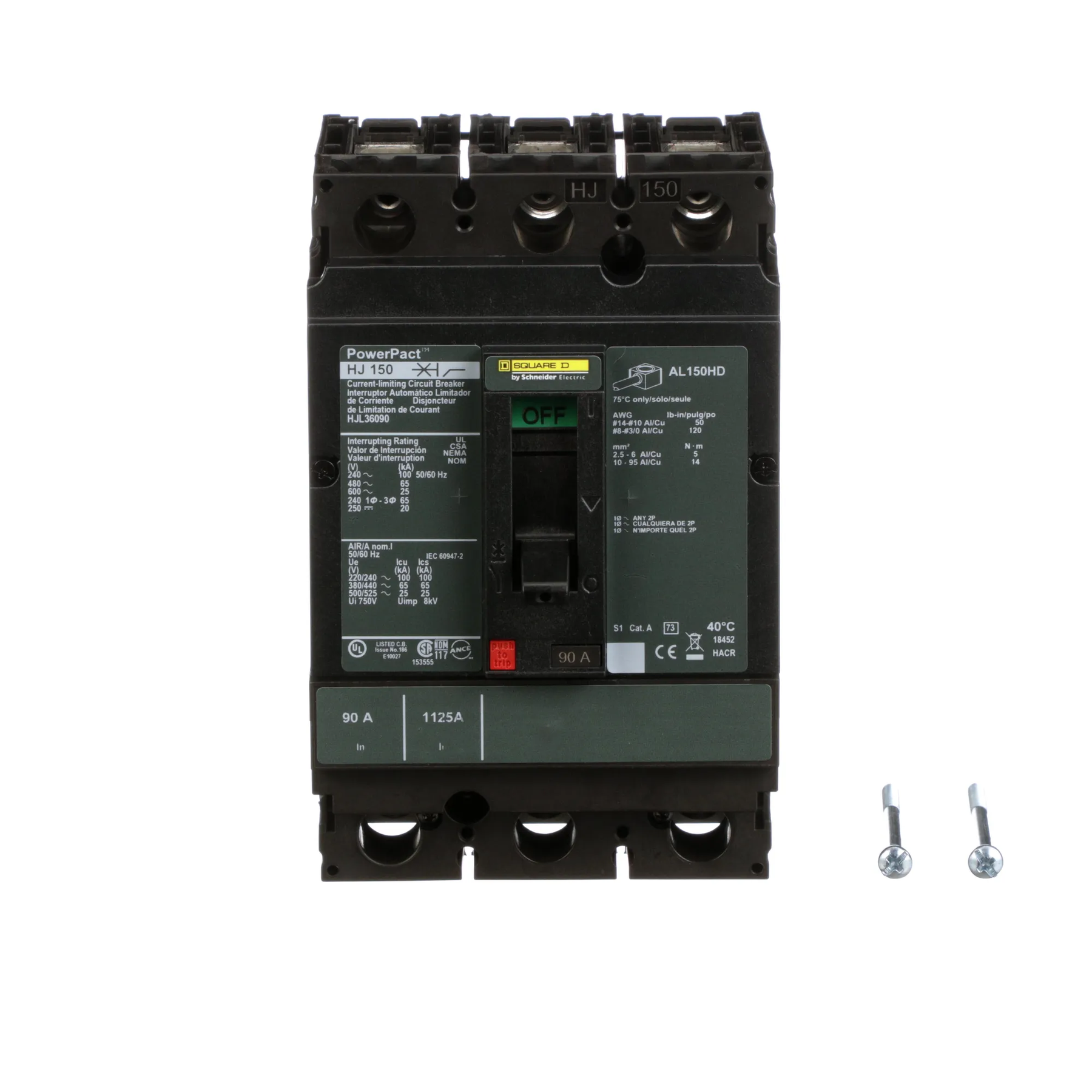

Square D HJL36090 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 90A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.169 lb. The breaker is constructed with a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, utilizes a feed-thru lug connection for conductors from 14 AWG to 3/0 AWG, and is rated for an interrupting capacity of 65kA at 480V. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards for operation in temperatures from -25°C to 70°C, making it suitable for panelboards, switchboards, and industrial control panels.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long-Time & Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 90A

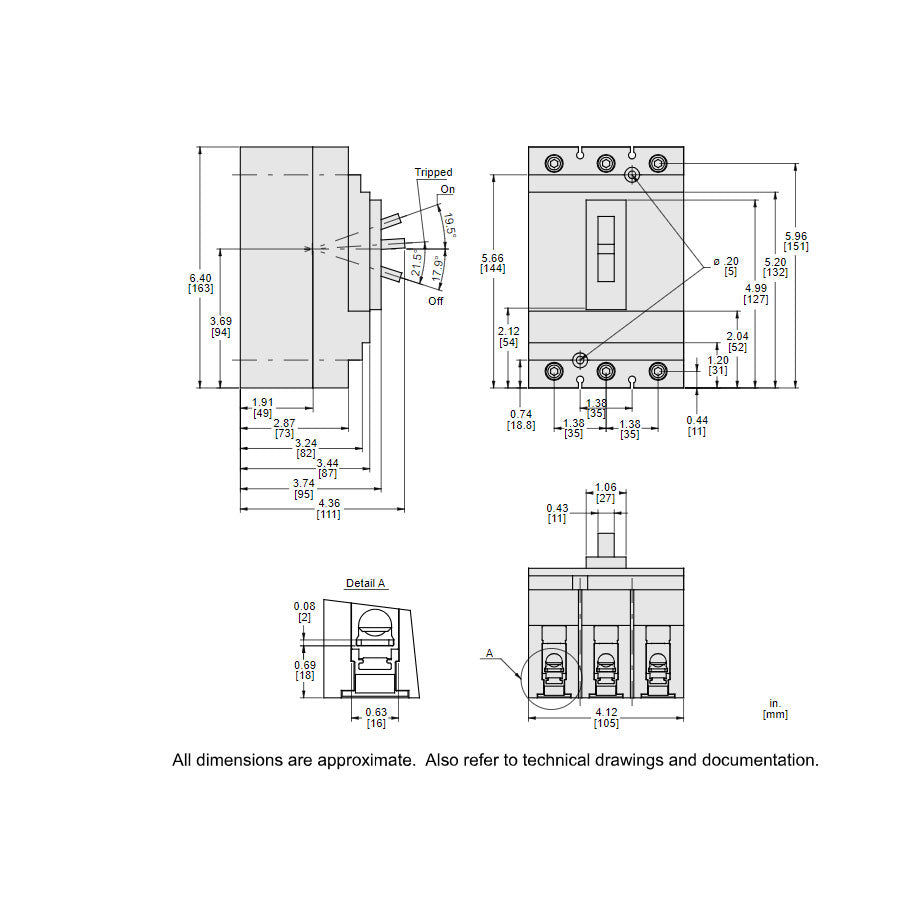

  • Dimensions: 6.4 in (163 mm) H x 4.09 in (104 mm) W x 3.4 in (86 mm) D
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Protection: Thermal Magnetic
  • Functions: LI - Long-Time and Instantaneous Trip
  • Frame Size: H
  • AIC rating: 65kA@480V
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Weight: 4.169 lb
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901839897
  • GTIN: 00785901839897
