Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)
Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)
Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)
Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)
Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)
Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)
Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)
Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)

Square D HJL36080 - 3-Pole Circuit Breaker 80A 600V (65kA AIC)

Square D
Price
Save $1,223.78
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price

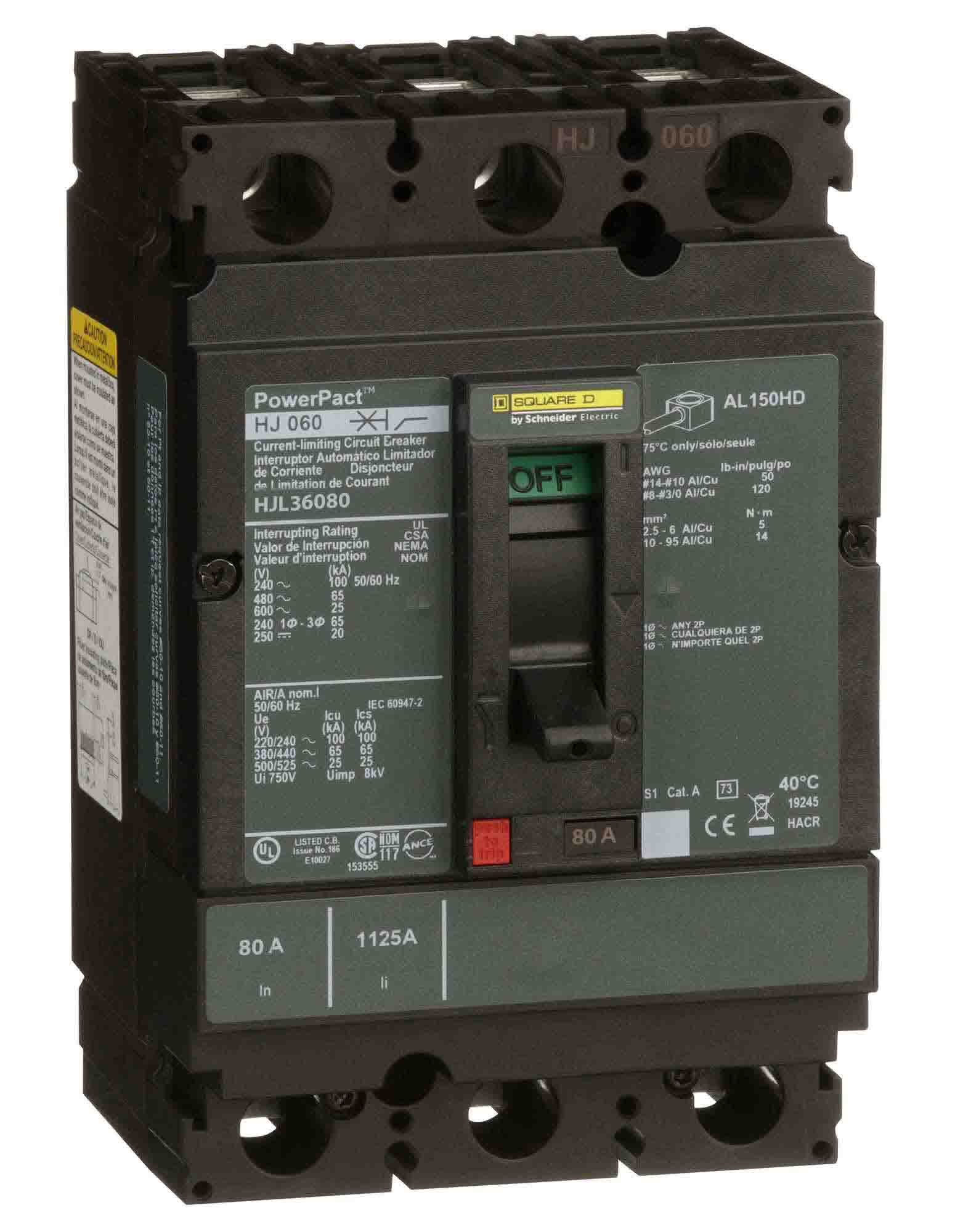

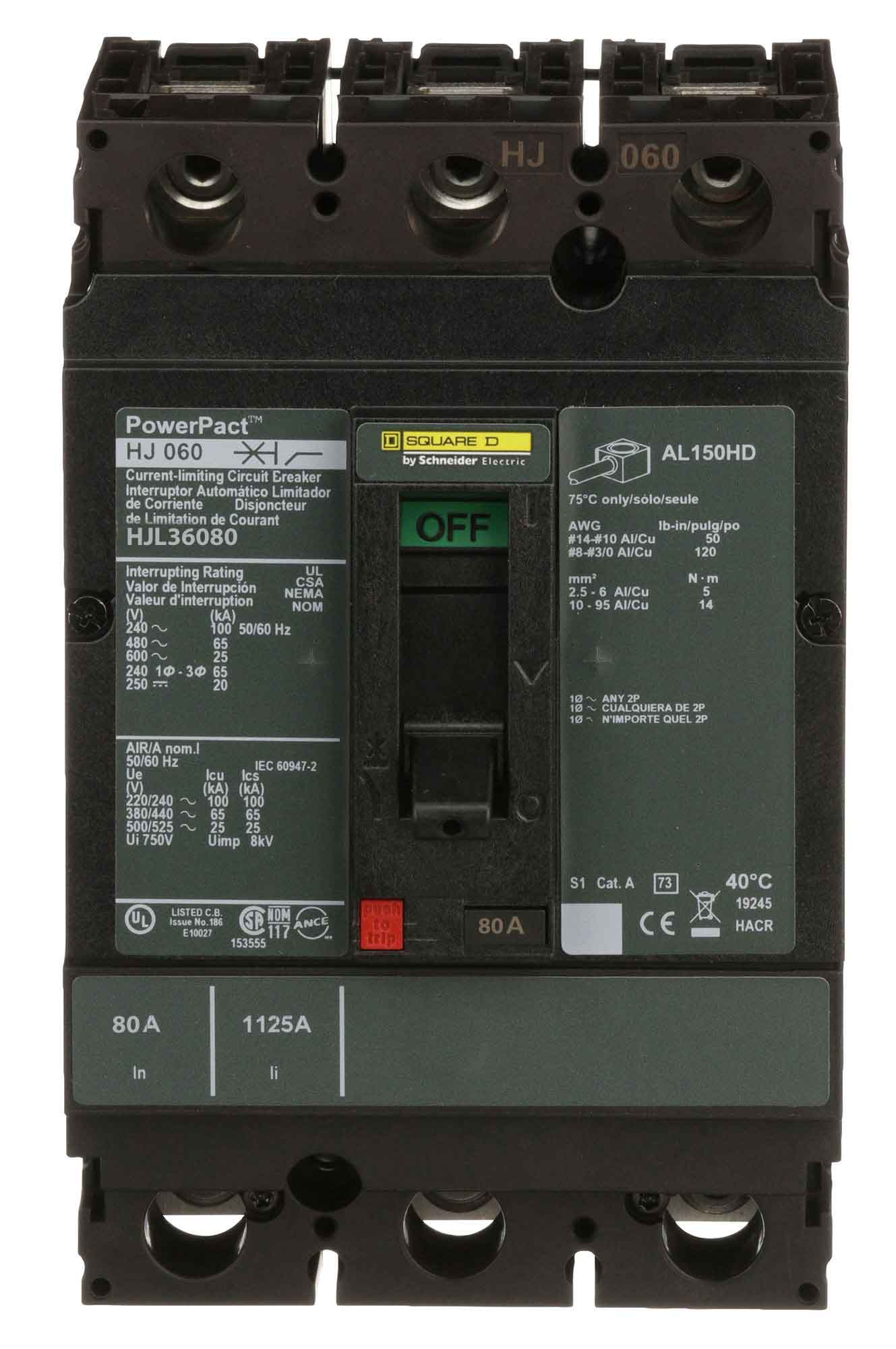

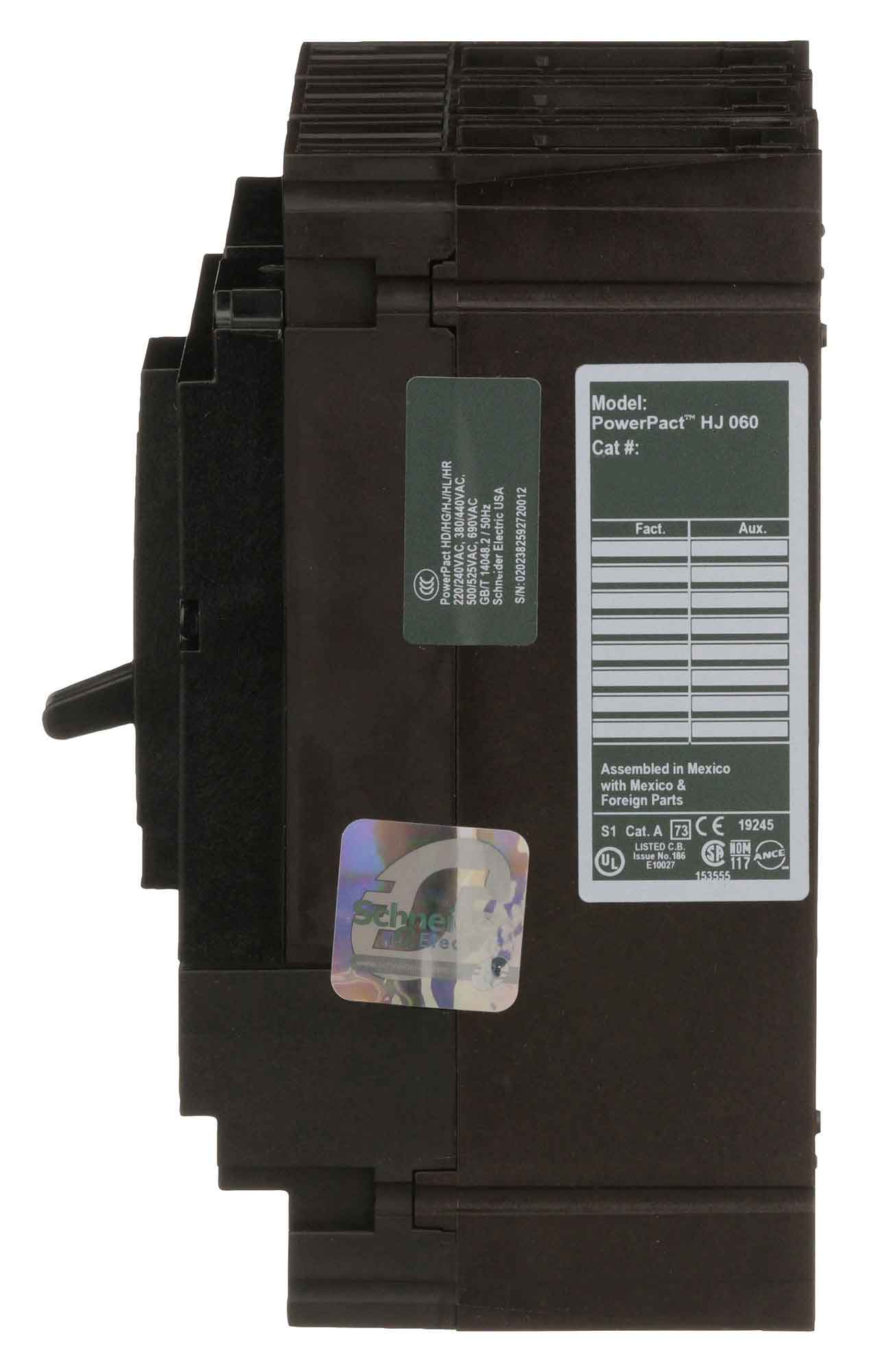

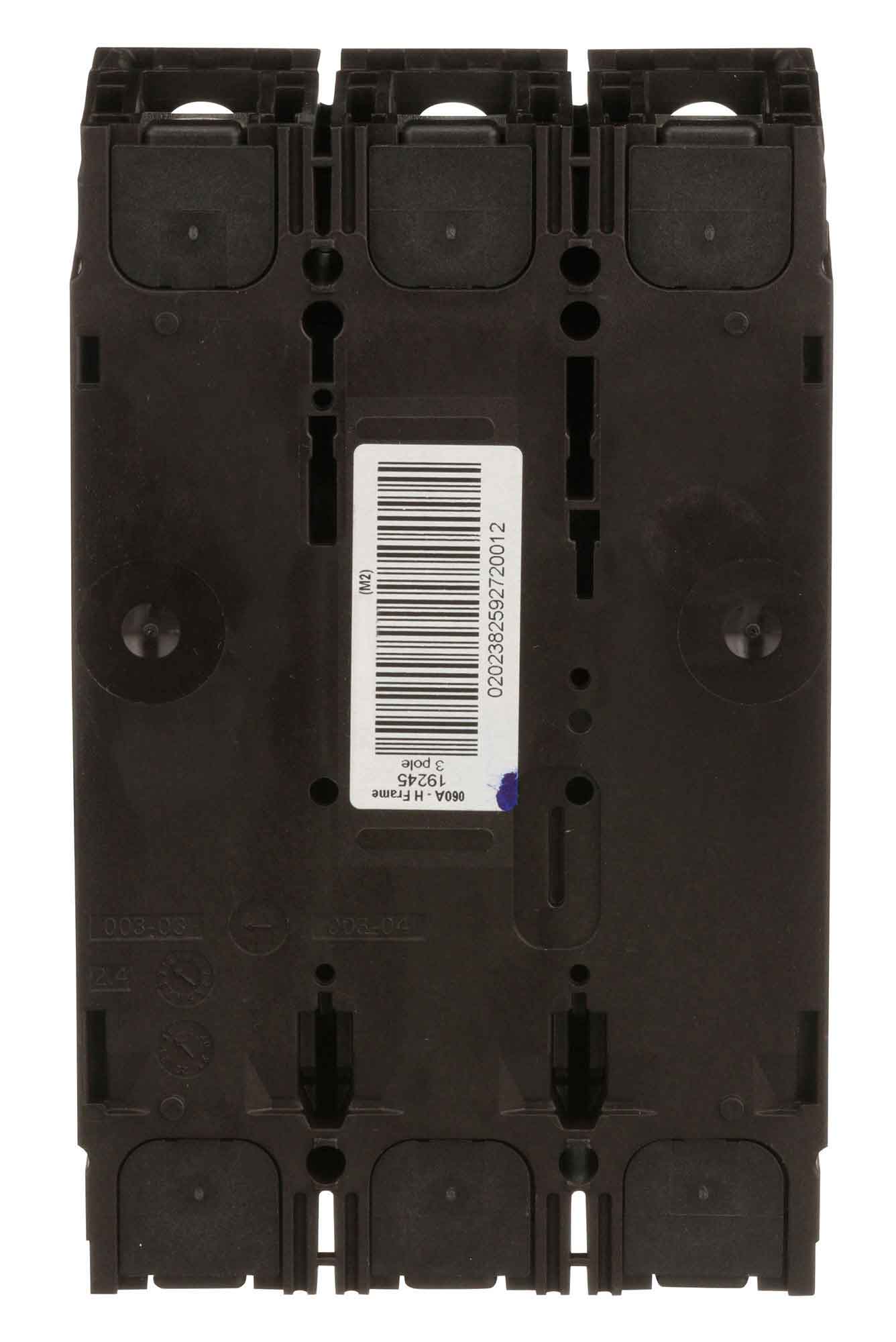

Square D HJL36080 is a three-pole molded case circuit breaker designed for providing reliable overcurrent protection in three-phase industrial power distribution systems. It features an 80A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.09 lb. The breaker utilizes a thermal-magnetic trip unit for combined long-time and instantaneous (LI) protection, offers a 65kA interrupting capacity at 480V, and is built to operate in temperatures from -25°C to 70°C. It complies with major industry standards including UL, CSA, NEMA, and IEC 60947-2, ensuring suitability for a wide range of commercial and industrial applications. Its feed-thru lug connection accommodates copper or aluminum conductors from 14 AWG to 3/0 AWG.

Key Features & Specifications
  • Type: Three-pole, molded case circuit breaker with thermal-magnetic protection (LI trip)
  • Voltage Rating: 600V AC
  • Current Rating: 80A
  • Frame Size: H
  • Poles: 3
  • Phase: 3
  • AIC Rating: 65kA @ 480V AC
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Weight: 4.09 lb
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901623205
  • GTIN: 00785901623205
