Square D
Price
Save $1,156.49
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

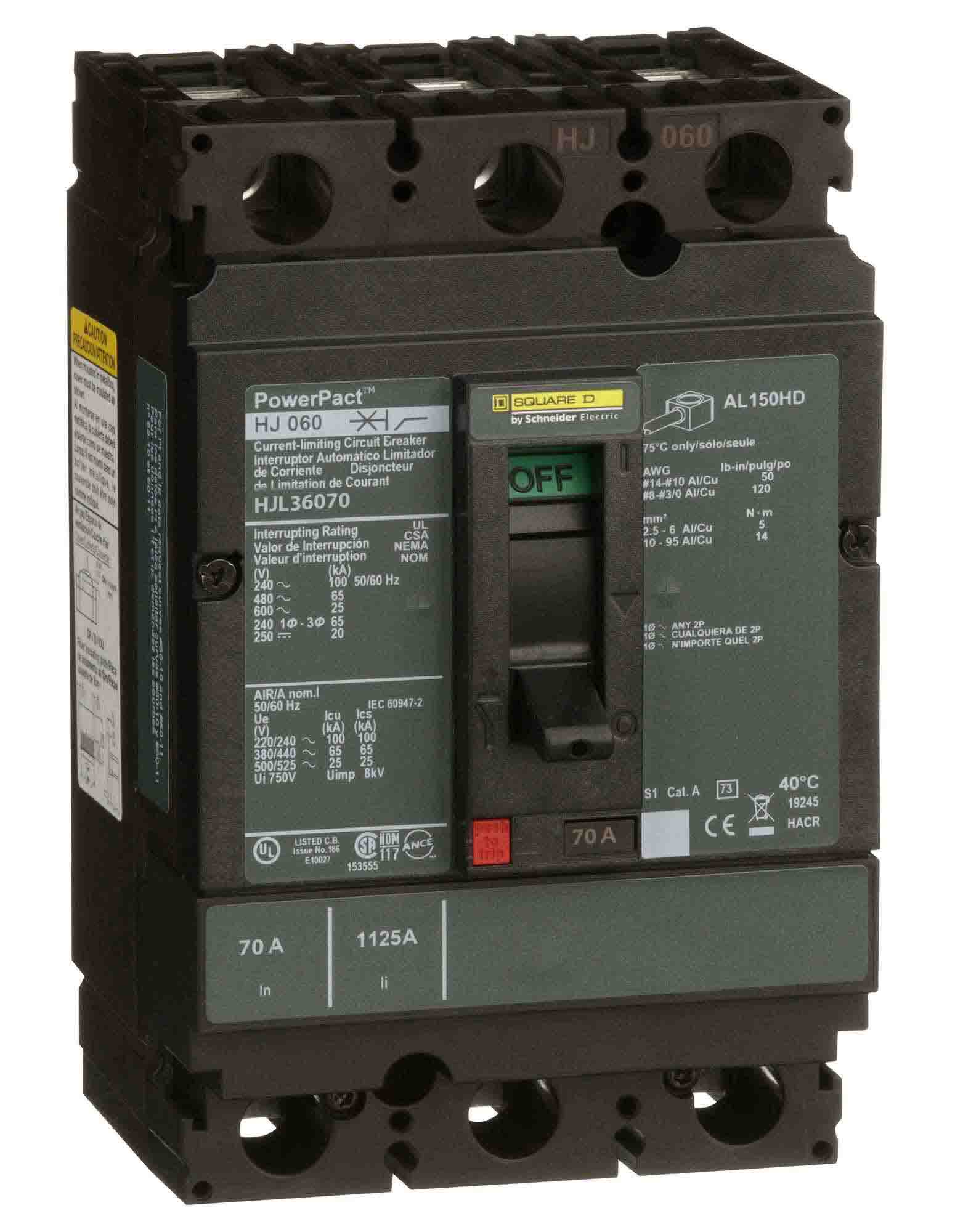

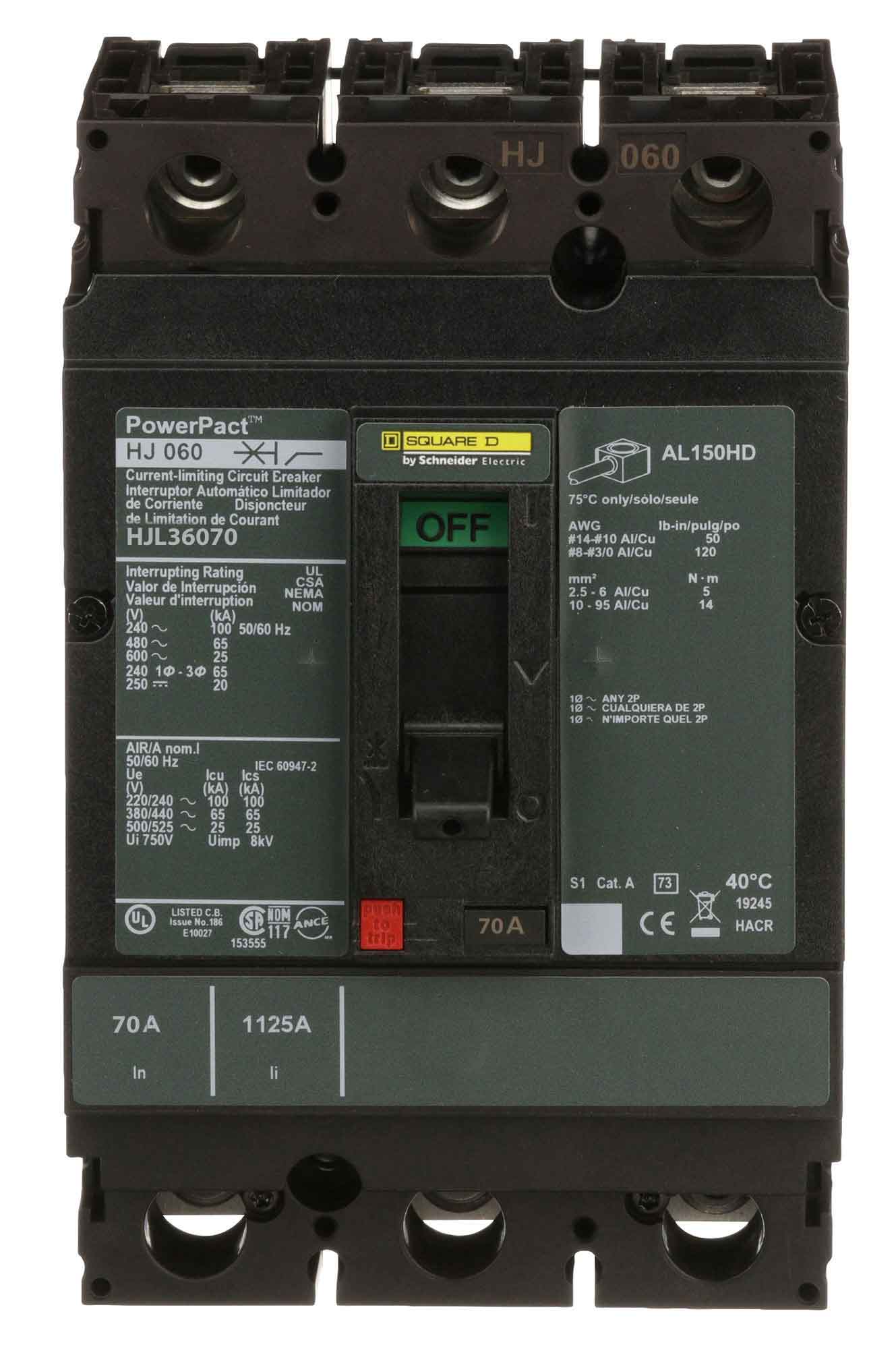

Square D HJL36070 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 70A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.06 lb. This thermal magnetic breaker with long-time and instantaneous (LI) trip functions is built to UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring compliance for robust industrial applications such as panelboards and motor control centers. Its feed-thru connection with lug terminals accommodates copper or aluminum conductors from 14 AWG to 3/0 AWG and provides an interrupting capacity of 65kA at 480V AC.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection with Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Frame Size: H
  • Poles: 3
  • AIC Rating: 65kA @ 480V AC
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Phase: 3
  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Weight: 4.06 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification: UL, CSA, NOM
  • Operating Temperature: -25°C to 70°C (-13°F to 158°F)
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901839866
  • GTIN: 00785901839866
