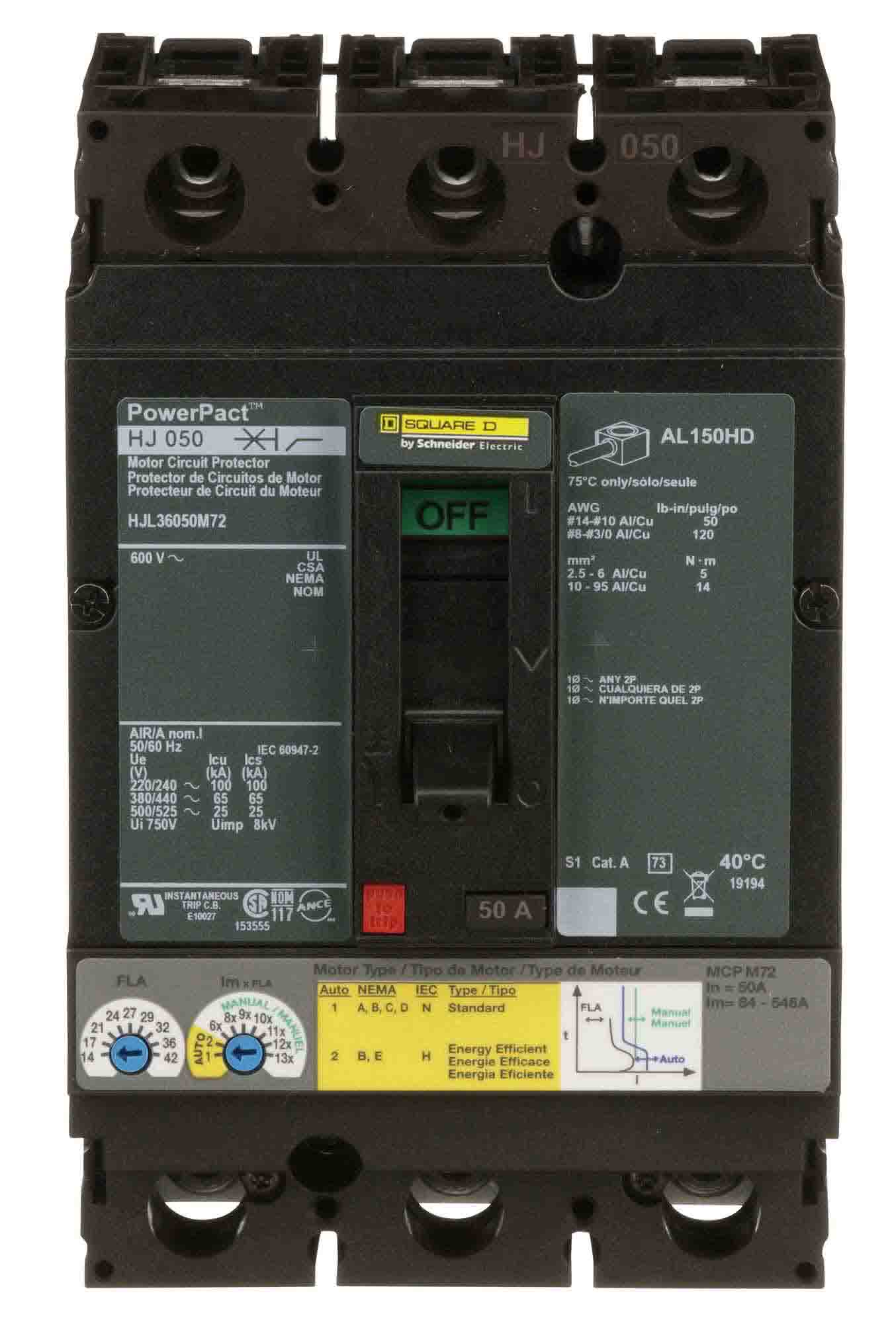

Square D HJL36050M72 - Motor Circuit Protector 50A 600V 3P (65kA AIC)
Square D HJL36050M72 - Motor Circuit Protector 50A 600V 3P (65kA AIC)

Square D HJL36050M72 - Motor Circuit Protector 50A 600V 3P (65kA AIC)

Square D
Price
Save $770.67
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Square D HJL36050M72 is a molded case circuit breaker designed for providing dedicated magnetic-only protection to motor circuits. It features a 50A current rating and a 600V AC voltage rating, housed within a compact J-frame measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.4 lb. The breaker is constructed with lug terminals for feed-thru connection, accepts wire sizes from 14 AWG to 3/0 AWG, and operates within a temperature range of -2 to 70 °C. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring reliable performance in demanding three-phase industrial applications where instantaneous short-circuit interruption is critical.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Motor Circuit Protector (MCP) with Magnetic-Only (I-Instantaneous) Protection
  • Voltage Rating: 600V AC
  • Current Rating: 50A
  • Dimensions: 163 mm H x 104 mm W x 86 mm D (6.4 in x 4.09 in x 3.4 in)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Motor circuit protection in industrial three-phase systems
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • AIC Rating: 65kA at 480V
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Protection: Magnetic Only
  • Functions: Instantaneous Trip (I)
  • Frame Size: J
  • Breaker Type: Motor Circuit Protector
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Weight: 4.4 lb


Product Identification
  • UPC: 785901591146
  • GTIN: 00785901591146
