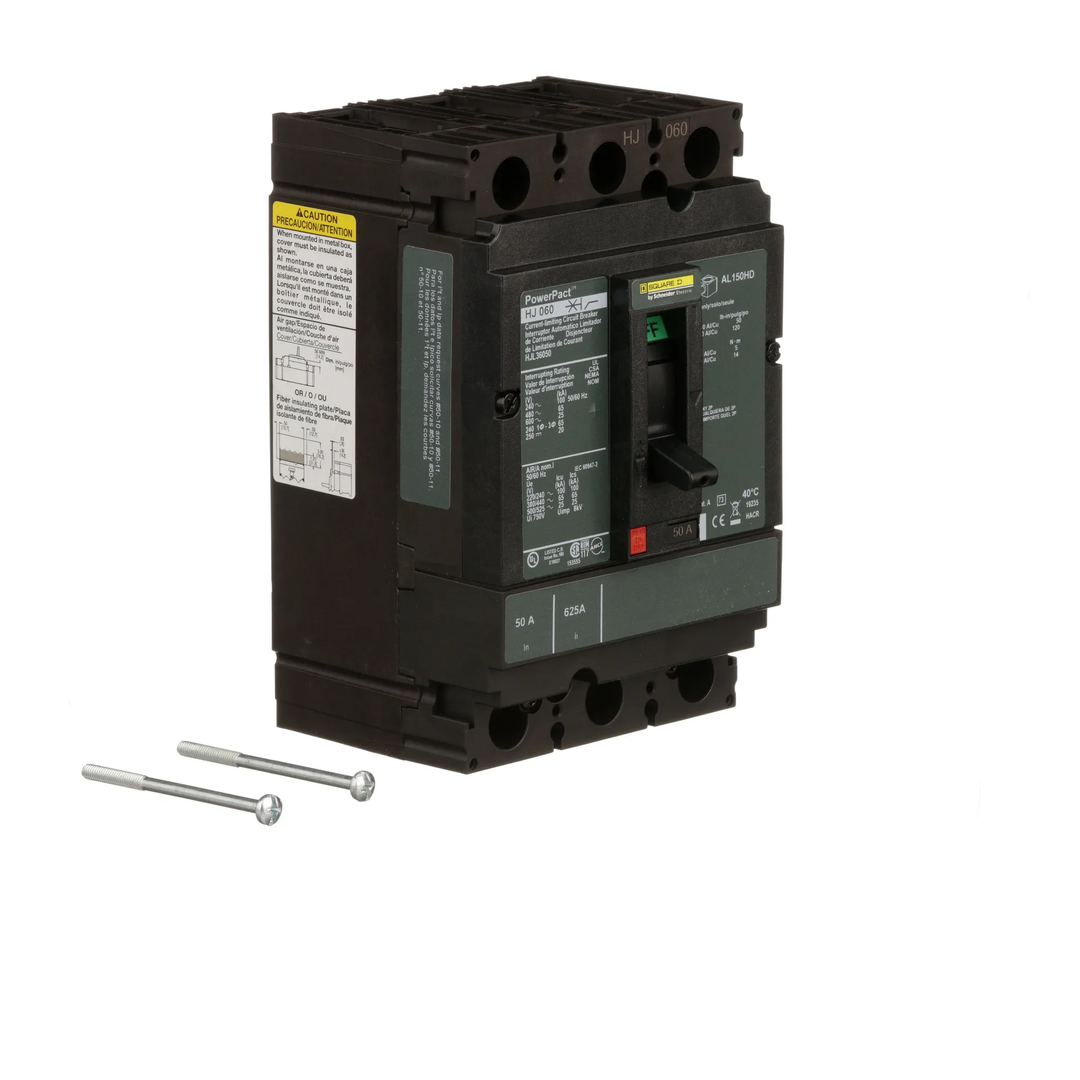

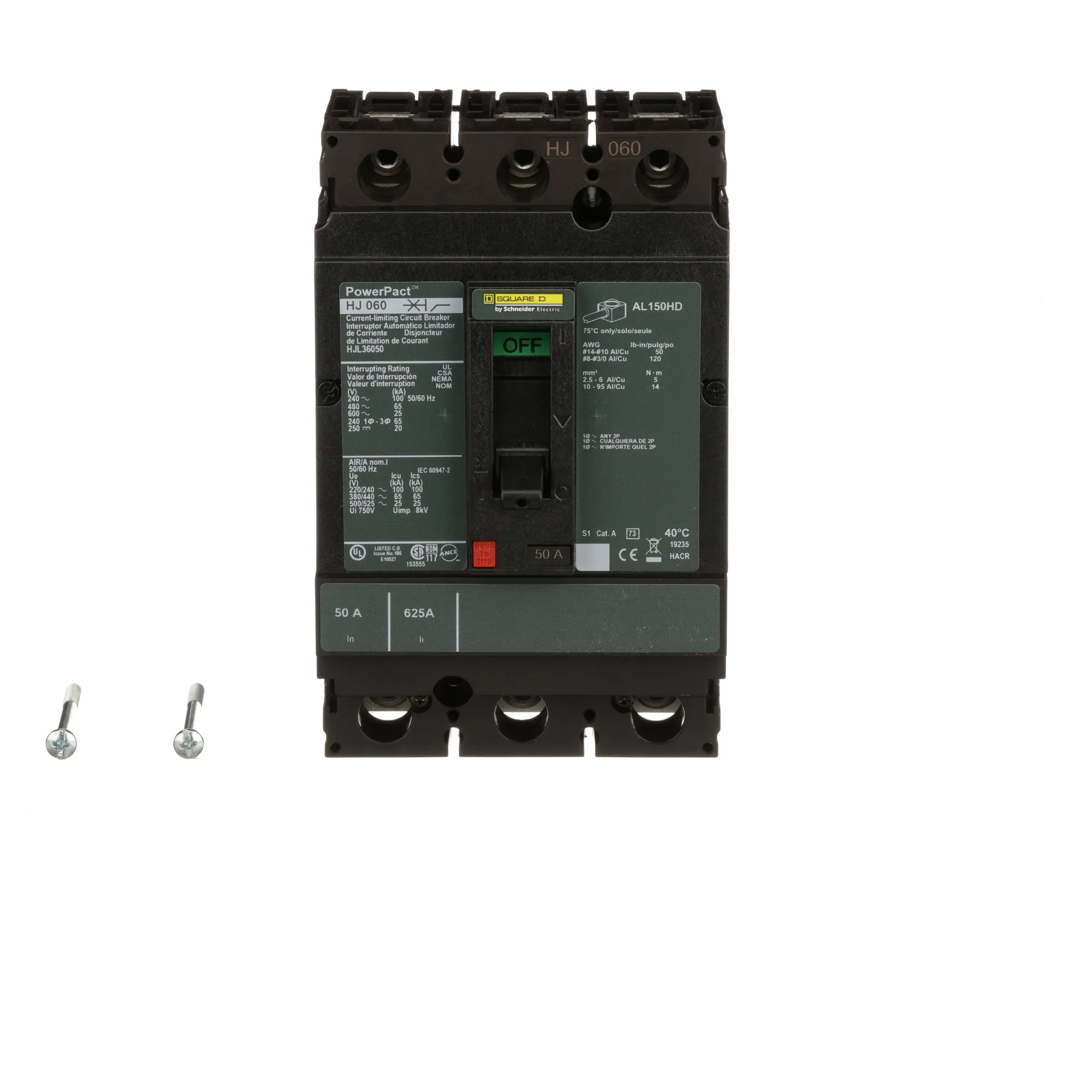

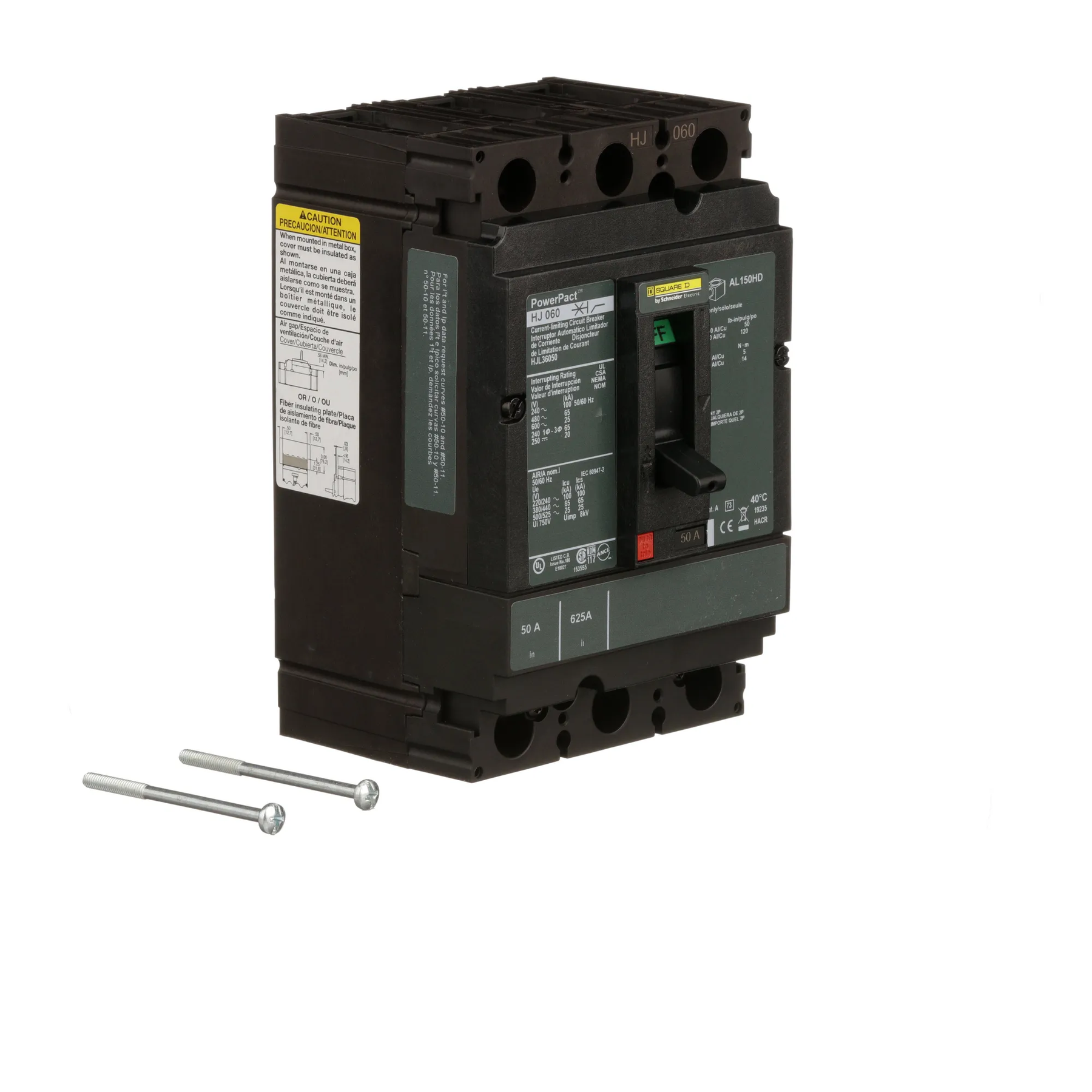

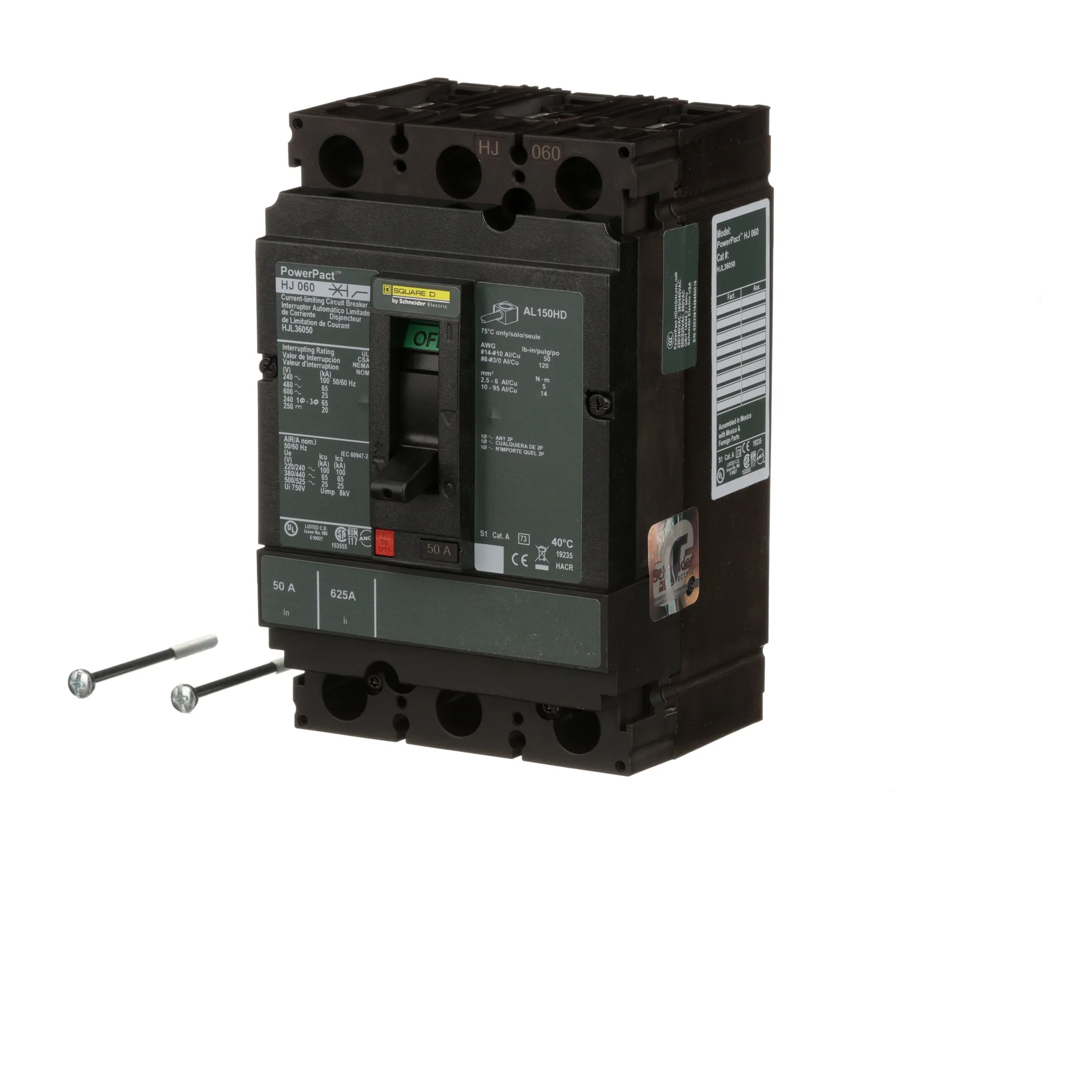

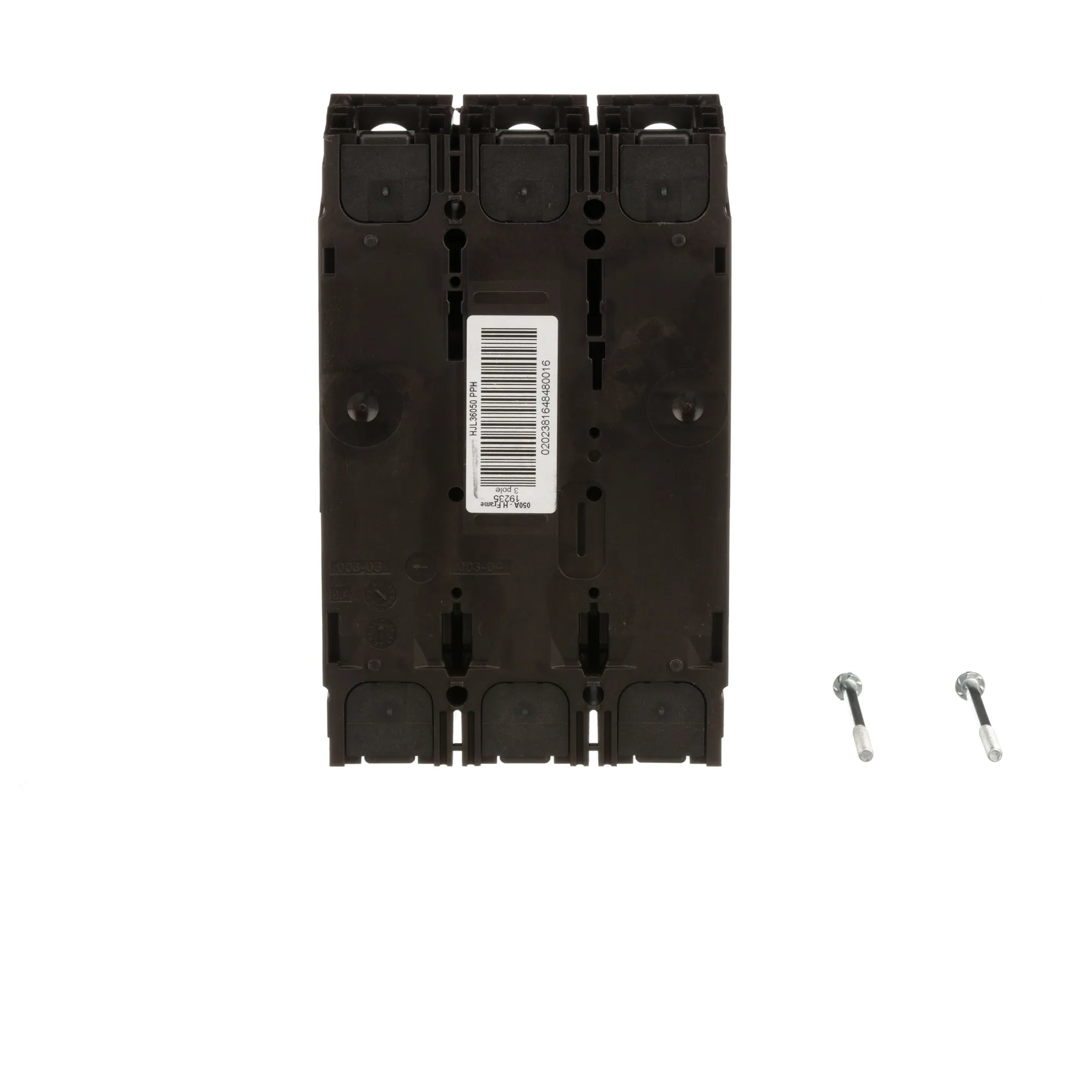

Square D HJL36050 - Molded Case Circuit Breaker 50A 600V 3-Pole

Price
Regular price $627.83
Regular price $1,949.00 Sale price $627.83
Save $1,321.17
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Square D HJL36050 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 50A current rating and a 600V voltage rating, housed within a compact H-frame construction measuring 163 mm H x 104 mm W x 86 mm D and weighing 4.081 lb. The breaker is built to comply with UL, CSA, NEMA, NOM, and IEC 60947-2 standards, ensuring robust performance. Its thermal-magnetic trip unit with long-time and instantaneous (LI) functions and a 65kA interrupting rating at 480V makes it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Feed-Thru Connection
  • Voltage Rating: 600V AC
  • Current Rating: 50A

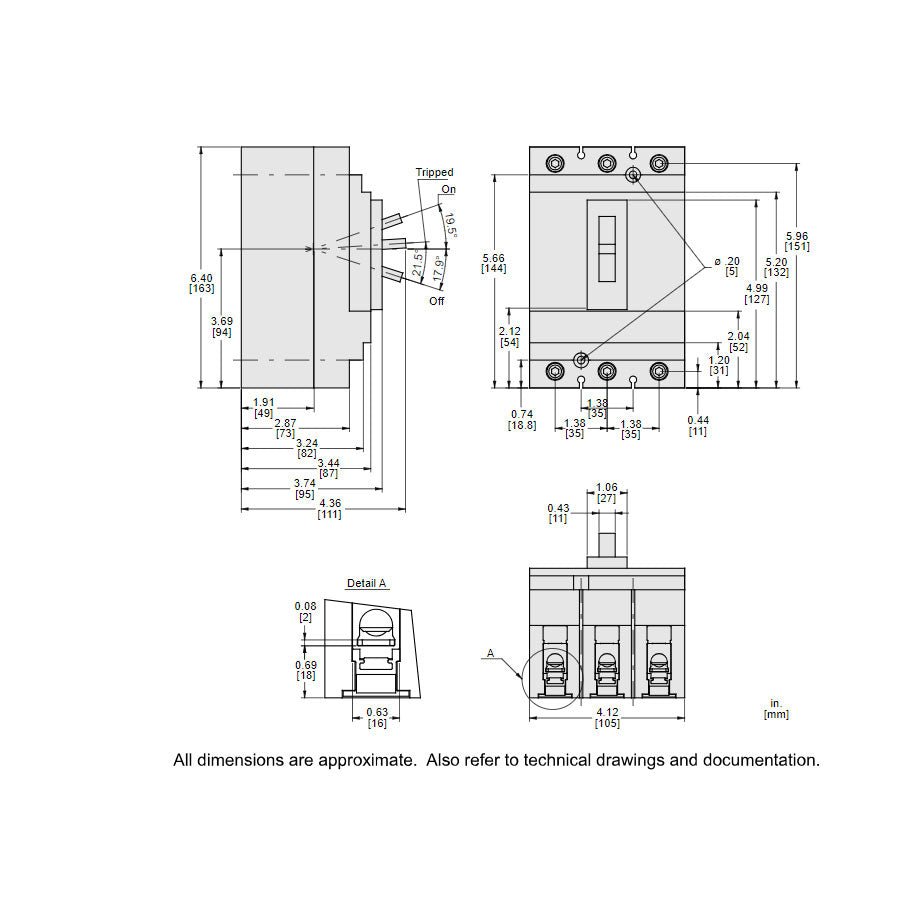

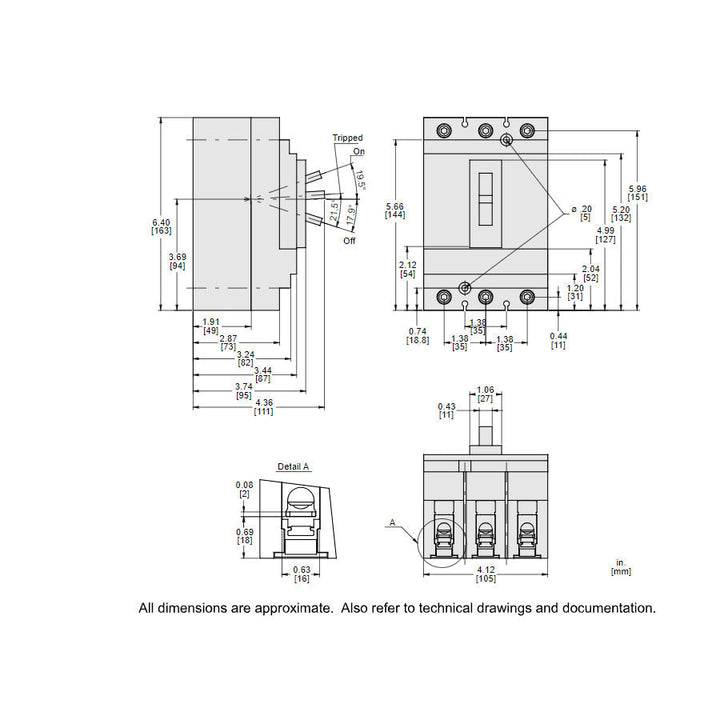

  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboard Protection
  • Switch Type: Circuit Breaker
  • Configuration: 3-Pole
  • Phase: 3
  • AIC Rating: 65kA @ 480V
  • Connection: Lug Terminal
  • Poles: 3
  • Protection: Thermal Magnetic
  • Functions: Long-Time and Instantaneous Trip (LI)
  • Frame Size: H
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper/Aluminum)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901839668
  • GTIN: 00785901839668
