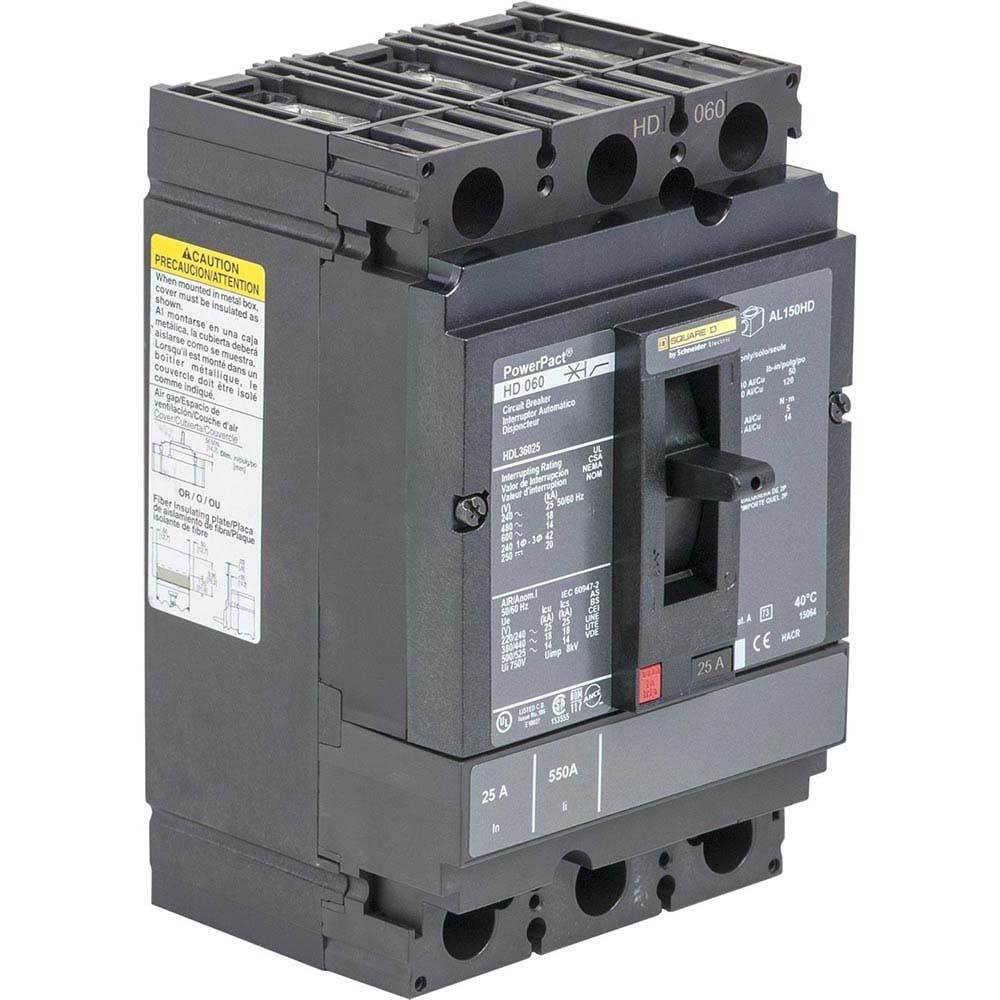

Square D HJL36045 - Molded Case Circuit Breaker 45A 600V 3P
Square D HJL36045 - Molded Case Circuit Breaker 45A 600V 3P
Square D HJL36045 - Molded Case Circuit Breaker 45A 600V 3P
Square D HJL36045 - Molded Case Circuit Breaker 45A 600V 3P

Square D HJL36045 - Molded Case Circuit Breaker 45A 600V 3P

Square D
Price
Save $819.28
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
Square D HJL36045 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in three-phase industrial power distribution systems. It features a 45A current rating and a 600V voltage rating, housed within a compact H-frame measuring 163 mm x 104 mm x 86 mm (HxWxD) and weighing 4.145 lb. The breaker utilizes a thermal-magnetic trip unit for long-time and instantaneous (LI) protection, offers a 65kA interrupting capacity at 480V, and is compliant with UL, CSA, NEMA, and IEC 60947-2 standards. Its feed-thru lug connection accommodates copper or aluminum conductors from 14 AWG to 3/0 AWG, making it suitable for a wide range of industrial panelboards and switchboards operating in ambient temperatures from -25°C to 70°C.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal Magnetic Protection, Long-Time & Instantaneous (LI) Trip Functions
  • Voltage Rating: 600V AC
  • Current Rating: 45A

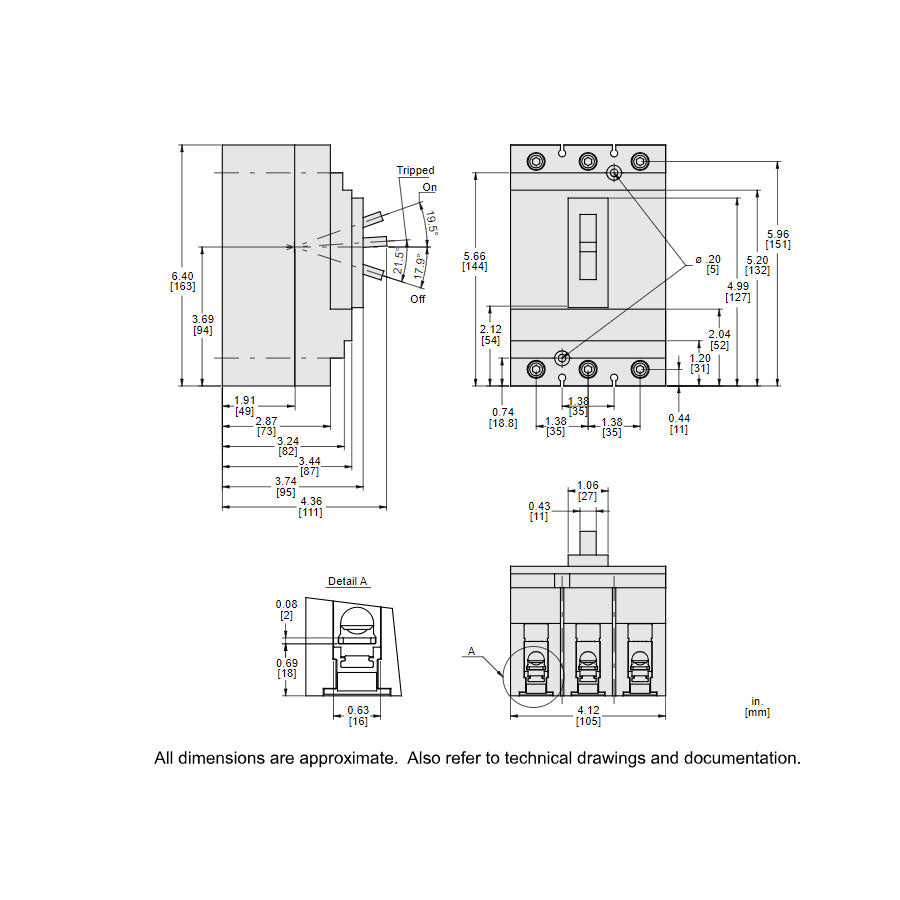

  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial Power Distribution, Panelboards, Switchboards
  • Switch Type: Circuit Breaker
  • Configuration: Fixed
  • Phase: 3
  • Poles: 3
  • AIC Rating: 65kA @ 480V
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Protection: Thermal Magnetic
  • Functions: LI (Long-Time and Instantaneous)
  • Frame Size: H
  • Trip Type: Thermal Magnetic
  • Temp Rating: -25°C to 70°C (-13°F to 158°F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • MCM Size: Min. 14 AWG, Max. 3/0 AWG (Cu/Al)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 785901676980
  • GTIN: 00785901676980
