Square D
Price
Save $357.96
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

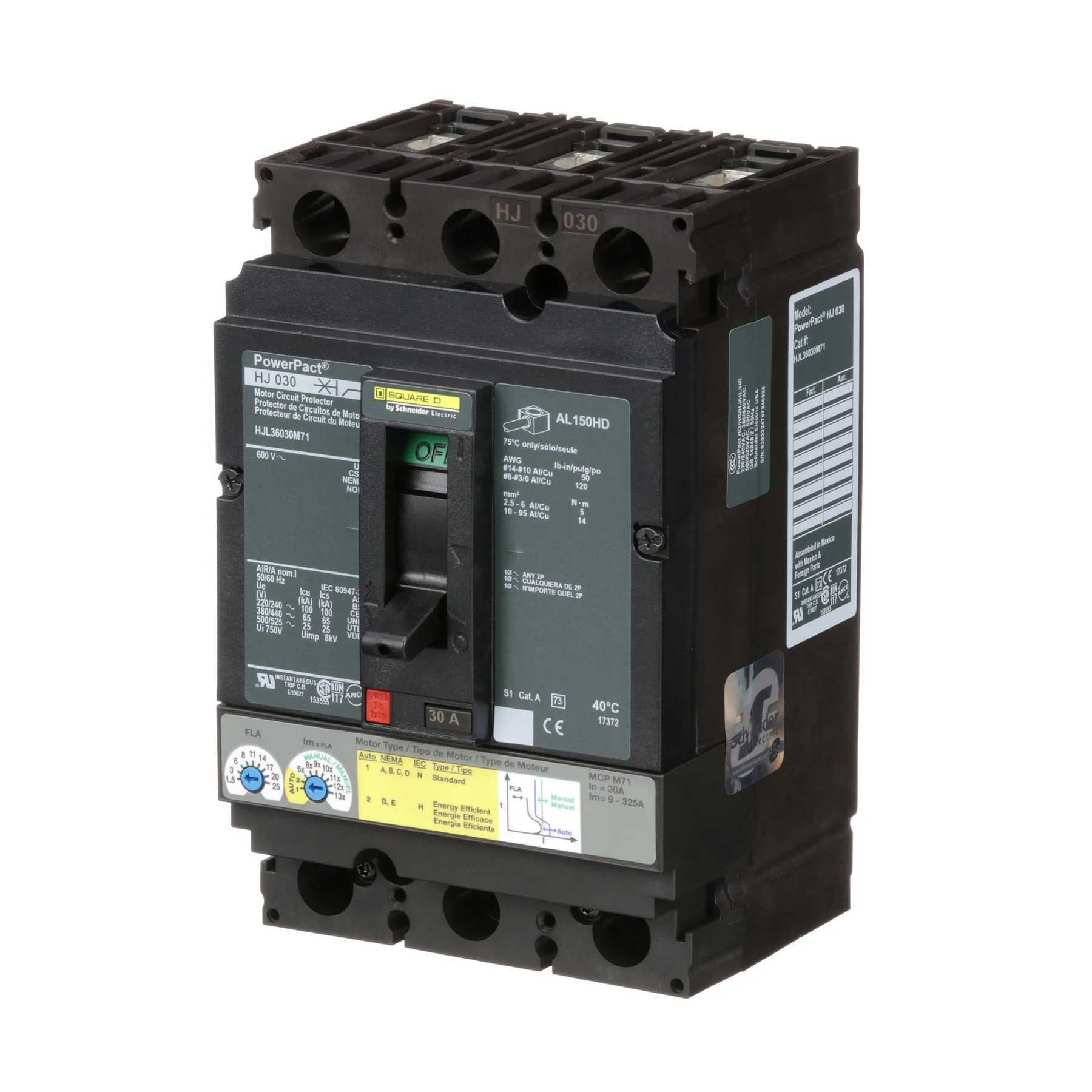

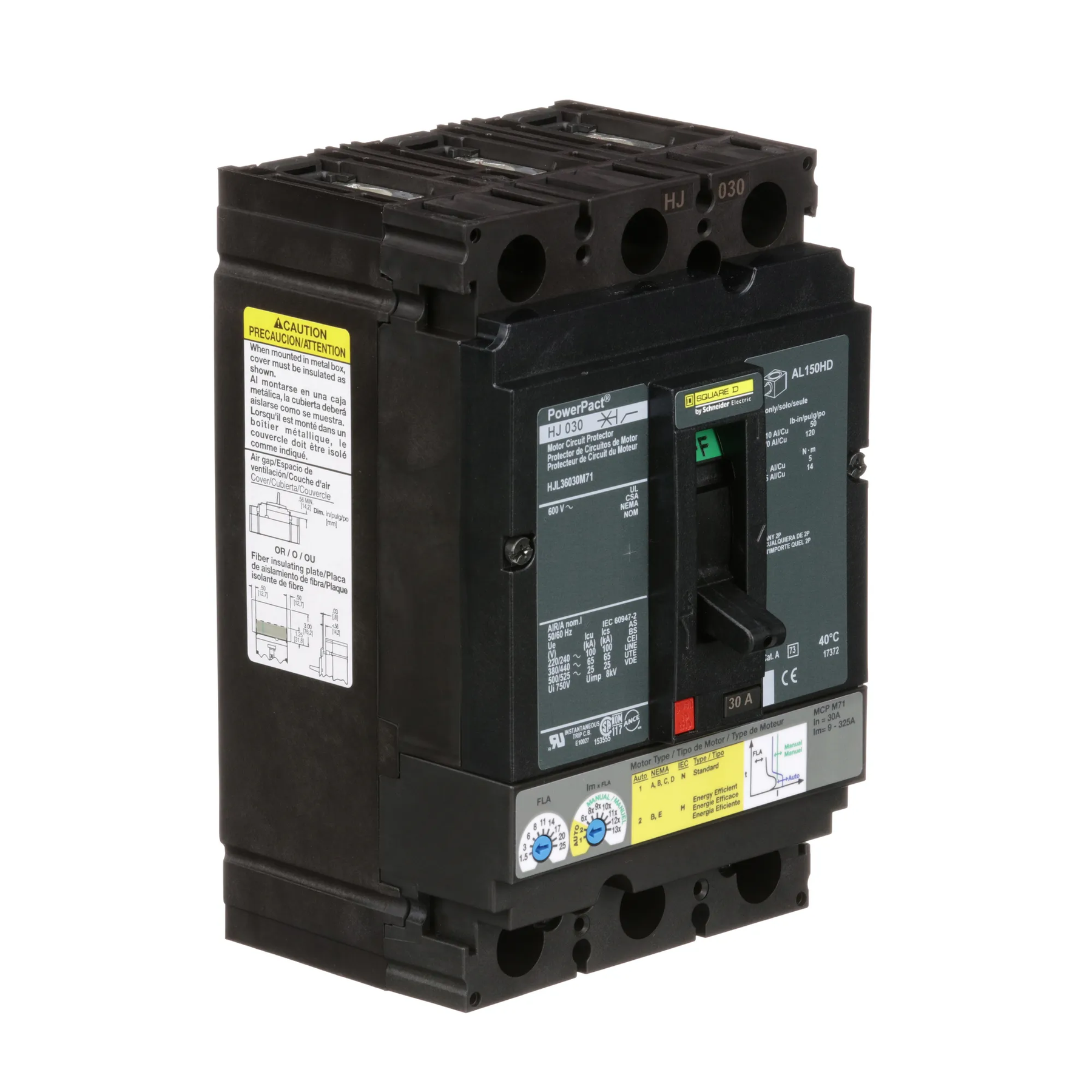

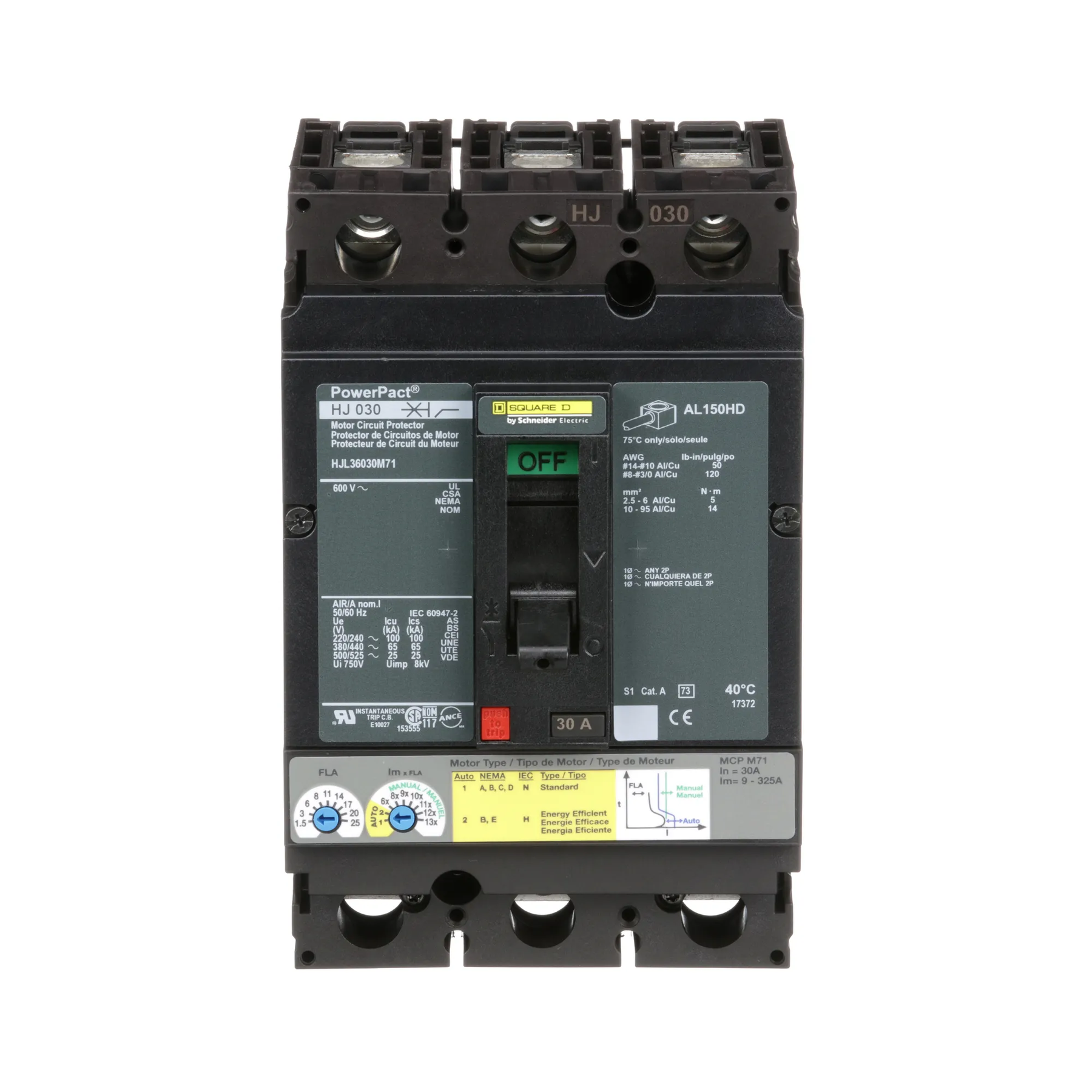

Square D HJL36030M71 is a molded case circuit breaker designed for motor circuit protection in industrial applications. It provides magnetic-only instantaneous protection with a 30A current rating and a 600V voltage rating, housed in a compact J-frame measuring 163 mm x 104 mm x 86 mm. The breaker features a 3-pole, feed-thru configuration with lug terminals compatible with wire sizes from 14 AWG to 3/0 AWG for copper or aluminum conductors. It complies with UL, CSA, NEMA, NOM, and IEC 60947-2 standards and is rated for an interrupting capacity of 65kA at 480V AC. This unit is typically applied in three-phase systems within an operating temperature range of -2 to 70 °C for protecting motors and associated equipment.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Motor Circuit Protector (MCP) with magnetic-only instantaneous trip (I)
  • Voltage Rating: 600V AC
  • Current Rating: 30A

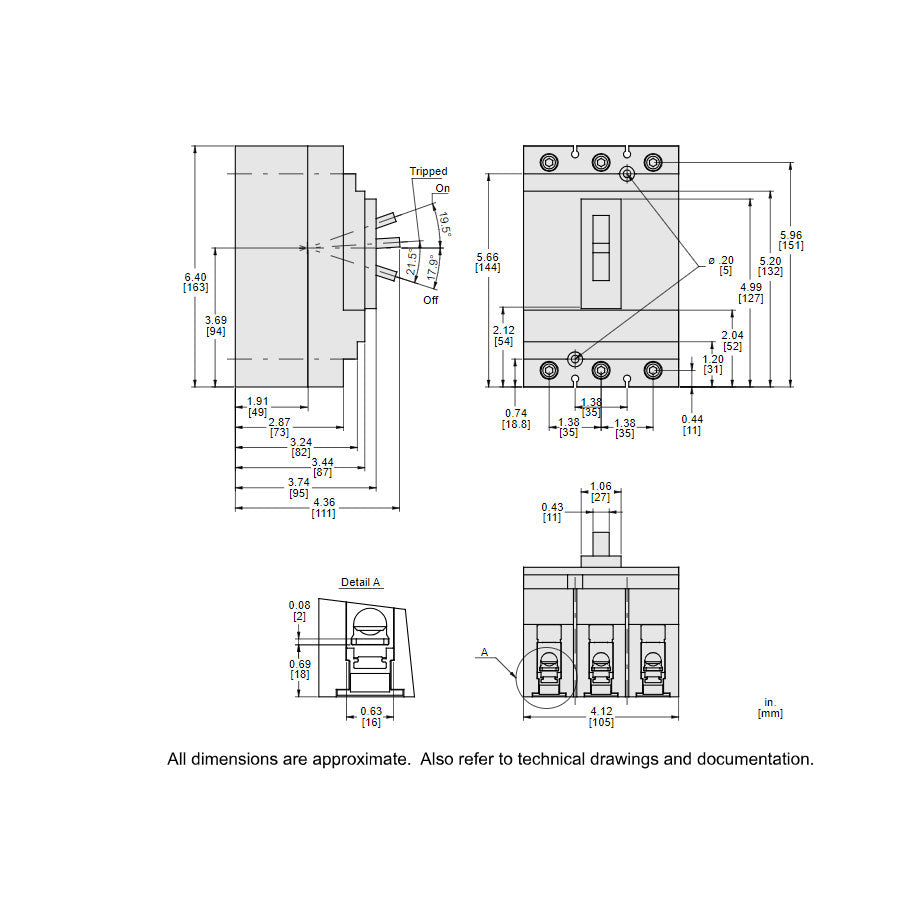

  • Dimensions: 6.4 in H (163 mm) x 4.09 in W (104 mm) x 3.4 in D (86 mm)
  • Weight: 4.299 lb
  • Standards: UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Applications: Industrial motor circuit protection in three-phase systems
  • Phase: 3
  • Poles: 3
  • AIC Rating: 65kA @ 480V AC
  • Connection: Feed-Thru
  • Terminal Connection: Lug
  • Protection: Magnetic Only
  • Functions: Instantaneous (I)
  • Frame Size: J
  • Breaker Type: Motor Circuit Protector
  • Temp Rating: -2 to 70 °C (28 to 158 °F)
  • Wire Size: 14 AWG to 3/0 AWG (Copper or Aluminum)
  • Certification: UL, CSA, NOM
  • Family: Powerpact
  • Country of Origin: Mexico


Product Identification
  • UPC: 078590149294
  • GTIN: 00785901492948
